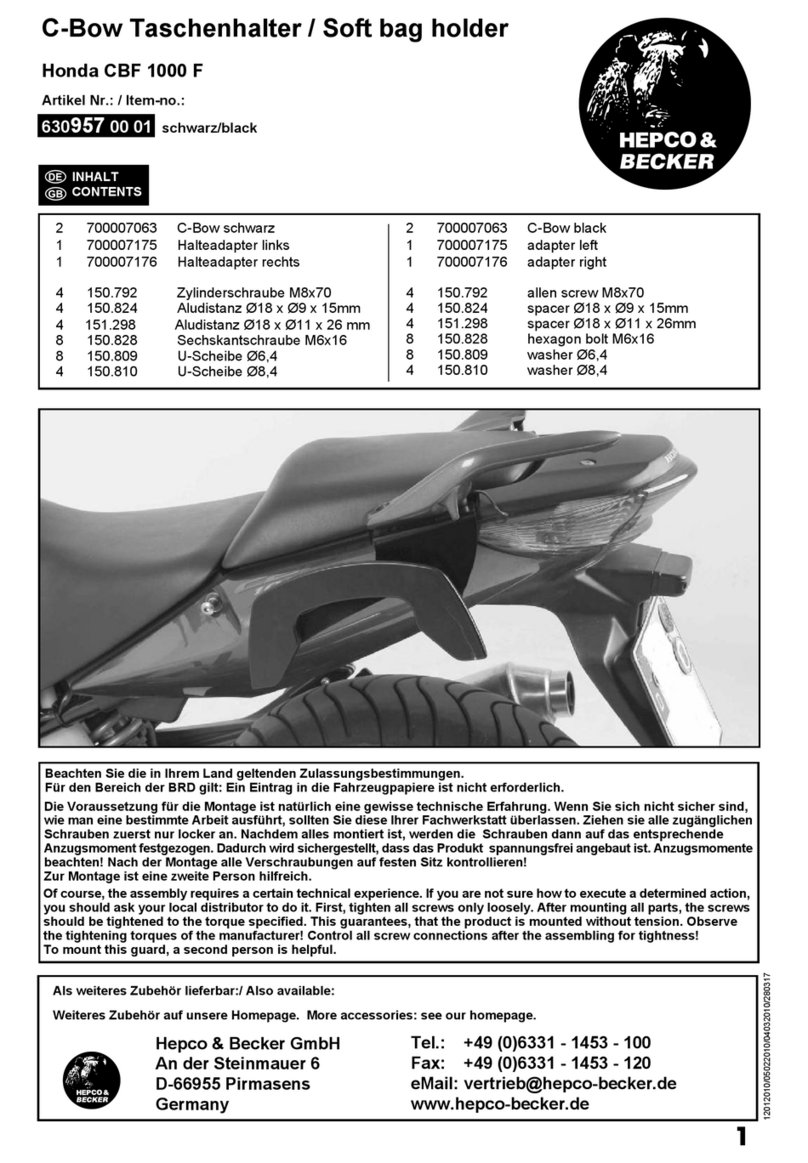

hepco & becker 630957 00 01 User manual

hepco & becker

hepco & becker 630957 00 01 User manual

hepco & becker LOCK-IT 506002-5 User manual

hepco & becker

hepco & becker LOCK-IT 506002-5 User manual

hepco & becker 501976 00 01 User manual

hepco & becker

hepco & becker 501976 00 01 User manual

hepco & becker Lock it 6503521 00 01 User manual

hepco & becker

hepco & becker Lock it 6503521 00 01 User manual

hepco & becker 6549523 01 02 User manual

hepco & becker

hepco & becker 6549523 01 02 User manual

hepco & becker 630984 00 01 Installation guide

hepco & becker

hepco & becker 630984 00 01 Installation guide

hepco & becker 5014536 00 05 User manual

hepco & becker

hepco & becker 5014536 00 05 User manual

hepco & becker 7007581 00 01 User manual

hepco & becker

hepco & becker 7007581 00 01 User manual

hepco & becker 5016501 00 01 User manual

hepco & becker

hepco & becker 5016501 00 01 User manual

Popular Motorcycle Accessories manuals by other brands

SRC B-TRK502-01-01-SL quick start guide

SRC

SRC B-TRK502-01-01-SL quick start guide

HOMCOM AA0-077 user manual

HOMCOM

HOMCOM AA0-077 user manual

Wunderkind Custom 106503-F15 Installation and safety

Wunderkind Custom

Wunderkind Custom 106503-F15 Installation and safety

Dräger HPS 3500 Instructions for use

Dräger

Dräger HPS 3500 Instructions for use

M-WAVE SKI manual

M-WAVE

M-WAVE SKI manual

Kuryakyn 6212 installation instructions

Kuryakyn

Kuryakyn 6212 installation instructions

Tool it PROMAX LCD 9.13G manual

Tool it

Tool it PROMAX LCD 9.13G manual

Custom Dynamics TruWrapz installation instructions

Custom Dynamics

Custom Dynamics TruWrapz installation instructions

Roof RO200 CARBON How to use and maintain

Roof

Roof RO200 CARBON How to use and maintain

Kabuto Japan IBUKI instruction manual

Kabuto

Kabuto Japan IBUKI instruction manual

PUIG 5051 Mounting instructions

PUIG

PUIG 5051 Mounting instructions

rizoma ZTH050 user manual

rizoma

rizoma ZTH050 user manual

Joubert 10001711 instruction manual

Joubert

Joubert 10001711 instruction manual

SW-Motech SBL.01.971.10000/B Mounting instructions

SW-Motech

SW-Motech SBL.01.971.10000/B Mounting instructions

GÜDE GSH 180-TC-2 Translation of the original instructions

GÜDE

GÜDE GSH 180-TC-2 Translation of the original instructions

Cyclevision EDGE CVHC-01-01 instruction manual

Cyclevision

Cyclevision EDGE CVHC-01-01 instruction manual

Sena MOMENTUM EVO user guide

Sena

Sena MOMENTUM EVO user guide

Yoshimura 070BG131001 quick start guide

Yoshimura

Yoshimura 070BG131001 quick start guide

https://manuals.online logo
https://manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2026 Manuals.Online. All Rights Reserved.

1x 700009689 Schraubensatz:
2x Senkschraube M6x35
2x Senkschraube M6x30
4x Zylinderschraube Innensechskant M6x16
4x Zylinderschraube Innensechskant M6x12
2x Viereck-Scheibe 20x20x ø6,4
2x U- Scheibe Ø6,4
2x Aludistanz Ø20xØ11x20mm
2x Aludistanz Ø20xØ11x15mm
1x 700009689 Schraubensatz:
2x countersunk screw M6x35
2x countersunk screw M6x30
4x allen screw M6x16
4x allen screw M6x12
2x special washer 20x20x ø6,4
2x washer Ø6,4
2x alu spacer Ø20xØ11x20mm
2x alu spacer Ø20xØ11x15mm
Of course, the assembly requires a certain technical experience. If you are not sure how to execute a determined action,
you should ask your local distributor to do it. First, tighten all screws only loosely. After mounting all parts, the screws
should be tightened to the torque specified. This guarantees, that the product is mounted without tension. Observe
the tightening torques of the manufacturer! Control all screw connections after the assembling for tightness!
Die Voraussetzung für die Montage ist natürlich eine gewisse technische Erfahrung. Wenn Sie sich nicht sicher sind,
wie man eine bestimmte Arbeit ausführt, sollten Sie diese Ihrer Fachwerkstatt überlassen. Ziehen sie alle zugänglichen
Schrauben zuerst nur locker an. Nachdem alles montiert ist, werden die Schrauben dann auf das entsprechende
Anzugsmoment festgezogen. Dadurch wird sichergestellt, dass das Produkt spannungsfrei angebaut ist. Anzugsmomente
beachten! Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren!
WICHTIG
IMPORTANT
110517
1
1x 700009688 Gepäckplatte
1x 700009688 Rack adapter
Easyrack
Alurack
Bei Bestellung eines Aluracks zusätzlich:
1 799.901HB Alu-Rack
1 799.902HB TC-Bügel für Alu-Rack
1 799.903HB Abdeckplatte für Rack
Bei Bestellung eines Easyracks zusätzlich:
1 700008650 Easyrack
1 700008647 Abdeckblende links
1 700008648 Abdeckblende rechts
When ordering a Alurack:
1 799.901HB alu-rack
1 799.902HB bow for Alu-rack
1 799.903HB plastic cover for rack
When ordering a Easyrack:
1 700008650 Easyrack
1 700008647 plastic cover left
1 700008648 plastic cover right
KAWASAKI J125 / J300
ab Baujahr 2014 / from date of manufacture 2014
Easyrack
Artikel Nr.: / Item-no.:
6622520 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
6552520 01 01 schwarz/black
INHALT
CONTENTS
Preparing of the Alurack:
Fix the bow to the rack with allen screws M6 x 12.
NOTICE:
The bow is needed in use with a Hepco & Becker topcase only .
Vorbereitung des Aluracks:
Den beiliegenden TC-Bügel mit den Zylinderkopf-
schrauben M6 x 12 hinten unter dem Alurack
verschrauben.
HINWEIS:
Der TC-Bügel ist nur bei Anbringung eines Hepco & Becker
Topcases erforderlich.
2
VORBEREITUNG
PREPARING
4x
Größe/Size 5
Die Abdeckung der Originalbrücke demontieren und von
der Rückseite mit einem Stufenbohrer die 4 vormarkierten
Punkte auf ø23mm aufbohren.
Anschließend die Abdeckung wieder montieren.
Disassemble the cover of the original rack and drill the
4 pre-marked points on the rear with a step drill to ø23mm.
After that, mount the cover again.
KAWASAKI J125 / J300
ab Baujahr 2014 / from date of manufacture 2014
Easyrack
Artikel Nr.: / Item-no.:
6622520 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
6552520 01 01 schwarz/black
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
3
MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS
1
Fahrtrichtung
driving direction
Montage der Gepäckplatte:
Auf der Abdeckung der original
Gepäckbrücke.
VORNE die Aludistanz
Ø20xØ11x20mm und
HINTEN die Aludistanz
Ø20xØ11x15mm in die gebohrten
Aussparungen stellen.
Gepäckplatte auflegen und
VORNE mit den Senkschrauben
M6x35 und
HINTEN mit den Senkschrauben
M6x30 verschrauben.
2x
2x
2x
2x
HINWEIS: an den zusätzlichen freien
Bohrungen der Gepäckplatte (ohne
montiertes Easy- oder Alurack) kann
unsere Sportrack Hecktasche (Artikel-Nr.
640806) mit dem Hecktaschenhalter (im
Lieferumfang) befestigt werden.
NOTE: The Sportrack rear bag (item no.
640806) can be attached to the extra free
holes of the rack adapter (without
mounted Easy- or Alurack) with the
included lock it rear bag holder.
KAWASAKI J125 / J300
ab Baujahr 2014 / from date of manufacture 2014
Easyrack
Artikel Nr.: / Item-no.:
6622520 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
6552520 01 01 schwarz/black
Fastening of the rack adapter:
at the cover of the original rack.
FRONT put alu spacer
Ø20xØ11x20mm and
REAR put alu spacer
Ø20xØ11x15mm into the borings.
Position the rack adapter and fix it
FRONT with countersunk
screws M6x35 and
REAR with countersunk
screws M6x30.
4
Hepco & Becker GmbH
An der Steinmauer 6
D-66955 Pirmasens
Germany
Tel.: +49 (0)6331 - 1453 - 100
Fax: +49 (0)6331 - 1453 - 120
eMail: [email protected]
www.hepco-becker.de
ACHTUNG
CAUTION
Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren ! Abgebaute Teile
wieder montieren. Bitte beachten Sie unsere beigefügten Serviceinformationen.
Control all screw connections after the assembling for tightness! Reassemble the
dismanteled parts. Please notice our enclosed service information.
MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS
Alurack:
Easyrack:
4
Fastening of the Alurack/Easyracks:
On the rack adapter in the outer free threads.
Rear use allen screws M6 x 16 and special
washer 20x20xø6,4.
Front use allen screws M6 x 16 and washers
ø6,4. Mount the plastic cover.
Montage des Aluracks/Easyracks:
Auf der Gepäckplatte in den äußeren freien
Gewindebohrungen.
Hinten mit den Zylinderschrauben M6x16
sowie den Viereck-Scheiben 20x20x ø6,4.
Vorne mit den Zylinderschrauben M6x16
sowie U- Scheiben ø6,4.
Anschließend die Kunststoffabdeckung des
Aluracks montieren.
4x 2x
2x
KAWASAKI J125 / J300
ab Baujahr 2014 / from date of manufacture 2014
Easyrack
Artikel Nr.: / Item-no.:
6622520 01 01 schwarz/black
Alurack
Artikel Nr.: / Item-no.:
6552520 01 01 schwarz/black
