1
USER INSTRUCTIONS
NRS 3 WHEEL ROLLATOR RANGE
M85577 Blue with basket/tray M79826 Blue with basket/tray (2 pack)
M99126 Blue with no basket/tray (2 pack) M91139 Red with basket/tray
M91127 Red with basket/tray (2 pack)
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in
a safe place for future reference.
Maximum User Weight
20st
127kg
1. INTENDED USE
The NRS 3 Wheel Rollator comes complete with Bag, Basket and tray and is designed to provide support
and assistance to those unable to, or who lack the confidence to, walk without some level of support. This
rollator is intended for indoor and outdoor use.
2. SAFETY
Warning: The maximum user weight must not be
more than 127Kg (20st).
Ensure Rollator is locked open before use.
Check the brakes before use.
Only use the rollator as a walking support.
Do not use the rollator on stairs or an escalator.
Exercise caution when there is a heavy load in the
bag (max. 5Kg) or basket /tray (max. 5Kg).
Loads should only be transported using the bag or
basket/tray (where fitted). Do not hang heavy items
from the handles as this may affect the stability of
the Rollator.
Do not use the rollator to walk backwards.
Caution must be taken when negotiating curbs and
other obstacles, or when using on sloping, uneven
or slippery surfaces. Failure to do so may result in a
serious risk of a fall or injury.
Do not perform any adjustments to the rollator while
it is in use.
Wheels must be in contact with floor at all times.
When using the rollator in a stationary position, the
brakes must be locked.
3. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
3.1 Contents:
1. Rollator Frame with braked handles x 1
2. Basket with lid/tray x 1
3. Bag x 1
4. Hand wheels with: bolts/plastic washers x 2
5. Basket Hook Locators x 2
6. User Instructions x 1
4. ASSEMBLY/INSTALLATION
Note: Before assembly consult a suitably qualified
healthcare professional regarding the correct height
adjustment for maximum support; and correct brake
activation.
1. Open the Rollator into operating position (see
overleaf).
2. Fit the Basket Hook Locators onto the handlebar
tubes as shown in Diagram 1 on the next page.
3. Insert the Handlebars into the framing tubes and
set to the correct height as follows;
• Stand upright behind the rollator with your
shoulders relaxed and your arms by your side,
looking straight ahead.

2
• In this position, the handgrips of the rollator should
be adjusted to a height level with your wrists.
Diagram 1:
• This will position your arms at an approximate
20º to 30º bend when using the rollator.
• Check that the holes in the handle bars and the
frame are aligned.
• Place the supplied bolt through the aligned holes
in the handlebar and frame. The holes in the
frame are hexagonal in shape to accommodate
the head of the bolt.
• Place the washer over the bolt and then apply
the hand nut. Hand-tighten firmly, but do not over
tighten.
4. Check the brakes thoroughly before use.
Note: The brakes are factory set, and if assembled
correctly do not need adjusting. To check; Apply and
release the parking brake on each side 10 times
(see diagram 5b).
The brake should grip the wheel and prevent any
movement when applied, when released, the
gap between the brake and the wheel should be
between 1 to 3 mm. If either of the above conditions
is not correct adjust the brakes as detailed in the
maintenance section, and re-check.
5. Fit the bag to the frame as shown in the photograph
on page 1 using the poppers to fasten.
6. Fit the basket by fitting the hooks on the basket
into the hook locators as shown in diagrams 2 &
3.
Diagram 2:
Diagram 3:
5. IN USE
5.1 Opening:
Fold out the Rollator and push down the cross bar
fully. (See Diagram 4a).
Note: It is very important that the crossbar is pushed
fully down to prevent the Rollator folding during use.
Fit basket/tray in correct position (if provided).
5.2 Folding:
Remove basket (if present) and pull up the cross
bar. (See Diagram 4b) The Rollator will then close
inwards for storage. Take care to keep fingers out
of frame when folding. The bag should be empty
before folding.
5.3 Walking:
This unit is to be used as a mobility aid, creating
a natural gait as the user walks securely with their
primary weight distribution between the handlebars
and with the unit in front of the user.

3
5.4 Braking:
The locking brakes are intended to assist the user
to control the Rollator. To apply the brakes when
in motion, pull up both of the loop handles. (See
diagram 5a).
To apply the parking brakes, push down the handles
until they lock down. A distinct click indicates that
the brake is in the correct position. (See Diagram
5b) It is important that both the brakes are put in the
parking position when they are to be used. Lift up the
handle to release.
If you apply the parking brakes, or pull up the brakes
to stop whilst moving, and the rear wheels on the
rollator still move, stop use immediately. Do not
use again until the brakes have been checked and
correctly adjusted. Refer to the maintenance section.
6. MAINTENANCE
• Regularly check for wear and tear and that all
screws and knobs are securely fastened.
• Check brakes are working satisfactorily by both
walking and squeezing the brakes and by braking
to a stop.
• Check the parking brakes by pushing the handles
into the locked position, and then trying to push
the rollator.
• If the brakes do not completely lock the wheels
the brakes need to be adjusted, as detailed below.
6.1 Brake Adjustment:
• The brake adjusters are situated in front of the
brake handles, as shown in diagram 6. To adjust,
loosen the lock nut, turn the adjuster anticlockwise
to tighten the brake then retighten the lock nut.
• For correct adjustment the brake mechanism
should not touch the wheel, but the gap should
be no greater than 3mm.
• Caution: After making any adjustments to the
brakes, you must test them before the rollator is
used.
• If adjustment does not tighten the brakes, do
not use the rollator. Contact your dealer or NRS
Customer services, details below.
7. CLEANING INSTRUCTIONS.
Clean regularly, wipe down with a soft, non abrasive
cloth.
Ensure there is no build up of dirt or debris around
the axle, brakes and wheels.

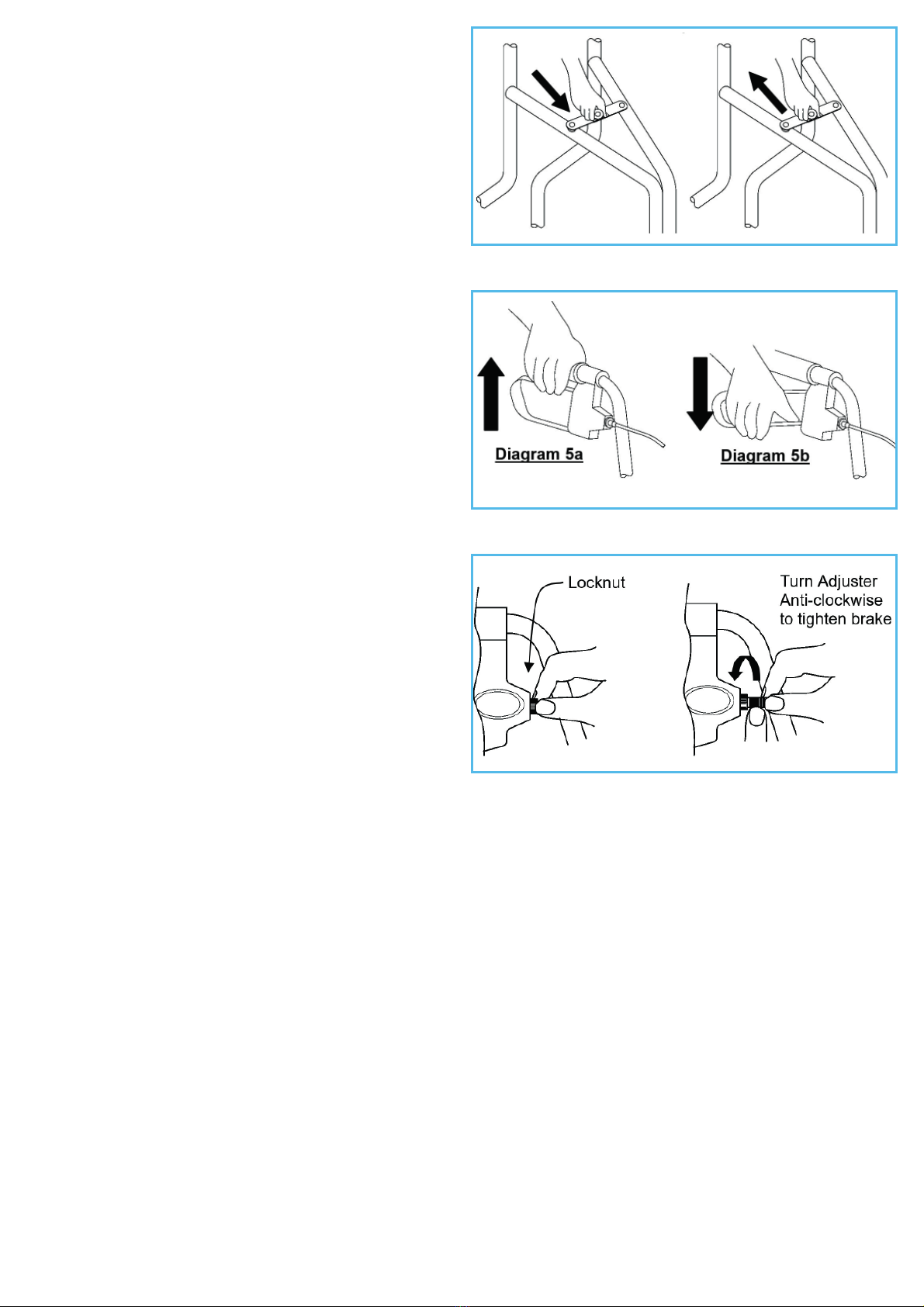

Diagram 4a Diagram 4b
Diagram 5a Diagram 5b
Diagram 6: Brake Adjustment
8. PRODUCT GUARANTEE
NRS Healthcare guarantee this product for a period
of 12 months, from the date of purchase, against
faulty materials and workmanship.
This guarantee does not cover; fair wear & tear,
abuse, misuse, interference or tampering with any
part of the product.
Any guarantee issued by NRS Healthcare does not
affect your statutory rights.
If you have any problems with our products, please
contact us at the address below.
If you have experienced an injury, contact us but feel
free to contact the Medical and Healthcare products
Regulatory Agency at:
[email protected].uk

4
NRS HEALTHCARE Sherwood House,
Cartwright Way, Forest Business Park, Bardon
Hill, Coalville, Leicestershire, LE67 1UB, UK.
NRS HEALTHCARE 4C Altona Road, Blaris
Industrial Estate, Lisburn, Co Antrim,
Northern Ireland BT27 5QB
Tel: Customer Services: 0345 121 8111 Email: [email protected]
