English 1
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a
prerequisite for safe, trouble-free handling and use of the product.
• Observe the safety instructions and warnings in this documentation and
on the product.
• Always keep the operating instructions with the product and make sure
that the operating instructions are with the product when it is given to
other persons.
1.2 Explanation of symbols used
1.2.1 Warnings
Warnings alert persons to hazards that may occur when handling or using the
product. The following signal words are used in combination with a symbol:
DANGER! Draws attention to an imminent hazard that will lead to
serious personal injury or fatality.
WARNING! Draws attention to a potential hazard that could lead to
serious personal injury or fatality.
CAUTION! Draws attention to a potentially dangerous situation that
could lead to minor personal injury or material damage.
1.2.2 Symbols in the documentation
The following symbols are used in this document:
Read the operating instructions before use
Instructions for use and other useful information
1.2.3 Symbols in the illustrations
The following symbols are used in illustrations:
These numbers refer to the corresponding illustrations found at the
beginning of these operating instructions.
The numbering reflects the sequence of operations shown in the
illustrations and may deviate from the steps described in the text.

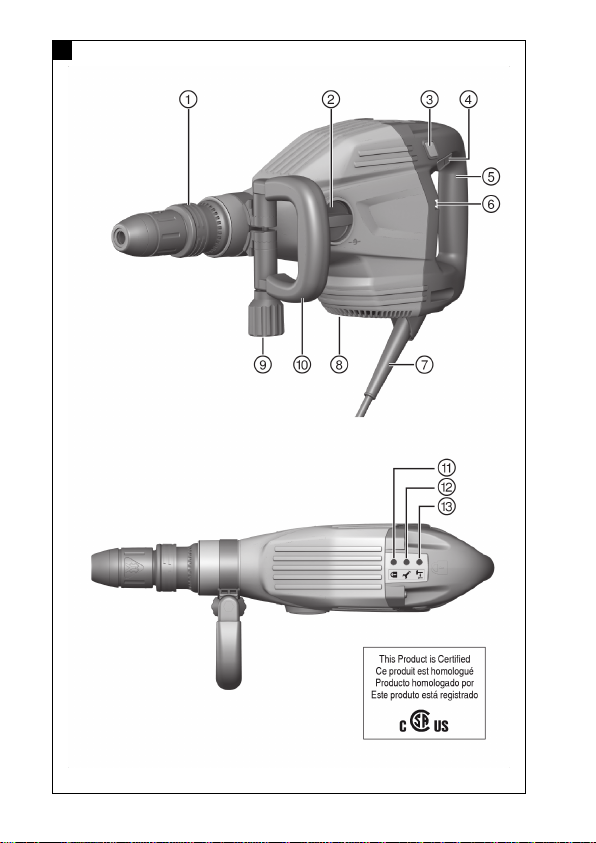

Item reference numbers are used in the overview illustration and
refer to the numbers used in the key in the product overview sec-
tion.
This symbol is intended to draw special attention to certain points
when handling the product.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

2 English
1.3 Symbols on the product
1.3.1 Symbols on the product
The following symbols are used on the product:
Chiseling
Chisel positioning
Protection class II (double-insulated)
Wear protective gloves
1.4 Product information
Hilti products are designed for professional use and may be operated, ser-
viced and maintained only by trained, authorized personnel. This personnel
must be informed of any particular hazards that may be encountered. The
product and its ancillary equipment can present hazards if used incorrectly
by untrained personnel or if used not in accordance with the intended use.
The type designation and serial number are stated on the rating plate.
▶Write down the serial number in the table below. You will be required to
state the product details when contacting Hilti Service or your local Hilti
organization to inquire about the product.
Product information
Breaker TE 700AVR
Generation 01
Serial no.
2 Safety
2.1 General power tool safety warnings
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
Work area safety
▶Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
▶Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
▶Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

English 3
Electrical safety
▶Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will reduce risk of electric
shock.
▶Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
▶Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
▶Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
▶When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk
of electric shock.
▶If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
Personal safety
▶Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious personal
injury.
▶Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
▶Prevent unintentional starting. Ensure the switch is in the off‐position
before connecting to power source and/or battery pack, picking up
or carrying the tool. Carrying power tools with your finger on the switch
or energising power tools that have the switch on invites accidents.
▶Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.
▶Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
▶Dress properly. Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

4 English
▶If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
Power tool use and care
▶Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
▶Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.
▶Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
▶Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the hands of
untrained users.
▶Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power
tools.
▶Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
▶Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and
the work to be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
Service
▶Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
2.2 Hammer safety warnings
▶Wear ear protectors. Exposure to noise can cause hearing loss.
▶Use auxiliary handles, if supplied with the tool. Loss of control can
cause personal injury.
▶Hold power tool by insulated gripping surfaces, when performing an
operation where the cutting accessory may contact hidden wiring
or its own cord. Cutting accessory contacting a "live" wire may make
exposed metal parts of the power tool "live" and could give the operator
an electric shock.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

English 5
2.3 Additional safety instructions for breakers
Personal safety
▶Use the product only when it is in technically faultless condition.
▶Never tamper with or modify the tool in any way.
▶Use the auxiliary grip supplied with the tool. Loss of control can cause
personal injury.
▶Apply appropriate safety measures at the opposite side of the workpiece
in work that involves breaking through. Parts breaking away could fall out
and / or fall down causing injury to other persons.
▶Always hold the power tool with both hands on the grips provided. Keep
the grips clean and dry.
▶Hold the power tool by the insulated gripping surfaces when performing
work in which the accessory tool might come into contact with concealed
wiring. If the accessory tool comes into contact with a live wire, metal
parts of the power tool can also become live, resulting in an electric
shock.
▶Wear suitable protective glasses, a hard hat, ear protection, protective
gloves and light respiratory protection while using the tool.
▶Wear protective gloves also when changing the accessory tool. Touching
the accessory tool presents a risk of injury (cuts or burns).
▶Wear eye protection. Flying fragments present a risk of injury to the body
and eyes.
▶Before starting work, check the hazard class of the dust that will be pro-
duced when working. Use an industrial vacuum cleaner with an officially
approved protection class in compliance with the locally applicable dust
protection regulations. Dust from materials such as lead-based paint,
certain types of wood and concrete/masonry/stone containing quartz,
minerals or metal can be harmful to health.
▶Make sure that the workplace is well ventilated and, where necessary,
wear a respirator appropriate for the type of dust generated. Contact with
or inhalation of the dust may cause allergic reactions and/or respiratory
or other diseases to the operator or bystanders. Certain kinds of dust
are classified as carcinogenic such as oak and beech dust, especially
in conjunction with additives for wood conditioning (chromate, wood
preservative). Material containing asbestos may be handled only by
specialists.
▶Take breaks between working and do physical exercises to improve the
blood circulation in your fingers. Exposure to vibration during long periods
of work can lead to disorders of the blood vessels and nervous system in
the fingers, hands and wrists.
Electrical safety
▶Before beginning work, check the working area for concealed electric
cables or gas and water pipes. External metal parts of the power tool may
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

6 English
become live, presenting a risk of electric shock, if you damage an electric
cable accidentally.
Careful handling and use of electric tools
▶Wait until the power tool stops completely before you lay it down.
3 Description
3.1 Overview of the product 1
@Chuck
;Function selector switch
=Power level selection switch
%On/off switch
&Grip
(Indicators
)Supply cord
+Air vents
§Knob
/Side handle
:Theft protection indicator (op-
tional)
∙Service indicator
$Power level indicator
3.2 Intended use
The product described is an electrically powered breaker for medium-duty
chiseling work. It is designed for removing and breaking up concrete,
masonry and stone.
▶Operation is permissible only when connected to a power source providing
a voltage and frequency in compliance with the information given on the
type identification plate.
3.3 Active Vibration Reduction (AVR)
The breaker is equipped with an Active Vibration Reduction (AVR) system,
which reduces vibration significantly.
3.4 Service indicator
The breaker is equipped with a service indicator LED.
Status Meaning
The service indicator lights red. • End of service interval – servicing
is due.
• A fault has occurred in the tool.
The service indicator blinks red. • The overheating prevention cut-
out has been activated.
• The voltage provided by the
electric supply is too high.
Note
Bring the product to Hilti Service in good time. This will help to ensure
that it’s always ready for use.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

English 7
3.5 Power level indicator
The breaker is equipped with a power level indicator LED.
Chiseling power can be reduced to approx. 70% by pressing the power
level selector switch. The power level LED then lights up, indicating reduced
power.
3.6 Restart interlock
The tool doesn’t restart automatically when the power returns after an
interruption in the supply. The on/off switch must first be released and then
pressed again to restart.
3.7 Items supplied
Breaker, side handle, operating instructions.
Note
You can find other system products approved for your product at your
local Hilti Center or online at: www.hilti.com
4 Technical data
4.1 Breaker
Note
For details of the rated voltage, frequency, current and input power,
please refer to the power tool’s country-specific type identification plate.
When powered by a generator or transformer, the generator or transformer’s
power output must be at least twice the rated input power shown on the rating
plate of the power tool. The operating voltage of the transformer or generator
must always be within +5% and -15% of the rated voltage of the power tool.
Single impact energy 11.5 J
Weight 17.4 lb
(7.9 kg)
5 Operation
5.1 Preparations at the workplace
CAUTION
Risk of injury! Inadvertent starting of the product.
▶Unplug the supply cord before making adjustments to the power tool
or before changing accessories.
Observe the safety instructions and warnings in this documentation and on
the product.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

8 English
5.2 Fitting the side handle 2
CAUTION
Risk of injury! Loss of control over the breaker.
▶Check that the side handle is fitted correctly and tightened securely.
1. Slide the side handle clamping band over the chuck from the front and
into the recess provided.
2. Bring the side handle into the desired position.
3. Secure the side handle by turning the knob until the clamping band is
tight.
5.3 Fitting the accessory tool 3
WARNING
Risk of injury! The accessory tool gets hot during use and may also
have sharp edges.
▶Wear protective gloves when changing the tool.
DANGER
Risk of fire! Risk of contact between the hot accessory tool and highly
inflammable materials.
▶Do not lay the hot accessory tool down on highly inflammable
materials.
Note
Check the accessory tool for damage or uneven wear each time before
use and replace it if necessary.
Note
Use only the recommended grease supplied by Hilti. Use of unsuitable
grease may cause damage to the product.
1. Apply a little grease to the connection end of the accessory tool.
2. Push the accessory tool into the chuck as far as it will go, turning it and
applying light pressure until it engages with an audible click.
◁The product is ready for use.
Note
Use only the recommended grease supplied by Hilti. Use of unsuit-
able grease may cause damage to the product.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

English 9
5.4 Removing the accessory tool 4
DANGER
Risk of fire! Risk of contact between the hot accessory tool and highly
inflammable materials.
▶Do not lay the hot accessory tool down on highly inflammable
materials.
WARNING
Risk of injury! The tool becomes hot as a result of use.
▶Wear protective gloves when changing the tool.
1. Pull the chuck back.
2. Remove the accessory tool.
Note
Use only the recommended grease supplied by Hilti. Use of unsuit-
able grease may cause damage to the product.
5.5 Positioning the chisel 5
Note
The chisel can be adjusted to 24 different positions (in 15° increments).
This ensures that flat chisels and shaped chisels can always be set to
the optimum working position.
▶Set the function selector switch to and position the chisel as desired.
5.6 Locking the chisel
▶Set the function selector switch to and rotate the chisel until it engages.
5.7 Setting the chiseling power
Note
Chiseling power can be reduced to approx. 70% by pressing the power
level selector switch. The power level LED then lights up, indicating
reduced power.
Chiseling power can be adjusted only when the power tool is switched
on and ready for use. To reselect full chiseling power, press the chiseling
power level selector switch again. Switching off and then on again also
causes the power tool to return to full chiseling power.
▶Press the power level selector switch.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

10 English
6 Types of work
WARNING
Risk of electric shock! Severe injury and burns can result if any
attempt is made to operate the tool without an earth/ground conductor
and ground fault circuit interrupter correctly connected.
▶Irrespective of whether mains power or generator power is used,
always make sure that an earth/ground conductor and ground fault
circuit interrupter are present in the power supply and that these are
correctly connected.
▶Do not use the product unless these safety measures are in place
and fully operational.
Observe the safety instructions and warnings in this documentation and on
the product.

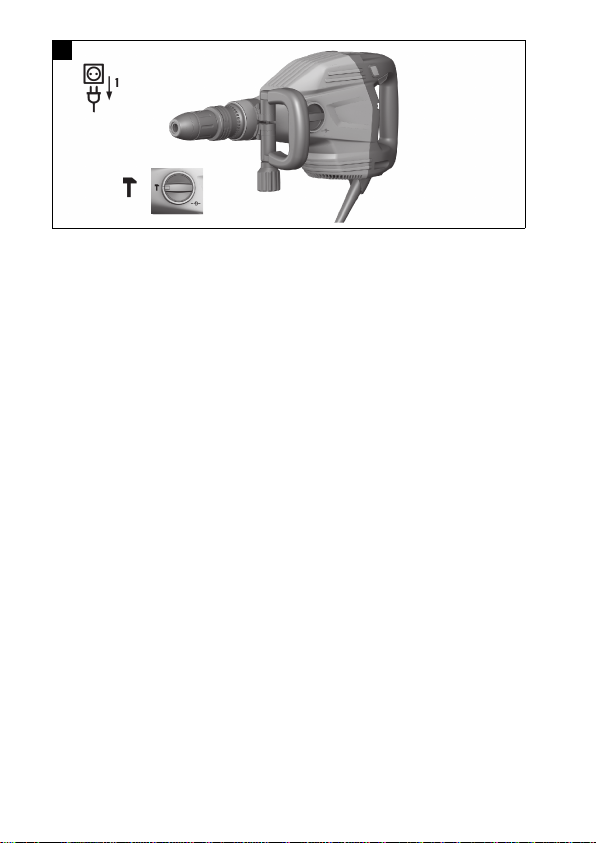

6.1 Chiseling 6
▶Set the function selector switch to the position.
7 Care and maintenance
WARNING
Danger of electric shock! Carrying out care and maintenance while the
supply cord is connected to the power outlet presents a risk of serious
injuries including burns.
▶Always unplug the supply cord before carrying out all care and
maintenance tasks.
Care
• Carefully remove stubborn dirt from the tool.
• Clean the air vents carefully with a dry brush.
• Use only a slightly damp cloth to clean the casing. Do not use cleaning
agents containing silicone as they can attack the plastic parts.
Maintenance
WARNING
Danger of electric shock! Improper repairs to electrical components
may lead to serious injuries including burns.
▶Repairs to the electrical section of the tool or appliance may be
carried out only by trained electrical specialists.
• At regular intervals, check all visible parts and the controls for signs of
damage and make sure that they all function correctly.
• Do not operate the power tool if signs of damage are found or if parts
malfunction. Have damage repaired immediately by Hilti Service.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

English 11
• After cleaning and maintenance, refit all guards or protective devices and
check that they function correctly.
Note
To help ensure safe and reliable operation, use only genuine Hilti spare
parts and consumables. Spare parts, consumables and accessories
approved by Hilti for use with the product can be found at your local
Hilti Center or online at: www.hilti.com
7.1 Cleaning the dust shield
▶Clean the dust shield on the chuck with a dry, clean cloth at regular
intervals.
▶Clean the sealing lip by wiping it carefully and then grease it again lightly
with Hilti grease.
▶It is essential that the dust shield is replaced if the sealing lip is damaged.
8 Transport and storage
• Do not transport electric tools with accessory tools fitted.
• Always unplug the supply cord before storing an electric tool or appliance.
• Store tools and appliances in a dry place where they cannot be accessed
by children or unauthorized persons.
• Check electric tools or appliances for damage after long periods of
transport or storage.
9 Troubleshooting
If the trouble you are experiencing is not listed in this table or you are unable
to remedy the problem by yourself, please contact Hilti Service.
9.1 Troubleshooting
Trouble or fault Possible cause Action to be taken
The breaker doesn’t
start.
Electronics initialization
in progress (takes up to
4 seconds after plugging
in).
▶Switch the power tool
off and then on again.
The electronic restart
interlock is activated
after an interruption in
the electric supply.
▶Switch the power tool
off and then on again.
Interruption in the elec-
tric supply.
▶Plug in another electric
tool or appliance
and check whether it
works.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

12 English
Trouble or fault Possible cause Action to be taken
The breaker doesn’t
start.
The generator is in sleep
mode.
▶Apply a load to
the generator by
connecting a second
power consumer (e.g.
worklight). Switch the
tool off and then on
again.
The tool is faulty or ser-
vicing is due.
▶Have the product
repaired only by Hilti
Service.
No hammering ac-
tion.
The power tool is too
cold.
▶Bring the tip of the
accessory tool into
contact with the
working surface,
switch the power
tool on and allow it
to run. If necessary,
repeat the procedure
until the hammering
mechanism begins to
operate.
Chuck not sufficiently
greased.
▶Inject 1-2 strokes
of grease from the
dispenser into the
chuck. Use genuine
Hilti grease. Then fit
the accessory tool and
distribute the grease
in the chuck by pulling
the accessory tool in
and out several times.
The service indicator
lights red.
The tool is faulty or ser-
vicing is due.
▶Have the product
repaired only by Hilti
Service.
The service indicator
blinks red.
The overheating preven-
tion cut-out has been
activated.
▶Allow the tool to cool
down. Clean the
air vents. Running
under no load is still
possible.
The voltage provided by
the electric supply is too
high.
▶Use a different power
outlet. Check the
electric supply.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

English 13
Trouble or fault Possible cause Action to be taken
The breaker
switches itself off
while running.
The overheating preven-
tion cut-out has been
activated.
▶Allow the tool to cool
down. Clean the
air vents. Running
under no load is still
possible.
The breaker doesn’t
achieve full power.
Power reduction is ac-
tive.
▶Press the power level
selector switch (ob-
serve the power level
indicator). Unplug the
power tool from the
electric supply and
then plug it back in.
The extension cord is
too long or its gauge is
inadequate.
▶Use an extension cord
of an approved length
and / or of adequate
gauge.
The voltage provided by
the electric supply is too
low.
▶Connect the power
tool to a different
power source.
The chisel cannot
be released from the
chuck.
The chuck is not pulled
back fully.
▶Pull the chuck back
as far as it will go and
remove the insert tool.
10 Disposal
Most of the materials from which Hilti tools and appliances are manu-
factured can be recycled. The materials must be correctly separated before
they can be recycled. In many countries, your old tools, machines or appli-
ances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti
representative for further information.
11 Manufacturer’s warranty
▶Please contact your local Hilti representative if you have questions about
the warranty conditions.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05

14 Français
1 Indications relatives à la documentation
1.1 À propos de cette documentation
• Lire intégralement la présente documentation avant la mise en service.
C'est la condition préalablement requise pour assurer la sécurité du travail
et un maniement sans perturbations.
• Bien respecter les consignes de sécurité et les avertissements de la
présente documentation ainsi que celles figurant sur le produit.
• Toujours conserver le mode d'emploi à proximité du produit et uniquement
le transmettre à des tiers avec ce mode d'emploi.
1.2 Explication des symboles
1.2.1 Avertissements
Les avertissements attirent l'attention sur des dangers liés à l'utilisation du
produit. Les termes de signalisation suivants sont utilisés en combinaison
avec un symbole :
DANGER ! Pour un danger imminent qui peut entraîner de graves
blessures corporelles ou la mort.
AVERTISSEMENT ! Pour un danger imminent potentiel qui peut
entraîner de graves blessures corporelles ou la mort.
ATTENTION ! Pour attirer l'attention sur une situation pouvant pré-
senter des dangers entraînant des blessures corporelles légères ou
des dégâts matériels.
1.2.2 Symboles dans la documentation
Les symboles suivants sont utilisés dans la présente documentation :
Lire le mode d'emploi avant d'utiliser l'appareil
Pour des conseils d'utilisation et autres informations utiles
1.2.3 Symboles dans les illustrations
Les symboles suivants sont utilisés dans les illustrations :
Ces chiffres renvoient à l'illustration correspondante au début du
présent mode d'emploi.
La numérotation détermine la séquence des étapes de travail dans
l'image et peut se différencier de celles des étapes de travail dans le
texte.
Les numéros de position sont utilisés dans l'illustration Vue d’en-
semble et renvoient aux numéros des légendes dans la section Vue
d'ensemble du produit.
Ce signe doit inviter à manier le produit en faisant particulièrement
attention.
Printed: 02.02.2017 | Doc-Nr: PUB / 5071172 / 000 / 05
