Hirschmann HiSecOS EAGLE20 User manual

Installation EAGLE20/30
Release 09 10/2015
Technical Support
https://hirschmann-support.belden.eu.com
User Manual
Installation
Industrial Security Router
EAGLE20/30

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2015 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]
EAGLE20/30 039 793-001-09-1015

Installation EAGLE20/30
Release 09 10/2015 3
Contents
Safety instructions 5
About this manual 14
Key 15
1 Description 16
1.1 General device description 16
1.2 Device name and product code 17
1.3 Device views 19
1.3.1 Front view 19
1.3.2 Rear view 20
1.4 Power supply 20
1.4.1 Supply voltage with the characteristic value KK 20
1.4.2 Supply voltage with the characteristic value K9 20
1.4.3 Supply voltage with the characteristic value CC 20
1.5 Ethernet ports 21
1.5.1 10/100 Mbit/s twisted pair port 21
1.5.2 100/1000 Mbit/s F/O port (optional) 21
1.5.3 100/1000 Mbit/s twisted pair port (optional) 21
1.5.4 Pin assignments 22
1.6 WAN port (optional) 23
1.7 Display elements 24
1.7.1 Device state 24
1.7.2 Digital input (optional) 25
1.7.3 Port state 25
1.7.4 Additional status information (optional) 26
1.8 Management interfaces 27
1.8.1 V.24 interface (external management) 27
1.8.2 SD card interface 27
1.8.3 USB interface 28
1.9 Input/output interfaces 29
1.9.1 Signal contact 29
1.9.2 Digital input (optional) 29
2 Installation 30
2.1 Checking the package contents 30
2.2 Installing the SD card (optional) 30
2.3 Installing and grounding the device 31

4Installation EAGLE20/30
Release 09 10/2015
2.3.1 Installing the device onto the DIN rail 31
2.3.2 Grounding the device 32
2.4 Installing an SFP transceiver (optional) 33
2.5 Connecting the terminal blocks 33
2.5.1 Supply voltage with the characteristic value K9 34
2.5.2 Supply voltage with the characteristic value KK 34
2.5.3 Supply voltage with the characteristic value CC 35
2.5.4 Signal contact 36
2.6 Operating the device 37
2.7 Connecting data cables 37
2.7.1 Twisted Pair ports 37
2.7.2 100/1000 Mbit/s F/O port (optional) 38
2.7.3 WAN port (optional) 38
2.8 Filling out the inscription label 38
3 Making basic settings 39
4 Maintenance and service 40
5Disassembly 41
5.1 Removing the device 41
5.2 Removing an SFP transceiver (optional) 42
6 Technical data 43
A Further Support 57

Installation EAGLE20/30
Release 09 10/2015 5
Safety instructions
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning the device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Intended usage
Use the product only for the application cases described in the
Hirschmann product information, including this manual.
Operate the product only according to the technical specifications.
See “Technical data” on page 43.
Connect to the product only components suitable for the requirements
of the specific application case.
Installation site requirements
Install the device in a fire protected enclosure according to
EN 60950-1.
Only for device variants featuring supply voltage with the characteristic
value K9 or KK:
Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.
WARNING
UNCONTROLLED MACHINE ACTIONS
To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.

6Installation EAGLE20/30
Release 09 10/2015
Device casing
Only technicians authorized by the manufacturer are permitted to open
the casing.
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not
touch the connection terminals.
Keep the ventilation slits free to ensure good air circulation.
See “General technical data” on page 43.
Install the device in the vertical position.
At ambient temperatures > 140 °F (60 °C):
The surfaces of the device housing may become hot. Avoid touching
the device while it is operating.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
Grounding the device
Grounding the device is by means of a separate ground connection on the
device.
Ground the device before connecting any other cables.
Disconnect the grounding only after disconnecting all other cables.
Shielding ground
The overall shield of a connected shielded twisted pair cable is connected
to the ground connector on the front panel as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shielding braiding.

Installation EAGLE20/30
Release 09 10/2015 7
Requirements for connecting electrical wires
Before connecting the electrical wires, always verify that the
requirements listed are complied with.
All of the following requirements are complied with:
The electrical wires are voltage-free.
The cables used are permitted for the temperature range of the application case.
Only for device variants featuring supply voltage with the characteristic value CC:
The voltage connected complies with the requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1.
Table 1: General requirements for connecting electrical wires
All of the following requirements are complied with:
The voltage connected complies with the requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1.
The connected voltage is limited by a current limitation device or a fuse.
Observe the electrical threshold values for the signal contact.
See “General technical data” on page 43.
The cross-section of the ground conductor is the same size as or bigger than the cross-
section of the power supply cables.
Table 2: Requirements for connecting the signal contact
Device variant Requirements
All variants All of the following requirements are complied with:
The supply voltage corresponds to the voltage specified on the type
plate of the device.
The power supply conforms to overvoltage category I or II.
The power supply has an easily accessible disconnecting device
(e.g., a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which power supply cable.
The cross-section of the ground conductor is the same size as or
bigger than the cross-section of the power supply cables.
Relevant for North America:
The power cords are suitable for ambient air temperatures of at least
167 °F (75 °C). The power cord wires are made of copper.
Table 3: Requirements for connecting the supply voltage

8Installation EAGLE20/30
Release 09 10/2015
Supply voltage
The supply voltage is connected to the device casing through protective
elements exclusively.
Only for device
variants featuring
supply voltage with
the characteristic
value CC:
The wire diameter of the supply voltage at the input is at least 1 mm²
(North America AWG16).
The following requirements are alternatively complied with:
Alternative 1 Relevant for North America:
The power supply complies with the requirements
as per NEC Class 2
Alternative 2 All of the following requirements are complied with:
The powersupply complies with the
requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1.
A fuse suitable for DC voltage is located in the
plus conductor of the power supply.
The minus conductor is on ground potential.
Otherwise, a fuse is also located in the minus
conductor.
Regarding the properties of this fuse:
See “General technical data” on page 43.
Only for device
variants featuring
supply voltage with
the characteristic
value K9 or KK:
All of the following requirements are complied with:
Disconnect device for equipment supplied from IT supply system,
shall disconnect both poles of mains supply.a
Supply with DC voltage:
A fuse suitable for DC voltage is located in the plus conductor of the
power supply.
The minus conductor is on ground potential. Otherwise, a fuse is also
located in the minus conductor.
Regarding the properties of this fuse: See “General technical data” on
page 43.
Supply with AC voltage:
A fuse is located in the outer conductor of the power supply.
The neutral conductor is on ground potential. Otherwise, a fuse is also
located in the neutral conductor.
Regarding the properties of this fuse: See “General technical data” on
page 43.
The wire diameter of the power supply cable is at least 0.75 mm²
(North America: AWG18) on the supply voltage input.
a. IT supply system according to the technical standard UL 60950-1
Device variant Requirements
Table 3: Requirements for connecting the supply voltage

Installation EAGLE20/30
Release 09 10/2015 9
Instructions for Use in Hazardous Locations
Note:Thefollowinginformation appliesonlyto models withoutWAN
ports.
See “Device name and product code” on page 17.
SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D
HAZARDOUS LOCATIONS, OR NONHAZARDOUS LOCATIONS
ONLY.
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA IS
KNOWN TO BE FREE OF IGNITABLE CONCENTRATIONS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF ANY
COMPONENT MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.
For USB and Relay: Install per Control Drawing 000172287DNR.
Avertissement - Risque d'explosion - Ne pas débrancher tant que le
circuit est sous tension à moins que l'emplacement soit connu pour ne
contenir aucune concentration de gaz inflammable.
Avertissement - Risque d'explosion - La substitution de tout composant
peut rendre ce matériel incompatible pour une utilisation en classe I,
division 2.

10 Installation EAGLE20/30
Release 09 10/2015
USB connection:
Equipment with non-incendive field wiring parameters.
USB entity parameters:
VOC =5.5V I
SC = 1.25 A
Ca= 10 µF La= 10 µH
For usage with Hirschmann USB devices certified and labelled
according Class I Div 2 hazardous location requirements such
as ACA21-USB EEC, or succeeding types.
Temperature Code: T4
Ambient Temperature rating:
Ta : 0rC to +60rC for “S” temperature types
Ta: -40rC to +70rC for “T” or “E” temperature types
(Refer to the temperature code of the type designation on the
device)
Relay contacts:
Equipment with non-incendive field wiring parameters.
Polarity is not relevant.
The relay terminals are dependent upon the following entity
parameters:
Vi= 30 V Ii= 90 mA
Ci= 2 nF Li= 1 µH
Power Supply unit type C: 24 V DC – 48 V DC
Power Supply unit type K: 110 V AC – 230 V AC or
60 V DC – 250 V DC
(Refer to the power supply code of the type designation on the
device)
Explosive Atmosphere
Class I, Division 2
Groups A, B, C, D
Hazardous Location
EAGLE20/30
ZĞůĂLJ
h^
Ordinary Location, Non-Hazardous Area,
non-explosive atmosphere
Rev.: 2 Doc. No.: 000172287DNR Page 1 of 2

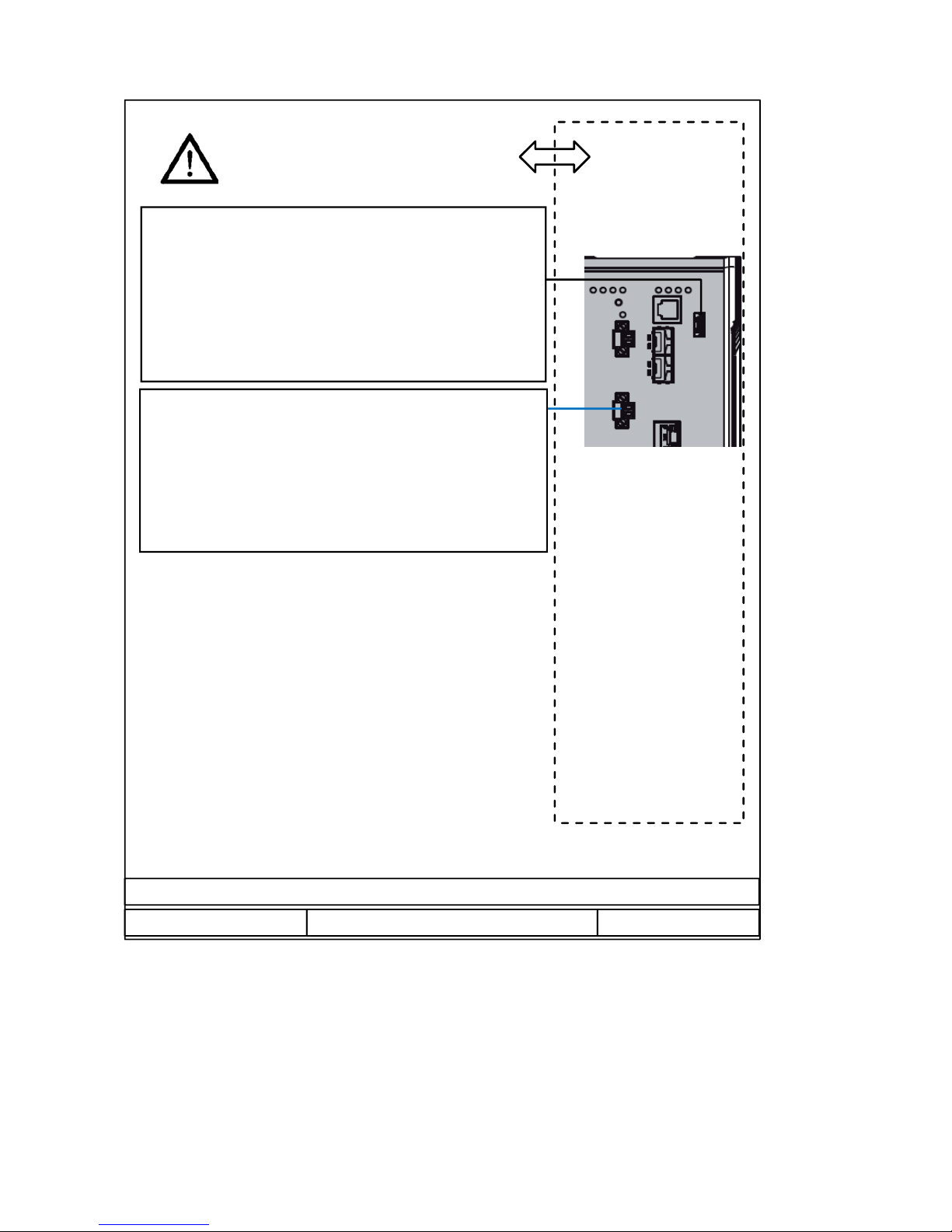

Control Drawing for EAGLE20/30 devices according to Class I Division 2 Hazardous Locations

Installation EAGLE20/30
Release 09 10/2015 11
For Use in Hazardous Locations Class I Division 2 Groups A, B ,C ,D:
Only allowed for EAGLE20/30 model No´s. which are individually labelled
“FOR USE IN HAZARDOUS LOCATIONS”
Non-incendive field wiring circuits must be wired in accordance with
the National Electrical Code (NEC), NFPA 70 , article 501.
The earth conductor must be at least the same wire size (mm² or AWG) as the supply
conductors.
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY COMPONENTS MAY
IMPAIR SUITABILITY FOR HAZARDOUS LOCATIONS OR EXPLOSIVE
ATMOSPHERES.
WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS
POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-
HAZARDOUS.
Rev.: 2 Doc. No.: 000172287DNR Page 2 of 2
Control Drawing for EAGLE20/30 devices according to Class 1 Division 2 Hazardous Locations

12 Installation EAGLE20/30
Release 09 10/2015
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
In accordance with the above-named EU directive(s), the EU conformity
declaration will be at the disposal of the relevant authorities at the
following address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]
The product can be used in the industrial sector.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55022
Reliability: EN 60950-1
You find more information on technical standards here:
“Technical data” on page 43
The assembly guidelines provided in these instructions must be strictly
adhered to in order to observe the EMC threshold values.
Connecting the SHDSL ports DSL1 and DSL2 to the public
telecommunications system is illegal. The SHDSL port is used exclusively
for direct data connections between SHDSL-enabled devices.
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Device variant Directive
All variants 2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the
restriction of the use of certain hazardous substances in
electrical and electronic equipment.
All variants 2004/108/EC (EMC)
Directive of the European Parliament and the council for
standardizing the regulations of member states with regard to
electromagnetic compatibility.
Only for device variants
featuring supply voltage with
the characteristic value K9
or KK:
2006/95/EC
Directive of the European Parliament and the council for
standardizing the regulations of member states with regard to
electrical equipment to be used within specific voltage ranges.

Installation EAGLE20/30
Release 09 10/2015 13
LED or laser components
LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT
FCC note:
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate these
frequencies. If it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a residential area can also cause interference, and in this
case the user is obliged to cover the costs of removing the interference.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

14 Installation EAGLE20/30
Release 09 10/2015
About this manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
The following manuals are available as PDF files on the CD/DVD supplied:
Installation user manual
Basic Configuration user manual
Routing Configuration user manual
Reference manual for the graphical user interface
Command Line Interface reference manual
The Industrial HiVision network management software provides you with
additional options for smooth configuration and monitoring:
ActiveX control for SCADA integration
Auto-topology discovery
Browser interface
Client/server structure
Event handling
Event log
Simultaneous configuration of multiple devices
Graphical user interface with network layout
SNMP/OPC gateway

Installation EAGLE20/30
Release 09 10/2015 15
Key
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading

16 Installation EAGLE20/30
Release 09 10/2015
1 Description
1.1 General device description
You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:
Number of ports
Transmission speed
Types of connectors
Temperature range
Supply voltage range
Certifications
The EAGLE20/30 devices are designed for the special requirements of
industrial automation. They meet the relevant industry standards, provide
very high operational reliability, even under extreme conditions, and also
long-term reliability and flexibility.
The devices allow you to set up switched and routed industrial Ethernet
networks that conform to the IEEE 802.3 standard.
The devices work without a fan.
The device is mounted by latching in place on a DIN rail.
There are convenient options for managing the device. Administer your
devices via:
a Web browser
SSH
HiDiscovery (Software for putting the device into operation)
network management software (e.g. Industrial HiVision)
a V.24 interface (locally on the device)
The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.

Installation EAGLE20/30
Release 09 10/2015 17
1.2 Device name and product code
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
You have numerous options of combining the device characteristics. You can
determine the possible combinations using the configurator which is
available in the Belden E-Catalog (www.e-catalog.beldensolutions.com) on
the web page of the device.
Item Product
characteristic Character istic value Description
1 ... 7 Device EAGLE20 Router without gigabit ports
EAGLE30 Router with gigabit ports
8 (hyphen) –
9 ... 10 Number:
Fast Ethernet ports
04 4 ×
11 ... 12 Number:
Gigabit Ethernet ports
00 0 ×
02 2 ×
13 ... 15 Configuration of the
uplink ports
2O6 2 × SFP slot
999 Not present
16 ... 17 Configuration of the
other ports
TT All the other ports are RJ45 sockets for twisted
pairs
18 Cellular phone
interface
9 Not present
19 ... 20 WAN port 99 Not present
H2 2 × SHDSL port
21 Temperature range S Standard 0 °C ... +60 °C
(+32 °F ... +140 °F)
T Extended −40 °F ... +158 °F
(−40 °C ... +70 °C)
E Extended with
conformal coating
−40 °F ... +158 °F
(−40 °C ... +70 °C)
22 ... 23 Supply voltage CC 2 × Voltage input
Rated voltage range DC
24 V ... 48 V
K9 1 × Voltage input
Rated voltage range AC
110 V ... 230 V, 50 Hz ... 60 Hz
Rated voltage range DC
60 V ... 250 V
KK 2 × Voltage input
Rated voltage range AC
110 V ... 230 V, 50 Hz ... 60 Hz
Rated voltage range DC
60 V ... 250 V
24 ... 25 Certifications Note: You will find detailed information on the certificates and
declarations applying to your device in a separate overview.
See table 4 on page 18.

18 Installation EAGLE20/30
Release
09
10/2015
Application case Certificates and
declarations Characteristic valuea
a. X = Certificate or declaration present
(X) = Certificate or declaration in preparation
(x) = Certificate or declaration available upon request
P9 T9 TY U9 UT UY UX V9 VP VT VU VY X9 Y9 Z9
Standard applications CE XXXXXXXXXXXXXXX
UL508 X X XXX XXXXXX
EN 60950-1 XXXXXXXXXXXXXXX
EN 61131-2 XXXXXXXXXXXXXXX
FCC XXXXXXXXXXXXXXX
UL 60950-1 X X X X X X X X X
Oil and gas applications ISA 12.12.01 –
Class I, Div. 2
XX
Substation applications IEC 61850-3 XXXXX
IEEE1613 XXXXX
Navy applications ABS (x) (x) (x) (x) (x)
BV (x) (x) (x) (x) (x)
DNV (x) (x) (x) (x) (x)
GL XXXX X
KR
LR (x) (x) (x) (x) (x)
Railway applications EN 50121-4 X X X X
Table 4: Assignment: application cases, certificates and declarations, characteristic values

Installation EAGLE20/30
Release 09 10/2015 19
1.3 Device views

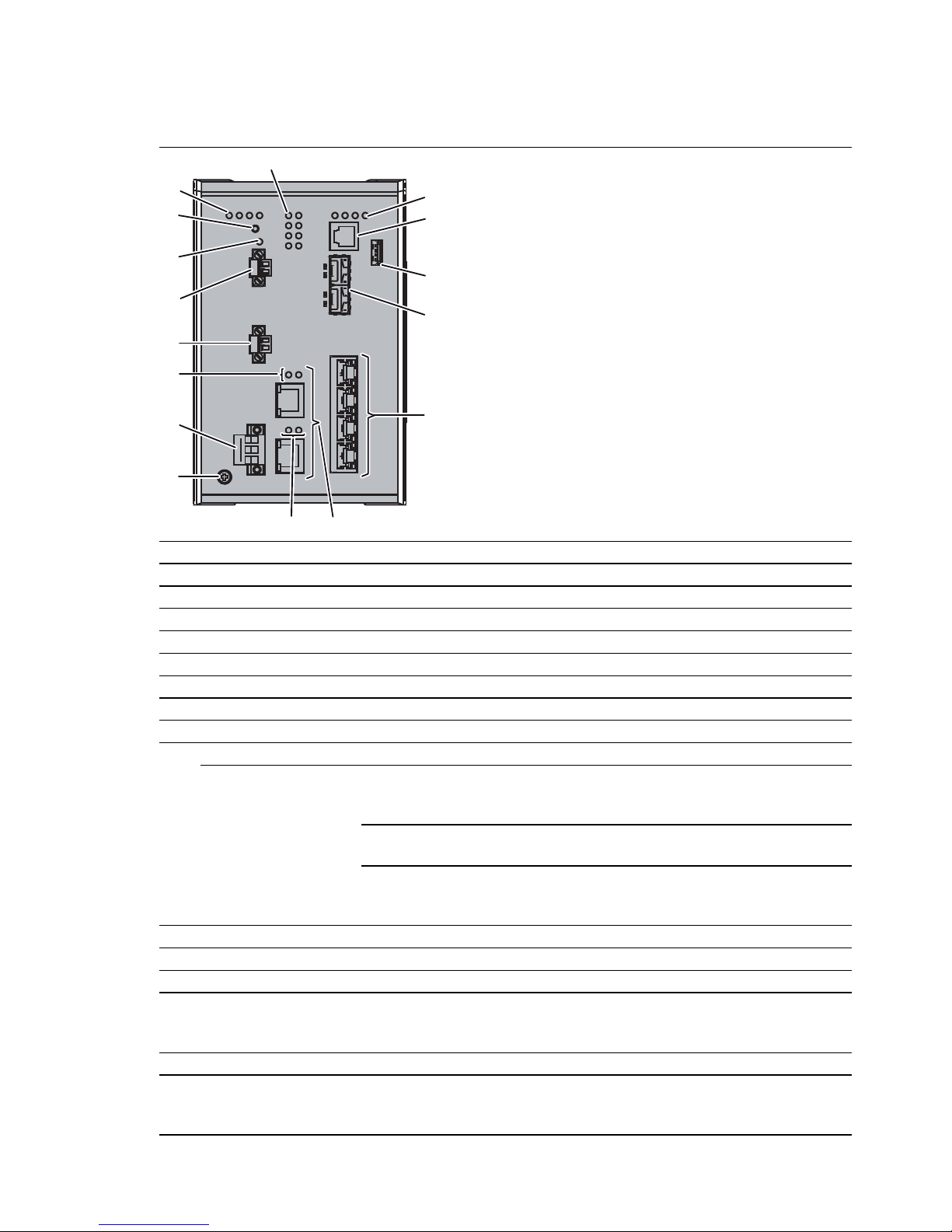

1.3.1 Front view
EAGLE30-0402206TT9H2SCC...
1 LED display elements for device status
2 V.24 interface
3USBport
4 2 × SFP slot (optional)
5 4 × Fast Ethernet ports
6 2 × SHDSL port (optional)
7 LED display elements for the status of the SHDSL ports
8 Grounding screw
9 Supply voltage connection
alternatively,
depending on device
variant
Supply voltage with the
characteristic value CC:
2 voltage inputs for redundant
power supply
2-pin terminal block
Supply voltage with the
characteristic value K9:
1 voltage input
3-pin terminal block
Supply voltage with the
characteristic value KK:
2 voltage inputs for redundant
power supply
3-pin terminal block
10 Connection for the signal contact
11 Connection for digital input
12 LED display element for digital input
13 Save/Load/Reset button
The support of the function is dependent on the software release. Software support for the
function is unimplemented at the time of printing this manual.
14 LED display elements for additional status information
15 LED display elements
The support of the function is dependent on the software release. Software support for the
function is unimplemented at the time of printing this manual.
1
2
3
4
5
8
9
10
11
12
13
14
15
6
7
7

20 Installation EAGLE20/30
Release 09 10/2015
1.3.2 Rear view
1.4 Power supply
1.4.1 Supply voltage with the characteristic value KK
For the redundant power supply of the device, two 3-pin terminal blocks are
available.
For further information see “Supply voltage with the characteristic value KK”
on page 34.
1.4.2 Supply voltage with the characteristic value K9
For the power supply of the device, a 3-pin terminal block is available.
For further information see “Supply voltage with the characteristic value K9”
on page 34.
1.4.3 Supply voltage with the characteristic value CC
For the redundant power supply of the device, two 2-pin terminal blocks are
available.
For further information see “Supply voltage with the characteristic value CC”
on page 35.
1 Slot for the SD card
2 Knurled screw
1
2
