Hitachi RA-18KF User manual

MODEL
RA-18KF RA-18HF
RA-18KDF RA-18HDF
日立牌冷氣機
ROOM AIR CONDITIONER
How to Use………………... P.2~P.9
Installation Instruction..P.10~P.14
使用法……………………… 2 頁~9 頁
安置
法
…………….…....….10 頁~14 頁

Model Width Height Depth
RA-18KF RA-18KDF
RA-18HF RA-18HDF 26”(660mm) 16-3/4”(426mm) 29-1/16”(738mm)
How to Use
Names and Dimensions
① Cabinet
② Suction Grille
③ Horizontal Deflector
④ Vertical Deflector
⑤ Air Exhaust Lever
⑥ Front Cover
⑦ Switch Panel Cover
使用法
名稱與尺寸
① 機箱
② 吸氣柵
③ 水平風向調整板
④ 垂直風向調整板
⑤ 排氣桿
⑥ 前面蓋
⑦ 控制蓋板
①
②
⑦
③
④
⑤
⑥
2

How to Operate 操作方法
The control panel is at the lower area of the room air
conditioner and consists of operation switch,
temperature dial, auto-sweep switch and cool-dry switch.
(cool-dry switch is for RA-18KDF&RA-18HDF)
在機箱正面下方設有操作開關,溫度調節度盤,自動搖擺開關
與冷乾開關.(冷乾開關設在 RA-18KDF 和 RA-18HDF 上)
MAIN SWITCH
AUTO SWEEP
TEMPERATURE TEMPERATUREMAIN SWITCH
AUTO SWEEP COOL-DRY CHANGE
(RA-18KF & RA-18HF) (RA-18KDF & RA-18HDF)
3

When you want to deflect the
conditioned air to the direction
you desire, move the horizontal
deflector.
水平風向調整板
如欲將冷氣吹向擇定之處，可
調整水平風向調整板。
Horizontal Deflector
水平風向調整板
Horizontal Deflector
水平風向調整板
RA-18JF is a model for cooling only.
RA-18JDF is a model for cooling and dehumidifying. RA-18JF 只具備冷卻功能。
RA-18JDF 具備冷卻與除濕功能。
HORIZONTAL DEFLECTORS
COOL-DRY SWITCH(RA-18KDF&RA-18HDF)
When it is not too hot but humid, “DRY”(Dehumidifying )
operation is suitable. This room air conditioner can remove
moisture from the room air without lowering the
temperature by setting “COOL-DRY” switch to “DRY”.
If the room temperature is lowered to the point set by the
temperature dial, both the compressor and the fan will stop
automatically and when the room temperature rises back,
both the compressor and the fan will re-start automatically.
NOTE
● For maximum cooling and most efficient operation, set
exhaust lever to “CLOSE”.
● When you want to feel cool, make sure that the fans
are running, and set the OPERATION switch to
“HI-COOL”, “MED-COOL” or “LO-COOL”.
● Wait 3 minutes before resetting to
cooling/dehumidifying operation.
● When the compressor stops by turning the
TEMPERATURE dial counterclockwise in cooling or
dehumidifying operation, wait 3 minutes before turning
it clockwise to restart the compressor.
“COOL-DRY”冷除開關(RA-18KDF 和 RA-18HDF)
不太熱但潮濕的季節最適合 DRY(除濕)動作。如果
COOL-DRY(冷•乾)開關被設定於 DRY(乾)的位置的話,冷氣機
的除濕動作中溫度不會降低。
如果室溫降到溫度調節度盤所設定的溫度的話,壓縮機和風
扇都自動停止。如果室溫再度上昇, 壓縮機和風扇就自動再
開動。
附 註
● 如希望得到最大冷效能,就請將排氣桿設定於”CLOSE”(關
閉)的位置。
● 要開放冷氣時請先開動風扇,然後將 OPERATION(操作開
關)設定於”HI-COOL”，”MED-COOL”或”LO-COOL”。
● 開動機器後請稍後 3 分鐘，再將 OPERATION(操作開關)
設定於”HI-COOL”，”MED-COOL”，”LO-COOL”或”DRY”。
● 在冷卻動作或除濕動作中如將溫度調節度盤反時針方向
轉動而停止壓縮機，就請等候 3 分鐘後再將溫度調節度盤
向順時針方向轉動，使壓縮機再開動。
4

AUTO SWEEP SWITCH
To operate Auto Sweep, move theAUTO
SWEEP switch to “ON”. This starts the
Vertical Deflectors sweeping from left to
right across the room for better
distribution. The deflectors can be
stopped at any position by switching the
Auto Sweep switch “OFF” when
Deflectors are at desired position.
自動搖擺開關
要開自動搖擺動作時請將 AUTO SWEEP(自動
搖擺)開關設定於 ON(接通)的位置。這樣垂
直風向調整板開動，使室內空氣由左邊吹到
右邊以幫助冷氣平均分佈。將自動搖擺開關
設定於 OFF(斷開)時可在任意位置停止風
向調整板。
5
Vertical Deflector
垂直風向調整板
Vertical Deflector
垂直風向調整板

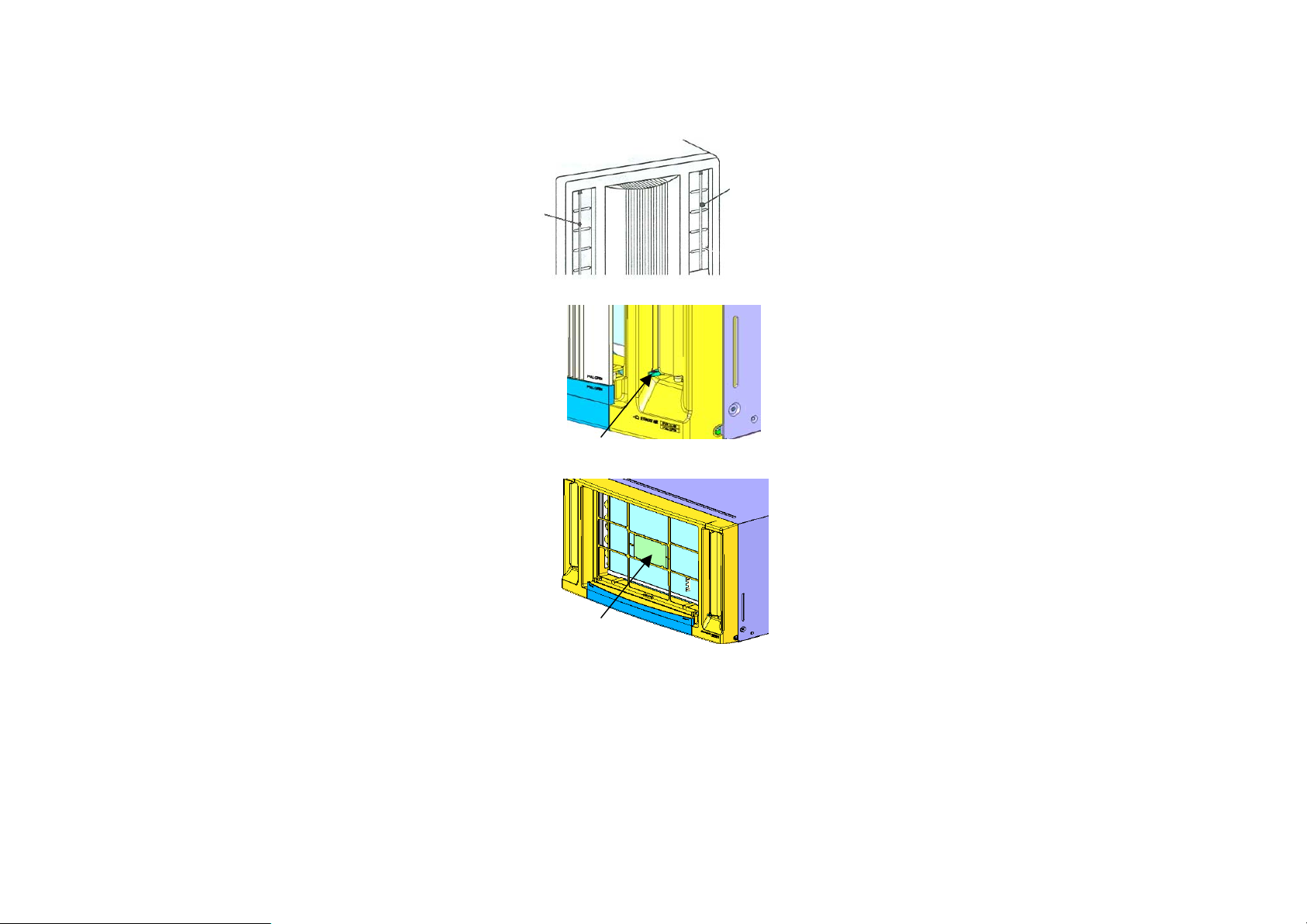

AIR EXHAUST LEVER
Set the air exhaust lever to the
PULL(OPEN) position for air ventilation in
the room. The air exhaust lever should be
normally kept in PUSH(CLOSE) position
during cooling operation and in the case
of typhoon.
排氣桿
把排氣桿設在拉出(開)，以便循環室內空
氣。在冷卻及颱風時，排氣桿應設在推進
(關)。
Air Exhaust Lever
排氣桿
AIR CLEANING FILTER
Air cleaning filter is washable and reusable up to
20 times by using vacuum cleaner or rinse with
running tap water. Air cleaning filter should be
cleaned every month or sooner if noticeable
loading occurs. When use overtime, it may lose its
deodorizing function. For maximum performance,
it is recommended to replace it every 3-6 months
depending on application requirement. To install o
r
replace it, remove the air filter at first, please refer
to the AIR FILTER item in the Maintenance section
for the way to remove the air filter.
The number for this air cleaning filter in RA-18KF
and RA-18KDF is <SPX-CFH8W>, the number for
this air cleaning filter in RA-18HF and RA-18HDF
is <SPX-CFH4W>, please use this number for
ordering when you want to renew it.
空氣清淨濾網
用吸塵機或清水將空氣清淨濾網清洗，它
可被再用多達二十次。空氣清淨濾網應每
個月或當灰塵累積時清洗。如果使用過
期，它有可能失去除臭功能。每 3~6 個月
更換空氣清淨濾網一次或視使用需求而
定，以達到最佳功效。要安裝或更換空氣
清淨濾網，必須先拆除空氣隔濾網，請參
考保養章節內之空氣隔濾網項目以取得拆
除方法。
RA-18KF 和 RA-18KDF 空氣清淨濾網型號為
<SPX-CFH8W>,RA-18HF 和 RA-18HDF 空氣清
淨濾網型號為<SPX-CFH4W>,更換時請使用
此型號向經銷店購買。
Air Cleaning Filter
空氣清淨濾網

Notes on operation:
● The room air conditioner operates continuously by setting
the Temperature Dial to “TEST”. Do not set this dial to
“TEST” for the ordinary operation.
● At the dehumidifying operation, this room air conditioner
should not be used when the room air conditioner is below
18℃(64℉). If it is used under this condition, frost will settle
on the evaporator and efficiency falls.
(RA-18KDF&RA-18HDF)
● In cooling operation, please refrain from setting horizontal
and vertical air deflectors at positions beyond the angle
range prescribed in figure below for a long time in moist
day. If not, dew will grow on the deflectors and front
cover ,and drop in the worst case.
● Operating temperature range: (cooling)
Indoor side: 21℃(70℉)D.B.~32℃(90℉)D.B.
outdoor side: 21℃(70℉)D.B.~43℃(109℉)D.B.
● In quiet operation or stopping the running, slight flowing
noise of the refrigerant in the refrigeration cycle is heard
occasionally, but this noise is not abnormal for operation.
● The odor will possibly be emitted from the room air
conditioner because the various odor, emitted by smoke,
foodstuff, cosmetics and so on, sticks to it. So please clean
the air filter and the evaporator at the beginning of the
season to reduce the odor.
運轉注意事項
:
● 如把溫度調整鈕設定於 TEST(試驗)的位置，冷氣機會連
續運轉。對於日常的使用目的請不要把調整鈕設定於
TEST 的位置。
● 當室溫低於攝氏 18 度(華氏 64 度)時，這冷氣機不可實
行除濕操作。如果在這狀態下實行除濕操作的話，蒸發
器上會結霜，效率也因而降低。(RA-18KDF 和 RA-18HDF)
● 天氣潮濕時，在冷卻動作期間請勿使水平及垂直風向調
整板長時間放置於下圖規定之角度範圍以外，因為這樣
風向調整板及前面蓋上會結露而水滴滴下來。
● 使用溫度範圍: (冷房時)
室內側: 21℃(70℉)D.B.~32℃(90℉)D.B.
室外側: 21℃(70℉)D.B.~43℃(109℉)D.B.
● 靜運轉時或停止運轉時，有時會聽到冷凍劑在機內流動
的聲音，但這不算是機器有任何的毛病。
● 這冷氣機可能發出臭味，因為煙霧、食物、化妝品等所
發出的各種臭氣附著在機器上。所以每當季節開頭時期
如清理過濾網及蒸發器，就可以減少臭味。
20°(○)
(✖)
(✖)
(○)
20°
(✖)
(✖)
6

Maintenance 保養
ALWAYS TURN OFF AND UNPLUG BEFORE ANY
CLEANING OR MAINTENANCE TO ENSURE SAFETY.
Caution: 注意:

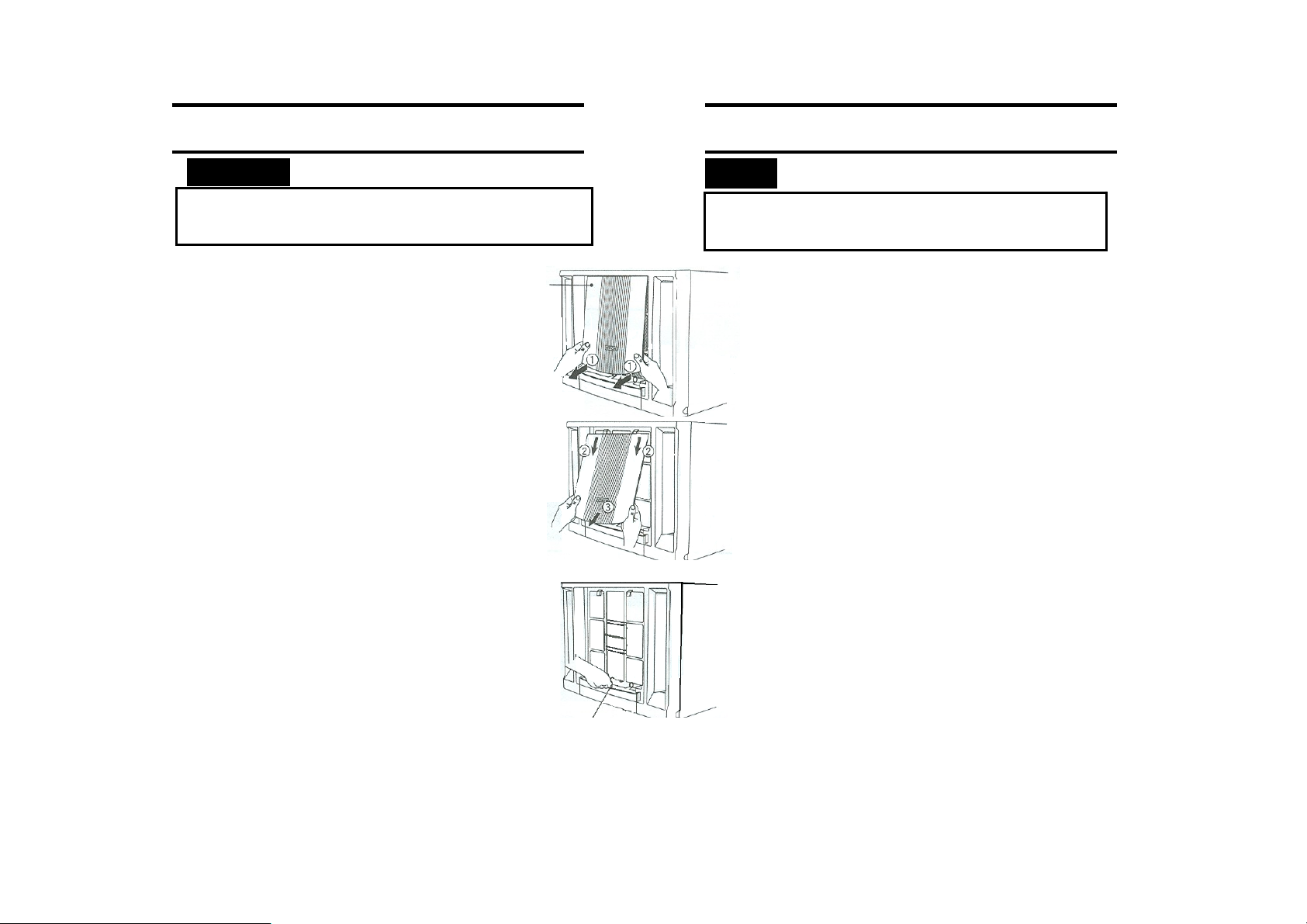

AIR FILTER
If the air filter is clogged with dust,
the air flow volume will decrease
and result in poor cooling or
dehumidifying performance, and
increase operation noise. Be sure
to clean the air filter about every
20 days.
①Remove the suction grille by
pulling at both bottom corners
and then lift up slightly before
pull downward to unhook the
suction grille.
②Lift and unhook the bottom of
the air filter and remove it.
③Remove dust from filter by
using a vacuum cleaner. If the
filter is very dirty, wash it with
detergent and rinse properly
with water. Dry it with soft cloth
and do not expose it to heat or
under direct sunlight.
④Install the filter by fitting the top
hooks and then hook the
bottom of the filter.
⑤
A
ttach the suction grille back to
its place by hooking at the top
side to the front cover, then
gently push at both bottom
corner.
清掃之前請務必關掉操作開關與拔掉電源插頭，以確保
安全。
空氣隔濾網
若空氣隔濾網沾滿灰塵，吹出風量
將減少而造成冷卻與除濕功能之降
低，及增大運轉噪音。請確保每 20
天清理隔濾網一次。
①在吸氣柵的兩邊下端一拉，然後
稍微提起吸氣柵直至將吸氣柵取
出。
②提起空氣隔濾網下端後把它拿
出。
③用吸塵機清除網上的灰塵。若隔
濾網太髒，用少許清潔劑清洗及
用水完全洗淨，用柔軟的布將隔
濾網擦乾，不可接觸高溫或受陽
光直曬。
④把隔濾網裝回上端與下端的架鉤
上。
⑤把吸氣柵上端插入前面蓋上，再
輕輕把吸氣柵下端左右一按以關
上吸氣柵。
Suction Grille
吸氣柵
Hook
鉤
7

注意:
● 不可用 40℃以上的水來清洗。
● 在隔濾網拿掉下，不可操作冷氣機。
● Do not use hot water above 40℃for cleaning the
filter.
● Do not operate the air conditioner with the filter
removed.
Caution:

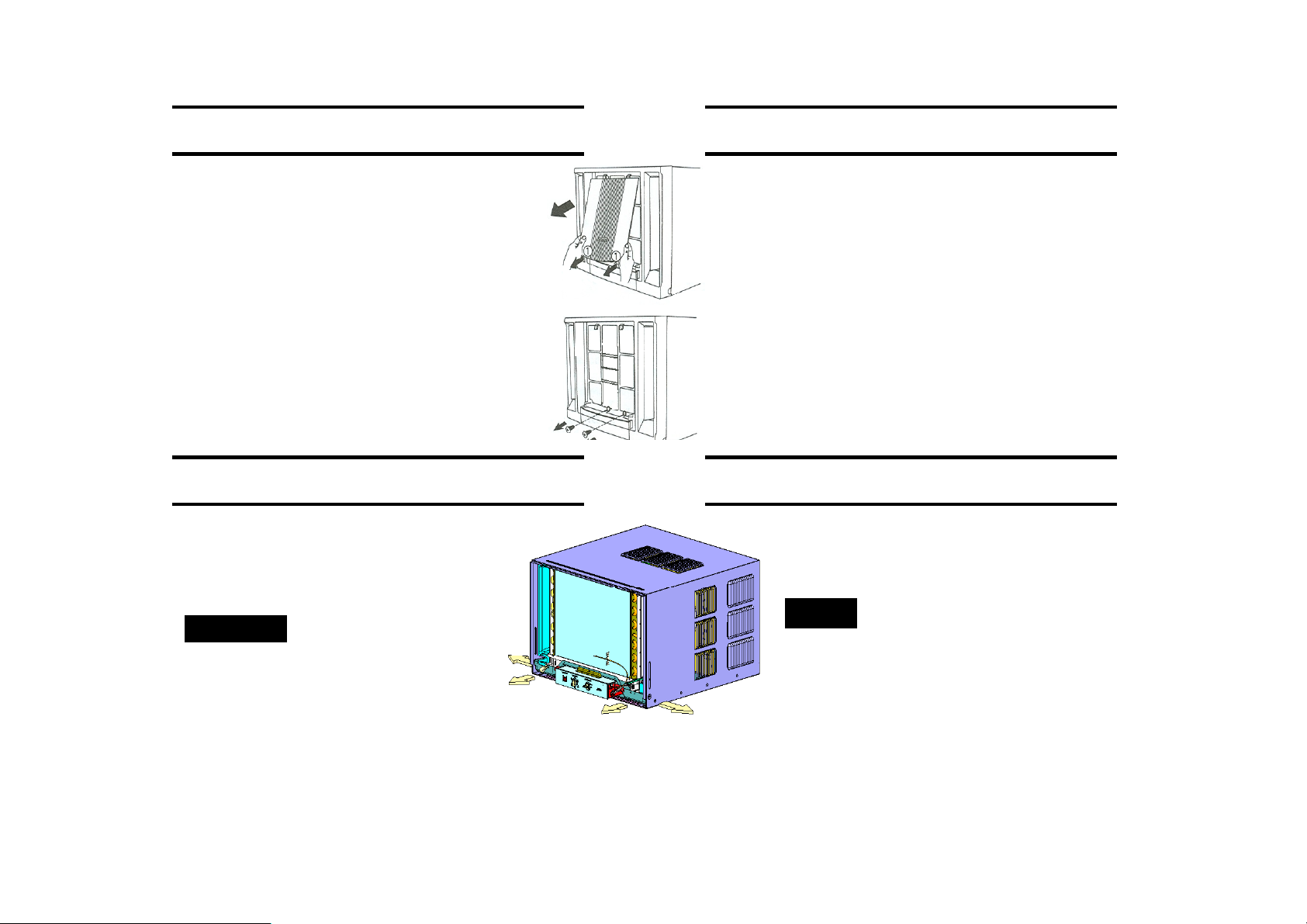

FRONT COVER AND SUCTION
GRILLE
Clean the front cover and suction grille
with a soft dry cloth. When it is
excessively dirty, wipe it with a soft
cloth dampened with soap, then wipe
it again thoroughly with a soft dry
cloth.
①Pull the suction grille at both bottom
corner and release it.
②Lift up the suction grille slightly.
③Remove the suction grille by pulling
downward to release it from the
hook hole located at the top side.
前面蓋與吸氣柵
請用柔軟乾布擦抹前面蓋。如果它
太髒，請用沾上溫水及中性洗潔劑
的軟布擦拭，然後用柔軟的乾布完
全抹乾。
①在吸氣柵下端左右角一拉後放
開。
②稍微提起吸氣柵。
③稍微在吸氣柵上端的架鉤向內一
推後拆出它。
注意:
● 請勿用 50℃以上的熱水、化學劑或刷子來清洗
前面蓋及吸氣柵，因為它們將會損壞塑膠表面。
● Never use hot water above 50℃, erosive chemicals o
r
brush to clean the front cover and suction grille
because they will damage the plastic surface.
Caution:
8

Before Asking for a Service,
Check the Following Points 當需要修理時，請先檢查下列各項
●When it does not operate
① Is the fuse all right?
② Isn’t the voltage extremely high or low?
③ Is the temperature dial suitable?
●When it does not cool well
① Doesn’t the air filter remain full of dust?
② Doesn’t the sunlight fall directly on the room air
conditioner?
③ Isn’t the air flow outside(condenser) obstructed?
Leave a clearance of 900mm (3 feet) behind the back of
your room air conditioner?
④ Aren’t your doors or windows widely open, or isn’t there
any source of heat in the room?
⑤ Is the temperature dial suitable?
⑥ Is the air exhaust lever in OPEN position?
●不能啟動
① 保險絲是否良好?
② 電壓是否過高或過低?
③ 溫度調節度盤是否在適當的位置?
●冷氣效能不佳
① 空氣隔濾網已積聚塵埃太多?
② 是否有太陽光直射在冷氣機?
③ 外面(冷凝器)通風口是否被遮蔽?冷氣機背後請保留
900 毫米(3 呎)以上之空隙距離?
④ 是否開著門窗，或在室內有任何發熱器具?
⑤ 溫度調節度盤是否在適當的位置?
⑥ 排氣桿是否在開的位置?
9

Installation Instruction
Location
安置法
地點
REMOVE ALL THE SHIPPING PARTS BEFORE
INSTALLATION AND CONSULT YOUR DEALER
CONCERNING INSTALLATION REQUIREMENT.
安裝前請拆除裝運用的部件及向經銷店諮詢安裝的需要。
● Select a location that can support the weight of the air
conditioner and will not cause increased noise and
vibration.
● Select a location where direct sunlight does not fall on
your air conditioner.
● Select a good location for efficient circulation.
● Select a place where there is no obstacles near the air
inlet and outlet.
● 選擇一個能承受冷氣機重量且不會增加噪音與震動
的地點。
● 選擇一個沒有陽光直射在冷氣機的位置，建議地點是
北、東面。
● 選擇一個通風良好的位置以增加冷氣效率。
● 選擇一個在空氣吹出口與吸入口附近沒有遮擋物的
地點。
10

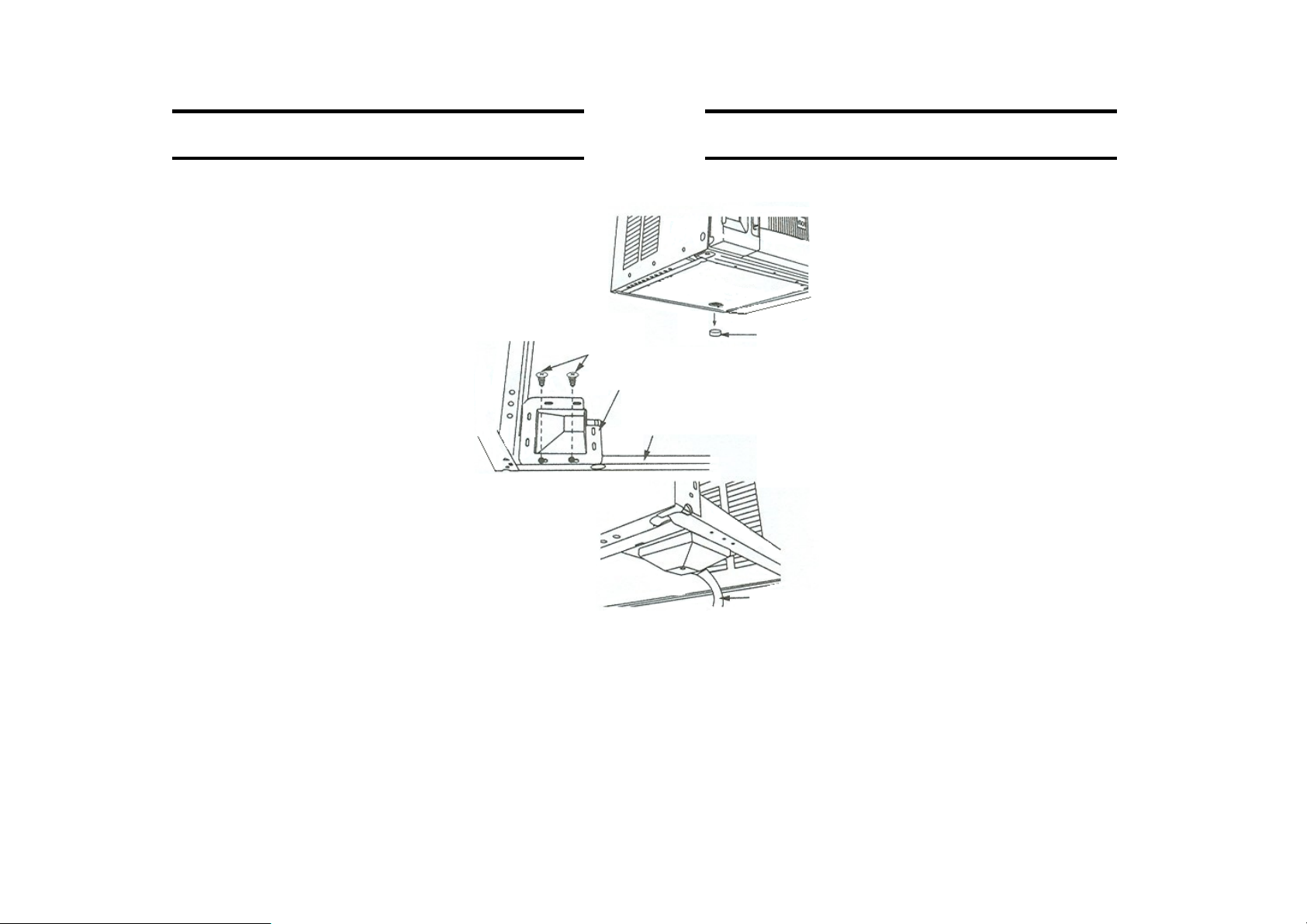

● The installation material must be fully strong against
corrosion, especially in case the air conditioner to be
installed near the sea or hot spring.
● Do not install the air conditioner in the places where
there is possibility of inflammable gas leaks.
● Secure tightly the cabinet with screws. Otherwise
there may be danger of the air conditioner dropping.
● Please keep the recommended installation
dimensions. Otherwise water drops may occur.
Caution: 注意:
● 安裝用部件應是高耐蝕性材料，特別是當冷氣機安裝
在靠近海邊或溫泉附近時。
● 會漏出可燃性氣體的地方切勿安裝冷氣機。
● 用螺絲將機箱鎖緊。否則可能有冷氣機跌下的危險。
● 請確保按照所提供之尺寸來安裝。否則可能發生滴水
現象。
Power Source 電源
● Check the capacity of wiring and power outlet. The
power outlet should be used exclusively for the air
conditioner. Do not use it with other appliances. Any
wiring must follow the national wiring regulation.
● Ground the air conditioner to prevent danger of
electric shock.
● Connect the air conditioner with power cord securely.
● Use a fuse as below:
● 請檢查電線及插座的電流容量，插座應只供冷氣機專
用，不可與其他家庭電器共用。一切電路必須依照有
關地方標準電線路要求。
● 冷氣機應接地以避免發生觸電危險。
● 冷氣機插頭應緊牢地插入電源插座。
● 請使用以下的保險絲:
15A 時間延遲保險絲
15A time delay fuse
WARNING-THIS APPLIANCE MUST BE EARTHED.
Caution: 注意:
注意─本冷氣機必須接地線。
額定電壓 50Hz 220V
適用電壓範圍 50Hz 198-242V
Voltage rating 50Hz 220V
Operation
Voltage range 50Hz 198-242V
11

Remove the Front Cover 前面蓋取出方法
Remove the front cover in the
following manner
①Pull the suction grille at both bottom
corner and release it.
②Remove the air filter
③Remove two screws which secure
the front cover.
④Remove the front cover from the
lower side.
請按照下列方法拆出前面蓋
①在吸氣柵下端左右角一拉後放
開。
②取出隔濾網。
③拆出兩粒鎖住前面蓋的螺絲。
④從下端取出前面蓋。
Slide Out of Unit 冷氣機拉出方法
①Remove the 2 screws which fasten
the base pan and the cabinet at both
sides.
②Slide out the unit by pulling the
handles.
①拆出兩粒在旁邊鎖住底盤與機箱
的螺絲。
②將機體拉出。
①
①
②
②
12
● After sliding in the unit, please install
the sealer (supplied with unit)
between the base pan and the cabine
t
to prevent from rain intrusion in case
of typhoon.
● After sliding in the unit, be sure to
screw back the 2 screws which fasten
the base pan and the cabinet at both
sides.
Caution: 注意:
● 當機體再度推入機箱後，請將密封材料
(隨機提供)填入底盤與機箱底板之間以
防止颱風時雨水侵入。
● 當機體再度推入機箱後，請將拆出之兩粒
螺絲鎖回底盤與機箱。

Drain Pan 排水盤
CONDENSED WATER DRAINAGE
This air conditioner employs a “turbo fan
splashing ring” which is designed to
splash the condensed water on the
condenser surface for maximum cooling
efficiency, thus producing a splashing
sound.
If you are uncomfortable with the sound,
you can install an outside drainage by
using the following procedure which may,
however, cause a small loss of
performance.
①Remove the rubber plug from the base
pan.
②Install the drainage pan by using 2
pieces of screws( provided) at the
cabinet.
③Connect the drainage pan with the drain
hose.( Drain hose or tubing can be
purchased locally to satisfy your
particular needs. Drain hose inner
diameter size should be around Ø13mm
or 1/2 inch.)
④Slide the air conditioner unit back into
the cabinet.
結露排水管
這冷氣機應用”快速扇噴射環”專為
潑在冷凝器的表面的結露水以達到
最高冷卻效率所設計，因此而發出
潑水聲。
如果潑水聲讓你感到不適，請依照
以下步驟利用戶外排水方式，但效
率將會降低。
①把底盤的橡膠塞子除去。
②用兩枚螺絲(隨機供給)把排水盤
鎖在機箱上。
③將排水盤連接於排水管(排水管
可在本地購買以滿足各要求。排
水管內徑應為 13mm 或半寸左
右)。
④將機體置放回機箱裏。
Rubber Plug
橡膠塞子
Screw
螺絲
Drainage Pan
排水盤
Cabinet
機箱
Drainage Hose
排水管
13

Installation Work Inspection Check 安裝工作檢查表
Item
NO. Check Item Initials
1 Have you removed the shipping parts?
Please check the caution sheet inside
the unit for removal instruction.
2 Is the incline of room air conditioner
regarding front and rear, right and left
all right after installation?
3 Is the strength of installation sufficient?
4 Have you grounded your room air
conditioner?
5 Have you fastened the unit to the
cabinet?
6 Have you done a test operation, and
are there any abnormal phenomena?
項目 檢查項目 簽名(蓋章)
1 已拆卸了裝運用部件嗎?
請校對機體內部之注意銘板。
2 安裝後冷氣機前後左右的高低
是否正常？
3 安裝強度是否足夠？
4 冷氣機有否接地了？
5 機器有否固定於機箱上？
6 有否作了測試運轉？
有否不正常的現象？
14

注意:
● 安裝必須依當地相關配線法規實施。
● 安裝必須由專門人員實施。
● 當電源線損壞必須更換時，必須由製造商，服務代理商
或合格人員實施以避免發生危險。
● The installation must be carried out in accordance to
the national wiring regulation.
● The installation must be carried out by the skilled
worker.
● If the power cord is damaged, it must be replaced by
the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
Caution:
P65MP1340
