Hitachi RAK-18QH8S User manual

– 1 –
ENGLISH
DEUTSCH
FRANÇAISITALIANOESPAÑOL
PORTUGUÊS
E

SPLIT TYPE AIR CONDITIONER
INDOOR UNIT
INDOOR UNIT
RAK-18QH8S(W)
RAK-18QH8(W)
RAK-25QH8(W)
RAK-35QH8(W)
RAK-50QH8(W)
RAK-18QH8S(B)
RAK-18QH8(B)
RAK-25QH8(B)
RAK-35QH8(B)
RAK-50QH8(B)
RAK-18QH8S(W)
RAK-18QH8(W)
RAK-25QH8(W)
RAK-35QH8(W)
RAK-50QH8(W)
RAK-18QH8S(B)
RAK-18QH8(B)
RAK-25QH8(B)
RAK-35QH8(B)
RAK-50QH8(B)
MODEL
Instruction Manual_part A.indb 1 6/23/2010 12:10:42 PM

– 2 –

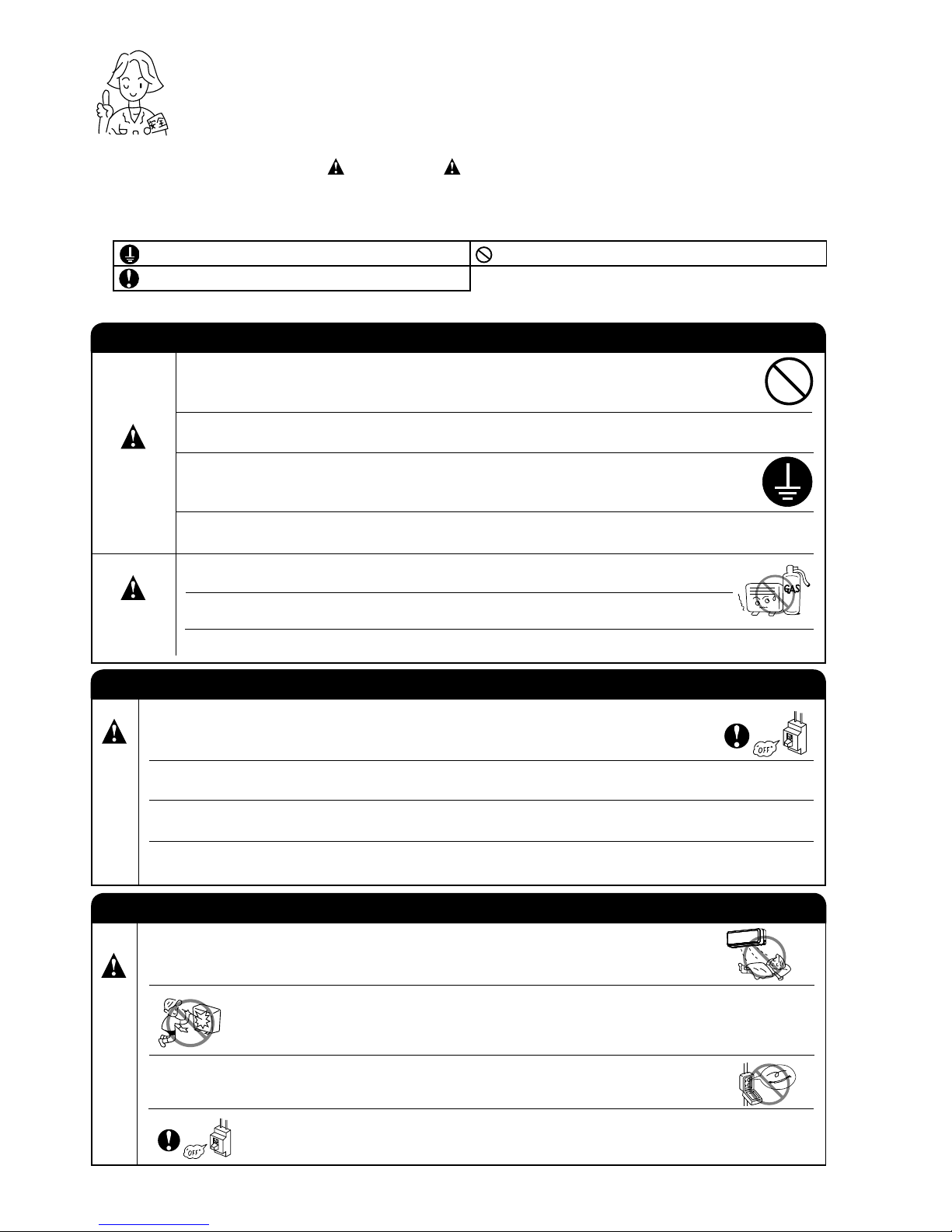

SAFETY PRECAUTION
Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.●
Pay special attention to signs of “● Warning” and “ Caution”. The “Warning” section contains matters which,
if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may
result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
The sign indicate the following meanings.
●
Make sure to connect earth line. The sign in the figure indicates prohibition.
Indicates the instructions that must be followed.
Please keep this manual after reading.
●
WARNING
PRECAUTIONS DURING INSTALLATION
Do not reconstruct the unit.●
Water leakage, fault, short circuit or fire may occur if you reconstruct the unit by
yourself.
Please ask your sales agent or qualified technician for the installation of your unit.
●
Water leakage, short circuit or fire may occur if you install the unit by yourself.
Please use earth line.
●
Do not place the earth line near water or gas pipes, lightning-conductor, or the earth
line of telephone. Improper installation of earth line may cause electric shock.
Be sure to use the specified piping set for R410A. Otherwise, this may result in
●
broken copper pipes or faults.
A circuit breaker should be installed depending on the mounting site of the unit.
●
Without a circuit breaker, the danger of electric shock exists.
Do not install near location where there is flammable gas. The outdoor unit may
●
catch fire if flammable gas leaks around it.
Please ensure smooth flow of water when installing the drain hose.
●
CAUTION
PRECAUTIONS DURING OPERATION
Avoid an extended period of direct air flow for your health.●
W
A
R
N
I
N
G
Do not insert a finger, a rod or other objects into the air outlet or inlet. As the fan●
is rotating at a high speed, it will cause injury. Before cleaning, be sure to stop the
operation and turn the breaker OFF.
During thunder storm, disconnect and turn off the circuit breaker.
●
Do not use any conductor as fuse wire, this could cause fatal accident.●
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
Should abnormal situation arises (like burning smell), please stop operating the●
unit and turn off the circuit breaker. Contact your agent. Fault, short circuit or fire
may occur if you continue to operate the unit under abnormal situation.
Please contact your agent for maintenance. Improper self maintenance may cause
●
electric shock and fire.
Please contact your agent if you need to remove and reinstall the unit. Electric
●
shock or fire may occur if you remove and reinstall the unit yourself improperly.
If the supply cord is damaged, it must be replaced by the special cord obtainable
●
at authorized service/parts centers.
W
A
R
N
I
N
G
Instruction Manual 1649_indb 2.indb 2 6/28/2010 5:39:23 PM

– 3 –
ENGLISH
PRECAUTIONS DURING OPERATION
Do not attempt to operate the unit with wet hands, this could cause fatal●
accident.
When operating the unit with burning equipments, regularly ventilate the
●
room to avoid oxygen insufficiency.
Do not direct the cool air coming out from the air-conditioner panel to face●
household heating apparatus as this may affect the working of apparatus
such as the electric kettle, oven etc.
Do not use any aerosol or hair sprays near the indoor unit. This chemical
●
can adhere on heat exchanger fin and blocked the evaporation water flow to
drain pan. The water will drop on tangential fan and cause water splashing
out from indoor unit.
Please ensure that outdoor mounting frame is always stable, firm and●
without defect. If not, the outdoor unit may collapse and cause danger.
Do not splash or direct water to the body of the unit when cleaning it as this●
may cause short circuit.
When operating the unit with the door and windows opened, (the room humidity is always above●
80%) and with the air deflector facing down or moving automatically for a long period of time,
water will condense on the air deflector and drips down occasionally. This will wet your furniture.
Therefore, do not operate under such condition for a long time.
If the amount of heat in the room is above the cooling or heating capability of the unit (for example:●
more people entering the room, using heating equipments and etc.), the preset room temperature
cannot be achieved.
This appliance is not to be used by children or persons with reduced physical, sensory or mental
●
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction. Children must be supervised not to play with the appliance.
Do not climb on the outdoor unit or put objects on it.●
Please switch off the unit and turn off the circuit breaker during cleaning, the●
high-speed fan inside the unit may cause danger.
Turn off the circuit breaker if the unit is not to be operated for a long period.
●
C
A
U
T
I
O
N
The product shall be operated under the manufacturer specification and●
not for any other intended use.
Do not put water container (like vase) on the indoor unit to avoid water●
dripping into the unit. Dripping water will damage the insulator inside the unit
and causes short-circuit.
Do not place plants directly under the air flow as it is bad for the plants.●
Do not hang any laundry onto the moveable panels.●
The moveable panels may get dislodged and may cause serious injuries.
Instruction Manual 1649_indb 2.indb 3 6/28/2010 5:39:25 PM

– 2 –
INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
AIR CLEANSING FILTER
(Refer Instruction manual)
AIR FILTER
To prevent dust from coming into the indoor unit.
(Refer Instruction manual)
FRONT PANEL
MOVEABLE PANEL
It will be open when the air conditioner is operate
and close when the air conditioner is not in operation.
(Occasionally it may not be open during the operating
mode)
HORIZONTAL DEFLECTOR ●VERTICAL
DEFLECTOR (AIR OUTLET)
(Refer Instruction manual)
INDOOR UNIT INDICATORS
Light indicator showing the operating condition.
(Refer page 3)
REMOTE CONTROLLER
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer Instruction manual)
WIDTH (mm)
795
MODEL
RAK-18QH8(W)
RAK-25QH8(W)
RAK-35QH8(W)
RAK-50QH8(W)
RAK-18QH8(B)
RAK-25QH8(B)
RAK-35QH8(B)
RAK-50QH8(B)
HEIGHT (mm)
295
DEPTH (mm)
198
MODEL NAME AND DIMENSIONS
Air cleansing and deodorizing filters are washable and reusable up to 20 times by using vacuum cleaner or●
water rinse under running tap water. Type number for this air cleansing filter is <SPX-CFH20>. Please use
this number for ordering when you want to renew it.
Air cleansing filter should be cleaned every month or sooner if noticeable loading occurs. When used
●
overtime, it may loose its deodorizing function. For maximum performance, it is recommended to replace it
every 1 year depending on application requirements.
NOTE
Moveable Panel■
It will open up automatically when the air conditioner is in operation and it will close up automatically when the●
air conditioner stopped operating. Avoid physical adjustments as it may damage the panels’ mechanisms.
Please do not touch the moving panel during operations as it may pinch your fingers.
●
Instruction Manual_part A.indb 2 6/23/2010 12:10:43 PM

– 3 –
ENGLISH
INDOOR UNIT INDICATORS
FILTER LAMP
When the device is operated for a total of about 200 hours,
the FILTER lamp lights to indicate that it is time to clean the
filter. The lamp goes out when the “ (AUTO SWING)”
button is pressed while the device is on “STANDBY
MODE”.
OPERATION LAMP
This lamp lights during operation.
The OPERATION LAMP flashes in the following cases
during heating.
(1) During preheating
For about 2–3 minutes after starting up.
(2) During defrosting
Defrosting will be performed about once every one
hour when frost forms on the heat exchanger of the
outdoor unit, for 5–10 minutes each time.
SIGNAL RECEIVING PORT
TIMER LAMP
This lamp lights when the timer is working.
OPERATION INDICATOR
TEMPORARY SWITCH
Use this switch to start and stop when the remote controller does not work.
By pressing the temporary switch, the operation is done in previously set operation mode.
●
When the operation is done using the temporary switch after the power source is turned off and turn on again,●
the operation is done in automatic mode.
Front panel
Moveable panel
Hand grip point
Lift the front panel●
Hand grip point
Do not hold the moveable panel●
when the front panel is in either
opened/closed position.

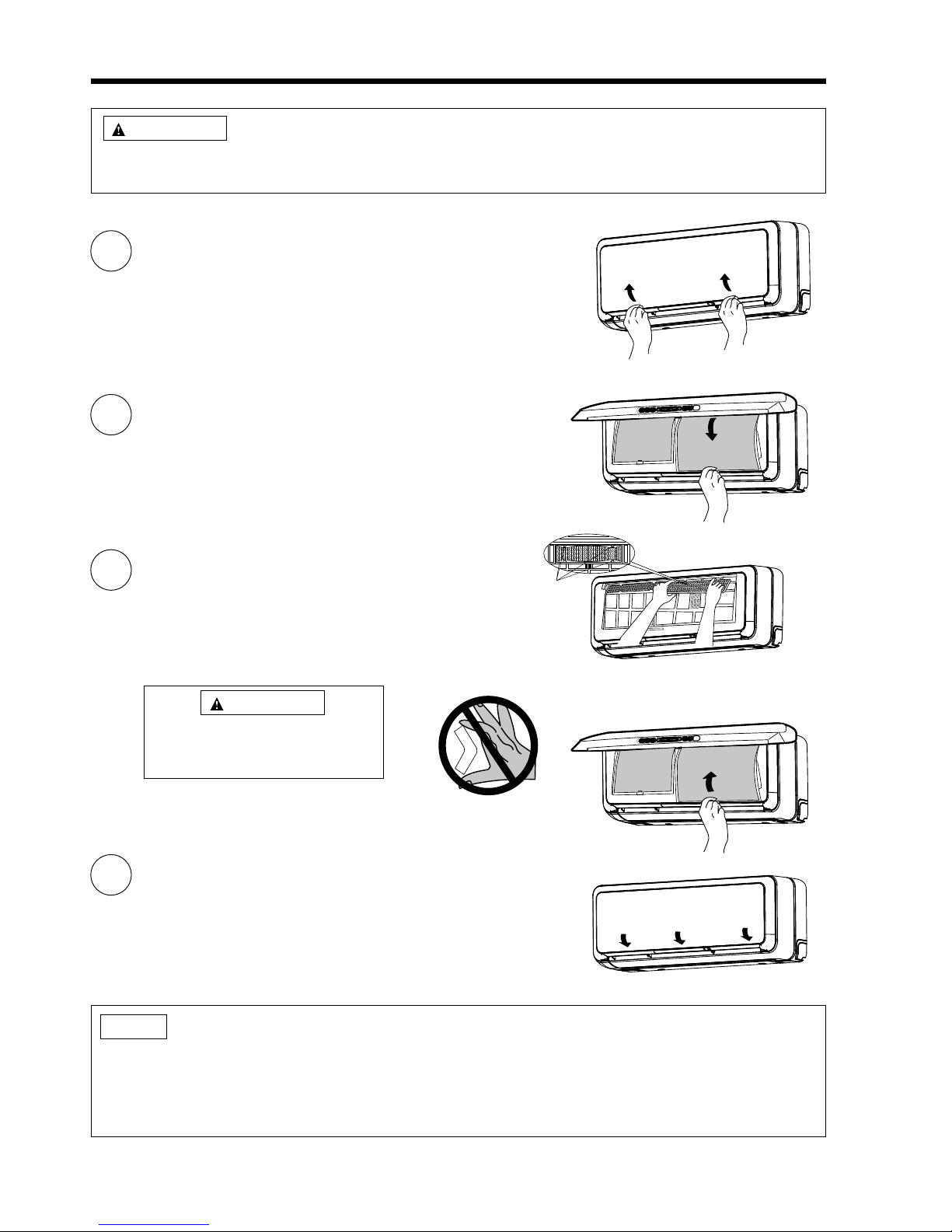

1. Opening up the front panel
Never try to force open/close the moveable panel manually.●
Manually opening or closing the moveable panel may cause breakdowns (The moveable panel will
automatically close or open when the power supply is switched on or switched off and whenever the unit is
in operations or has stopped operating.
CAUTION
Instruction Manual_part A.indb 3 6/23/2010 12:10:43 PM

– 4 –
Minimum Maximum Minimum Maximum
Indoor Dry bulb °C 21 32 20 27
Wet bulb °C 15 23 12 19
Outdoor Dry bulb °C 21 43 2 21
Wet bulb °C 15 26 1 15
Note
Avoid to use the room air conditioner for cooling operation when the outside temperature is below -10°C (14°F).●
The recommended maximum and minimum operating temperatures of the hot and cold sides should be as
below:
Cooling Heating
●Pull toward the down direction.
2. Closing the Front Panel
When front panel is shaky, there is a possibility panel coming off and●
falling down.
Do not apply extra force on the front panel when it is opened up in the
●
upright position.
Also frequent removal of the front panel from the front cover may
cause damage.
CAUTION
Initially press the left and the right sides of the front●
panel and finally press the central portion until you
hear a clicking sound.
Instruction Manual_part A.indb 4 6/23/2010 12:10:44 PM

– 4 –

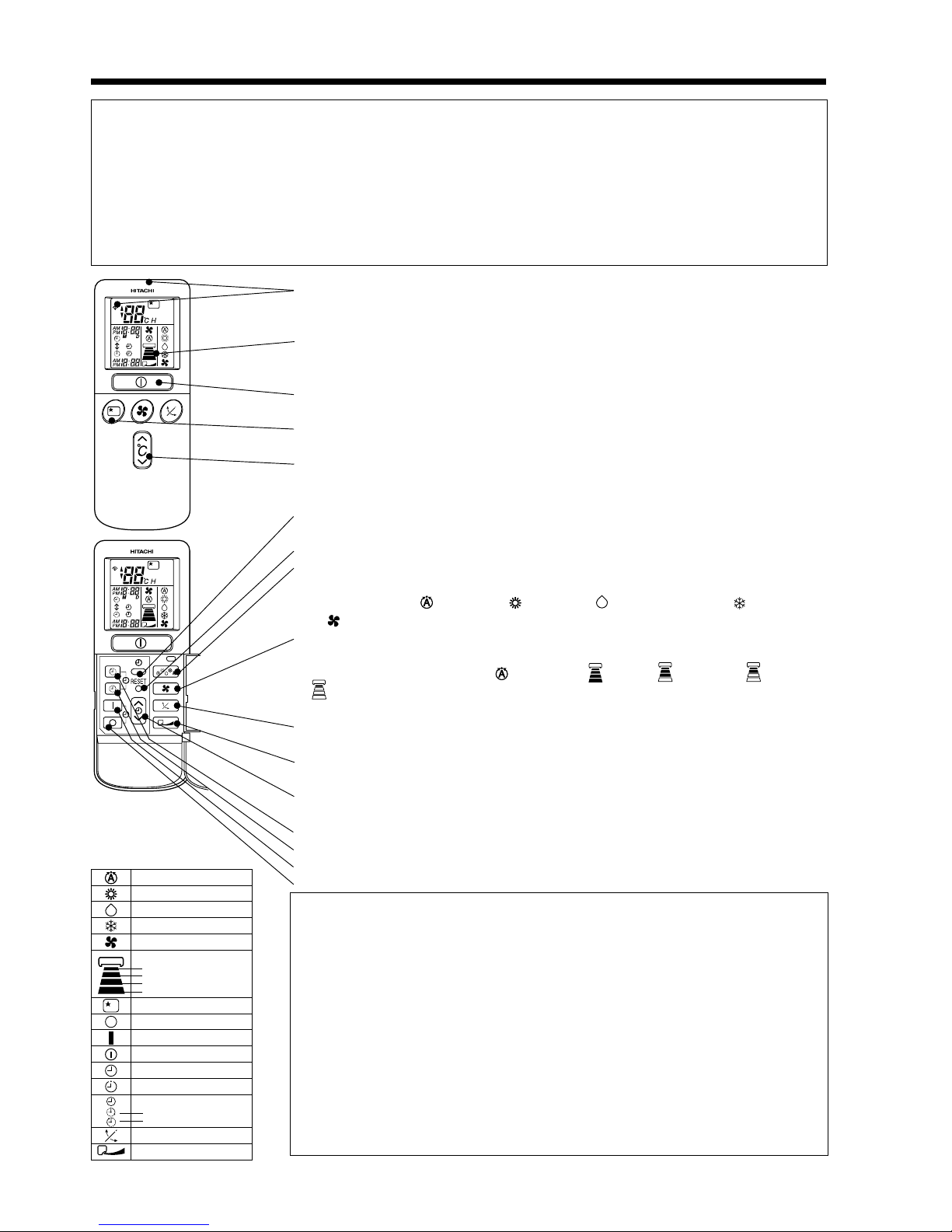

NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT
REMOTE CONTROLLER
This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is●
controlled electronically, the range of control may be shorter.
This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can be
controlled from the remote controller.
Handle the remote controller with care. Dropping it or getting it wet may compromise its signal transmission●
capability.

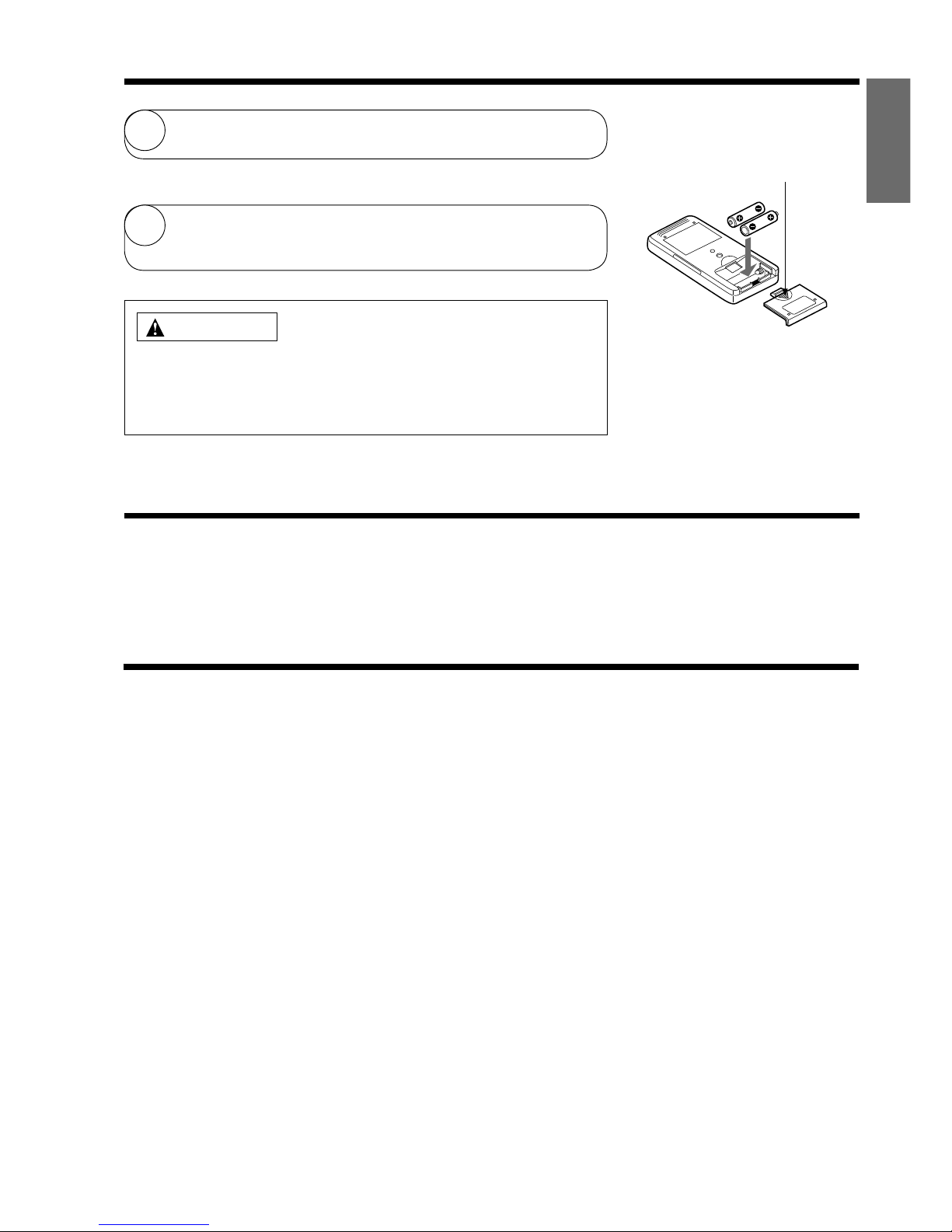

After new batteries are inserted into the remote controller, the unit will initially require approximately 10●
seconds to respond to commands and operate.
Signal emitting window/transmission sign
●
Point this window toward the indoor unit when controlling it.
The transmission sign blinks when a signal is sent.
Display
●
This indicates the room temperature selected, current time, timer status, function
and intensity of circulation selected.
START/STOP button●
Press this button to start operation. Press it again to stop operation.
SLEEP button●

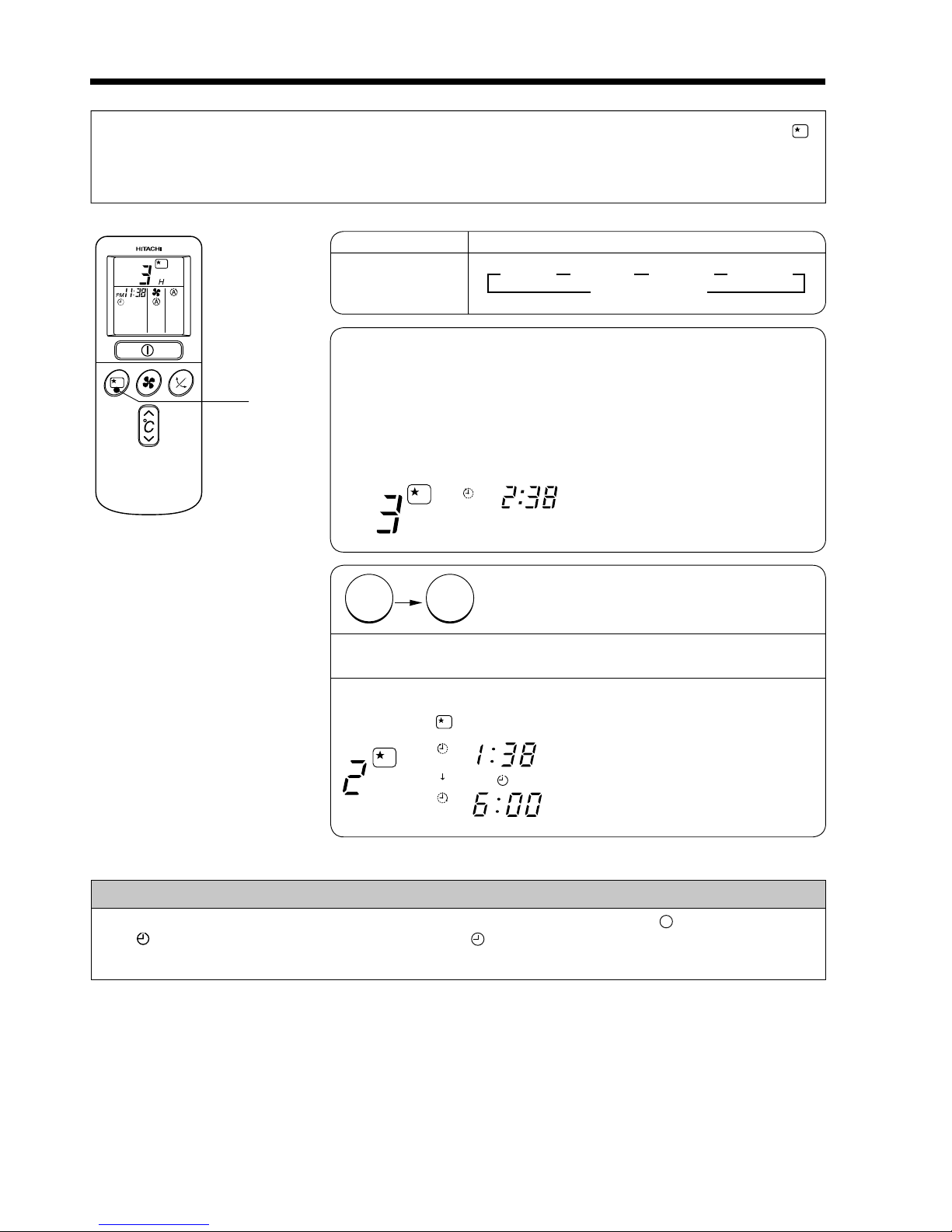

Use this button to set the sleep timer.

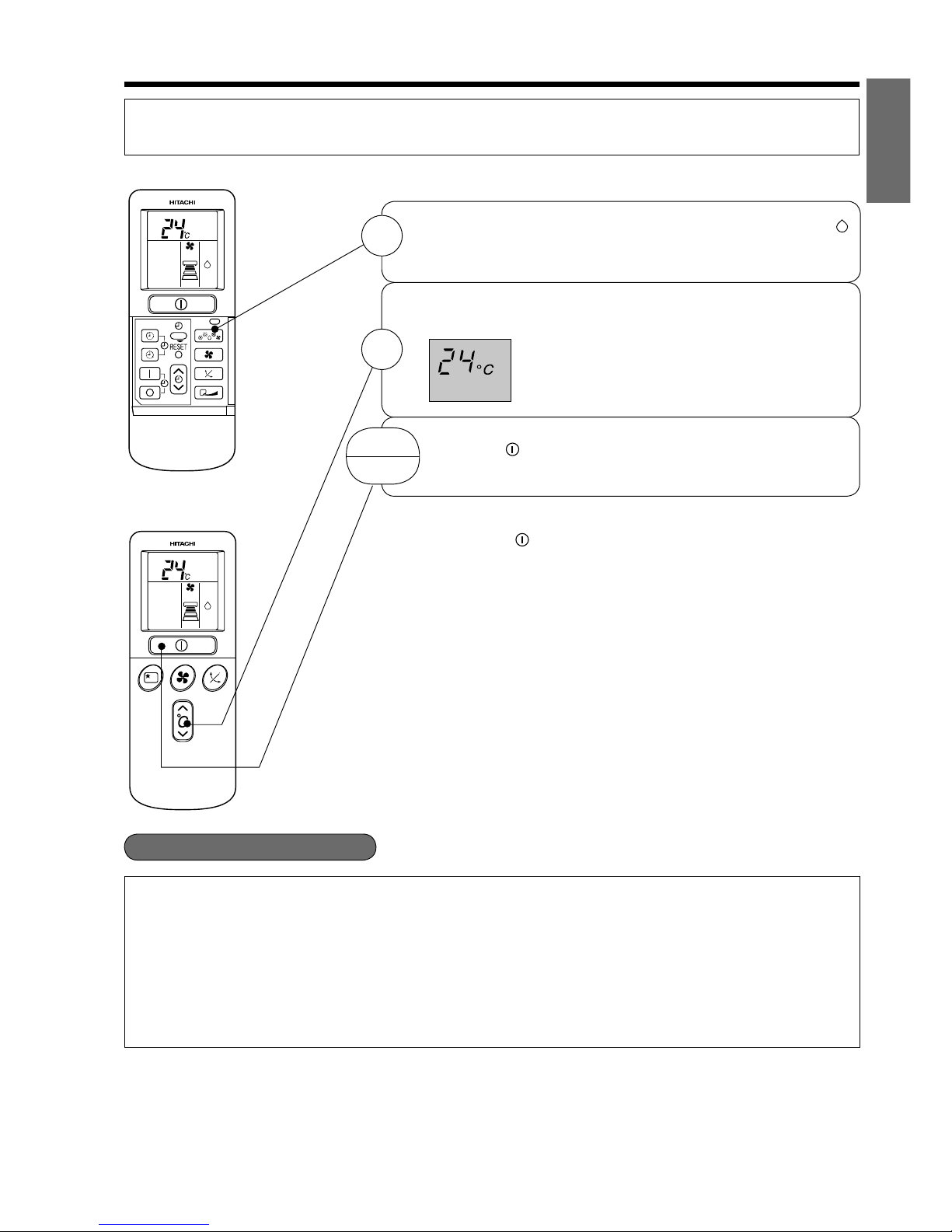

TEMPERATURE buttons
●
Use these buttons to raise or lower the temperature setting. (Keep pressed, and
the value will change more quickly.)
TIME button●
Use this button to set and check the time and date.
RESET buttons
●
FUNCTION selector●
Use this button to select the operating mode. Every time you press it, the mode
will change from (AUTO) to (HEAT) to (DEHUMIDIFY) to (COOL) and
to (FAN) cyclically.

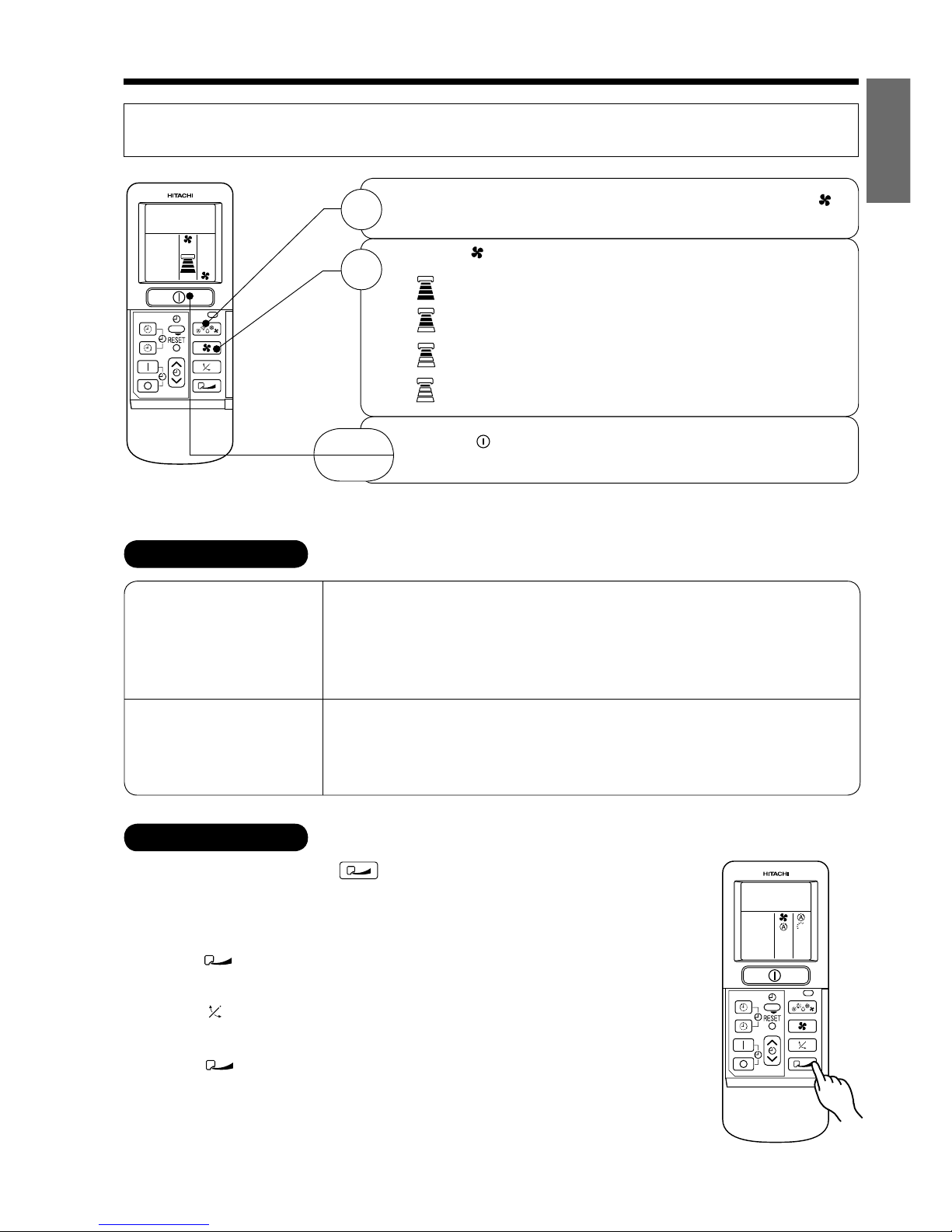

FAN SPEED selector●
This determines the fan speed. Every time you press this button, the intensity of
circulation will change from (AUTO) to (HI) to (MED) to (LOW) to
(SILENT) (This button allows selecting the optimal or preferred fan speed for
each operation mode).

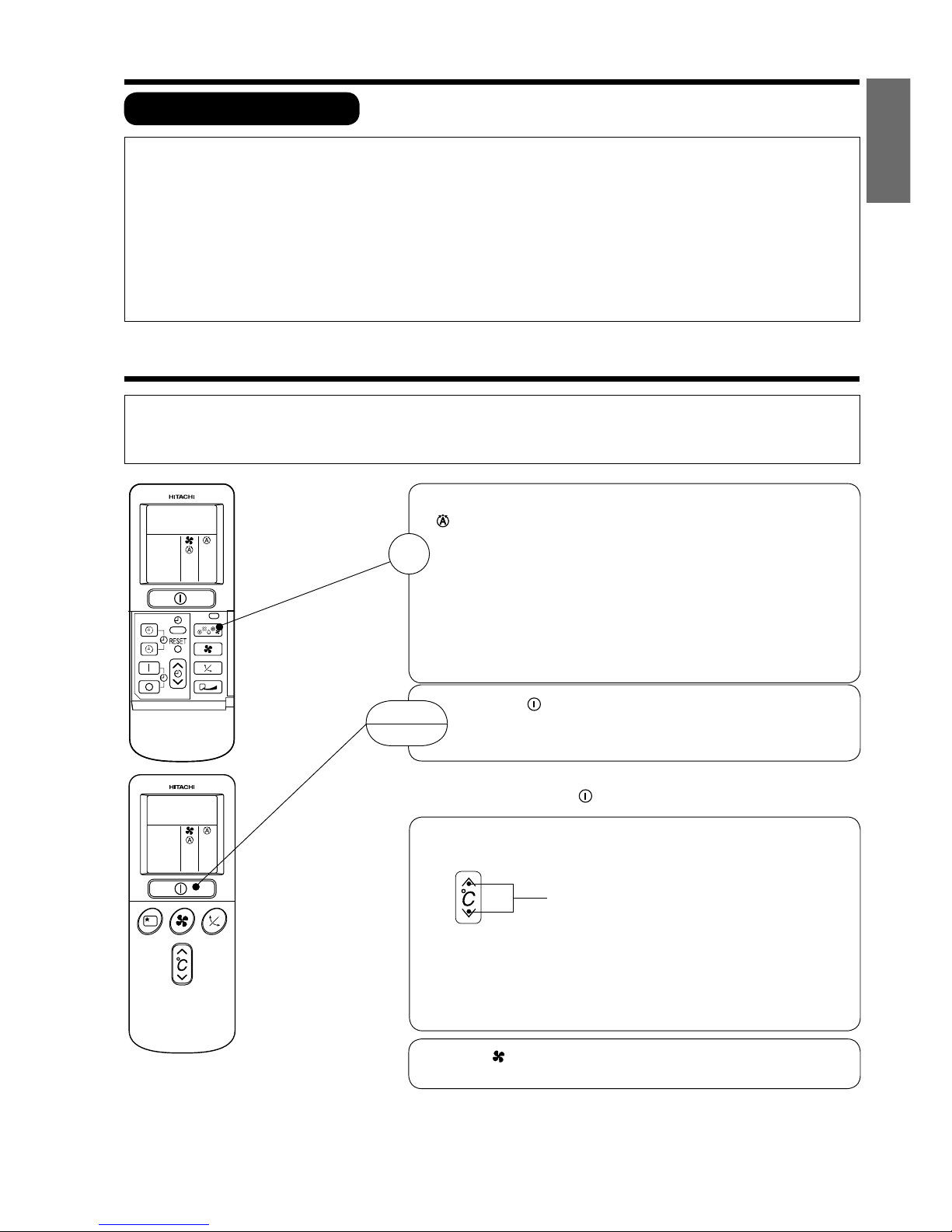

AUTO SWING button●
Controls the angle of the horizontal air deflector.
EXTENDED AIRFLOW●
Use this button to deliver faster and more comfortable air-conditioning.

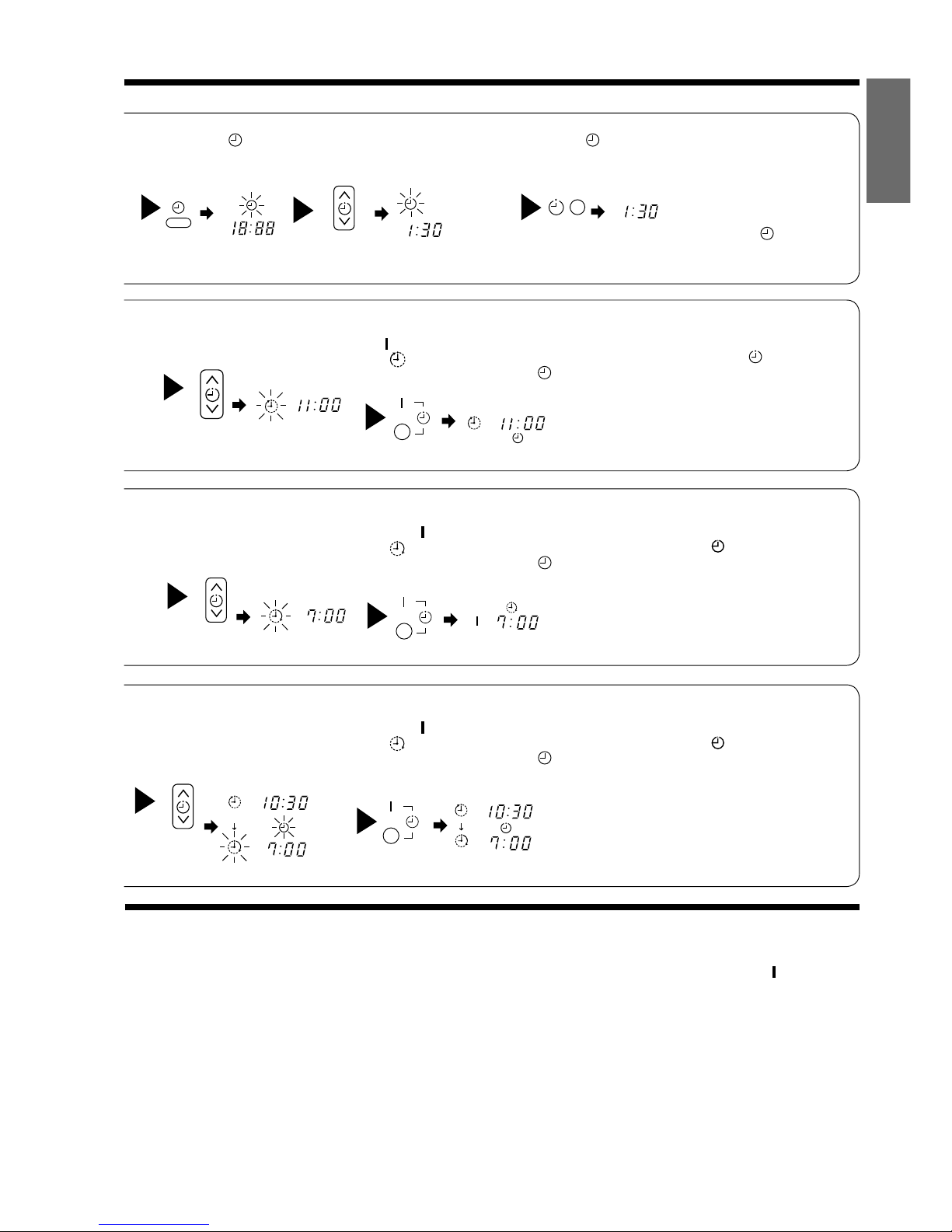

TIMER control●
Use this button to set the timer.
OFF-TIMER button● Select the turn OFF time.
ON-TIMER button● Select the turn ON time.
RESERVE button● Time setting reservation.
CANCEL button● Cancel time reservation.
Precautions for Use
Do not put the remote controller in the following places.
●
Under direct sunlight.●
In the vicinity of a heater.●
Handle the remote controller carefully. Do not drop it on the floor, and●
protect it from water.
Once the outdoor unit stops, it will not restart for about 3 minutes (unless
●
you turn the power switch off and on or unplug the power cord and plug it
in again).
This is to protect the device and does not indicate a failure.
If you press the FUNCTION selector button during operation, the device
●
may stop for about 3 minutes for protection.
AUTO
HEAT
DEHUMIDIFY
COOL
FAN
FAN SPEED
SILENT
LOW
MED
HI
SLEEPING
STOP (CANCEL)
START (RESERVE)
START/STOP
TIME
TIMER SET
TIMER SELECTOR
ON TIMER
OFF TIMER
AUTO SWING
EXTENDED AIRFLOW
Instruction Manual 1649_indb 2.indb 4 6/28/2010 5:39:27 PM

– 5 –
ENGLISH
AUTOMATIC OPERATION
The device will automatically determine the mode of operation, HEAT, COOL or DEHUMIDIFY depending on
the current room temperature. The selected mode of operation will change when the room temperature varies.
However the mode of operation will not change when indoor unit connected to multi type outdoor unit.
VARIOUS FUNCTIONS
■Auto Restart Control
If there is a power failure, operation will be automatically restarted when the power is resumed with previous●
operation mode and airflow direction.
(As the operation is not stopped by remote controller.)
If you intend not to continue the operation when the power is resumed, switch off the power supply.●
When you switch on the circuit breaker, the operation will be automatically restarted with previous operation
mode and airflow direction.
Note: 1. If you do not require Auto Restart Control, please consult your sales agent or OFF by remote
control.
2. Auto Restart Control is not available when Timer or Sleep Timer mode is set.
As the settings are stored in memory in the remote controller, you■
only have to press the (START/STOP) button next time.
Press the FUNCTION selector so that the display indicates the
(AUTO) mode of operation.
When AUTO has been selected, the device will automatically
●
determine the mode of operation, HEAT, COOL or
DEHUMIDIFY depending on the current room temperature.
However the mode of operation will not change when indoor
unit connected to multi type outdoor unit.
If the mode automatically selected by the unit is not satisfactory,●
manually change the mode setting (heat, dehumidify, cool or
fan).
You can raise or lower the temperature setting as necessary by
maximum of 3°C.
Press the temperature button and the
temperature setting will change by 1°C each
time.
The preset temperature and the actual room temperature may
●
vary somewhat depending on conditions.
The display does not indicate the preset temperature in the●
AUTO mode. If you change the setting, the indoor unit will
produce a beep.
START
STOP
Press the (FAN SPEED) button, AUTO, LOW and SILENT is
available.
Press the (START/STOP) button.
Operation starts with a beep.
Press the button again to stop operation.
1
Instruction Manual 1649_indb 2.indb 5 6/28/2010 5:39:30 PM

– 6 –
HEATING OPERATION
Use the device for heating when the outdoor temperature is under 21°C.●
When it is too warm (over 21°C), the heating function may not work in order to protect the device.
In order to keep reliability of the device, please use this device above -15°C of the outdoor temperature.●
Press the FUNCTION selector so that the display indicates
(HEAT).
Set the desired FAN SPEED with the (FAN SPEED) button (the
display indicates the setting).
(AUTO) : The fan speed changes automatically according
to the temperature of the air which blows out.
(HI) : Economical as the room will become warm
quickly.
But you may feel a chill at the beginning.
(MED) : Fan speed slow.
(LOW) : Fan speed slower.
(SILENT) : Fan speed ultra slower.
Set the desired room temperature with the TEMPERATURE buttons
(the display indicates the setting).
The temperature setting and the actual room temperature may vary
somewhat depending on conditions.
Press the (START/STOP) button. Heating operation starts with
a beep. Press the button again to stop operation.
As the settings are stored in memory in the remote controller, you only
■
have to press the (START/STOP) button next time.
START
STOP
■Defrosting
Defrosting will be performed about once an hour when frost forms on the heat exchange of the outdoor unit, for
5~10 minutes each time.
During defrosting operation, the operation lamp blinks in cycle of 3 seconds on and 0.5 second off.
The maximum time for defrosting is 20 minutes.
However, if it is connected to multi type outdoor unit, the maximum time for defrosting is 15 minutes.
(If the piping length used is longer than usual, frost will likely to form.)
2
3
1
Instruction Manual 1649_indb 2.indb 6 6/28/2010 5:39:31 PM

– 7 –
ENGLISH
DEHUMIDIFYING OPERATION
■Dehumidifying Function
When the room temperature is higher than the temperature setting: The device will dehumidify the room,●
reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the
temperature setting slightly lower than the current room temperature, regardless of the temperature setting.
The function will stop (the indoor unit will stop emitting air) as soon as the room temperature becomes lower
than the setting temperature.
The preset room temperature may not be reached depending on the number of people present in the room
●
or other room conditions.
Set the desired room temperature with the TEMPERATURE button
(the display indicates the setting).
The range of 20-26˚C is recommended as the room
temperature for dehumidifying.
Press the (START/STOP) button. Dehumidifying operation
starts with a beep. Press the button again to stop operation.
As the settings are stored in memory in the remote controller, you only
■
have to press the (START/STOP) button next time.
START
STOP
Press the FUNCTION selector so that the display indicates
(DEHUMIDIFY).
The FAN SPEED is set at LOW or SILENT.
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
1
2
Instruction Manual 1649_indb 2.indb 7 6/28/2010 5:39:31 PM

– 8 –
COOLING OPERATION
Use the device for cooling when the outdoor temperature is 21 ~ 43°C.
If in doors humidity is very high (80%), some dew may form on the air outlet grille of the indoor unit.
Press the FUNCTION selector so that the display indicates
(COOL).
Set the desired FAN SPEED with the (FAN SPEED) button (the
display indicates the setting).
(AUTO) : The FAN SPEED is HI at first and varies to MED
automatically when the preset temperature has
been reached.
(HI) : Economical as the room will become cool
quickly.
(MED) : Fan speed slow.
(LOW) : Fan speed slower.
(SILENT) : Fan speed ultra slower.
Set the desired room temperature with the TEMPERATURE button
(the display indicates the setting).
The temperature setting and the actual room temperature may vary
some how depending on conditions.
Press the (START/STOP) button. Cooling operation starts with a
beep. Press the button again to stop operation.The cooling function
does not start if the temperature setting is higher than the current
room temperature (even though the (OPERATION) lamp lights).
The cooling function will start as soon as you set the temperature
below the current room temperature.
As the settings are stored in memory in the remote controller, you only
■
have to press the (START/STOP) button next time.
START
STOP
2
3
1
Instruction Manual 1649_indb 2.indb 8 6/28/2010 5:39:32 PM

– 9 –
ENGLISH

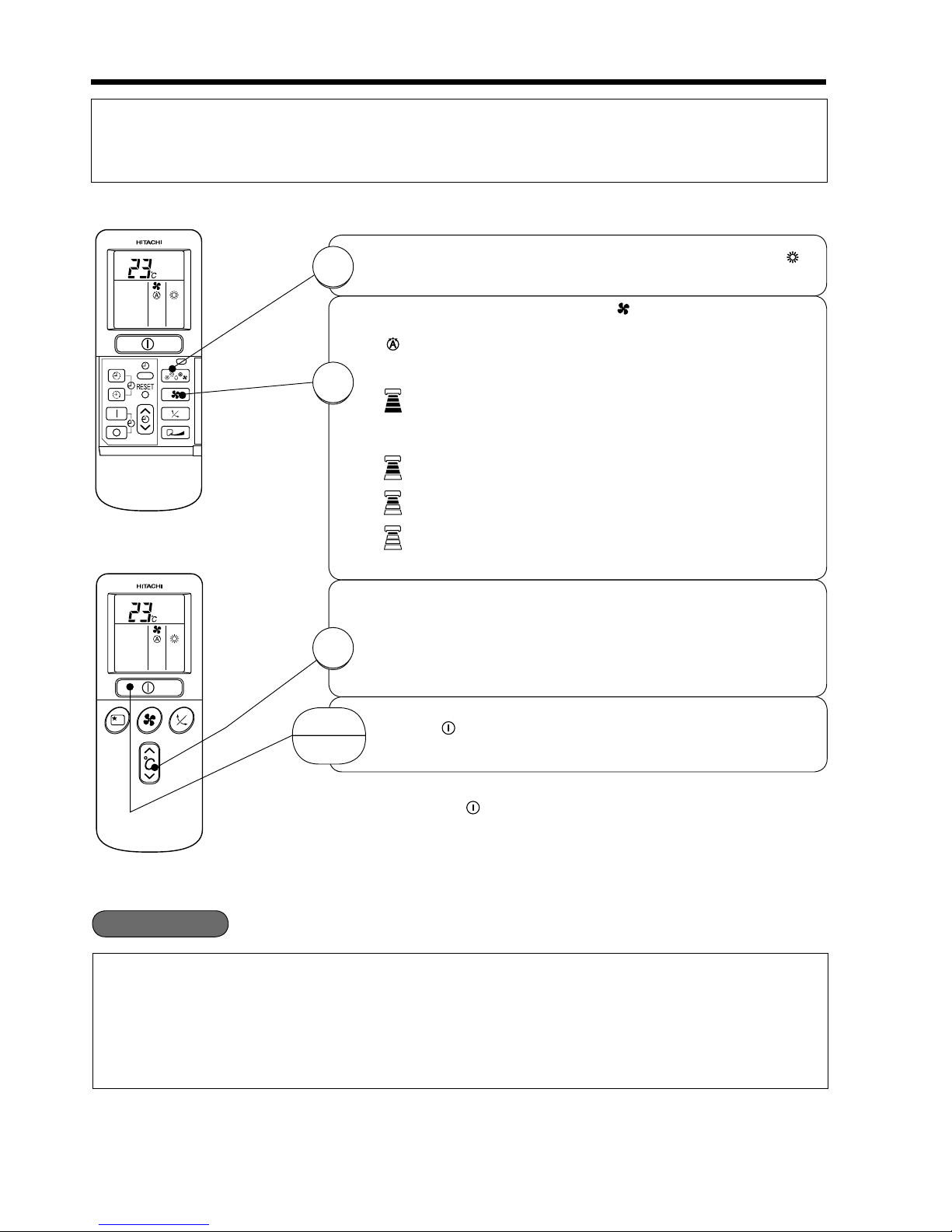

FAN SPEED (AUTO) ..... When the AUTO fan speed mode is set in the cooling/heating operation:
For the heating operation
The fan speed will automatically change according to the temperature of
●
discharged air.
When the difference of room temperature and setting temperature is large,
●
fan starts to run at HI speed.
When the room temperature reaches setting temperature, fan speed changes●
to LOW automatically.
When the difference of room temperature and setting temperature is large,
●
fan starts to run at HI speed.
After room temperature reaches the preset temperature, the cooling●
operation, which changes the fan speed and room temperature to obtain
optimum conditions for natural healthful cooling will be performed.
For the cooling operation
FAN OPERATION
You can use the device simply as an air circulator. Use this function to dry the interior of the indoor unit at the
end of summer.
Press the FUNCTION selector so that the display indicates
(FAN).
Press the (FAN SPEED) button.
(HI) : The strongest air blow.
(MED) : Fan speed slow.
(LOW) : Fan speed slower.
(SILENT) : Fan speed ultra slower.
Press the (START/STOP) button. Fan operation starts with a
beep. Press the button again to stop operation.
START
STOP
EXTENDED AIRFLOW
During operations, press the■ button to select the various operating modes
that will set the preferred air flow direction and will also adjust the air flow speed to
reach the furthest distance within its range. (During the cooling operating mode, the
air flow direction and air flow speed will return to their original settings after 3 hours
of operations).
If the● (EXTENDED AIRFLOW) button is pressed while the AUTO SWING
mode is set, the AUTO SWING mode is cancelled and the EXTENDED AIRFLOW
mode is set.
If the
● (AUTO SWING) button is pressed while the EXTENDED AIRFLOW
mode is set, the EXTENDED AIRFLOW mode is cancelled and the AUTO
SWING mode is set.
If the● (EXTENDED AIRFLOW) button is pressed when the horizontal air
deflector stops at your preferred angle, the deflector will change to EXTENDED
AIRFLOW.
As the angle of the horizontal air deflector changes, the air may blow directly●
onto the body.
1
2
Instruction Manual 1649_indb 2.indb 9 6/28/2010 5:39:33 PM

– 10 –
PM PM
AM
PM
HOW TO SET THE TIMER
The device will turn on (off) and off●
(on) at the designated times.
The switching occurs first at the●
preset time that comes earlier.
The arrow mark appearing on the●
display indicates the sequence of
switching operations.
1Press the (ON-OFF)
button so that the (OFF)
mark blinks.
You can set the device to turn off at the
preset time.
After you change the
batteries;
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL) button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit.
1Set the (TIME) button.
1Press the (OFF-TIMER)
button. The (OFF) mark blinks on
the display.
2Set the turn-off time
with the TIMER control
button.
Press the (RESERVE)
button.
3Press the (ON-
TIMER) button so that the
(OFF) mark lights and
the (ON) mark blinks.
NOTE
You can set only one of the OFF-timer,
ON-timer and ON/OFF-timer.
The device will turn on at the●
designated times.
TIME
OFF TIMER
ON TIMER
RESERVE
CANCEL
AM
PM
AM
AM
1Press the (ON-TIMER)
button the (ON) mark blinks
on the display.
Start
Start
Start
Stop
Stop
STOP
Time
OFF-Timer
ON-Timer
ON/OFF Timer
Instruction Manual 1649_indb 2.indb 10 6/28/2010 5:39:34 PM

– 11 –
ENGLISH
3Point the signal window of the remote controller toward the indoor unit, and press
the (RESERVE) button.
The (OFF) mark starts lighting instead of flashing and the sign (RESERVED)
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
The time indication will disappear●
automatically in 10 second.
To check the current time setting,●
press the (TIME) button
twice.
The setting of the current time is
now complete.
The timer may be used in three ways: off-timer, on-timer, and on/off (off/on)-timer. Set the current time at first●
because it serves as a reference.
As the time settings are stored in memory in the remote controller, you only have to press the
●(RESERVE)
button in order to use the same settings next time.
2Press the
(TIME) button.
3Set the current time with the
TIMER control button.
Example: The current time is 1:30 p.m.
2Set the turn-off time with
the TIMER control button.
The setting of turn-off time is now complete.
Example: The device will turn off at 11:00p.m.
Example:
The device will turn on at 7:00 a.m.
The setting of the turn-on time is now complete.
4Set the turn-on time with
the TIMER control button.
5Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (ON) mark starts lighting instead of flashing and the (RESERVED) sign
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
3Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (ON) mark starts lighting instead of flashing and the (RESERVED) sign
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
2Set the turn-on time with
the TIMER control button.
Example:
The device will turn off at 10:30 p.m. and it will be turned on
at 7:00 a.m.
The settings of the turn-on/off times are now complete.
4Press the (TIME) button again.
The time indication starts lighting instead of
flashing.
AM
PM
AM
PM
AM
PM
AM
PM
PM
AM
PM
PM
PM
PM
PM
PM
PM
PM
AM AM AM AM
Instruction Manual 1649_indb 2.indb 11 6/28/2010 5:39:35 PM

– 12 –
HOW TO SET THE SLEEP TIMER
1Set the ON-timer.
Set the current time at first if it is not set before (see the pages for setting the current time). Press the
(SLEEP) button, and the display changes as shown below.
Mode
Sleep timer
Indication
1 hour 2 hours 3 hours 7 hours
Sleep timer off
44 44
1
Sleep Timer: The device will continue working for the designated
number of hours and then turn off.
Point the signal window of the remote controller toward the indoor unit,
and press the SLEEP button.
The timer information will be displayed on the remote controller. The
TIMER lamp lights with a beep from the indoor unit. When the sleep
timer has been set, the display indicates the turn-off time.
Example: If you set 3 hours sleep
time at 11:38 p.m., the turn-off time
is 2:38 a.m.
2Press the (SLEEP) button and set the sleep timer.
The device will be turned off by the sleep timer
and turned on by on-timer.
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL) button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit.
For heating:
In this case, the device will turn off in
2 hours (at 1:38 a.m.) and it will be
turned on 6:00 next morning.
H
AM
H
AM
AM
SLEEP
Sleep
timer Start
Instruction Manual 1649_indb 2.indb 12 6/28/2010 5:39:37 PM

– 13 –
ENGLISH
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
Remove the cover as shown in the figure and take out the old
batteries.
=
Install the new batteries.
The direction of the batteries should match the marks in the case.
Do not use new and old batteries, or different kinds of batteries1.
together.
Take out the batteries when you do not use the remote controller for2.
2 or 3 months.
CAUTION
CIRCUIT BREAKER
When you do not use the room air conditioner, set the circuit breaker to “OFF”.
TEMPORARY SWITCH
If the remote controller does not work due to battery failure, press this switch to start and stop operation.
This temporary operation will be at the setting made most recently. (The unit will immediately go into automatic
●
operation once power is switched on.)
Push and pull to the
direction of arrow
1
2
Instruction Manual 1649_indb 2.indb 13 6/28/2010 5:39:37 PM

– 14 –
Suitable Room Temperature Install curtain or blinds
Ventilation Effective Usage Of Timer
Do Not Forget To Clean The Air Filter Please Adjust Suitable Temperature
For Baby And Children
Warning
Freezing temperature
is bad for health and
a waste of electric
power.
It is possible
to reduce heat
entering the
room through
windows.
At night, please use the “OFF or ON timer
operation mode”, together with your wake up
time in the morning. This will enable you to
enjoy a comfortable room temperature. Please
use the timer effectively.
Dusty air filter will reduce the air volume and
the cooling efficiency. To prevent from wasting
electric energy, please clean the filter every 2
weeks.
Please pay attention to the room temperature
and air flow direction when operating the unit
for baby, children and old folks who have
difficulty in movement.
Caution
Do not close the room for a long period
of time. Occasionally open the door and
windows to
allow the
entrance of
fresh air.
THE IDEAL WAYS OF OPERATION
Instruction Manual 1649_indb 2.indb 14 6/28/2010 5:39:38 PM

– 15 –
ENGLISH
FOR USER’S INFORMATION
The Air Conditioner And The Heat Source In The Room
Not Operating For A Long Time
When Lightning Occurs
Caution
If the amount of heat in the room is above the cooling
capability of the air conditioner (for example: more
people entering the room, using heating equipments
and etc.), the preset room temperature cannot be
achieved.
When the indoor unit is not to be used for a long
period of time, please switch off the power from the
mains. If the power from mains remains “ON”, the
indoor unit still consumes about 8W in the operation
control circuit even if it is in “OFF” mode.
Warning
To protect the whole unit during lightning, please
stop operating the unit and remove the plug from the
socket.
Interference From Electrical Products
Caution
To avoid noise interference, please place the indoor
unit and its remote controller at least 1m away from
electrical products.
OFF
TV
Inverter-type
fluorescent
lamp
To prevent
interference,
place at least
1m away.
Instruction Manual 1649_indb 2.indb 15 6/28/2010 5:39:39 PM

– 16 –
ATTACHING THE AIR CLEANSING FILTERS
Cleaning and maintenance must be carried out only by qualified service personal. Before cleaning, stop
operation and switch off the power supply.
CAUTION
Claws
(4 places)
Open the front panel.
Pull up the front panel by holding it at both sides with●
both hands.
Remove the filter.
Push upward to release the claws and pull out the
●
filter.
Attaching the air cleansing filters to the filter.
Attach the air cleansing filters to the frame by
●
gently compress its both sides and release after
insertion into filter frame.
Attach the filters.
Attach the filters by ensuring that the surface written
●
“FRONT” is facing front.
After attaching the filters, push the front panel at three●
arrow portion as shown in figure and close it.
CAUTION
Do not bend the air cleansing
filter as it may cause damage to
the structure.
NOTE
In case of removing the air cleansing filters, please follow the above procedures.●
The cooling capacity is slightly weakened and the cooling speed becomes slower when the air cleansing●
filters are used. So, set the fan speed to "HIGH" when using it in this condition.
Do not operate the air conditioner without filter. Dust may enter the air conditioner and fault may occur.
●
1
2
3
4
Instruction Manual 1649_indb 2.indb 16 6/28/2010 5:39:40 PM

– 17 –
ENGLISH

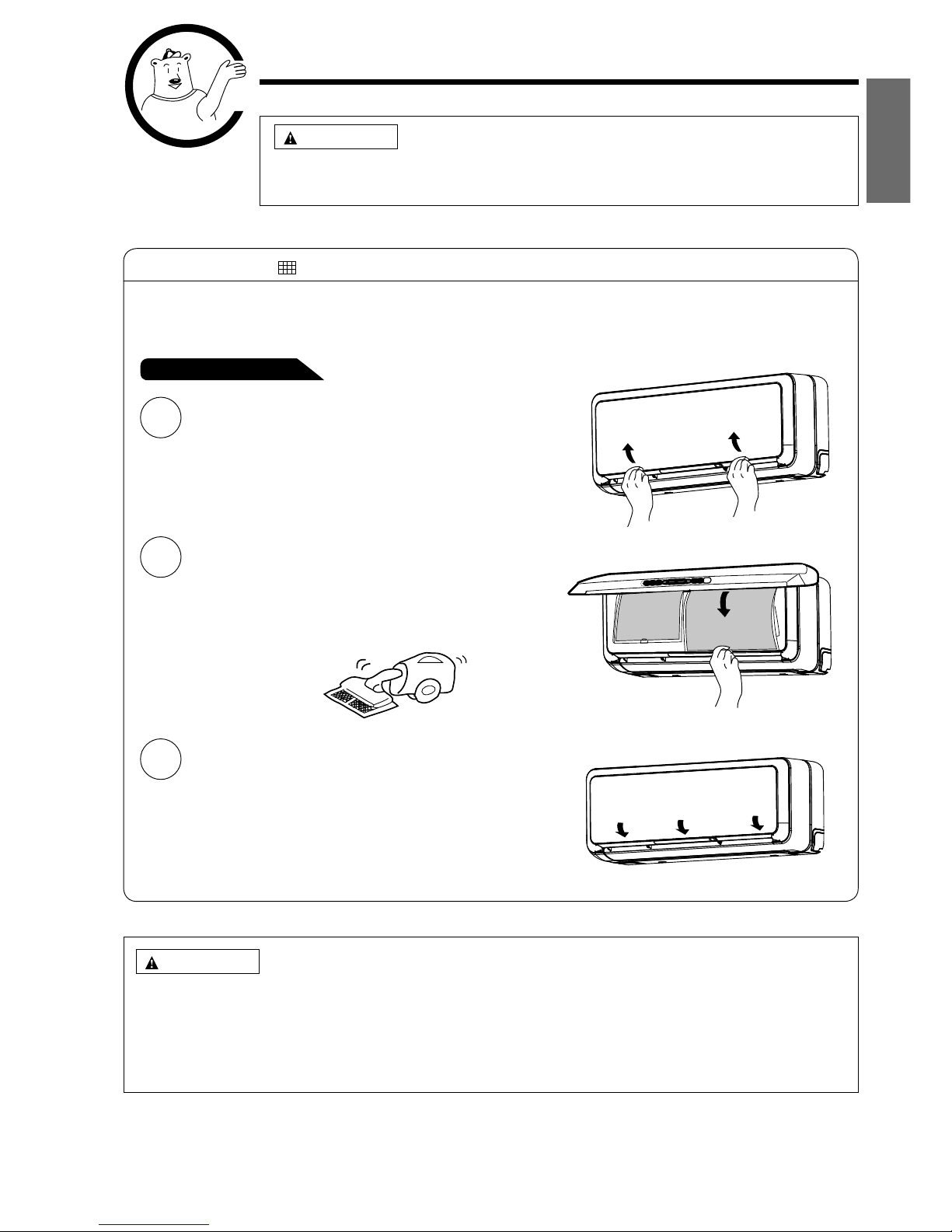

MAINTENANCE
Cleaning and maintenance must be carried out only by qualified service personal. Before
cleaning, stop operation and switch off the power supply.
1. AIR FILTER
Clean the air filter, as it removes dust inside the room. In case the air filter is full of dust, the air flow will
decrease and the cooling capacity will be reduced. Further, noise may occur. Be sure to clean the filter
following the procedure below.
CAUTION
Open the front panel and remove the filter
Gently lift and remove the air cleansing filter
●
from the air filter frame.
Vacuum dust from the air filter and air cleansing
filter using vacuum cleaner. If there is too much
dust, air filter only rinse under running tap water
and gently brush it with soft bristle brush. Allow
filters to dry in shade.
Re-insert the air cleansing filter to the fi
lter
●
frame. Set the filter with “FRONT” mark facing
front, and slot them into the original state.
After attaching the filters, push the front panel●
at three arrow portions as shown in figure and
close it.
CAUTION
Do not wash with hot water at more than 40°C. The filter may shrink.●
When washing it, shake off moisture completely and dry it in the shade; do not expose it directly to the sun.●
The filter may shrink.
Do not use detergent on the air cleansing filter as some detergent may deteriorate the filter electrostatic
●
performance.
PROCEDURE
1
2
3
Instruction Manual 1649_indb 2.indb 17 6/28/2010 5:39:45 PM
