Hitachi RPK1.5FSNK1 User manual

RPIL1.0FSNK3/K4, RPIL1.5FSNK3/K4,
RPIL2.0FSNK3/K4,RPIL2.0FSNK,
RPIL2.5FSNK, RPIL3.0FSNK,
RPIM4.0FSNK, RPIM5.0FSNK,
RPI8.0FSNK1, RPI10FSNK1,
RPIH12FSNK
RPK1.5FSNK1, RPK2.0FSNK1, RPK2.5FSNK1,
RPK0.8FSNK2, RPK1.0FSNK2, RPK1.3FSNK2,
RPK1.5FSNK2, RPK2.0FSNK2, RPK2.5FSNK2
W

If you have any questions, contact your distributor or dealer of HITACHI or JCH-IN Customer Care.

Page
1. Safety Summary 1
2. System Description 1
3. Remote Control Switch 2
4. Before Operation 3
5. Operation Method 3
5.1 Wired Remote Control Switch 3
5.2 Wireless Remote Control Switch 3
6. Setting of Automatic Swing Louver 3

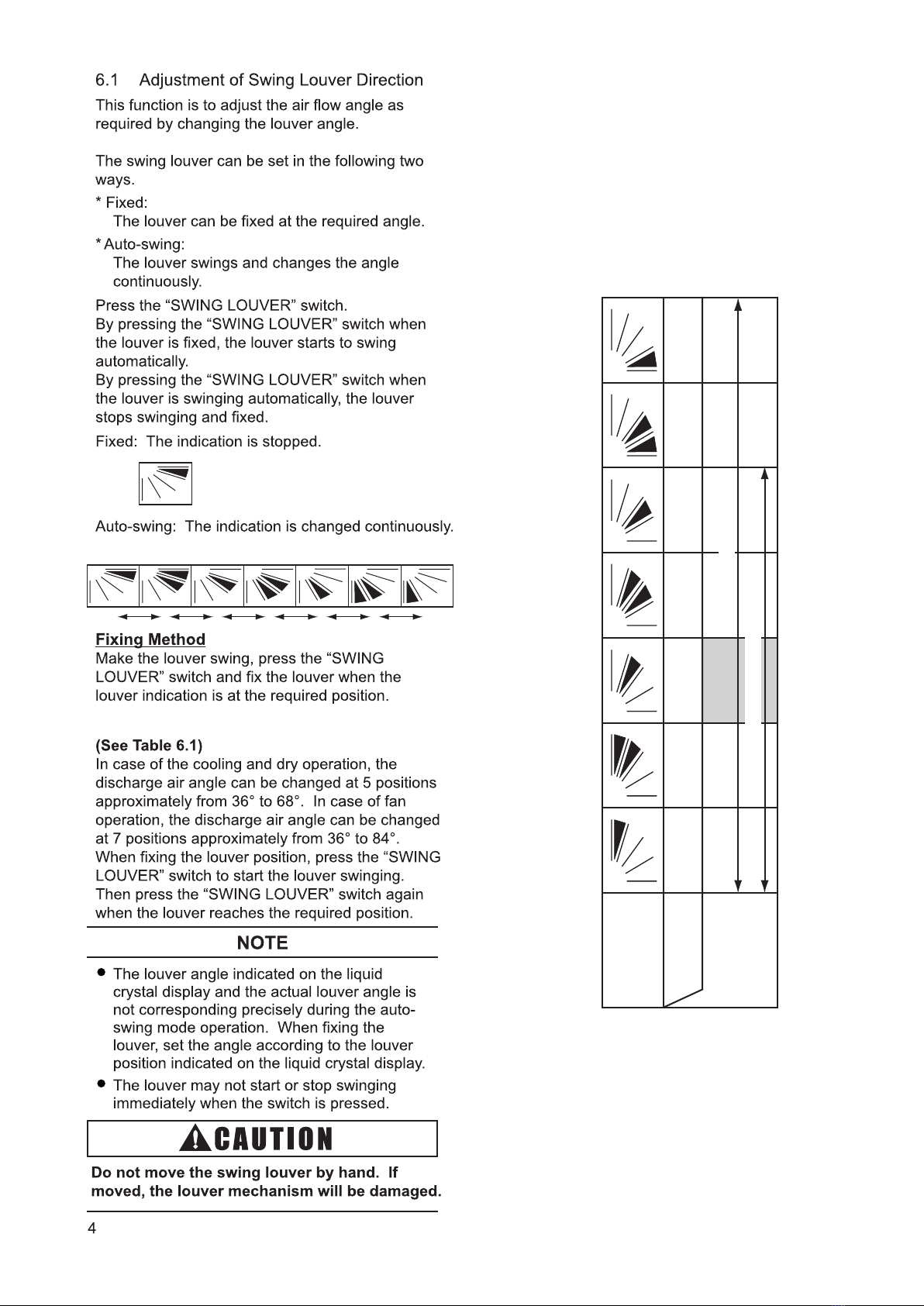

6.1 Adjustment of Swing Louver Direction 4
7. Motion Sensor 5
7.1 Function 5
7.2 Details for Motion Sensor Control 6
7.3 Descriptions for Setting Items 6
7.4 Setting of Motion Sensor 6
8. Filter Automatic Clean 8
8.1 Function 8
8.2 How to operate Filter clean 9
8.3 How to cancel a cleaning on the way 9
8.4 Dust collection in the dust box 10
9. Other Indications 11
9.1 In Normal Condition 11
9.1.1 Central Control 11
9.1.2 Motion Sensor Control 11
9.1.3 Defrost 11
9.1.4 Operation Control 11
9.2 In Abnormal Condition 12
9.2.1 Abnormality 12
9.2.2 Power Failure 12
9.2.3 Electric Noise 12
10. Automatic Control 13
11. Identifying of Indoor Units Installed Side by Side 13
11.1 Identifying of Indoor Units Installed Side by Side Setting 13
with Wireless Remote Control Switch
12. Filter Cleaning 14
12.1 Taking Out the Filter 14
12.2 Clean the Filter 14
12.3 Reset of Filter Indication 14
13. Replacing Batteries for Wireless Remote Control Switch 15
13.1 Setting Batteries 15
14. Troubleshooting 15
14.1 If Trouble Still Remains 15
14.2 No Operation 15
14.3 Not Cooling or Heating Well 15
14.4 This is Not Abnormal 15
TABLE OF CONTENTS
Items

P C-A WR P C-LH3B P C-LH3C P C-A R P C -A RF
Ho rizo ntal Louver O O O O O
Vertical Louver x x O x x
M otion senso r x x O x O
Fan Speed (4 tap) O O x x O
Fan Speed (5 tap) x x O x x
i-Clean* O O O O O
Wireless Remo te Wired Remo te
Table 3.1 Function compatibility with different types of Remote Control Switch
* Filter reset key will act as a manual i-clean command for Hiwall IDU with i-Clean feature.
temperature increases by 1 degree. The minimum
setting indication is 17°C for wireless remote
handset remote handset and 19°C for wired
remote handset. The maximum
setting indication is 30°C (in case of Wired/
Wireless handset)
0.8 1.0 1.5 2.0 2.5 3.0 4.0 5.0 6.0 8.0 10.0 12.01.3

A/C
COOL
HIGH
LOUV. ADJ
Meeting Room
MODE SPEED LOUV. TEMP
FLTR
OK ?
Filter Sign Indicator
It is indicated at the
set period for filter cleaning.
Operation Lock
Indicator
It is indicated when the
operation lock function is set.
Schedule Timer
Indicator
It is indicated when the
schedule timer function is set.
Swing Louver
Indicator
Fan Speed Indicator
Directional Key Enter Key
RUN/STOP Switch
Run Indicator
It lights while the unit is
operated, and it flashes in
an abnormal conditions.
Operation Mode Indicator
The indications of “HEAT” and
“AUTO” are indicated only for
the heat pump type models.
Operation Guide Indicator
“Central Control” is indicated
while the remote control
operation is prohibited.
Room Name
Indicator
Setting Temperature
Indicator
Help Switch
To display Help
Menu.
Return Switch
To return to the
previous screen.
Menu Switch
To display Menu.
FLTR
Fig. 3.1 Wired Remote Control Switch (PC-ARF : Optional)
Smart Swing
On Off
Auto
MODE
RESET
CANCEL
SET
OFF
TIMER
ON
TIMER
FAN SPEED
COOL H EATDRY
RUN /
STOP
Auto
Transmitter
Point the transmitter towards the receiver of the indoor unit when sending commands. The transmitting indication
on the liquid crystal display flashes when sending commands.
Transmitting Indication
Liquid Crystal Display
The set temperature, timer operation, position of air louver, operation mode, air flow, etc., are indicated. The diagram
of the display shown on the left is for explanation purposes only. The display will differ during actual operation.
Power Save / Auto-Off Switch
Press this switch to select the Power Save function by operation of Motion Sensor. By repeatedly pressing the
button, the setting will change sequentially through POWER SAVE, POWERSAVE + AUTOFF and NO POWERSAVE.
Fan Speed Switch
Press this switch to select the fan speed. By repeatedly pressing the button, the setting will change sequentially
through HIGH2, HIGH, MED and LOW. (Fan speed is fixed at Low for dry operation.)
Mode Selection Switch
By repeatedly pressing the mode switch, the unit cycles through the different operating modes in the order of DRY,
COOL and FAN. To select auto operation, press the switch for more than 3 seconds. If the switch is pressed again,
it will return to FAN mode.
Louver Angle Switch
The airflow angle and auto-louver operation can be set by this switch. When pressing the switch, the angle is
changed in the following order.
Temp. Switch
The setting temperature can be adjusted using this switch.
Timer Switches
Four switches control the timer operation. The set time can be changed by pressing “ON TIME” or “OFF TIME” and
is set by pressing the “SET” switch. Timer operation can be cancelled using “CANCEL”.
Reset Switch
(1) Press RESET to turn off the filter indicator lamp after filter cleaning.
(2) If the unit is stopped abnormally due to protection devices etc., press the RESET switch to cancel the control
stoppage after the cause of the abnormality has been remove.
Direct In-Direct Auto-Swing
(no symbol
on LCD)
Run/Stop Switch
Operation of the unit can be started or stopped by pressing this switch.
Silent Fan Speed Switch
Press this switch to select the Silent fan speed. By pressing the button again, the setting will change back to last
selected HIGH2, HIGH, MED or LOW fan speed.
My Clean Switch
Press this switch to start i-clean operation manually. This key operates in OFF mode only.
Vertical Louver Switch
The vertical (left-right) airflow louver operation can be set by this switch.
Fig. 3.2 Wireless Remote Control Switch (PC-LH3C : Optional)

* MODEL: PC-ARF
Read the operation manual, P5414986.
* MODEL: PC-LH3C
Read the operation manual, 16-17/SF/OM/017/Z.
< 0.8 to 1.5HP >
< 1.5 to 2.5HP >
Do not turn the Horizontal louver by hand. If moved,
the louver mechanism will be damaged.
Do not turn the Vertical louver by hand. If moved,
the louver mechanism will be damaged.
(Available in Hi-wall units only) :
for Wired Remote Control Switch
<0.8 to 2.5 HP>
<0.8 to 2.5 HP>

LCD Indication
Air Louver Angle
COOL, FAN and DRY
Approx.
36o
Approx.
44o
Approx.
52o
Approx.
60o
Approx.
68o
Approx.
76o
Approx.
84o
Angle Range (COOL, DRY)
Recommended
Angle Angle Range (FAN)
(*Auto-swing indication is not available in PC-LH3C)
Table 6.1 RPK0.8FSNK2, RPK1.0FSNK2, RPK1.5FSNK1/K2 to RPK2.5FSNK1/K2
(* Above selection is not available in PC-LH3C)
(horizontal)
<In case of 0.8 to 2.5HP>

5
7. Motion Sensor
This setting is available only for the Hiwall unit with
motion sensor.
7.1 Function
l The motion sensor detects a human activity by
the change of the infrared light.
This function saves the air conditioning capacity
(adjusting the set temperature, the air flow
volume and the air flow direction) automatically
depending on a situation.
2 The operation after the motion sensor detects
as absence can be selected from “Running”,
“Stand-by” or “Stop” on the remote control switch
with the capacity saving.
l Do not use the motion sensor function when a
baby or a handicapped person stays by oneself.
The motion sensor may detect as absence and
the operation may be stopped in the case of
staying for long time with a bit motion.
2 The motion sensor detects the human activity.
However, if someone is in a room with a bit
motion, the motion sensor may detect as
absence.
3 The motion sensor may detect as human
activity if the indoor unit with the motion sensor
is installed near a moving object (ex. swing
operation of a heating appliance) which is
different in temperature against atmosphere.
4 In the case that the indoor units are operated
by 2 remote control switches, the motion sensor
setting is available only from the main remote
control switch.
5 The indoor unit operation can be stopped by the
motion sensor control.
NOTE:
The indoor unit without the motion sensor and
the indoor unit with the motion sensor can be
mixed to install.
In this case, when the operation is stopped by
the motion sensor control, the indoor unit without
the motion sensor will also stop the operation.
6 While the air conditioning capacity is saved or
the operation is stopped by the motion sensor
control, “Motion sensor is activated” is displayed
on LCD of wired handset - PC-ARF.
7 If the function “Prohibiting operation by remote
control switch” is used from the centralized
controller, select the command “Running” or
“Stand-by” in “If absent” at the motion sensor
control setting.
If “Stop” is selected, the motion sensor control
can not be performed correctly as follows.
* In the case that “Stop” is selected in the
motion sensor control setting and “Prohibiting
operation by remote control switch” (for all
items) is set by the centralized controller,
the operation will not be stopped even if the
motion sensor control function changes to the
stoppage condition.
* In the case that “Stop” is selected in the
motion sensor control setting and “Prohibiting
operation by remote control switch” (for part
of items) is set by the centralized controller,
the indoor unit operation can not be restarted
from the centralized controller although the
operation can be stopped under the stoppage
condition by the motion sensor control
function.
Off
Auto
Display on PC-LH3C
when POWERSAVE
is selected.
Display on PC-LH3C
when POWERSAVE +
AUTO OFF is selected.
Motion Sensor

6
7.2 Details for Motion Sensor Control
The motion sensor control adjusts automatically
the following items depending on a situation.
* Setting Temperature:
The temperature is adjusted 1oC or 2oC for
saving capacity.
* Air Flow Volume:
The air flow volume is adjusted to lower one
volume or to “Slo” (except during the dry
operation).
* Air Flow Direction:
The air flow direction is adjusted to horizontal.
7.3 Descriptions for Setting Items
l Motion Sensor Setting
* ON: The operating control function by the
motion sensor is activated.
* OFF: The operating control function by the
motion sensor is not activated.
(The default setting is “ON”.)
2 If absent
“If absent” is set for the indoor unit operation
after the motion sensor detects as absence for
set time in “Check interval”. The operation can
be selected from “Running”, “Stand-by” or “Stop”
on the remote control switch.
(The default setting is “Running”.)
* Running:
The operation is continued with saving the
capacity after detected as an absence.
If the human activity is detected for a period of
time, the normal operation will be performed
again.
* Stand-by:
The operation mode is the fan operation at “Slo”
speed. If the human activity is detected for
a period of time, the normal operation will be
performed again.
* Stop:
The operation is stopped by the remote control
switch when all the indoor units with motion
sensor detect absence which are connected
with same remote control switch.
If the human activity is detected for a period of
time by the stoppage, the normal operation is
performed again.
3 Check Interval
When the motion sensor detects an absence
at selected check interval time, the function “If
absent” will be executed. The interval can be
selected from 30, 60, 90 120 or 180 minutes.
(The default setting is 30 minutes.)
(1) Press “ ” (menu).
Select “Motion Sensor Setting” from the
menu by pressing “ ” or “ ” and press “OK”.
Menu
Motion Sensor Setting
Total Heat Exchanger SET
VENTI
Louver Open/Close 02
/
15:10(Fri)
Louver Setting
03
ENT. RTN.SEL. OK
OK
OK

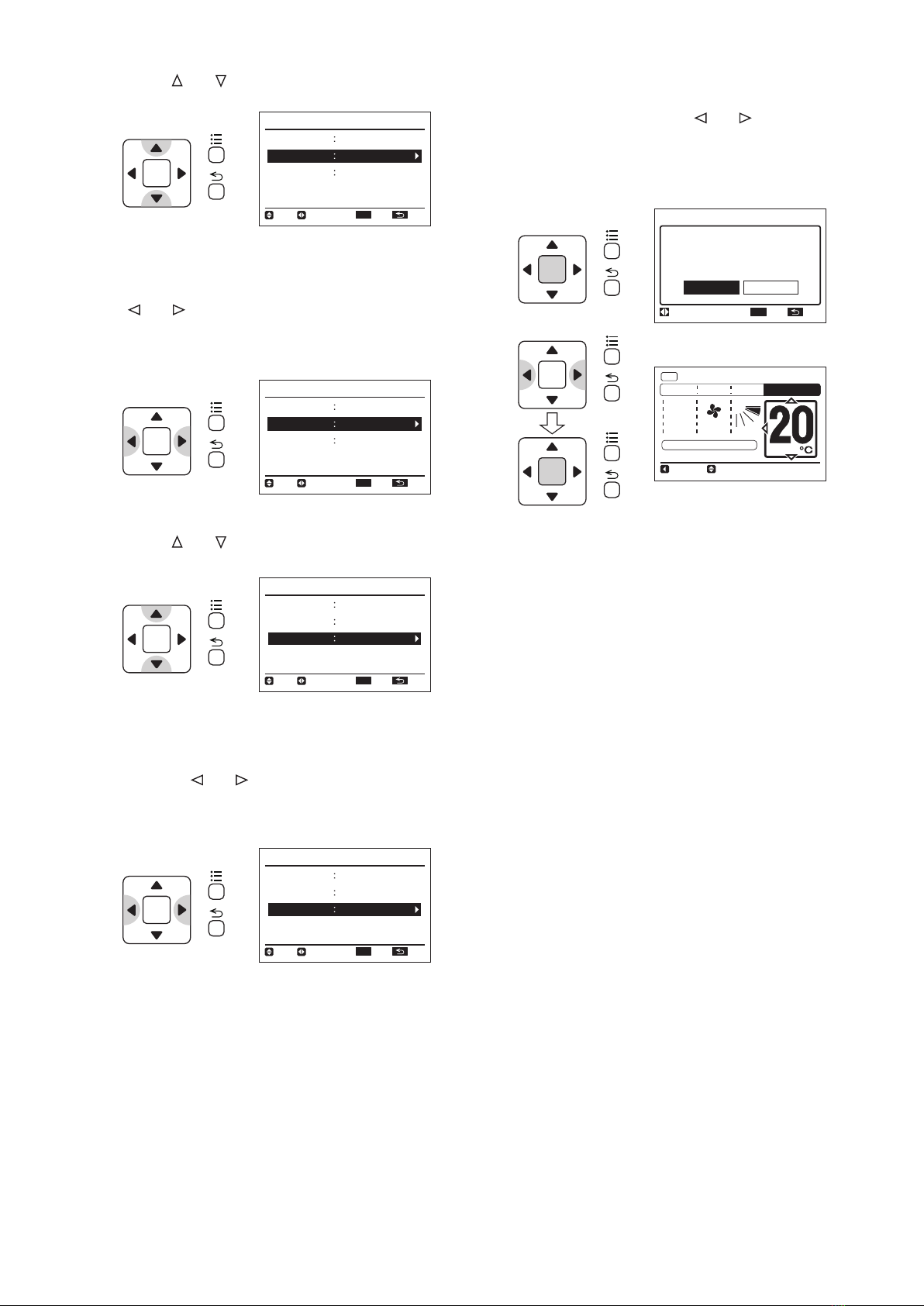

(2) “Motion Sensor Setting” is displayed.
The highlighted item is shifted to “Sensor”, “If
absent” and “Check interval” by pressing “ ”
or “ ”.
Motion Sensor Setting
Sensor ON
If absent Running
Check interval
30MIN
ENT. RTN.SEL. ADJ OK
OK
(3) Press “ ” or “ ” and select “Sensor”.
Motion Sensor Setting
Sensor ON
If absent Running
Check interval
30MIN
ENT. RTN.SEL. ADJ OK
OK
(4) The display is switched “ON” and “OFF” in
order by pressing “ ” or “ ” and change the
setting.
If other settings are not required, move to
procedure (9).
Motion Sensor Setting
Sensor ON
If absent Running
Check interval
30MIN
ENT. RTN.SEL. ADJ OK
OK
7.4 Setting of Motion Sensor
• To set “Sensor”, move to procedure (3).
• To set “If absent”, move to procedure (5).
• To set “Check interval”, move to procedure (7).

7
(5) Press “ ” or “ ” and select “If absent”.
Motion Sensor Setting
Sensor ON
If absent Running
Check interval
30MIN
ENT. RTN.SEL. ADJ OK
OK
(6) The display is switched “Running”,
“Stand-by” and “Stop” in order by pressing
“ ” or “ ” and change the setting.
If other settings are not required, move to
procedure (9).
Motion Sensor Setting
Sensor ON
If absent Running
Check interval
30MIN
ENT. RTN.SEL. ADJ OK
OK
(7) Press “ ” or “ ” and select “Check interval”.
Motion Sensor Setting
Sensor ON
If absent Running
Check interval
30MIN
ENT. RTN.SEL. ADJ OK
OK
(8) The display is switched “30MIN”, “60MIN”,
“90MIN”, “120MIN” and “180MIN” in order by
pressing “ ” or “ ” and change the setting.
If other settings are not required, move to
procedure (9).
Motion Sensor Setting
Sensor ON
If absent Running
Check interval
30MIN
ENT. RTN.SEL. ADJ OK
OK
(9) Press “OK” after the setting is completed.
The confirmation screen will be displayed.
Select “Yes” by pressing “ ” or “ ” and
press “OK”. The motion sensor setting will
be confirmed and the screen will return to the
normal mode (operation mode indication).
A/C
LOUV
.
Motion Sensor is activated
LOUV.
MODE
ADJ
SPEED
HEAT
Meeting Room
MED
TEMP
OK
Motion Sensor Setting
Save changes?
Yes No
SEL. ENT. RTN.
OK
OK
OK

8

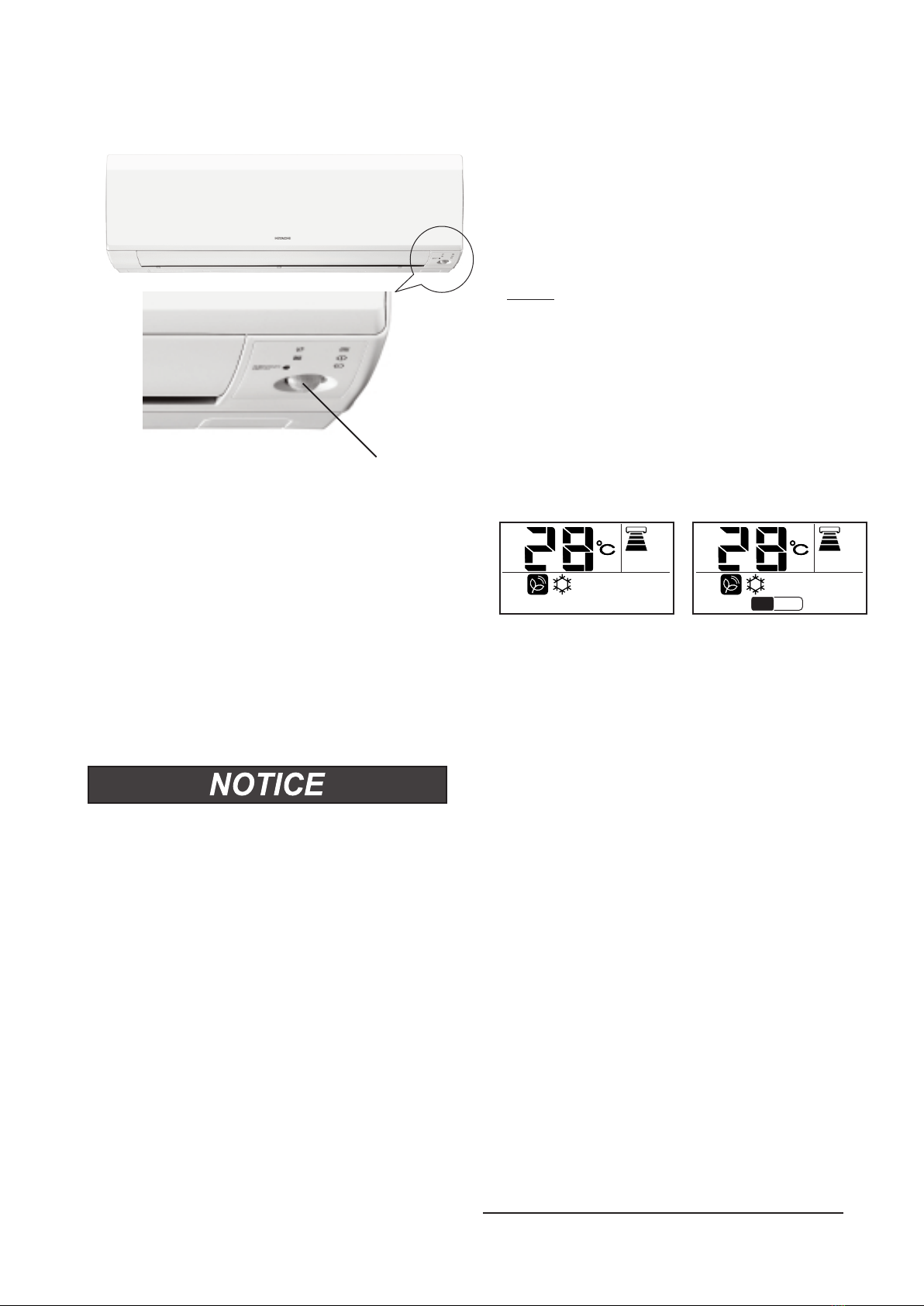

8. Filter Automatic Clean
This setting is available only for the Hiwall units with
Filter clean mechanism.
8.1 Function
Filter cleaning is conducted automatically approximately
once per day.
When the unit is turned ON to STANDBY mode,
automatic filter cleaning is performed when the
accumulated operating hours of the unit have exceeded
approximately 12 hours.
example :
l Cleaning takes approx. 7-minutes per once.
Structure of Filter Clean Mechanism
Dust catcher
Dust box
Filter cleaning unit
CLEAN
i-CLEAN LED (White) (for models with i-Clean feature)
FILTER LED (White) (for models without i-Clean feature)
TM
•
During Automatic Filter Cleaning operation, Autoclean LED
When the device is operated for a total of about 200 hours, the FILTER
lamp lights to indicate that it is time to clean the filter . The lamp goes
out when the “ (RESET)” button is pressed while the
device on “STANDBY MODE”.
shall be continuously ON.
TIMER LED (Green)
MOTION SENSOR
This LED will glow when the timer is working.
OPERATION LED (Yellow)
This LED will glow when unit is ON and not glow when unit is in STANDBY.
TEMPORARY SWITCH
Use this switch to start & stop when the Remocon does not work.
By pressing the temporary switch, the operation is done in previous mode.
•
POWERSAVE LED (Blue)
During POWERSAVE operation, POWERSAVE LED
shall be continuously ON.
INDOOR UNIT INDICATORS
Automatic cleaning
1
[1st day] [2nd day]
AM 8:00
Running for
9-hour
Running for
9-hour
PM 5:00 AM 8:00 PM 5:00
Filter automatic
cleaning
12 cumulative
running hours
Forced cleaning
2
[1st day]
AM 8:00
Running for
12-hour
Running for
12-hour
PM 8:00 AM 8:00
Filter forced
cleaning
Filter forced
cleaning
When the unit keeps on running ON more than 12 hours,
without going to STANDBY mode, it turns OFF forcibly
and Forcible filter cleaning is performed.
example :
Manual cleaning
3
Manually clean the filter by selection in the Wired
remocon Menu (PC-ARF) or pressing “MY CLEAN” on
wireless remcon (PC-LH3C). Manual cleaning can be
performed in STANDBY mode only.
l During cleaning message of “Filter cleaning”
lights on the LCD of the wired remote.
l The unit does not work soon if Start/Stop key is
pressed during cleaning. After the brush comes
to the standby position, the unit starts operation.
The brush takes maximum 4-minutes to arrive
there.
About the noise during filter cleaning
•A whirring motor noise is generated due to driving of the
cleaning unit.
•A clapping noise is generated when the dust catcher collects
the dust s wept by the cleaning unit.
•A clapping noise is generated when the dust catcher is
turned over by the cleaning unit.
•A sweeping sound is generated when the cleaning unit
sweeps the dust.
Do not put your fingers or a stick etc into the top
part of the indoor unit during filter cleaning
operation.
It may result in injury or malfunction of unit.
CAUTION

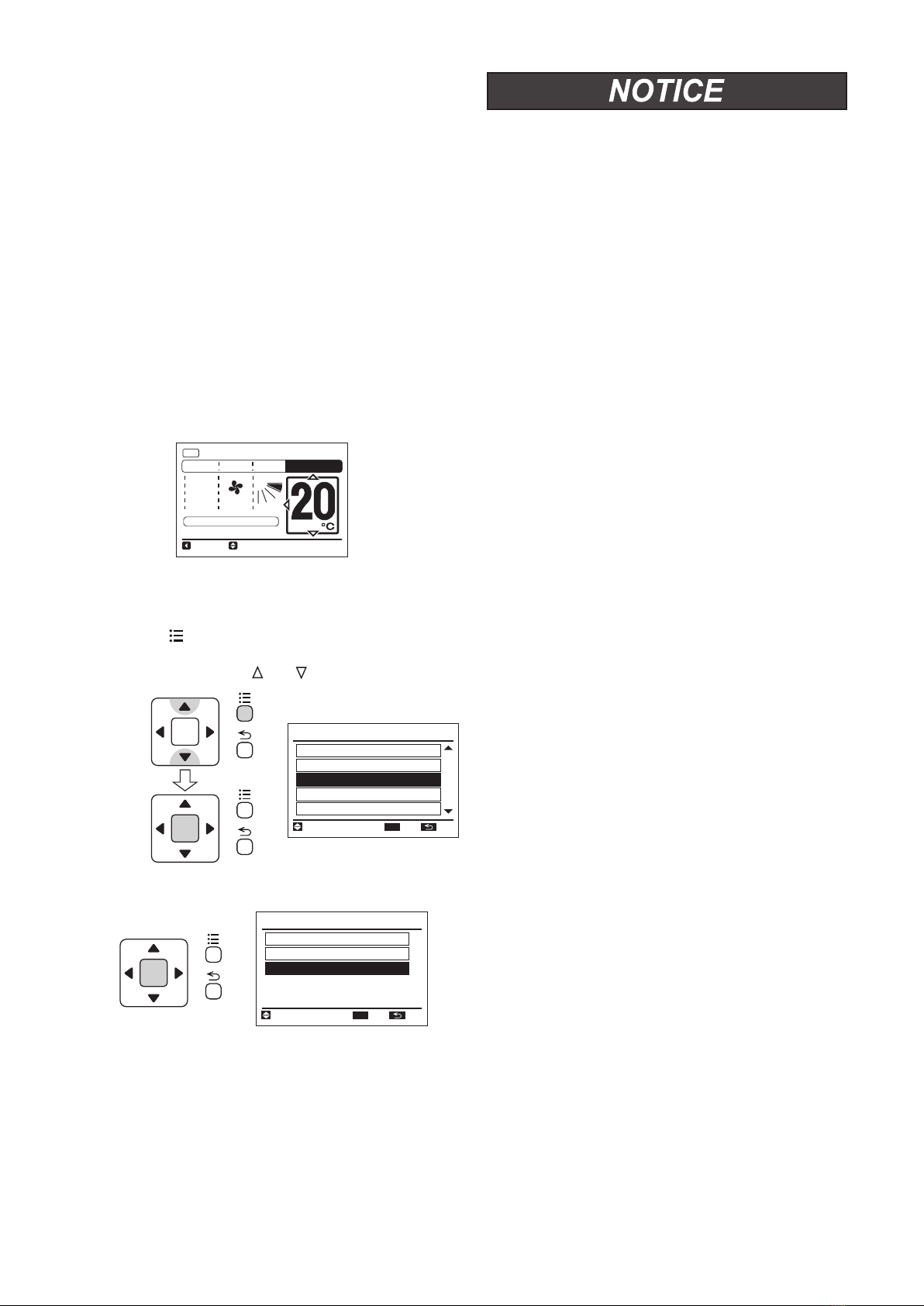

(1) Turn OFF the unit.
Select “Filter cleaning” from the
menu by pressing “ ” or “ ” and press “OK”.
Menu
Individual Louver
Timer
Filter Cleaning
Elevation Grille 01
/
02
Message reset
15:10(Fri)
ENT. RTN.SEL. OK
OK
OK
(2) Select “Filter Cleaning”.
Press “OK”.
(3) Select “Yes” by pressing “ ” or “ ”.
Filter Cleaning
ENT. RTN.SEL. ADJ OK
(4) “Filter Cleaning” is displayed on LCD & White
light glows.
8.2 How to operate Filter clean
Press “ ” (menu).
OK
Filter Cleaning
Reset
Cancel
Filter Cleaning
15:10(Fri)
ENT. RTN.SEL. OK
Clean the Filter ?
Yes No
Press “OK”. Cleaning starts.
OK
OK
A/C
LOUV
.
Filter Cleaning
LOUV.
MODE
ADJ
SPEED
HEAT
Meeting
MED
TEMP
Room A
(1)
Select “Filter cleaning” from the
menu by pressing “ ” or “ ” and press “OK”.
Menu
Individual Louver
Timer
Filter Cleaning
Elevation Grille 01
/
02
Message reset
15:10(Fri)
ENT. RTN.SEL. OK
OK
OK
8.3 How to cancel a cleaning on the way
Press “ ” (menu).
(2) Select “Cancel”.
Press “OK”.
OK
Filter Cleaning
Reset
Cancel
Filter Cleaning
15:10(Fri)
ENT. RTN.SEL. OK
(3) Select “Yes” by pressing “ ” or “ ”.
Filter Cleaning
ENT. RTN.SEL. ADJ OK
Filter cleaning is ongoing.
Cancel it ?
Yes No
Press “OK”. Cleaning starts.
OK
OK
The cleaning brush comes to the standby
position. The unit starts in operation.
9

8.4 Dust collection in the dust box
General office and shops shall clean up the
dust in the dust box approx. 2 year. Inspect the
box or filter per year and clear up dust if
necessary. Depends on usage condition, though
generally, after completion of approx., two
cumulative running years, message for
“Dust collection” appears.
Message for dust collection
(1) Message appears on the LCD when the right
time comes to collect dust.
- “Dust collection” and “IDU no. (cycle no. and
address).
- White lamp lights ON.
Immediately clear up the dust after being
aware of the message.
All IDUs dust shall be collected in case of
multiple IDUs connected.
Message appears approx. once per 2-year.
Turn OFF the unit when working.
A/C
LOUV
.
Dust collecting 01-01
LOUV.
MODE
ADJ
SPEED
HEAT
Meeting
MED
TEMP
Room A
(2)
(3)
(4)
(5)
Message reset
(1) Reset the message after completion of dust
collection and not during unit running.
Select “Filter cleaning” from the
menu by pressing “ ” or “ ” and press “OK”.
Menu
Individual Louver
Timer
Filter Cleaning
Elevation Grille 01
/
02
Message reset
15:10(Fri)
ENT. RTN.SEL. OK
OK
OK
Press “ ” (menu).
(3) Select “Reset”.
Press “OK”.
OK
Filter Cleaning
Reset
Cancel
Filter Cleaning
15:10(Fri)
ENT. RTN.SEL. OK
(2)
(4) The message and white lamp disappear.
lIf the unit keeps on running without dust collection,
dust would fall off or malfunction would occur.
So ensure to collect dust.
10

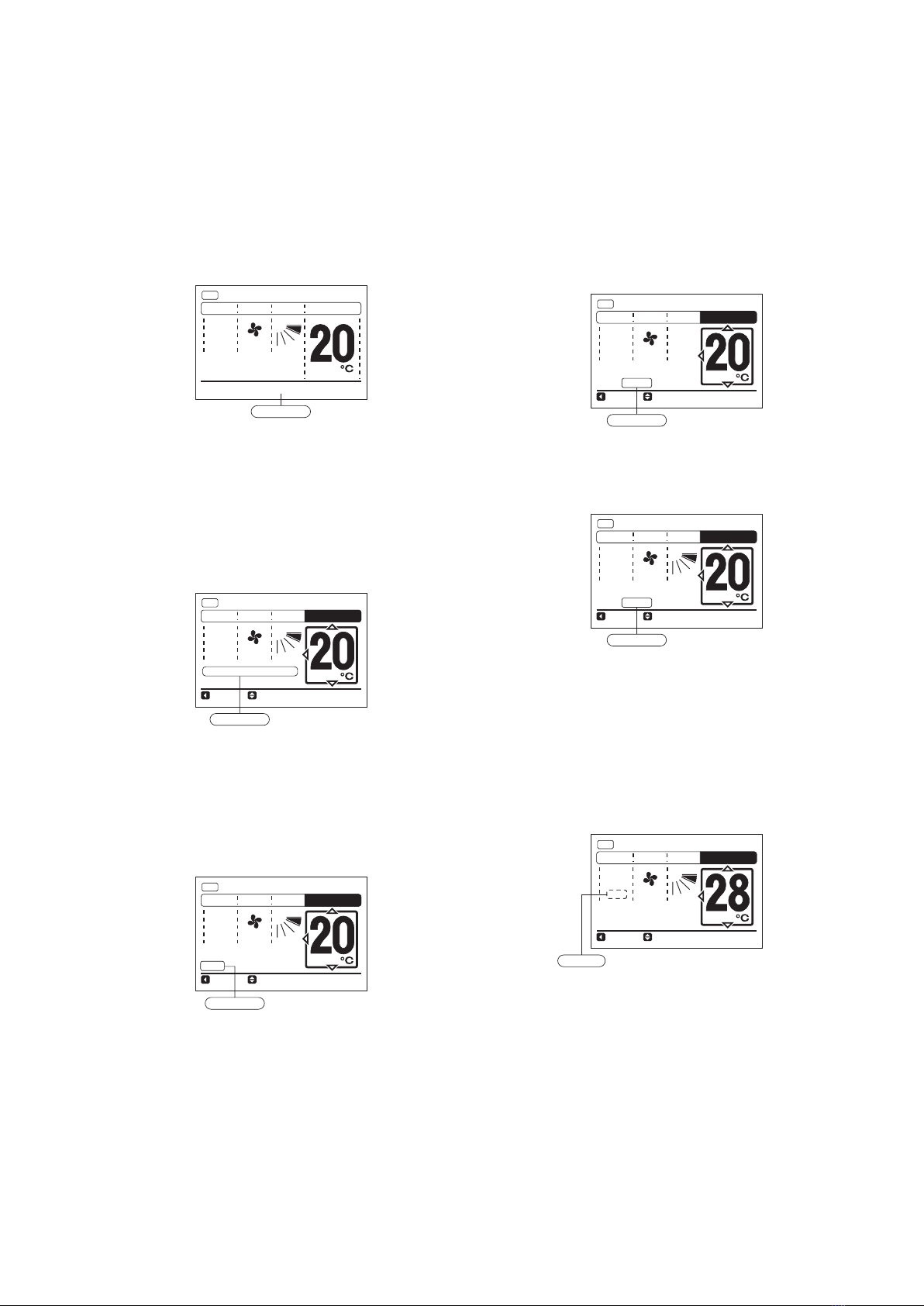

9. Other Indications
9.1 In Normal Condition
A/C
Turned ON
MODE
Central Control
SPEED LOUV.
HEAT
Meeting Room
TEMP
MED
9.1.1 Central Control
“Central Control” is turned ON.
In case that the prohibiting operation by remote
control switch is set from the central controller,
operation, temperature setting, fan speed and
direction setting are not available from the remote
control switch.
A/C
LOUV
.
Motion sensor is activated
LOUV.
MODE
ADJ
SPEED
HEAT
Meeting Room A
MED
TEMP
Turned ON
9.1.2 Motion Sensor Control
“Motion sensor is activated” is turned ON during
the motion sensor control.
In this case, the operation is performed with
saving the capacity or stopped by the motion
sensor control.
9.1.3 Defrost
"DFR" is turned ON and the indoor fan stops
during defrosting operation. The louver is fixed in
a horizontal position.
• Operation Stoppage during Defrosting Operation
If the unit operation is stopped during defrosting
operation, the operation continues with the RUN
indicator (Green) turned OFF. The operation
stops after defrosting operation.
A/C
LOUV. ADJ
DFR
Turned ON
MODE SPEED LOUV.
HEAT
Meeting Room
MED
TEMP
9.1.4 Operation Control
• Supplying Main Electrical Power
“HOT-ST” is turned ON at power-on.
In this case, the compressor is under preheating.
Do not turn OFF the power supply of the outdoor
unit during the high season for Cooling/Heating
operation. Otherwise, the operation might not be
available for Max. 4 hours.
• During Hot Start (for Heating Operation Only)
“HOT-ST” is turned ON.
• Different Operation Mode
When the operation mode set by the remote
control switch is different from the outdoor unit
operation mode, the actual operation mode
flashes on the LCD.
(except for the heat recovery system models)
The above display shows the case
that the cooling mode is set from the
remote control switch while actual
operation mode of the outdoor unit is
heating.
A/C
LOUV
HEAT ..
LOUV
ADJ
COOL
MED
TEMP
MODE SPEED
Flashing
Meeting Room
A/C
HOT-ST
LOUV. ADJ
Turned ON
MODE SPEED
HEAT
Meeting Room
MED
TEMP
A/C
LOUV
.
HOT-ST
LOUV. ADJ
Turned ON
MODE SPEED
HEAT
Meeting Room
MED
TEMP
11

9.2 In Abnormal Condition
9.2.2 Power Failure
• All the indications are OFF.
• Once the unit stops due to power failure, the
operation will restart after the power recovers.
• In case of the instantaneous power failure for 2
seconds or less, the standard unit restarts the
operation automatically.
9.2.3 Electric Noise
There could be a case that all the indications
are OFF and the unit is stopped. This is due to
the activation of the micro computer for the unit
protection from the electric noise.
Perform the starting procedures again.
9.2.1 Abnormality
• The RUN indicator (Red) is flashing.
• The indoor unit number, the alarm code, the unit
model code and the number of the connected
indoor units are displayed on the LCD.
• In case that the plural indoor units are
connected to one remote control switch, select
the object indoor unit on the LCD to display the
information.
12

the heat exchanger of stopped indoor unit at
If the system is stopped due to a power failure, it
will automatically start again when power is
restored.
The system starts automatically after approximately
3 minutes.
< PC-AWR >
10 Automatic Control
11. Identifying of Indoor Units
Installed Side by Side
11.1 Identifying of Indoor Units Installed
13

When Using PC-AR / PC-ARF

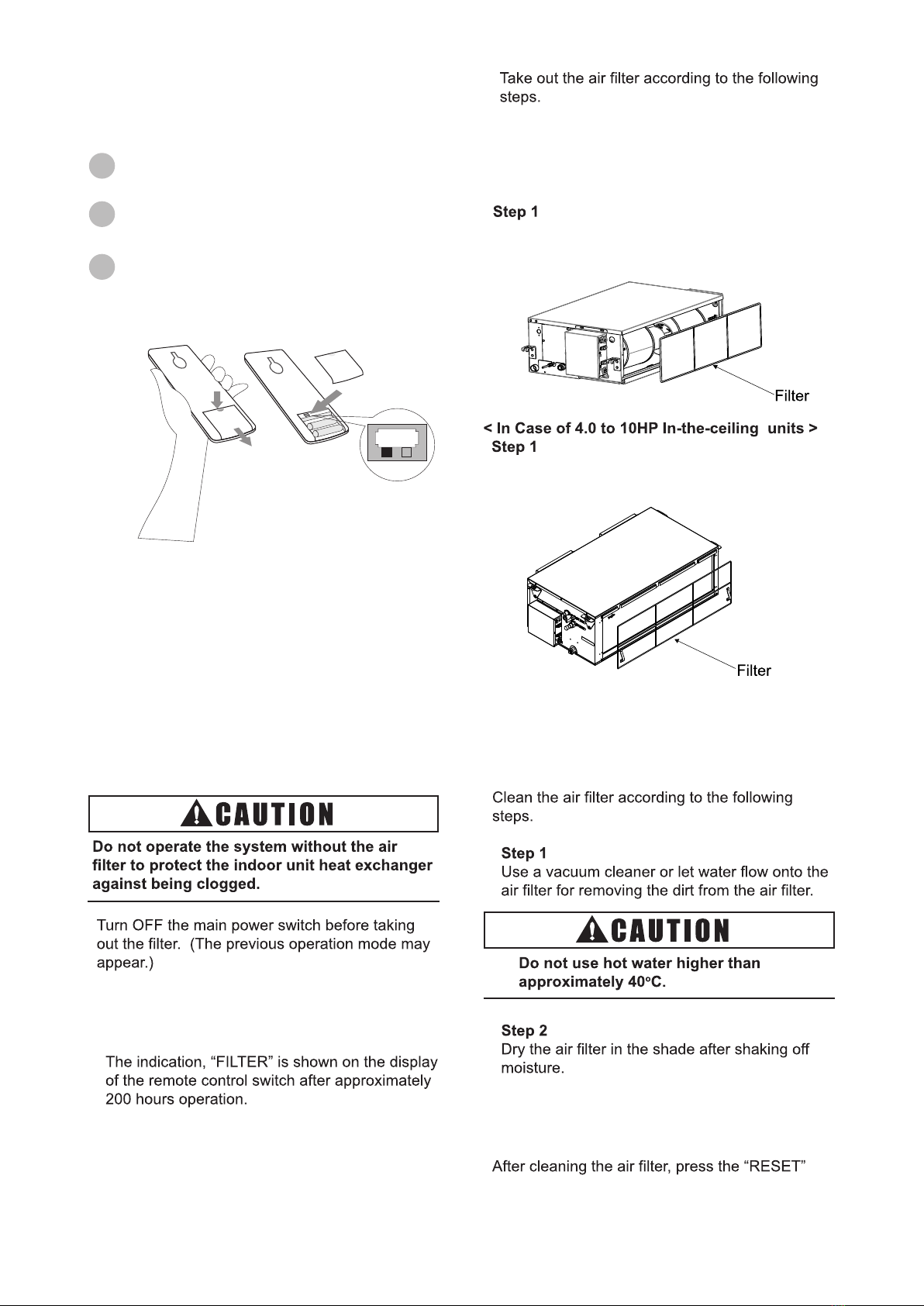

12.1 Taking Out the Filter
(Hiwall - FSNK2 & RPI models)
When Using PC-LH3B/3C/PC-AWR
< In Case of 0.8 HP to 2.5 HP Hi-wall units >
Refer to Installation & Maintenance manual for
detailed steps to clean the filter.
< PC-LH3C >
Open the battery cover of Handset.
1
Find the identifier switch in location as shown in
the figure.
2
3
Perform the following steps to change the identification
setting of Indoor Units Installed Side by Side setting
with Wireless Remote Control Switch :
Use a pen point shift position of switch from A
to B as shown in the figure.
Grip and Push in the
direction of arrow
PRESS
PUSH
IDENTIFIER
SWITCH LOCATION
B
A
12. Filter Cleaning 12.2 Clean the Filter
12.3 Reset of Filter Indication
The indication of the filter in front of the unit is
turned ON after approximately 200 hours of
operation.
14
< In Case of 1.0 to 3 HP In-the ceiling units >
Take the filter out from suction side of indoor unit by
lifting the filter upwards as shown in below figure:
Take the filter out from suction side of indoor unit by
lifting the filter clamp as shown in below figure:
button (in off mode). The FILTER indication will
disappear and next filter cleaning time will be set.

13. Replacing Batteries
13.1 Setting Batteries
Side” again. (See Item 10.1)
14. Troubleshooting
14.1 If Trouble Still Remains ...
14.2 No Operation
14.3 Not Cooling Well
14.4 This is Not Abnormal
15

Johnson Controls-Hitachi Air Conditioning (India) Limited, herein after referred as ‘JCH-IN’ undertakes that all the machines
sold after thorough inspection by a team of experts of quality control & assurance departments. ‘JCH-IN’
replace/repair at the sole discretion of ‘JCH-IN’ leading to the failure of equipment within a period of twelve
to operation etc., which upon examination will reveal to the entire satisfaction of ‘JCH-IN’
all such components forming part of scope of supply of ‘JCH-IN’ except rubber/plastic
The decision of ‘JCH-IN’ with regards to the settlement of all claims under this warranty shall be final.
the customer or third party due to failure of any component of the machine in part and/or total. ‘JCH-IN’s
by ‘JCH-IN’.
Voltage Stabilizer of any reputed manufacturer/Tested & recommended by ‘JCH-IN’ Any damage/
commissioning eighteen
parts (i.e. all non-
to be having any

‘JCH-IN’ all expenses incurred in collecting the machine or parts there of from the service station as well
‘JCH-IN’ employees and / or authorised sales / service agents / Dealers, have no right / Authority
‘JCH-IN’
‘JCH-IN’
That JCH-IN or the Company shall not be liable or responsible for occurence of any kind of fire, blast or defect
to the product as well as to the surrounding assets, fixtures, furniture, human body etc. at customer's premises,
if the same is caused purely due to external factors viz, overload of electricity, power fluctuation, short circuit,
faulty or improper wiring, improper installation, natural calamity including atmospheric conditions , etc.
9.0
In case of above incidents the customer shall be required to inform and or bring the same to the notice of the
Company within 24 hrs of the said incident. However the Company shall not be responsible or liable for any
information received by it after 24 hrs or if within 24 hrs the customer has tried to remove , shift the product from
the said place of incident.
10.0
