INSTRUCTION MANUAL
PRESSURE TYPE LEVEL TRANSMITTER
HT-100PT
HT-100PS

HT-100P Series
HITROL CO., LTD. 2
You should be careful where CAUTION is marked to carry
out the work.
You should be well-informed of the contents where
WARNING is marked before carrying out the work.
You should be aware of where NOTICE is marked to carry
out the work.
Table of contents
Over View · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Characteristics · · · · · · · · · · · · · · · · · · · · · · · · · 3
Operation Principle · · · · · · · · · · · · · · · · · · · · · · 3
Specifications · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Products & Dimension · · · · · · · · · · · · · · · · · · · 4
Precautions for Installation · · · · · · · · · · · · · · · · 4
Wiring · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5
Failure Check & Maintenance · · · · · · · · · · · · · · 5
Precautions for Removal · · · · · · · · · · · · · · · · · · 6
Precautions for Transport & Assembly · · · · · · · 6
Precaution for Connecting to Ground · · · · · · · · 6
Safety & Environment · · · · · · · · · · · · · · · · · · · · 6
Marking · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 7
User Training · · · · · · · · · · · · · · · · · · · · · · · · · · 7
Warranty & Contact · · · · · · · · · · · · · · · · · · · · · 7
APPENDIX
APPENDIX K · · · · HT-100P DISPLAY Setting Guide

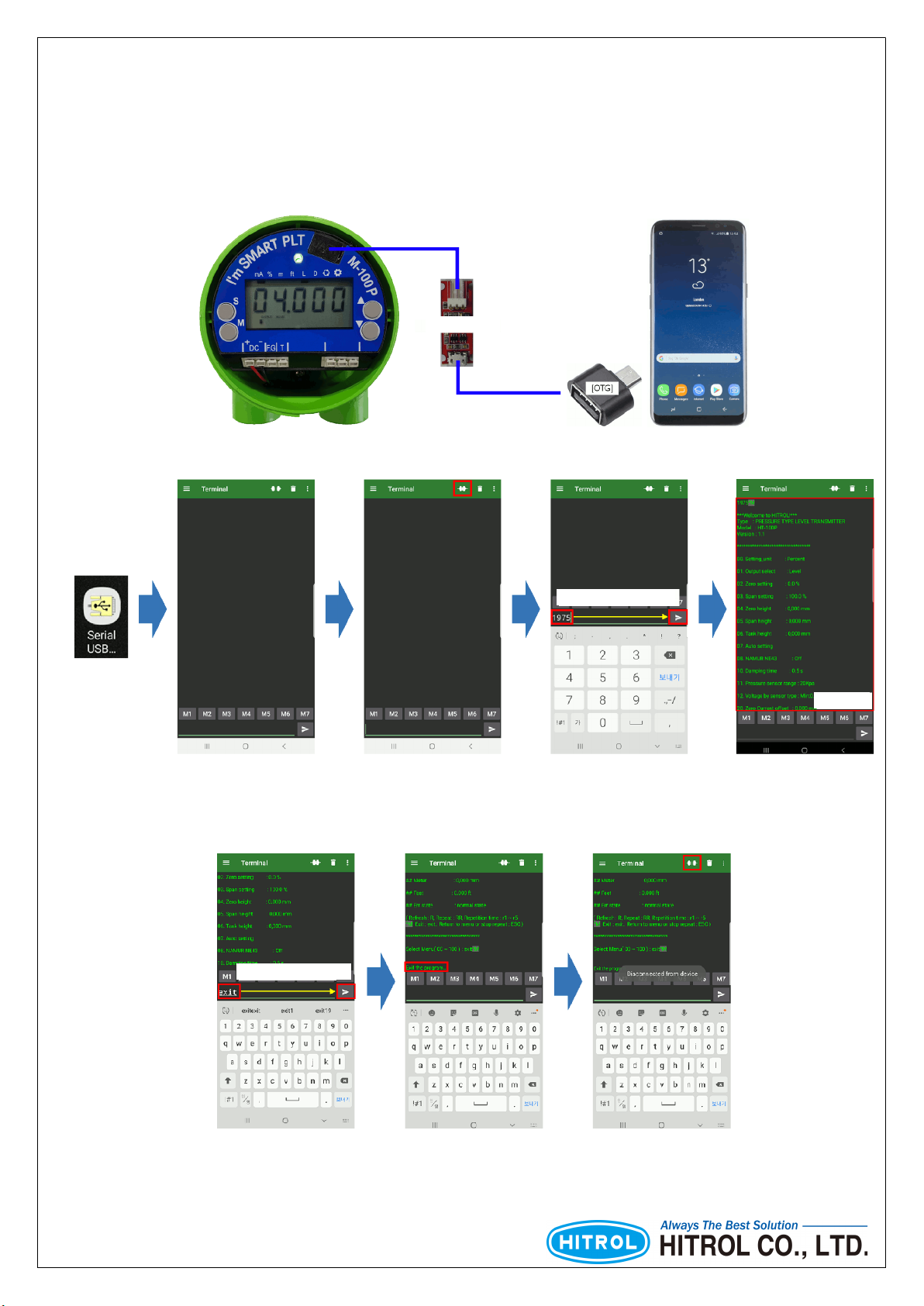

APPENDIX H · · · · Serial USB Terminal Install Guide

HT-100P Series
HITROL CO., LTD. 3
Over View
Characteristics
Operation
Principle
Specification
Model HT-100PT HT-100PS
Installation Top Side
Mounting Screw & Flange
Ambient Temperature -20°C ~ +60°C
Process Temperature Max. 70°C
Process Pressure ATM
Power Source DC 24V
Output DC 4~20mA (2~wire)
Enclosure Weather-Proof IP65 (AL. Housing IP66)
Application Liquid
Range Min. 1m, Max. 30m
Wetted Parts Material SUS 304, 316L
Process Connection 50A JIS 10K RF Flange (Std.)
PF 1”(M) Screw
50A JIS 10K RF Flange (Std.)
PT 1”(M) Screw
Housing ; Cable Entry AL. : PF 1/2”(F), IP66
PBT : PF 1/2”(F), IP65
Accuracy ± 0.25 % F.S
It is a sensor to continuously measure a hydrostatic pressure of a
liquid according to the certain height of the liquid column.
Hydrostatic pressure is calculated using the equation given below.
P = ρ x g x h
[P=Hydrostatic Pressure, ρ =Density of Liquid,
g=Gravity of Acceleration, h=Height of Liquid Column]
As seen in above equation, if density of liquid does not change, measured hydrostatic pressure is
detected as an electric signal proportional to the height of liquid column, since the height of
liquid column is only
variable
.
■ Installation on top or side of tank.
■ Easy installation and maintenance
■ No effect by a conductivity or composition change of medium
■ It is required attention because it is affected by a change of density.
HT-100P Series is a Hydrostatic Pressure Type Level Transmitter installing in top or side of tank
continuously measures the liquid levels in the tank. It measures hydrostatic pressure and converts
it to the current output, DC 4~20mA. It can be widely used in various industries such as PC Tank,
Dam Surge Tank, Sluiceway. River and Wastewater special work.
<Pressure Sensor>

HT-100P Series
HITROL CO., LTD. 4
Actual product may have a tolerance slightly.

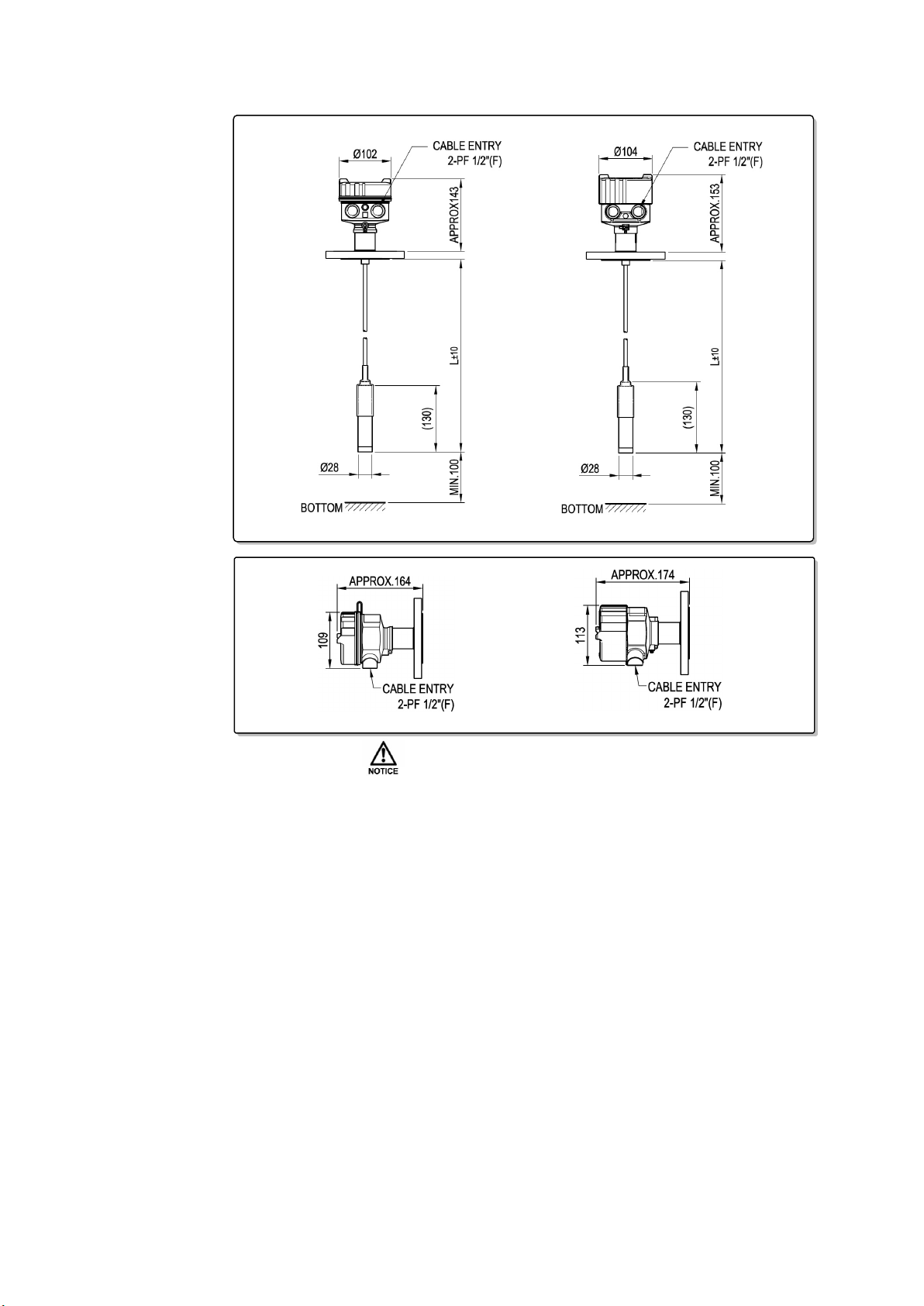

Products &
Dimension
Precautions
for Installation
■ When the sensor is installed at an extended nozzle or a ling pipe, liquid should not be
crystallized or congealed on the pipe.
■ Sensor should not be installed at the drainage of tank or a place that liquid is flowing.
■ When the sensor is installed at the top of the tank, and material in the tank behaves like
fluid, a guide pipe should be installed.
■ When the sensor is installed at the side of the tank, a valve should be installed between
the nozzle and sensor.
■ Sensor should be installed and used at the open tank atmospheric pressure compensated.
■ When flanges or screws are used for fastening, the size should be the same.
■ The user should place a washer between each bolt and nut to prevent loosening.
■ When fastening flanges to each other, gaskets should be used.
(The gaskets should be selected considering the temperature of the content and the
pressure of the container.)
■ The user should install appropriate products after judging whether the products are to be
used in explosion-proof regions.
HT-100PT
HT-100PS
<PBT Housing> <AL. Housing>
<PBT Housing> <AL. Housing>

HT-100P Series
HITROL CO., LTD. 5
Wiring
Failure Check
& Maintenance
■ When wring of power supply, + - should be wired correctly.
■ Power source should be DC +17V ~ +40V
■ Power should be applied after completion of installation and wiring.
■ Product Check
Pressure sensor should be cleaned periodically (every 2 or 3 months) using clean water
so that the pressure sensor should not be plugged by sludge.
■ Failure Check
The level of measured object changes, but the output does not change.
▶ Check the AMP or Pressure Sensor for abnormalities.
▶ Check the capacity of the power supplied.
▶ Check the polarity of the supplied power.
▶ Check that zero, span adjustment is correct.
The output is only slightly changed for the LEVEL change of the measurement.
▶ Check the AMP or Pressure Sensor for abnormalities.
▶ Check that zero, span adjustment is correct.
▶ Check the pressure cell for abnormalities.
No change of level, but output fluctuation is present.
▶ Check the AMP or Pressure Sensor for abnormalities.
▶ Check that the measuring object is fluctuating a lot.
Output indicates full (20mA) of higher regardless of the change of level of the medium.
▶ Check the AMP or Pressure Sensor for abnormalities.
▶ Check that zero, span adjustment is correct.
<AMP>

HT-100P Series
HITROL CO., LTD. 6
Precautions
for Removal
Precautions
for Transport
& Assembly
Precautions
for Connecting
to Ground
Safety &
Environment
■ Precautions for Use
- Make sure to connect the product and vessel using required tools for sure.
- Keep the lock key safe and make sure that it is locked.
- Do not apply high impact to the product.
■ Precautions for Wiring
- Wire should be corrected to terminals that correspond to the locations of contact
points (refer to the connection method).
- Wire and supply the power to the device after checking the specifications.
- Entering the incorrect power voltage may cause damage or failure of the machine.
- Pay attention to prevent electric shock.
■ Disposal of Product
- Make sure to separate the amplifier and main unit from housing before disposing the
products. Also, the amplifier shall be detached and discard the metal and non-metallic
materials. No part (ex. Mercury switch) has influence on the environment, so no special
attention is required.
■ Pay special attention to prevent any impact on the device during transportation or assembly.
■ Pay attention to prevent any damage to any packing when transporting or mounting
the machine to the vessel.
■ As shown below, connect the external grounding with the wire at 4 ㎟.
■ Check the level and presence of liquid in the tank before removing it.
■ Overheated product may cause burn, so wear gloves to remove it.
■ Remove it with the power disconnected.
■ Make sure that any O-ring or gasket is not damaged while opening or closing the cover.
외부접지 4㎟ (4mmSQ)
Make sure that it is not subject to any high impact when moving.
Make sure to insert a washer if the terminal lug is removed from the
ground terminal and subsequently reconnected. (loosening prevention)

HT-100P Series
HITROL CO., LTD. 7
Marking
User Training
Warranty
& Contact
■ Warranty & Service
This product is subject to a two-year shipment warranty. Unpaid service will be provided
for any damage found under normal operating conditions. If it does not refer to product
failure, payment will be required for the service charge.
You can request for A/S through our website or by contacting our headquarters.
■ Headquarters 〮 Factory 〮 Laboratory Contact Number
Address : HITROL CO.,LTD 141, Palhakgol-road, Jori-eup, Paju-si, Gyeonggi-do, Korea
TEL : [phone] (Headquarters and A/S)
FAX : [phone] (Headquarters and A/S)
■ Product Identification
The product identification mark is attached onto the shows the model name, serial
number, working temperature, working pressure, and matters regarding output. The
serial number is a unique manufacturing number for the identification of products.
Under the aforementioned, do not exceed 70°C, respectively, for the liquid in containers
when using the product. In addition, make sure that the ambient temperature of
housing is kept at -20 to +60°C.
Do not apply general products to hazardous areas.

HT-100P DISPLAY
Setting Guide
Pressure Type Level Transmitter
Doc. no. : Rev2.0
Issued Date : 2020.09.25
APPENDIX K

1. HT-100P DISPLAY Module Composition & Function
No Composition Function
1 S Key ■ Function Setting
■ Save the setting
2 M Key ■ Mode change
■ Cancellation
3 ▲ Key ■ Span set
■ Setting the value left / up
4 ▼ Key ■ Zero set
■ Setting the value right / down
5 LCD ■ Display of operating and setting status
6 LED ■ Display of power and status

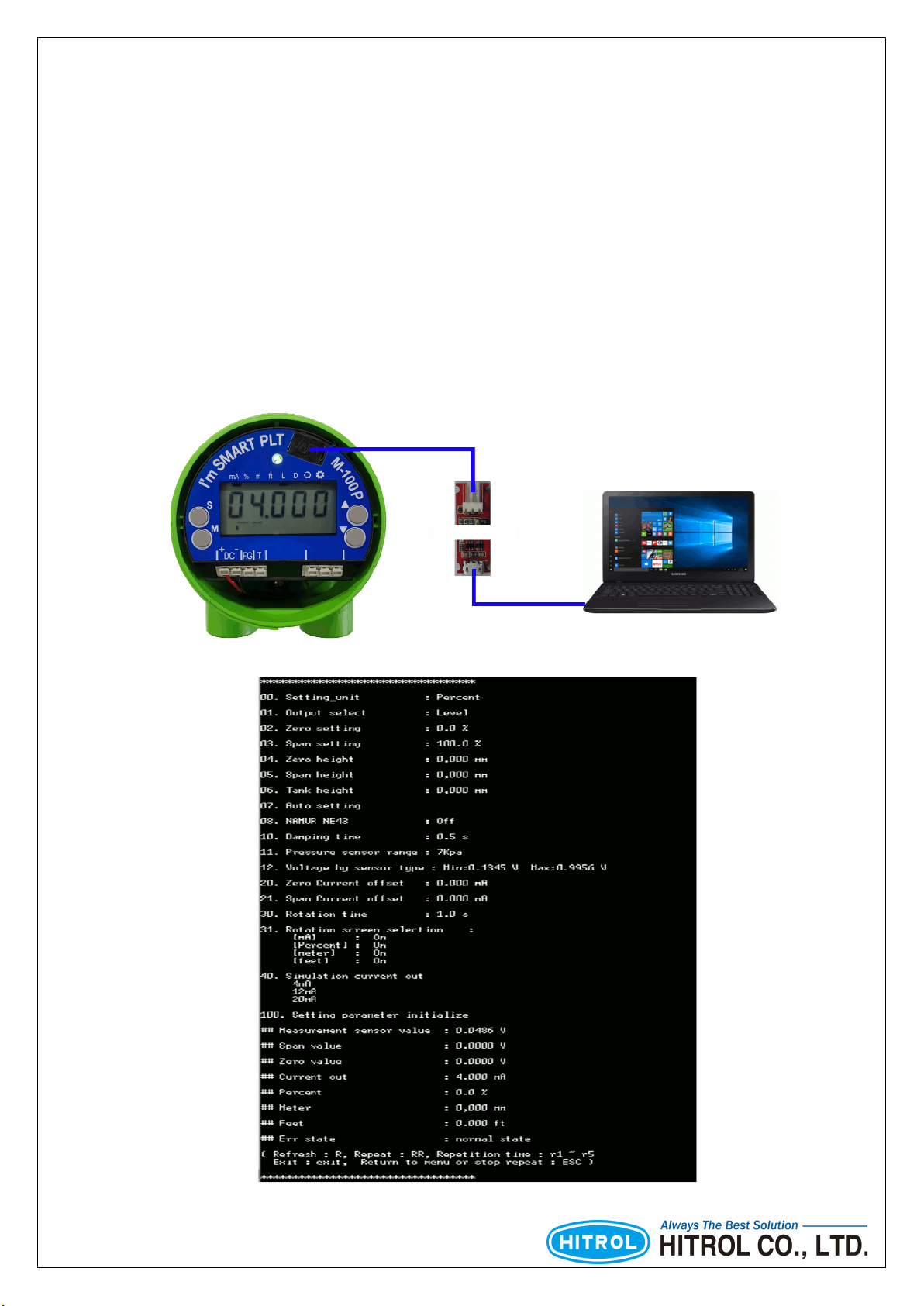

7 UART ■ Communication port of HT-100P setup and operation status
8 PWR ■ For supply power and current output
■ Check for output current
9 N/A ■ Not used

2. Amplifier Specification
Item Specification
Enclosure Weather Proof
Material P.B.T / AL.C
Mounting 100PT (Top Mounting) / 100PS (side Mounting)
Microprocessor 16Bit Microprocessor
Current Loop Interface 2-Wire Loop Current
Supply Voltage DC+17V ~ DC+35V @ Typ.+24V
Output Current Accuracy 4.0mA ~ 20.0mA @ ±0.25% F.S
Measuring Range 0 ~ 200KPa (2bar / 20.4mH2O) @ Gauge Pressure
Output Current Range
4.0mA ~ 20.0mA @ NAMUR NE43 Holding
3.8mA ~ 20.5mA @ Alarm 3.6mA, 21mA [NAMUR NE43]
Output Current Offset
Zero : 3.9 ~ 4.1mA
±0.1mA @ 0.01mA Step
Span : 19.9 ~ 20.1mA
Output Current Check TP
Damping Time
Default 0.5sec
Range : 0sec ~ 10sec @ 0.5sec Step ADJ.
Self-Diagnosis
Lower than the Zero 3.6mA Current Output [NAMUR NE43]
Higher than the Span 21mA Current Output [NAMUR NE43]
Simulation Current Out
4mA @ 5sec
12mA @ 5sec
20mA @ 5sec
State Indicator
Bi-Color LED [Green] Normal Operation
Bi-Color LED [Red] Abnormal Operation
Bi-Color LED [Orange] Zero, Span Not Set
Setting Menu Quick Menu / Set Menu / UART
Display mA, %, m, ft, Level, Distance
Ambient Temperature -20℃ ~ +60℃
[Table 1] Amplifier Specification

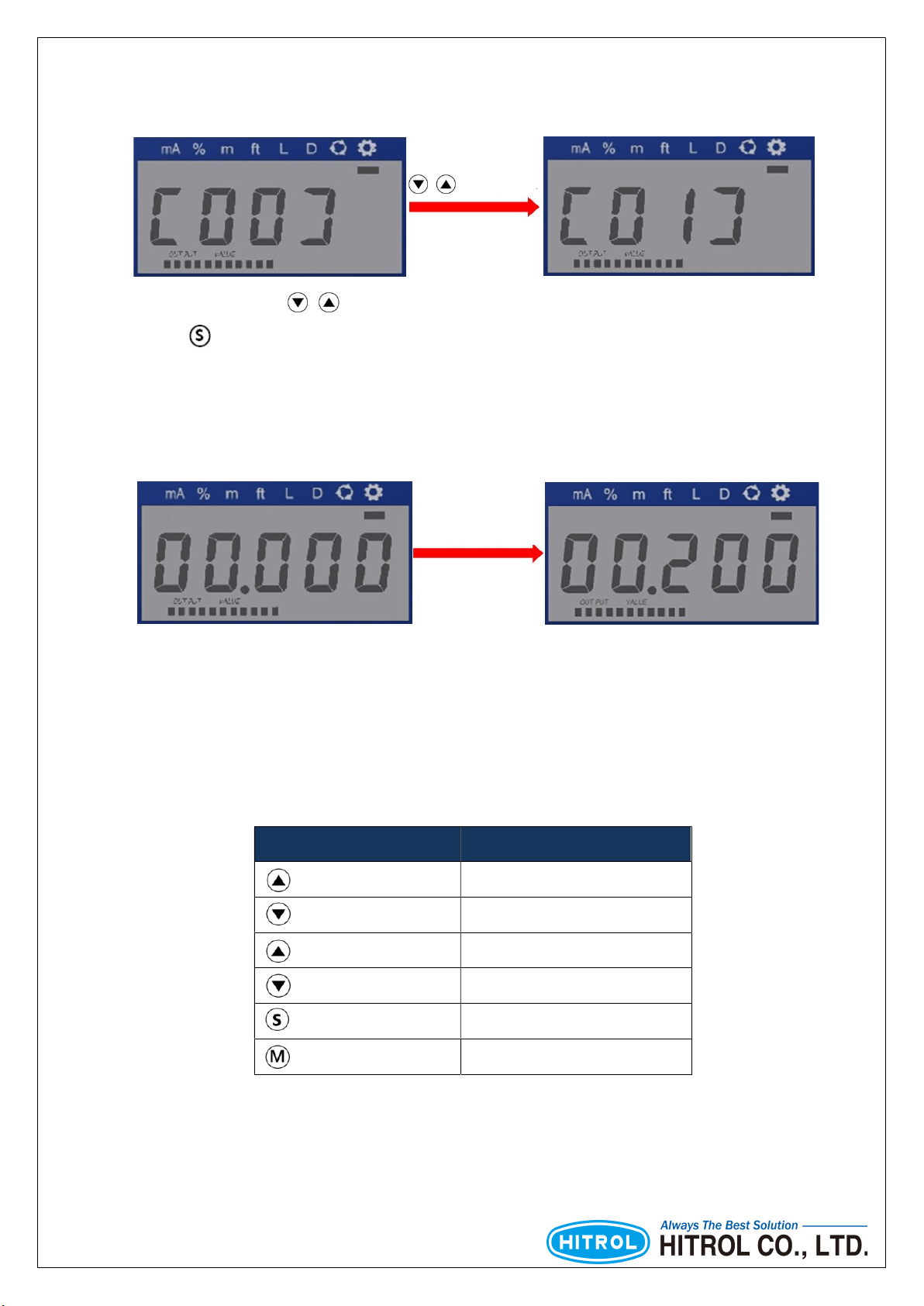

3. Setting Menu Function
No. Contents Description Remarks
[00] mA / % Unit Set : mA, : percent (※ [02], [03] setting unit)
[01] Level / Distance Set : Level, : Distance Quick Menu
[02] Zero Point Set 0.0 ~ 95.0% or 4.000 ~ 19.200 mA setting Quick Menu
[03] Span Point Set
5.0 ~ 100.0% or 4.800 ~ 20.000 mA setting
(Span setting when the level are more than 50%)
Quick Menu

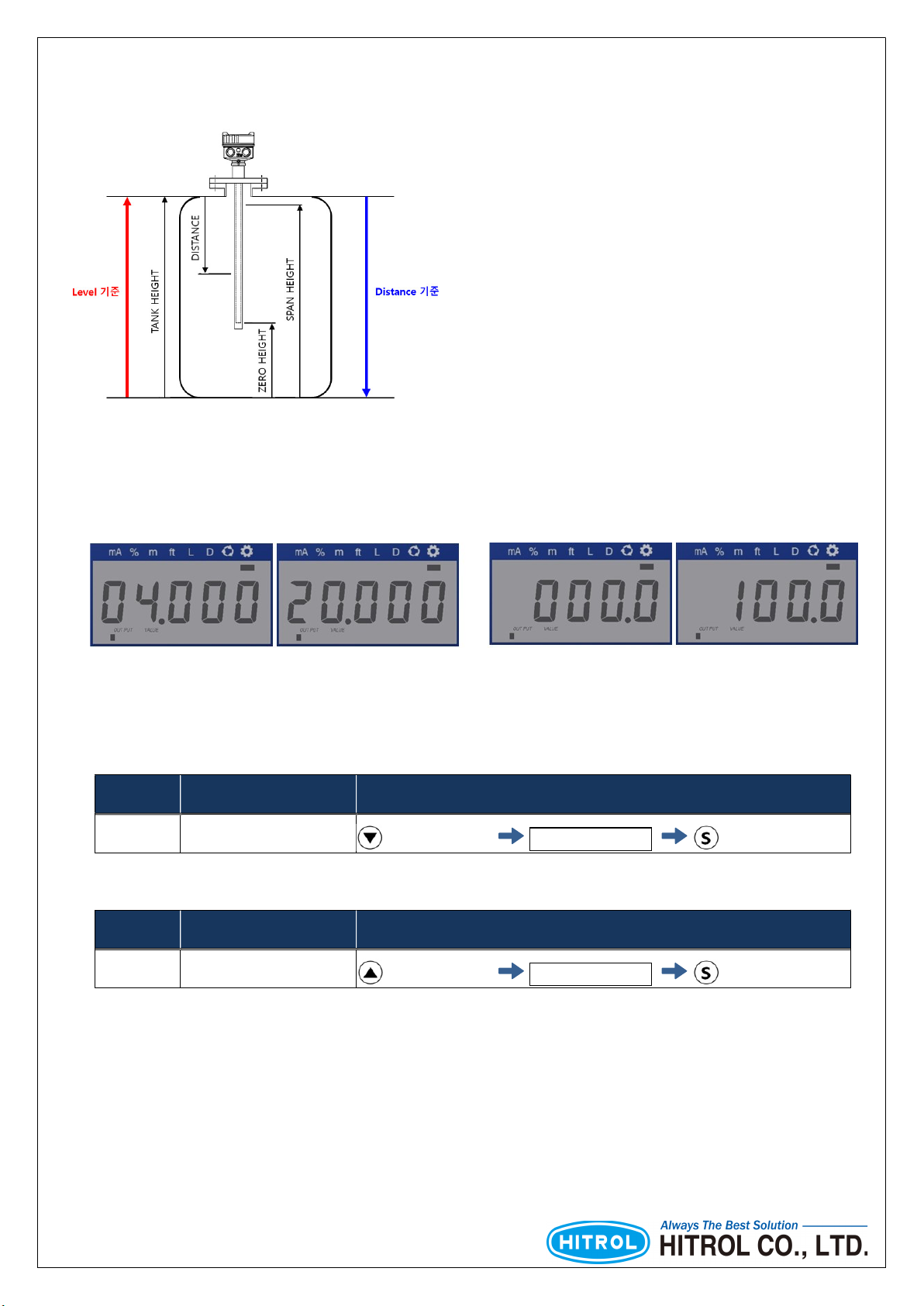

[04] Zero Height Set
Level setting criteria
※ -9.999~99.999m (User setting)
[05] Span Height Set
[06] Tank Height Set
[07] Auto Set Yes : Execution , No : Execution Quick Menu
[08] NAMUR NE43 Set NAMUR NE43 function setting and holding
[10] Damping Time Set 0 ~ 10 sec. (Default 0.5 sec. @ 0.5 sec. Step ADJ.)
[11] Pressure Sensor Range Apply Pressure Sensor Setting (KPa)
[12] Pressure Measurement Range Measurement Range Setting
[20]
Zero Output Current Adjustment
-0.100~ 0.100 mA (0.001mA Step ADJ.)
※ When the output current is adjusted offset
[21]
Span Output Current Adjustment
[30] Rotation Time 0.5 ~ 10 sec. (Default 1 sec. @ 0.5 sec. Step ADJ.)
[31] 'mA' Display On/Off Rotation ‘mA’ select display
[32] '%' Display On/Off Rotation ‘%’ select display
[33] 'Meter' Display On/Off Rotation ‘Meter’ select display
[34] 'Feet' Display On/Off Rotation ‘Feet’ select display
[40]
4mA Output Output “4mA” for 5 sec.
Quick Menu 12mA Output Output “12mA” for 5 sec.
20mA Output Output “20mA” for 5 sec.
[90] Error Number Output Display of error number according to malfunction
[91] Voltange value Output Display Zero, Span, and current measured value
[Table 2] Setting Menu List

4. Operating Method
■ LCD Composition
■ Into the Setting Menu
■ Return to the Setting Mode
Cursor
Segment
Display Mode
Bar graph
The cursor moves sequentially whenever the button is pressed.
The order of movement is as follows.
(User setting)
(User setting)
About 1sec.
About 1sec.
In the Setting Mode, press button for 1 second then the green LED will be flickering and you can go
into the Setting Menu.
In the Setting Mode, press button for 1 second then the green LED will be flickering and you can go
into the Setting Menu.

■ Select Setting Menu
■ Change the User Setting
[Table 3] Key Button Guidance
Key Button Function
Press more than 1 sec. Increasing of digits(Left)
Press more than 1 sec. Decreasing of digits(Right)
Press shortly Increasing of the numerical value
Press shortly Decreasing of the numerical value
Press more than 1 sec. Save and Leave
Press more than 1 sec. Leave without Save
/ About 1sec.
In the Setting Menu, use / buttons to select the user setting function.
Pressing button for 1 second will enter the function.
Change of digits
And value
If just 1 digit is flickering, it can be moved between the digits.
If full digits are flickering, it can only be set up to the specified number.

■ Height Setting
■ Zero, Span Quick Setting
□ Setting Screen
※ The default unit is set to “%”.
□ Zero Setting
□ Span Setting
※ Span setting when the level are more than 50%.
□ Others
No. Contents Quick Menu Setting
[02] Zero Setting Press for 1 sec. input the value Press for 1sec.
No. Contents Quick Menu Setting
[02] Span Setting Press for 1 sec. input the value Press for 1sec.
■ Level
This refers to the direction in which the medium is raised based on the
bottom of the tank.
■ Zero Height
The distance from the bottom of the tank to the zero point is called
“Zero Height”.
■ Span Height
T
he distance from the bottom of the tank to the span point is called
“Span Height”.
■ Tank Height
The distance from the bottom of the tank to the top of the tank is
called “Tank Height”.
■ Distance
This refers to the direction of the downing of the medium from the
top of the tank.
mA Setting Percent Setting
▶ Zero & Span can be set regardless of display mode status
▶ It can set, save, and cancel the values. (Refer to Table 3)
▶
The level shall not be
changed when Zero & Span are setting.

5. UART Monitoring
■ Monitoring method
□
You can only check the state of the adjusted setting values using your PC or Smartphone
□ The method of using PC and Smartphone is the same. (Password : 1975)
□ You can check the sensor measurement status, sensitivity setting value, relay setting
status, etc.
■ Monitoring using a PC
□ Component : PC, USB Extension cable (typical USB to Micro USB B), UART ADAPTOR.
[USB ADAPTOR]
[USB Extension cable]
[HT-100P PC UART Compositions]
[HT-100P PC UART Launch Screen Composition]

No. Contents Description Remark
[## Err Stage]
Normal state Normal Operation
Sensor problem occurred Problem for sensing Sensor cable open circuit, short, broken probe
insulation, module sesnro failure, etc
Out of measurement range Below or above the set value of Zero
or Span
NAMUR ME43 Caution area
(below 4mA above 20mA)
Invalid setting Abnormal setting Zero, Span conversely set setate
[HT-100P PC UART Launch Screen Composition Function]
[A Description of the Current Operation Status (##Err State)]
Input
Output
Unit Set
Set
Set
Set
Height Set (Based on level)
Height Set (Based on level)
Height Set (Based on level)
Function Set
Set
Adjustment
Adjustment
Select
Reset
Capacity Value of Current Measured
Capacity Value of Span Setting
Capacity Value of Zero Setting
Current Output of Current Value (01. Based on Output Select Setting)
Current Output of Percentage Value (01. Based on Output Select Setting)
Current Output of Length Value (01. Based on Output Select Setting)
Current Output of Feet Value (01. Based on Output Select Setting)
Current Operating State
Calibration value by Sensor Type
Apply Pressure Sensor Setting
Auto Zero / Span Set (Based on level)

■ Monitoring using a Smartphone
□ Component : Smartphone(Android OS), OTG, USB Extension cable (typical USB to
Micro USB B), UART ADAPTOR.
□ Application : Refer to “Serial USB Terminal Install & Setting Guide”
[HT-100P PC Smartphone UART Composition]
[USB ADAPTOR]
[USB Extension cable]
[Enter PW and Fly command]
[Continue]
[Enter exit and Fly command]
[HT-100P PC Smartphone UART Launcher]
[HT-100P PC Smartphone UART Exit]
[Home screen] [Select UART Connection]
[Open App] [Enter the password]
[Operation Screen]
[Enter exit command]
[End of program] [Select the UART Disconnection]

Doc. no. : Rev0.0
Issued Date : 2020.04.29
Serial USB Terminal
Serial USB Terminal Install & Setting Guide
Application : Level Switch / Level Transmitter
APPENDIX H

Doc. no. : Rev0.0
Issued Date : 2020.04.29
■Installing Serial USB Terminal App
□Search and Install a App that "Serial USB terminal" in the App Store.
■Serial USB Terminal Setting
□Run The Serial USB Terminal Icon
□Four types of environments must be set up for normal operation of Serial USB Terminal.
▶Serial
▶Terminal
▶Receive
▶Send

Doc. no. : Rev0.0
Issued Date : 2020.04.29
■Serial –Baud rate Setting
□Baud rate : 19200 -> 9600
■Terminal - Show connection message / Show timestamps Setting
□Show connection message : ON -> OFF
□Show timestamps : ON -> OFF
□The size of the Terminal Font is the size set in the Smartphone.
[Terminal Setting] [Terminal Font Setting]
[Default]
[Complete]
[Default]
[Complete]
[Default]
[Setting]
[Complete]
[Select Baud rate]
