HITROL HT-100CT-2 Series User manual

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 1
Doc. no : HT(HPC)100CT2_IM_Eng_Rev.5.1
Issue date: 2021. 08
HITROL CO., LTD.
HEAD OFFICE.FACTORY.R&D INSTITUDE
HITROL CO., LTD. 141, Palhakgol-gil, Jori-eup
Paju-si, Gyeonggi-do, Korea
TEL. : [phone]
FAX. : [phone]
www.hitrol.com
INSTRUCTION MANUAL
CAPACITANCE TYPE LEVEL TRANSMITTER
HT-100CT-2 Series
HPC-100CT-2 Series

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 2
You should be careful where CAUTION is
marked to carry out the work.
You should be aware of where NOTICE is
marked to carry out the work.
You should be well-informed of the contents
where WARNING is marked before carrying
out the work.
Table of contents
Overview ·······················3
Characteristics ···················3
Operating Principle ··················3
Specifications ······················4
Weather-Proof Version······················4
Ex -Proof Version ·························4
Product Composition & Technical Data ·····6
Installation ···························8
Precautions for Installation ················8
Metal Tanks ····························9
Non-metal Tanks ························9
Wiring ··························10
Failure Check & Maintenance ···········10
Precautions for Removal·················11
Precautions for Transportation & Assembly ··11
Precautions for Attachment ············11
Precautions for Grounding ·········11
Safety and Environment ············11

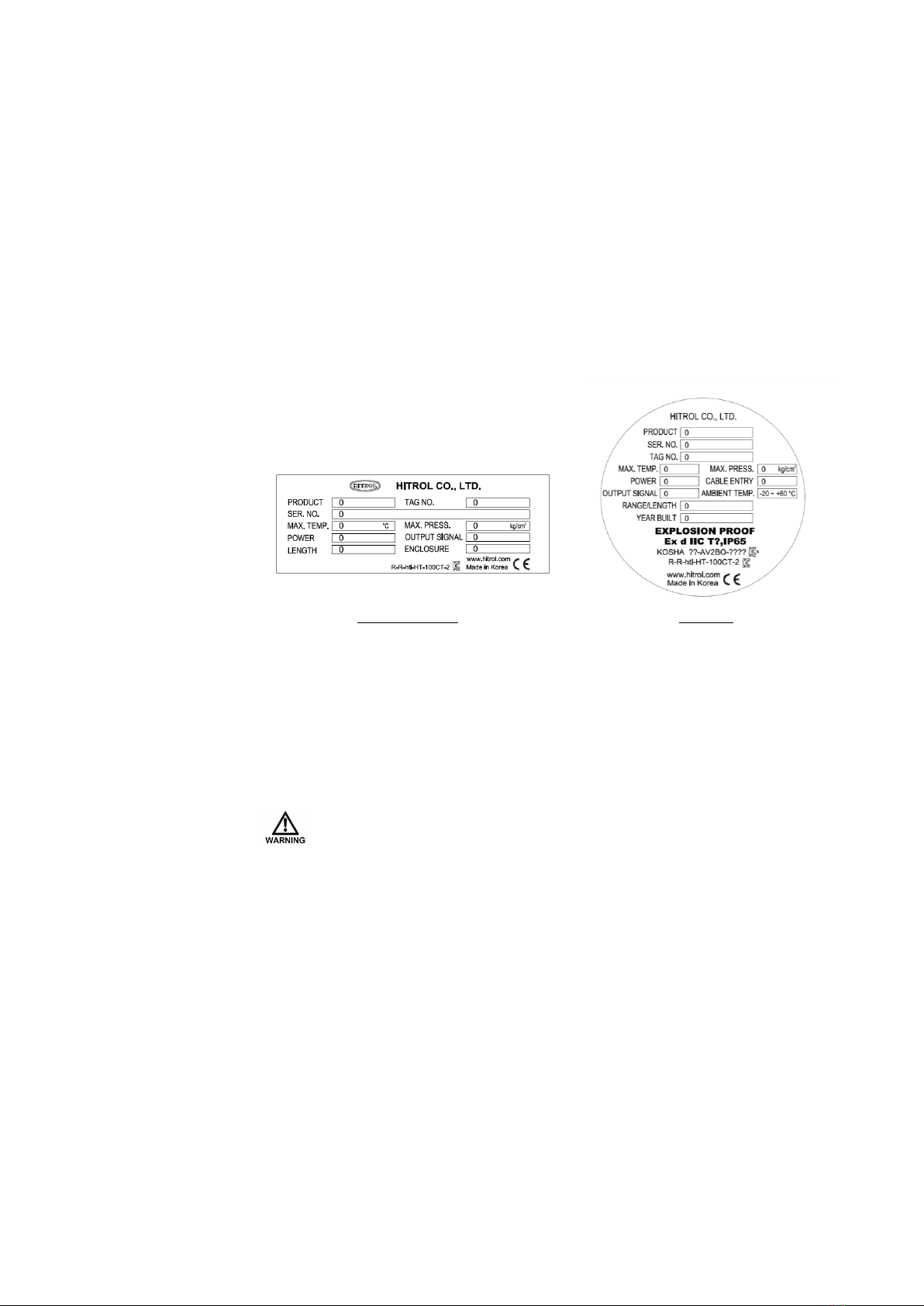

Marking ························12
User Training·······················12
Warranty and Contact ·················12
APPENDIX
APPENDIX V ·······M-100CT2 User Manual
APPENDIX H ··Serial USB Terminal Install Guide

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 3
Overview
Characteristics
Operating
Principle
■Widely used to measure various liquid levels
■Strong structure and semi-permanent life cycle due to move-less part
■Various probe types for wide application
■Easy installation of wire type. (HT-100CTW-2 Series)
■Applicable to corrosive liquid
■Interface measurement between water and oil is available
■Applicable to explosive area (HPC-100CT-2 Series)
■Have KC certificate and CE certificate
HT (HPC)-100CT-2 Series is a Capacitance Type Level Transmitter which continuously
measures liquid levels using of liquid’s dielectric constant. It can be easily installed and
adjusted, and can be easily applied to corrosive liquids and widely used in general
industries, chemical and oil plants.

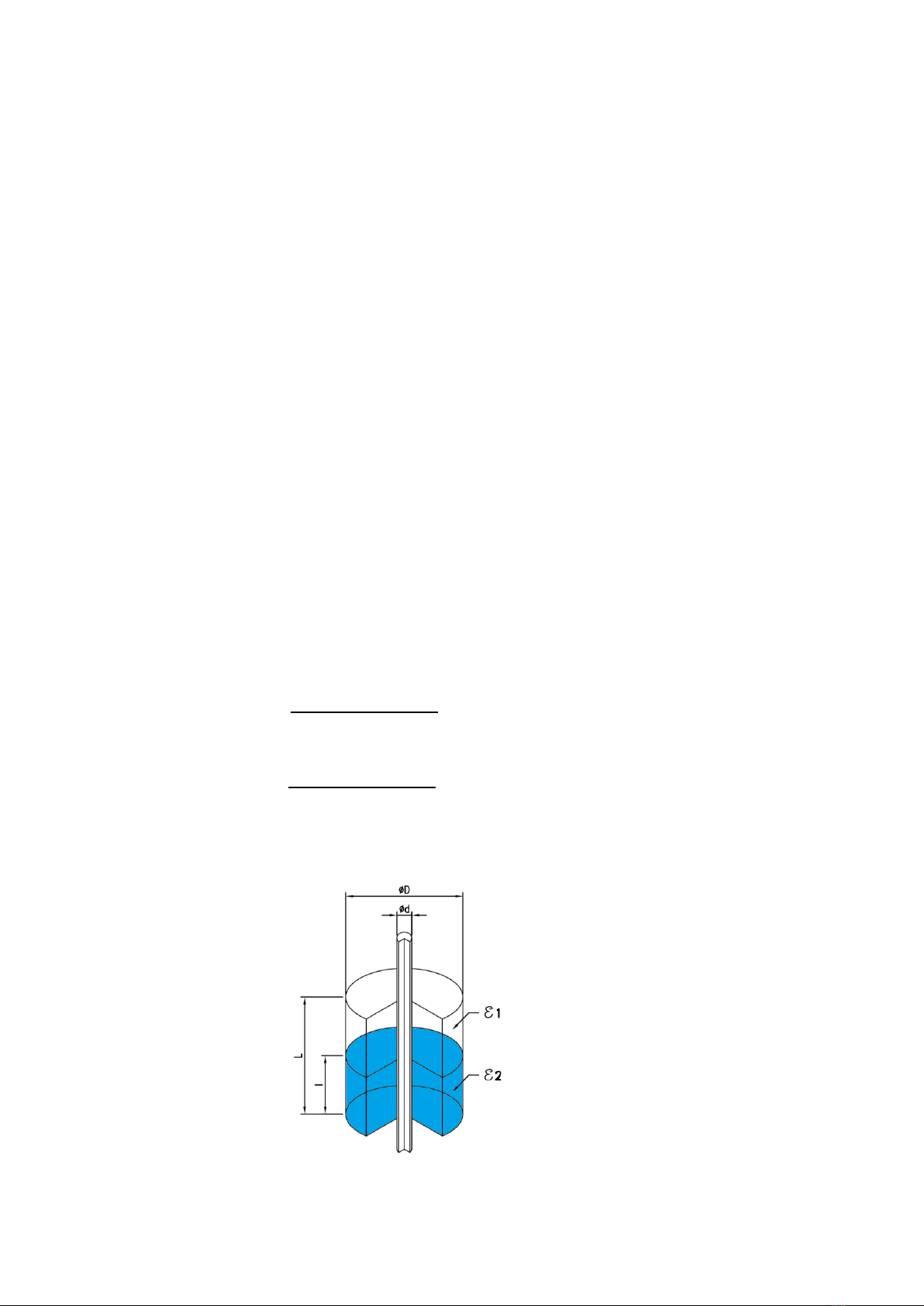

When there are two conductors insulated each other, the value of capacitance formed
between two conductors is a function of the sizes of two conductors, relative location of two
conductors and the dielectric constant of material placed between two conductors. Under the
conduction that air of dielectric ε₁ exists in the space between two concentric conductors,
lower part of space between two conductors is filled material of dielectric constant ε₂ as
shown below, the change of capacitance is expressed as follows.
ΔC =
Since is a constant value as an initial condition, and get this value
as K, ΔCbecomes a function of level of material only. Therefore, level can be obtained
through the measurement of ΔC.
log D/d
10
(ε₂ - ε₁ X l
)
[pF]
10
log D/d
(ε₂ - ε₁
)
: Dielectric constant of air
: Dielectric constant of medium (contents)
: Height of tank
: Level of medium (contents)
: Outer diameter of tank
: Outer diameter of sensing probe
ε₁
ε₂
L
I
D
d

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 4
Specifications Weather-Proof Version
Model
HT-100CT-2
HT-100CTH-2
HT-100CTW-2
HT-100CTWH-2
Probe Type
Rod
Wire
Mounting
Screw or Flange
Ambient Temperature
-20°C ~ +60°C
Process Temperature
-40°C~+80℃
-40°C~+150℃
-40°C~+80℃
-40°C~+150℃
Process Pressure
Vacuum~ 20kg/cm2(300#)
Power Source
DC 24V
Output
DC 4~20mA(2-wire)
Enclosure
Weather-Proof
Wetted Parts Material
SUS 304, 316L with Teflon
Process Connection
PT 1”(M) Screw
50A JIS 10K RF Flange
Housing ; Cable Entry
PBT;PF1/2”(F),IP65
AL.; PF 1/2''(F), IP66
PBT;PF1/2”(P),IP65
AL.; PF 1/2''(F), IP66
AL;PF1/2”(F),IP66
AL;PF1/2”(F),IP66
Accuracy
Up to ±1% of F.S
Ex-Proof Version
Model
HPC-100CT-2
HPC-100CTH-2
HPC-100CTW-2
HPC-100CTWH-2
Probe Type
Rod
Wire
Mounting
Screw or Flange
Ambient Temperature
-20°C ~ +60°C
Process Temperature
-40°C~+80℃
-40°C~+150℃
-40°C~+80℃
-40°C~+150℃
Process Pressure
Vacuum~ 20kg/cm2(300#)
Power Source
DC 24V
Output
DC 4~20mA(2~wire)
Enclosure
Ex-Proof
(Ex d IIC T6, IP65)
Ex-Proof
(Ex d IIC T4, IP65)
Ex-Proof
(Ex d IIC T6, IP65)
Ex-Proof
(Ex d IIC T4, IP65)
Wetted Parts Material
SUS 304, 316L with Teflon
Process Connection
PT 1”(M) Screw
50A JIS 10K RF Flange
Housing ; Cable Entry
AL. ; PF 3/4”(F)
Accuracy
Up to ±1% of F.S

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 5

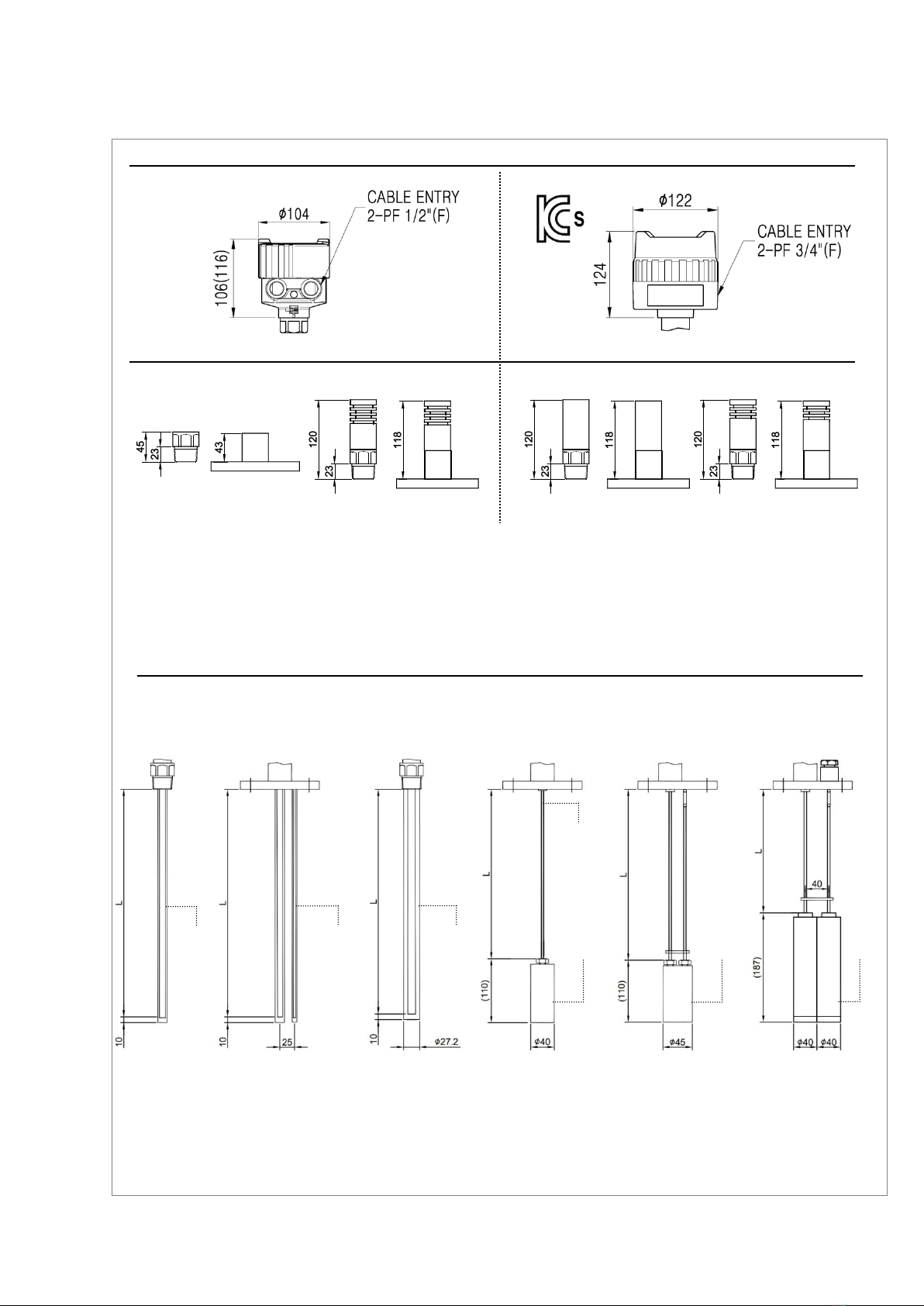

Product Composition & Technical Data
The dimensions on the following pages are indicated in mm
Material:
PBT
(Aluminum)
Connection Type
-Screw: PT 1” (Std.), NPT 1”, PF 1”, Others
-Flange: ANSI, JIS, DIN
-Tri-Clamp
Material
-304, 316L, Others
[Housing]
[Connection]
[Probe]
High Temp. Version
High Temp. Version
Material:
Aluminum
Rod Probe
Rod Probe
with Ground Rod
Rod Probe
with Ground Tube
Wire Probe
Wire Probe
with Ground Wire
Ground
rod
material:
SS w/
Teflon
Ground
tube
material:
SS
Wire
material:
SS w/ Teflon
Weight
material:
SS, Teflon
Weight
material:
SS
Weight
material:
Teflon
Wire Probe
with Ground Wire
(Corrosion)
Probe
material:
SS w/
Teflon

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 6
Dielectric Constant Value
Fuel Oil (Gasoline, Diesel…)
2
Hydrogen chloride
4.6~12
Hexane, Liquid
6
Butanol
17~18
Ammonia
16~25
Alcohol
16~31
Acetone
20
Caustic soda
22~26
Ethanol
25
Methanol
32~33
Glycerin
47~68
Water
81
Sulfuric acid
84
The data of dielectric constant value can be downloaded from technical data by accessing our
website www.hitrol.com.
Rod Probe
Rod Probe w/
Ground Rod
Rod Probe w/
Ground Tube
Wire Probe
Wire Probe
w/ Ground Wire
Total length (L)
100~3,000
100~3,000
100~3,000
1,000~15,000
1,000~15,000
Probe dia.
Ф15
Ф15
Ф15
Ф4
Ф4
Ground dia.
-
Ф10
Ф27.2
-
Ф4
For acid liquids
O
O
-
O
O
For high-viscosity
liquids
O
O
-
-
-
For non-metal
tanks
-
O
O
O
For sphere tanks
-
O
O
-
O

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 7
When installing the product, verify the size of the product insert and the
size of the nozzle in the tank before installing the product to the applicable
standards. (ex. Ground tube, Ground Sensor, Weight, etc.)
Installation
Precautions
for
Installation
The capacitance type level transmitter can be installed in screw (PT, NPT, PF) and flange
(ANSI, JIS, DIN) as well as tri-clamp and other various locations.
It shall be used after setting the range at the site according to the site installation conditions
and medium to be measured.
If setting with the other medium which is not actual medium to be measured the measure
value may be not correct.

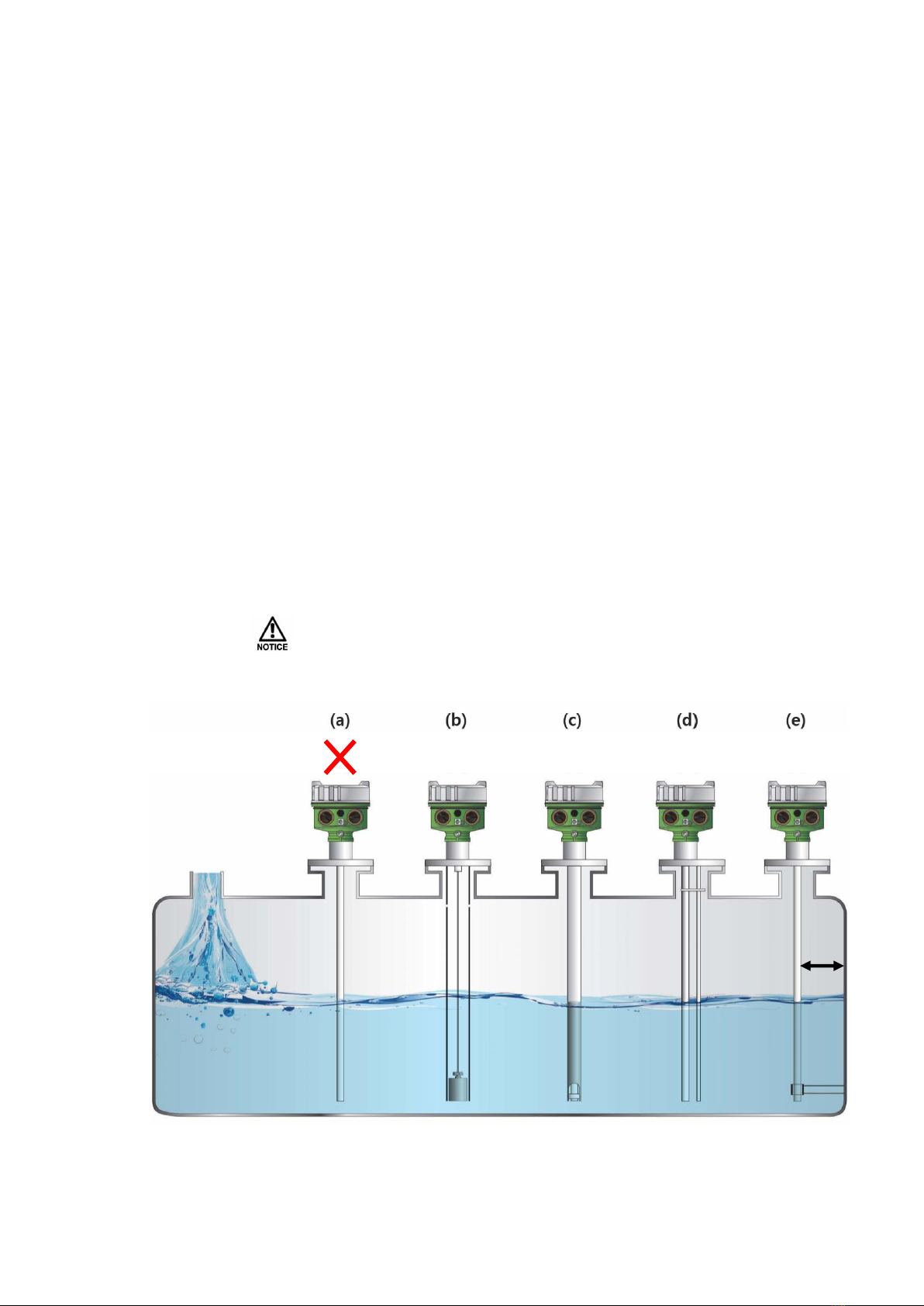

Pay attention to the following matters during installation.
■Product shall be installed at the place far from inlet in order to avoid the malfunction. (a)
■Protection tube shall be applied if there is a flow or slopping of the medium of the tank. (b)
■Probe shall be installed within Max. 300mm from the tank wall (f), and ground tube type
shall be applied if the distance between the tank wall and sensing probe is far.
■If the tank material is non-conductive(ex. FRP), the rod probe with ground tube type shall
be applied. (c)
■Ground rod type shall be used for corrosive liquid. (d)
■Bracket insulated to a sensing probe shall be installed at the bottom of probe in order to
fix it if the probe length is long or there is slopping of medium in the tank. (e)
Max.
300
(f)

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 8
■Ground tube or ground rod type shall be applied for concrete or non-conductive tank as
per above figure. (g)
■Ground tube type shall be applied for ball tank and external chamber shall be installed for
side mounting of tank. (h)
■When side mounting, the chamber shall be installed. (i)
■The ground tube shall have vent holes in an appropriate location. ( j)
(g)
(j) Vent holes
(i)
(h)
(j) Vent holes

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 9
■Metal Tanks (Conductive tank)
When installing on a conductive tank, the transmitter housing and tank shall be grounded
as shown below.
되어야 합니다.
■Non-metal tanks (Non-conductive tank)
When installed on a non-conductive tank, use the ground tube (rod) or ground wire type.
Also, the transmitter housing and tank shall be grounded as shown below.

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 10
Wiring
Failure Check
& Maintenance
- Make sure to connect the power with correct polarity (+, -), and the power
supply shall be between +17V ~ 40V.
- Do not connect the wire with the power connected.
For Ex-proof product, the cover shall be locked and power shall be
applied after wiring.
■Maintenance
The major parts of the HT (HPC)-100CT-2 Series level transmitters to be inspected
are divided into the sensor element and the transmission element. The life spans of
major parts vary with user environments and can be used in optimum conditions
through periodic inspections. Therefore, the user shall maintain and repair the
product through periodic inspections conducted at least once a year. In addition,
check for the exterior of the product like visual damage. If the medium or foreign
substance is attached to the probe, it will cause bad accuracy, so it shall be
removed regularly. Be careful not to damage the Teflon part during removal.
■Failure Check
The level of measured object changes, but the output does not change.
▶Insufficient power supply
▶Wrong adjustment of ZERO and SPAN
Only a slight change of output to the change of level of medium is present.
▶Wrong adjustment of ZERO and SPAN
▶A slight change of probe ΔC value
No change of level, but output fluctuation is present.
▶Wrong grounding
▶Noise on the lines
▶Extreme fluctuation of medium
▶Bad insulation of probe
Output indicates full (20mA) of higher regardless of the change of level of the
medium.
▶Wrong adjustment of ZERO and SPAN

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 11
Precautions
For Removal
Precautions
for
Transportation
& Assembly
Precautions
for
Attachment
Precautions
for

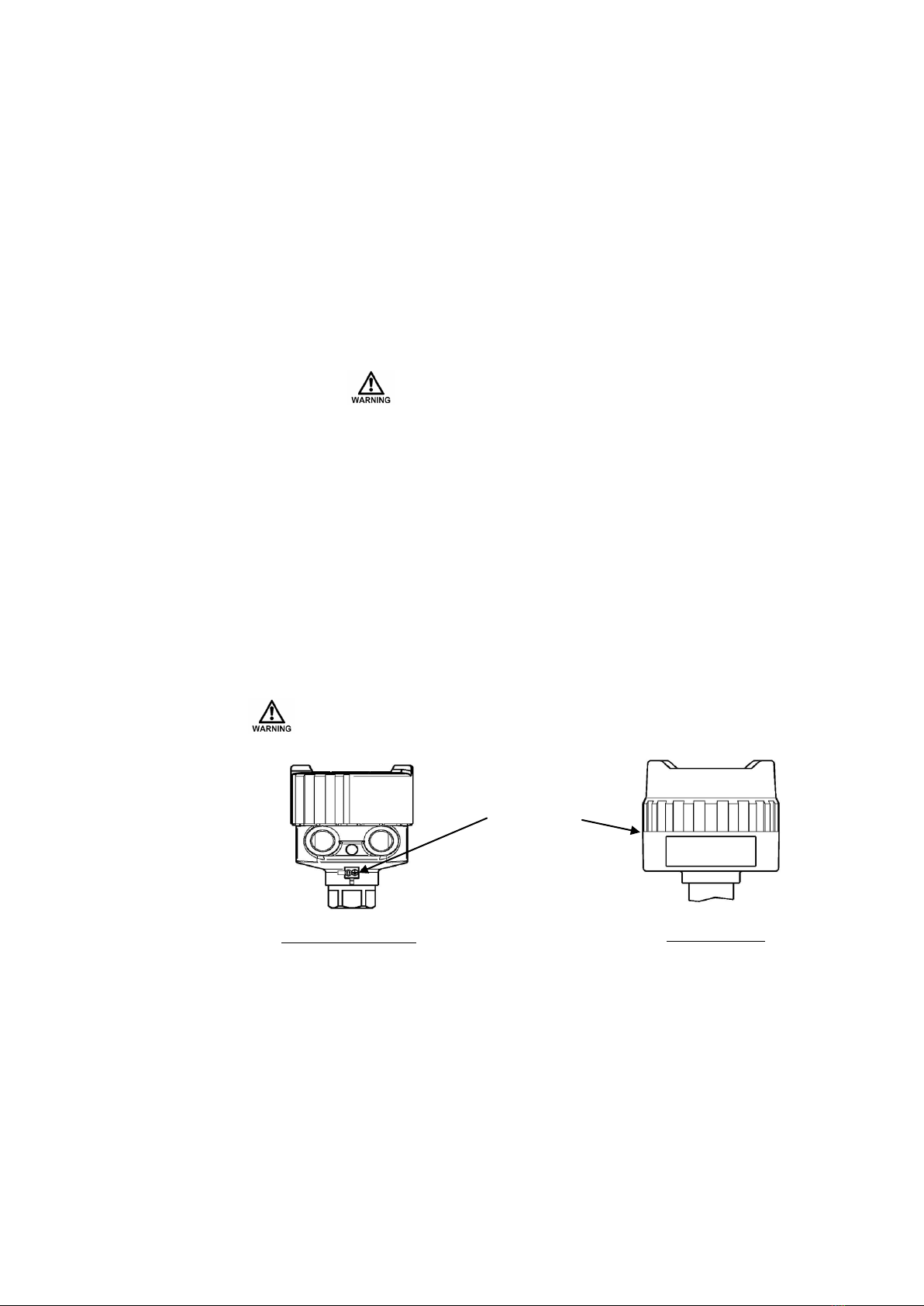

Grounding
(Ex-proof)
Safety and
Environment
■Pay special attention to prevent any impact on the device during transportation or assembly.
■Pay attention to prevent any damage to any packing when transporting or mounting
the machine to the vessel.
■Use the same standard flange or screw.
■Make sure to insert washers between bolts and nuts to prevent loosening.
■Make sure to insert gaskets between flanges.
(Select the gaskets in consideration of temperature of content and pressure of vessel.)
■Install an Ex-proof product only in an Ex-proof zone.
■After the installation is complete and the cover of the product is assembled, power it on.
Please do not apply high impact to the product.
■When connecting to an external ground, the ground wire shall be 4㎟(4mmSQ).
■Check the level and presence of medium in the tank before removing it.
■Wear gloves when removing it, to prevent a burn.
■If there is explosive gas atmosphere, do not open the cover.
■Disassemble work shall be done with the power off.
■Make sure than any O-ring or gasket is not damaged while opening or closing the cover of product.
HEAD (Weather-proof)
HEAD (Ex-proof)
External ground 4㎟
(4mmSQ)
Make sure to insert a washer if the terminal lug is removed from ground terminal and
then re-connected. (Loosening prevention)
If the grounding part is painted or rusty, it may not be grounded.
■Precautions for Use
- Make sure to connect the product and vessel using required tools for sure.
- Keep the lock key safe and make sure that it is locked.
- Do not apply high impact to the product.
■Precautions for Wiring
- Make sure to wire contacts correctly. (Refer to Wiring)
- Wire and supply the power to the device after checking the specifications.
- Pay attention to prevent electric shock.

HT(HPC)-100CT-2 Series
HITROL CO., LTD. 12
Marking
User
Training
Warranty
and Contact
■Warranty and Service
This product is subject to the warranty for 2 years of shipment and unpaid service
will be provided for any damage found under normal operating conditions. If it is
not about the failure of product, the service charge will be payable.
You can request A/S at our website or by contacting our headquarters.
■Headquarters ․Factory ․Laboratory Contact Number
ADDRESS: HITROL CO., LTD 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Korea
T E L : 031-950-9700 (Headquarters & A/S)
F A X : 031-943-5600 (Headquarters & A/S)
■Product Identification
The product identification mark is attached onto the housing and shows the model name,
serial number, working temperature, working pressure, and matters regarding output. The
serial number is a unique manufacturing number for the identification of products.
The fluid temperature of the container shall be up to 80℃for Weather-proof type. For
high temperature, the fluid temperature shall not exceed 150℃. In addition, make sure
that the ambient temperature of housing is kept at -20℃~ +60℃.
An Ex-proof product is pressure-resistant and Ex-proof type, so never open the cover
during operation.
Do not apply the Weather-proof (non-Ex-proof) product in an Ex-proof zone.
Ex-proof
Weather-proof
■Disposal of Product
- Make sure to separate the amplifier and main unit from housing before
disposing the products. Also, the amplifier shall be detached and discard the
metal and non-metallic materials. No part (ex. Mercury switch) has influence on
the environment, so no special attention is required.

M-100CT2
User Manual
Capacitance Type Level Transmitter
Doc. no. : Rev1.3
Issued Date : 2021.07.15
APPENDIX V

1. Configuration of Module (M-100CT2)
No
Configuration
Function
1
S Key
■Function setting
■Save the setting
2
M Key
■Mode Change
■Cancellation
3
▲Key
■Span Set
■Setting the value left / up
4
▼Key
■Zero Set
■Setting the value right / down
5
LCD
■Display of operating and setting status
6
LED
■Display of power and status
7
UART
■Communication port of M-100CT2 setup and operation
status
8
PWR
■For supply power and current output
■Check for output current
9
N/A
■Not used

2. Specification

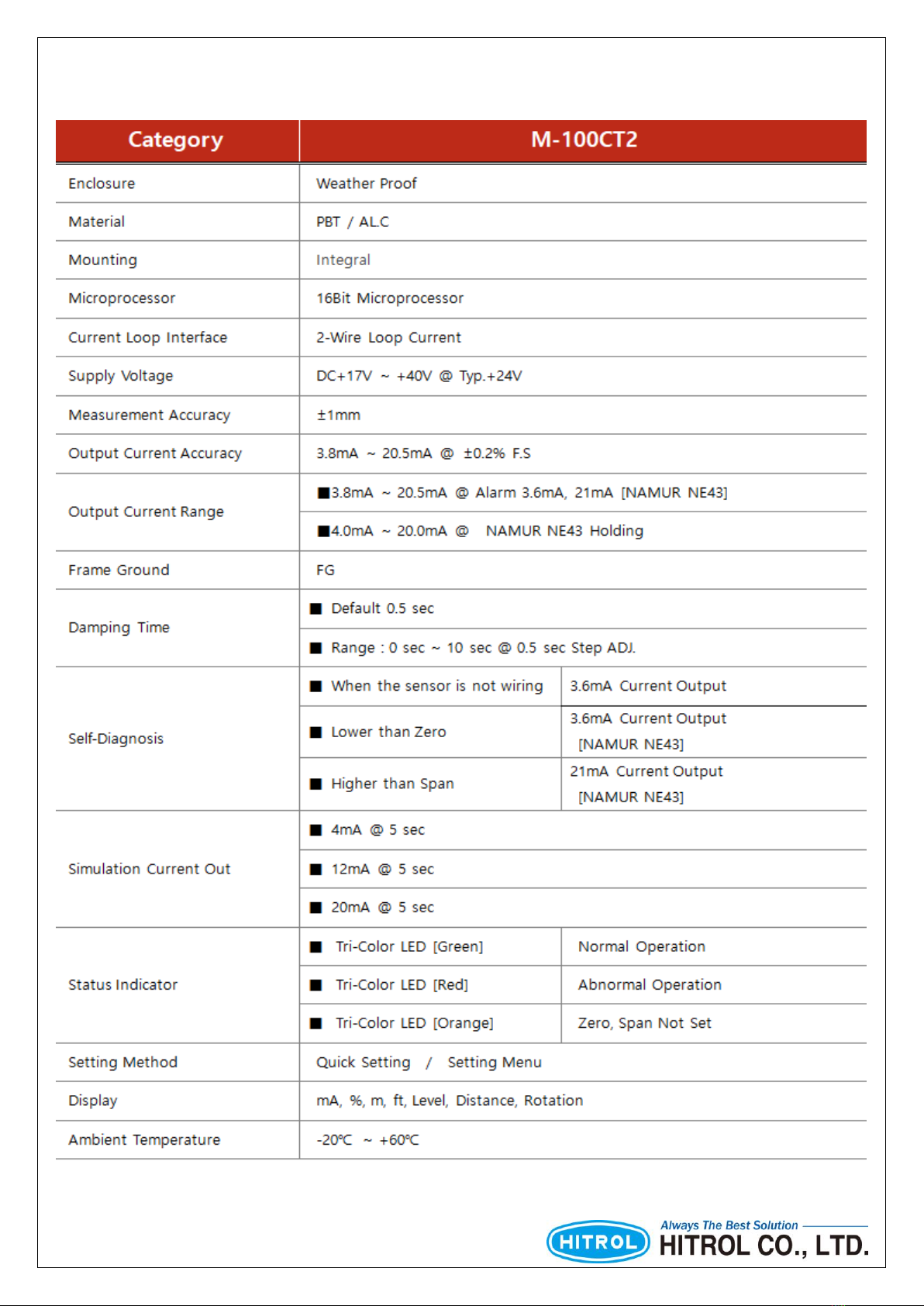

[Table 1] Specification

3. Configuration of Setting Menu

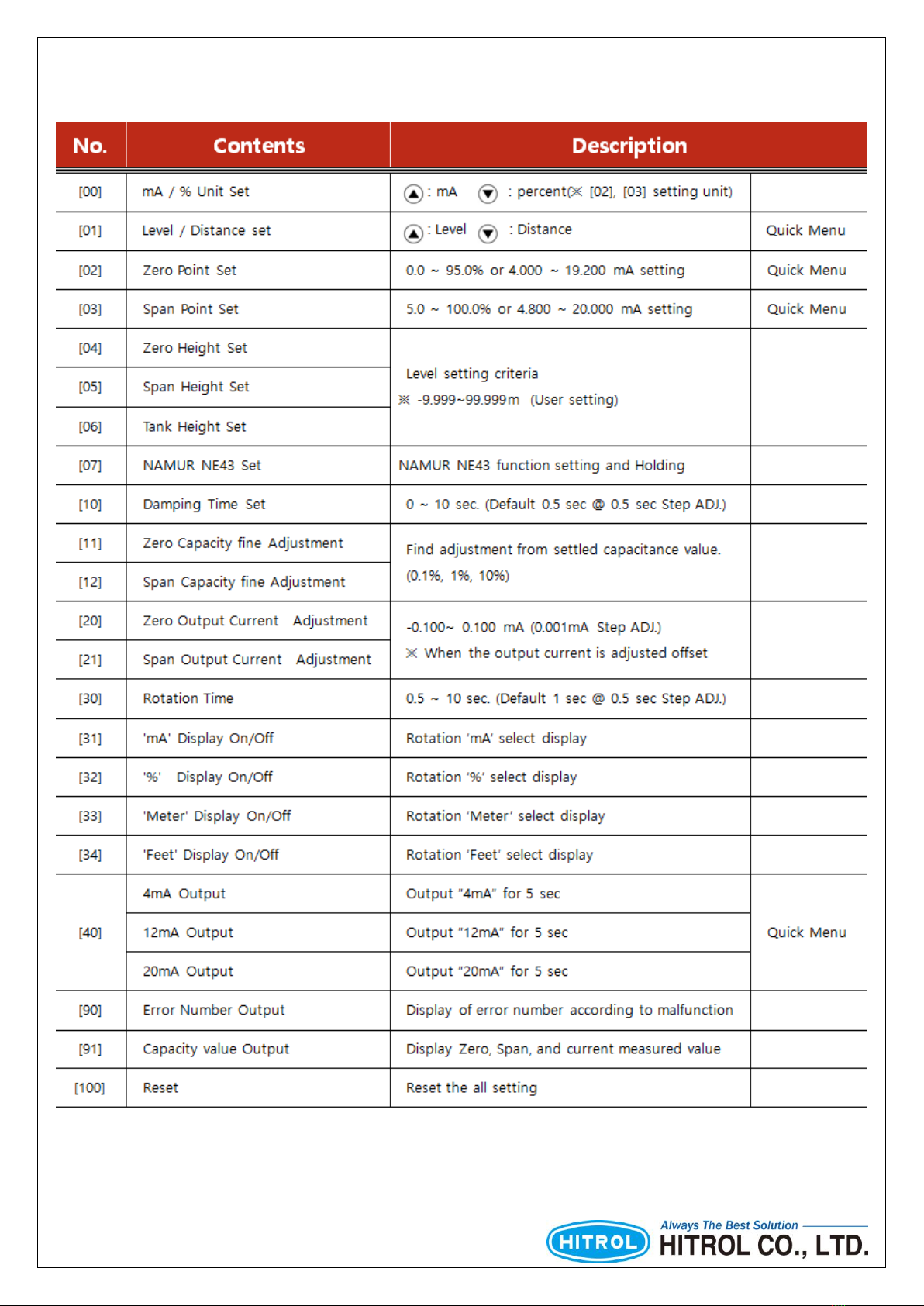

[Table 2] Setting Menu List

4. Setting and Operating
■LCD Configuration
■Into the Setting Menu
■Return to Setting Mode

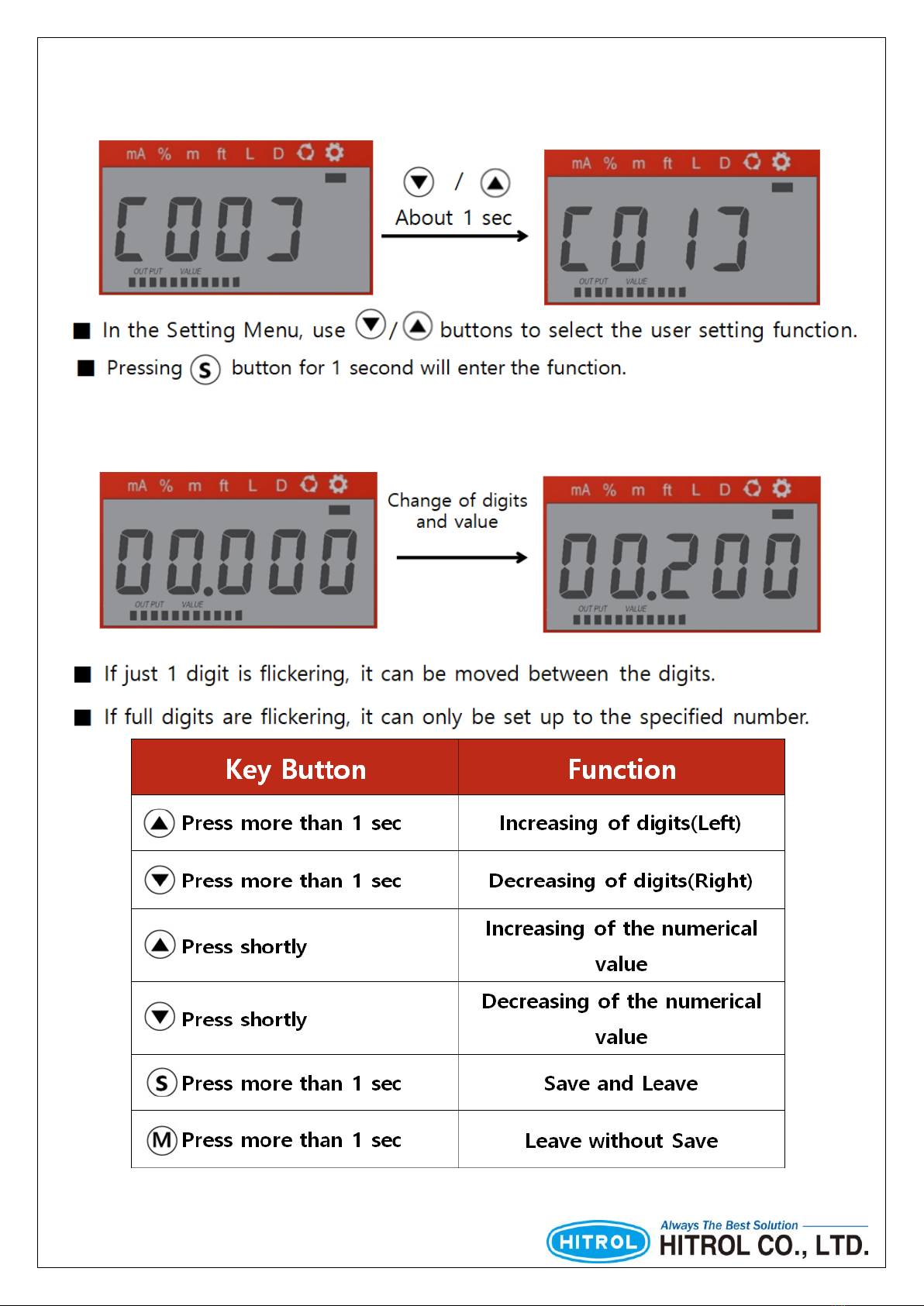

■Select the Setting Menu
■Change the User Setting
[Table 3] Key Button Guidance

■Height Setting
■Zero, Span Quick Setting
□Setting by unit screen
※Factory shipping is set as “[%] unit setting”.
□Zero Setting
□Span Setting

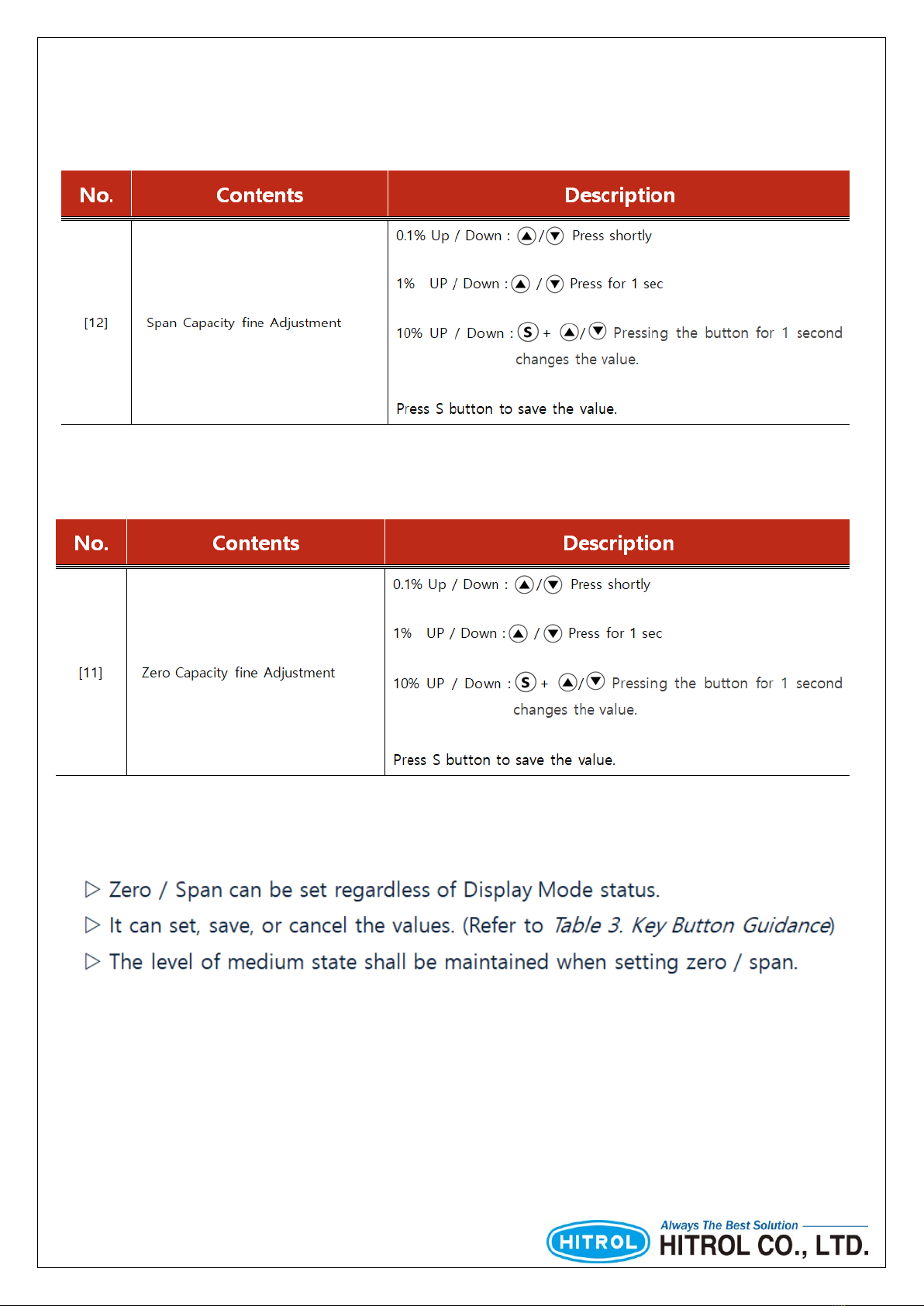

■Zero, Span Capacity fine Adjustment
□Zero Setting
□Span Setting
□Span Setting
□Other
