HME DX300ES User manual

HME# 400G623
Rev B 9/24/09
DX300ES
Wireless Headset System
Operating Instructions

Table of Contents
SECTION 1. INTRODUCTION..............................................................................................1
SECTION 2. EQUIPMENT IDENTIFICATION..................................................................2
STANDARD EQUIPMENT.....................................................................................................................................2
OPTIONAL EQUIPMENT ......................................................................................................................................3
EQUIPMENT FEATURES ......................................................................................................................................4
Base Station .........................................................................................................................................................4
Beltpac .................................................................................................................................................................6
All-In-One Headset (optional) .............................................................................................................................6
SECTION 3. EQUIPMENT SETUP......................................................................................7
BATTERY CHARGER............................................................................................................................................7
BASE STATION......................................................................................................................................................8
Antenna and AC Power Connections................................................................................................................... 8
Optional Battery Operation of Base Station......................................................................................................... 9
Spectrum Friendly™Interference Avoidance ...................................................................................................10
Multiple Base Stations ....................................................................................................................................... 11
Audio Connection ......................................................................................................................................... 11
Dual Channel Setting ....................................................................................................................................11

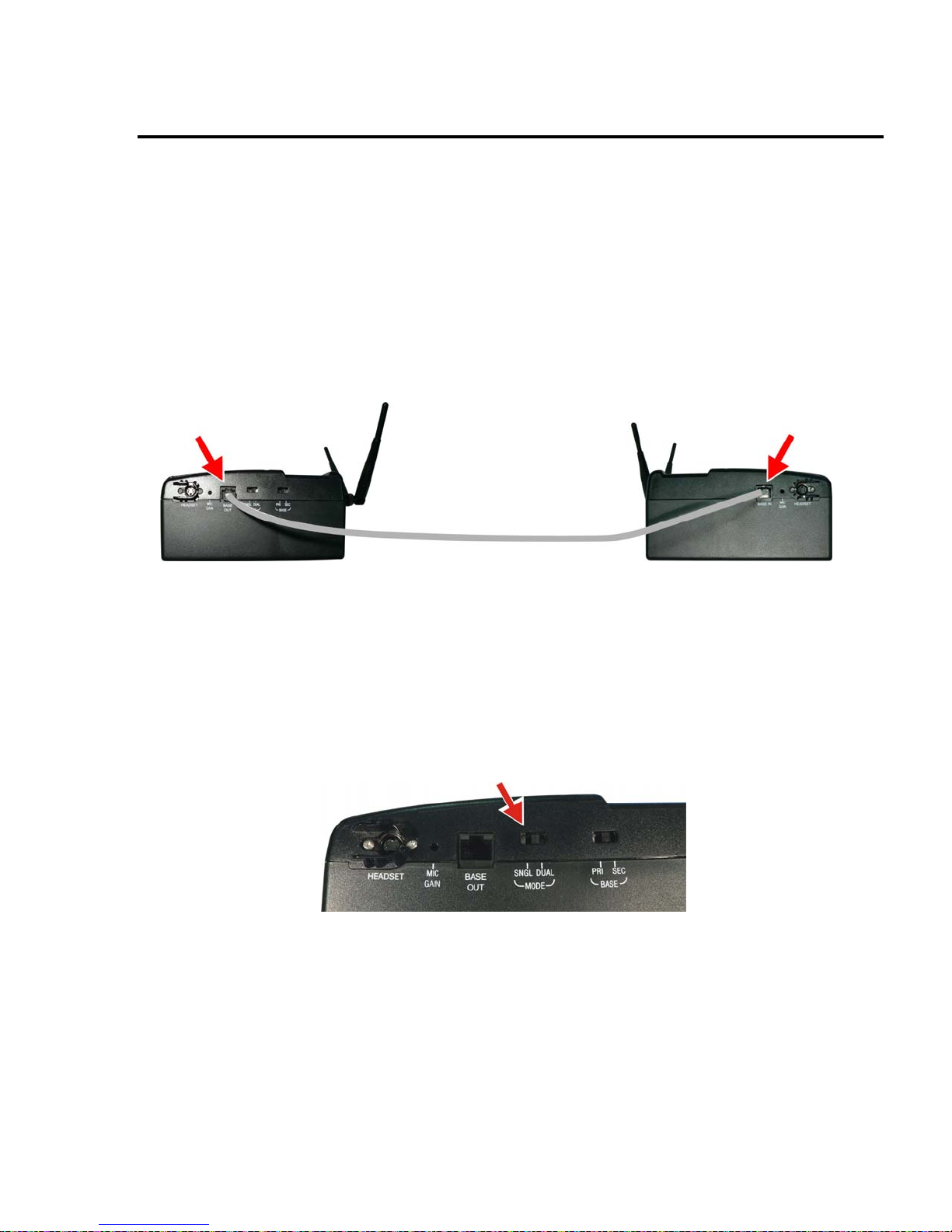

Multiple Base Station Initialization ...................................................................................................................12
Primary/Secondary Base Station Setting.......................................................................................................12

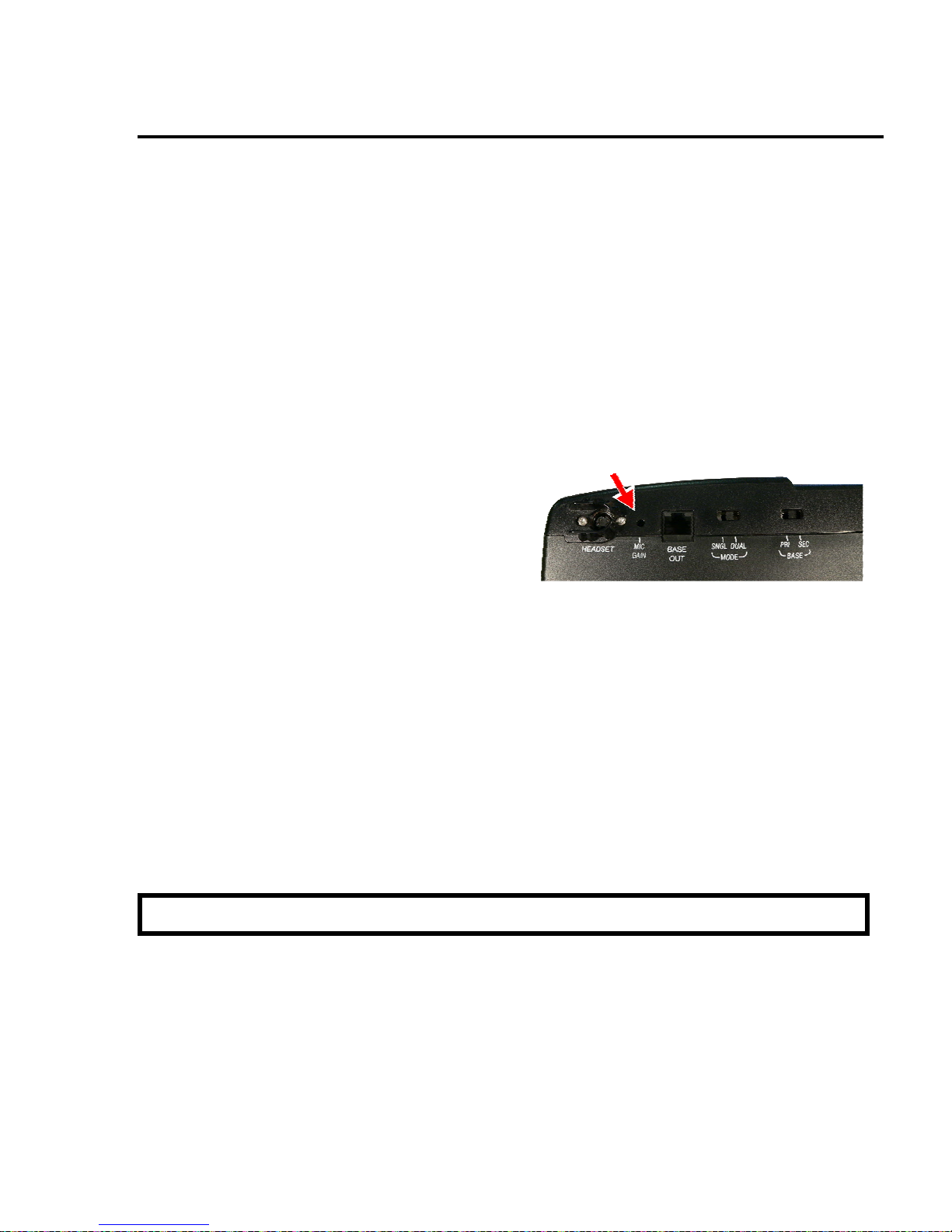

Base Station Microphone Gain Adjustment.......................................................................................................14
BELTPACS ............................................................................................................................................................15

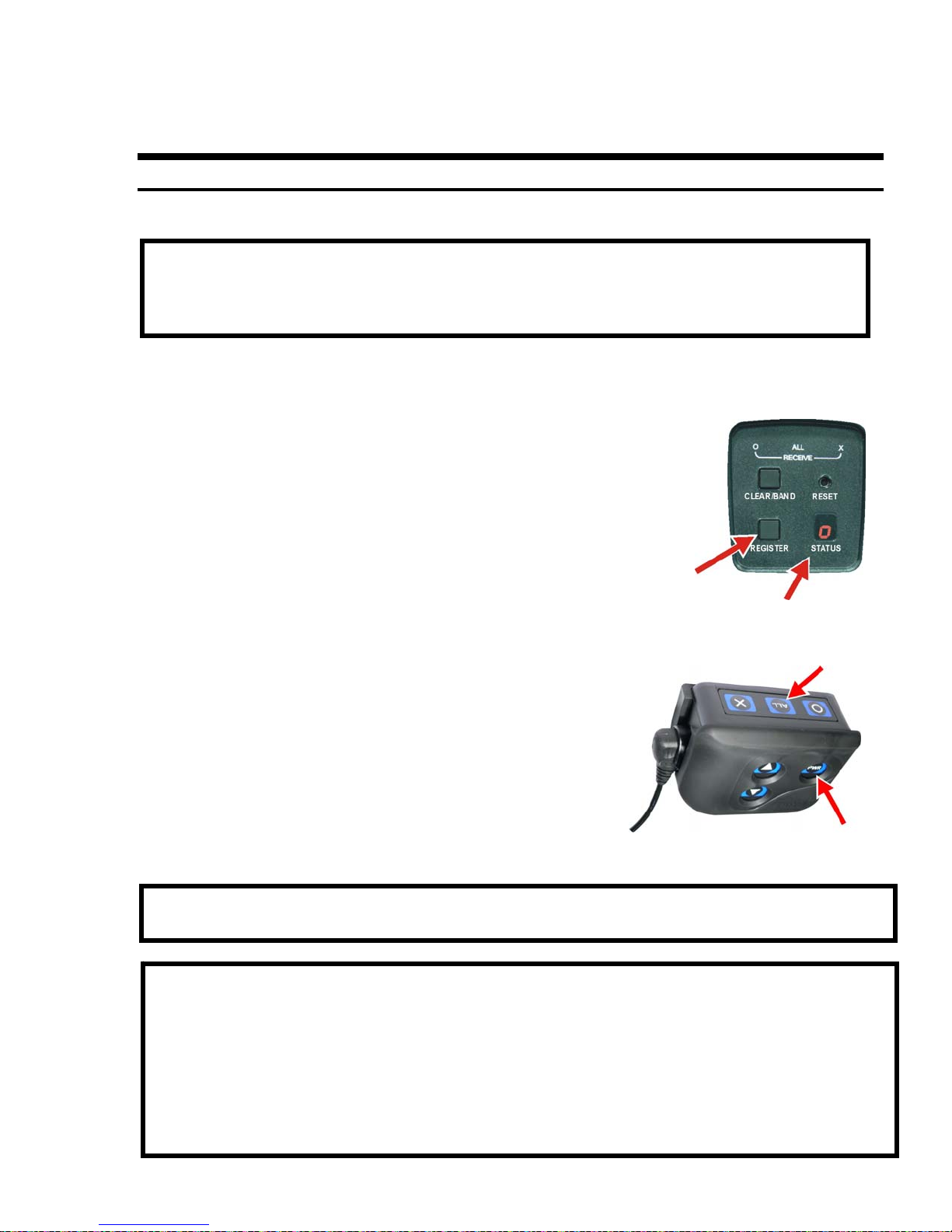

Beltpac Registration........................................................................................................................................... 15
Beltpac or All-In-One Headset Adjustments .....................................................................................................16
Sidetone Adjustment (Beltpac only, not on all-in-one headset) ....................................................................16
Microphone Gain Adjustment....................................................................................................................... 16
OPTIONAL REMOTE ANTENNA INSTALLATION......................................................................................... 17
OPTIONAL AUXILIARY EQUIPMENT CONNECTION....................................................................................18
SECTION 4. EQUIPMENT OPERATION.........................................................................19
BASIC OPERATION............................................................................................................................................. 19
Base Station .......................................................................................................................................................19
Beltpac / All-In-One Headset............................................................................................................................. 20
Changing Batteries............................................................................................................................................. 21
Operating Mode Setup .......................................................................................................................................22
RADIO APPLICATIONS ......................................................................................................................................23
Emergency Services........................................................................................................................................... 23
Operating Scenario........................................................................................................................................23
Beltpac Configuration ...................................................................................................................................23
Production Crew with Separate Radio Channel................................................................................................. 24
Operating Scenario........................................................................................................................................24
Beltpac Configuration ...................................................................................................................................24
SECTION 5. TROUBLESHOOTING..................................................................................25
FREQUENTLY ASKED QUESTIONS................................................................................................................. 27
SECTION 6. TECHNICAL DATA......................................................................................28
EQUIPMENT SPECIFICATIONS.........................................................................................................................28
Base Station...................................................................................................................................................28
Beltpac ..........................................................................................................................................................29
All-In-One Headset .......................................................................................................................................29
BASE STATION BLOCK DIAGRAM..................................................................................................................30
SECTION 7. INDEX...............................................................................................................31

FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communication. Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by HM Electronics, Inc. could void the users authority to
operate this equipment.
Hereby, HM Electronics, Inc. declares that the DX300ES is in compliance with the essential requirements and other
relevant provisions of R&TTE Directive 1999/5/EC.
This product operates in the 2400 to 2483.5 MHz frequency range. The use of this frequency range is not yet harmonized
between all countries. Some countries may restrict the use of a portion of this band or impose other restriction relating to
power level or use. You should contact your Spectrum authority to determine possible restrictions.
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
The European Union (EU) WEEE Directive (2002/96/EC) places an obligation on producers (manufacturers, distributors
and/or retailers) to take-back electronic products at the end of their useful life. The WEEE Directive covers most HME
products being sold into the EU as of August 13, 2005. Manufacturers, distributors and retailers are obliged to finance the
costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
Instructions for Disposal of WEEE by Users in the European Union
The symbol shown below is on the product or on its packaging which indicates that this product was put on the market after
August 13, 2005 and must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of the user’s
waste equipment by handing it over to a designated collection point for the recycling of WEEE. The separate collection and
recycling of waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a
manner that protects human health and the environment. For more information about where you can drop off your waste
equipment for recycling, please contact your local authority, your household waste disposal service or the seller from whom
you purchased the product.
© 2009 HM Electronics, Inc.
The HME lo
g
o and
p
roduct names are re
g
istered trademarks o
f
HM Electronics, Inc. All ri
g
hts reserved.
HM Electronics, Inc. is not responsible for equipment malfunctions due to erroneous translation of its publications
from their original English version. Illustrations in this publication are approximate representations of the actual
equipment, and may not be exactly as the equipment appears.

1
SECTION 1. INTRODUCTION
The DX300ES is a digital wireless communication system that enables hands-
free two-way secure communication on two independent channels, or both
channels at the same time. It can be operated with AC or battery power.
Multiple base stations can be interconnected for expanded capabilities.
In addition to the standard communication among base station and beltpac
operators, the system can be configured to operate with almost any radio or
digital matrix (4-Wire) communication system.
This manual provides detailed setup and operating instructions for your
DX300ES system.

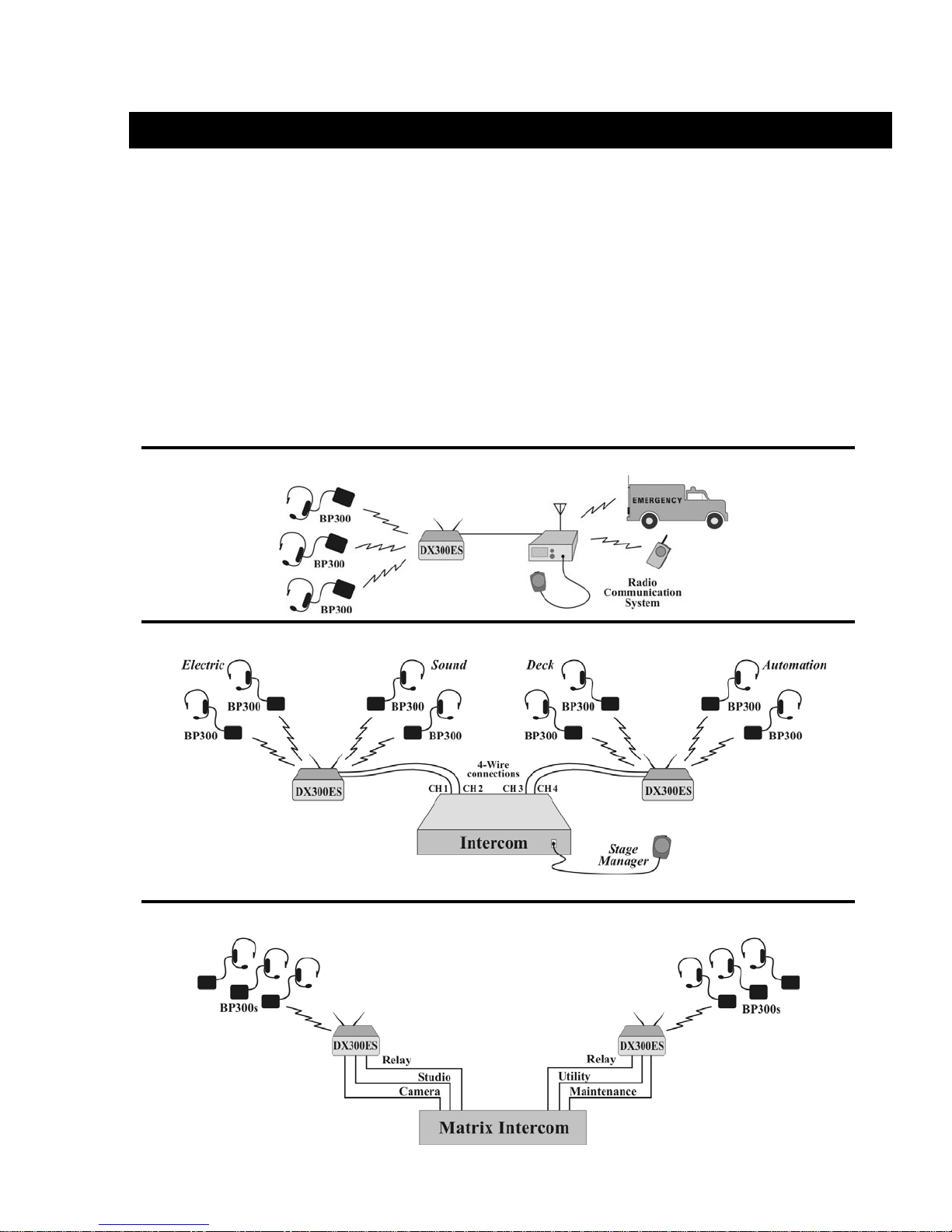

The following examples are of typical DX300ES applications.
Radio Communication Center
Theatre
Broadcasting

2

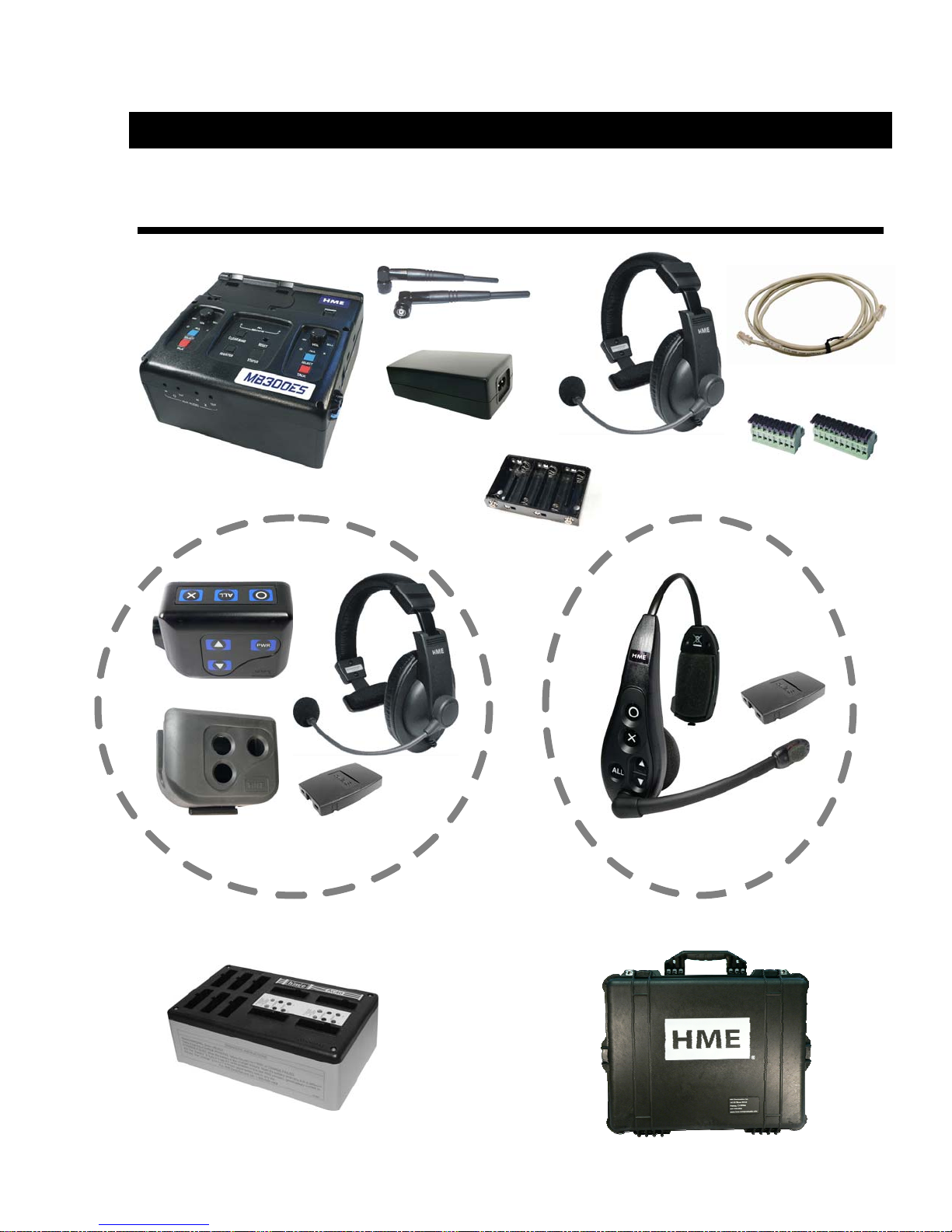

SECTION 2. EQUIPMENT IDENTIFICATION
STANDARD EQUIPMENT
Antennas
Battery sled
OR
Power adapter and cord
Base station
interconnect cable
Battery charger with power supply and cord
for beltpac and all-in-one headset batteries Travel case
Headse
t
Base station 8-pin and 10-pin
spring clamp
connectors
All-in-one headset with battery
Beltpac with headset, pouch and battery

3

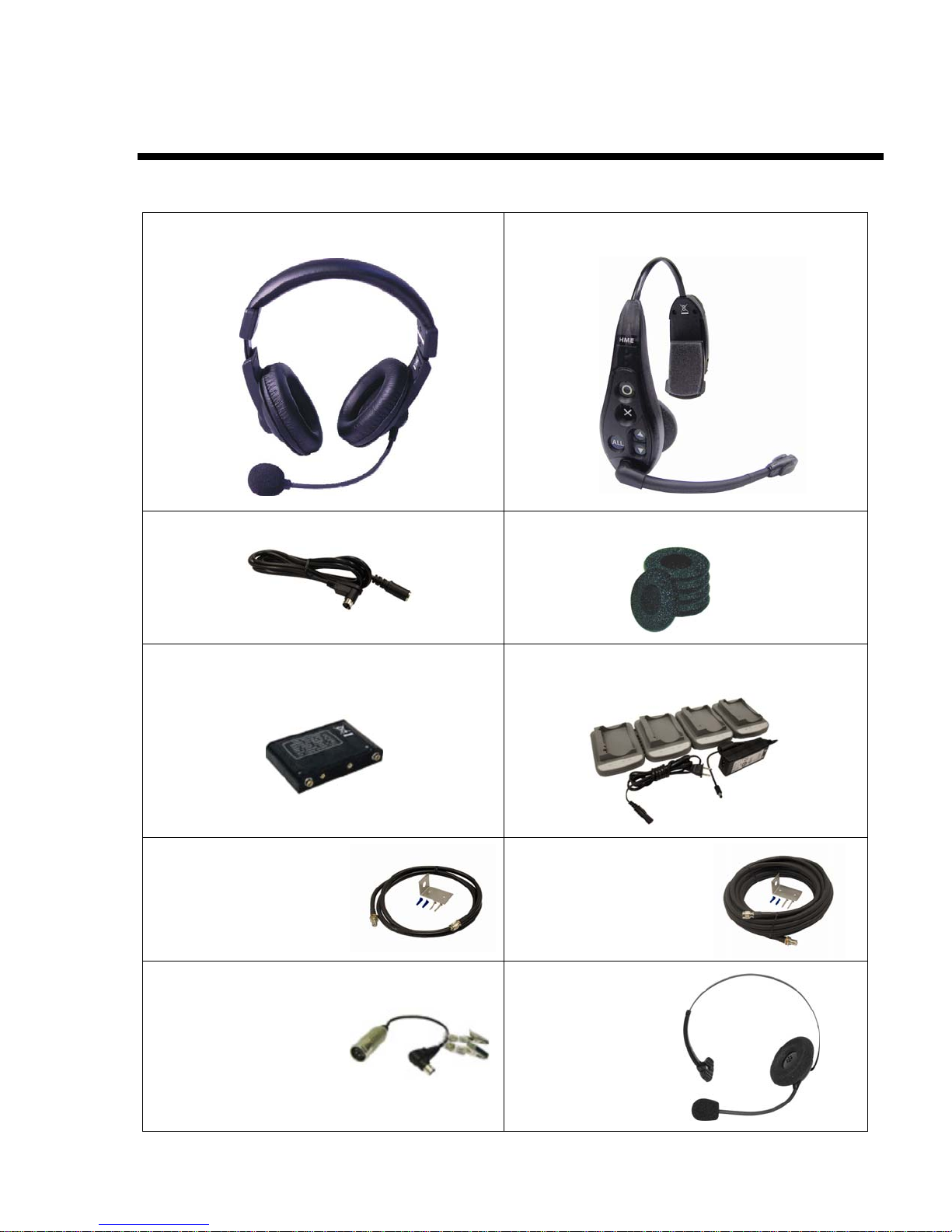

OPTIONAL EQUIPMENT
Headset with dual ear muffs
Model # HS15D
All-in-one headset with battery
Model # WH300
Headset extension cable, 6 ft (1.83 meter) Foam earmuffs for all-in-one headset
Rechargeable battery for base station
Model # BAT850 Battery charger for use with rechargeable
base station batteries
Model # AC850
Remote antenna kit with
6 foot (1.83 meter) cable
and bracket
Remote antenna kit with
30 foot (9.14 meter) cable
and bracket
Adapter cable for headset with dynamic
microphone and XLR connector
Model # MD-XLR4F
MD-XLR4M
MD-XLR5F
Lightweight headset
Model # HS16

4
EQUIPMENT FEATURES
Base Station
Top Panel —
Right select
b
utton
Right talk
b
utton
Battery
compartment
latches
Antennas
Left
headset
volume
control
Power
b
utton
Right
headse
t
volume
control
Left select
b
utton
Left talk
button
Left talk
lights
Right talk
lights
Active Channel
lights
Clear/Band
button
Registration
button
Status
indicator
Reset
switch
(
recessed
)

5

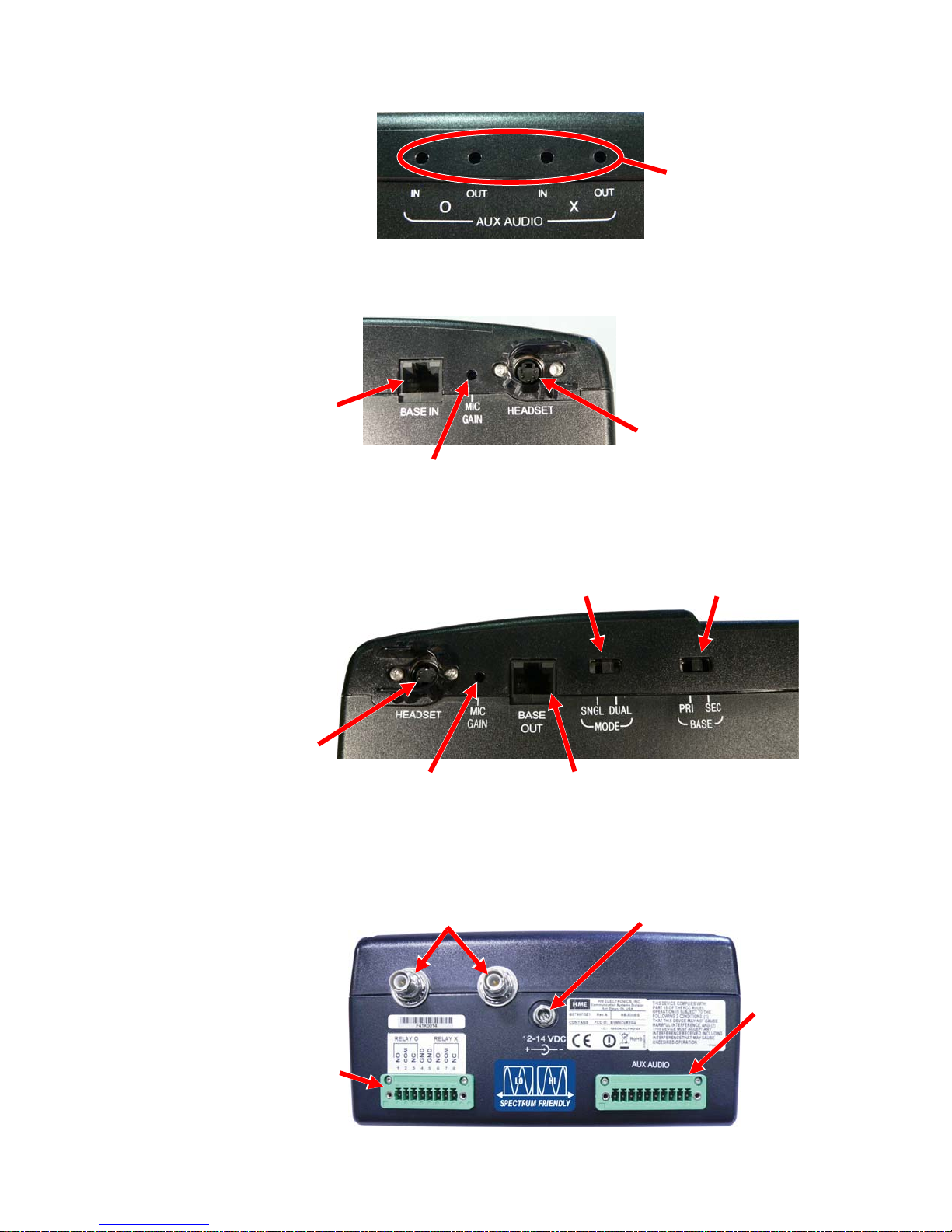

Front Panel —
Left Side Panel —
Right Side Panel —
Rear Panel —
Cable “input”
from another
b
ase station
Microphone gain
adjustment for
left headset
Left headset
connector
Auxiliary audio
in/out volume
adjustments
(
r
ecessed)
Cable “output”
to another
b
ase station
Microphone gain
adjustment for
ri
g
ht headse
t
Right
headset
connecto
r
Primary/Secondary
base station
selection switch
Single/Dual
base station
selection switch
10-pin connector
for auxiliary
audio connection
input/output
Antenna
connectors
Power supply
connecto
r
8-
p
in connector for
equipment relay
controlled by
beltpac buttons

6
Beltpac
All-In-One Headset (optional)
O-channel
b
utton
X-channel
button
Volume
up button
Volume
down button
ALL
b
utton
Battery
release
latch
Battery
Power
b
utton
O-channel
button
Power/X-channel
light
Power/O-channel
light
X-channel
b
utton
ALL
b
utton
Headset
cable
connector Volume
down button
Volume
u
p
button
Power
butto
n
Headband
slide-to-fi
t
Sanitary
muff
Power/Talk
li
g
h
t
Talk
li
g
h
t
Microphone
b
oo
m
Battery
Battery
release
latch

7
NOTE: Set up the battery charger and charge all beltpac and/or all-in-one headset batteries
while you are setting up the base station.
SECTION 3. EQUIPMENT SETUP

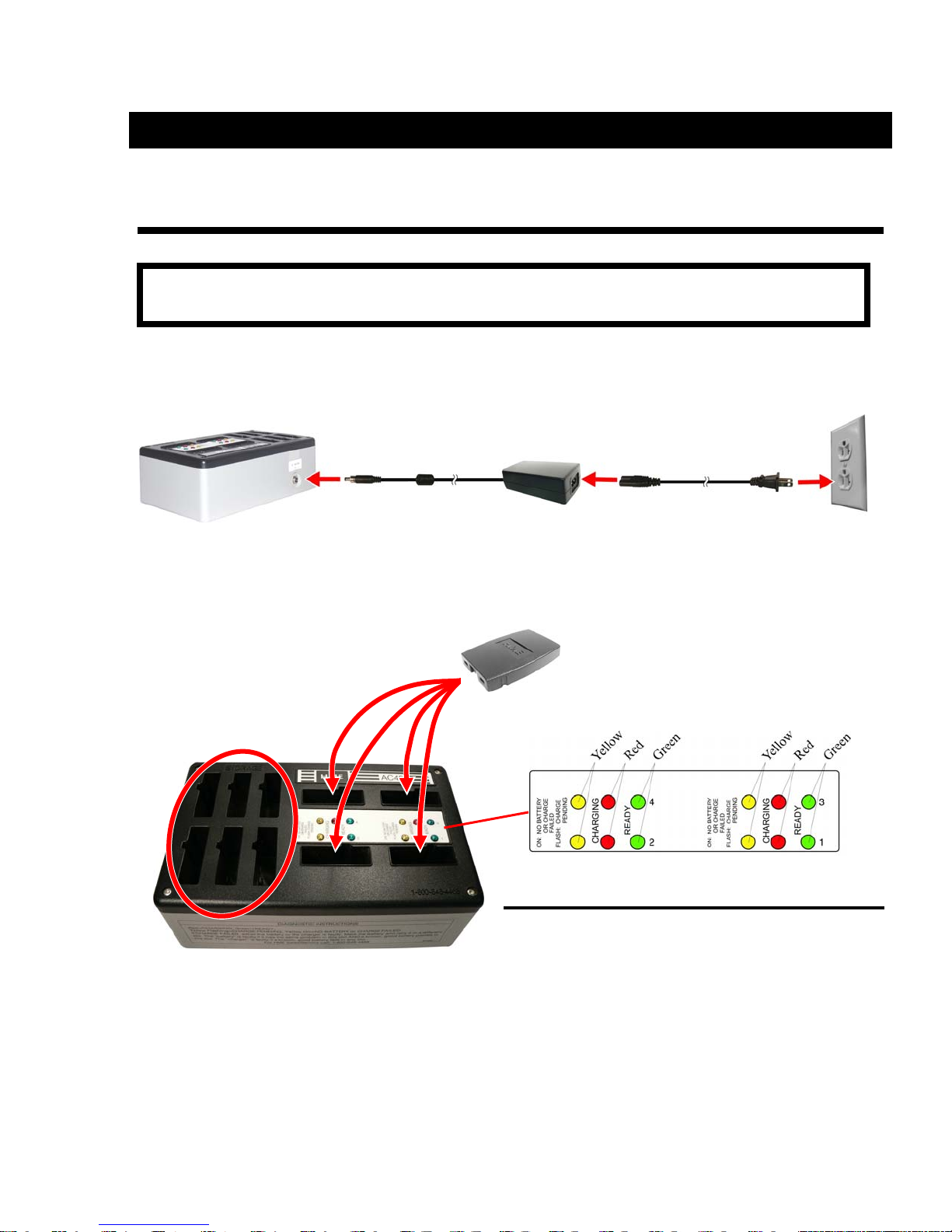

BATTERY CHARGER
1Connect power supply to charger and electrical outlet
2Charge all beltpac batteries
Charging time is approximately 3 hours
Status lights next to each charging port
Red light
Stays on steady while battery is charging
Green light
Goes on when battery is fully charged
Yellow light
Stays on steady when charging port is empty
Flashes if battery is too hot to charge
If on steady when battery is in charging port, charge
has failed – See instructions on side of charger
Power supply Power supply cord
Storage ports for
charged batteries
Put up to 4 batteries
in charging ports
