Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
HODEDAH ®
ITEM # HIF441-G(MOP-SP)
3 DOOR WARDROBE
2 people
90 mins
1 YR LTD
2 Boxs
FRONT VIEW BACK VIEW
www.Hodedah.com 1| Page
Product Dimensions: Height 72.83" x Width 48.03" x Depth 21.65"
Weight Capacity Per Drawer 25lbs
Weight Capacity Per Shelf 25lbs

HODEDAH ®
www.Hodedah.com 2| Page
DO NOT RETURN PRODUCT TO THE STORE
Phone WebsiteEmail
Questions, need parts, we are here to help!
WARRANTY
WARNING
If parts are missing or damaged please contact our customer service team and we will
gladly ship your replacement parts FREE of charge within ONE YEAR of purchase!
Hodedah warrants this product to be free from defects in materials and workmanship and agrees to
remedy any such defect. This warranty covers one year from the date of original purchase. This is solely
limited to replacement of defective parts and no assembly for labor is included. This warranty does not
apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been
altered or repaired in any way. To obtain warranty service, original purchaser must present the following;
original bill of sale, date of purchase, where the product was purchased and images if applicable.
Components replaced warranted through the remainder of the original warranty only. The defective part
will be replaced without charge, subject to the terms and conditions described above.
Mon - Fri | 9:30 am to 5pm EST Send us an email
FOR PROMPT, RELIABLE SERVICE PLEASE HAVE YOUR INSTRUCTION MANUAL READY
Visit our website to open a case
1 - 855 - HODEDAH
1 - 855 - 463 -3324
[email protected] www.Hodedah.com
·This product contains small parts, keep away from children.
·This product contains plastic bags, keep away from children.
·Serious or fatal crushing injuries can occur from furniture tip-over. To help
prevent this, place heaviest items on the lower shelves and drawers. Do not set
heavy objects on top shelves and drawers.
·Never allow children to climb or hang on drawers, shelves and doors.
·Never open more than one drawer at a time.
·The use of tip-over restraints may reduce but not eliminate the risk of tip-over.

HODEDAH ®
www.Hodedah.com 3| Page
Product Care and Maintenance
Let's get started…
·Never open more than one drawer at a time.
·The use of tip-over restranits may reduce but not eliminate the risk of tip-over.
·Make sure you receive all boxes. If your item is packed in one box, box count will read 1
of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second
box will read 2 of 2.
·Read each step carefully. It is very important that each step is performed in the correct
order. If these steps are not followed in sequence, assembly difficulties will occur.
·Work in a spacious level area, preferably carpet, near the place the unit will be used.
·DO NO USE power tools to assemble your furniture, it will strip and damage parts.
·Your package should include the following hardware and parts. Parts are labeled or
stamped on the raw edge. Please inspect contents to ensure you have received all
components. If you are missing any hardware or parts please contact customer
service right away before assembly.
Helpful hints, read before beginning assembly

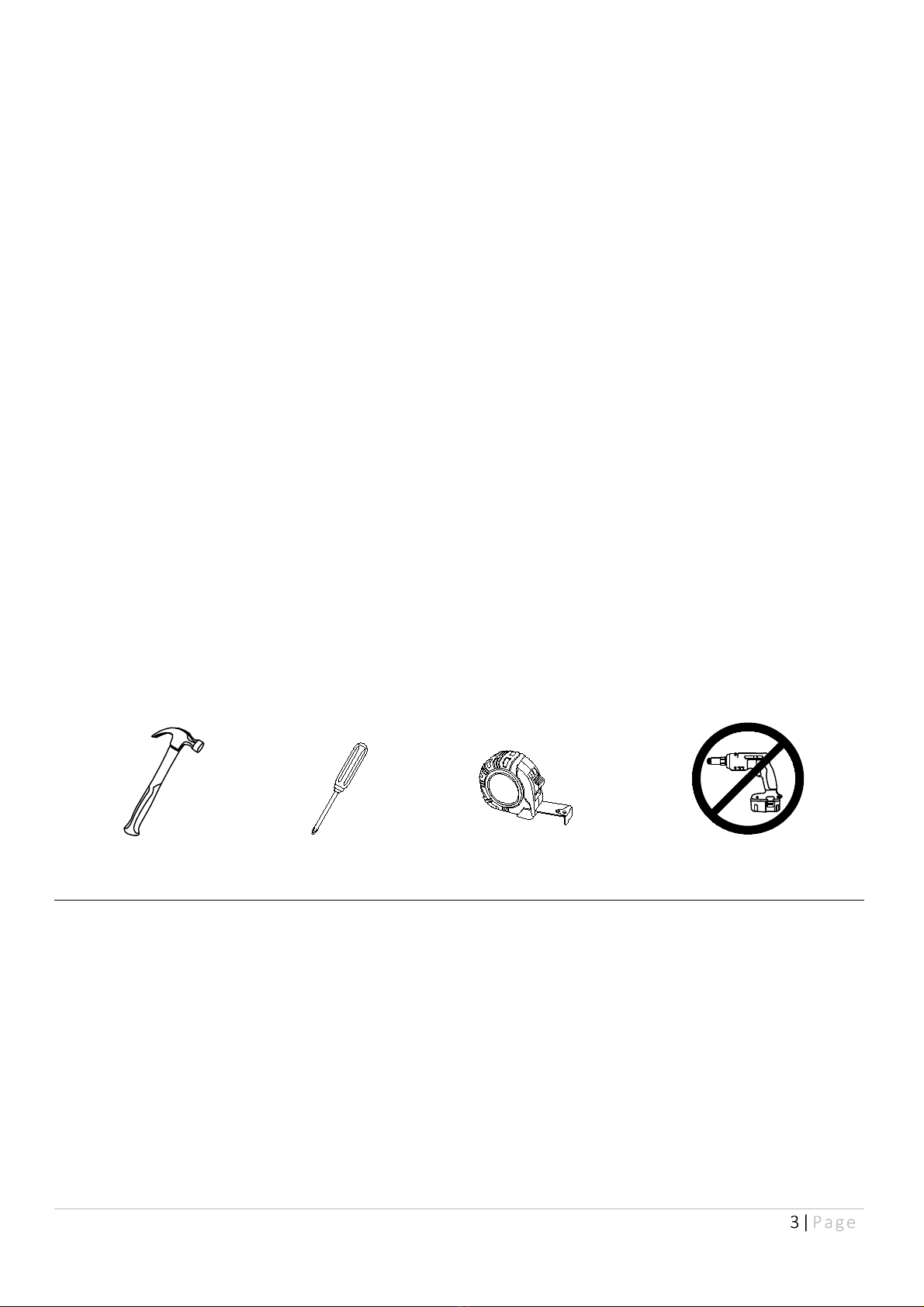

Assembly Tools Required (not supplied)
·Wipe clean with dry soft cloth, never use chemicals or cleaning products they will
damage the finish.
·Avoid placing your furniture in direct sunlight, as sunlight causes fading.
·Never push, drag or pull your furniture, to move to a new location carefully with
two or more people carry the unit to its new location.
·Avoid extreme changes in temperature by arranging furniture away from radiators,
heat and air vents and air conditioning units.
Hammer Phillips Screwdriver No Power Tools NeededTape Measure

AIM
HODEDAH ®
www.Hodedah.com 4| Page

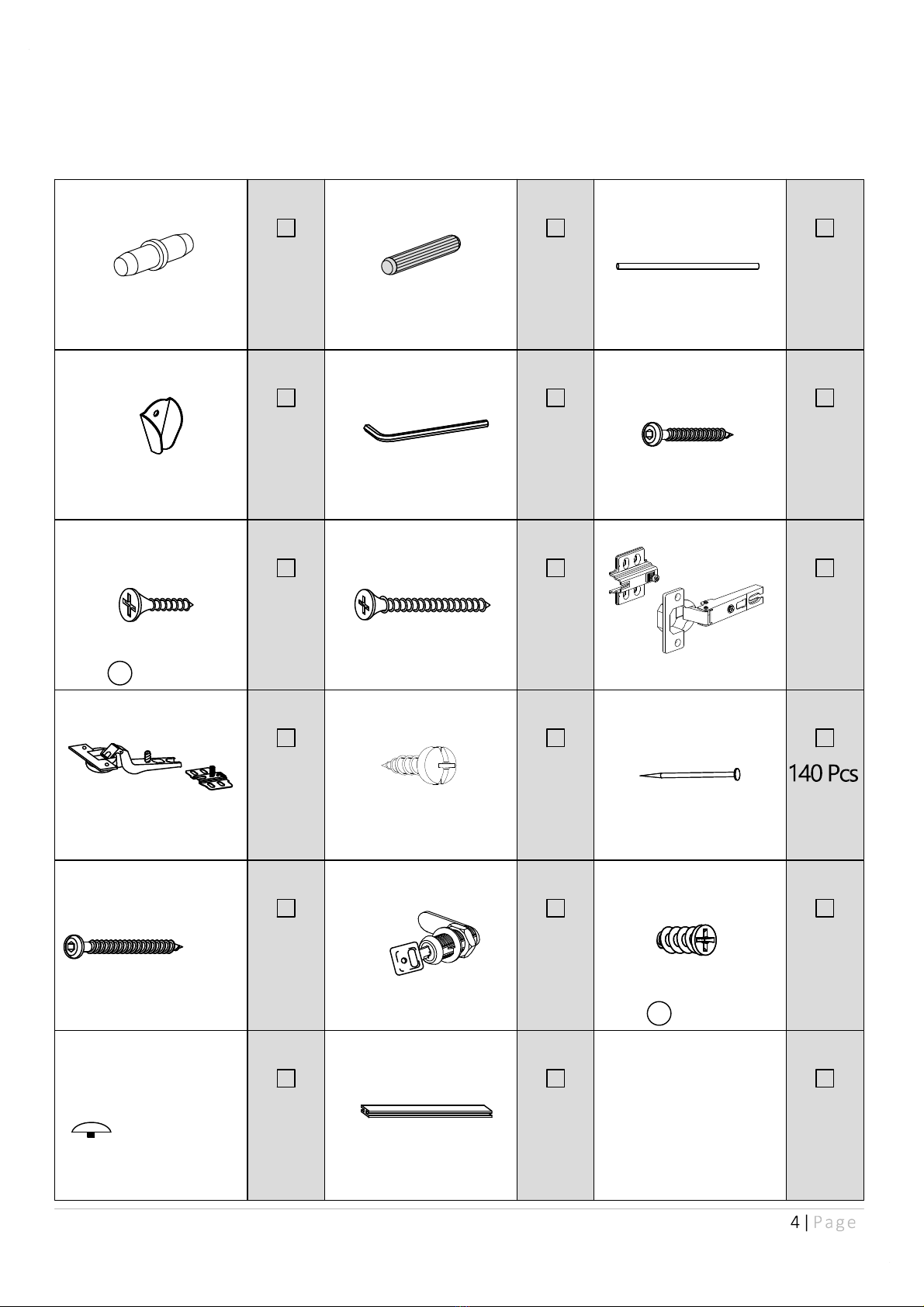

Hardware List
2QTY 3QTY 4QTY
QTY 6QTY 7QTY
Pvc Dowel
36 Pcs
8QTY 9QTY
Nail
140Pcs
10 QTY
Allen Key
1 Pc
12
QTY
11 QTY
Hinges
13 QTY
Lock
5
8 Pcs
Shelf Support
14 QTY 15 QTY 16 QTY
V-Bracket
18 Pcs
Screw M 10 X 1/2 MM
2 Pcs
17 QTY 20 QTY 21 QTY
2 Pcs
Screw M6 x 40mm
22 Pcs
Screw M3.5 x 14mm
56 Pcs
*For # 19 Drawer Slides
Screw M4 x 32mm
20 Pcs 6 Sets
Hinges
3 Sets
H-Profile
8 Pcs
Screw M6.2 x 10mm
1 Pc
*For # 18 Drawer Slides
Hanging Rod
1 Pc
Screw M6 x 50mm
4 Pcs
26 Pcs
Pvc Cap (separate from
hardware pack)
Anti-Tip Kit
1 PK

HODEDAH ®
www.Hodedah.com 5| Page

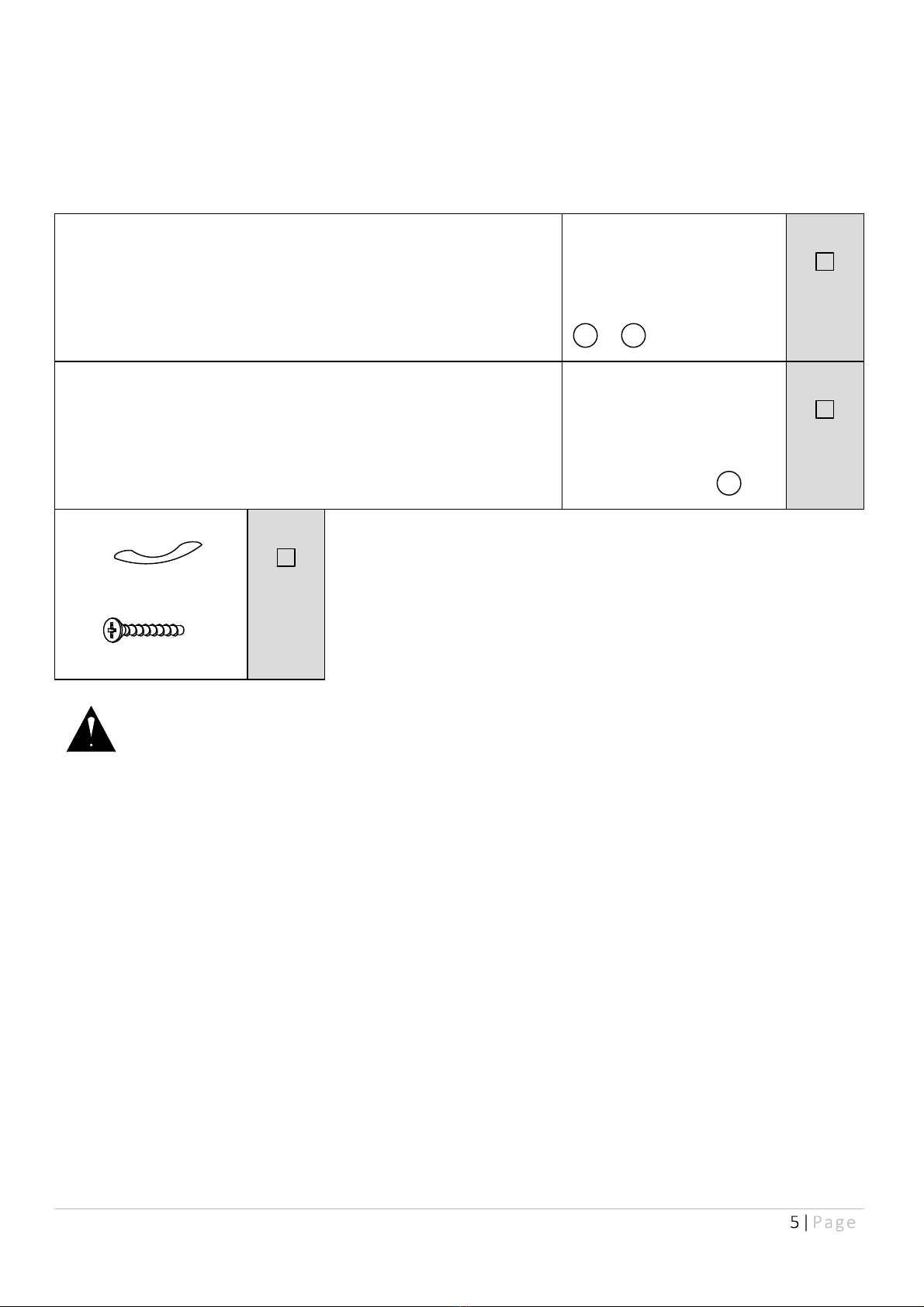

Accessories
1QTY
Handle 7 Pcs
14 Pcs
18
19
Drawer Slide - A
*Fix On Side Panels
QTY
2 Sets
QTY
2 Sets
*Fix On Side Panels O
Drawer Slide - B
A & G
Screw M4 X 18mm
* Fix On Side Panels Ⓐ
* Fix On Side Panels Ⓖ
* Fix On Drawer Side Panels Ⓞ
* Fix On Drawer Side Panels Ⓞ
Important
1. Before you throw the package, please use the
Check Box to identify the parts and hardware to
ensure that you have everything you need.
2. Check and measure the bolts before applying them
to parts.
3. Do not completely tighten all hardware until the
entire assembly is complete, unless indicated
otherwise.

HODEDAH ®
www.Hodedah.com 6| Page
AQTY
1 Pc
BQTY B1 QTY
CQTY
1 Pc
DQTY EQTY
1 Pc 1 Pc
FQTY GQTY HQTY

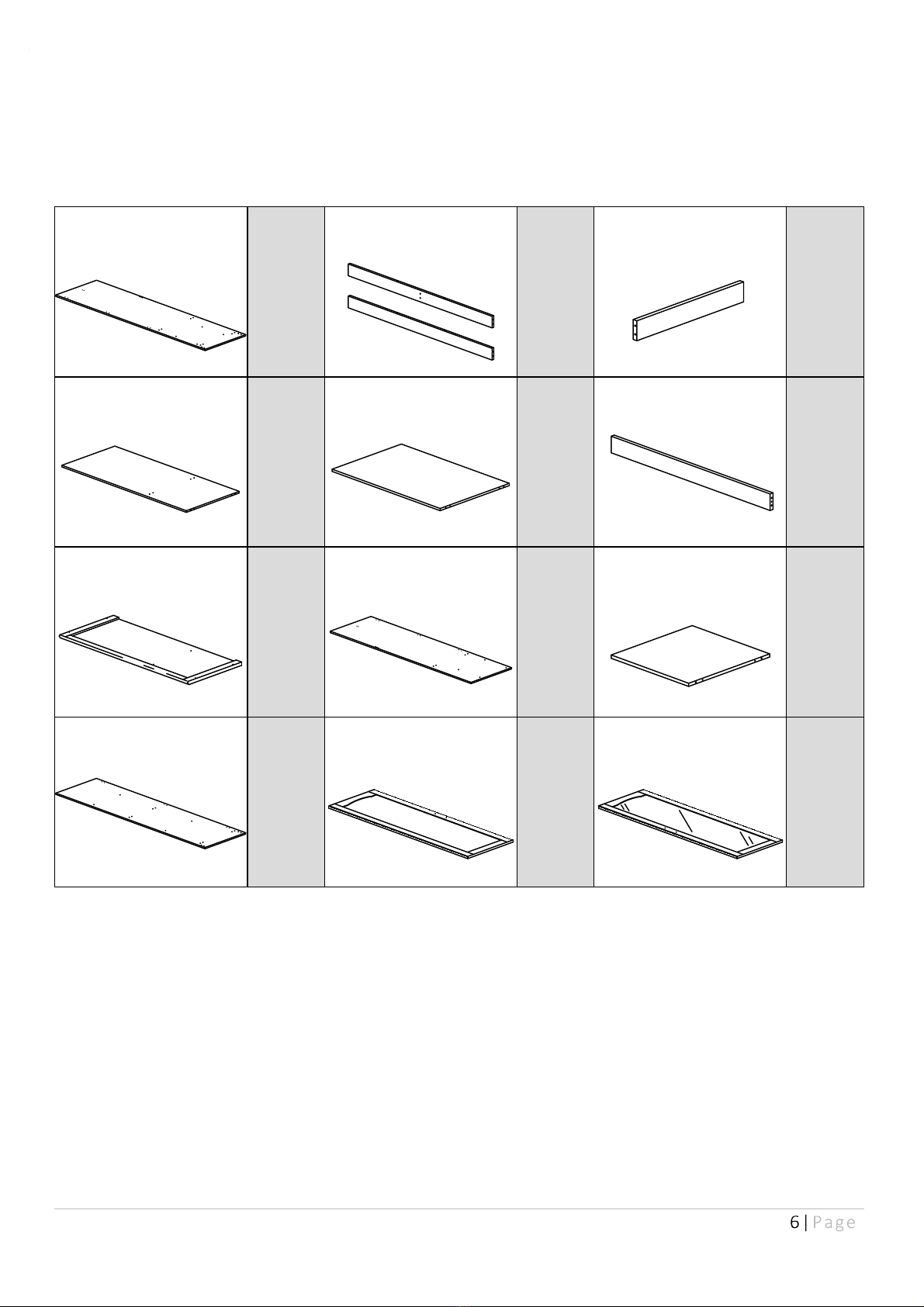

Parts List
IQTY JQTY QTY K
Stand Panel
1711 x 495 x 15mm
Partition Panel
773 x 495 x 15mm
Kick Panels
1165 x 89 x 15mm
Left Small Door
1206 x 395 x 18mm
Top Panel
1200 x 546 x 30mm
Bottom Panel
1165 x 495 x 15mm
Left Side Panel
1816 x 495 x 15mm
Right Side Panel
1816 x 495 x 15mm
Partition Panel
377 x 394 x 15mm
Back Strengthening Panel
773 x 76 x 18mm
Kick Strengthening Panel
433 x 76 x 15mm
Right Small Door
1206 x 395 x 18mm
2 Pcs 1 Pc
1 Pc 1 Pc 1 Pc
1 Pc 1 Pc 1 Pc

HODEDAH ®
www.Hodedah.com 7| Page
LQTY
1 Pc
MQTY NQTY
1 Pc
OQTY PQTY QQTY
RQTY SQTY TQTY
2 Pcs 3 Pcs 2 Pcs

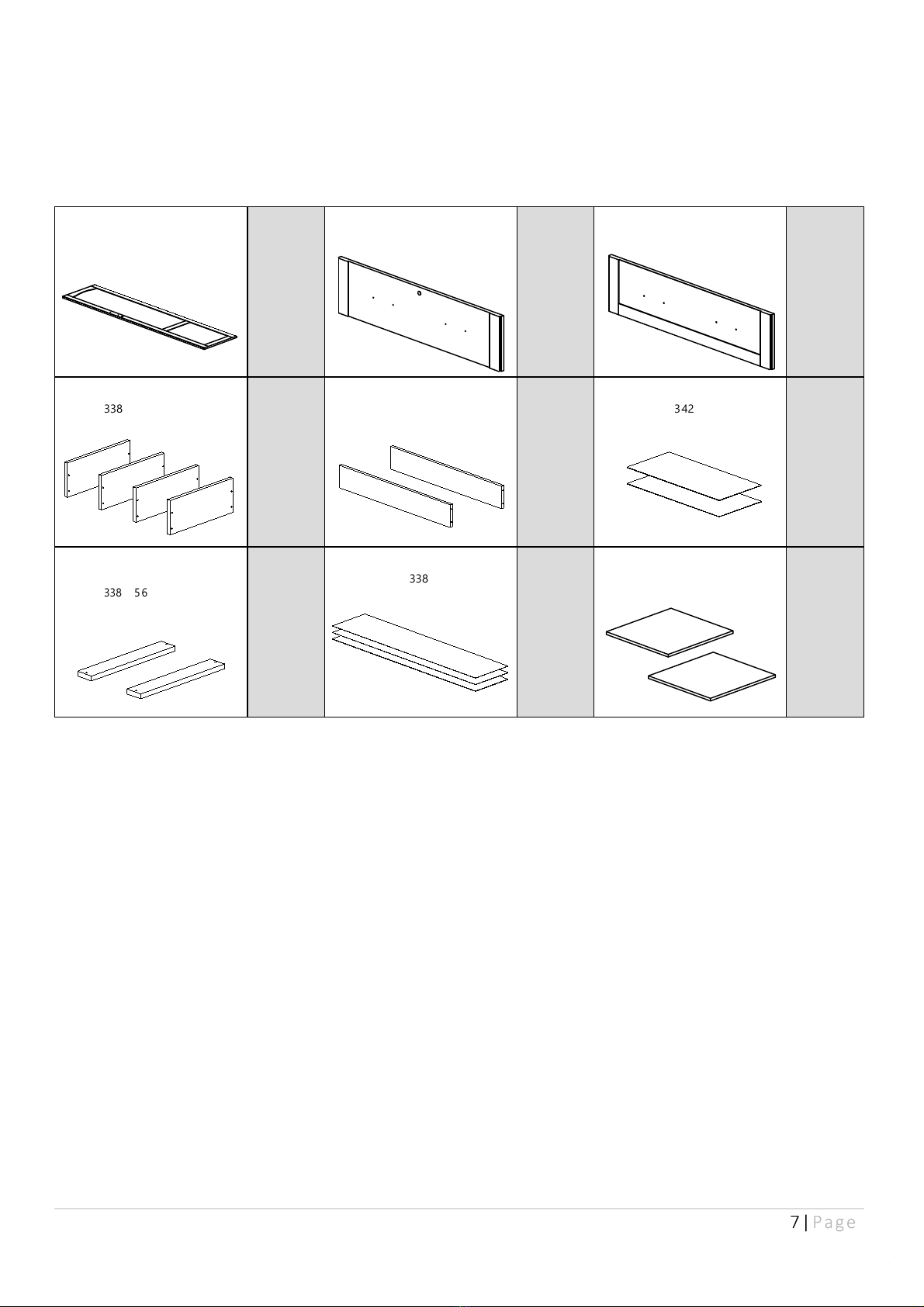

Parts List
Back Panels
1743 x 338 x 3mm
Drawer End Panels
717 x 111 x 15mm
Upper Drawer Front Panel
792 x 251 x 15mm
Drawer Base Supporting
Panels
338 x 5 6 x 15 mm
Big Door
1722 x 395 x 18mm
Adjust Panels
377 x 394 x 15mm
Drawer Base Panels
746 x 342 x 3mm
Lower Drawer Front Panel
792 x 251 x 15mm
1 Pc
2 Pcs 2 Pcs 2 Pcs
Left Drawer Side Panels
338 x 140 x 15mm

HODEDAH ®
www.Hodedah.com 8| Page
The Breakdown
x2

HODEDAH ®
www.Hodedah.com 9| Page
Pre - Assembly
812
10
812
10
812
10
12
10
8
812
11
812
11
812
11
2
2
2
2
2
2
2
2
16
16
18
3
3
3
3
3
3
3
3
3
3
8
5
PANEL I
PANEL G
LEFT VIEW
RIGHT VIEW
12 8
10
12 8
10
12 8
10
16
3
3
8
5
PANEL A
10 HINGES
6 Pcs. 11 HINGES 3 Pcs.
12
SCREW M 10 X 1/2 MM
18 Pcs.
8
Screw M3.5 x 14mm
26 Pcs.
V-BRACKET
2 Pcs.
5
2SHELF SUPPORT
8 Pcs.
Screw M6.2 x 10mm
8 Pcs.
16
3Pvc Dowel
8 Pcs.

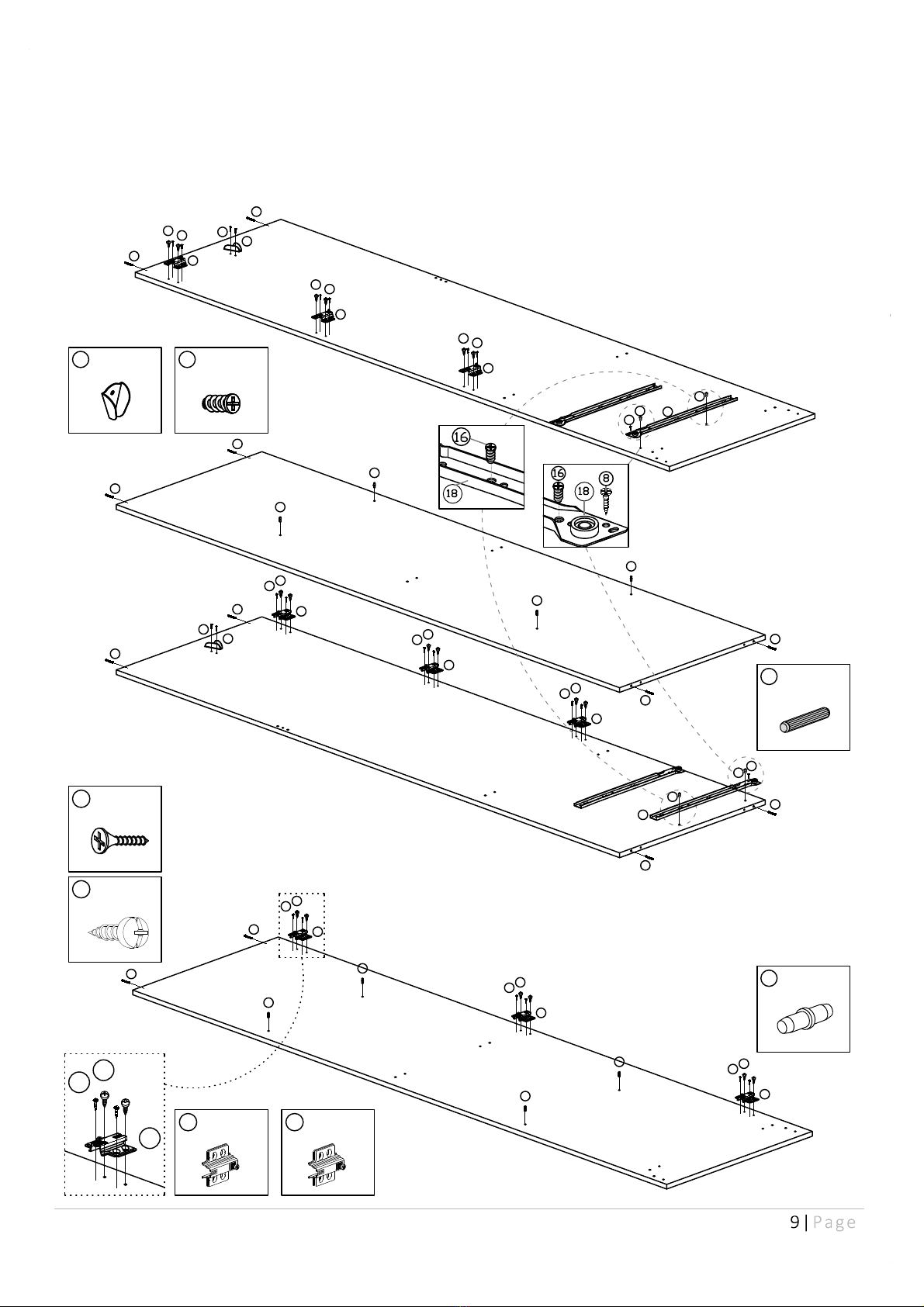

Tighten V-Bracket ⑤on panel Aand Fas
shown by using 2 screws ⑧.
Insert the PVC dowels ③to panel A, Gand I ’s
non-thru holes as shown, using hammer to tap them in.
Place hinge ⑪ at the panel Gas
shown. Then tighten the hinge ⑪
with 2 screws ⑫ and 2 screws ⑧.
Place the drawer slide A ⑱
onto the 2 holes area shown
at stand panel Gand I. Then
tighten it with 2 screws ⑯
and 1 screw ⑧.
Place hinge ⑩ at the panel Aand I
as shown. Then tighten the hinge ⑩
with 2 screws ⑫ and 2 screws ⑧.
16
8
18
8
Insert 8 shelf supports ②into panels G
and I’s non thru holes .

HODEDAH ®
www.Hodedah.com
Pre - Assembly
10| Page
3
3
3
3
PANEL B
4
3
3
3
3
PANEL B
4
3
3
3
3
PANEL E
3
3
3
3
PANEL C
3
3
3
3
PANEL B1
3Pvc Dowel
28 Pcs.
Insert the PVC dowels ③to panel
B, B1, C, D, Eand H ’s non-thru holes as
shown, using hammer to tap them in.
3
3
3
3
PANEL H
3
3
3
3
PANEL D

HODEDAH ®
www.Hodedah.com
Door Panel Assembly
11| Page
15 Lock
1 Set.
AIM
1 1
Handle
3 Pcs.
Handle SCREW
M4 X 18mm
6 Pcs.
10 HINGES
6 Pcs. 11 HINGES 3 Pcs. 8
Screw M3.5 x 14mm
18 Pcs.
8
10
8
11
JKL
1
1
1
1
1
1
1
1
1
15

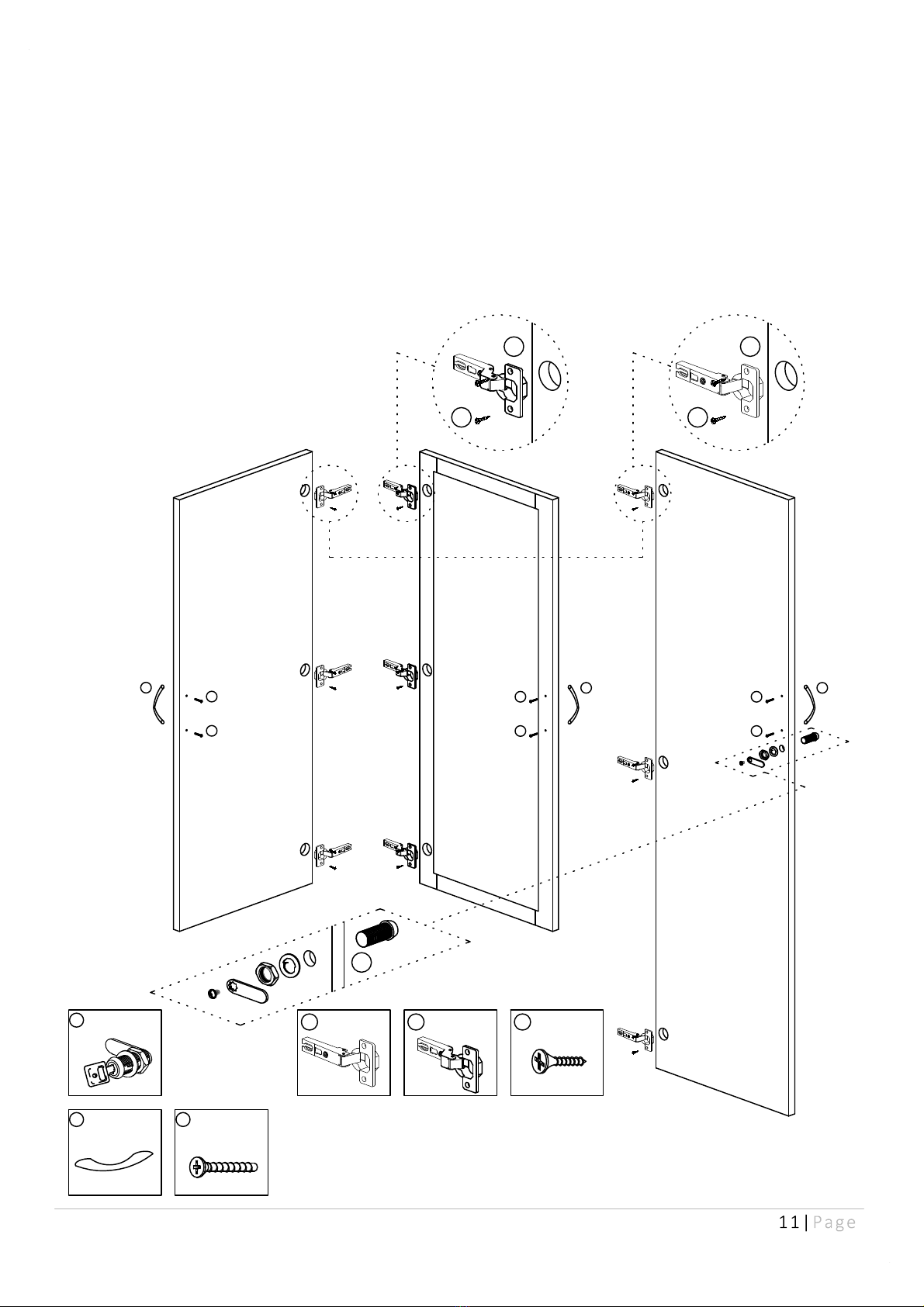

Disassemble the lock ⑮into 5 parts as shown,then
install the lock ⑮by insert the lock ⑮'s cylinder into
middle thru hole of door panel L, then fix the lock up.
* Insert 6 Hinges ⑩and 3 hinges ⑪into door panel J,Kand L's non-thru hole as
shown, then tighten screws ⑧through hinges ⑩and ⑪'s thru hole.
-Tighten 2 screws ⑨from
inner side of panel Jand
Kinto the handle ⑨holes.

HODEDAH ®
www.Hodedah.com
Assembly Of Drawers
12| Page
15 Lock
1 Set.
AIM
1 1 8
Screw M3.5 x 14mm
6 Pcs. 9Screw M4 x 32mm 10 Pcs. 13 Nail
12 Pcs.
Handle SCREW
M4 X 18mm
4 Pcs.
Handle
2 Pcs.
(2)
13 9
9
8
8
8
19
8
8
8
19
M
O
O
P
Q
R
(4)
(3)
O
O
P
M
9
9
9
9
9
9
9
9
1
1
M
O
O
P
Q
15
1
1
15
M
O
O
P
Q
COMPLETED

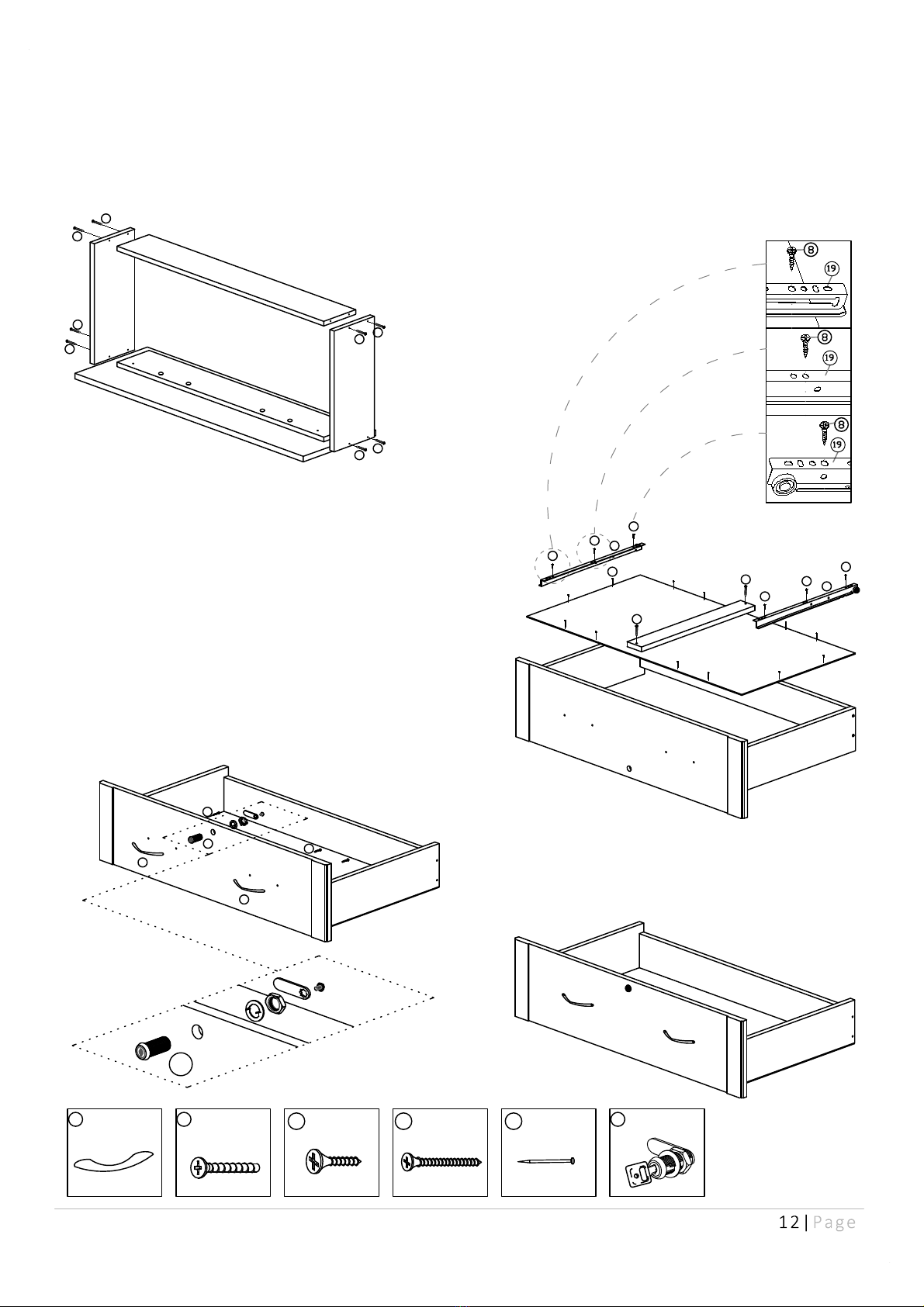

-Place panel Oon each
side of panel Mas shown.
-Then, tighten screw ⑨to
panel O's lower thru holes
to fix them onto panel M.
-Next tighten screw ⑨ to
panel O's upper thru holes
to fix up to the panel P.
-Flip drawer with bottom side up, place panel Qonto the
drawer and align properly. Then nail the nails provided
with hammer on the border of panel Qas shown.The gap
between 2 nails is about 100mm.
-After that, place a drawer slide B⑲with the small white
roller facing outward and with other end tip touching panel
Monto each bottom side (angle) edge of panel O. Then
tighten 3 screws ⑧on each drawer slide B⑲(as shown).
-Put drawer supporting Ronto middle of panel Q, then
tighten screw ⑨to drawer supporting R's thru hole to fix
it onto panel Q/ panel P(inner panel) / panel P.
-Disassemble the lock ⑮into 5 parts as shown,then
install the lock ⑮by insert the lock ⑮'s cylinder into
middle thru hole of panel K& L, then fix the lock up.
(1)

HODEDAH ®
www.Hodedah.com
Assembly Of Drawers
13| Page
1 1 8
Screw M3.5 x 14mm
6 Pcs. 9Screw M4 x 32mm 10 Pcs. 13 Nail
12 Pcs.
Handle SCREW
M4 X 18mm
4 Pcs.
Handle
2 Pcs.
COMPLETED
(4)
O
QP
O
N
1
1
1
1
O
QP
O
N
N
13
8
8
8
19
O
O
P
Q
9
9
8
8
8
19
R
O
O
P
N
9
9
9
9
9
9
9
9
-Place panel Oon each
side of panel Nas shown.
-Then, tighten screw ⑨ to
panel O's lower thru
holes to fix them onto
panel N.
-Next tighten screw ⑨ to
panel O's upper thru
holes to fix up to the
panel P.
-Flip drawer with bottom side up, place panel Qonto
the drawer and align properly. Then nail the nails
provided with hammer on the border of panel Qas
shown.The gap between 2 nails is about 100mm.
-After that, place a drawer slide B ⑲with the small
white roller facing outward and with other end tip
touching panel Nonto each bottom side (angle) edge
of panel O. Then tighten 3 screws ⑧on each drawer
slide B ⑲(as shown).
-Put drawer supporting Ronto middle of panel Q, then
tighten screw ⑨to drawer supporting R's thru hole to
fix it onto panel Q/ panel P (inner panel) / panel P.
-Flip the drawer over.
-Tighten 2 screw ①from inner side of panel Ninto the
handle ①holes.

HODEDAH ®
www.Hodedah.com
Step 1
14| Page
Screw
M 6 x 40mm
2 Pcs.
7Allen Key
1 Pc.
6
G
B
B
B1
C
7
6
7
6
Fix Panel B1 onto 2 Panels Bby pushing and slotting the dowels onto the non-thru holes at
Panel B.
Next, fix Panel B1 and 2 Panels Bonto panel Cby pushing and slotting the dowels onto the
non-thru holes at Panel C.
Use allen key ⑥ to tighten 10 screws ⑦ from the thru-holes of panel Cto non-thru hole of
panel Gas shown.

HODEDAH ®
www.Hodedah.com

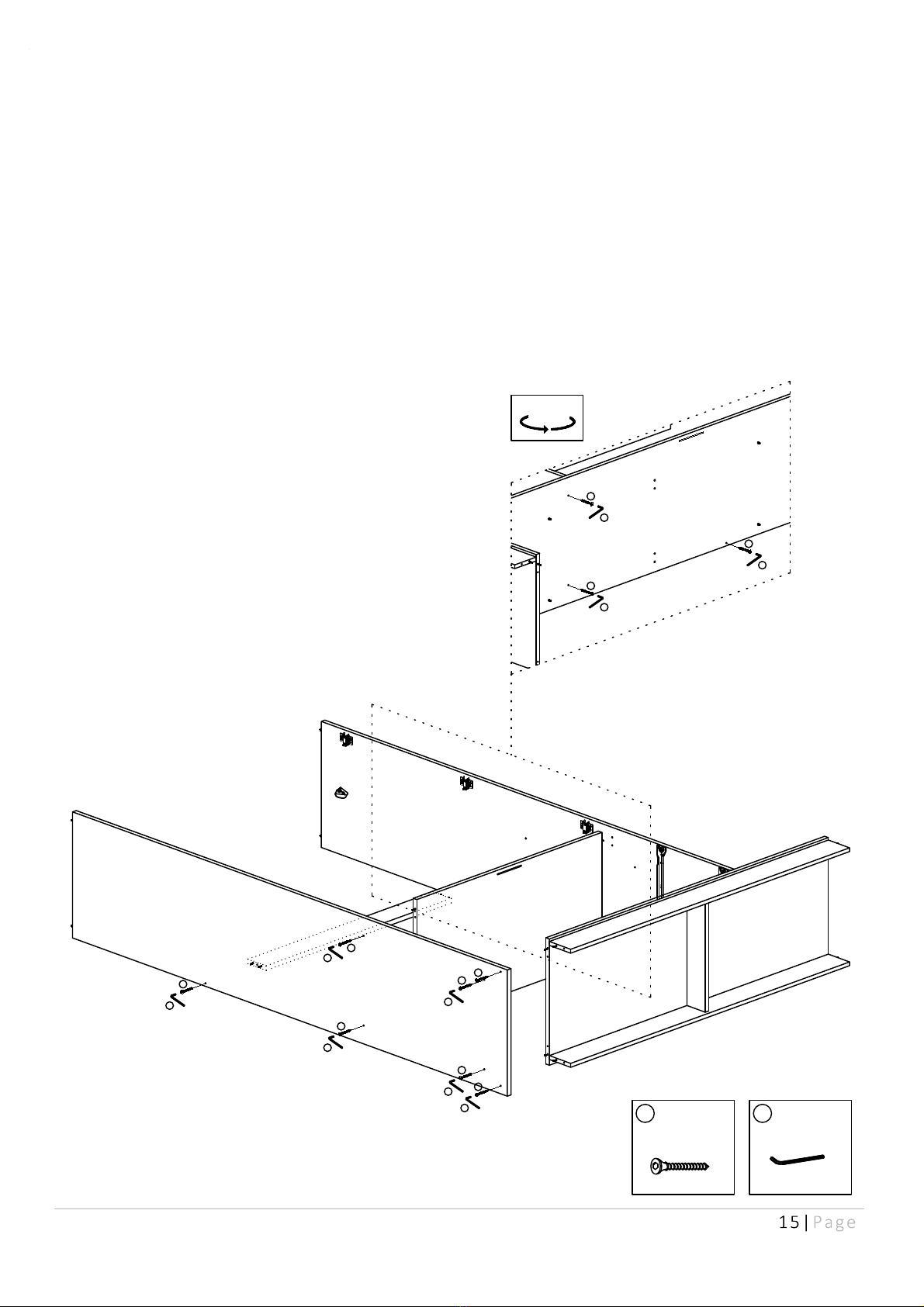

Step 2
15| Page
Screw
M 6 x 40mm
10 Pcs.
7Allen Key
1 Pc.
6
7
6
7
6
6
7
6
7
6
7
7
7
6
G
B
B
B1
C
AED
7
6
7
6
7
6
G
C
D
360°
Fix Panel Dand Eonto Panels Gby pushing and slotting the dowels onto the non-thru holes at
Panel G.
Use allen key ⑥to tighten 10 screws ⑦from the thru-holes of left side of panel Fand right
side of panel G.
Fix Panel A onto Panels B, C, Dand Eby pushing and slotting the panel B, C, Dand E's
dowels onto non-thru holes at Panel G.

HODEDAH ®
www.Hodedah.com

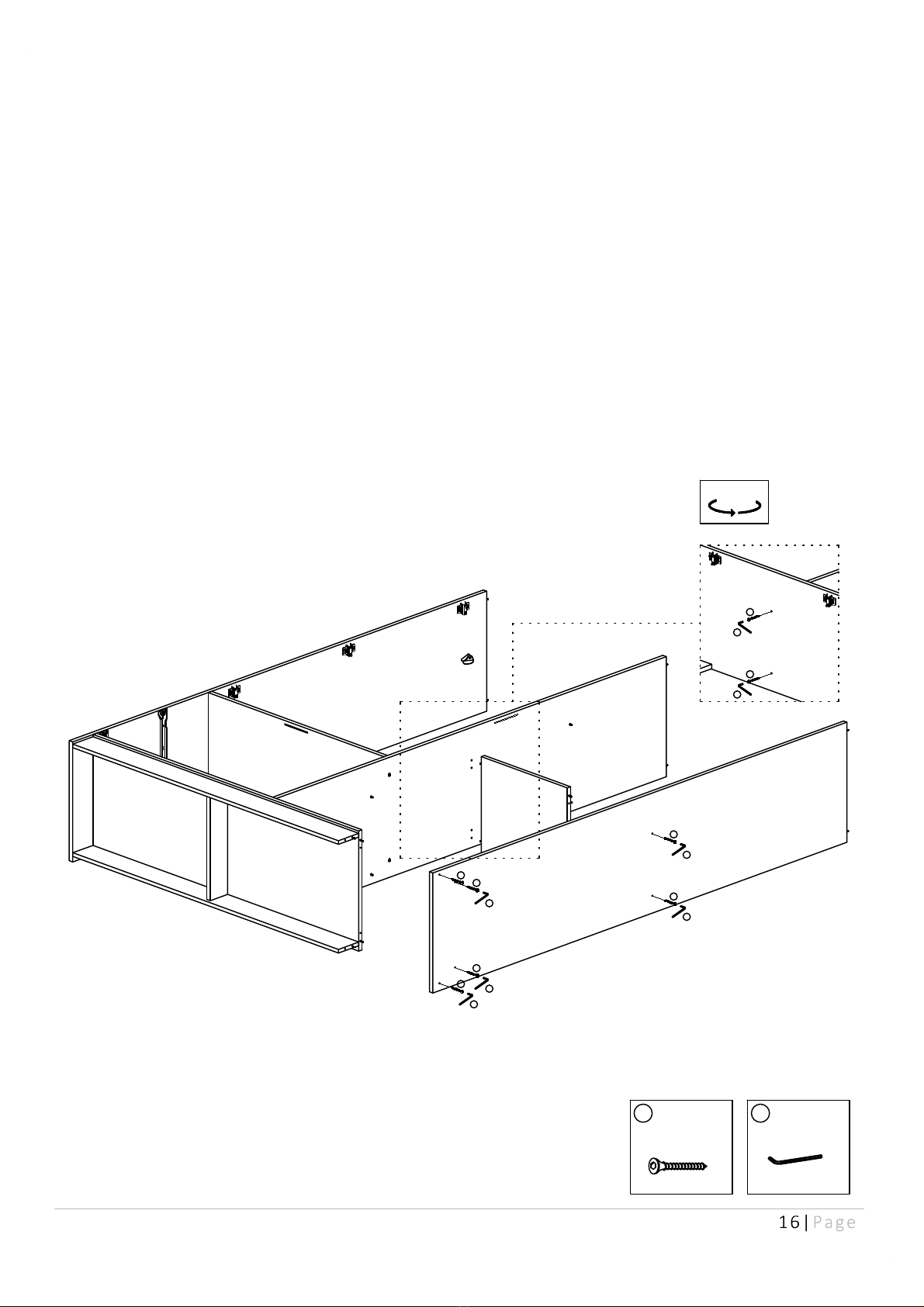

Step 3
16| Page
Screw
M 6 x 40mm
8 Pcs.
7Allen Key
1 Pc.
6
7
6
7
6
7
6
7
6
7
6
7
7
6
7
6
G
G
B
B
B1
C
A
I
D
H
360°
Fix Panel Honto Panels Gby pushing and slotting the dowels onto the non-thru holes at Panel G.
Fix Panel I onto Panels B, Cand Hby pushing and slotting the panel B, Cand H's dowels
onto non-thru holes at Panel I.
Use allen key ⑥to tighten 8 screws ⑦from the thru-holes of left side of panel Gand right side of
panel I.

14
6
6
6
6
6
7
6
7
14
14
14
G
B
C
A
I
E
D
H
F
HODEDAH ®
www.Hodedah.com

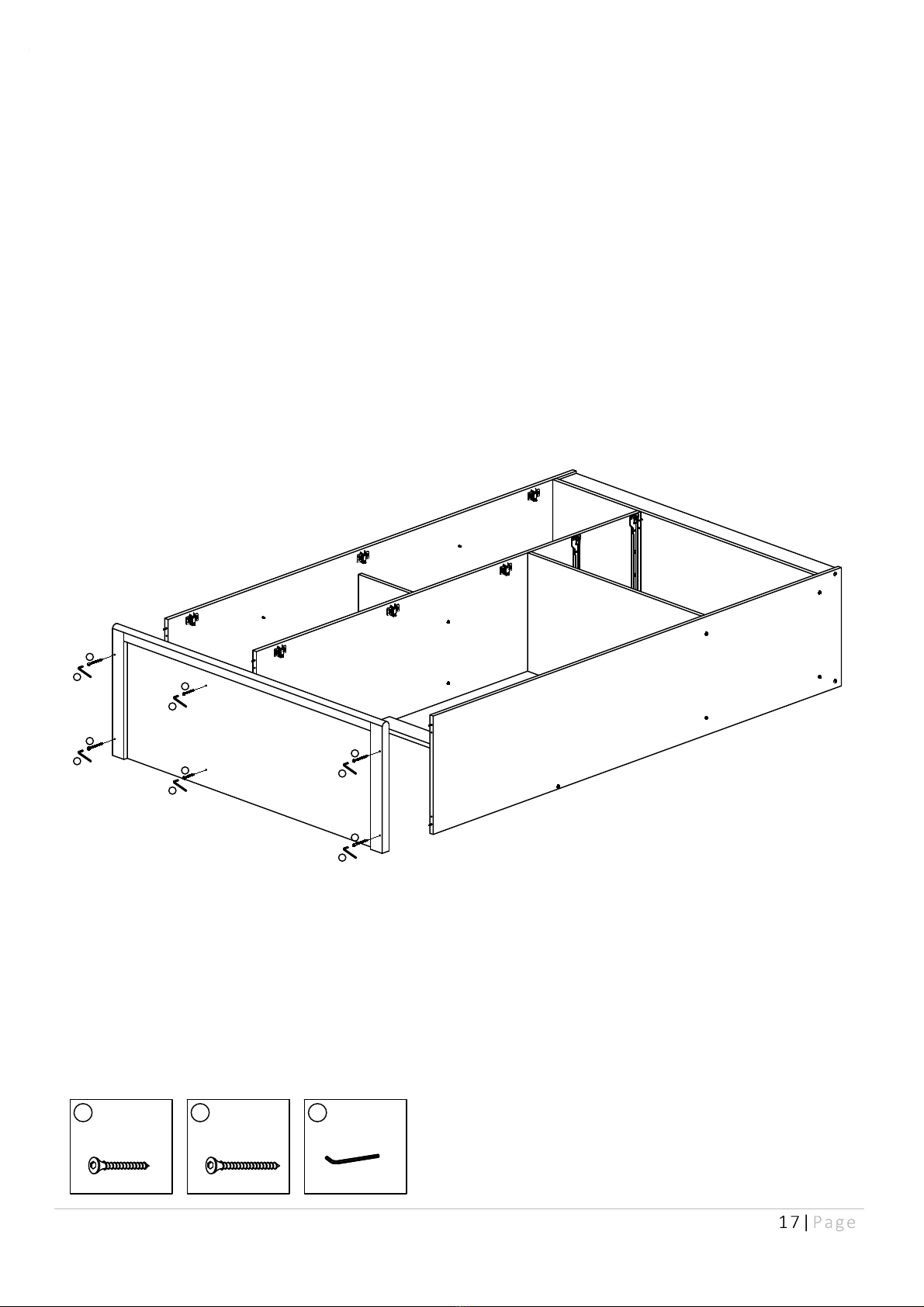

Step 4
17| Page
Screw
M 6 x 40mm
2 Pcs.
7Allen Key
1 Pc.
6
Screw
M 6 x 50mm
4 Pcs.
14
-Fix panel F onto panel Aand Iand align properly by pushing and slotting the 4 dowels of panel Aand Ionto
the non thru holes of panel F.
-Pushing and light tapping of panel Fto have panel F, panel A, panel Ifix tightly.
-Use allen key ⑩to tighten screws ⑭from the thru-holes of panel F.

HODEDAH ®
www.Hodedah.com

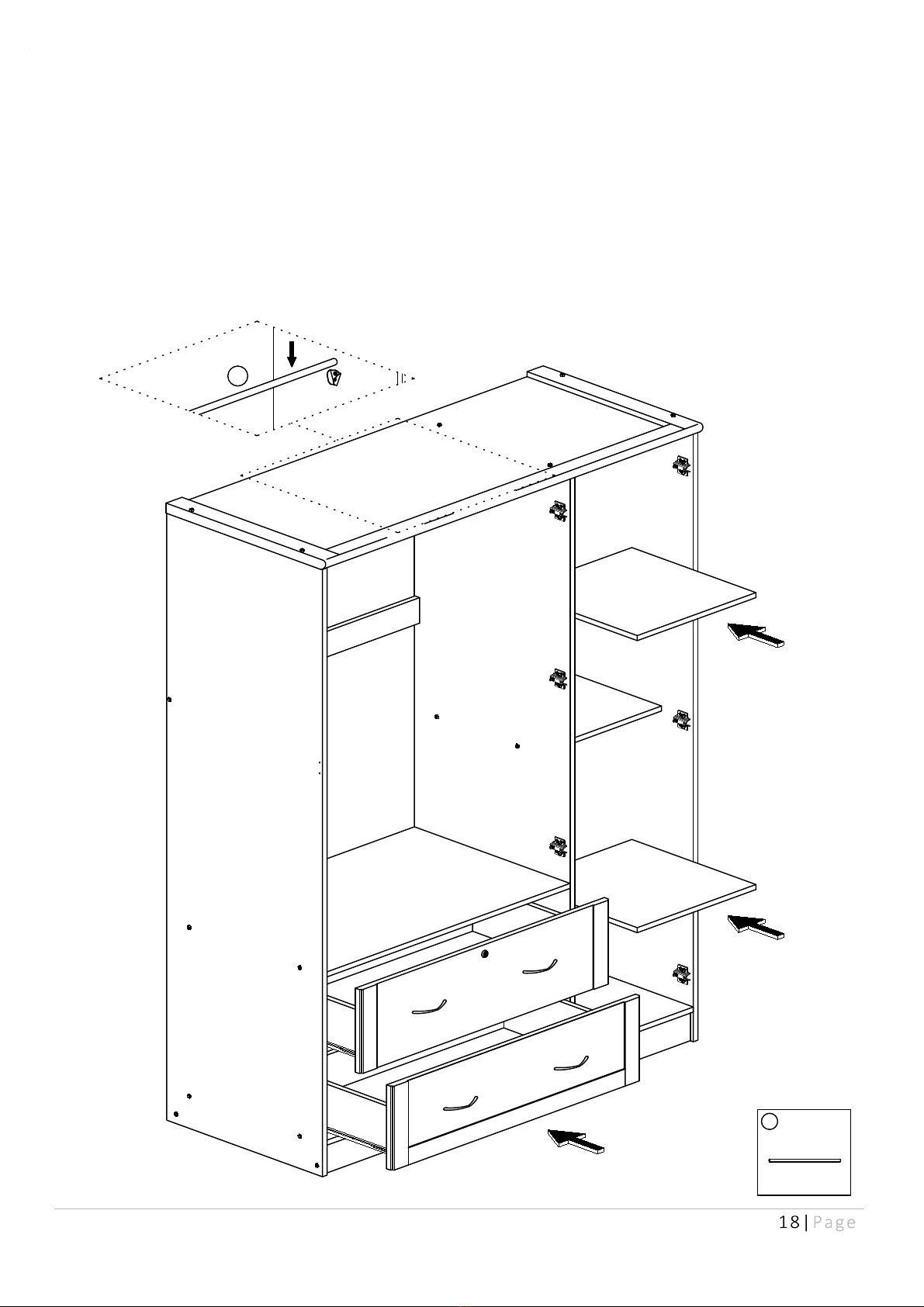

Step 5
18| Page
4
A
I
D
EG
F
H
T
T
M
N
4HANGING ROD
1 Pc.
-Lift up the main unit carefully and let it stand up properly.
-Place iron tube onto both panel Aand G's V-bracket.
-Put adjusting panels T onto shelf supports as shown.
-Take drawers (drawers Mand N), and slide them (the white rollers at drawer slide at both side of drawers are to go
into the track of the slides at each side panel.) all the way gently, one drawer by one drawer starting from bottom
one.

A
Adjust
Adjust
10
11
I
D
G
F
J
K
L
M
B
C
N
HODEDAH ®
www.Hodedah.com

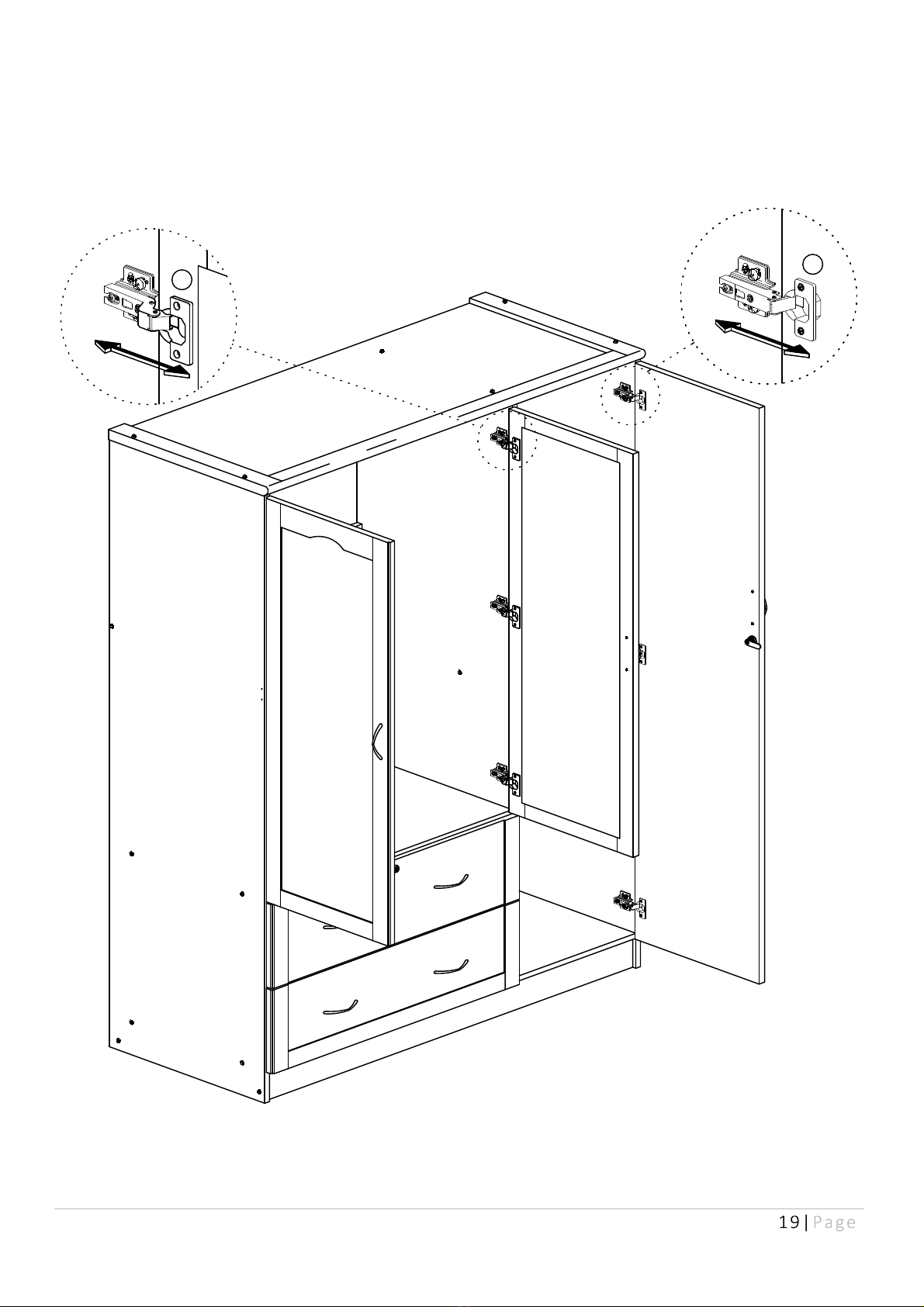

Step 6
19| Page
Join the door panel J, Kand L's hinges with panel A, Gand I's hinges as shown.
You can align the door by tightening and loosening the screws as shown.

HODEDAH ®
www.Hodedah.com
Step 7
20| Page
17
17
17
17
17
17
17
F
A
B
S
S
S
13
17 20 H-PROFILE (PVC)
1 Pc.
Nail
78 Pcs.
Pvc Dowel
20
17
13
13
Place 3 back Panels Sonto the back of the main unit, and join 2 panels Itogether with
H-profile by slotting one side each of panel S into the track of H-profile. Then align them
properly for nailing.
Then use hammer to nail the nails one by one and at center of 4 side edges. Gap
between 2 nails is about 100mm for all.
Cover all the screws ⑦
and screws ⑭’ head
with PVC cap ⑰
provided by pushing
cover’s stem onto the
hole of screw heads
one by one for all
screws.
