Hodedah HI45A-G User manual

Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
HODEDAH ®
ITEM # HI45A-G
3 DOOR WARDROBE
2 people
90 mins
1 YR LTD
3 Box

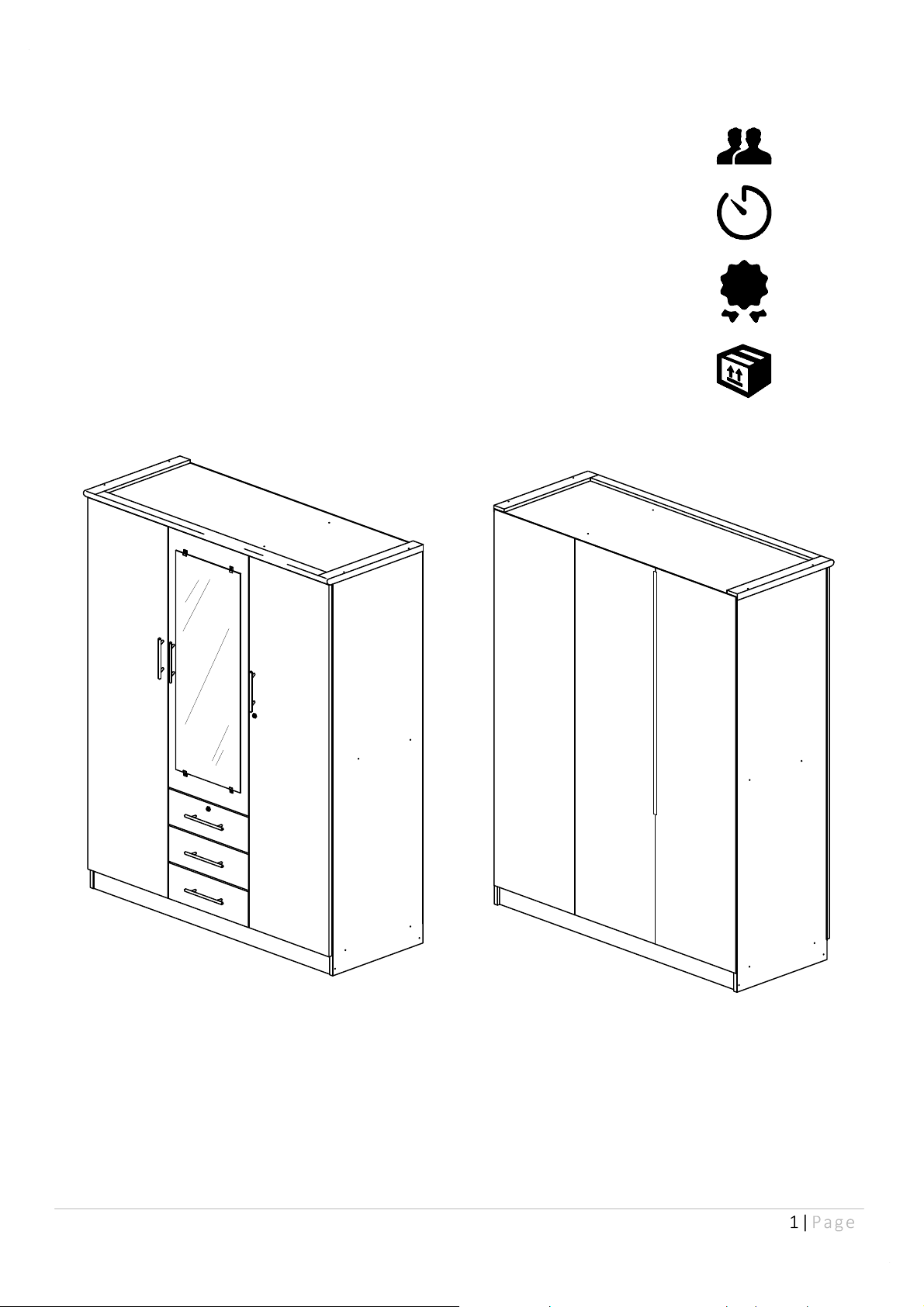

FRONT VIEW BACK VIEW
www.Hodedah.com 1| Page
Product Dimensions: Height 72.83" x Width 47.24" x Depth 18.9"
Weight Capacity Per Drawer 25lbs
Weight Capacity Per Shelf 25lbs

HODEDAH ®
www.Hodedah.com 2| Page
DO NOT RETURN PRODUCT TO THE STORE
Phone WebsiteEmail
Questions, need parts, we are here to help!
WARRANTY
WARNING
If parts are missing or damaged please contact our customer service team and we will
gladly ship your replacement parts FREE of charge within ONE YEAR of purchase!
Hodedah warrants this product to be free from defects in materials and workmanship and agrees to
remedy any such defect. This warranty covers one year from the date of original purchase. This is solely
limited to replacement of defective parts and no assembly for labor is included. This warranty does not
apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been
altered or repaired in any way. To obtain warranty service, original purchaser must present the following;
original bill of sale, date of purchase, where the product was purchased and images if applicable.
Components replaced warranted through the remainder of the original warranty only. The defective part
will be replaced without charge, subject to the terms and conditions described above.
Mon - Fri | 9:30 am to 5pm EST Send us an email
FOR PROMPT, RELIABLE SERVICE PLEASE HAVE YOUR INSTRUCTION MANUAL READY
Visit our website to open a case
1 - 855 - HODEDAH
1 - 855 - 463 -3324
[email protected] www.Hodedah.com
·This product contains small parts, keep away from children.
·This product contains plastic bags, keep away from children.
·Serious or fatal crushing injuries can occur from furniture tip-over. To help
prevent this, place heaviest items on the lower shelves and drawers. Do not set
heavy objects on top shelves and drawers.
·Never allow children to climb or hang on drawers, shelves and doors.
·Never open more than one drawer at a time.
·The use of tip-over restraints may reduce but not eliminate the risk of tip-over.

HODEDAH ®
www.Hodedah.com 3| Page
Product Care and Maintenance
Let's get started…
·Never open more than one drawer at a time.
·The use of tip-over restranits may reduce but not eliminate the risk of tip-over.
·Make sure you receive all boxes. If your item is packed in one box, box count will read 1
of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second
box will read 2 of 2.
·Read each step carefully. It is very important that each step is performed in the correct
order. If these steps are not followed in sequence, assembly difficulties will occur.
·Work in a spacious level area, preferably carpet, near the place the unit will be used.
·DO NO USE power tools to assemble your furniture, it will strip and damage parts.
·Your package should include the following hardware and parts. Parts are labeled or
stamped on the raw edge. Please inspect contents to ensure you have received all
components. If you are missing any hardware or parts please contact customer
service right away before assembly.
Helpful hints, read before beginning assembly
Assembly Tools Required (not supplied)
·Wipe clean with dry soft cloth, never use chemicals or cleaning products they will
damage the finish.
·Avoid placing your furniture in direct sunlight, as sunlight causes fading.
·Never push, drag or pull your furniture, to move to a new location carefully with
two or more people carry the unit to its new location.
·Avoid extreme changes in temperature by arranging furniture away from radiators,
heat and air vents and air conditioning units.

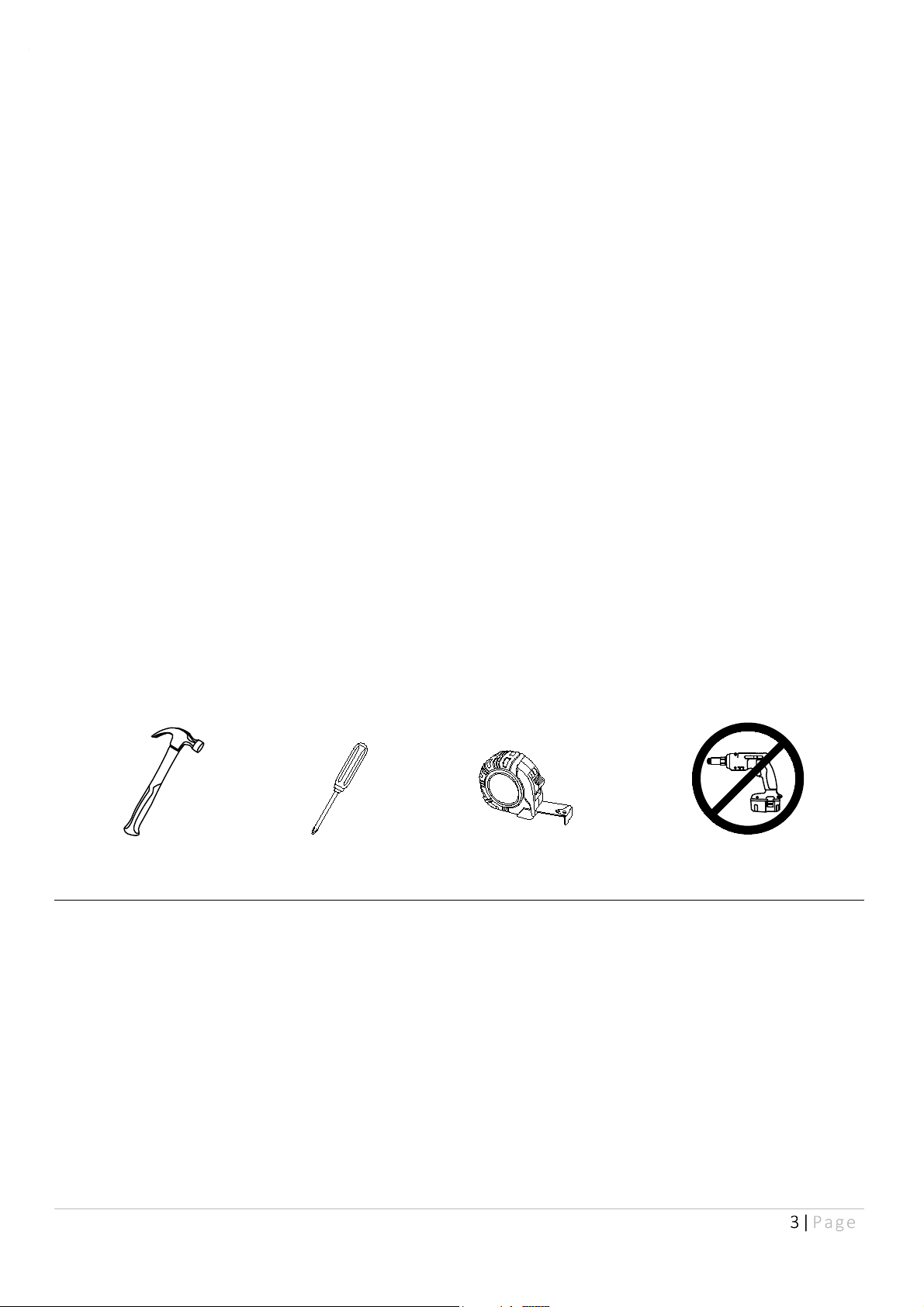

Hammer Phillips Screwdriver No Power Tools NeededTape Measure

AIM
HODEDAH ®
www.Hodedah.com 4| Page
Hardware List
2QTY 3QTY 4QTY
QTY 6QTY 7QTY
Pvc Dowel
38 Pcs
8QTY 9QTY
Nail
120 Pcs
13
QTY
Allen Key
1 Pc
12
QTY
14
QTY
Hinges
10
QTY
Lock
5
8 Pcs
Shelf Support
11
QTY 15 QTY 16 QTY
V-Bracket
18 Pcs
Screw M 10 X 1/2 MM
2 Pcs
17 QTY 20 QTY 21 QTY
2 Pcs
Screw M6 x 40mm
24 Pcs
Screw M3.5 x 14mm
64 Pcs
*For # 19 Drawer Slides
Screw M4 x 32mm
12 Pcs 6 Sets
3 Sets
H-Profile
12 Pcs
Screw M6.2 x 10mm
1 Pc
*For # 18 Drawer Slides
Hanging Rod
1 Pc
Screw M6 x 50mm
4 Pcs 28 Pcs
Pvc Cap
Hinges
(separate from
hardware pack)
Anti-Tip Kit
1 PK

HODEDAH ®
www.Hodedah.com 5| Page
Accessories
1QTY
Handle
18
19
Drawer Slide - A
*Fix On Side Panels
QTY
3 Sets
QTY
3 Sets
*Fix On Side Panels Q
Drawer Slide - B
Important
1. Before you throw the package, please use the
Check Box to identify the parts and hardware to
ensure that you have everything you need.
2. Check and measure the bolts before applying them
to parts.
3. Do not completely tighten all hardware until the
entire assembly is complete, unless indicated
otherwise.
A & G
Screw M4 X 32mm
* Fix On Side Panels Ⓐ
* Fix On Side Panels Ⓖ
* Fix On Drawer Side Panels Ⓠ
* Fix On Drawer Side Panels Ⓠ
6 Pcs
12 Pcs

HODEDAH ®
www.Hodedah.com 6| Page
AQTY
1 Pc
B1 QTY
CQTY DQTY EQTY
FQTY GQTY HQTY
IQTY

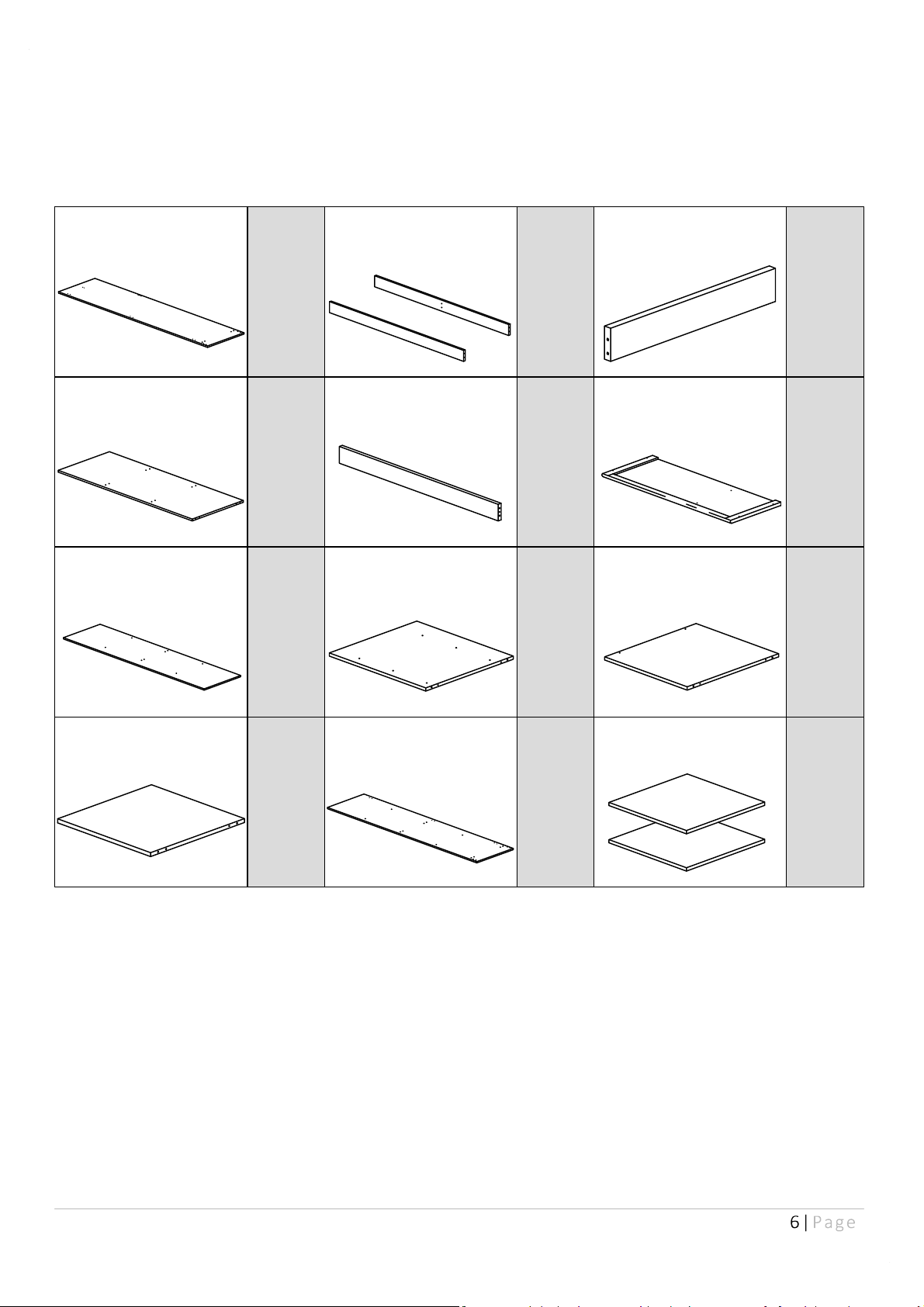

Parts List
JQTY KQTY
Partition Panel
401.5 x 444.5 x 15mm
Top Panel
1200 x 476 x 30mm
Kick Panels
1165 x 89 x 15mm
Adjust Panels
377 x 381 x 15mm
Stand Panel
489 x 444.5 x 15mm
Back Strengthening Panel
773 x 76 x 15mm
Left Side Panel
1816 x 444.5 x 15mm
Right Side Panel
1816 x 444.5 x 15mm
Partition Panel
377 x 381 x 15mm
Stand Panel
1711 x 444.5 x 15mm
Bottom Panel
1165 x 444.5 x 15mm
2 Pcs
2 Pcs
1 Pc
1 Pc
1 Pc1 Pc
1 Pc 1 Pc
1 Pc 1 Pc
B2 QTY
Kick Panel
401 x 76 x 15mm
1 Pc

QTY MQTY
LLeft Door
1722 x 394 x 15mm
Mid Door
1206 x 394 x 15mm NQTY
Right Door
1722 x 394 x 15mm
OQTY
Upper Drawer Front Panel
394 x 166 x 15mm
HODEDAH ®
www.Hodedah.com 7| Page
PQTY QQTY
RQTY SQTY TQTY
Parts List
Back Panels
1743 x 397 x 3mm
Left Drawer Side Panels
338 x 101 x 15mm
Drawer Base Panels
338 x 354 x 3mm
Lower Drawer Front Panel
394 x 166 x 15mm
Drawer End Panels
328 x 73 x 15mm
2 Pcs 6 Pcs
3 Pcs 3 Pcs 3 Pcs
1 Pc 1 Pc 1 Pc
1 Pc

HODEDAH ®
www.Hodedah.com 8| Page
II) Door & Drawer :
I) Main Unit :
The Breakdown
x3

HODEDAH ®
www.Hodedah.com 9| Page
Pre - Assembly
PANEL APANEL A
PANEL F
PANEL G
PANEL J
13 HINGES
6 Pcs. 14 HINGES 3 Pcs.
15
SCREW M 10 X 1/2 MM
18 Pcs.
11
Screw M3.5 x 14mm
28 Pcs.
V-BRACKET
2 Pcs.
5
3Pvc Dowel
12 Pcs.
2SHELF SUPPORT
8 Pcs.
Screw M6.2 x 10mm
12 Pcs.
16
4. Insert 4 shelf supports ②
into panels Fand J’s non
thru holes as shown.
3. Place hinge ⑬and
⑭at the panels A,F
and Jas shown. Then
tighten the hinge ⑬and
⑭with 2 screws ⑪and
2 screws ⑮.
1. Insert the PVC dowels
③to panels A, F, Jand
G ’s non-thru holes as
shown, using hammer to
gently tap them in.
2. Place the drawer slide A ⑱
onto the 2 holes area
shown at panels Fand G.
Then tighten it with
2 screws ⑯and 1 screw ⑪.

HODEDAH ®
www.Hodedah.com 10| Page
Pre - Assembly
PANEL B1
PANEL B1
PANEL B2
PANEL C
PANEL D
PANEL H
PANEL I
Insert the PVC dowels ③to
panels B1, B2, C, D, H
and I ’s non-thru holes as
shown, using hammer to
gently tap them in.
Pvc Dowel
26 Pcs.
3

HODEDAH ®
www.Hodedah.com
Door Panel Assembly
11| Page
13 HINGES
6 Pcs.
14 HINGES
3 Pcs.
11
Screw M3.5 x 14mm
18 Pcs.
6Lock
1 Set.
AIM
Handle
3 Pcs.
1SCREW
M4 X 32mm
6Pcs.
1

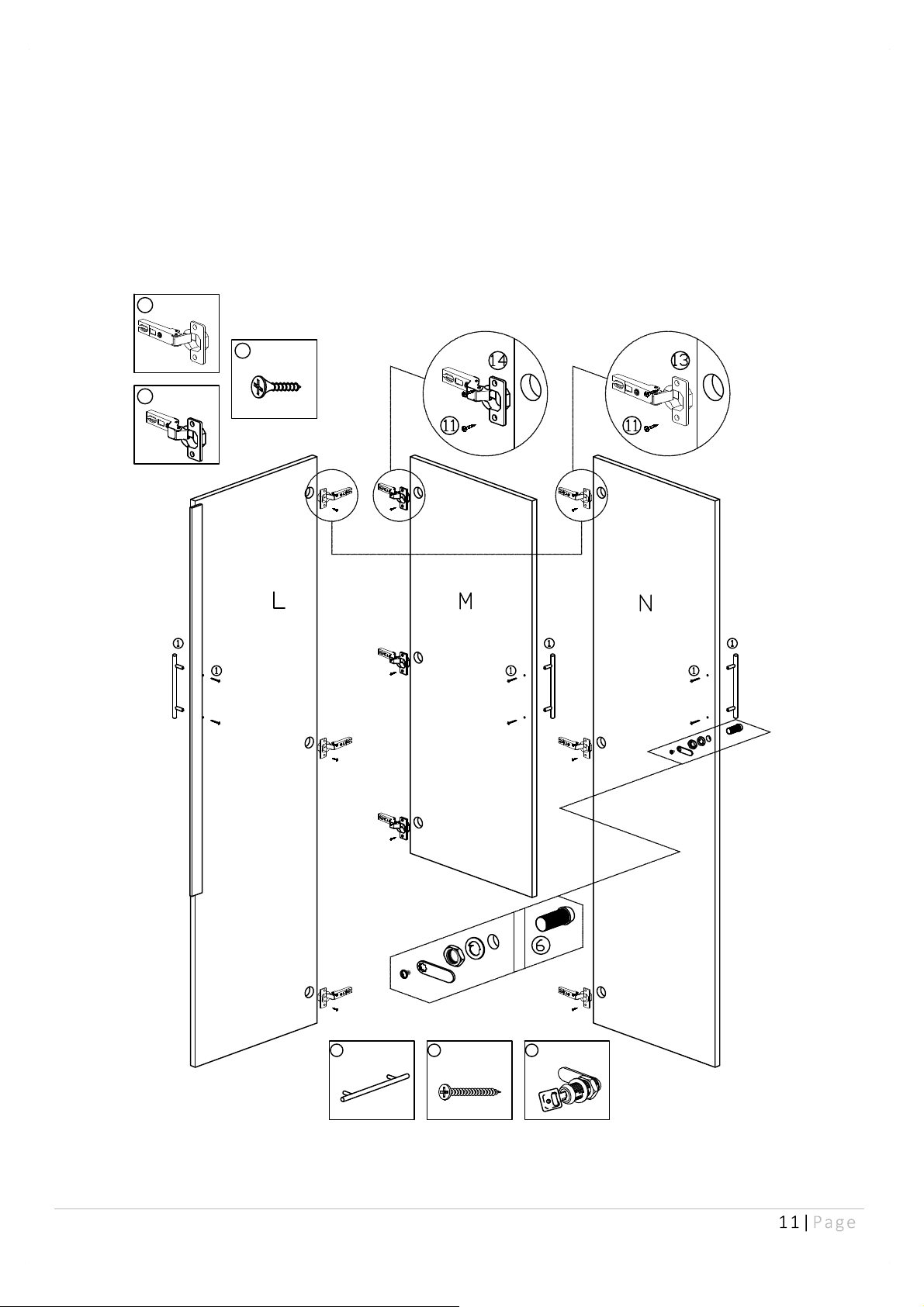

Disassemble the lock ⑥into 5 parts as shown,then install the lock ⑥by insert
the lock ⑥'s cylinder into middle thru hole of door panel N, then fix the lock up.
* Insert 6 Hinges ⑬and 3 hinges ⑭into door panels L, M and N's non-thru hole as
shown, then tighten screws ⑪through hinges ⑬and ⑭'s thru hole.
-Tighten 2 screws ①from inner side of panels L, Mand Ninto the handle ①holes.

HODEDAH ®
www.Hodedah.com 12| Page
Assembly Of Drawers : 1 DRAWERS
Nail
10 Pcs.
11
Screw M3.5 x 14mm
6 Pcs.
COMPLETED
Screw M4 x 32mm
8 Pcs.
12
6Lock
1 Set.
AIM
Handle
1 Pc.
1SCREW
M4 X 32mm
2Pcs.
1
17
-Place panel Qon each side of panel Oas shown.
-Then, tighten screw ⑫to panel Q's lower thru holes to fix them onto panel O.
-Next tighten screw ⑫to panel Q's upper thru holes to fix up to the panel R.
-Flip drawer with
bottom side up,
place panel Sonto
the drawer and
align properly.
Then nail the nails
provided with
hammer on the
border of panel S
as shown.The gap
between 2 nails
should be about
100mm.
-After that, place a
drawer slide B ⑲
with the small white
roller facing
outward and with
other end tip
touching panel O
onto each bottom
side (angle) edge
of panel Q. Then
tighten 3 screws ⑪
on each drawer
slide B ⑲(as
shown).
-Flip the drawer over.
-Tighten 2 screw ①from inner side of panel Ointo the
handle ①holes.
-Disassemble the lock ⑥
into 5 parts as shown,then
install the lock ⑥by insert
the lock ⑥'s cylinder into
middle thru hole of panel O,
then fix the lock up.

HODEDAH ®
www.Hodedah.com 13| Page
Assembly Of Drawers : 2 DRAWERS
Nail
20 Pcs.
17
Screw M3.5 x 14mm
12 Pcs.
COMPLETED
Screw M4 x 32mm
16 Pcs.
Handle
2 Pcs.
1SCREW
M4 X 32mm
4Pcs.
1x2
x2
x2
x2
12
11
-Place panel Qon each side of panel Pas shown.
-Then, tighten screw ⑫to panel Q's lower thru holes to fix them onto panel P.
-Next tighten screw ⑫to panel Q's upper thru holes to fix up to the panel R.
-Flip drawer with
bottom side up, place
panel Sonto the
drawer and align
properly. Then nail the
nails provided with
hammer on the border
of panel Sas
shown.The gap
between 2 nails
should be about
100mm.
-After that, place a
drawer slide B ⑲with
the small white roller
facing outward and
with other end tip
touching panel P
onto each bottom side
(angle) edge of panel
Q. Then tighten 3
screws ⑪on each
drawer slide B ⑲(as
shown).
-Flip the drawer over.
-Tighten 2 screw ①from inner side of panel P into the handle ①holes.

HODEDAH ®
www.Hodedah.com
Step 1
14| Page
Screw
M 6 x 40mm
4 Pcs.
8Allen Key
1 Pc.
7
Fix Panel B2 onto 2 Panels B1 by inserting the dowels onto the non-thru holes at Panel B1.
Next, fix Panel B2 and 2 Panels B1 onto panel Cby inserting the dowels onto the non-thru holes at Panel C.
Use allen key ⑦ to tighten 2 screws ⑧from the thru-holes of panel Cto non-thru hole of panels Fand Gas
shown.
Fix panels Fand Gonto panel Cby slotting panels Fand G's lower dowel onto non thru holes of panel G.

HODEDAH ®
www.Hodedah.com
Step 2
15| Page
Screw
M 6 x 40mm
5 Pcs.
8Allen Key
1 Pc.
7
360°
Fix Panels Dand Honto Panels Fby inserting the dowels onto the non-thru holes at Panel F.
Using allen key ⑦to tighten screw ⑧from the 3 thru holes of panel F.
Using allen key ⑦to tighten screw ⑧from the 2 thru holes of panel H.

HODEDAH ®
www.Hodedah.com
Step 3
16| Page
Screw
M 6 x 40mm
5 Pcs.
8Allen Key
1 Pc.
7

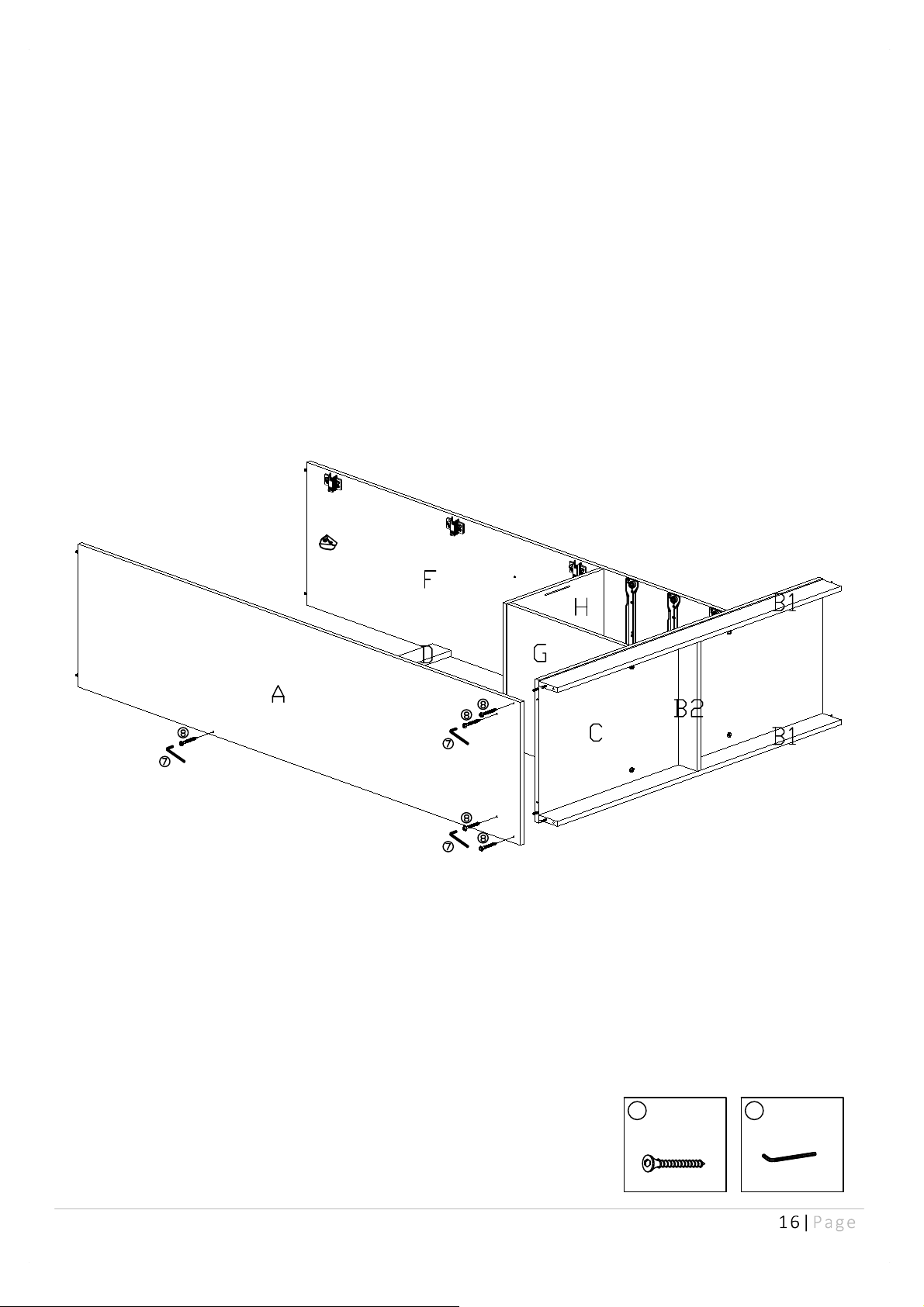

Fix Panel Aonto Panels Cand Dby inserting the panel B1, Cand D's dowels onto non-thru holes at Panel A.
Using allen key ⑦to tighten screw ⑧from the 3 thru holes of panel A.

HODEDAH ®
www.Hodedah.com
Step 4
17| Page
Screw
M 6 x 40mm
8 Pcs.
8Allen Key
1 Pc.
7
360°

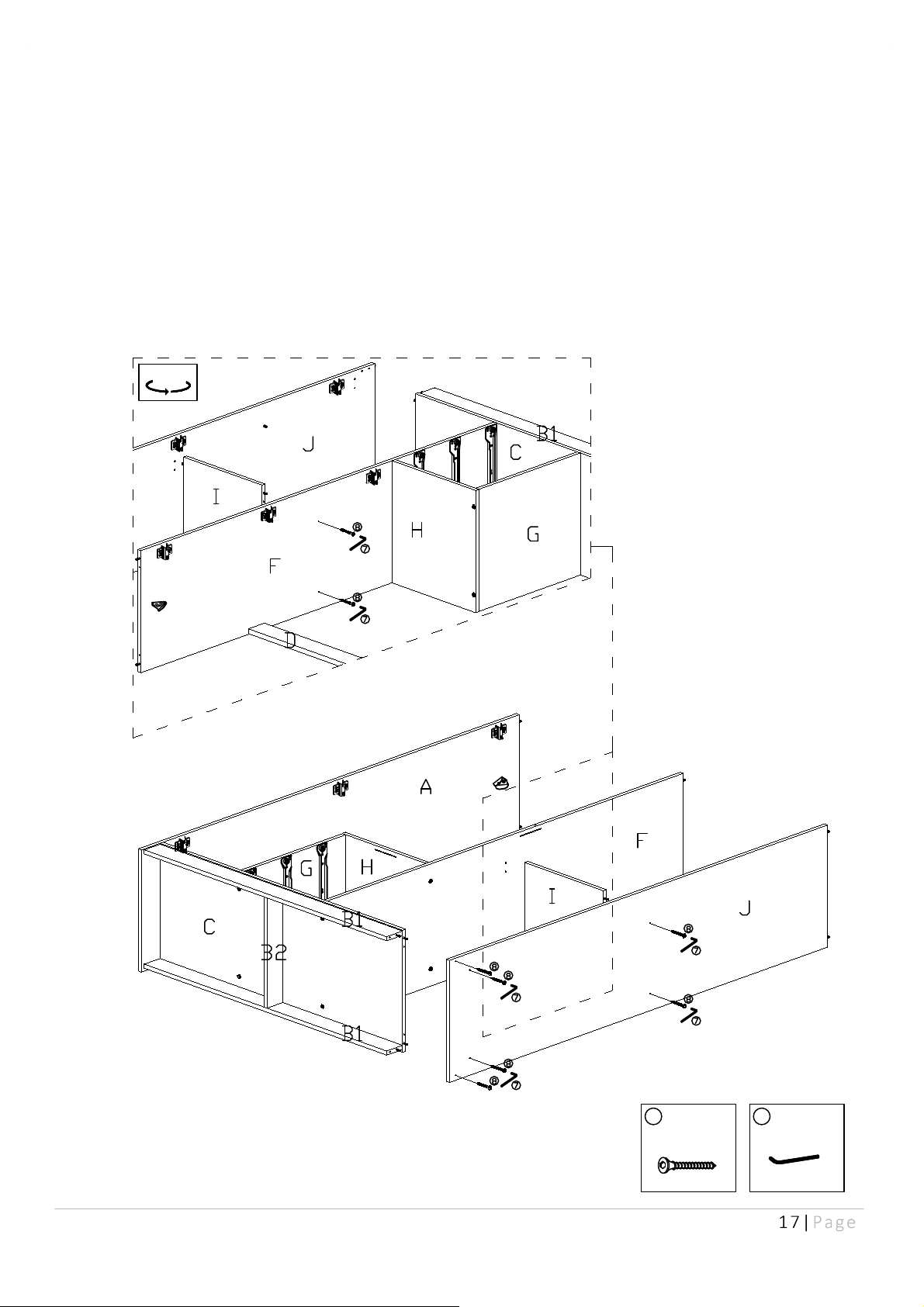

Fix Panel Ionto Panels Fby inserting the dowels onto the non-thru holes at Panel F.
Using allen key ⑦to tighten screw ⑧from the 2 thru holes of panel F.
Fix Panel Jonto Panels B1, Cand Iby inserting the panels B1, Cand I 's dowels onto non-thru holes at Panel J.
Using allen key ⑦to tighten screw ⑧from the 6 thru holes of panel J.

HODEDAH ®
www.Hodedah.com 18| Page
Step 5
Screw
M 6 x 50mm
4 Pcs.
9Allen Key
1 Pc.
7
Screw
M 6 x 40mm
2 Pcs.
8
-Fix panel Eonto panels A, Fand Jand align properly by inserting the 6 dowels of panels A, Fand Jonto
the non thru holes of panel E.
-Pushing and light tapping of panel Eto have panel A, E, Fpanel Jfix tightly.
-Use allen key ⑦to tighten 2 screws ⑧and 4 screws ⑨from the thru-holes of panel E.

HODEDAH ®
www.Hodedah.com 19| Page
Step 6
HANGING ROD
1 Pc.
4
-Lift up the main unit carefully and let it stand up properly.
-Place hanging rod onto both panels Aand F's V-bracket.
-Put adjusting panels Konto shelf supports as shown.
-Take drawers
(drawers O
and P), and
slide them (the
white rollers at
drawer slide at
both side of
drawers are to
go into the
track of the
slides at each
side panel.) all
the way gently,
one drawer by
one drawer
starting from
bottom one.

HODEDAH ®
www.Hodedah.com 20| Page

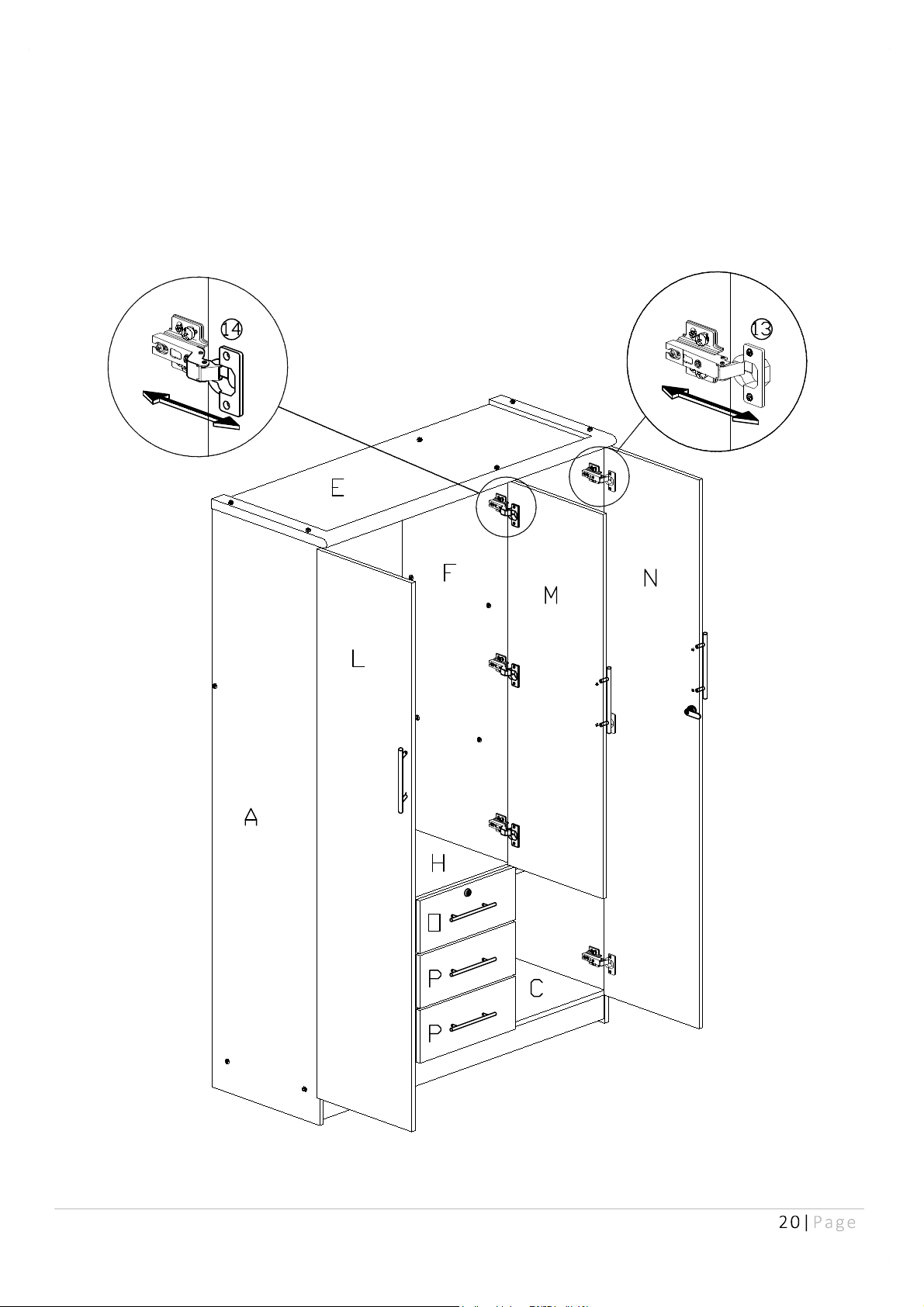

Step 7
Adjust
Adjust
Join the door panels L, Mand N's hinges with panel A, Fand J's hinges as shown.
You can align the door by tightening and loosening the screws as shown.
Join the door panels L, Mand N's hinges with panel A, Fand J's hinges as shown.
You can align the door by tightening and loosening the screws as shown.
