HOLLICY EN71-1 User manual

Please read the manual before using the product. The manual
and carton contain important information, please keep them
properly for later references. If failure to following the instruction in
the manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly
method and function of the product without any notice. When
there is any different between the manual and the product, please
subject to the actual product. We are sorry for any inconvenience.
PINGHU SHUANGXI BABY CARRIER MANUFACTURE CO.,LTD.
PINGHU BABY CARRIER INDUSTRY CITY, ZHEJIANG, CHINA
Products should be assembled by an adult. Protective equipment should be
worn. Not to be used in traffic. Not suitable for children under 3 years. Choking
hazard- small parts. In unassembled state, contains potentially hazardous small
parts. Please keep out of the reach of small children. Pay attention to the
potential hazards of using the toy in areas other than private grounds.
The assembly manual of
battery operated car
Executive standard:
EN71-1
EN71-2
EN71-3
EN62115

Stroller function

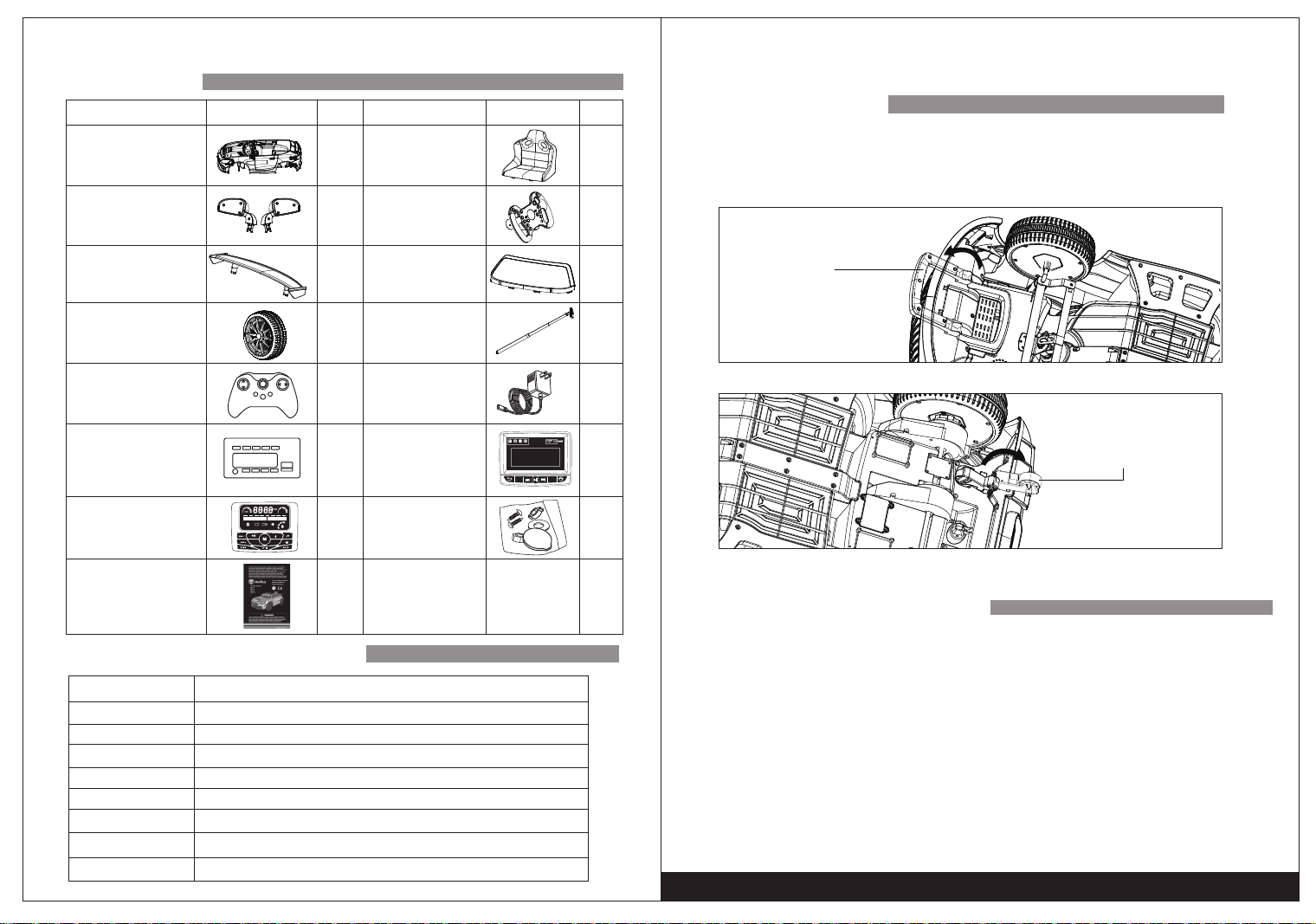

PARTS LIST
PARTS NAME PICTURE QTY PARTS NAME PICTURE QTY
1PC
1PC
1PC 1PC
1PC
1PC
1PC
1PC
1PC
1PC
2PC
2PC
4PC
Car body
wheel
mirror
spoiler
Remote control Charger
hardware
package
Steering
wheel
windshield
(optional)
MP3 player
(optional)
MP3 player
use manual
1PC
1PC
(optional)
MP4 player
Saddle
PRODUCT SPECIFICATIONS
12V-7AH/6V-4.5x2
PP
30kg
Battery
Main material
Suitable age
Weight limit
Product size
Speed
Runtime
Charger
Fuse
37-95 Months
3-5KM/Hour
1-2 hours after charging for 8-12 hours, based on ride on conditions
Auto-reset fuse
input AC 110-220V Out DC 12V-1000mA/12V-500mA
1
119X65X99cm
Handle
caster wheels
Assembly instruction
●
Car assembling should be done by the adults.
●
Take care of small parts. Choking hazard, keep children away
while assembling. Children under 36 months are prohibited to use.
●
Please count all the parts carefully before assembling and dispose
the plastic bag properly.
Pull out the handle and castle wheels out if needed. When not
needed,push them back to save space.
push bar
(optional)
F31
V
SD USB FLASHBLE

4.Steering wheel assembly
3. Windshield assembling
Aim the hooks under front windshield to the appropriate posi-
tion, push down and fix with screws.
Connect steering wheel wire to the wires coming out of the steer-
ing column and match connectors. Insert the steering wheel into
the steering column and fix with spring clip. Electronic steering is
optional ,it can be adjusted up and down. Mechanical steering
wheel can’t be adjusted.
32
1.Front wheel assembly
Turn over the car body, aim the front wheel center to front axle,
press the button on the middle of the wheel, then insert and push
the wheel into place.
Front wheel
2.Rear wheel assembly
Aim the rear wheel center to rear axle, press the button on the
middle of the wheel, then insert and push the wheel into place.
steering wheel
has a bulge plastic part
inside the wheel
rear wheel
windshield

7.spoiler assembly
Align spoiler with corresponding openings on the car body,
push it into place.
8. Push bar assembly
Align push bar with corresponding openings on the car body,
push it into place, fix it with screws under the car body.
spoiler
54
5.Saddle assembly
Align two plastic hook with corresponding openings on the car
body, push it into place, fix the back of the saddle with a screw.
6. Mirrors assembly
Align mirrors with corresponding openings on the car body,
push them into place.
saddle
Mirror Mirror
push bar
Use a plastic lid to cover the hole
when don’t assemble the push bar.
Fix the push bar with 2
screws under the car body.

9.Battery connection
Loose two screws on the bonnet, remove the bonnet, connect two
red clip locks of two wires. Removable battery is optional, it can be
taken out for charging. (Release the lock, pull outward to take the
battery out.)
WARINING:
This product is not a vehicle for transportation, it should be used under
adult guidance. Parents should ensure that children have taken the
safety measures before using.
When change the gears, the accelerator should be release and the car
has completely come to a stop. Prohibit to change the gear while the car
is still moving, that can damage the wire and other transmission parts.
CIRCUIT DIAGRAM
This car has the auto-reset fuse, if the car
stops suddenly during driving, it is mainly
caused by instantaneous current exceeds
,and make the fuse to trip. Then just stop
operating for about 8 seconds, and this
fuse can be reset. Then turn on the power
switch again.
In order to avoid the fuse tripping and cut
off power supply, please pay attention to
the following matters:
This product can't overload, the maximum
load is 30kgs.
Don't drag anything behind products.
Don't let the water or other liquid into the batteries and other electrical
components.
Do not change the circuit system and the structure of the product.
76
unmovable
battery
FUSE
battery box
battery connection method
CN4 CN5
BGVBAT
CN3
CN10
CN1
+
V
LS
R
HS
CH
BG
G
SW
pink
brown
M
M
CN6
White
Steering Wheel
Steering Motor
Red
CN7
Maximum current of LED lights,
MP3, MP4 power supply can’t
exceed 1A.
M
red 0.75
red 0.3
red
pedal
high / low speed
rocking switch
lights switch
Clutch switch
forward / backward
pink
glass tube fuse
1N5408
gray0.2
gray0.2
brown0.3
orange0.5
orange0.3
brown
purple 0.2
Wire uncrossed
Wire crossed
Motor wire connection terminals: 1) red point is
positive pole 2) gap is a negative pole
Motor connect wire :
A.550 Motor (optional)
(1) Motor transfer wire is used 1.5 square wire
(2) Motor wire is used 1.0 squares wire
B.390 Motor (optional)
(1) Motor transfer wire is used 1.0 square wire
(2) Motor wire is used 0.75 squares wire
BROWN
- NEGATIVE POLE
+ POSITIVE POLE
DC12V
BATTERY
RESETTABLE
FUSE
WHITE 0.2
YELLOW 0.5
YELLOW
BLUE 0.5
RED 0.2
BLACK 0.2
BLACK 0.2
BLACK 0.2
BLACK 0.2
BLACK 0.3
BLACK 0.2
BLACK
BLACK 0.75
BLACK
GREEN 0.2
GREEN 0.2
YELLOW 0.2
YELLOW 0.2
WHITE 0.2
BLUE 0.2
BLUE 0.75
BLUE 0.2
steering motor
potentiometer electronic steering
wheel potentiometer
Special for
steering wheel
charging port
normally closed contact
steering motor
orange0.5
blue wire welding to the gap(-)
yellow welding to red port(+)
left driving motor
swing motor
driving motor
position
left motor
Right motor
Connector Method for side wire welding of motor
black wire welding to red point,
yellow wire welding to the gap
Yellow wire welding to red point,
black wire welding to the gap
big one
small head
Wire connection is as following: Internal Circuit Diagram
(Remote control first)550 gearbox

SECURITY WARNING
1.The installation and charging of vehicle should be under adult
supervision at all times.
2.This product is limited to the children from 36 to 95months, 30
kg weight limit, please do not overload.
3.This product is ideal for driving on a hard flat surface.
4.It is strictly prohibited in the streets or the road, pot holes, and
slopes.
5.Avoid driving in the sand or grass or uneven ground.
6.Children should be given full instructions on operation of the car.
Improper operation can cause damage or accidents.
7.While children are driving, it is parents' duty to supervise at all
time to avoid accidents.
8.Avoid driving in rains or flooded pathways. By doing so it can
damage the motor, circuit and other electrical equipments.
9.Battery charger should be regularly inspected by parents to
insure whether the wires, plugs, crusts and other components are
damaged. Please stop using if any damage is found, until it is
completely restored.
10.In order to ensure product life and safety, avoid damage to the
charger, battery or electric circuit, the car must use the default
configuration of a dedicated charger and power supply.
11.Rechargeable batteries should be removed from the toy before
charging.
12.When no use of product, please cut off the product power, and
keep all the switch to "stop" or "off" position.
13.The charge provided is not a toy. To be kept away from
children.
14.Strictly prohibit using the non-manufacturer provided parts.
15.This product is made of PP material mainly, the safe using time
is two years.
98
CN4 CN5
BGVBAT
CN3
CN10
CN1
+
V
LS
R
HS
CH
BG
G
SW
pink
brown
M
M
CN6
White
Steering Wheel
Steering Motor
Red
CN7
Maximum current of LED lights,
MP3, MP4 power supply can’t
exceed 1A.
red 0.3
red 0.5
red
pedal
high / low speed
lights switch
Clutch switch
forward / backward
pink
glass tube fuse
1N5408
gray0.2
gray0.2
brown0.3
orange0.3
brown
purple 0.2
BROWN
- NEGATIVE POLE
+ POSITIVE POLE
DC12V
BATTERY
RESETTABLE
FUSE
WHITE 0.2
YELLOW 0.5
YELLOW
BLUE 0.5
RED 0.2
BLACK 0.2
BLACK 0.2
BLACK 0.2
BLACK 0.2
BLACK 0.3
BLACK 0.2
BLACK
BLACK
GREEN 0.2
GREEN 0.2
YELLOW 0.2
YELLOW 0.2
WHITE 0.2
BLUE 0.2
BLUE 0.2
steering motor
potentiometer electronic steering
wheel potentiometer
Special for
steering wheel
charging port
normally closed contact
steering motor
orange0.5
blue wire welding to the gap(-)
yellow welding to red port(+)
left driving motor
driving motor
position
left motor
Right motor
Connector Method for side wire welding of motor
black wire welding to red point,
yellow wire welding to the gap
Yellow wire welding to red point,
black wire welding to the gap
big one
small head
Wire uncrossed
Wire crossed
Motor wire connection terminals: 1) red point is
positive pole 2) gap is a negative pole
Motor connect wire :
A.550 Motor (optional)
(1) Motor transfer wire is used 1.5 square wire
(2) Motor wire is used 1.0 squares wire
B.390 Motor (optional)
(1) Motor transfer wire is used 1.0 square wire
(2) Motor wire is used 0.75 squares wire
Wire connection is as following: Internal Circuit Diagram
(Remote control first)550 gearbox, no rocking function

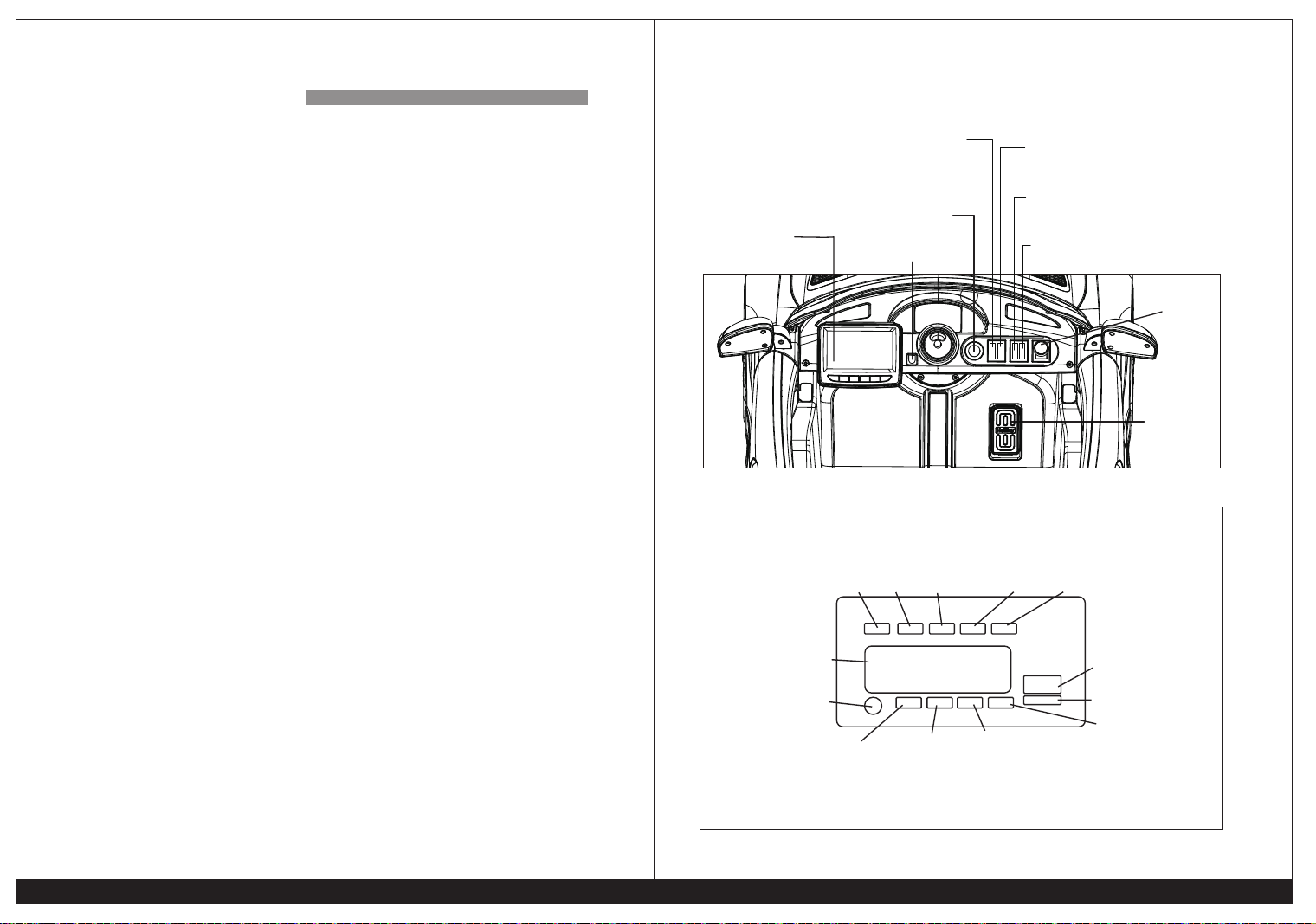

USAGE DIRECTION

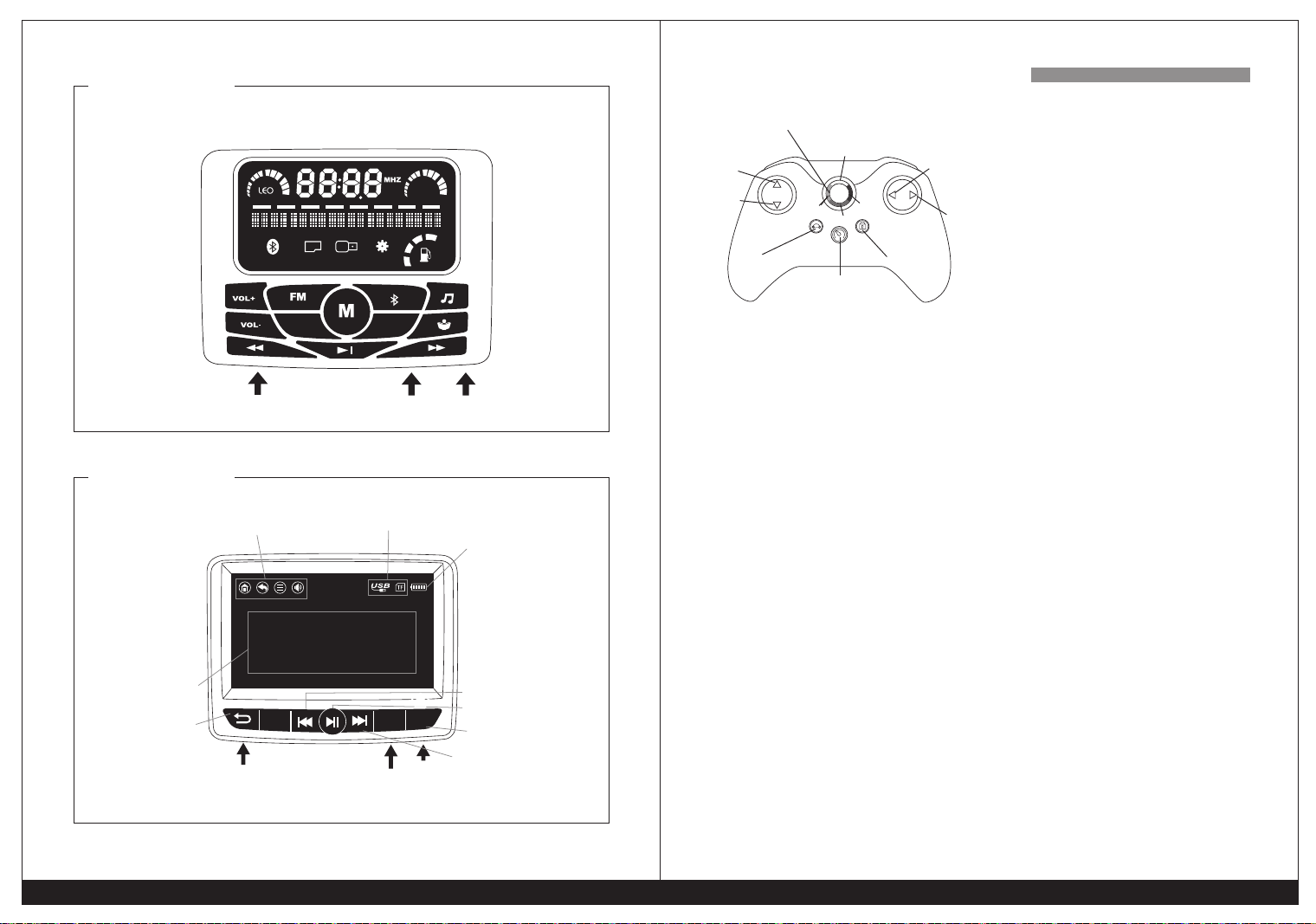

2. Operating(function reference diagram)
Joke
LCD display
Next/volume
reduction Previous/volume
increase
MP3 socket
Play/pause
Model
Story Music Poetry English
USB socket
SD socket
MP3 Optional
1. Before using it, make sure that all the following works are
done.
● Step described in accordance with the instructions to com-
plete the installation of the car, the battery plug-in has been
connected, the power supply has been switched on.
● Make sure that all the positions which need the screws are
fixed tightly.
● Parents or guardian should ensure that children have taken
the safety measures before using.
To reduce the risk during using, pay attention the followings:
When driving the car ,child should sit on the car seat.
Adult or parents should take more care and guidance when
child driving and can't leave away.
Pay attention to the driving environment and driving on the
hard flat surface, not the unsafe environment.
For example:
a. The trenches, the riverside, slope or uneven ground;
b. Road or other place for driving and walking;
c. The obstruction which is easily hitting and causing injury;
d. Other unsafely zone.
To avoid the accident, please use only in daytime or bright
place, avoid using under low visibility.
1110
charging port
power on / off
gear
pedal
MP3 / MP4
(optional)
Clutch switch —when you want to use push bar,
press the switch upward. When you want to drive
the car, press the switch down. Clutch switch is optional.
Lights switch — press the switch upward
to turn on the lights, press the switch down
to turn off the lights.
Rocking switch — press the switch upward
to turn on the rocking function, press the
switch down to turn off the rocking function.
Speed switch — press the switch upward to
choose high speed, press the switch down
to choose low speed.

1312
Remote control instruction
1LED
2LED
3LED
Speed selection
Stop
Speed indicator
Remote indicator light
right
left
The code
(car-select key)
backward
Forward
(1)remote mode: press and hold the speed select button to
chose the proper speed. (1 LED: slow speed; 2 LED: middle
speed; 3 LED: fast speed.)
(2)Manual mode: use gear to select high or low speed.
2.Please select the proper speed during the driving. Manual mode or
remote mode all can be selected.
3.The remote control uses slow start technology, it can reduce impact
force of the traditional controller and protect baby's spine.
4. The “stop” button on remote control can be used in any situation
(after coding successfully), press and hold “stop” button, the car will
stop immediately and can’t operate whether in manual mode or
remote mode. Parents have full control of the remote, it can improve
the security.
5.Push the joystick front, the car will go to forward. Push the joystick
back, the car will go to backward. No operate, the car will not move.
6.Push the joystick left, the car will go to left. Push the joystick right,
the car will go to right.
7. Combine the operation of “left” and “right” button, more fun the
children will get during the driving.
1.Before first using, please code
first, steps are as following:
(1)Press and hold car select
button , until remote indicator light
starts to flash.
(2)Turn on the power, remote
indicator light will be off, indicating
the successful connection with the
car. Release the button, now the
remote control can be used.
(3)If remote indicator light is still
flashing and turn on, try again and
repeat step 1-2.
8. How to adjust the offset position of electronic steering wheel:
This car has electronic steering wheel function(optional), when the
steering wheel on the positive direction, but wheel deviation, you can
adjust the steering wheel according to the following steps (Remote
control needs to successfully connect with the car):
MP4 Optional
Back
File shortcut key
File on demand
shortcut key
Music/ story/
children’s song
Poetry/ cartoon /
TF card
Touch function area
MP4 screen on/off
U dish (default first)
Previous
OK/ Pause
Next
Return to the
home page
Language selection
(Simplified Chinese,
Traditional Chinese,
English, French,
Farsi, Korean)
File management
(File selection in U
dish or TF card)
Battery capacity
U dish/TF card identification symbols
F31
V
SD USB FLASHBLE
MP3/ Mode/ Electric capacity display
Play/ Pause
U dish TF card
Bluetooth mode
TF card mark
U dish mark
Flash mode
Volume +
Volume –
Mode switch
Previous
Battery capacity
Bluetooth
Music
Story
Next
Bluetooth name
MP3 Optional
MP3 balance
waveform
microphone slot
microphone slot

CHARGING WAY
For Safety purpose ,the charging must be done by adults.
When it is the first time to use, open the engine bonnet,
remove the engine plastic cover, connect two red clip locks of
two wires. Please charge 8 to 12 hours.
If the car has slowed done, it needs to be charged by 8 to 12
hours, maximum 20 hours.
1.First insert the plug of the charger into the charging port.
(The car power will be cut off)
2.Then insert the charger to the power socket.
1514
1 . When operating the car, the distance between the car which kid
sit in and the adults operating the remote should not be more than 10
meters.
2 .The remote is only for adults to use, keep far away from child.
3 .Before using the remote, must read the instruction manual
carefully, and operate the empty car first , only when knowing the
way of operation, you can use the remote with kid in the car.
4.Please switch to the "P"of the gear before you get on the car.
5.This product should not be use on traffic road and the place with
water and obstacles.
6 . To Avoid damaging to the circuit, please don’t get the remote
control wet and in rains.
7 .Don’t mix old and new batteries and different brands of dry
batteries.
8 . In order to avoid damaging the remote control, please take out the
batteries if not use the remote control for a long time, to avoid battery
leakage and corrosion circuit.
9. Avoid to drop the remote control during using.
10. Install batteries with right polarity to avoid battery short circuit.
11. Charging must be done by adults. Non rechargeable batteries
can't be charged.
12. Exhausted battery should be removed from the toy properly and
prevent children from playing.
13. Take out the battery if no use for long time, properly handle the
battery, prevent children from playing.
14. If the remote distance is less than 3 meters, it means the battery
is down in the remote control, it is time to change the 2 pieces of AA
alkaline batteries.
How to insert batteries: Use screwdriver to
loosen the screw on the back of the
remote control, open the battery cover, and
install two AA 1.5V alkaline type batteries
according to the diagram (Batteries
provide for yourselves), then close the
battery cover,and fix with screw.
WARNING: WARNING:
AA 1.5V
AA 1.5V
(1).Put the car on flat ground, don’t adjust the steering wheel, make the
steering wheel in middle position, turn on the power.
(2).When the car has been turned on, adjust the steering wheel to make
the wheels in right front position, then make steering wheel to keep still.
(3).Press the “speed selection” switch on remote control for 5 seconds
until speed indicator light start to flash, then release the switch, now
adjusting has finished.
(4).If failed, please repeat the steps 1-3.
-Non-rechargeable batteries are not to be recharged;
-Batteries are to be inserted with the correct polarity;
-Exhausted batteries are to be removed from the toy;
-Rechargeable batteries are only to be charged under adult
supervision;
-Rechargeable batteries are to be removed from the toy before
being charged.
How to remove batteries: Use screwdriver to loosen the
screw on the back of the remote control, open the battery
cover and remove batteries, then close the battery
cover,and fix with screw.

MAINTENANCE AND SERVICE
1.Parents should check whether all the parts are perfect before using, like
battery, charger, wire, plug, out body and other parts are broken,whether
the screw is loose. whether there is potential safety hazard, if found then
it has to repair.
2.Use a small amount of lubricating oil for moving parts, to prevent wear
and tear of rust after using the toys for some time.
3.The car should be far away from the fire and avoid sunlight, store flat,
not upside down the car shall be stored indoors or cover outdoors.
4.The car should be far away from the hot things, like the stove or heater,
the plastic part may melt. When charging ,the car should be far away
from the inflammable material to prevent it from fire.
5.Charging in time after using, and charging work must be done by
adults, if the product is going to unused for long time it must be fully
charged, and charge it every months ,so that to extend the battery
lifespan.
6.Must use the soft cloth to clean the car, do not use chemical solvents
to wipe the toy plastic parts, do not use soap and water to clean the car,
driving in rainy or snowy weather, water will damage the motor, the
vehicle's battery and circuit system.
7.When stop or storage the car, please cut the power and make all the
switch to “STOP” or “OFF” position.
8.Do not use the fuse which is not same with this product specifications.
9.Do not change the product structure and circuit system, maintenance
and repair work must be under the guidance of the professional or
technical personnel in place.
10.Don't put toys for other purposes. Put the battery in the right polarity.
11.It is forbidden to battery is negative short circuit. Non rechargeable
batteries, can't charge.
12.Chargeable batteries can only be charged adult the guardianship of
adults.
13.Don’t mix the old or new batteries or different type of batteries.
14.Run out of battery should be removed from the toy properly and
prevent children from playing.
15.Disconnect the battery completely if not in use and prevent children
from playing.
Attention:
WARNING:
1 The toy is to be assembled by an adult. In unassembled state
contain potentially hazardous sharp points & small parts, so
please keep out of baby's reach.
2 CHOCING HAZARD – Small parts.
3 Not for children under 3 yrs.
4 Always wear shoes.
5 RISK OF FIRE. Do not bypass. Replace only with circuit
protection device.
6 Protective equipment should be worn. Not to be used in
traffic.
·Can only use the charger and battery according to manufacturers
regulations.
·Do not mix old and new or different types of batteries.
·The battery terminal should not be short circuit.
·Do not open the battery or charger.
·Do not reverse the battery.
·Before charging, please check the charger, battery and plug whether are
ok, if you find any broken parts, you must stop using it immediately. And
do not use it until it is fully repaired.
·The battery will be little warm when being charged, it is normal. If not, it
may be caused from the short circuit of charger or circuit board.
·Must use the pressing plate to fix the battery.
·Run out of battery must be handled by adults, remove the batteries
which is run out, from toys to recycle properly and shall not be arbitrarily
discarded.
·If the product is going to be stored unused long time , it must be fully
charged, and charge it every 3 months ,so that to make sure the battery
life.
·Charger and Battery are not toys. Keep it away from children.
1716

TROUBLESHOOTING
If the battery is not fully charged. Need to be charged in time
If there is an issue with the wheels
If the wheels stuck and cannot move
If the pedal switch is not functioning properly
If “power” switch is in OFF position
If the fuse is not functioning properly
If the battery is not connected, check the red and black wires.
If the charger is plugged in, car will not power on. Unplug charger.
If rider weight exceeds specifications
If the charger is malfunctioning
If the battery lost its capacity
If the charger and battery connection is charged
Battery does
not charge
Car moves
slow
Car does not
move or
power on
1918
Maintenance method of electronic steering wheel
Electronic steering wheel is optional, when it has some
problem. First match the car and remote control, then follow the
steps to solve the problem.
1. Pull the electronic steering wheel potentiometer plug and
driving motor potentiometer plug out ( refer to circuit diagram on
page 13), use remote control to test the right and left function.
Operation Result conclusion solution
Press “left”
button on
remote
control
Press “left”
button on
remote
control
Press “left”
button on
remote
control
Press “right”
button on
remote
control
Press “right”
button on
remote
control
Press “right”
button on
remote
control
Wheels turn left
Wheels turn left
Wheels can’t
turn left
Wheels can’t
turn right
Wheels turn
right
Wheels turn right
Function normally
Function normally
Receiver don’t
have left function
Receiver don’t
have left function
Left function
normally, but the
steering motor wire
is wrong welding
Right function
normally, but the
steering motor wire
is wrong welding
Change a new
receiver and test
again
Exchange the
wire of steering
motor or
exchange the
plug of steering
motor

2120
2. Make sure the first step of testing is normal, then turn off the
power, connect electronic steering wheel potentiometer plug and
driving motor potentiometer plug as before, turn on the power.
Operation Result conclusion solution
Press “left”
button on
remote
control
Press “left” button
on remote control
Press “left”
and “right”
buttons on
remote
control
Press “right”
button on
remote
control
Press “right” button
on remote control
Turn on the
power, wheels
turn to one
side
automatically
Wheels turn left
until the
maximum angle
Wheels turn
right until the
maximum angle
Wheels can’t turn
Wheels turn left but
can’t turn right
1.Check whether
the potentiometer
install in place
1. Install
potentiometer in
place
2. Change a new
potentiometer
2.Steering motor
has some problem
Wheels turn right
but can’t turn left
Wheels can’t turn
Change a new
steering motor
potentiometer
wheels turn to
one side or turn
to far left or turn
to far right, it
means self
position function
of the wheels
have some
problem
Lift function of
potentiometer
normally
Right function of
potentiometer
normally
Steering motor
potentiometer has
some problem
Communication
error makes
self position
function offset.
Adjust
electronic
steering wheel
(refer to
method on
page 12).
3. Make sure the second step of testing is normal, then test the
steering wheel
Operation Result conclusion solution
Turn steering
wheel left
Turn steering
wheel right
Turn steering
wheel left
Turn steering
wheel right
Press “left”
and “right”
buttons on
remote
control
Turn on the
power, wheels
turn to one
side
automatically
Wheels turn left
until the
maximum angle
Wheels turn right
until the
maximum angle
Wheels can’t turn
Wheels turn left but
can’t turn right
1.Check whether
the potentiometer
install in place
1. Install
potentiometer in
place
2. Change a new
steering wheel
2.Steering motor
has some problem
Wheels turn right
but can’t turn left
Wheels can’t turn
Change a new
steering motor
potentiometer
wheels turn to
one side or turn
to far left or turn
to far right, it
means self
position function
of the wheels
have some
problem
Lift function of
potentiometer
normally
Right function of
potentiometer
normally
Steering motor
potentiometer has
some problem
Communication
error makes
self position
function offset.
Adjust
electronic
steering wheel
(refer to
method on
page 12).
This manual suits for next models
3
Table of contents
Other HOLLICY Motorized Toy Car manuals
