HOLLICY SX2028 User manual

Model:SX2028
Executive standard：
EN71-1
EN71-2
EN71-3
EN62115
The assembly manual of
battery operated car
Please read the manual before using the product. The manual and
carton contain important information, please keep them properly
for later references. If failure to following the instruction in the
manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly method
and function of the product without any notice. When there is any
difference between the manual and the product, please subject to
the actual product. We are sorry for any inconvenience.
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep
out of the reach of small children. Pay attention to the potential
hazards of using the toy in areas other than private grounds.

Remote control
Wheel cover
Disclaimer:
The pictures in this instruction are for assembly reference only.
Please refer to the actual product.
This product is not the vehicle for transportation, it should be
used under adult guidance. Parents should ensure that children
have taken the safety measures before use.
The toy should be used with caution since skill is required to
avoid falls or collisions causing injury to the user or third partys.
PARTS LIST
1PC 1PC
1PC
1PC
1PC
1PC 1PC
1PC
1PC
2PCS
2PCS
4PCS 4PCS
1PC
1PC
PARTS NAME PICTURE QTY PARTS NAME PICTURE QTY
Car body
Steering wheel
Windshield
Seat
Spoiler
Mirror
Wheel
MP3
(optional)
MP3
(optional)
MP4
(optional)
Charger
Manual
Motor

1
PP
37-95 Months
60kg
1350X807X515mm
12V7AH / 12V10AH / 12V12AH / 12V14AH
12V7AH*2 12V9AH*2
Removable battery box function (optional)
Adjustable seat Function
weight limit
for the car
PRODUCT SPECIFICATIONS
Battery
Main material
Suitable age
Product size
Speed
Runtime
Charger
Fuse
3-8 KM/H (10-15KM/H for drift functon)
Auto-reset fuse
Input AC 110 -220V Output DC 12V500 -1000mA
Input AC 110 -220V Output DC 24V500 -1000mA
1-2 hours after charging for 8-12 hours, based on ride on conditions

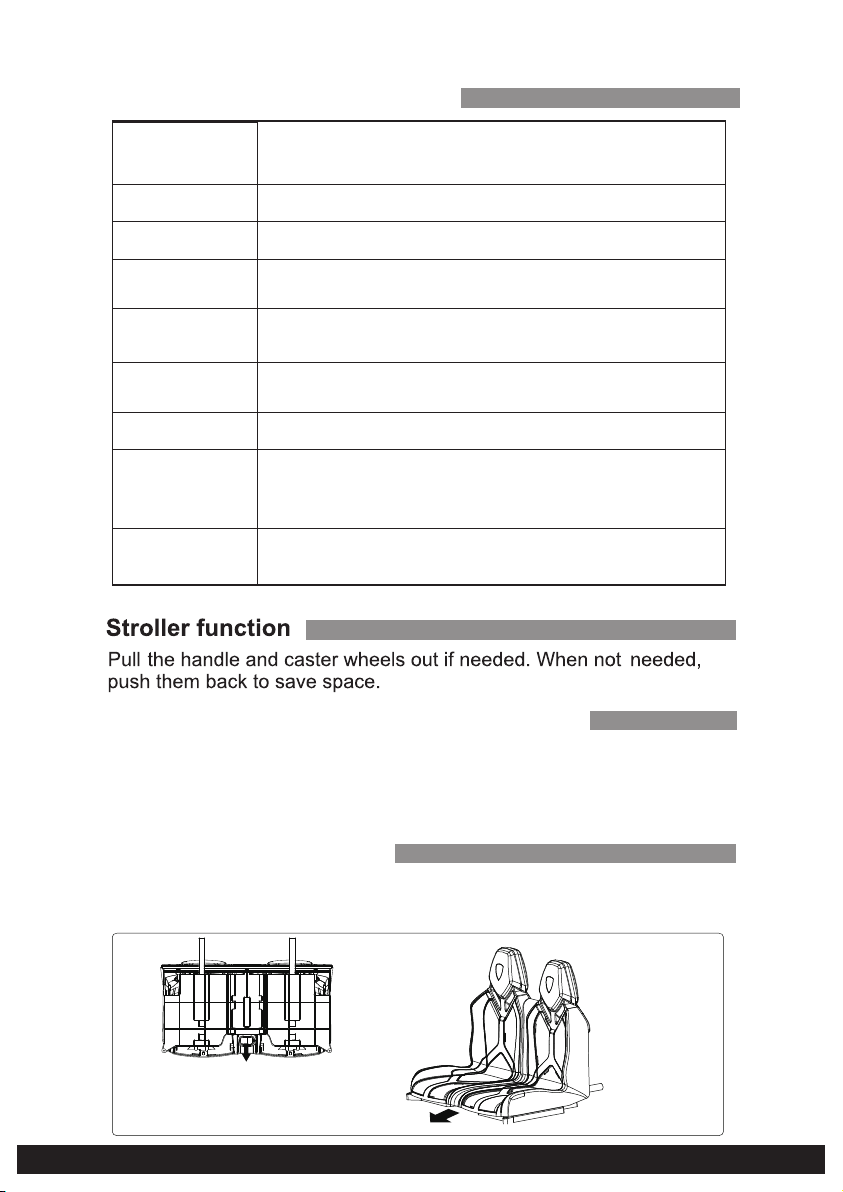

The battery box in the rear trunk is removable, which can be taken
out for charging independently. It is convenient and easy to handle.
(Specific operation refers to the power diagram.)
Pulling the handle under the seat, the seat can be adjusted to front
and back.
Handle

2
Assembly instruction
Car assembling should be done by the adults.
Take care of small parts. To avoid choking hazard, keep children away
while assembling. Children under 36 months are prohibited to use.
Please count all the parts carefully before assembling and dispose the
plastic bag properly. To avoid choking hazard, children are not allowed
to play with the bag.

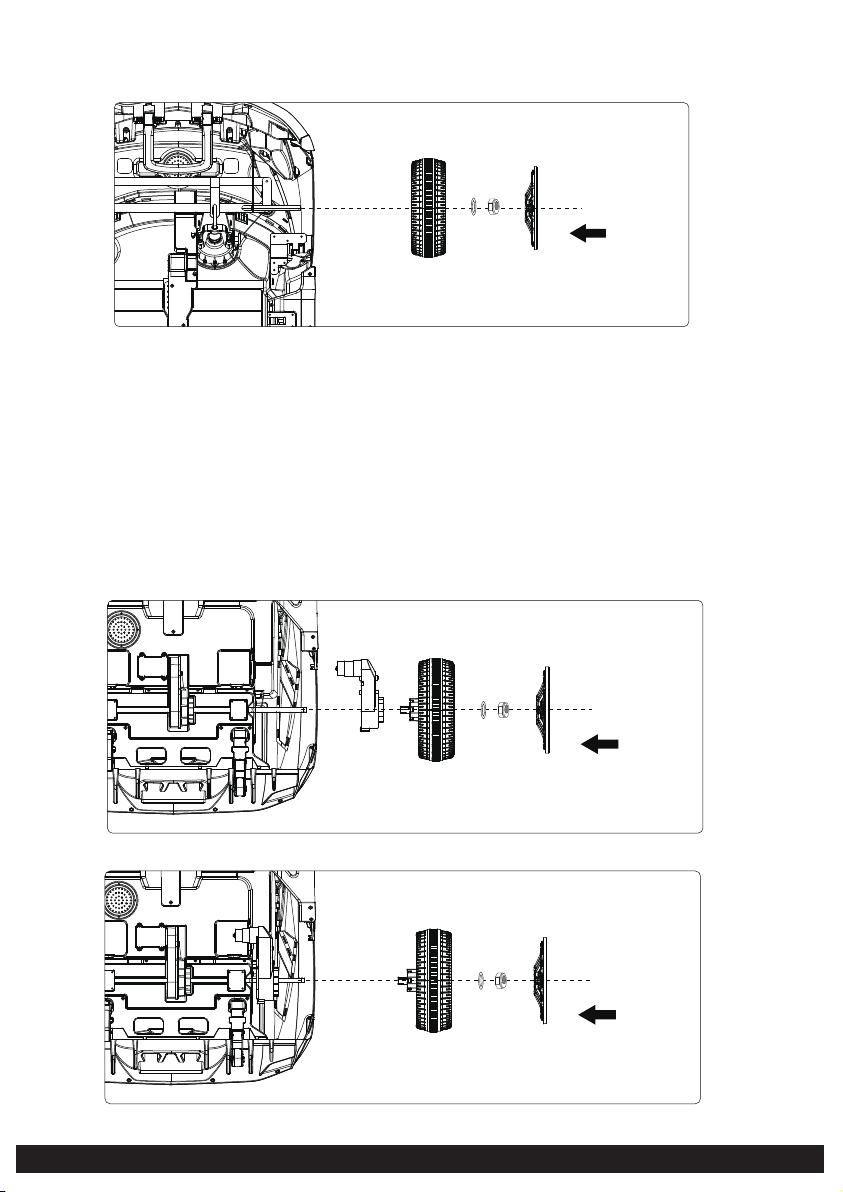

2. Front wheel assembly
Turn over the car body, keep the car upside down, use the prepared
sleeve tool to remove the nut and washer, then attach the front wheel
to the front axle, insert the washer and fix the nut with
sleeve tool. Assemble the wheel cover.
1. Battery connection
Connect two red plugs under the seat to connect the power.
fuse
Drift front wheel assembly (optional)
Turn over the car body, keep the car upside down, use the prepared
sleeve tool to remove the nut and 10mm washer, no need to remove
the 12mm washer, then attach the front wheel to the front axle, insert
the 10mm washer and fix the nut with sleeve tool. Assemble the
wheel cover.

3
3.Rear wheel assembly
A. Check whether the rear axle is in the middle of the car body, and
make sure the axle length that extend out on both sides are same.
B. Use the prepared sleeve tool to remove the nut and washer, then
attach the rear wheel to the rear axle, insert the washer and fix the nut
with sleeve tool. Assemble the wheel cover.
C.Assemble another rear wheel in the same way.
Attention:
Please make sure the rear axle is in the middle, and the axle
holding out of both sides is in the same distance.
（optional）

4
4.Windshield assembly
Align the windshield with the corresponding openings on the
car body, insert them into place.
5.Steering wheel assembly
Match two connectors of the wires from steering wheel and
steering column, align the steering wheel with steering column,
press two pins on steering wheel and insert them into the holes
on steering column.

5
a.
b.
c.
7.Spoiler assembly
Insert the spolier
into the correspond-
ing position at the
rear o the car and
push them into
place.
6.Seat assembly
Align the seat diagonally with the corresponding position on the car
body, insert the hook into the corresponding position, fix with self
tapping screws at the back of the seat.
8.Mirror assembly
Align the mirror with
the corresponding
opening on the car
body, insert and
push it into place.

6
a.
b.
b.
c.
FUSE
This car has a auto-reset fuse, if the car stops suddenly during driving, it is
mainly caused by instantaneous current exceeds ,which makes the fuse to trip.
Then just stop operating for about 8 seconds, and this fuse can be reset. Then
turn on the power switch again.In order to avoid the fuse tripping and cutting off
power supply, please pay attention to the following matters.
This product can't be overloaded, the maximum load is 60kgs.
Don’t drag anything behind the product.
Don’t let the warter or other liquid into the batteries and other electrical compo-
nents.
Don’t change the circuit system and structure of the product.
9. Drift switch operation
Remove the screw (a) on the rear trunk, pull inward the two
hooks (b) together, remove the trunk cover. There is a drift
switch beside the battery.

7
SECURITY WARNING
USAGE DIRECTION
1.The installation and charging of vehicle should be under adult supervi-
sion at all times.
2.This product is limited to the children from 37 to 95 months, 60 kg weight
limit.
3.This product is ideal for driving on a hard flat surface.
4.It is strictly prohibited in the streets or the road, pot holes, and slopes.
5.Avoid driving in the sand or grass or uneven ground.
6.Children should be given full instructions on operation of the car. Improp-
er operation can cause damage or accidents.
7.While children are driving, it is parents' duty to supervise at all time to
avoid accidents.
8.Avoid driving in rains or flooded pathways. By doing so it can damage
the motor, circuit and other electrical equipments.
9.Battery charger should be regularly inspected by parents to insure that
the wires, plugs, crusts and other components are not damaged. Please
stop using if any damage is found, until it is completely restored.
10.In order to ensure product life and safety, avoid damaging the charger,
battery or electric circuit, the car must use the default configuration of a
dedicated charger and power supply.
11.Rechargeable batteries should be removed from the toy before
charging.
12.If the car is not used for a long time, please cut off the product power,
and keep all the switch to "stop" or "off" position.
13.The charger provided is not a toy. It is to be kept away from children.
14.Strictly prohibit using the non-manufacturer provided parts.
15.This product is made of PP material mainly, and the safe using time is
two years.
1. Before using it, make sure that all the following works are done.
●Step described in accordance with the instructions to complete the installa-
tion of the car, the battery plug-in has been connected, the power supply
has been switched on.
●Make sure that all the positions where need the screws are fixed tightly.
●Parents or guardian should ensure that children have taken the safety
measures before using.
To reduce the risk during using, pay attention the followings.
When driving the car ,child should sit on the car seat.
Adult or parents should take more care and guidance during driving and
can't leave away.
Pay attention to the driving environment and driving on the hard flat surface,
not the unsafe environment.
For example:
a.The trenches, the riverside, slope or uneven ground;
b.Road or other places for driving and walking;
c.The obstruction which is easily hitting and causing injury;
d.Other unsafe zones.
To avoid accident, please use only it in daytime or bright place, avoid using
under low visibility.

8
High/low speed
Power on / off
Charging port
Lights on / off
Pedal
Gear shift
(forward / backward)
WARINING:
When changing the gears, the accelerator should be released and the
car has completely come to stop. Electronic steering wheel is an
optional function, it can be self position. Prohibit to change the gear
while the car is still moving, because that can damage the wire and
other transmission parts.
2. Operation (function reference diagram)
MP3 player
Music / Volume down Music / Pause / Play Music / Volume up
Electric capacity display
Audio input
Mode
Big memory
MP3 Optional

9
MP3/ Mode/ Electric capacity display
Play/ Pause
B: Wireless streaming
T: Small memory
U: Big memory
: Flash
Power capacity
Wireless steraming
Music
Story
Next
Wireless name
MP3 Optional
MP3 balance
waveform
Microphone input
/ Audio input
Previous
Big memory Small memory
Volume +
Volume –
M: Mode
Multi
Media Karaoke Music Browser
MP4 Optional
Horn
Pause / Play
Music
Home screen
Home screen
On repeat
Function display
Volume adjustment
Back
File menu
Microphone input
Power display
Short press: Previous
Long press: Volume down
Short press: Next
Long press: Volume up
Small menory
Big memory
Microphone input
R B
R: Radio

10
Forward
Speed
Reverse
Speed indicator
Stop
Right
Left
Code
For the first time using, please match the remote control with the car,
this product has a memory function, battery replacement does not
need to match the code once again.
①.Long press "code" button more than three seconds, until the first
LED lights flashing.
②.Turn on the power on the car, the first LED light on the remote
control turns on indicating the successful pairing with thecar.
③.When the remote control is not used for a while, it will
automaticallyenter a sleep mode, press any key to wake it up.
④.Key Description: "△" Forward, " " Reverse," " Left, " " Right,
"S" Speed, "P" Stop.
Press the "S" key to select the speed, 1 LED indicates low speed, 2
LED indicates medium speed, 3 LED indicates high speed,the car
reverse with only medium speed.
Press the "P" key, the car will stop immediately, all LED starts
flashing, press this button again to release the brake function.
2.4G Remoter Control Instructions
△
△
△
Remote control instruction

11
AAA 1.5V
AAA 1.5V
CHARGING WAY
●For Safety purpose ,the charging must be done by adults.
●The first time you use it, please connect two clip locks of red wires under the
seat, use it only after charging 8-12 hours.
●Charging port is locate on the dashboard, please follow the instructions to
charge the battery.
●If the car has slowed down, it needs to be charged by 8-12 hours, maximum 20
hours.
1.First insert the plug of the charger into the charging port. ((The car can’t be
operated)
2.Then insert the charger to the power socket.
WARNING:
1. When operating the car, the distance between the car which kid sit in and the
remote control which operated by adults should not be more than 10 meters.
2. The remote is only for adults to use, keep far away from child.
3. Before using the remote, you must read the instruction manual carefully, and
operate the empty car first , only when knowing the way of operation, you can
use the remote with kid in the car.
4. Please switch the gear on "P" positon before you get on the car.
5. This product should not be used on traffic road and the place with water and
obstacles.
6. To Avoid damaging the circuit, please keep the remote control from wet and
rainy.
7. Don’t mix old and new batteries and different brands of alkaline batteries.
8. In order to avoid damaging the remote control, please take out the batteries
if not use the remote control for a long time to avoid battery leakage and circuit
corrosion.
9. Avoid dropping the remote control during using.
10. Install batteries with right polarity to avoid battery short circuit.
11. Charging must be done by adults. Non rechargeable batteries can't be
charged.
12. Exhausted battery should be removed from the toy properly and prevent
children from playing.
13. Take out the battery if not use for long time, properly handle the battery, and
prevent children from playing.
14. If the remote distance is less than 3 meters, it means the power of battery is
down in the remote control, it is time to change the 2 pieces of AAA alkaline
batteries.
How to insert batteries: Use screwdriver to loosen
the screw on the back of the remote control, open
the battery cover, and install two AAA 1.5V
alkaline type batteries according to the diagram
(Batteries are self-provided), then close the
battery cover,and fix with screw.

12
Removable battery
Charging port
MAINTENANCE AND SERVICE
Attention:
1.Before using, parents should check whether all parts like batteries, charger,
wires, plug, outer body and other parts are in good condition, check whether
the screws are loose and whether there are potential safety hazards. Any
damaged parts founded should be repaired before using.
2. After using the product for a period of time, use a small amount of
lubricating oil to the moving parts to prevent wear and tear of rust.
3. Keep the car away from fire and direct sunlight. Place it stably, not upside
down. The car shall be stored indoors or outdoors under cover.
● Can only use the charger and battery according to manufacturers
regulations.
● Do not mix old and new or different types of batteries.
● The battery terminal should not be short circuit.
● Do not open the battery or charger.
● Do not reverse the battery.
● Before charging, please check whether the charger, battery and plug are ok,
if you find any broken parts, you must stop using it immediately. And do not
use it until it is fully repaired.
● The battery will be little warm when being charged, it is normal. If not, it may
be caused from the short circuit of charger or circuit board.
● Must use the pressing plate to fix the battery.
● Run out of battery must be handled by adults, remove the battery which has
run out from toys to recycle properly and shall not be arbitrarily discard.
● If the product is going to be stored unused long time , it must be fully
charged, and charge it every 3 months ,so as to make sure the battery life.
● Charger and Battery are not toys. Keep them away from children.
WARNING:
1 The toy is to be assembled by an adult. In unassembled state, it contains
potentially hazardous sharp points & small parts, so please keep out of baby's
reach.
2 CHOCING HAZARD – Small parts.
3 Not for children under 3 yrs.
4 Always wear shoes.
5 RISK OF FIRE. Do not bypass. Replace only with circuit protection device.
6 Protective equipment should be worn. Not to be used in traffic.

TROUBLESHOOTING
If the battery is not fully charged. Need to be charged in time
If there is an issue with the wheels
If the wheels stuck and cannot move
If the pedal switch is not functioning properly
If “power” switch is in OFF position
If the fuse is not functioning properly
If the battery is not connected, check the red and black wires.
If the charger is plugged in, car will not power on. Unplug charger.
If rider weight exceeds specifications
If the charger is malfunctioning
If the battery lost its capacity
If the charger and battery connection are charged
Battery does
not charge
Car moves
slowly
Car does not
move or
power on
4. The car should be kept away from hot items, such as stoves or heaters, or
the plastic parts will melt. When charging, the car should be kept away from
inflammable materials to prevent it from catching fire.
5. Charge in time after use. Charging should be done by adults. If the product
is going to be unused for a long time, it must be fully charged. Charge it every
month so as to extend the battery lifespan.
6. A soft cloth must be used to clean the car. Do not use chemical solvents to
clean the plastic parts. Do not use soap or water to clean the car. Driving in
rainy or snowy weather, water can damage the motor, battery and circuit
system.
7. When stopping or storing the car, please cut off the power and make sure
all switches are in the ‘STOP’ or ‘OFF’ position.
8. Do not use fuses different from the specifications of this product.
9. Do not change the product structure and circuit system. Maintenance and
repair work must be done under the guidance of the professional or technical
personnel in place.
10. Do not use the product for other purposes. Put the battery in the right
polarity.
11. Battery negative short circuit is prohibited. Non-rechargeable batteries
cannot be charged.
12. Rechargeable batteries can only be charged under the supervision of the
adult.
13. Do not mix old and new batteries or different types of batteries.
14. The battery running out of power should be removed from the car properly
and not allowed to be played by children.
15. Disconnect the batteries completely when not in use and do not allow
children to play with them.

PINGHU SHUANGXI BABY CARRIER MANUFACTURE CO.,LTD.
PINGHU BABY CARRIER INDUSTRY CITY, ZHEJIANG, CHINA
