HOLLICY SX1818 User manual

Model:SX1818
Executive standard：
EN71-1
EN71-2
EN71-3
EN62115
Please read the manual before using the product. The manual and
carton contain important information, please keep them properly
for later references. If failure to following the instruction in the
manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly method
and function of the product without any notice. When there is any
different between the manual and the product, please subject to
the actual product. We are sorry for any inconvenience.
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep
out of the reach of small children. Pay attention to the potential
hazards of using the toy in areas other than private grounds.
The assembly manual of
battery operated car

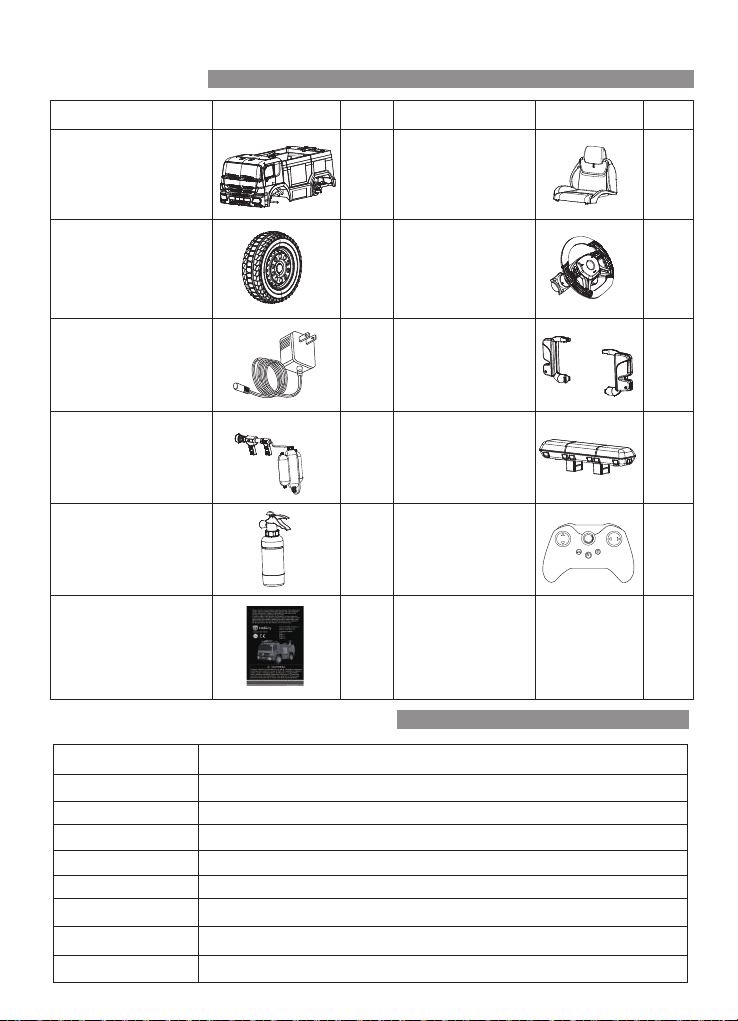

PARTS LIST
PARTS NAME PICTURE QTY PARTS NAME PICTURE QTY
2PCS
1PC
1PC
1PC
1PC
1PC
1PC
4PC
Car body
alarm lamp
Charger
Instruction
1PC
1PC 1PC
Saddle
PRODUCT SPECIFICATIONS
12V-7AH
PP
30KGS
115X65X60cm
Battery
Main material
Suitable age
Weight limit
Product size
Speed
Runtime
Charger
Fuse
37-95 Months
3-5KM/Hour
Auto-reset fuse
input AC 110V Out DC 12V-1000mA
front / rear
wheel
steering wheel
1-2 hours after charging for 8-12 hours, based on ride on conditions
mirror
water pistol
fire extinguisher
remote control

Stroller function
Assembly instruction
Car assembling should be done by the adults.
Take care of small parts. Choking hazard, keep children
away while assembling. Children under 36 months are
prohibited to use.
Please count all the parts carefully before assembling and
dispose the plastic bag properly.
1.Front wheel assembly
Turn over the car body, aim the front wheel center to front
axle, press the button on the middle of the wheel, then
insert and push the wheel into place.
There are handle and caster wheels under the car,, rotate them
out to take the car like a luggage. When not needed,push them
back to save space.
1
front wheel

2.Rear wheel assembly
Aim the rear wheel center to rear axle, press the button on
the middle of the wheel, then insert and push the wheel
into place.
3.Saddle assembly
Turn over the car body, insert two plastic hooks under the
saddle with the holes which are on car body, fix the back
of saddle with screws.
2
rear wheel
saddle

5.Alarm lamp assembly
Connect and match plug connectors in same color,insert alarm
lamp into corresponding openings on the car body to fix it.
4.Steering wheel assembly
Insert it into steering column until two pins into place.
3
steering
wheel
alarm lamp

4
6. Mirror assembly
Push mirrors into corresponding openings on the car body
to fix it.
7.Water pistol assembly
Insert water pistol into corresponding openings on rear of
car body, hung water can to the hook on left car body.
8.Fire extinguisher assembly
Insert fire extinguisher into corresponding openings on
rear of car body.
Mirror Mirror
water pistol
water can
fire extinguisher

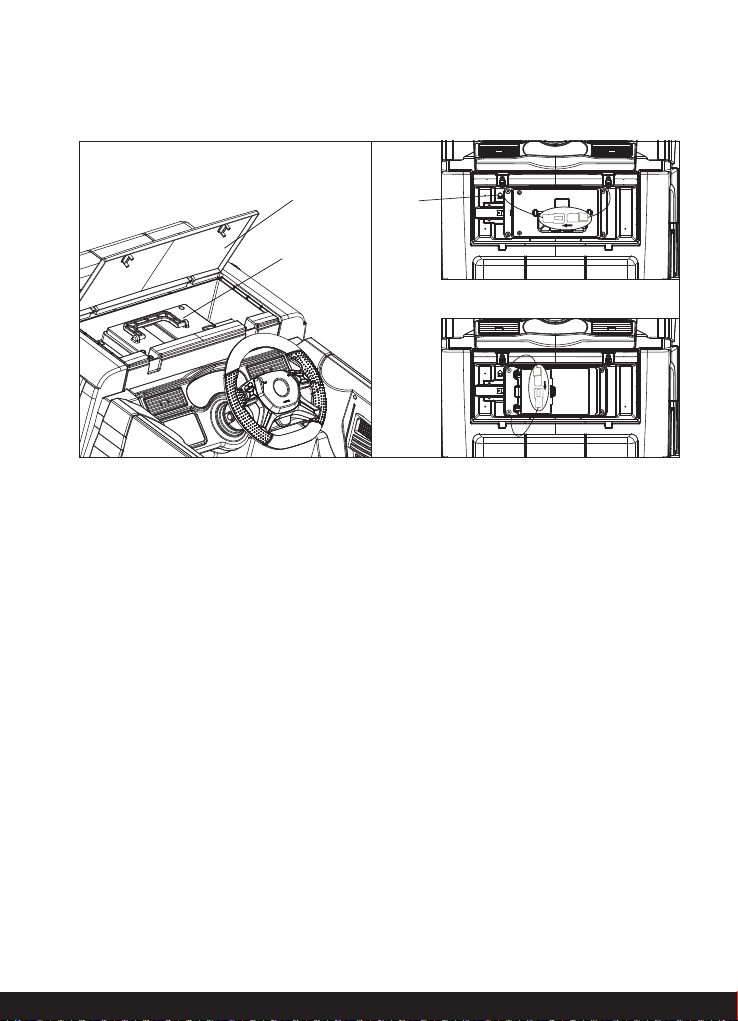

9.Battery connection
Open the bonnet, connect two red clip locks of two wires.
WARINING:
This product is not a vehicle for transportation, it should be
used under adult guidance.Make sure the children have taken
guidance before using.
when change the gears, the accelerator should be release
and the car has completely come to a stop. Prohibit to change
the gear while the car is still moving, that can damage the
wire and other transmission parts.
5
Bonnet
battery box

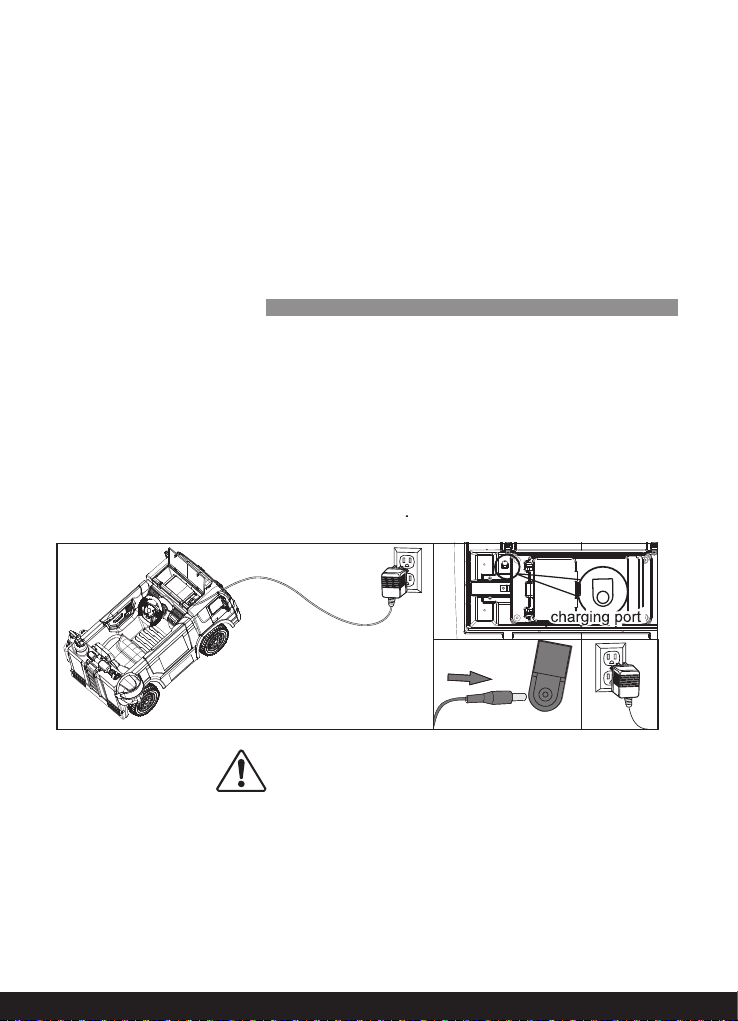

charging
port
Connect two clip locks of red wires.

This product can't overload,
the maximum load is 30kgs.
Don't drag anything behind
products.
Don't let the water or other
liquid into the batteries and
other electrical components.
Do not change the circuit
system and the structure of
the product.
6
FUSE
This car has the auto-reset fuse, if the car stops suddenly
during driving, it is mainly caused by instantaneous current
exceeds ,and make the fuse to trip. Then just stop
operating for about 8 seconds, turn on the power again,
the fuse can be reset.
In order to avoid the fuse tripping and cut off power supply,
please pay attention to the following matters:
–Instructions shall be provided that give details concerning
cleaning and maintenance when necessary for the safe
operation of the toy.
–They shall state that battery chargers used with the toy are to
be regular examined for damage to the cord, plug, enclosure
and other parts, and in the event of such damage, they must
not be used until the damage has been repaired.
– different types of batteries or new and used batteries are not
to be mixed;
– exhausted batteries are to be removed from the toy;
- the supply terminals are not to be short-circuited.

CIRCUIT DIAGRAM
7
red0.75
red 1.5
red 1.5
red 1.5
brown 1.5
brown 1.5
brown 0.75
purple 0.2
green 0.2
yellow 0.2
yellow 0.2
blue alarm lamp
red alarm lamp +12V
+12V
Wire connection is as following: Wire uncrossed Wire crossed Motor wire connection terminals: 1) red point is positive pole 2) gap is a negative pole Motor wire connection: 1) Motor transfer wire connection use 1.5 squares wire 2) Motor wire connection use 2 squares wire
BROWN 0.3
- NEGATIVE POLE
+ POSITIVE POLE
DC12V
BATTERY
RESETTABLE
FUSE
WHITE 0.2
WHITE 0.75
YELLOW 0.5
YELLOW 1.0
BLUE 0.5
RED 0.2
BLACK 0.2
BLACK 1.0
BLACK 0.3
GREEN 0.2
YELLOW 0.2
WHITE 0.2
BLUE 0.2
BLUE 0.2
blue
BLUE 0.75
steering
motor electronic
steering wheel
Special for steering wheel
charging port
normally closed contact
steering motor
gray 0.2
RED 0.2
BLACK 0.2
orange0.2
orange0.2
blue wire welding to the gap（-）
yellow welding to red port（+）
All blue sockets control by light-contr ol switch
Maximum current of LED lights, MP3, MP4 power supply can’t exceed 1A.
left driving motor
green
yellow
white
white
white black
red
horn
swing motor
pedal
White alarm lamps in the middle White alarm lamps on two sides White alarm lamps
+12V
+12V +12V
blue alarm lamp
red alarm lamp
red alarm lamp
driving motor position On left front On right rear
Connector Method for side wire welding of motor
Yellow wire welding to red point, green wire welding to the gap Yellow wire welding to red point, green wire welding to the gap
big one big one
520L
CN4 CN5
BGVBAT
CN3
CN10
CN1
+
V
LS
R
HS
CH BG
G
SW
M
CN8
CN9
red0.2
red0.2
M
CN2
CN6
White
Steering Wheel
Steering Motor
Red
CN7
520MA
+12V
GND
dashboard lights
M
Short circuit cap
gray0.2

SECURITY WARNING
1.The installation and charging of vehicle should be under adult
supervision at all times.The assembly contains potentially
dangerous sharp edges or tax ends parts, children are strictly
forbidden to operate.
2.This product is limited to the children from 37 to 95months,
limited weight is 30 KGS,please do not overload.
3.This product is not a vehicle for transportation, please play on a
hard flat surface.
4.It is strictly prohibited in the streets or the road, pot holes, and
slopes.
5.Please switch to the "P"of the gear before child get on the car.
6.Avoid driving in the sand or grass or uneven ground.
7.Children should be given full instructions on operation of the car.
Improper operation can cause damage or accidents.
8.While children are driving, it is parents' duty to supervise at all
time to avoid accidents.
9.Avoid driving in rains or flooded pathways. By doing so it can
damage the motor, circuit and other electrical equipment.
10.Parents should be to inspect check regularly whether the
wires, plugs, crusts and other components are damaged. Please
stop using if any damage is found, until it is completely restored.
11.In order to ensure product life and safety, avoid damage to the
charger, battery or electric circuit, the car must use the default
configuration of a dedicated charger and power supply.
12. When not use the product, please cut off the power and make
sure all switch on “off” or “stop” position.
13.The charge provided is not a toy. To be kept away from
children.
14.Strictly prohibit using the non-manufacturer provided parts.
15.This product is made of PP material mainly, the safe using time
is two years.
16. Rechargeable dry battery should be removed from the toys
before charging.
8

USAGE DIRECTION
1. Before using it, make sure that all the following works are
done.
● Step described in accordance with the instructions to
complete the installation of the car, the battery plug-in has
been connected, the power supply has been switched on.
● Make sure that all the positions which need the screws are
fixed tightly.
● Parents or guardian should ensure that children have taken
the safety measures before using.
To reduce the risk during using, pay attention the followings:
When driving the car ,child should sit on the car seat.
Adult or parents should take more care and guidance when
child driving and can't leave away.
Pay attention to the driving environment and driving on the
hard flat surface, not the unsafe environment.
For example:
a. The trenches, the riverside, slope or uneven ground;
b. Road or other place for driving and walking;
c. The obstruction which is easily hitting and causing injury;
d. Other unsafely zone.
To avoid the accident, please use only in daytime or bright
place, avoid using under low visibility.
9

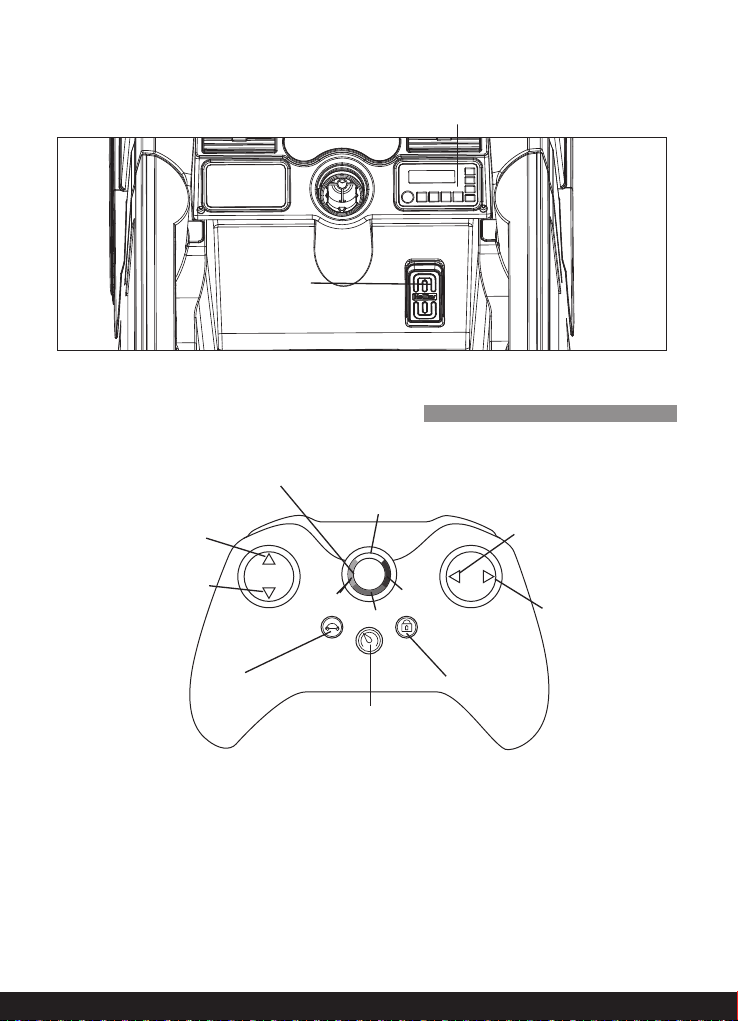

2. Operating(function reference diagram)
10
Parking
Reversing
low speed
forward
high speed
forward
on / off
switch alarm
lamp lights music
Volume adjustment
1.Long hold down “alarm lamp” button for volume down.
2.Long hold down “music” button for volume up.
3.First time to press the "alarm" button, the sounds of alarm
will be on, second to press the button, the sounds will be a
pause.
First time hold down the “lights” button, headlights and led
lights wheels turn on；Alarm lamp turn off.
Second time hold down the “lights” button, headlights and
led lights wheels turn off, and alarm lamp flash.
Third time hold down the “lights” button, headlights and led
lights wheels turn on and alarm lamp flash.
Fourth time hold down the “lights” button, headlights , led
lights wheels and alarm lamp all turn off.
Lights adjustment

Remote control instruction
11
1LED
2LED
3LED
Speed selection
Stop
Speed indicator Remote indicator light
right
left
The code
(car-select key)
backward
Forward
1.Before first using, please code first, steps are as following:
(1)Press and hold car select button , until remote indicator light
starts to flash.
(2)Turn on the power, remote indicator light will be off,
indicating the successful connection with the car. Release the
button, now the remote control can be used.
(3)If remote indicator light is still flashing and turn on, try again
and repeat step 1-2.
pedal
Dashboard function central Control

12
(1)remote mode: press and hold the speed select button to
chose the proper speed. (1 LED: slow speed; 2 LED: middle
speed; 3 LED: fast speed.)
(2)Manual model: press the high / low speed button on central
control to select the speed.
2.Please select the proper speed during the driving. Manual
mode or remote mode all can be selected.
3.The remote control uses slow start technology, it can reduce
impact force of the traditional controller and protect baby's
spine.
4.Push the joystick front, the car will go to forward. Push the
joystick back, the car will go to backward. No operate, the car
will not move.
5.Push the joystick left, the car will go to left. Push the joystick
right, the car will go to right.
6. Press and hold “left” button on remote control, the car will
move left; Press and hold “right” button, the car will move right;
7. Combine the operation of “left” and “right” button, more fun
the children will get during the driving.
8. How to adjust the offset position of electronic steering wheel:
This car has electronic steering wheel function(optional), when
the steering wheel on the positive direction, but wheel
deviation, you can adjust the steering wheel according to the
following steps (Remote control needs to successfully connect
with the car):
①.Put the car on flat ground, don’t adjust the steering wheel,
make the steering wheel in middle position, turn on the
power.
②.When the car has been turned on, adjust the steering
wheel to make the wheels in right front position, then make
steering wheel to keep still.
③.Press the “speed selection” switch on remote control for 5
seconds until speed indicator light start to flash, then release
the switch, now adjusting has finished.
④.If failed, please repeat the steps ①-③.

13
1 . When operating the car, the distance between the car which kid
sit in and the adults operating the remote should not be more than 10
meters.
2 .The remote is only for adults to use, keep far away from child.
3 .Before using the remote, must read the instruction manual
carefully, and operate the empty car first , only when knowing the
way of operation, you can use the remote with kid in the car.
4.Please switch to the "P"of the gear before you get on the car.
5.This product should not be use on traffic road and the place with
water and obstacles.
6 . To Avoid damaging to the circuit, please don’t get the remote
control wet and in rains.
7 .Don’t mix old and new batteries and different brands of dry
batteries.
8 . In order to avoid damaging the remote control, please take out the
batteries if not use the remote control for a long time, to avoid battery
leakage and corrosion circuit.
9. Avoid to drop the remote control during using.
10. Install batteries with right polarity to avoid battery short circuit.
11. Charging must be done by adults. Non rechargeable batteries
can't be charged.
12. Exhausted battery should be removed from the toy properly and
prevent children from playing.
13. Take out the battery if no use for long time, properly handle the
battery, prevent children from playing.
14. If the remote distance is less than 3 meters, it means the battery
is down in the remote control, it is time to change the 2 pieces of AA
alkaline batteries.
How to insert batteries: Use
screwdriver to loosen the screw on the
back of the remote control, open the
battery cover, and install two AA 1.5V
alkaline type batteries according to the
diagram (Batteries provide for
yourselves), then close the battery
cover,and fix with screw.
WARNING:
AA 1.5V
AA 1.5V

CHARGING WAY
For Safety purpose ,the charging must be done by adults.
When it is the first time to use, open the engine bonnet, remove the
engine plastic cover, connect two red clip locks of two wires. Please
charge 8 to 12 hours.
If the car has slowed done, it needs to be charged by 8 to 12 hours,
maximum 20 hours.
1.First insert the plug of the charger into the charging port. (The car
power will be cut off)
2.Then insert the charger to the power socket.
WARNING:
1 The toy is to be assembled by an adult. In unassembled state contain
potentially hazardous sharp points & small parts, so please keep out of
baby's reach.
2 CHOCING HAZARD – Small parts.
3 Not for children under 3 yrs.
4 Always wear shoes.
5 RISK OF FIRE. Do not bypass. Replace only with circuit protection device.
6 Protective equipment should be worn. Not to be used in traffic.
14
WARNING:
-Non-rechargeable batteries are not to be recharged;
-Batteries are to be inserted with the correct polarity;
-Exhausted batteries are to be removed from the toy;
-Rechargeable batteries are only to be charged under adult supervision;
-Rechargeable batteries are to be removed from the toy before being
charged.
How to remove batteries: Use screwdriver to loosen the screw on
the back of the remote control, open the battery cover and remove
batteries, then close the battery cover,and fix with screw.
charging port

MAINTENANCE AND SERVICE
1.Parents should check whether all the parts are perfect before using, like
battery, charger, wire, plug, out body and other parts are broken,whether
the screw is loose. whether there is potential safety hazard, if found then
it has to repair.
2.Use a small amount of lubricating oil for moving parts, to prevent wear
and tear of rust after using the toys for some time.
3.The car should be far away from the fire and avoid sunlight, store flat,
not upside down the car shall be stored indoors or cover outdoors.
4.The car should be far away from the hot things, like the stove or heater,
the plastic part may melt. When charging ,the car should be far away
from the inflammable material to prevent it from fire.
5.Charging in time after using, and charging work must be done by
adults, if the product is going to unused for long time it must be fully
charged, and charge it every months ,so that to extend the battery
lifespan.
Attention:
·Can only use the charger and battery according to manufacturers
regulations.
·Do not mix old and new or different types of batteries.
·The battery terminal should not be short circuit.
·Do not open the battery or charger.
·Do not reverse the battery.
·Before charging, please check the charger, battery and plug whether are
ok, if you find any broken parts, you must stop using it immediately. And
do not use it until it is fully repaired.
·The battery will be little warm when being charged, it is normal. If not, it
may be caused from the short circuit of charger or circuit board.
·Must use the pressing plate to fix the battery.
·Run out of battery must be handled by adults, remove the batteries
which is run out, from toys to recycle properly and shall not be arbitrarily
discarded.
·If the product is going to be stored unused long time , it must be fully
charged, and charge it every 3 months ,so that to make sure the battery
life.
·Charger and Battery are not toys. Keep it away from children.
15

TROUBLESHOOTING
If the battery is not fully charged. Need to be charged in time
If there is an issue with the wheels
If the wheels stuck and cannot move
If the pedal switch is not functioning properly
If “power” switch is in OFF position
If the fuse is not functioning properly
If the battery is not connected, check the red and black wires.
If the charger is plugged in, car will not power on. Unplug charger.
If rider weight exceeds specifications
If the charger is malfunctioning
If the battery lost its capacity
If the charger and battery connection is charged
Battery does
not charge
Car moves
slow
Car does not
move or
power on
6.Must use the soft cloth to clean the car, do not use chemical solvents
to wipe the toy plastic parts, do not use soap and water to clean the car,
driving in rainy or snowy weather, water will damage the motor, the
vehicle's battery and circuit system.
7.When stop or storage the car, please cut the power and make all the
switch to “STOP” or “OFF” position.
8.Do not use the fuse which is not same with this product specifications.
9.Do not change the product structure and circuit system, maintenance
and repair work must be under the guidance of the professional or
technical personnel in place.
10.Don't put toys for other purposes. Put the battery in the right polarity.
11.It is forbidden to battery is negative short circuit. Non rechargeable
batteries, can't charge.
12.Chargeable batteries can only be charged adult the guardianship of
adults.
13.Don’t mix the old or new batteries or different type of batteries.
14.Run out of battery should be removed from the toy properly and
prevent children from playing.
15.Disconnect the battery completely if not in use and prevent children
from playing.
16

17

PINGHU SHUANGXI BABY CARRIER MANUFACTURE CO.,LTD.
PINGHU BABY CARRIER INDUSTRY CITY, ZHEJIANG, CHINA
