HOLLICY SX1968 User manual

Model:SX1968
The assembly manual of
battery operated car
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep
out of the reach of small children. Pay attention to the potential
hazards of using the toy in areas other than private grounds.
Please read the manual before using the product. The manual and
carton contain important information, please keep them properly
for later references. If failure to following the instruction in the
manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly method
and function of the product without any notice. When there is any
difference between the manual and the product, please subject to
the actual product. We are sorry for any inconvenience.

head cover
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
2PC 2PC
2PC

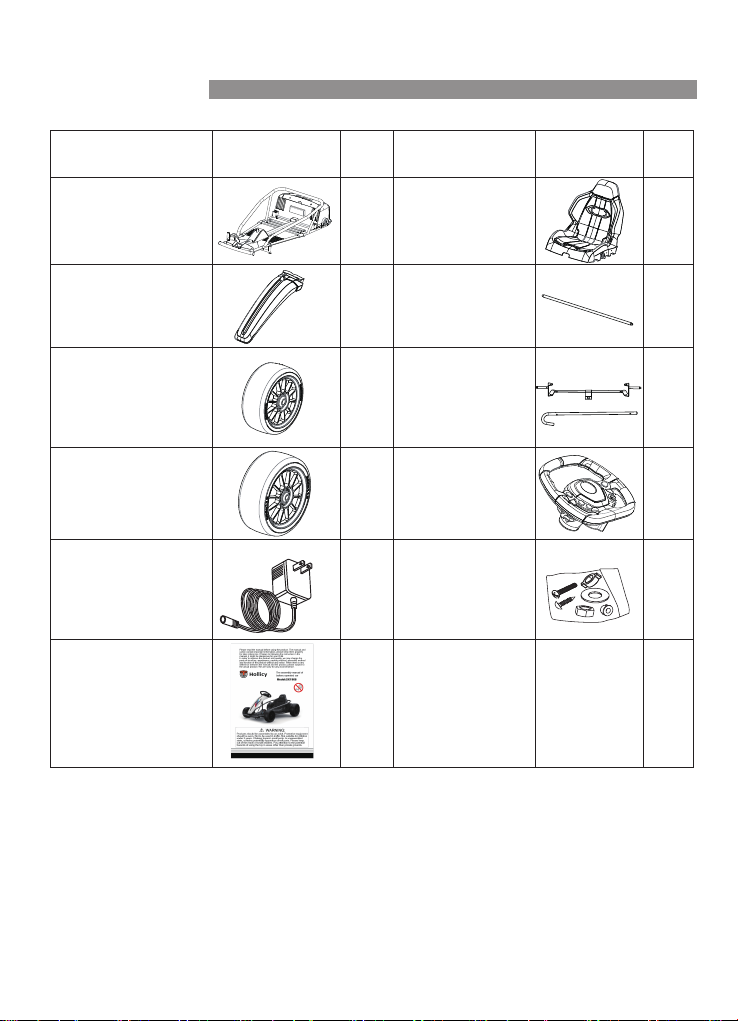

PARTS LIST
PARTS NAME PICTURE QTY PARTS NAME PICTURE QTY
Car body Seat
rear axle
front axle
Steering
wheel
hardware
package
Charger
Manual
Disclaimer:
The pictures in this instruction are for assembly reference only.
Please refer to the actual product.
front wheel
(no bulge
plastic part)
rear wheel
(with bulge
plastic part)

1
Function specification
Fast speed and drift functions are dramatically expended
playability.
WARNING:
This product is not the vehicle for transportation, it should be
used under adult guidance. Parents should ensure that children
have taken the safety measures before use.
The toy should be used with caution since skill is required to
avoid falls or collisions causing injury to the user or third partys.
PRODUCT SPECIFICATIONS
70kg
12V-7Ah*2/12V-4.5Ah*2
110×77×54cm
PP
Battery
Main material
Suitable age
Weight limit
Product size
Speed
Runtime
Charger
Fuse
8-12 years old
15-18KM/Hour
Auto-reset fuse
Input AC 110-240V Output DC 24V-1000mA
1 hour after charging for 8-12 hours, based on ride on conditions

2

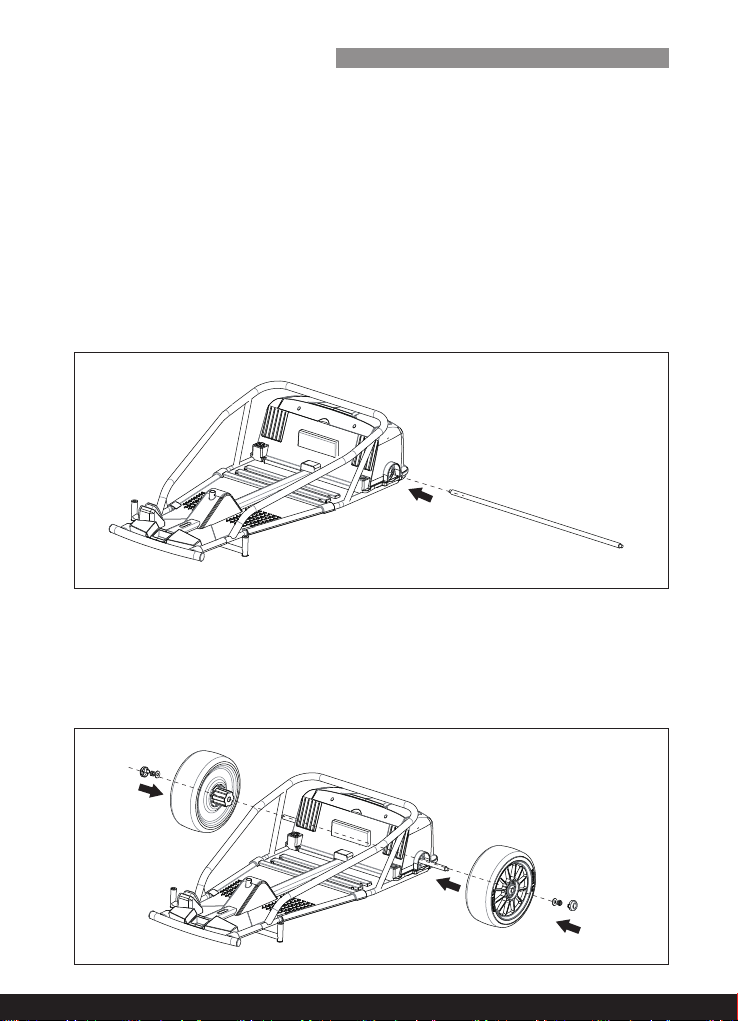

1. Rear axle assembly
Insert the rear axle from one side of car body, make sure the axle
length that extend out on both sides are same.
2. Rear wheel assembly
Insert the rear wheel to the axle, fix with big bushing, washer,
nut and nut cover.
Assembly instruction
Car assembling should be done by the adults.
Take care of small parts. To avoid choking hazard, keep
children away while assembling. Children under 36 months
are prohibited to use.
Please count all the parts carefully before assembling and
dispose the plastic bag properly. To avoid choking hazard,
children are not allowed to play with the bag.

3

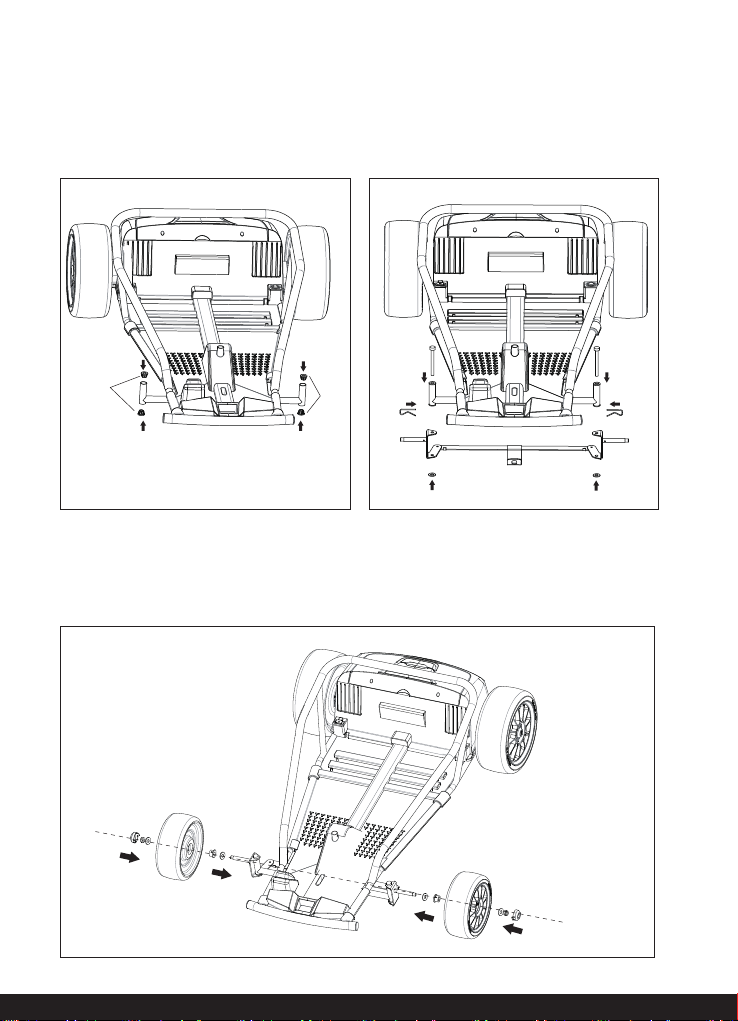

3. front axle assembly
Insert the bushings on the top and bottom of the iron tubes
respectively, attach the front axle to two iron tubes, insert the
bolt from top to bottom, attach a M 10*20 washer to the bolt
and insert the cotter pin.
4. Front wheel assembly
Insert washer, small bushing into the front axle first, attach
the front wheel, then fix with small bushing, washer, nut and
nut cover.
bushing
bushing

4

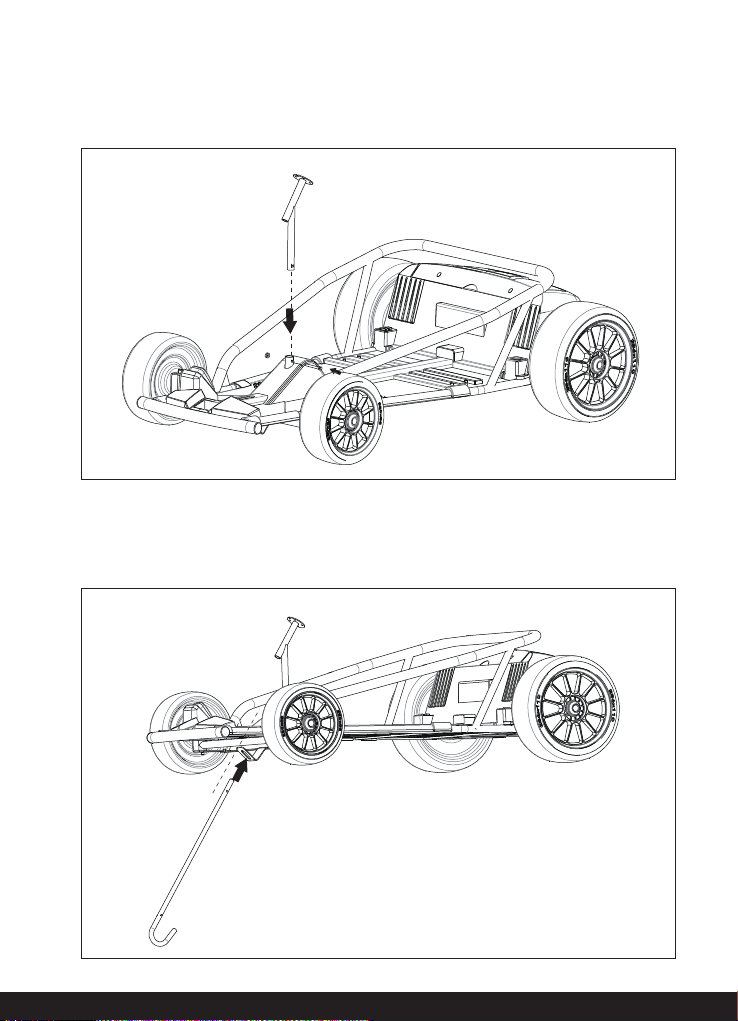

5. Steering axle assembly
①.Insert the steering axle holder into the car body, fix them
with M5*25 screw and M5 lock nut.
②.Insert the steering axle from the bottom to the car body and
steering axle holder, until the top of the steering axle extends
out the steering axle holder.

5

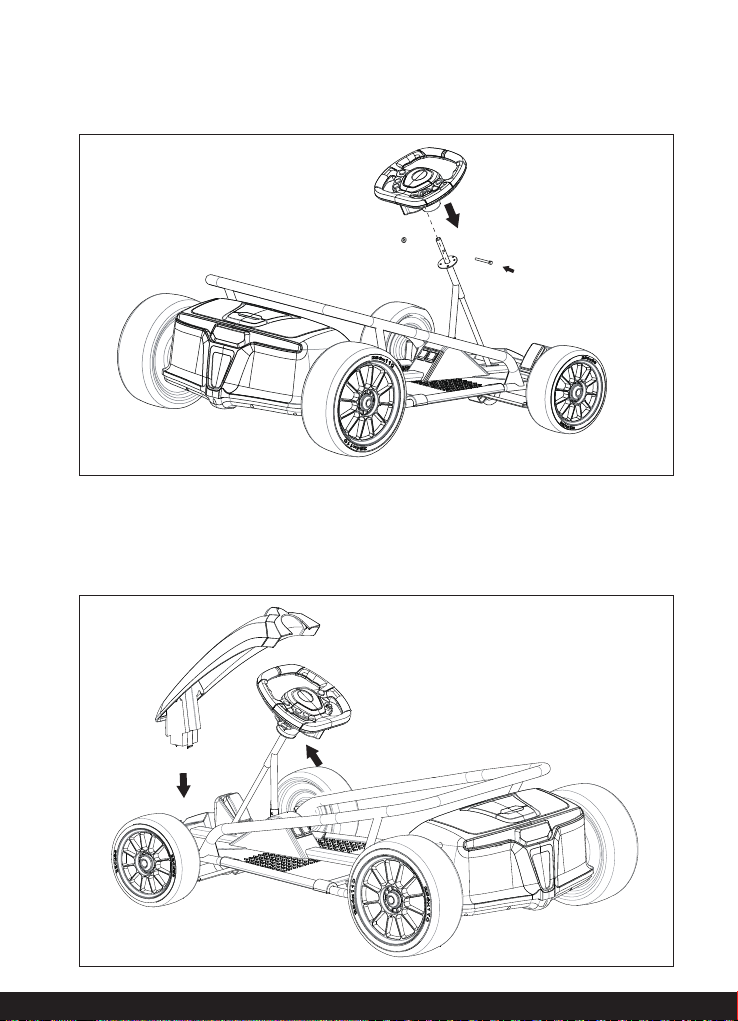

6. Steering wheel assembly
Insert the steering wheel to the steering axle, fix them with
M5*55 screw and M5 lock nut.
7. Head cover assembly
Insert the bottom of head cover to the car base, attach the top
of head cover with steering wheel column, fix them with two
4*16 flat head screws.

6
8. Seat assembly
Attach the seat with seat slot on car body, fix them with 4*16
flat head screws.

7

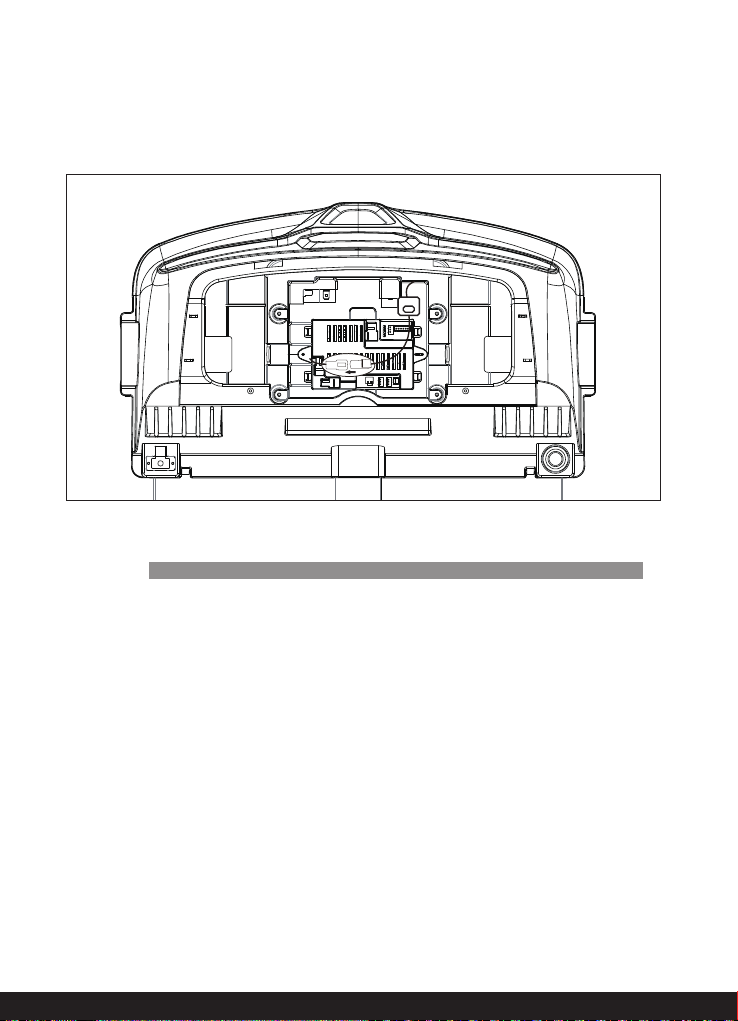

10. Battery connection ,
Open the rear trunk, connect two red clip locks of two wires,
now the battery is connected.
FUSE
This car has a auto-reset fuse, if the car stops suddenly during
driving, it is mainly caused by instantaneous current exceeds ,which
makes the fuse to trip. Then just stop operating for about 8 seconds,
and this fuse can be reset.In order to avoid the fuse tripping and
cutting off power supply, please pay attention to the following matters.
This product can't be overloaded, the maximum load is 70kgs.
Don’t drag anything behind the product.
Don’t let the warter or other liquid into the batteries and other
electrical components.
Don’t change the circuit system and structure of the product.

8

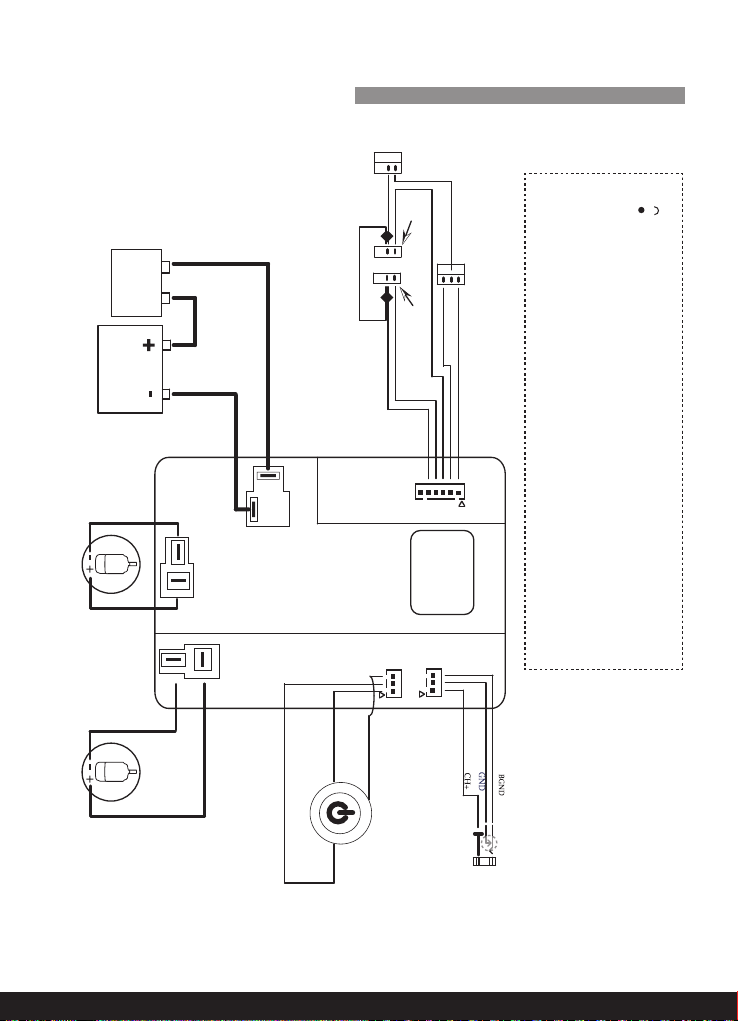

CIRCUIT DIAGRAM
CN4 CN5
12V7AH x 2
red 2.0
red 2.0
red 0.5
pink 0.5
forward / backward
CN3
CN9
M
black 0.2
blue 0.2
blue 2.0
black 0.2
black 0.2
black 0.5
P2
P3
CN4 CN5
M
Wire connection is as following: 1) Means wire uncrossed 2) Means wire crossed 3) “drift / driving” mode switch, drift mode is base on the connection situation Warning: Please make sure the switch is in the disconnected mode, that is the driving mode, it is safe for the beginner. 4）Motor wire connection terminals: a) red point is positive pole b) gap is a negative pole 5) Motor wire is used 2 squares wire
pedal
high / low speed drift / driving
brown 0.2
brown 0.2
brown 2.0
brown 0.5
purple 0.2
yellow 0.2
green 0.2
green 2.0
yellow 2.0
yellow 2.0
auto reset fuse
white 0.3
power on / off
charging port
normally closed contact
left driving motor right driving motor

9
SECURITY WARNING
1.The installation and charging of vehicle should be under adult
supervision at all times.
2.This product is limited to the children from 8-12 years old, 70 kg
weight limit, please do not overload.
3.This product is ideal for driving on a hard flat surface.
4.It is strictly prohibited in the streets or the road, pot holes, and
slopes.
5.Avoid driving in the sand or grass or uneven ground.
6.Children should be given full instructions on operation of the car.
Improper operation can cause damage or accidents.
7.While children are driving, it is parents' duty to supervise at all
time to avoid accidents.
8.Avoid driving in rains or flooded pathways. By doing so it can
damage the motor, circuit and other electrical equipments.
9.Battery charger should be regularly inspected by parents to
insure that the wires, plugs, crusts and other components are not
damaged. Please stop using if any damage is found, until it is
completely restored.
10.In order to ensure product life and safety, avoid damage to the
charger, battery or electric circuit, the car must use the default
configuration of a dedicated charger and power supply.
11.Rechargeable batteries should be removed from the toy before
charging.
12.When no use of product, please cut off the product power, and
keep all the switch to "stop" or "off" position.
13.The charger provided is not a toy. It is to be kept away from
children.
14.Strictly prohibit using the non-manufacturer provided parts.
15.This product is made of PP material mainly, and the safe using
time is two years.

10
USAGE DIRECTION
WARINING:
When changing the gears, the accelerator should be released and
the car has completely come to a stop. Prohibit to change the gear
while the car is still moving, because that can damage the wire and
other transmission parts.
1. Before using it, make sure that all the following works are done.
●Step described in accordance with the instructions to the complete
installation of the car, the battery plug-in has been connected, the power
supply has been switched on.
●Make sure that all the positions which need the screws are fixed tightly.
●Parents or guardian should ensure that children have taken the safety
measures before using.
To reduce the risk during using, pay attention the followings: When
driving the car ,child should sit on the car seat.
Adult or parents should take more care and guidance when child driving
and can't leave away.
Pay attention to the driving environment and driving on the hard flat
surface, not the unsafe environment.
For example:
a.The trenches, the riverside, slope or uneven ground;
b.Road or other places for driving and walking;
c.The obstruction which is easily hitting and causing injury;
d.Other unsafe zones.
To avoid accident, please use only in daytime or bright place, avoid using
under low visibility.
2. Operating(function reference diagram)
music horn pedal
high / low
speed
drift
forward /
backward
power on / off charging port

11
There is a “drift / driving” mode switch on the car, press the drift
switch up, so the drift function can be used.
Warning: Please make sure the switch is in the disconnected
mode, that is the driving mode, it is safe for the beginner.
CHARGING WAY
●For Safety purpose ,the charging must be done by adults.
●When it is the first time to use, open the engine trunk, connect two red
clip locks of two wires. Please charge 8 to 12 hours.
●Charging port is locate on rear of the car, follow the instructions to
charge the battery.
●If the car has slowed down, it needs to be charged by 8-12 hours,
maximum 20 hours.
1.First insert the plug of the charger into the charging port. (The car
power will be cut off)
2.Then insert the charger to the power socket.
WARNING:
1 The toy is to be assembled by an adult. In unassembled state, it contains
potentially hazardous sharp points & small parts, so please keep out of
baby's reach.
2 CHOCING HAZARD – Small parts.
3 Not for children under 3 yrs.
4 Always wear shoes.
5 RISK OF FIRE. Do not bypass. Replace only with circuit protection device.
6 Protective equipment should be worn. Not to be used in traffic.

12

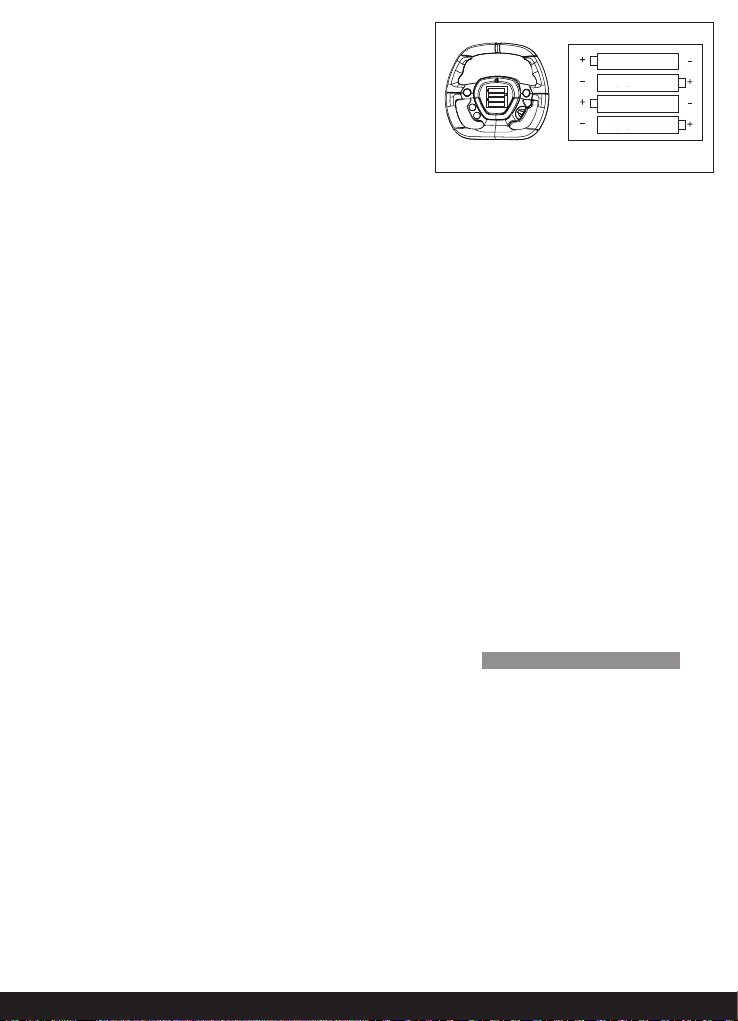

AA 1.5V
AA 1.5V
AA 1.5V
AA 1.5V
MAINTENANCE AND SERVICE
Attention:
1, Before use, parents should check whether all parts like batteries, charger,
wires, plug, outer body and other parts are in good condition, check whether
the screws are loose and whether there are potential safety hazards. Any
damaged parts founded should be repaired before using.
2, After using the product for a period of time, use a small amount of
lubricating oil to the moving parts to prevent wear and tear of rust.
3, Keep the car away from fire and direct sunlight. Place it stably, not upside
down. The car shall be stored indoors or outdoors under cover.
4, The car should be kept away from hot items, such as stoves or heaters, or
the plastic parts will melt. When charging, the car should be kept away from
inflammable materials to prevent it from catching fire.
5, Charge in time after use. Charging should be done by adults. If the product
is going to be unused for a long time, it must be fully charged. Charge it every
month so as to extend the battery lifespan.
·Can only use the charger and battery according to manufacturers regulations.
·Do not mix old and new or different types of batteries.
·The battery terminal should not be short circuit.
·Do not open the battery or charger.
·Do not reverse the battery.
·Before charging, please check whether the charger, battery and plug are ok,
if you find any broken parts, you must stop using it immediately. And do not
use it until it is fully repaired.
·The battery will be little warm when being charged, it is normal. If not, it may
be caused from the short circuit of charger or circuit board.
·Must use the pressing plate to fix the battery.
·Run out of battery must be handled by adults, remove the battery which has
run out from toys to recycle properly and shall not be arbitrarily discard.
·If the product is going to be stored unused long time , it must be fully charged
and unplug two red clip locks , charge it every 1 month ,so as to make sure
the battery life.
·Charger and Battery are not toys. Keep them away from children.
-If the horn doesn't work, that means the battery is in low power, please
change four new alkaline batteries.
How to change batteries: Use screwdriver
to loosen the screw on the back of the
steering wheel, remove the battery cover
and install four AA 1.5V alkaline type
batteries according to the diagram
(Batteries are self-provided), then close the
battery cover and fix with screw.

13
1, Before use, parents should check whether all parts like batteries, charger,
wires, plug, outer body and other parts are in good condition, check whether
the screws are loose and whether there are potential safety hazards. Any
damaged parts founded should be repaired before using.
2, After using the product for a period of time, use a small amount of
lubricating oil to the moving parts to prevent wear and tear of rust.
3, Keep the car away from fire and direct sunlight. Place it stably, not upside
down. The car shall be stored indoors or outdoors under cover.
4, The car should be kept away from hot items, such as stoves or heaters, or
the plastic parts will melt. When charging, the car should be kept away from
inflammable materials to prevent it from catching fire.
5, Charge in time after use. Charging should be done by adults. If the product
is going to be unused for a long time, it must be fully charged. Charge it every
month so as to extend the battery lifespan.
·Can only use the charger and battery according to manufacturers regulations.
·Do not mix old and new or different types of batteries.
·The battery terminal should not be short circuit.
·Do not open the battery or charger.
·Do not reverse the battery.
·Before charging, please check whether the charger, battery and plug are ok,
if you find any broken parts, you must stop using it immediately. And do not
use it until it is fully repaired.
·The battery will be little warm when being charged, it is normal. If not, it may
be caused from the short circuit of charger or circuit board.
·Must use the pressing plate to fix the battery.
·Run out of battery must be handled by adults, remove the battery which has
run out from toys to recycle properly and shall not be arbitrarily discard.
·If the product is going to be stored unused long time , it must be fully charged
and unplug two red clip locks , charge it every 1 month ,so as to make sure
the battery life.
·Charger and Battery are not toys. Keep them away from children.
-If the horn doesn't work, that means the battery is in low power, please
change four new alkaline batteries.
6, A soft cloth must be used to clean the car. Do not use chemical
solvents to clean the plastic parts. Do not use soap or water to clean the
car. Driving in rainy or snowy weather, water can damage the motor,
battery and circuit system.
7, When stopping or storing the car, please cut off the power and make
sure all switches are in the ‘STOP’ or ‘OFF’ position.
8, Do not use fuses different from the specifications of this product.
9, Do not change the product structure and circuit system. Maintenance
and repair work must be done under the guidance of the professional or
technical personnel in place.
10, Do not use the product for other purposes. Put the battery in the
right polarity.
11, Battery negative short circuit is prohibited. Non-rechargeable
batteries cannot be charged.
12, Rechargeable batteries can only be charged under the supervision
of the adult.
13, Do not mix old and new batteries or different types of batteries.
14, The battery running out of power should be removed from the car
properly and not allowed to be played by children.
15, Disconnect the batteries completely when not in use and do not
allow children to play with them.
TROUBLESHOOTING
If the battery is not fully charged. Need to be charged in time
If there is an issue with the wheels
If the wheels stuck and cannot move
If the pedal switch is not functioning properly
If “power” switch is in OFF position
If the battery is not connected, check the red and black wires.
If the charger is plugged in, car will not power on. Unplug charger.
If rider weight exceeds specifications
If the charger is malfunctioning
If the battery lost its capacity
If the charger and battery connection are charged
Battery does
not charge
Car moves
slowly
Car does not
move or
power on

PINGHU SHUANGXI BABY CARRIER MANUFACTURE CO.,LTD.
PINGHU BABY CARRIER INDUSTRY CITY, ZHEJIANG, CHINA
