HOLLICY SX1919 User manual

Model:SX1919
Executive standard：
EN71-1
EN71-2
EN71-3
EN62115
The assembly manual of
battery operated car
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep
out of the reach of small children. Pay attention to the potential
hazards of using the toy in areas other than private grounds.
Please read the manual before using the product. The manual and
carton contain important information, please keep them properly
for later references. If failure to following the instruction in the
manual, it might be dangerous for your child.
In order to improve the product and quality, we may change the
parts of structure, appearance, packing method, assembly method
and function of the product without any notice. When there is any
difference between the manual and the product, please subject to
the actual product. We are sorry for any inconvenience.

Trailer
WARNING:
This product is not the vehicle for transportation, it should be
used under adult guidance. Parents should ensure that children
have taken the safety measures before use.
The toy should be used with caution since skill is required to
avoid falls or collisions causing injury to the user or third partys.
PARTS LIST
PARTS NAME
PICTURE QTY
PARTS NAME
PICTURE QTY
Disclaimer:
The pictures in this instruction are for assembly reference only.
Please refer to the actual product.
1PC
1PC
1PC
1PC
2PCS
2PCS
2PCS
1PC
1PC
1PC
0PC
2PCS
3PCS
Car body
Steering
wheel
Front wheel Rear wheel
Motor
Trailer
handrail
Rear axle
Trailer
connection
parts
Charger
User
manual
Hardware
package
(optional)
(optional)
4PCS
6PCS
4PCS
6PCS
(optional)
(optional)
(optional)
(optional)
2PCS
(optional)
2PCS
(optional)
(optional)
(optional)
1PC
(optional)
1PC
2PCS
(optional)
(optional)

1
PP
37-95 Months
60kg
（900+497+497)X380X545.5mm
6V-4.5AH/12V-7AH/12V-10AH/12V-14AH
Parent-child function
PRODUCT SPECIFICATIONS
Battery
Main material
Suitable age
Weight limit
Product size
Speed
Runtime
Charger
Fuse
3-5KM/Hour
Auto-reset fuse
Input AC 110-240V Output DC 12V-1000mA
1-2 hours after charging for 8-12 hours, based on ride on conditions

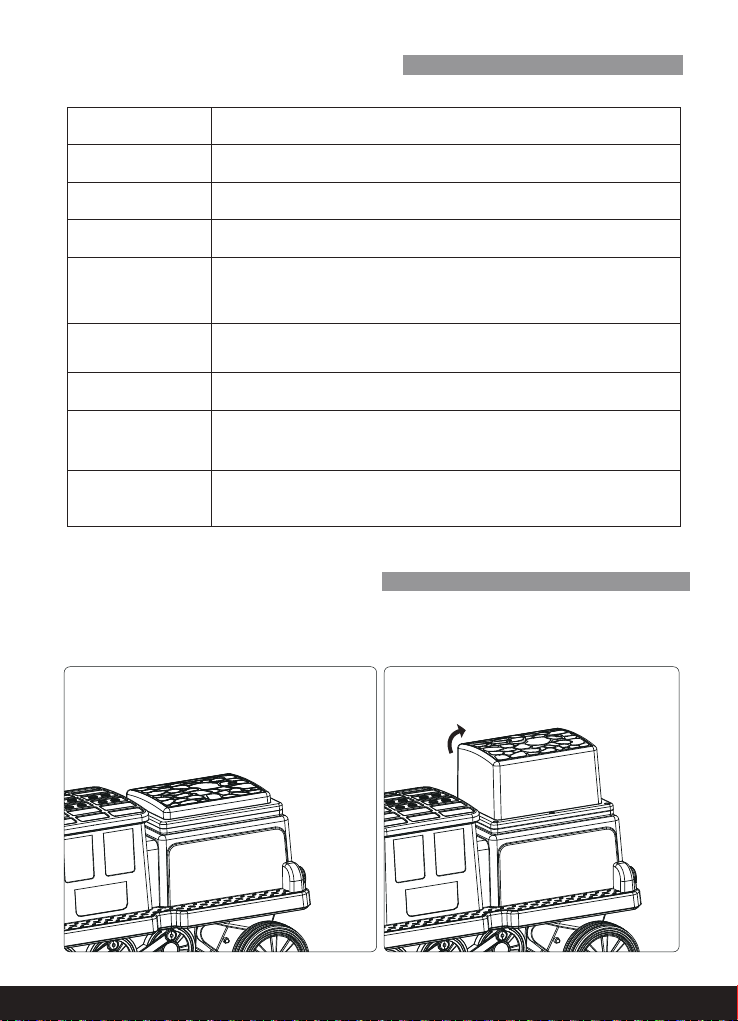

Put the seat inside the trailer, child can sit on it, turn over the
seat, parent can seat and play with child together.

2

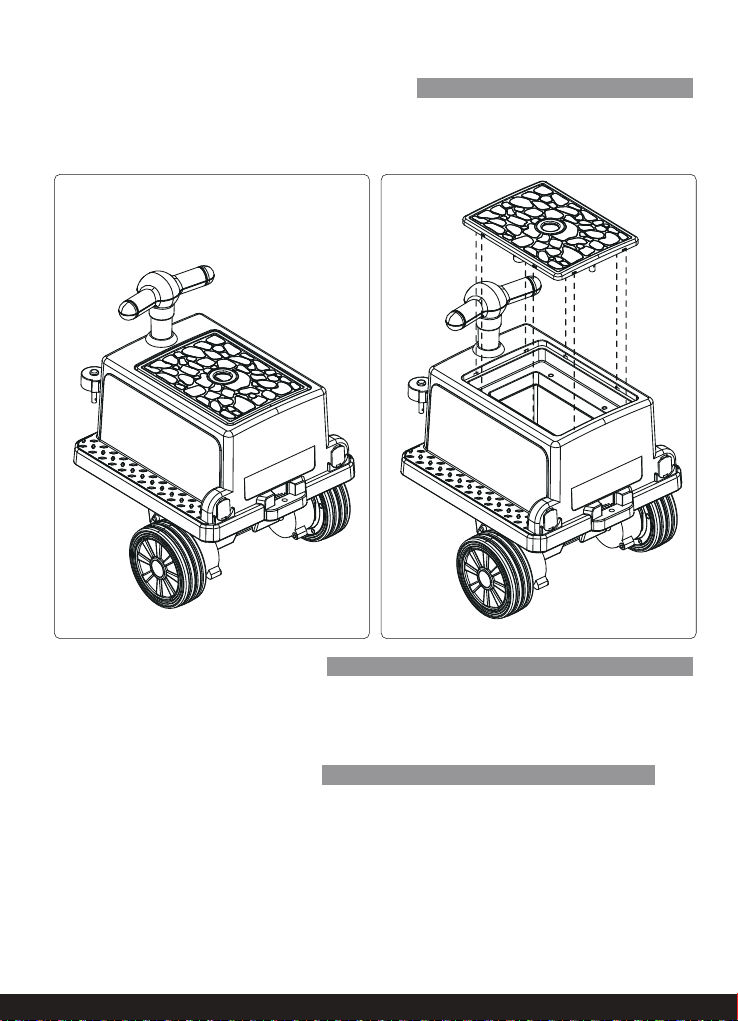

Pull the cover of the trailer upward and remove the cover, spare
battery can be put inside. Then take the cover back.
Unscrew the screws on the side of the red seat plate, remove
the plate, it is convenient for internal electrical maintenance.
Trailer can store battery
Quick release seat plate,
convenient maintenance
Assembly instruction
Car assembling should be done by the adults.
Take care of small parts. To avoid choking hazard, keep
children away while assembling. Children under 36 months
are prohibited to use.
Please count all the parts carefully before assembling and
dispose the plastic bag properly. To avoid choking hazard,
children are not allowed to play with the bag.

3
1. Front wheel assembly
Turn over the car body, insert a washer and the front wheel to
front axle, fix with washer, cotter pin and wheel cover.
2. Rear wheel assembly
a.First, check whether the rear axle is in the middle of the car,
make sure the axle length that extend out on both sides are
same.
b. Attach the rear wheel to the rear axle and motor , fixed with
washer, cotter pin and wheel cover.
c. Turn over the car body, make sure that the assembled wheel
is contact with the ground, pull out the rear axle until it can’t
move, then assembly another wheel.

4
3. Steering axle assembly
Connect steering wheel wire to the wires coming out of the steering
column and match connectors. Insert the steering wheel into the
steering column,fix with a screw and a nut.

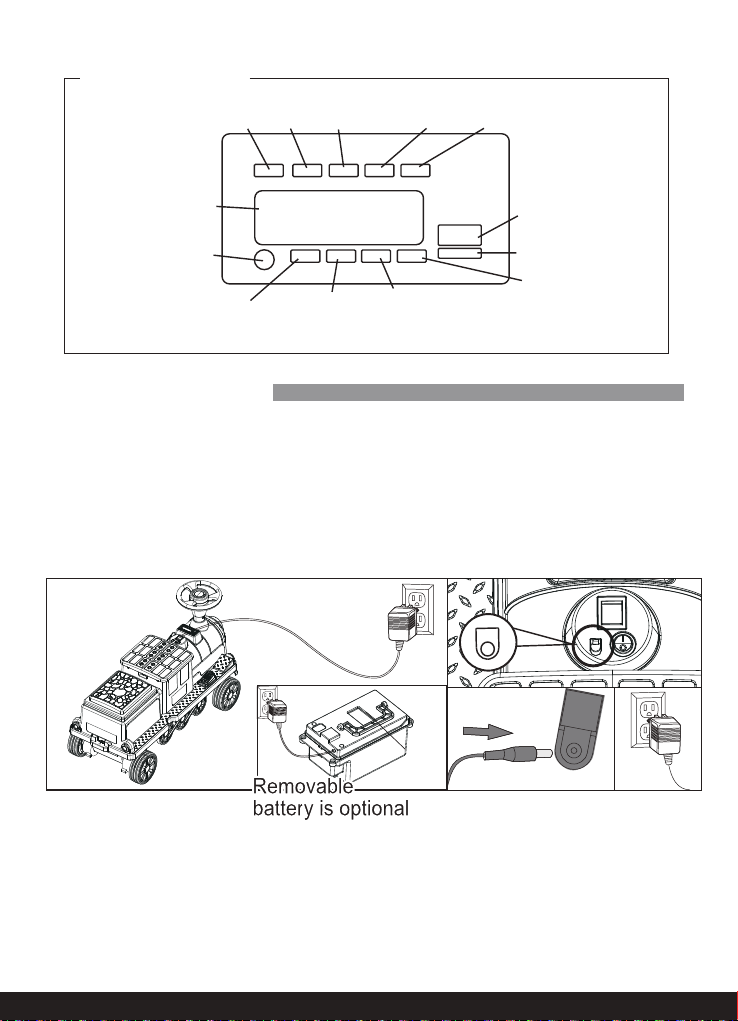

4. Battery connection
Battery is located under the red seat plate, unscrew the screws on
the side of the seat, press down the button and remove the seat
plate, you can see the battery, insert the protective device to the red
plug which is fix on the car body, now battery is connected.
Removable battery is optional, release battery lock and take out the
battery to charge.

5

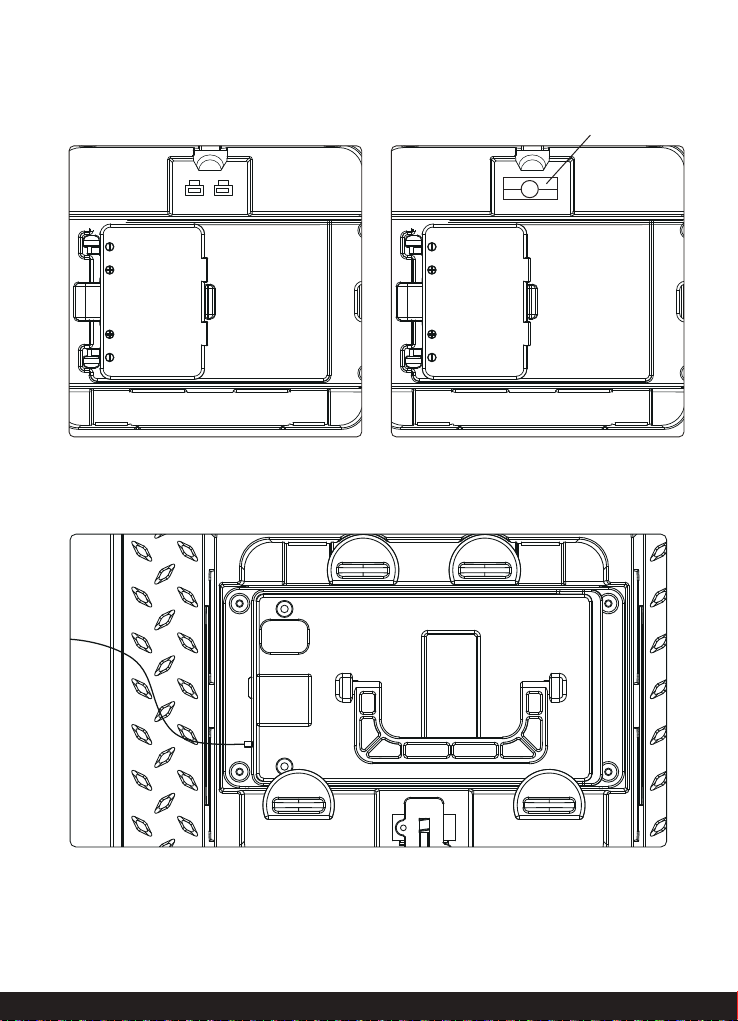

A. Non-removable battery connection
B. Removable battery connection (optional)
protective device

6
Attention: The following trailer is the optional specification,
please assemble as the type you purchased.

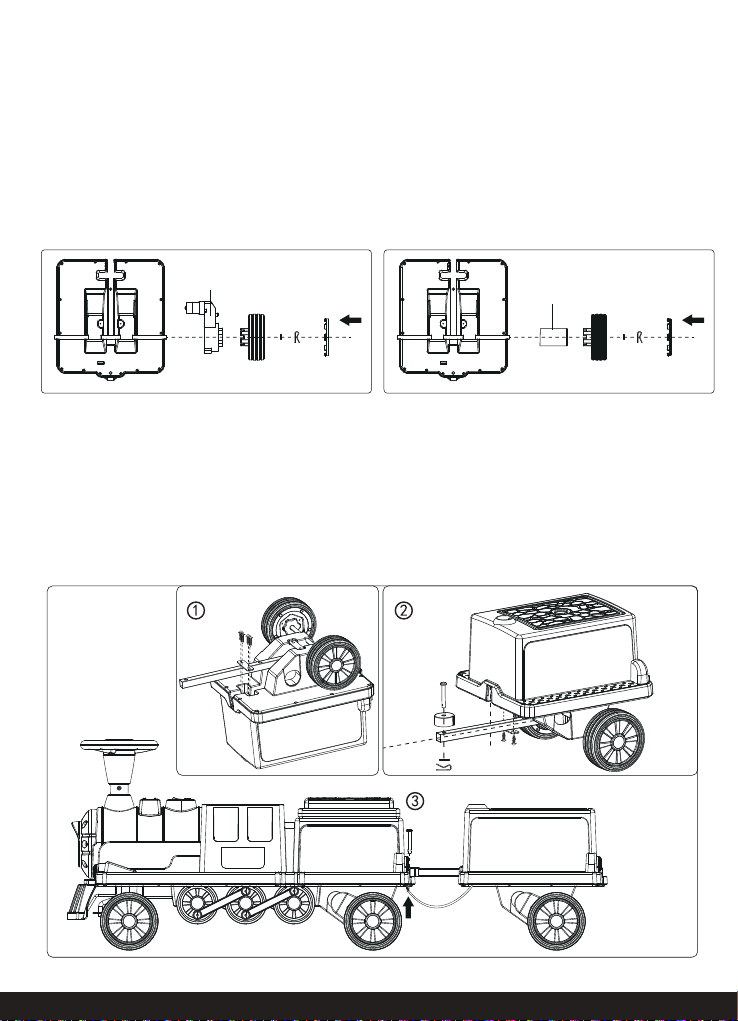

5. Trailer assembly
Turn over the trailer, insert the axle to the trailer, attach the motor
and wheel to the axle, fix with washer, cotton pin and wheel cover.
6. Trailer and locomotive assembly
Fix the trailer connection iron part under the trailer, then turn over
trailer, attache the trailer with the locomotive, insert the screw and
fix with washer and cotton pin.Connect the plugs from trailer and
locomotive.
motor
trailer with motor trailer without motor （optional）
axle sleeve

7
FUSE
This car has a auto-reset fuse, if the car stops suddenly during
driving, it is mainly caused by instantaneous current exceeds ,which
makes the fuse to trip. Then just stop operating for about 8 seconds,
and this fuse can be reset. In order to avoid the fuse tripping and
cutting off power supply, please pay attention to the following matters.
This product can't be overloaded, the maximum load is 100kgs.
Don’t drag anything behind the product.
Don’t let the warter or other liquid into the batteries and other
electrical components.
Don’t change the circuit system and structure of the product.

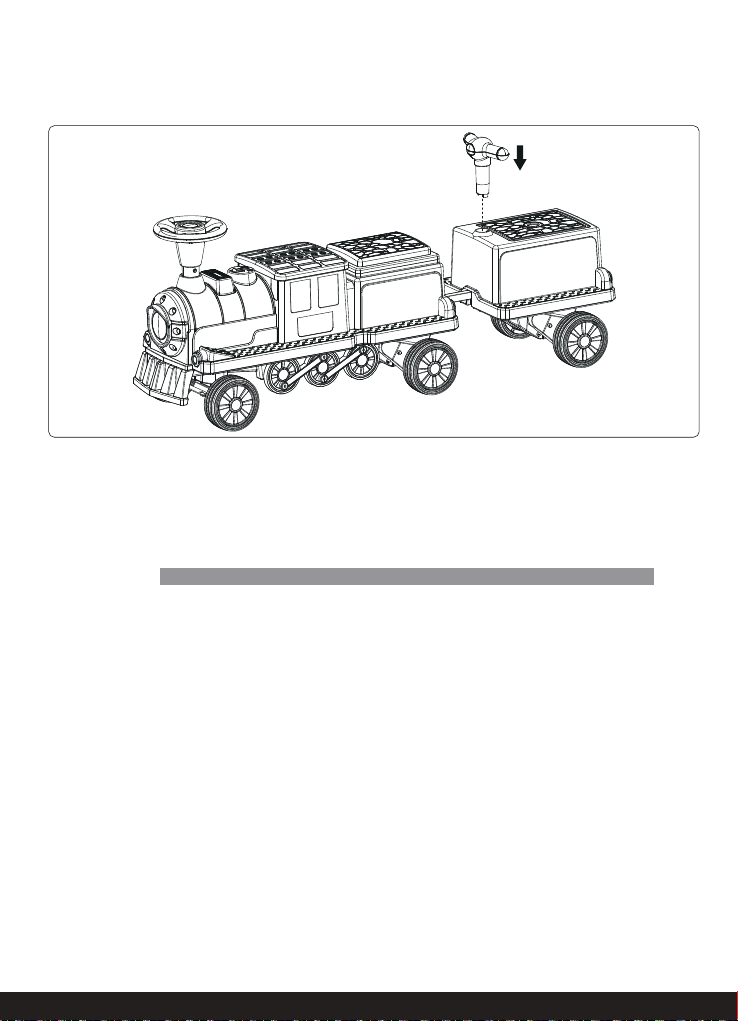

7. Trailer handrail assembly
Insert the trailer handrail to the corresponding openings, push it
into place.
The installation steps are same if the product has two trailers.

8
CN4 CN5
BGVBAT
CN3
CN10
CN1
+
V
LS
R
HS
CH BG
G
SW
purple 0.2
forward / backward
CN8
CN9
M
M
CN2
+12V
GND
CN6
White
Steering Wheel
Steering Motor
Red
CN7
FUSE
6 X 30 F2A
Fuse replacement instructions:
forward / backward
rocking switch
(optional)
Short-circuit cap is located at RJ1
Remote control charged: 1. Short-circuit cap is located at RJ1, RJ5 is available
brown 0.3
brown 0.2
brown 2.0
SM-2 needle/black
lights switch
RJ1 RJ5
XH-2 luck plug / white
MP3 power
+12V
GND
green 0.2
white 0.2
black 0.3
black 0.3
black 0.3
black 0.3
black 0.2
black 0.2
black 0.2
black 0.3 black 0.3
yellow 0.2
Brown1.5 x 2
Red1.5 x 2
-Negative pole
+Positive pole
Accelerator
Charging port
Blue1.5
Yellow1.5
Normally closed contact
One start button
Green1.5
Yellow1.5
Orange0.5
Orange0.5
Orange0.3
Orange0.3
Red2.0
Red2.0
Red0.3
Red0.3
Brown2.0
Red2.0
locomotive driving motor
Left driving motor
Method for side wire
welding of motor
Driving motor
position
Method for side wire
welding of motor
Connector
Small one
Big one
green wire welding to red point, yellow wire welding to the gap Yellow wire welding to red point, green wire welding to the gap
Driving motor
position
Right front motor
Left front moto
Right rear motor
Left rear motor
big one
Connector
small one
yellow wire welding to red point, blue wire welding to the gap blue wire welding to red point, yellow wire welding to the gap
Auto-rest
fuse 12V battery
1) 2)
Means wire uncrossed Means wire crossed
Wire connection is as following:
3)No “optional”mark, means every car has this function 4)With “optional” mark, means this function is optional 5) Motor wire connection terminals: a) red point is positive pole b) gap is a negative pole 6) Motor connect wire: use 2 squares wire
WARNING: forward / backward rocking function is optional: 1) make sure to use this function at flat ground 2) If be used at slope, the car has a risk of moving forward or backward.
1. Must use 2A fuse 2. Troubleshooting short circuit of lamp before replacing fuse
Maximum current of LED lights power supply can’t exceed 1A.
CIRCUIT DIAGRAM
