Overview
Main Components
1. ZONE 1 outlet
2. ZONE 2 outlet
®Each outlet is 20mmBSP
with 12mm snap‑on
connection included
3. 20mm BSP tap nut inlet
4. Tap connection locking nut
5. Display
6. ON/OFF
7. Main dial
8. Battery compartment:
®Requires 2× AA alkaline
batteries only
(not included)
8
12
3
5
4
6
7
CO6002 Manual 2021 v2.indd 3CO6002 Manual 2021 v2.indd 3 24/9/21 3:58 pm24/9/21 3:58 pm

4 of 16
Overview (continued)
Additional Functions
®Inactivity on your QuikDial Tap Timer controls for 6 seconds will
return to the default system mode displaying the current time
ÁRemoving the AA batteries will reset all
clock and schedule settings
®To reset your QuikDial Tap Timer, remove the batteries and
twist the main dial until the display is completely blank
ÁFor use with cold water only
Specifications
Interval scheduling 1, 2, 3, 6 or 12 hours, or 1‑7 days
Watering duration 1‑30 minutes
Working pressure 30‑1200 kPa
Maximum flow rate 25 L/min
Connections 20mm BSP inlet / 20mm BSP outlet
Working temperature 3°C to 50°C
Batteries 2× AA alkaline (not included)
CO6002 Manual 2021 v2.indd 4CO6002 Manual 2021 v2.indd 4 24/9/21 3:58 pm24/9/21 3:58 pm

5 of 16
Setup
Battery Installation
1. Install 2× 1.5v AA
alkaline batteries into your
QuikDial Tap Timer, as
indicated in the battery
compartment [a]
®After installing the batteries,
the display will flash and
your QuikDial will make
clicking noises as part
of the start‑up phase
®Once the start‑up process
is complete, the clock
will display as follows,
with the time separator
flashing [b] and the battery
indicated as full [c]
Setup Process
®Your QuickDial features a quick setup process across 5 key steps.
Use the main dial to scroll through the main menu for each step
a
b
c
CO6002 Manual 2021 v2.indd 5CO6002 Manual 2021 v2.indd 5 24/9/21 3:58 pm24/9/21 3:58 pm

6 of 16
Zone

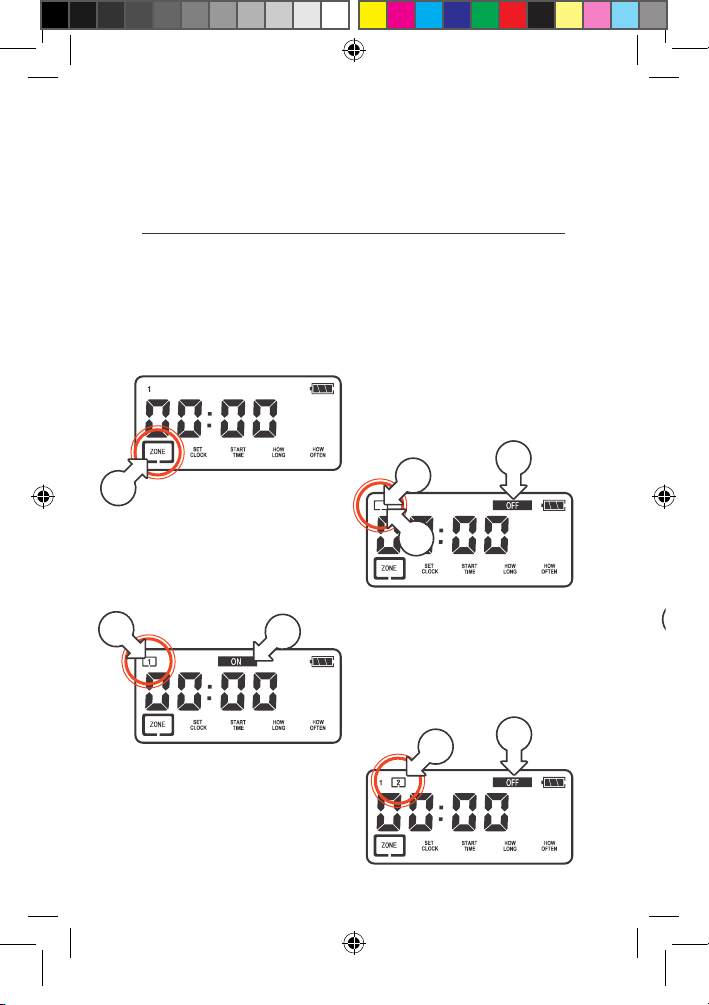

®This process is to select
which zones will be watered
as part of your schedule
1. Turn the main dial to select
ZONE [a] in the main menu
2. Press the main dial
to edit zones
®The zone selector [b] will
flash around ZONE 1
and indicate as ON [c]
®By default, ZONE 1is
ON, and ZONE 2is OFF
3. Press the main dial to toggle
ZONE 1ON or OFF as desired
®When a zone is turned
OFF, the zone number [d]
will disappear and the OFF
indicator [e] will be displayed
®The zone selector [f]
will remain flashing
4. Turn the main dial
to the next zone
®The zone selector [g] will
flash around the next zone
and indicate as OFF [h]
Setup (continued)
b
f
e
h
c
d
g
a
i
CO6002 Manual 2021 v2.indd 6CO6002 Manual 2021 v2.indd 6 24/9/21 3:58 pm24/9/21 3:58 pm

7 of 16
Setup (continued)
Zone (continued)
5. Press the main dial to
toggle the zone ON
or OFF as desired
6. Repeat steps 4-5 for
the remaining zones
7. After ZONE 2has been
set to ON or OFF, turn the
main dial one more step
®The zone selectors will
flash around both zones[i],
and the status of each
zone will be indicated by
their respective numbers
being present(ON)
or missing (OFF)
8. To confirm your zone
settings, press the main dial
®Alternatively, to go back and
change your zone settings,
turn the dial another step
and repeat steps 3-7
®Once your zones are
confirmed, ZONE will
flash in the main menu[j]
and the active zones
will be shown [k]
i
k
j
CO6002 Manual 2021 v2.indd 7CO6002 Manual 2021 v2.indd 7 24/9/21 3:58 pm24/9/21 3:58 pm

8 of 16
Set Clock
®This process is to set
the system clock for
your QuikDial
®Your QuikDial system
time is always in 24‑hour
format (military time)
1. Turn the main dial to
select SET CLOCK [a]
in the main menu
2. Press the main dial.
The current hour [b]
will begin flashing
3. Turn the main dial to adjust
the hour to the current time
4. Press the main dial to
confirm the current hour.
The current minute will
begin flashing [c]
5. Turn the main dial to
adjust the minute to
the current time
6. Press the main dial to
confirm the current minute
®SET CLOCK will flash
again in the mainmenu[d],
to indicate the system
time [e] has been set
Setup (continued)
a
b
d
c
e
CO6002 Manual 2021 v2.indd 8CO6002 Manual 2021 v2.indd 8 24/9/21 3:58 pm24/9/21 3:58 pm

9 of 16
Setup (continued)
Start Time
®This process is to set the
START TIME for watering
of your active zones
®This START TIME is applied
to all zones, but is only
active on the zones that
have been toggled ON in
the previous instructions
®Refer back to Zone for more
information on enabling
or disabling zones

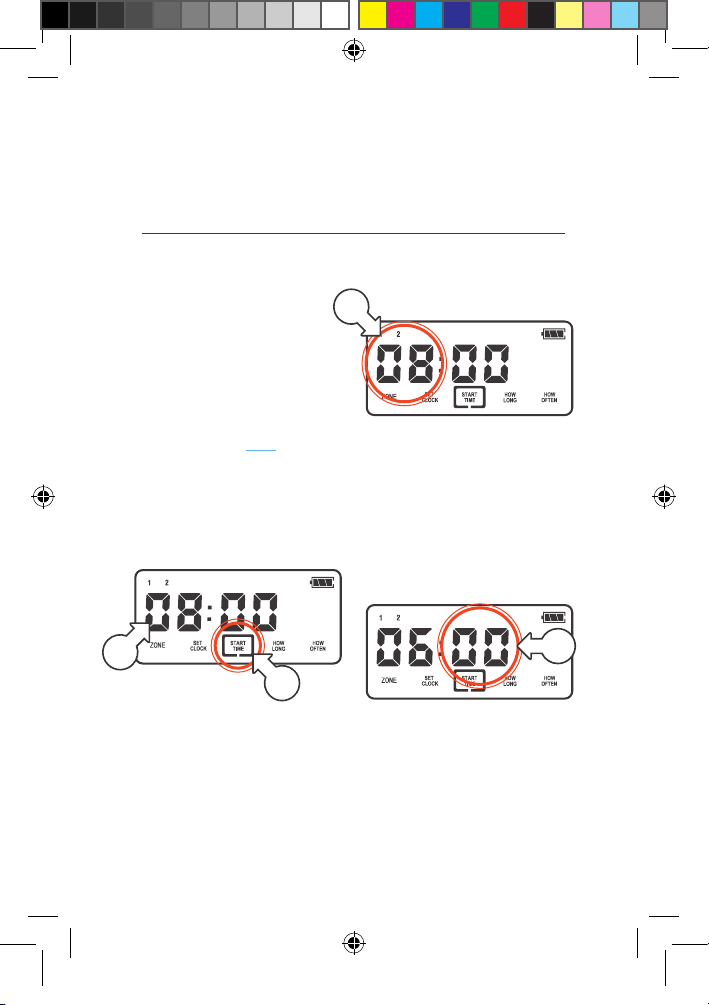

1. Turn the main dial to
select START TIME [a]
in the main menu
®This will display the
current START TIME[b].
By default, this is set
to 08:00 (8:00 am)
2. Press the main dial. The
START TIME hour [c]
will begin flashing
3. Turn the main dial to
adjust the hour to the
desired START TIME
4. Press the main dial to
confirm the hour. The
START TIME minute
will begin flashing [c]
5. Turn the main dial to
adjust the minute to the
desired START TIME
a
c
c
b
CO6002 Manual 2021 v2.indd 9CO6002 Manual 2021 v2.indd 9 24/9/21 3:58 pm24/9/21 3:58 pm

10 of 16

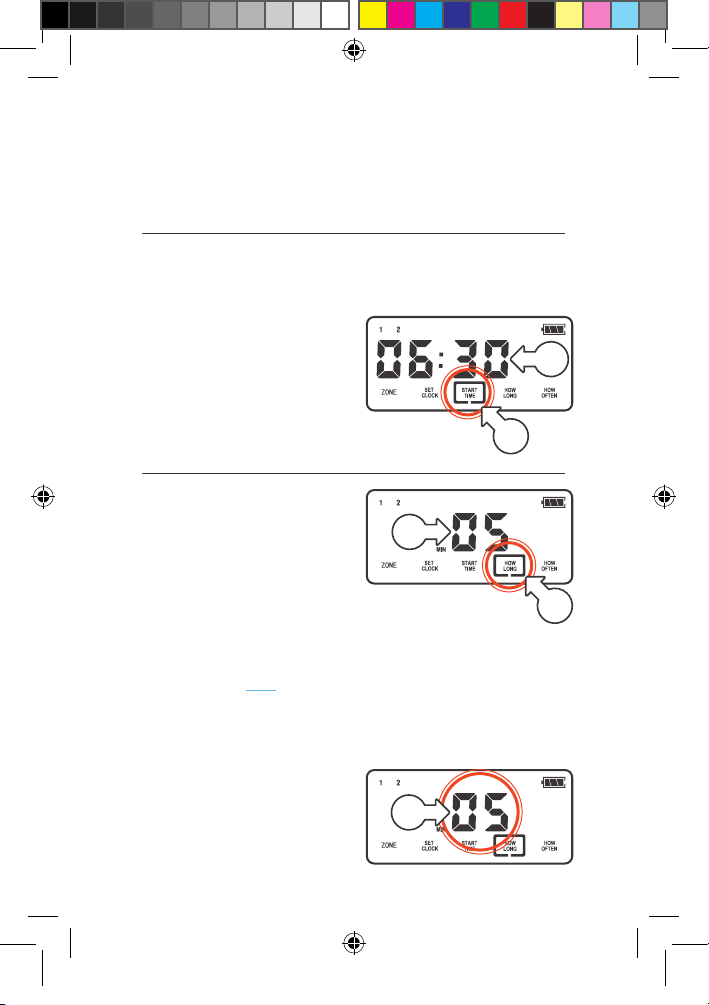

6. Press the main dial to
confirm the minute
®START TIME in the main
menu [d] will flash again, to
indicate it has been set [e]
Setup (continued)
How Long (Watering Duration)
®This process is to set
the watering duration
of your active zones
®This duration is applied
to all zones, but is only
active on the zones that
have been toggled ON in
the previous instructions
®Refer back to Zone for more
information on enabling
or disabling zones

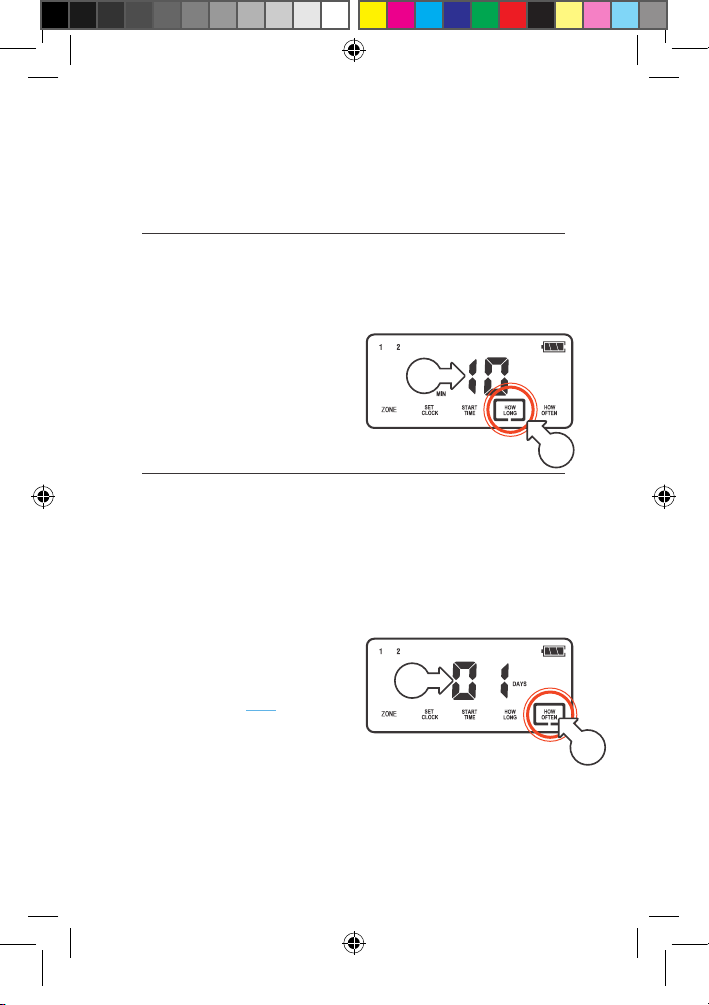

1. Turn the main dial to
select HOW LONG [a]
in the main menu
®This will display the
current watering
duration[b]. By default,
this is set to 5 minutes
2. Press the main dial. The
duration in minutes [c]
will begin flashing
d
a
b
e
Start Time (continued)
c
CO6002 Manual 2021 v2.indd 10CO6002 Manual 2021 v2.indd 10 24/9/21 3:58 pm24/9/21 3:58 pm

11 of 16
How Often (Watering Interval)
®This process is to set the
interval time between
watering sessions of
your active zones
®This interval is applied
to all zones, but is only
active on the zones that
have been toggled ON in
the previous instructions
®Refer back to Zone for more
information on enabling
or disabling zones
1. Turn the main dial to
select HOW OFTEN [a]
in the main menu
®This will display the current
watering interval[b]. By
default, this is set to 1 day
3. Turn the main dial to adjust
duration as desired
4. Press the main dial to
confirm the duration
®HOW LONG in the
mainmenu [d] will flash
again, to indicate the
duration has been set [e]
How Long (continued)
Setup (continued)
d
a
b
e
CO6002 Manual 2021 v2.indd 11CO6002 Manual 2021 v2.indd 11 24/9/21 3:58 pm24/9/21 3:58 pm

12 of 16

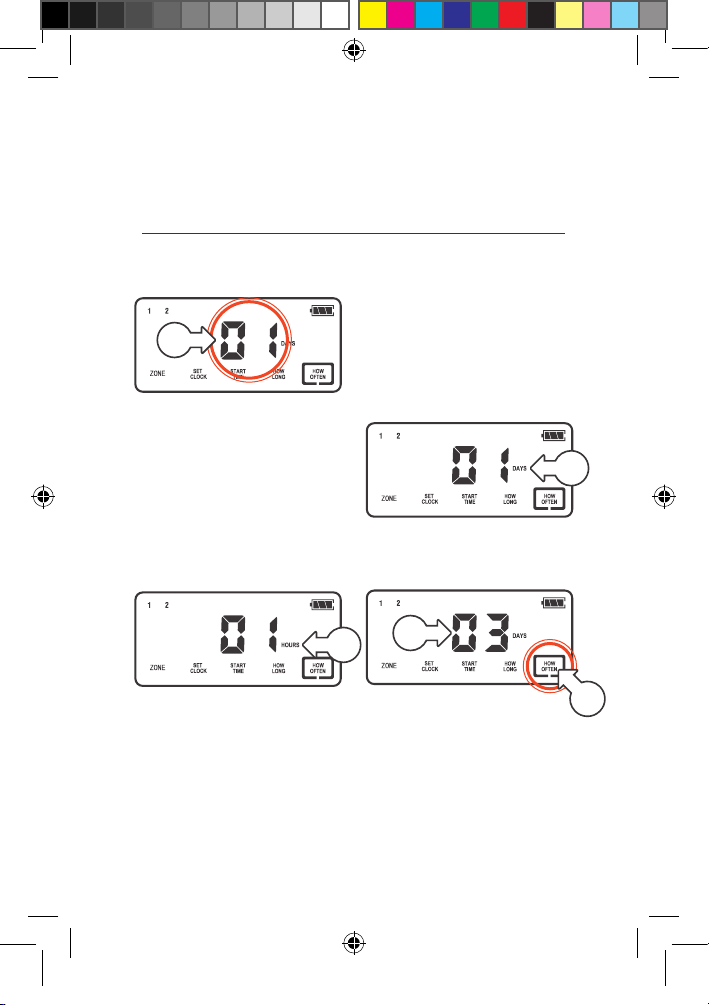

2. Press the main dial. The
interval [c] will begin flashing
3. Turn the main dial to
adjust the interval length
in DAYS from 1 to 7
®For shorter watering
intervals in HOURS [d],
turn the main dial beyond
7 days. The interval will
now show as 1 hour
®Keep turning the main
dial to adjust the watering
interval in HOURS
®Hourly watering intervals
are available in 1, 2,
3, 6 or 12 hours
®To go back to setting the
interval in DAYS [e], keep
turning the dial beyond
12 hours. The interval
will return to 1 day
4. With the desired interval
time showing, press the
main dial to confirm
®HOW OFTEN in the
mainmenu [f] will flash
again, to indicate the
interval has been set [g]
How Long (continued)
Setup (continued)
f
c
g
d
e
CO6002 Manual 2021 v2.indd 12CO6002 Manual 2021 v2.indd 12 24/9/21 3:58 pm24/9/21 3:58 pm

13 of 16
Operation
Automatic Watering
1. For automatic watering,
ensure ZONE, SET CLOCK,
START TIME, HOW LONG
and HOW OFTEN have all
been set correctly as per
the previous instructions
2. After a period of inactivity on
your QuikDial controls, the
set watering schedule will be
active in the background as
per your confirmed settings

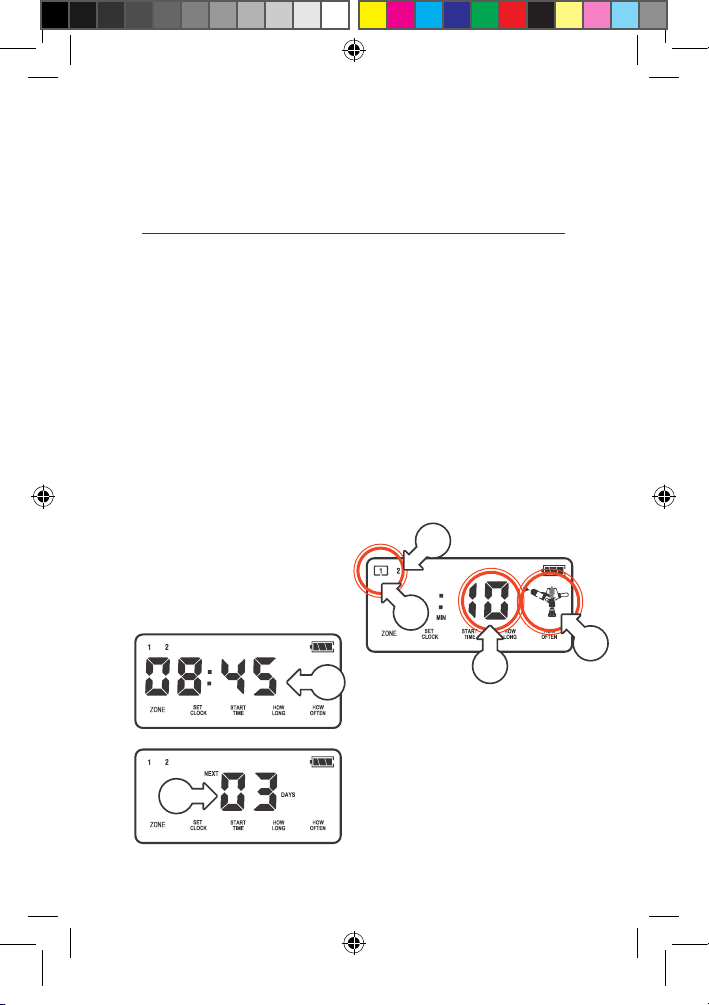

®In this state, your QuikDial
display will cycle between
the current time [a]
and the amount of time
left before your NEXT
watering session [b]
3. When the current interval
time [b] lapses, the
zones will start watering
in sequential order
®During watering, the
sprinkler animation [c] will be
active, the current zone [d]
will flash, and the remaining
watering time [e] will also
flash as it counts down
®Additional zones scheduled
for watering will also show [f]
a
b
d
e
f
c
CO6002 Manual 2021 v2.indd 13CO6002 Manual 2021 v2.indd 13 24/9/21 3:58 pm24/9/21 3:58 pm

14 of 16
Manual Watering
1. For manual (instant)
watering, press ON/OFF
2. The zone selector [a]
will flash. Twist the main
dial to select a zone
3. Press the main dial to
water immediately for the
pre‑set duration [b]. By
default, this is 10 minutes
®During watering, the
sprinkler animation [c]
will be active, and the
current zone [d] will flash
4. Once watering, the remaining
time [e] will also flash to
indicate it is adjustable
5. Turn the main dial to adjust
the watering time as desired
®The minimum watering
time is 1 minute
®The maximum watering
time is 31 minutes
6. After a short period of time,
the remaining watering
time will stop flashing to
indicate it has been set
®To stop watering before
the remaining time has
lapsed, press ON/OFF and
your QuikDial will return
to the default display
®If the remaining time
stops flashing before
you were able to adjust
it, press ON/OFF to stop
watering, and restart
the manual watering
process from Step 1
b
Operation (continued)
a
d
ec
CO6002 Manual 2021 v2.indd 14CO6002 Manual 2021 v2.indd 14 24/9/21 3:58 pm24/9/21 3:58 pm

15 of 16
Maintenance
Cold Weather
®Your QuikDial should be removed from the
tap and stored away during winter
ÁKeep your tap timer out of freezing conditions as this can
damage internal components
Batteries
®Remove batteries from your QuikDial during periods
of non‑use–this will erase all settings
ÁBattery leakage can cause corrosion
and damage to your QuikDial
ÁDo not mix old and new batteries
ÁDo not use rechargeable batteries
The Holman website has a host of additional information on features. Head to
support.holmanindustries.com.au for more tips, tricks and support content.
If you still need help, feel free to email our friendly Customer Service team at
[email protected] or call at 08 9416 9999.
CO6002 Manual 2021 v2.indd 15CO6002 Manual 2021 v2.indd 15 24/9/21 3:58 pm24/9/21 3:58 pm

We really appreciate having you as a customer, and
would like to say thank you for choosing us.
We recommend registering your new product on our website. This will ensure we have
a copy of your purchase and activate an extended warranty. Keep up to date to with
relevant product information and special offers available through our newsletter.
www.holmanindustries.com.au/product-registration/
Copyright © 2021 Holman Industries
Thanks for being a
#SMARTGARDENER
CO6002 Manual 2021 v2.indd 16CO6002 Manual 2021 v2.indd 16 24/9/21 3:58 pm24/9/21 3:58 pm
