Home Decorators Collection ST. CHARLES FHHS80019 User manual

Item #1007 536 603
Model # FHHS80019
ST. CHARLES LP PATIO HEATER
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this patio heater. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Home Decorators Collection!
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

Table of Contents
2
Table of Contents ........................... . . . . . . . . 2
Safety Instructions .................... . . . . . .. . . . . . . . 2
What is covered ................................... 5
What is not covered ................................5
Warranty ............................ . . . . . . . . . . . . . . 5
Pre-Assembly....................................... 5
Planning Assembly ........................ . . . . . . . . 5
Hardware Included ................................. 5
Package Contents . .................................6
Care and Maintenance ....................... . . . . . . . . 24
Operation ................................. . . . . . . . . 14
Troubleshooting ............................ . . . . . . . . 25
Assembly. . . . . . .....................................7
DANGER:
any other appliance. A propane cylinder not connected for use shall not be stored in the vicinity of this
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or
or any other appliance.
ANS Z83.26:20 • CSA 2.37:20
Gas-Fired Outdoor Infrared Patio Heaters
Safety Information
READ ALL INSTRUCTIONS BEFORE USE. SAVE THESE INSTRUCTIONS.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause property
damage, injury or death. Read the installation,
operationg and maintenance instructions thoroughly
before installing or servicing this equipment.
CAUTION: When not in use, secure the product in a
cool and covered location.
CAUTION: Do not locate the product near any heat
sources.
WARNING: Please keep children out of the assembly
area before assembly.
WARNING: This heater unit is heavy, and may require
two adults for safe assembly.
WARNING: Do not place heavy objects on the heater.
WARNING: THIS HEATER IS MADE FOR THE EXPLICIT PURPOSE OF PROVIDING OUTDOOR FUNCTIONS AND IS NOT TO BE USED AS
A TOY. THIS PRODUCT IS INTENDED FOR NORMAL OUTDOOR USE; HOWEVER, THE MANUFACTURER RECOMMENDS STRONG AND/
OR COVERING THIS PRODUCT WHEN ANY FORMIDABLE/SEVERE WEATHER IS APPROACHING.
WARNING: DO NOT LOCATE THIS PRODUCT NEAR OPEN FLAMES. DO NOT USE THIS PRODUCT AS A SUPPORT. DO NOT SHAKE,
LEAN, OR CLIMB ON THE PRODUCT. CHILDREN UNDER THE AGE OF 10, NEAR THE PRODUCT, SHOULD BE SUPERVISED BY A
COMPETENT ADULT AT ALL TIMES. THIS PRODUCT IS NOT INTENDED FOR COMMERCIAL USE AND WILL VOID THE WARRANTY.
WARNING: For Outdoor Use Only.
DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or re department.

Safety Information (continued)
into the combustion chamber. Adequate clearance around
air openings into the combustion chamber
Keep solid combustibles, such as building materials,
Provide adequate clearances around air openings
Never use the heater in spaces which do or may
During operation, this product can be a source of
Never store propane near high heat, open flames,
accumulate in low places. If you smell gas, leave the
area immediately.
is lighted, near flame, pilot lights, other ignition sources
or while the heater is hot to touch.
paper or cardboard, a safe distance away from the
heater as recommended by the instructions.
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120ºF (49ºC).
contain volatile or airborne combustibles or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
ignition. Keep heater area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flammable vapors and liquids. Do
not use heater in areas with high dust content.
Minimum heater clearancs from combustible
materials: three (3) feet from the sides and three (3) feet
from the top.
flammables too close to the burner. Keep flammables
at least 3 feet from sides and 3 feet from top. Keep
gasoline and other flammable liquids and vapors well
away from heater.
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If
heater is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
, clearances from
combustible material, provisions for accessibility, and for
combustion and ventilating air suppl
EXPLOSION - FIRE HAZARD
y.
DANGER: DANGER:
WARNING:
Propane vapors are heavier than air and can
Never install or remove propane cylinder while heater
This heater is red hot during use and can ignite
Store the propane cylinder outdoors in a well ventilated
CARBON MONOXIDE HAZARD
We cannot forsee every use which may be made of
our heaters.
Check with your local fire safety authority if you have
questions about heater use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANS Z223.1.
This heater is a combustion appliance. All
Carbon monoxide (CO) poisoning produces flu-like
For outdoor use only.
Never use inside house or other unventilated or
This heater consumes air (oxygen). Do not use in
enclosed areas.
combustion appliances produce carbon monoxide (CO)
during the combustion process. This product is
designed to produce extremely minute, non-hazardous
amounts of CO if used and maintained in accordance
with all warnings and instructions. Do not block air
flow into or out of the heater.
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can’t see it and you can’t
smell it. It’s an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
unventilated or enclosed areas to avoid endangering
your life.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
3

Safety Information (continued)
4
WARNING:
WARNING:
WARNING:
WARNING:
WARNING:
CAUTION:
CAUTION:
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS
APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF
SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING
BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM.
For more information go to:
www.p65warnings.ca.gov.
CAUTION indicates an imminantly
hazardous situation which, if not avoided,
may result in minor or moderate personal
injury, or property damage.
BURN HAZARD
Alert children and adults to the hazards of high surface
Carefully supervise young children when in the vicinity
Do not hang clothing or any other flammable materials
Replace any guard or protective device removed for
Installation and repair should be done by a qualified
servicing the appliance prior to placing back in service.
from the heater, or place on or near the heater.
of the heater.
temperatures. Stay away from these surfaces to avoid
burning skin or igniting clothing.
SERVICE SAFETY
Never leave heater unattended when hot or in use.
Keep out of reach of children.
Keep all connections and fittings clean. Make sure
This product is fueled by propane gas. Propane gas
Propane gas is heavier than air and leaking propane
Store or use propane gas in compliance with local
During set up, check all connections and fittings for
Use as a heating appliance only. Never alter in any
way or use with any device.
leaks using soapy water. Never use a flame.
propane cylinder valve outlet is clean.
Certain materials or items, when stored under the
heater, will be subject to radiant heat and could be
seriously damaged.
is invisible, odorless, and flammable. An odorant is
normally added to help detect leaks and can be
described as a “rotten egg” smell. The oderant can
fade over time so leaking gas is not always detectable
by smell alone.
ordinances and codes or with ANS/NFPA 58. Turn off
propane when not in use.
will sink to the lowest level possible. It can ignite by
ignition sources including matches, lighters, sparks or
open flames of any kind many feet away from the
original leak. Use only propane gas set up for vapor
withdrawal.
service person. The heater should be inspected
before use and annually by a qualified service person.
More frequent cleaning may be required as necessary.
It is imperative that the control compartment, burners,
and circulating air passageway of the appliance be
kept clean.

5
M6 x 20Combination Hex Bolt
AA 4+1
4+1
3+1
9+1
3+1
9+1
9+1
9+1
4
1
1
AA
3/16in. Bolt
BB
DD
M6 x 10 Bolt
EE
Wing Nut
FF
M8 Washer
GG
M6 Washer
HH
Nut Cap
II
Ground Spike
JJ
Wrench
KK
AAA Battery
LL
BB DD EE FF
GG HH II JJ KK
LL
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
We warrant the frames to be free of manufacturing defects to the original purchaser for one year.
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover
commercial use, hardware, acts of nature, re, freezing, and abusive use. In addition, purchased parts are not covered under this warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
1 YEAR FRAME LIMITED WARRANTY
WHAT IS COVERED
PLANNING ASSEMBLY
HARDWARE INCLUDED
WHAT IS NOT COVERED
Pre-Assembly
NOTE: More than one person may be required to
assemble this product.
NOTE: Hardware not shown to actual size.
Reector Stud
Part PartDescription DescriptionQuantity Quantity
Contact the Customer Service Team at 1-800-986-3460 or visit HOMEDEPOT.COM/HOMEDECORATORS.

6
Head Assembly
Upper Pole
Lower Pole
Cylinder Housing
Decorative Cover
Control Knob
Manual Electric Igniter
3
1
1
A
B
C
1 D
1
1
1
E
F
G
1 H
1
I
WARNING: Failure to position the parts in
accordance with these diagrams or failure to use only
result in property damage or personal injury.
A
B
C
D
E
F
G
H
I

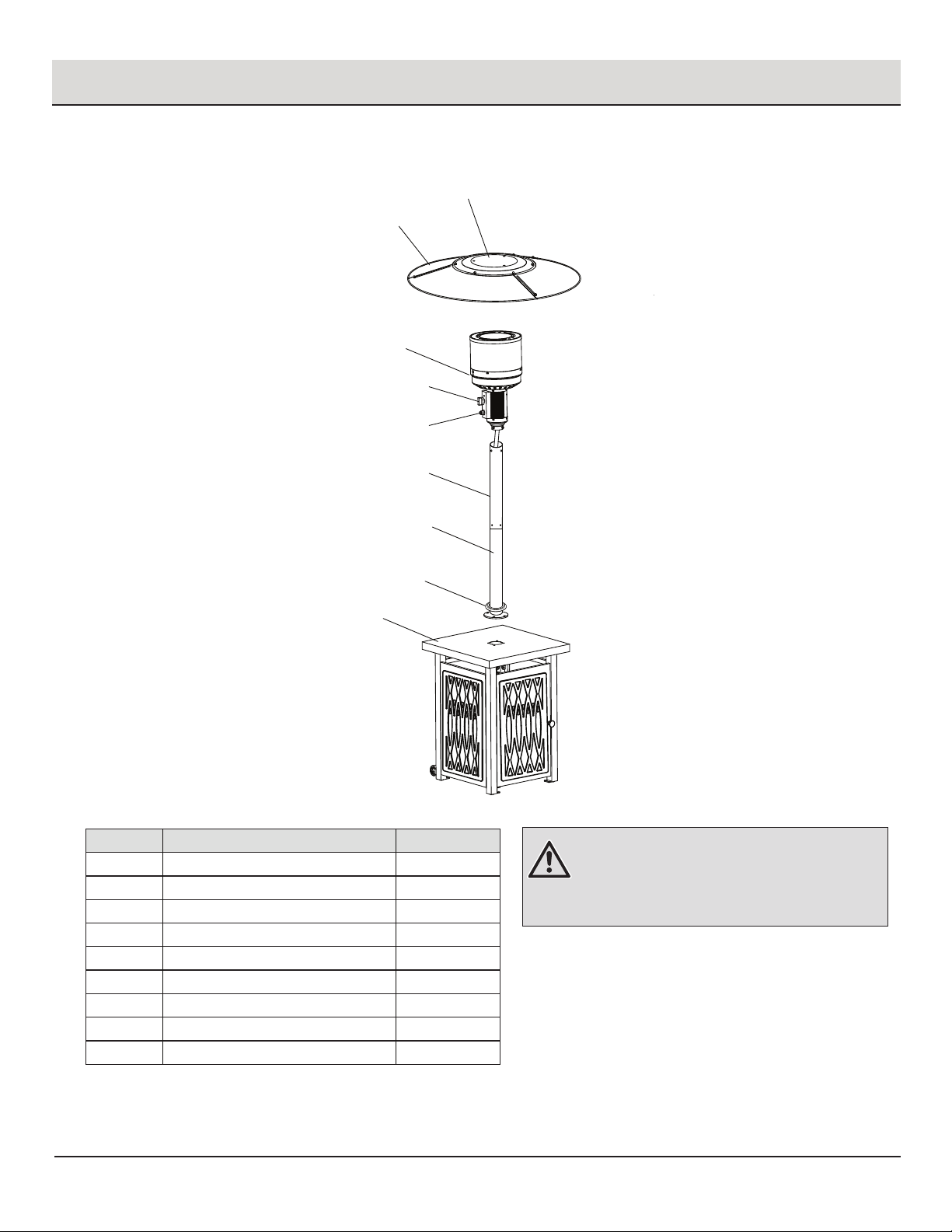

Pre-Assembly (continued)
PACKAGE CONTENTS
parts specically approved with this appliance may
Reector Panel 1
Reector Panel 2
Part Description Quantity

7
1Connecting the Upper Pole to the Lower Pole
Put the decorative cover (G) through the lower pole (E), as shown below.
Attach the upper pole (D) to the lower pole (E) using 3/16 in. bolts (BB).
Tighten all the bolts at this step.
D
E
BB
G
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly

Connecting the Reector Studs to the Head Assembly
8
2
Tighten all the studs at this step.
Attach the reector studs (DD) through M8 washers (GG) to the head assembly (C).
DD
GG
C
Assembly (continued)

9
3
Tighten all the bolts at this step.
A
B
II
HH
EE
A
II
HH
EE
B
A
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Connecting the Reector Panels 1 to the Reector Panel 2
Remove protective lm before assembling.
Attach the three reector panels 1 (A) together using M6 x 10 bolts (DD), M6 washers (GG) and nut caps (HH), as shown below.
Attach the reector panels 1 (A) to the reector panel 2 (B) using M6 x 10 bolts (DD), M6 washers (GG) and nut caps (HH),
as shown below.
Assembly (continued)

10
4
Tighten all the bolts at this step.
FF
GG
GG
C
B
Connecting the Reector Panel 2 to the Head Assembly
Attach the reector panel 2 (B) to the head assembly (C) using M8 washers (GG) and wing nuts (FF), as shown below.
Assembly (continued)

11
5
Loosen the pre-assembled M6 x 10 hex bolts (CC) out of the head assembly (C).
Insert the hose into the upper pole (D) using M6 x 10 hex bolts (CC), as shown below.
Tighten all the bolts at this step.
Connecting the HeadAssembly to the Upper Pole
CC
C
CC
C
D
E
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)

12
6

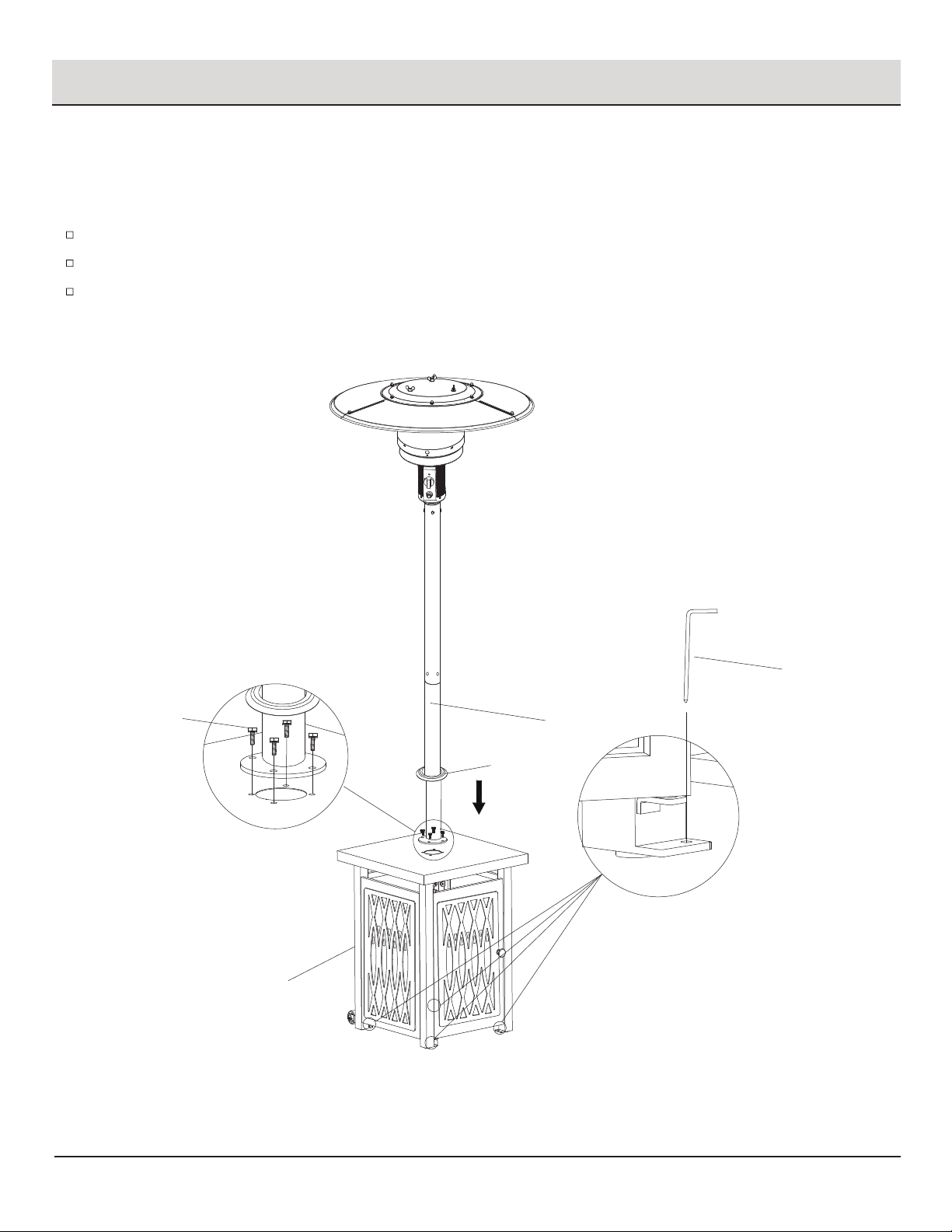

Attach the lower pole (E) to the cylinder housing (F) using M6 x 20 combination hex bolts (AA).
Once all of the bolts are in place, fully tighten the bolts.
Insert the ground spikes (JJ) through the cylinder housing (F) into the ground.
AA
F
JJ
G
E
Connecting the Lower Pole to the Cylinder Housing and Securing
the Cylinder Housing to the Ground
Assembly (continued)

13
7
The heater is now complete and ready to use.
Check the Heater
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)

Operation
14
LL

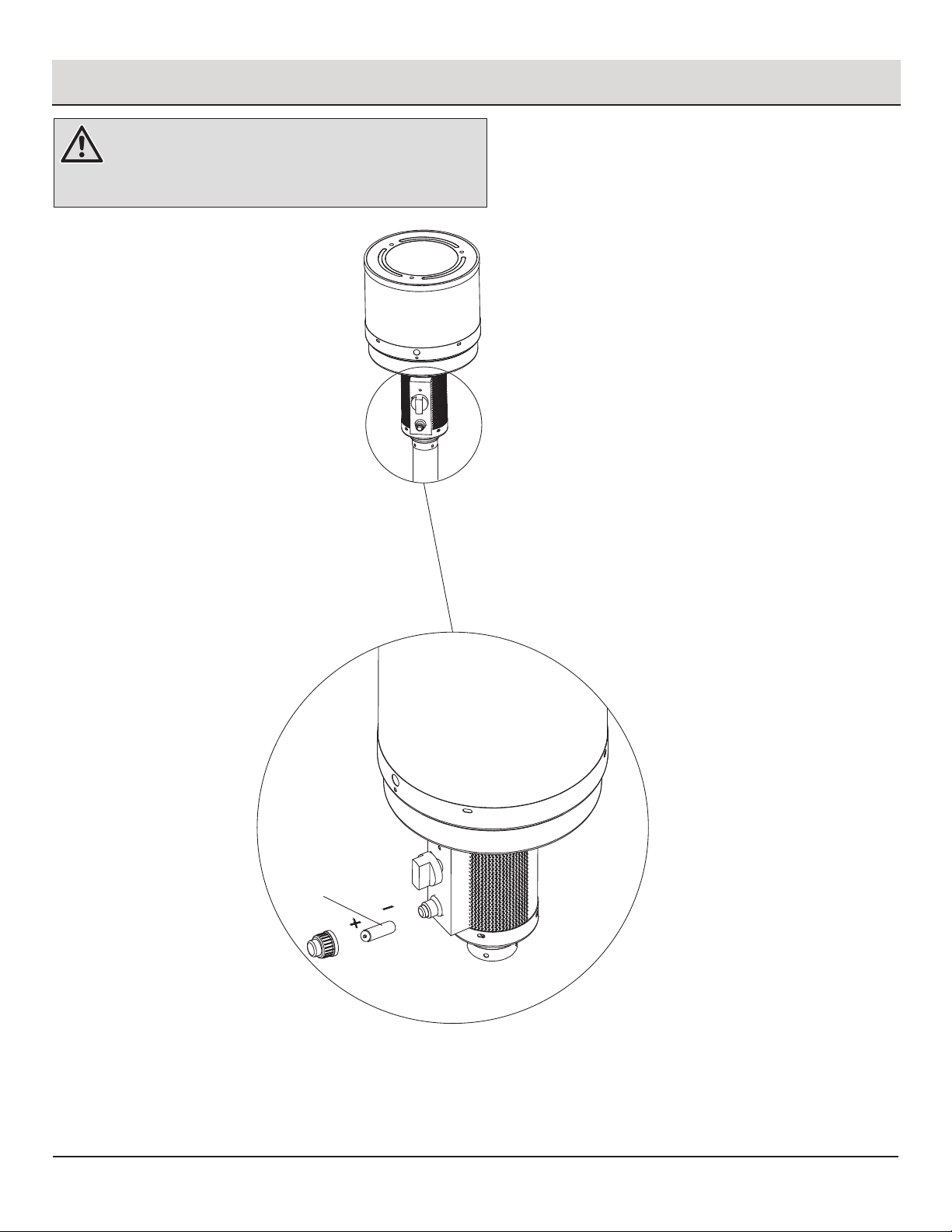

WARNING: This product contains one AAA battery (LL).
Swallowing a small battery can cause CHOKING HAZARD.
Seek immediate medical attention if battery is swallowed or
inhaled. Keep children away from the small battery.

Connecting the Hose and Regulator to Cylinder
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation (continued)

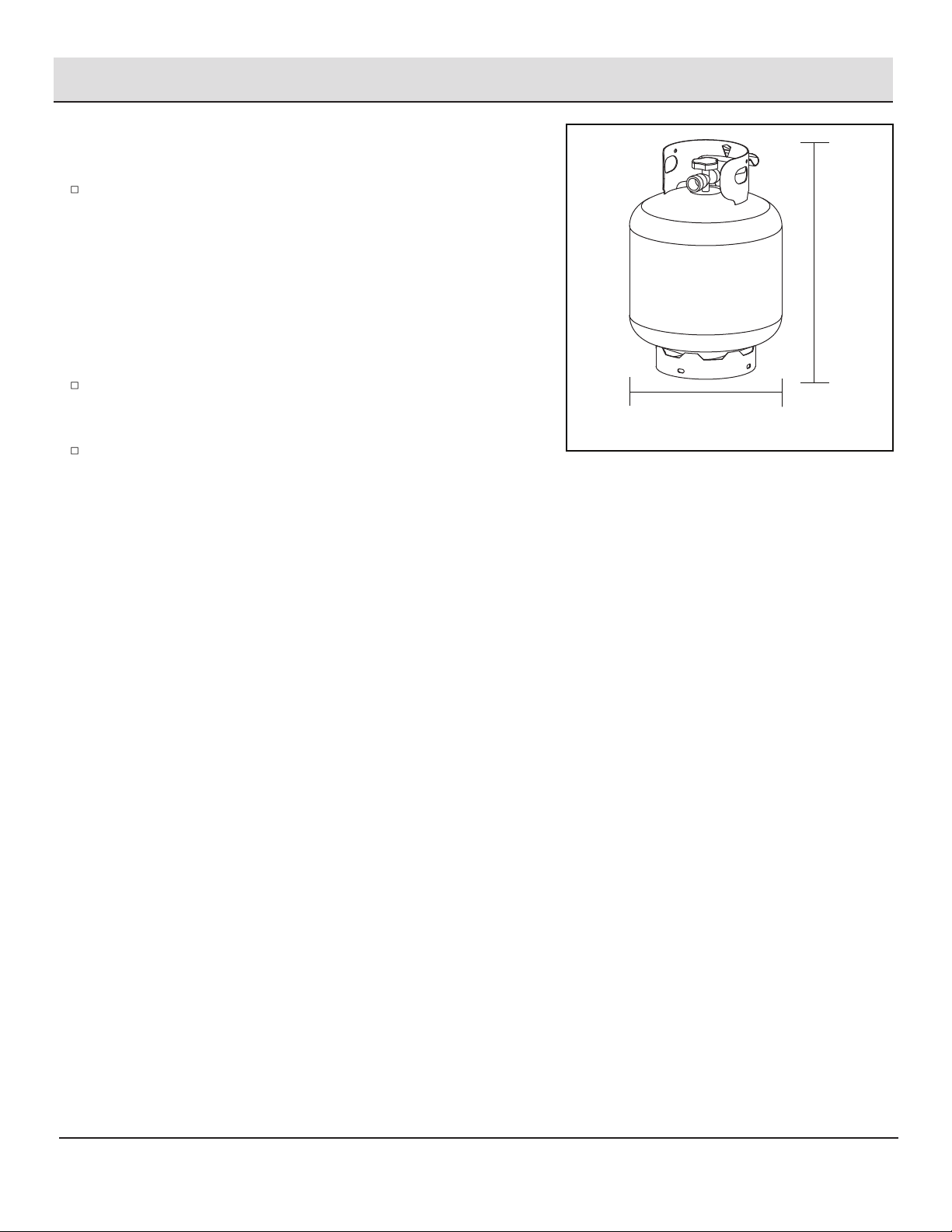

Use a standard 20 lb. propane cylinder only (approximately
Every part of the heater shall be secure against displacement and
shall be constructed to maintain a xed relationship between
essential parts under normal and reasonable conditions of handling
and usage. Parts not permanently secured shall be designed so
they cannot be incorrectly assembled and cannot be improperly
located or misaligned in removing or replacing during cleaning or
other servicing.
The propane gas and cylinder are sold separately.
Use this heater only with a propane vapor withdrawal supply
system. See chapter 5 of the standard for storage and handling of
liquied petroleum gas, ANS/NFPA 58. Your local library or re
department should have this book. Storage of an appliance indoors
is permissible only if the cylinder is disconnected and removed
from the appliance. A cylindar must be stored outdoors in a
well-ventilated area out of the reach of children. A disconnected
cylinder must have dust caps tightly installed and must not be
stored in a building, garage or any other enclosed area. The
maximum inlet gas supply pressure: 250 psi/1750kPa. The
minimum inlet gas supply pressure: 25 psi/175 kPa. Manifold
pressure with regulator provided: 11 inch W.C/2.74 kPa. The
pressure regulator and hose assembly supplied with the appliance
must be used. The installation must conform with local codes or in
the absence of local codes, with national fuel gas code, ANS
Z223.1/NFPA54, natural gas and propane Installation Code, CSA
B149.1, or propane storage and handling code, B149.2.
12.2 in./31cm.in diameter and 17.9 in./45.5cm high). 12.2 in. / 31 cm
Standard 20 lb. cylinder
17.9 in. / 45.5 cm

16
Operation (continued)
Then close the door.
Figure 1
Figure 3
Figure 4
(Figure 4)

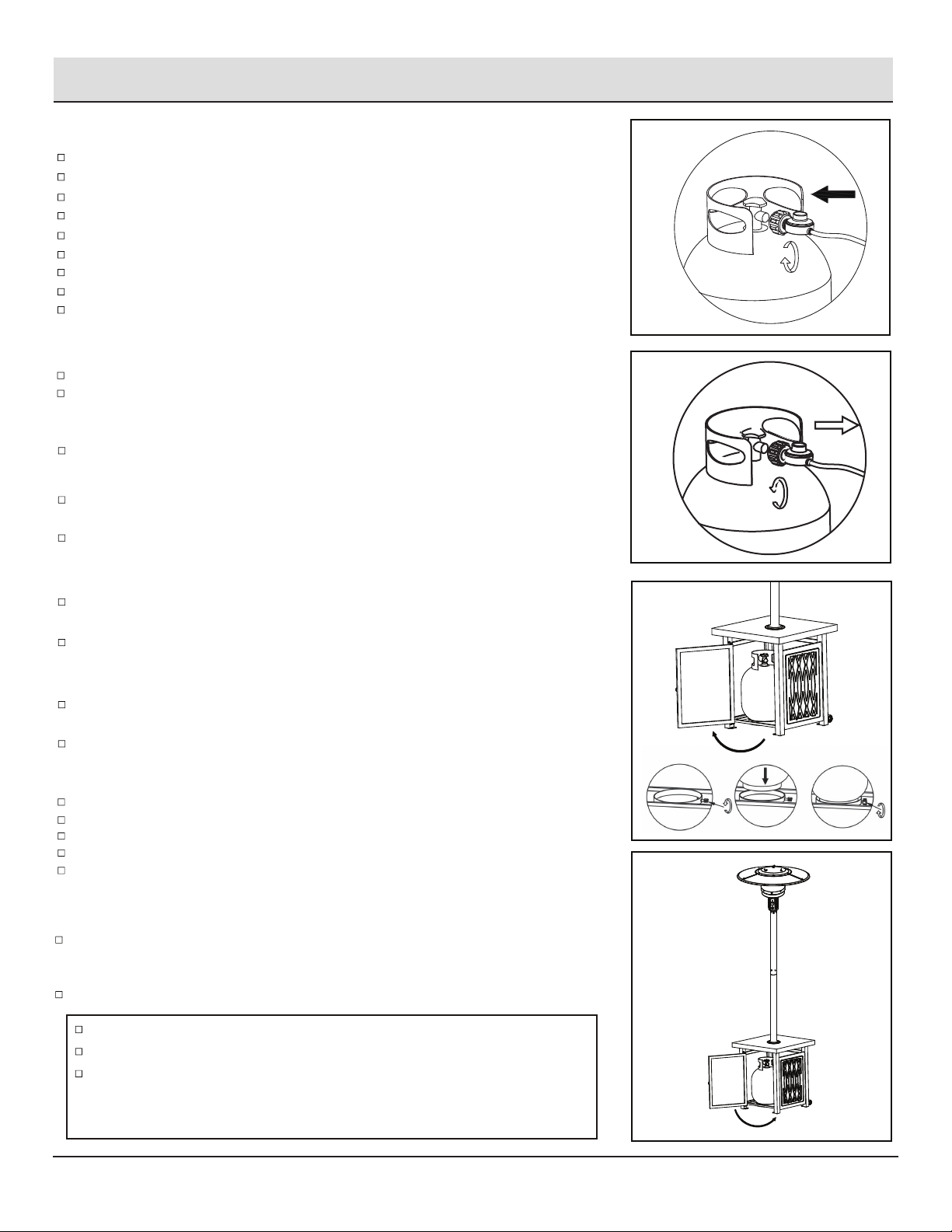

Disconnect the Propane Cylinder
Fix the Propane Cylinder
Connect the Propane Cylinder
Figure 2
The knob on the LP cylinder muct be closed.
Make sure that the knob is turned clockwise to a full stop.
The cylinder supply system must be arranged for vapor withdrawal.
Check that the control knob on the control unit is turned off.
Hold the regulator in one hand and insert the nipple into the valve outlet.
Be sure the nipple is centered in the valve outlet.
The coupling nut connects to the large outside threads on the valve outlet.
Hand-tighten the coupling nut clockwise until it comes to a full stop. (Figure 1)
Firmly tighten by hand only.
Fully close the cylinder valve by turning clockwise.
Turn the coupling nut counterclockwise until the regulator assembly
detaches. (Figure 2)
A dented, rusted or damaged propane cylinder may be hazardous and should be
checked by your cylider supplier.
Never use a propane cylinder with a damaged valve connection.
The cylinder must have a listed overlling prevention device.
The cylinder must have a connection device compatible with the connection for
the appliance.
The cylinder used must include a collar to protect the cylinder valve.
As shown in gure, x the gas cylinder in place by tightening the buttery bolt.
(Figure 3)
Never connect an unregulated propane cylinder to the heater.
The propane cylinder must be constructed and marked in accordance with the
specications for LP gas cylinders of the U.S. Department of Transportation (DOT).
Screw regulator onto gas hose.
Do not cross-thread.
Tighten securely.
Attach regulator to cylinder.
Complete attachment.
Install Cylinder
Do not store a spare propane gas cylinder under or near this appliance.
in use. Only install the type of dust cap on the cylinder valve that is provided with
the cylinder valve. Other type of caps or plugs may result in leakage or propane.
Never fill the cylinder beyond 80 percent full.
Place the dust cap on the cylinder valve outlet whenever they cylinder is not

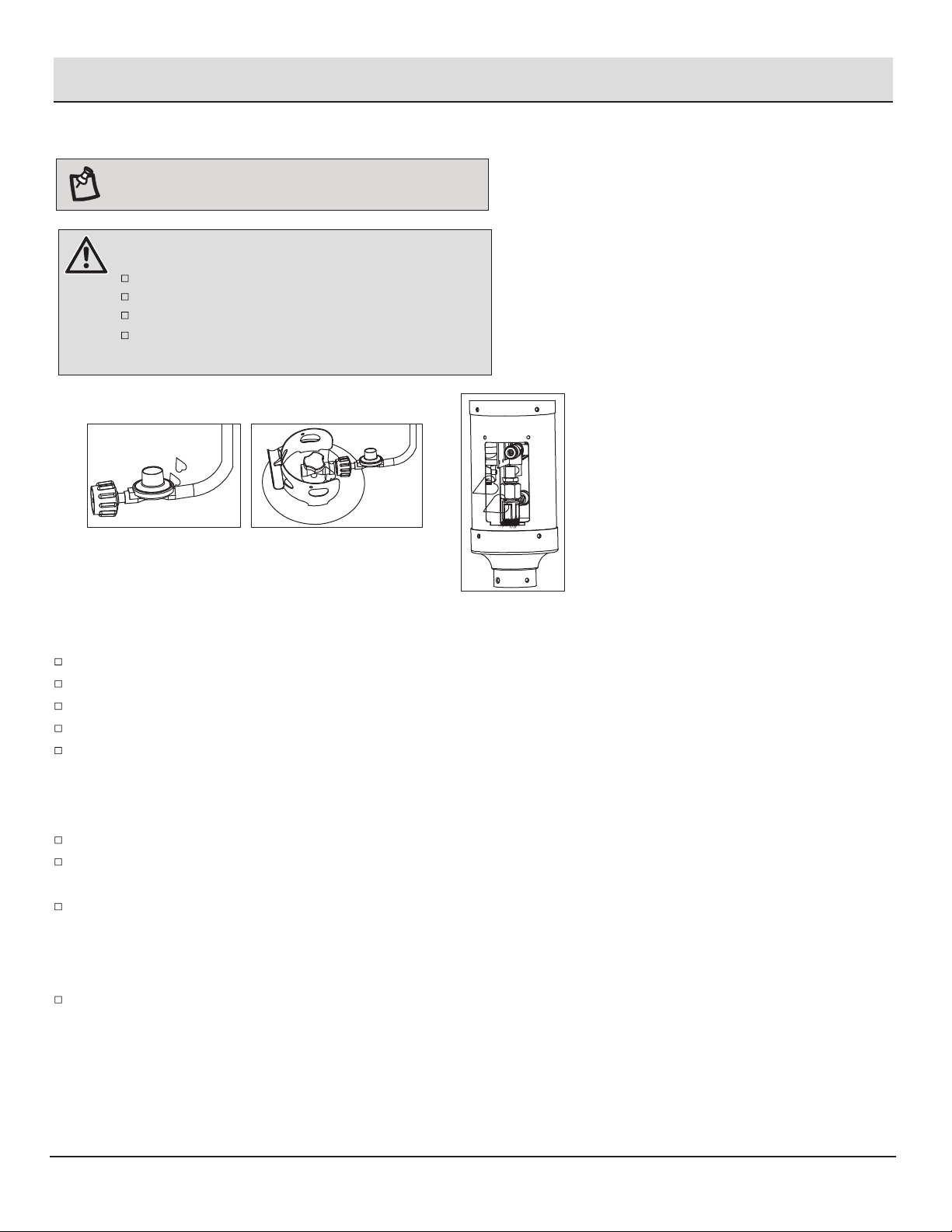

LEAK CHECK
17
Operation (continued)
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NOTE: Whenever gas connections are loosened or removed,
you must perform a complete leak test.
REGULATOR / CYLINDER
CONNECTION
HOSE / REGULATOR
CONNECTION
WARNING:
Perform all leak tests outdoors.
Extinguish all open flames.
NEVER leak test when smoking.
Do not use the heater until all connections have been
leak tested and do not leak.
Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water).
If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles continue
Complete installation.
appearing, the hose should be returned to the place of purchase.
Apply several drops of solution where hose attaches to regulator.
Apply several drops of solution where regulator connects to cylinder.
Make sure all patio heater and light valves are OFF.
Turn cylinder valve ON.
Turn cylinder valve OFF.
If bubbles appear at any connection, there is a leak.
If NO bubbles appear at any connection, the connections are secure.
If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak
check. If you continue to see bubbles after several attempts, cylinder value is defective and should be
returned to cylinder’s place of purchase.

18
Operation (continued)
This appliance shall be used only in a well-ventilated space and shall not be used in a building,
garage or any other enclosed area.
An appliance may be installed with shelter no more inclusive than:
Your heater was designed and approved for outdoor use only. DO NOT use it inside a building,
Make sure surrounding areas are free of combustible materials, gasoline, and other ammable
Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and
Be sure the cylinder cover is clear of debris. Be sure any component removed during assembly or
Heater should be thoroughly inspected before each use, and by a qualied service person at least
Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas
The pressure regulator and hose assembly supplied with the appliance must be used. Replacement
vapors or liquids.
there are no leaks.
servicing is replaced and fastened prior to starting.
replacement hose assembly specied by manufacturer.
should be leak tested. If the hose leaks, it must be replaces prior to operation. Only use the
pressure regulators and hose assemblies must be those specied by the appliance manufacturer.
annually. If relighting a hot heater, always wait at least 5 minutes.
garage, or any other enclosed area.
With walls on all sides, but with no overhead cover.
Within a partial enclosure which includes an overhead cover and no more than two side walls.
Within a partial enclosure which includes an overhead cover and three side walls, as long as 30
These side walls may be parallel, as in a breezeway, or at right angles to each other.
DANGER:
Before Turning Gas Supply ON:
Before Lighting:
DANGER:
CAUTION: Do not attempt to operate until you
have read and understand all Safety Information
in this manual and all assembly is complete and
leak checks have been performed.
CARBON MONOXIDE HAZARD
For outdoor use only. Never use inside house, or other
unventilated or enclosed areas. This heater consumes air
(oxygen). Do not use in unventilated or enclosed areas to
avoid endangering your life.
percent or more of the horizontal periphery of the enclosure is permanently open.

19
Operation (continued)
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
NOTE: Improper operation can cause injury or property damage. If burner fails to remain lit, all valves
should be closed and a waiting period of at least 5 minutes should pass before attempting to light.
NOTE: The burner may be noisy when initially turned on.
DANGER:
CAUTION: Avoid inhaling fumes emitted from the heater’s rst use. Smoke and odor from the
burning of oils used in manufacturing will appear. Both smoke and odor will dissipate after
approximately 30 minutes. The heater should NOT produce thick black smoke.
Turn on the valve on the gas cylinder.
Press and turn the control knob to HIGH (maximum) position (counter-clockwise 90°). (Figure 1)
If the burner ame goes out, turn off the heater and wait at least 5 minutes or more to let the gas
Holding down the control knob, press the igniter button several times until the main ame is ignited.
Turn the control knob to LOW (minimum) and leave it there for 5 minutes or more before turning the
Release the control knob 10 seconds after the ignition.
knob to the desired temperature setting. (Figure 2)
dissipate before re-lighting to avoid gas explosion.
Repeat steps 2 to 4.
Lighting:
Turn the knob to the level of heat desired.
If you experience any ignition problem please consult “Troubleshooting” on page 24.
Normal Abnormal

20
Operation (continued)
WARNING:
WARNING:
Emitter screen will become bright red due to intense heat.
The color is more visible at night.
Burner will display tongues of blue and yellow ame.
These ames should not be yellow or produce thick black smoke, indicating an obstruction of airow through
the burners.
The ame should be blue with straight yellow tops.
If excessive yellow ame is detected, turn off heater and consult “Troubleshooting” on page 24.
Turn control knob to OFF.
Repeat the “Lighting” steps on prior page.
NOTE: After use, some discoloration of the emitter
screen is normal.
FOR YOUR SAFETY
FOR YOUR SAFETY
Be careful when attempting to manually ignite this
heater. Holding in the control knob for more than 10
seconds before igniting the gas will cause a ball of
flame upon ignition.
Heater will be hot after use. Handle with extreme care.
Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.
For a safe and pleasurable heating experience, perform this check before each use.
I am familiar with entire owner’s manual and understand all precautions noted.
All components are properly assembled, intact and operable.
No alterations havebeen made.
All gas connections are secure and do not leak.
Wind velocity is below 10 mph.
Unit will operate at reduced efciency below 40ºF.
Heater is outdoors (outside any enclosure).
There is adequate fresh air ventilation.
When Heater is ON:
Re-lighting:
Shut Down:
Operation Checklist
Before Operating:
