Home Styles 5670-10 User manual
5670-10
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Chair
A.
Seat
1 pc.
B.
Side
1 pc.
C.
Side
1 pc.
D.
Back
1 pc.
E.
Seat Cushion
1 pc.
F.
Back Cushion
1 pc.
styles Customer Service: www.homestylesfurniture.com,home
Hardware List
Part List
Small
Hex Wrench
1 pc.
Hex Wrench
1 pc.
Spring Washer
8 pcs. (+1 extra)
M8x50
Head Cap Bolt (large)
4 pcs. (+1 extra)
M6x45
Head Cap Bolt
6 pcs. (+1 extra)
M6x30
Head Cap Bolt (short)
2 pcs. (+1 extra)
Flat Washer
8 pcs. (+1 extra)
Wood Plug
4 pcs. (+1 extra)
Assembly Instructions 2/3
A
B
Head Cap Bolt
Spring Washer
Flat Washer
Flat Washer
Spring Washer
Head Cap Bolt (short)
Head Cap Bolt (large)

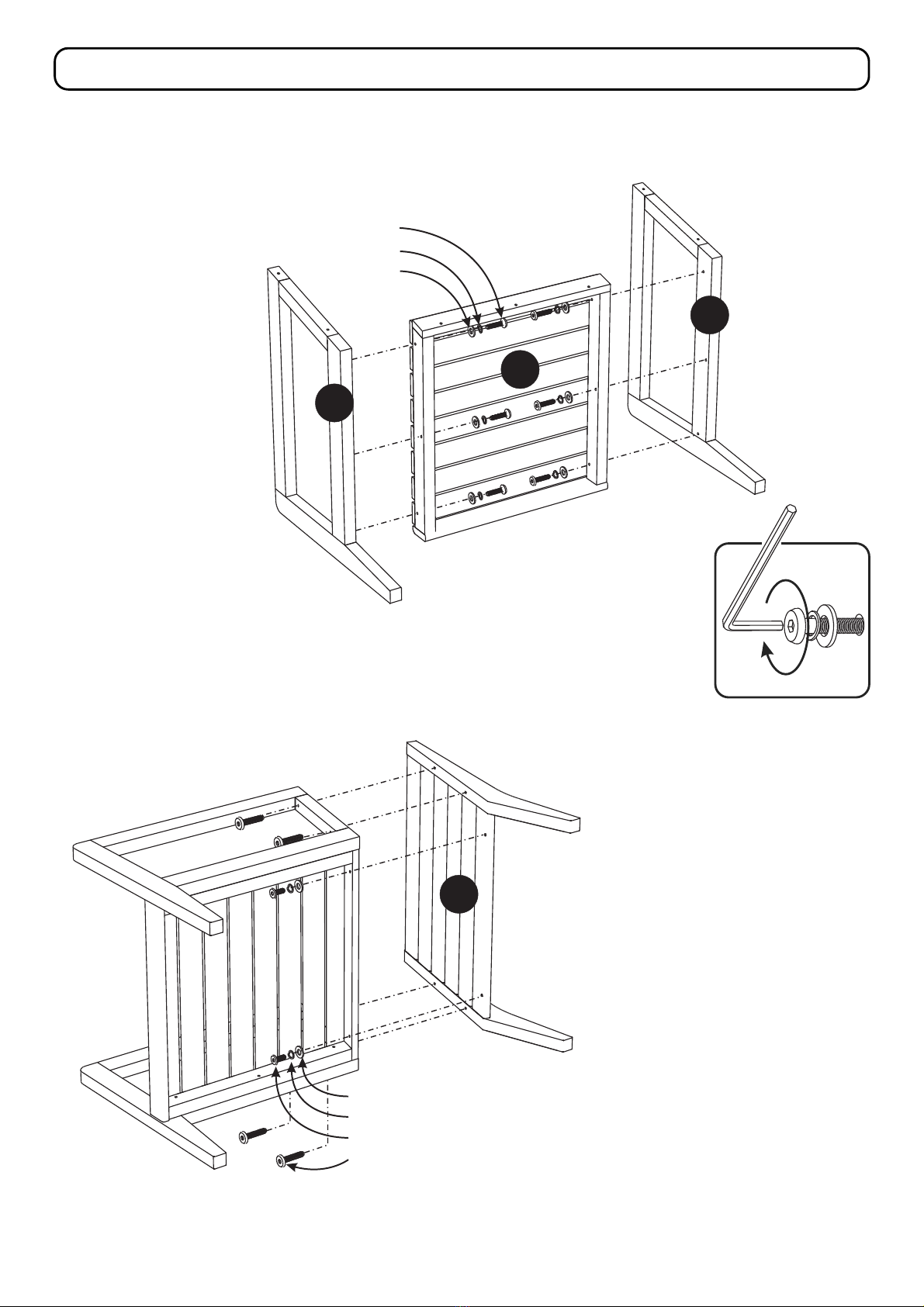

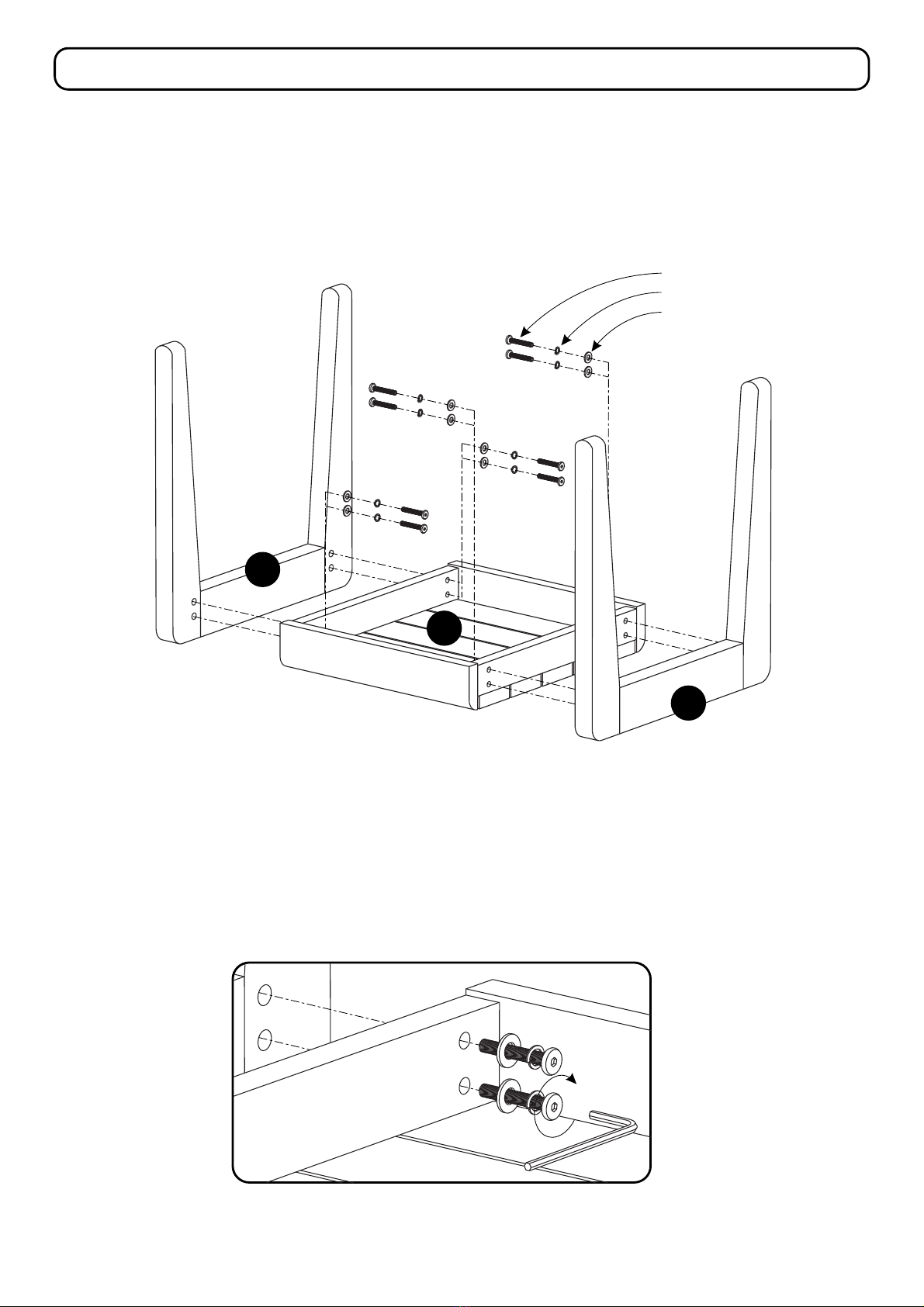

STEP 1
Attach Side (B) and (C) to Seat (A) with Head Cap Bolts, Spring Washers
and Flat Washers, tightening bolts only halfway.
(See Figure 1) Figure 1
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the bolts until each part is properly assembled.
Keep Hex Wrench as the bolts may need to be tightened in the future.
C
STEP 2
Attach Back (D) to unit
with Head Cap Bolts (large),
Head Cap Bolts (short), Spring Washers and
Flat Washers, tightening bolts only halfway.
Tighten all bolts used in Steps 1 and 2.
D
Assembly Instructions /33
E
F

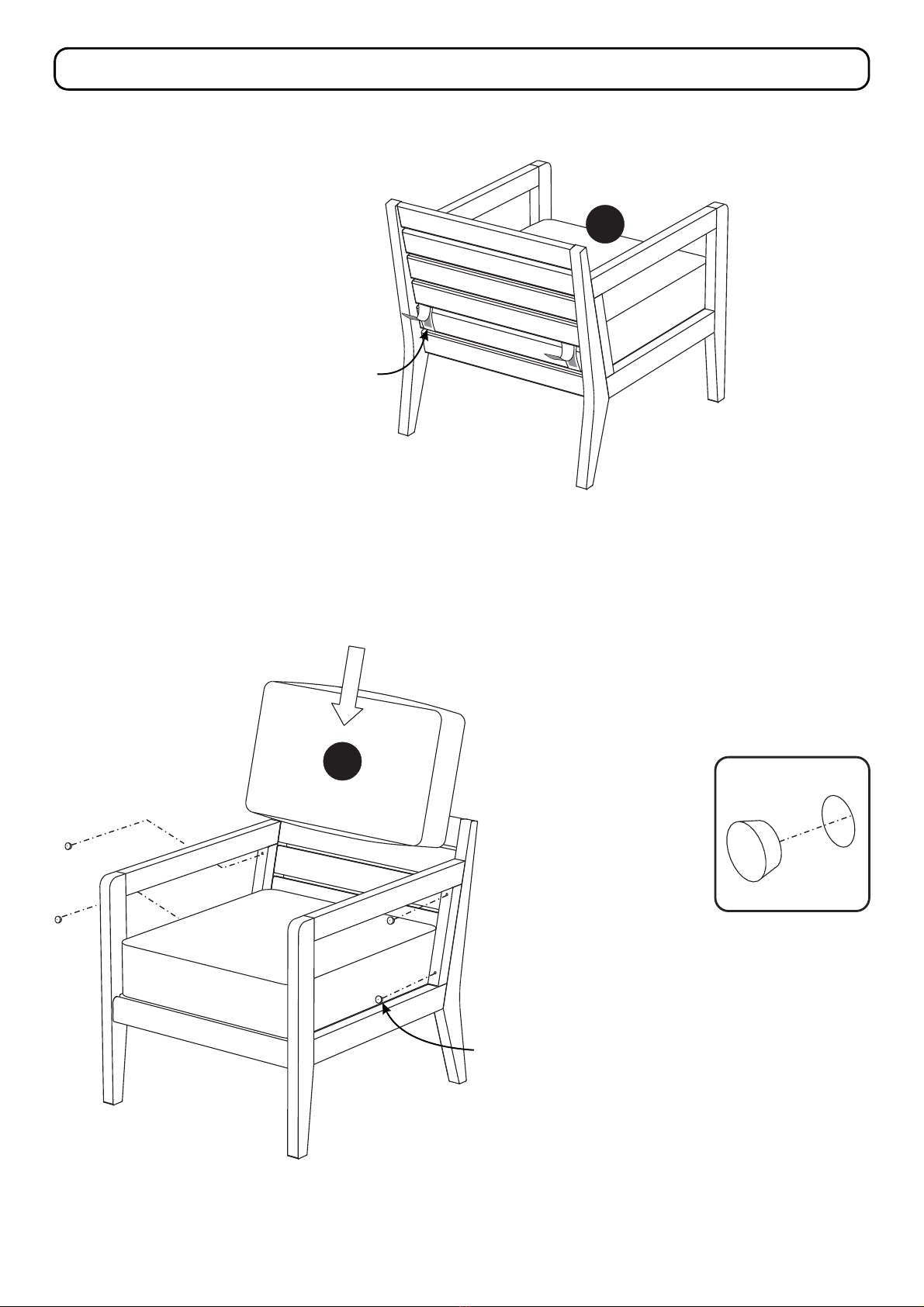

STEP 3
Use velcro on Seat Cushion (E) to attach to unit.
Velcro
STEP 4
Turn unit to its upright position.
Slide Back Cushion (F) into position.
Cover holes with Wood Plugs. (See Figure 3)
Figure 3
Wood Plug
Advisory Notes
·Do not use power tools above 8 volts to assemble.
·Periodic structural checks of this furniture should be undertaken. Do not use if there are
any doubts about its fitness for purpose.
·Exercise care so as to not trap fingers in any of the hinged parts of this furniture.
·Always use on firm level ground, ensuring that all legs remain in contact with the ground.
·Do not stand on a chair or sit or stand on any other item.
·Do not let children play with this furniture.
·This furniture should be stored under cover during periods of adverse weather (wet or
cold) and during winter. Clean and dry thoroughly before storage.
Tannin Exudation
Tannin is a naturally occurring substance which may exude from the surface of some wood
species and may stain the surface of hard areas such as patios or decks. To clean tannin marks
use a proprietary cleaning product or a water-based wood restorer containing oxalic acid. Stains
must be removed within 1-2 days of them occurring. Care should be exercised to follow the
manufacturer's guidelines of the cleaner used and test a small area first to determine its
effectiveness. This is especially important on wooden decking areas where the existing surface
finish may be lifted due to the application of the cleaning agent. If decking has become
discolored from the cleaning, it can be restored with a suitable wood finish.
Maintenance
In order to maintain the appearance of the wood, regular coatings of linseed oil must be applied.
The frequency will depend on the weather conditions experienced.
·Refer to the manufacturer’s guidelines of the linseed oil used.
·Apply the linseed oil with a clean cloth, wiping it directly onto the wood surface.
·Treat all surfaces of the furniture. Ensure that any hidden surfaces, such as those exposed
when the furniture is turned upside down, are adequately treated. Care should be given to
wipe the end grain, to all joints and to crevices that may have been caused by damage.
·Let the surface dry out. This can take 4-12 hours depending on weather conditions.
·Repeat the above steps with at least 2 more coats of oil. Extra coats may leave a semi-
gloss sheen once the oil has dried, but excess oil can be wiped off with a clean cloth.
·IMPORTANT: Cloths with linseed oil may be a fire hazard. Immediately after use, saturate
all cloths used for applying linseed oil with water and dispose of safely outside the home.
If left untreated, this furniture will turn a grayish color. Light sanding can restore the original color
after which linseed oil can be applied. Fine surface cracks may occur over time from weathering,
but these won't affect the structural integrity of the furniture.
CARE INSTRUCTIONS
homestyles will provide replacements free of charge for missing or damaged parts within 1 year of purchase.
Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer,
homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor
are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
styles Customer Service: www.homestylesfurniture.com,home
styles Customer Service: www.homestylesfurniture.com,home
5670-12
Low Lounge Chair
styles Customer Service: www.homestylesfurniture.com,home
C.
Left Arm
1 pc.

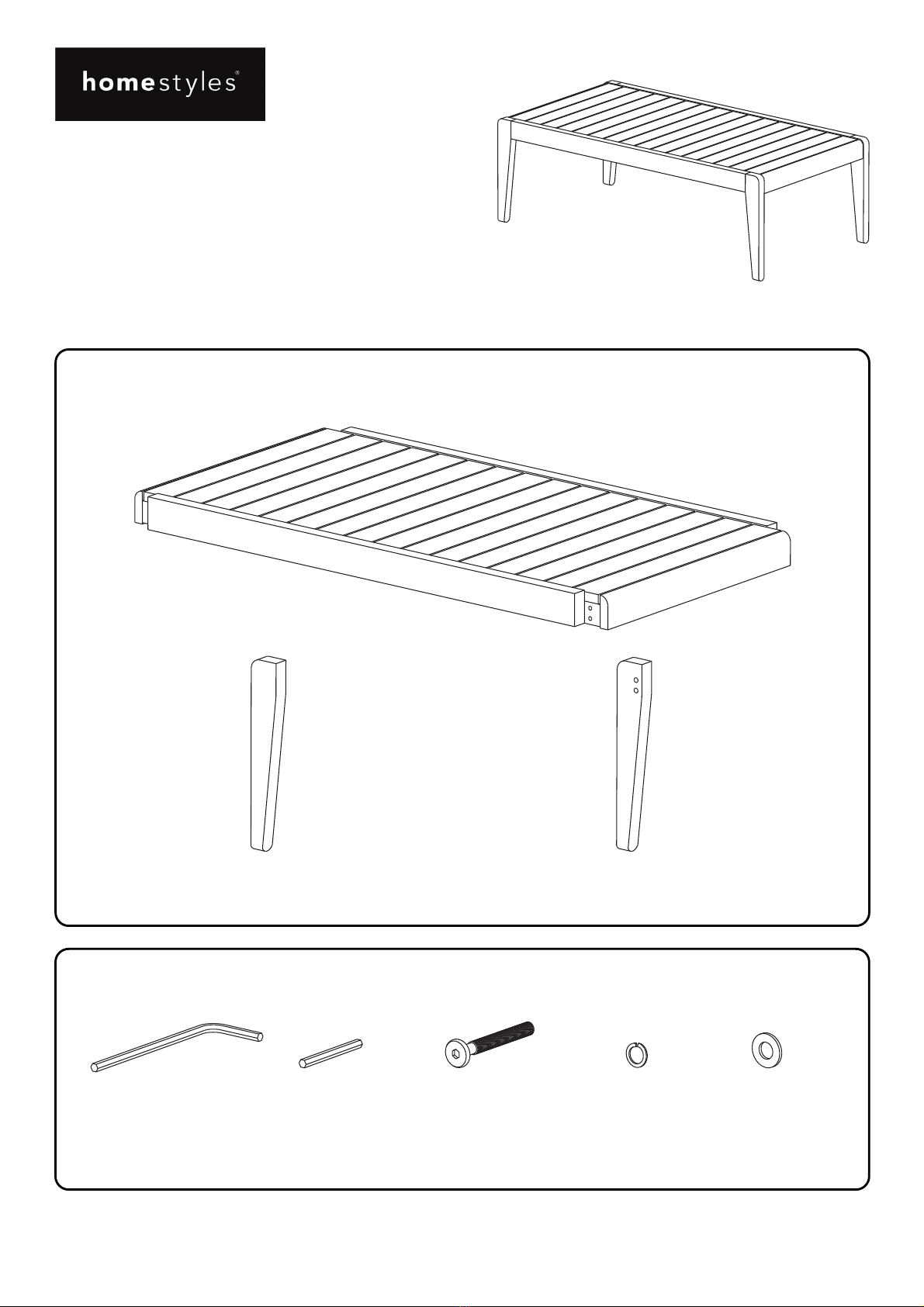

Part List
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Hardware List
Small Hex Wrench
1 pc.
Hex Wrench
1 pc.
Spring Washer
10 pcs. (+1 extra)
A.
Back Frame
1 pc.
B.
Seat Frame
1 pc.
D.
Right Arm
1 pc.
Flat Washer
10 pcs. (+1 extra)
M6x60
Head Cap Bolt (long)
4 pcs. (+1 extra)
M6x 54
Head Cap Bolt
6 pcs. (+1 extra)
Assembly Instructions 2/3
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the screws until each part is properly assembled.
Keep Hex Wrench as the bolts may need to be tightened in the future.

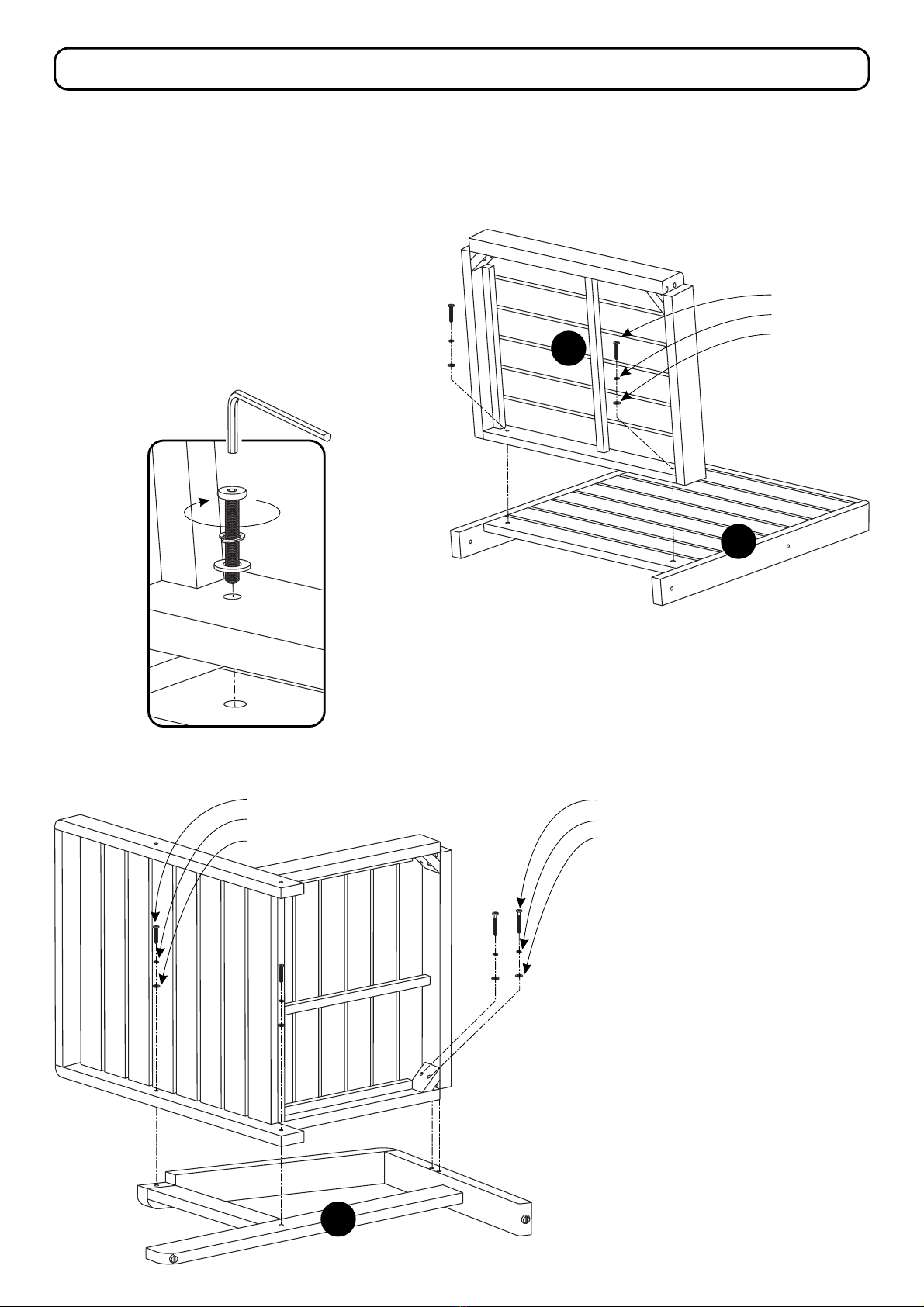

STEP 2
Attach to Right Arm ( ) withunit D
Head Cap Bolts, Head Cap Bolts (long),
Spring Washers and Flat Washers,
tightening bolts only halfway.
STEP 1
Attach (B) to ( )Seat Frame Back Frame A
with Head Cap Bolts, Spring Washers
and Flat Washers, tightening bolts
only halfway.
(See Figure 1)
Figure 1
B
A
Head Cap Bolt
Spring Washer
Flat Washer
D
Head Cap Bolt
Spring Washer
Flat Washer
Head Cap Bolt (long)
Spring Washer
Flat Washer
STEP 4
Turn unit to its upright position.
Assembly Instructions 3/3
STEP 3
Attach to Left Arm withunit (C)
Head Cap Bolts, Head Cap Bolts (long),
Spring Washers and Flat Washers,
tightening bolts only halfway.
Tighten all bolts used in
Step 1, 2 and 3.
C
Flat Washer
Spring Washer
Head Cap Bolt
Flat Washer
Spring Washer
Head Cap Bolt (long)
Advisory Notes
·Do not use power tools above 8 volts to assemble.
·Periodic structural checks of this furniture should be undertaken. Do not use if there are
any doubts about its fitness for purpose.
·Exercise care so as to not trap fingers in any of the hinged parts of this furniture.
·Always use on firm level ground, ensuring that all legs remain in contact with the ground.
·Do not stand on a chair or sit or stand on any other item.
·Do not let children play with this furniture.
·This furniture should be stored under cover during periods of adverse weather (wet or
cold) and during winter. Clean and dry thoroughly before storage.
Tannin Exudation
Tannin is a naturally occurring substance which may exude from the surface of some wood
species and may stain the surface of hard areas such as patios or decks. To clean tannin marks
use a proprietary cleaning product or a water-based wood restorer containing oxalic acid. Stains
must be removed within 1-2 days of them occurring. Care should be exercised to follow the
manufacturer's guidelines of the cleaner used and test a small area first to determine its
effectiveness. This is especially important on wooden decking areas where the existing surface
finish may be lifted due to the application of the cleaning agent. If decking has become
discolored from the cleaning, it can be restored with a suitable wood finish.
Maintenance
In order to maintain the appearance of the wood, regular coatings of linseed oil must be applied.
The frequency will depend on the weather conditions experienced.
·Refer to the manufacturer’s guidelines of the linseed oil used.
·Apply the linseed oil with a clean cloth, wiping it directly onto the wood surface.
·Treat all surfaces of the furniture. Ensure that any hidden surfaces, such as those exposed
when the furniture is turned upside down, are adequately treated. Care should be given to
wipe the end grain, to all joints and to crevices that may have been caused by damage.
·Let the surface dry out. This can take 4-12 hours depending on weather conditions.
·Repeat the above steps with at least 2 more coats of oil. Extra coats may leave a semi-
gloss sheen once the oil has dried, but excess oil can be wiped off with a clean cloth.
·IMPORTANT: Cloths with linseed oil may be a fire hazard. Immediately after use, saturate
all cloths used for applying linseed oil with water and dispose of safely outside the home.
If left untreated, this furniture will turn a grayish color. Light sanding can restore the original color
after which linseed oil can be applied. Fine surface cracks may occur over time from weathering,
but these won't affect the structural integrity of the furniture.
CARE INSTRUCTIONS
homestyles will provide replacements free of charge for missing or damaged parts within 1 year of purchase.
Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer,
homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor
are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
styles Customer Service: www.homestylesfurniture.com,home
styles Customer Service: www.homestylesfurniture.com,home

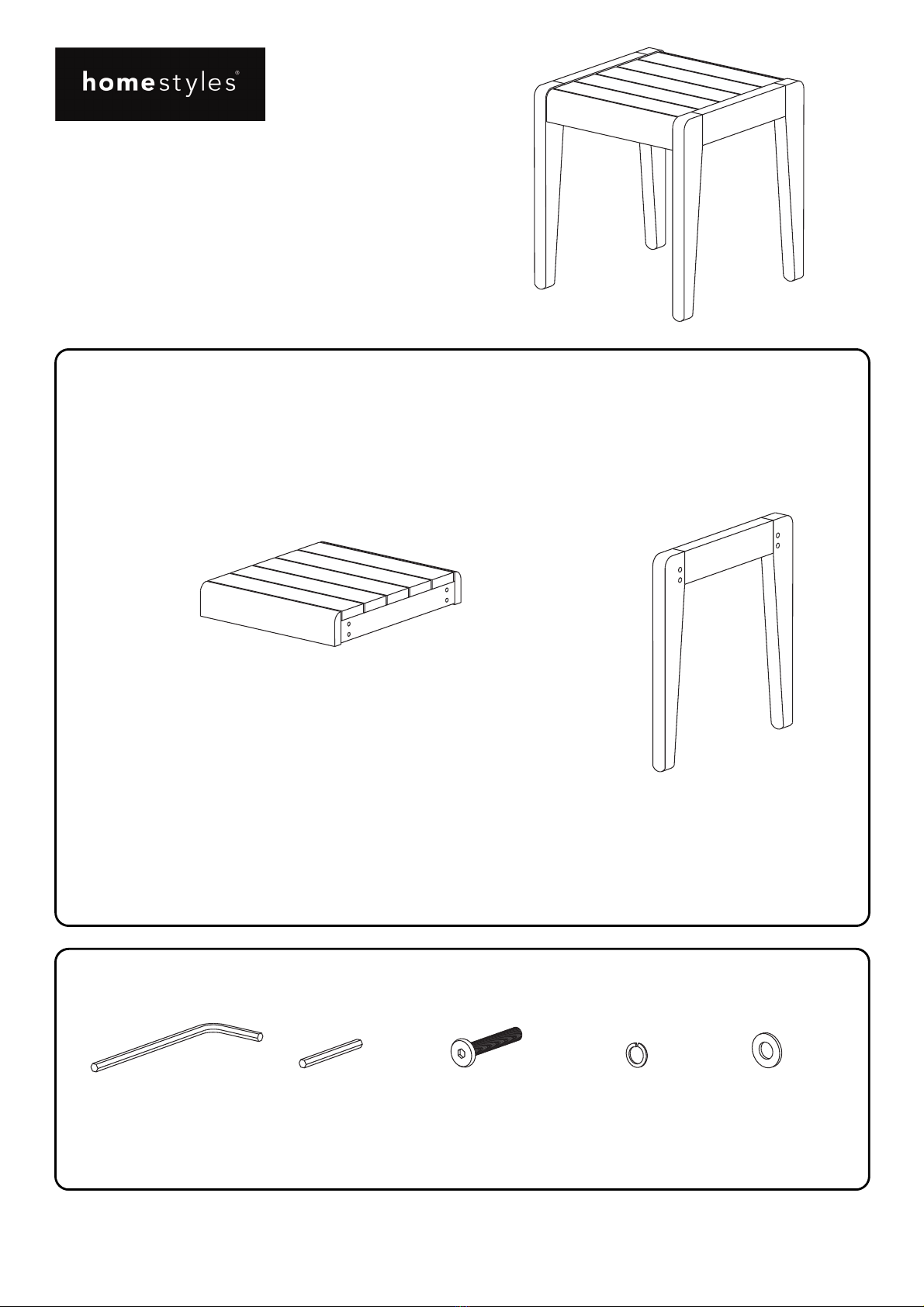

5670-20
End Table
styles Customer Service: www.homestylesfurniture.com,home
Part List
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Hardware List
Small Hex Wrench
1 pc.
Hex Wrench
1 pc.
Spring Washer
8 pcs. (+1 extra)
B.
FrameSide
2 pcs.
Flat Washer
8 pcs. (+1 extra)
M6x40
Head Cap Bolt
8 pcs. (+1 extra)
A.
Top
1 pc.
Assembly Instructions 2/3
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the screws until each part is properly assembled.
Keep Hex Wrench as the bolts may need to be tightened in the future.
STEP 1
Attach s (B) to ( ) with Head Cap Bolts, Spring Washers and Flat Washers,Side Frame Top A
tightening bolts only halfway. (See Figure 1)
Tighten all bolts.
Figure 1
Head Cap Bolt
Spring Washer
Flat Washer
B
A
B
Assembly Instructions 3/3

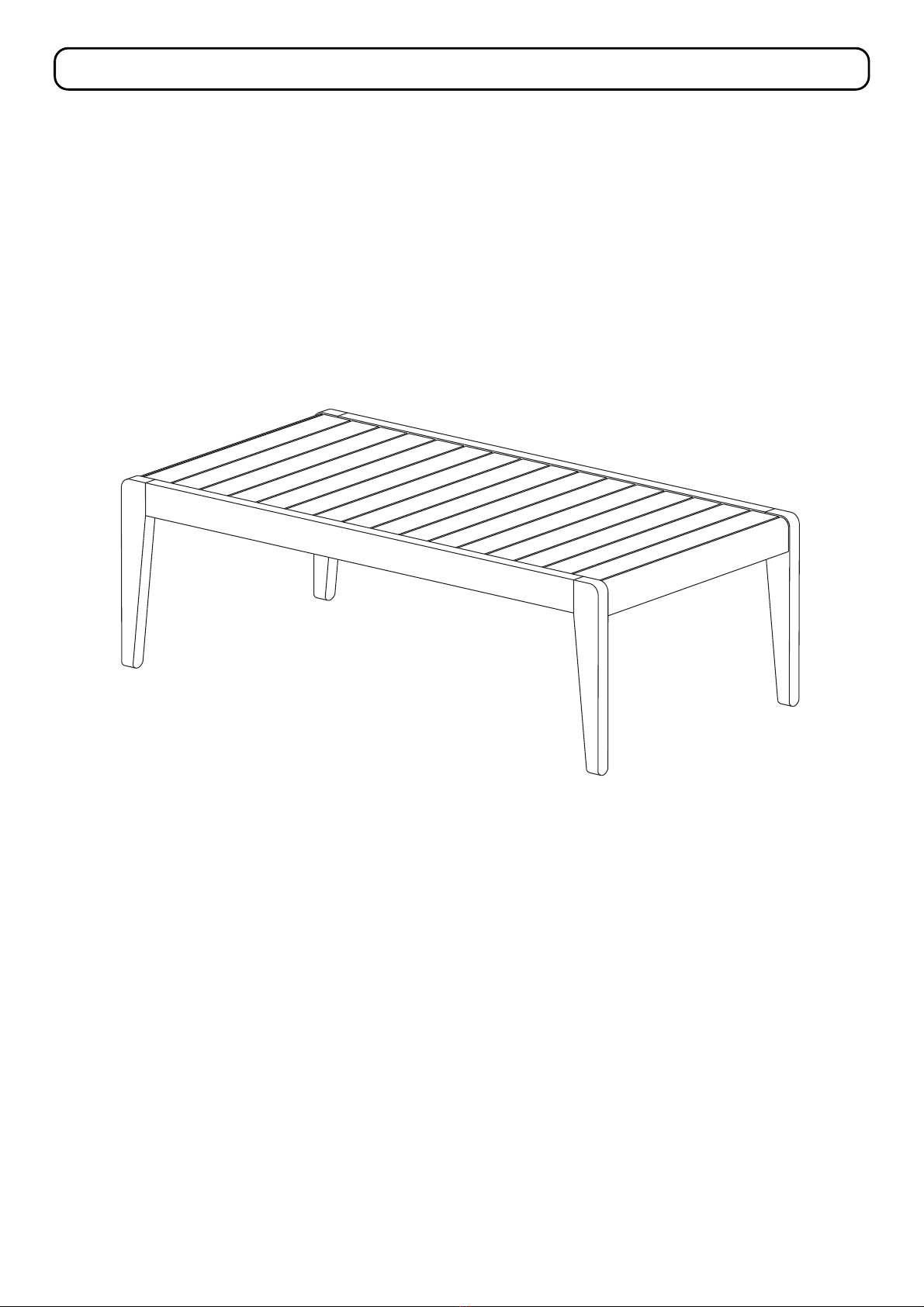

STEP 2
Turn unit to its upright position.
Advisory Notes
·Do not use power tools above 8 volts to assemble.
·Periodic structural checks of this furniture should be undertaken. Do not use if there are
any doubts about its fitness for purpose.
·Exercise care so as to not trap fingers in any of the hinged parts of this furniture.
·Always use on firm level ground, ensuring that all legs remain in contact with the ground.
·Do not stand on a chair or sit or stand on any other item.
·Do not let children play with this furniture.
·This furniture should be stored under cover during periods of adverse weather (wet or
cold) and during winter. Clean and dry thoroughly before storage.
Tannin Exudation
Tannin is a naturally occurring substance which may exude from the surface of some wood
species and may stain the surface of hard areas such as patios or decks. To clean tannin marks
use a proprietary cleaning product or a water-based wood restorer containing oxalic acid. Stains
must be removed within 1-2 days of them occurring. Care should be exercised to follow the
manufacturer's guidelines of the cleaner used and test a small area first to determine its
effectiveness. This is especially important on wooden decking areas where the existing surface
finish may be lifted due to the application of the cleaning agent. If decking has become
discolored from the cleaning, it can be restored with a suitable wood finish.
Maintenance
In order to maintain the appearance of the wood, regular coatings of linseed oil must be applied.
The frequency will depend on the weather conditions experienced.
·Refer to the manufacturer’s guidelines of the linseed oil used.
·Apply the linseed oil with a clean cloth, wiping it directly onto the wood surface.
·Treat all surfaces of the furniture. Ensure that any hidden surfaces, such as those exposed
when the furniture is turned upside down, are adequately treated. Care should be given to
wipe the end grain, to all joints and to crevices that may have been caused by damage.
·Let the surface dry out. This can take 4-12 hours depending on weather conditions.
·Repeat the above steps with at least 2 more coats of oil. Extra coats may leave a semi-
gloss sheen once the oil has dried, but excess oil can be wiped off with a clean cloth.
·IMPORTANT: Cloths with linseed oil may be a fire hazard. Immediately after use, saturate
all cloths used for applying linseed oil with water and dispose of safely outside the home.
If left untreated, this furniture will turn a grayish color. Light sanding can restore the original color
after which linseed oil can be applied. Fine surface cracks may occur over time from weathering,
but these won't affect the structural integrity of the furniture.
CARE INSTRUCTIONS
homestyles will provide replacements free of charge for missing or damaged parts within 1 year of purchase.
Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer,
homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor
are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
styles Customer Service: www.homestylesfurniture.com,home
styles Customer Service: www.homestylesfurniture.com,home
5670-21
Coffee Table
styles Customer Service: www.homestylesfurniture.com,home
Part List
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Hardware List
Small Hex Wrench
1 pc.
Hex Wrench
1 pc.
Spring Washer
8 pcs. (+1 extra)
C.
Leg
2s.pc
Flat Washer
8 pcs. (+1 extra)
Mx860
Head Cap Bolt
8 pcs. (+1 extra)
A.
Top
1 pc.
B.
Leg
2s.pc
Assembly Instructions 2/3
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the screws until each part is properly assembled.
Keep Hex Wrench as the bolts may need to be tightened in the future.
STEP 1
Attach (B) (C) to ( ) with Head Cap Bolts, Spring Washers and Flat Washers,Legs and Top A
tightening bolts only halfway. (See Figure 1)
Tighten all bolts.
Figure 1
Head Cap Bolt
Spring Washer
Flat Washer
C
B
AB
C
Assembly Instructions 3/3
STEP 2
Turn unit to its upright position.
Advisory Notes
·Do not use power tools above 8 volts to assemble.
·Periodic structural checks of this furniture should be undertaken. Do not use if there are
any doubts about its fitness for purpose.
·Exercise care so as to not trap fingers in any of the hinged parts of this furniture.
·Always use on firm level ground, ensuring that all legs remain in contact with the ground.
·Do not stand on a chair or sit or stand on any other item.
·Do not let children play with this furniture.
·This furniture should be stored under cover during periods of adverse weather (wet or
cold) and during winter. Clean and dry thoroughly before storage.
Tannin Exudation
Tannin is a naturally occurring substance which may exude from the surface of some wood
species and may stain the surface of hard areas such as patios or decks. To clean tannin marks
use a proprietary cleaning product or a water-based wood restorer containing oxalic acid. Stains
must be removed within 1-2 days of them occurring. Care should be exercised to follow the
manufacturer's guidelines of the cleaner used and test a small area first to determine its
effectiveness. This is especially important on wooden decking areas where the existing surface
finish may be lifted due to the application of the cleaning agent. If decking has become
discolored from the cleaning, it can be restored with a suitable wood finish.
Maintenance
In order to maintain the appearance of the wood, regular coatings of linseed oil must be applied.
The frequency will depend on the weather conditions experienced.
·Refer to the manufacturer’s guidelines of the linseed oil used.
·Apply the linseed oil with a clean cloth, wiping it directly onto the wood surface.
·Treat all surfaces of the furniture. Ensure that any hidden surfaces, such as those exposed
when the furniture is turned upside down, are adequately treated. Care should be given to
wipe the end grain, to all joints and to crevices that may have been caused by damage.
·Let the surface dry out. This can take 4-12 hours depending on weather conditions.
·Repeat the above steps with at least 2 more coats of oil. Extra coats may leave a semi-
gloss sheen once the oil has dried, but excess oil can be wiped off with a clean cloth.
·IMPORTANT: Cloths with linseed oil may be a fire hazard. Immediately after use, saturate
all cloths used for applying linseed oil with water and dispose of safely outside the home.
If left untreated, this furniture will turn a grayish color. Light sanding can restore the original color
after which linseed oil can be applied. Fine surface cracks may occur over time from weathering,
but these won't affect the structural integrity of the furniture.
CARE INSTRUCTIONS
homestyles will provide replacements free of charge for missing or damaged parts within 1 year of purchase.
Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer,
homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor
are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
styles Customer Service: www.homestylesfurniture.com,home
styles Customer Service: www.homestylesfurniture.com,home
5670-22
Sofa Table
styles Customer Service: www.homestylesfurniture.com,home
Part List
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Hardware List
Small Hex Wrench
1 pc.
Hex Wrench
1 pc.
Spring Washer
1 pcs. (+1 extra)0
C.
Shelf
1 pc.
B.
FrameSide
2 pcs.
Flat Washer
1 pcs. (+1 extra)0
M6x 54
Head Cap Bolt
1 pcs. (+1 extra)0
A.
Top
1 pc.
Assembly Instructions 2/3
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the screws until each part is properly assembled.
Keep Hex Wrench as the bolts may need to be tightened in the future.

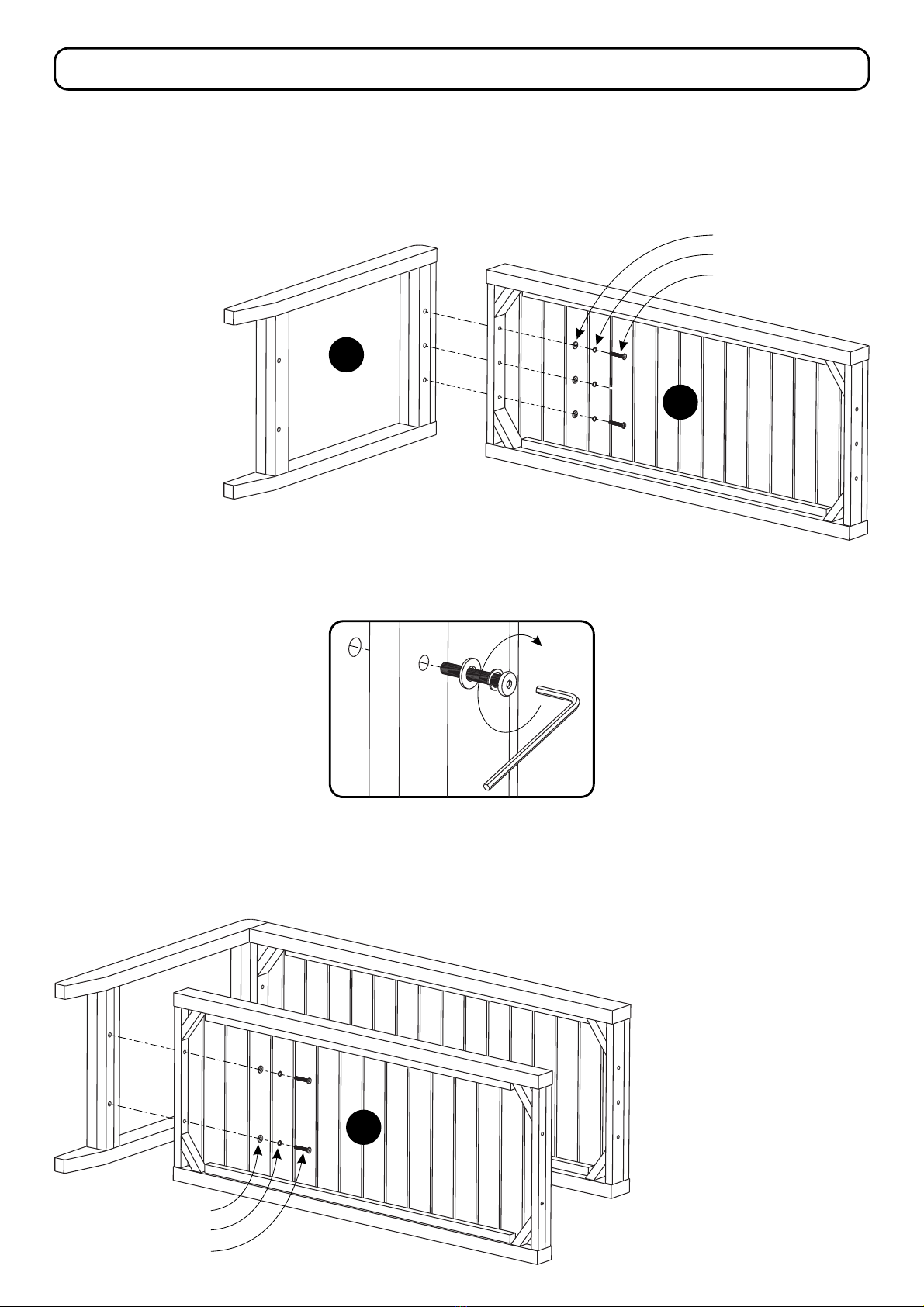

STEP 2
Attach t unitShelf (C) o
with Head Cap Bolts,
Spring Washers and
Flat Washers,
tightening bolts
only halfway.
STEP 1
Attach (B) to ( ) with Head Cap Bolts, Spring WashersSide Frame Top A
and Flat Washers, tightening bolts only halfway.
(See Figure 1)
Figure 1
B
Flat Washer
Spring Washer
Head Cap Bolt
A
C
Flat Washer
Spring Washer
Head Cap Bolt
STEP 4
Turn unit to its upright position.
Assembly Instructions 3/3
STEP 3
Attach (B) to with Head Cap Bolts, Spring WashersSide Frame unit
and Flat Washers, tightening bolts only halfway.
Tighten all bolts used in Steps 1, 2 and 3.
Head Cap Bolt
Spring Washer
Flat Washer
B
Advisory Notes
·Do not use power tools above 8 volts to assemble.
·Periodic structural checks of this furniture should be undertaken. Do not use if there are
any doubts about its fitness for purpose.
·Exercise care so as to not trap fingers in any of the hinged parts of this furniture.
·Always use on firm level ground, ensuring that all legs remain in contact with the ground.
·Do not stand on a chair or sit or stand on any other item.
·Do not let children play with this furniture.
·This furniture should be stored under cover during periods of adverse weather (wet or
cold) and during winter. Clean and dry thoroughly before storage.
Tannin Exudation
Tannin is a naturally occurring substance which may exude from the surface of some wood
species and may stain the surface of hard areas such as patios or decks. To clean tannin marks
use a proprietary cleaning product or a water-based wood restorer containing oxalic acid. Stains
must be removed within 1-2 days of them occurring. Care should be exercised to follow the
manufacturer's guidelines of the cleaner used and test a small area first to determine its
effectiveness. This is especially important on wooden decking areas where the existing surface
finish may be lifted due to the application of the cleaning agent. If decking has become
discolored from the cleaning, it can be restored with a suitable wood finish.
Maintenance
In order to maintain the appearance of the wood, regular coatings of linseed oil must be applied.
The frequency will depend on the weather conditions experienced.
·Refer to the manufacturer’s guidelines of the linseed oil used.
·Apply the linseed oil with a clean cloth, wiping it directly onto the wood surface.
·Treat all surfaces of the furniture. Ensure that any hidden surfaces, such as those exposed
when the furniture is turned upside down, are adequately treated. Care should be given to
wipe the end grain, to all joints and to crevices that may have been caused by damage.
·Let the surface dry out. This can take 4-12 hours depending on weather conditions.
·Repeat the above steps with at least 2 more coats of oil. Extra coats may leave a semi-
gloss sheen once the oil has dried, but excess oil can be wiped off with a clean cloth.
·IMPORTANT: Cloths with linseed oil may be a fire hazard. Immediately after use, saturate
all cloths used for applying linseed oil with water and dispose of safely outside the home.
If left untreated, this furniture will turn a grayish color. Light sanding can restore the original color
after which linseed oil can be applied. Fine surface cracks may occur over time from weathering,
but these won't affect the structural integrity of the furniture.
CARE INSTRUCTIONS
homestyles will provide replacements free of charge for missing or damaged parts within 1 year of purchase.
Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer,
homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor
are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
styles Customer Service: www.homestylesfurniture.com,home
styles Customer Service: www.homestylesfurniture.com,home
Table of contents
Other Home Styles Indoor Furnishing manuals
Home Styles
Home Styles Orleans 88 5061 66 User manual
Home Styles
Home Styles HS-5050-102 Quick start guide
Home Styles
Home Styles 2000-10-FB80 User manual
Home Styles
Home Styles 88 500 941 Series User manual
Home Styles
Home Styles 5023-95 User manual
Home Styles
Home Styles 20 04420 0095 User manual
Home Styles
Home Styles 88 5020 3071 User manual
Home Styles
Home Styles 450 95 User manual
Home Styles
Home Styles 88 5538 952 User manual
Home Styles
Home Styles Monarch Kitchen Island 88 5020 941 User manual
Home Styles
Home Styles Monarch Dining Table 88 5020 31 User manual
Home Styles
Home Styles 200 -10-FB 1 80 User manual
Home Styles
Home Styles 88 9001 006C User manual
Home Styles
Home Styles 20 05700 0081 User manual
Home Styles
Home Styles 88 5181 941 User manual
Home Styles
Home Styles 88 5100 001 User manual
Home Styles
Home Styles 5005-69 User manual
Home Styles
Home Styles 20 05022 0087 User manual
Home Styles
Home Styles 88 5181 16 User manual
Home Styles
Home Styles 20 06662 0053 User manual
Popular Indoor Furnishing manuals by other brands
Habitat
Habitat Roy 822545 quick start guide
Furniture of America
Furniture of America CM7393C Assembly instructions
Vivo
Vivo DESK-M55TC instruction manual
Rauch
Rauch M2575 Assembly instructions
Techni Sport
Techni Sport RTA-TS38C Assembly instructions
Furniture of America
Furniture of America CM3858SC-2PK Assembly instructions
JWA
JWA ROBINSON 74321 Assembly instruction
Seconique
Seconique 400-401-173 Assembly instructions
KEUCO
KEUCO iLook move Instructions for use
Symbiote
Symbiote WSL Series installation instructions
Powell
Powell 15D8153SC quick start guide
Ballard Designs
Ballard Designs Dani Outdoor LL315 Important safety instructions
U-Line
U-Line H-9748 quick start guide
Target
Target 5 Shelf bookcase with doors BK5SHFWDEB Assembly instructions
Atlantic
Atlantic 94835430 Assembling instructions
Martha Stewart
Martha Stewart BR-AC-4560-BK-CLRBK-MS instruction manual
Second Story Home
Second Story Home HOLLOWAY instructions
Next
Next HAMPSHIRE 891212 Assembly instructions
