HoMedics BPA-730-CA Instruction Manual

BPA-730-CA
Ver. B
Automatic Arm
Blood Pressure Monitor
Instruction Manual and
Warranty Information
limited warranty
year
5
#
1 BRAND IN MASSAGE*
NO 1 EN MASSAGE*
#
1 BRAND IN MASSAGE*
NO 1 EN MASSAGE*
Le manuel français
débute à la page 34
15-0144 BPA-730-CA_IM_v4--02.indd 1
2015/10/28 下午6:14

1
TABLE OF CONTENTS
INTRODUCTORY INFORMATION:
Important Product Notices and Safety
Instructions ..........................................................3
About Blood Pressure .........................................5
Blood Pressure Standard....................................5
How This Blood Pressure Monitor Works .........7
USAGE INFORMATION:
Name/Function of Each Part ...............................8
Display Explanations ...........................................9
Installing Batteries ............................................11
Date & Time Set Procedure...............................12
Using the Cuff ....................................................13
Measurement Procedure...................................17
Risk Category Index ..........................................19
Irregular Heartbeat Detector ...........................20
Recalling Values from Memory.........................21
Clearing Values from Memory ..........................21
15-0144 BPA-730-CA_IM_v4--02.indd 1
2015/10/28 下午6:14

2
Important Notes Regarding Your
Blood Pressure Measurement..........................22
Care, Maintenance & Cleaning .........................23
Potential for Electromagnetic Interference .....25
Troubleshooting.................................................26
Specifications ....................................................27
Appendix.............................................................28
5 Year Limited Warranty....................................32
15-0144 BPA-730-CA_IM_v4--02.indd 2
2015/10/28 下午6:14

3
IMPORTANT PRODUCT NOTICES
AND SAFETY INSTRUCTIONS
When using your blood pressure monitor, basic precautions should
always be followed. Please read and follow all instructions and
warnings before using this product. Save these instructions for future
reference.
 
intended to serve as a substitute for the advice of a physician or
medical professional.
 
diastolic blood pressure, as well as heart rate.
 Do not use this device for diagnosis or treatment of any health
problem or disease. Measurement results are for reference only.
Consult a healthcare professional for interpretation of pressure
measurements. Contact your physician if you have or suspect any
medical problem. Do not change your medications without the
advice of your physician or healthcare professional.
 Proper cuff size is critical for accurate measurements. Follow the
instructions in this manual and printed on the arm cuff to ensure the
appropriate size of cuff is being used.
 
may have difficulty determining the proper blood pressure for
pregnant women and for users with irregular heartbeat, diabetes,
poor circulation of blood, kidney problems or for users who have
suffered from a stroke.
15-0144 BPA-730-CA_IM_v4--02.indd 3
2015/10/28 下午6:14

4
 
pacemakers.
 
electronic components. Avoid strong electrical or electromagnetic
fields in the direct vicinity of the device (e.g. mobile telephones,

measurement accuracy.
 
 Do not wrap the cuff around body parts other than your arm.
 
 Do not use the device on infants, children, or those who cannot express
their own intention.
 
 
 
interference, which is likely to cause uncomfortable sensations,
such as partial subcutaneous hemorrhage, or temporary numbness
to your arm. In general, these symptoms should not last long.
However, if you do not recover in time, please seek your medical
practitioners for help.
 
Blood pressure measurements determined with this device are

stethoscope auscultatory method, within the limits prescribed by

sphygmomanometers.
15-0144 BPA-730-CA_IM_v4--02.indd 4
2015/10/28 下午6:14

5
ABOUT BLOOD PRESSURE
What is Blood Pressure?
Blood pressure is the pressure exerted on the artery
walls while blood flows through the arteries. The pressure
measured when the heart contracts and sends blood out of
the heart is systolic (highest) blood pressure. The pressure
measured when the heart dilates with blood flowing back
into the heart is called diastolic (lowest) blood pressure.
Why Measure Your Blood Pressure?
Among today’s various health problems, those associated
with high blood pressure are very common. High blood
pressure dangerously correlates with cardiovascular
diseases. Therefore, blood pressure monitoring is
important for identifying those at risk.
BLOOD PRESSURE STANDARD
The table on page 6 contains defined levels for hypertension
that are publicly available from the National Heart Lung and
Blood Institute at the U.S. National Institutes of Health (NIH)
(http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html).
Users can compare their own blood pressure readings
against these defined levels to determine if they may be
potentially at increased risk.
15-0144 BPA-730-CA_IM_v4--02.indd 5
2015/10/28 下午6:14

6
This table is applicable to most adults aged 18 and older.
Blood pressure tends to go up and down, even in people
who normally don’t have high readings. If your numbers
stay above the “normal” range most of the time, you may
be at increased risk and should consult your physician.
Although one can easily find where their own blood
pressure readings fall on this table, this monitor comes
equipped with a Risk Category Index that automatically
compares each reading to the defined levels and provides
a helpful cue if your reading falls into one of the stages
that could potentially indicate increased risk. See page
19 for more information on this feature.
Please note that cues provided by this monitor are only
intended to assist you in using this table. The table and
cues are only provided for convenience to help you
understand your non-invasive blood pressure reading as
it relates to the NIH information. They are not a substitute
for a medical examination by your physician. It is
important for you to consult with your physician regularly.
Your physician will tell you your normal blood pressure
range as well as the point at which you may actually be
considered to be at risk.
Category Systolic (mmHg) Diastolic (mmHg)
Normal Less than 120 and Less than 80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage 1 140-159 or 90-99
Stage 2 160 or higher or 100 or higher
15-0144 BPA-730-CA_IM_v4--02.indd 6
2015/10/28 下午6:14

7
HOW THIS BLOOD PRESSURE MONITOR WORKS
This monitor uses innovative technology to detect your
blood pressure. This technology enables the monitor to
automatically inflate and deflate at the appropriate level for
each individual. With one touch of a button, the cuff will
automatically inflate to block the blood flow through your
artery. Next, the deflation process starts. Please note that
any muscle movement during inflation or deflation will cause
measurement error. When measurement is complete, the
monitor will display your systolic pressure, diastolic pressure,
and pulse readings.
The monitor automatically finds where your measurement
results fall on the NIH’s National Heart Lung and Blood
Institute’s table and provides a cue if your reading falls into
one of the stages that could potentially indicate increased risk.
Please refer to page 19 for more information on this feature.
The appearance of the icon indicates that a pulse
irregularity consistent with an irregular heartbeat was detected
during measurement. Refer to page 20 for more information
on the Irregular Heartbeat Detector.
15-0144 BPA-730-CA_IM_v4--02.indd 7
2015/10/28 下午6:14

8
+
NAME/FUNCTION OF EACH PART
START/STOP
Button
Memory Recall
Button
Air Tube
and Connector
Date/Time Set
Buttons
Arm Cuff
LCD Display
Other Accessories:
4 “AAA” LR03 size, 1.5V alkaline batteries
Battery Cover
(Located on
bottom of unit)
15-0144 BPA-730-CA_IM_v4--02.indd 8
2015/10/28 下午6:14

9
DISPLAY EXPLANATIONS
Systolic
Pressure
Diastolic
Pressure
Date/Time
Indicator
Heart Rate
15-0144 BPA-730-CA_IM_v4--02.indd 9
2015/10/28 下午6:14

10
Weak Battery Symbol: Appears when batteries should be
replaced.
Pulse Symbol: Shows the heart rate per minute.
Irregular Heartbeat Detector: See page 20 for
more information.
Risk Category Index: See page 19 for more information.
Systolic
Pressure
Display Symbols:
/
START
STOP
/
START
STOP
Measurement Error: Wrap the cuff correctly and keep arm
steady during measurement. Measure again.
Air Circuit Abnormality: Check cuff connection. Measure again.
Pressure Exceeding 300 mmHg: Turn the unit off to clear,
then measure again.
Error Determining Measurement Data: Measure again.
System Error: Measure again.
If and any of the following letters and numbers appear in the
area that systolic pressure should be displayed, an error has occurred
with your reading. See Troubleshooting section of this manual for
more information.
15-0144 BPA-730-CA_IM_v4--02.indd 10
2015/10/28 下午6:14

11
INSTALLING BATTERIES
1. Press down on latch and lift the battery cover to open
the battery compartment.
2. Install or replace 4 “AAA” LR03 sized batteries in the
battery compartment according to the indications inside
the compartment.
3. Close the battery cover by pushing in the top end of the
battery door.
Replace the batteries if:
• The weak battery symbol appears on the display.
• Nothing appears on the display when the power is
switched on.
As the supplied batteries are for test only, they may be
discharged earlier than batteries you buy in stores. Replace
all batteries at one time (as simultaneous set). Use only 1.5V
AAA LR03 alkaline batteries. Remove batteries when unit is
not in use for extended periods of time. Date and time will
need to be reset if batteries are removed or replaced. Clean
contacts on battery and in battery compartment with a soft
dry cloth each time you install batteries.
Note:
Batteries are hazardous waste. Do not dispose of them
together with the household garbage.
Battery
Cover
15-0144 BPA-730-CA_IM_v4--02.indd 11
2015/10/28 下午6:14

12
DATE & TIME SET PROCEDURE
1. To adjust the date and time, press the Date/Time Set
button .
2. The display will show a blinking number showing the
HOUR. Change the HOUR by pressing the +button.
Each press will increase the number by one in a cycling
manner. Press the Date/Time Set button again to
confirm the entry, and the screen will show a blinking
number representing the MINUTE.
3. Change the MINUTE, MONTH, DAY and YEAR as
described in Step 2 above, using the +button to change
the numbers and the Date/Time Set button to confirm
the entries.
+
Press the button
blinking HOUR
increasing HOUR
confirm the entry
repeat process to set MINUTE,
MONTH, DAY and YEAR
15-0144 BPA-730-CA_IM_v4--02.indd 12
2015/10/28 下午6:14

13

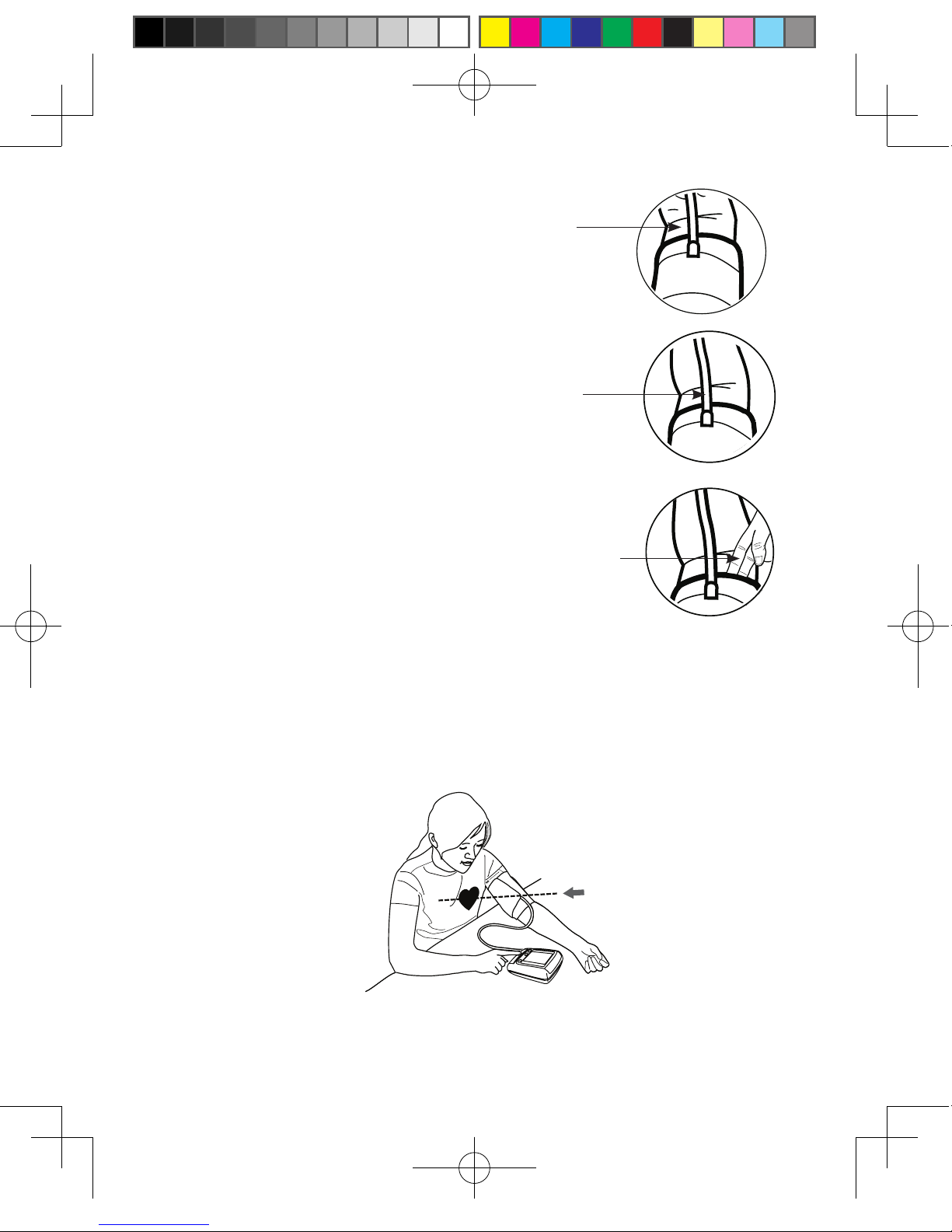

USING THE ARM CUFF
Very Important: Proper cuff size is critical to accurate
measurement.
This monitor comes with a standard size arm cuff
that fits arms 9”-13” (23 cm-33 cm).
This cuff is suitable for your use if the colored arrow
falls within the solid color line as shown below. If
the arrow falls outside of the solid color line, you
will need a cuff with another circumference. Contact
HoMedics Consumer Relations at 1-888-225-7378.
ARROW MUST FALL
WITHIN YELLOW BAND
ARROW MUST FALL
WITHIN YELLOW BAND
Center tube over
middle of arm
MODEL# PP-BPCUFF5
Position cuff
edge 0.6˝
–
1.0˝
(1.5
–
2.5cm)above el bow.
Center tube over
middle of arm.
Fit cuff secu rely. Allow room for
two fingers to fit b etween the cuff
and your arm.
Solid Colored Line
Colored Arrow
15-0144 BPA-730-CA_IM_v4--02.indd 13
2015/10/28 下午6:14

14
1. If the cuff is not assembled, pass the end of the
cuff furthest away from the tubing through the metal
D-ring in order to form a loop. The smooth side without
the felt material should be on the inside of the cuff loop.
2. Plug the cuff tube into the left side of the unit.
3. Open the arm cuff so that your arm may be placed
through it.
4. Remove tight fitting clothing from your upper left arm so
that the cuff can be wrapped around your exposed arm.
ARROW MUST FALL
WITHIN YELLOW BAND
D-ring
End of cuff
2~3cm
(0.8”~1.2”)
Positioncuffedge
0.8
–
1.2inches(2
–
3cm)
aboveelbow.
Fitcuffsecur ely.
Allowroomfor2fingers
tofitbetweenthecuff
andyourarm.
Centertubeover
middleofarm.
Insert plug here
15-0144 BPA-730-CA_IM_v4--02.indd 14
2015/10/28 下午6:14

15
5. Position cuff edge 0.8-1.2
inches (2-3 cm) above elbow.
6. Center tube over middle of arm.
7. Pull the end of the cuff so that it tightens
evenly around your arm. Press the hook
and loop material together to secure.
Allow room for 2 fingers to fit between the
cuff and your arm.
8. Lay your arm on a table (palm upward) so the
cuff is at the same height as your heart. Make
sure the tube is not kinked.
15-0144 BPA-730-CA_IM_v4--02.indd 15
2015/10/28 下午6:14

16
Note:
If it is not possible to fit the cuff on your left arm, it can also
be placed on your right arm. However, all measurements
should be made using the same arm.
The device is not supposed to be used when your arm is
wounded or injured

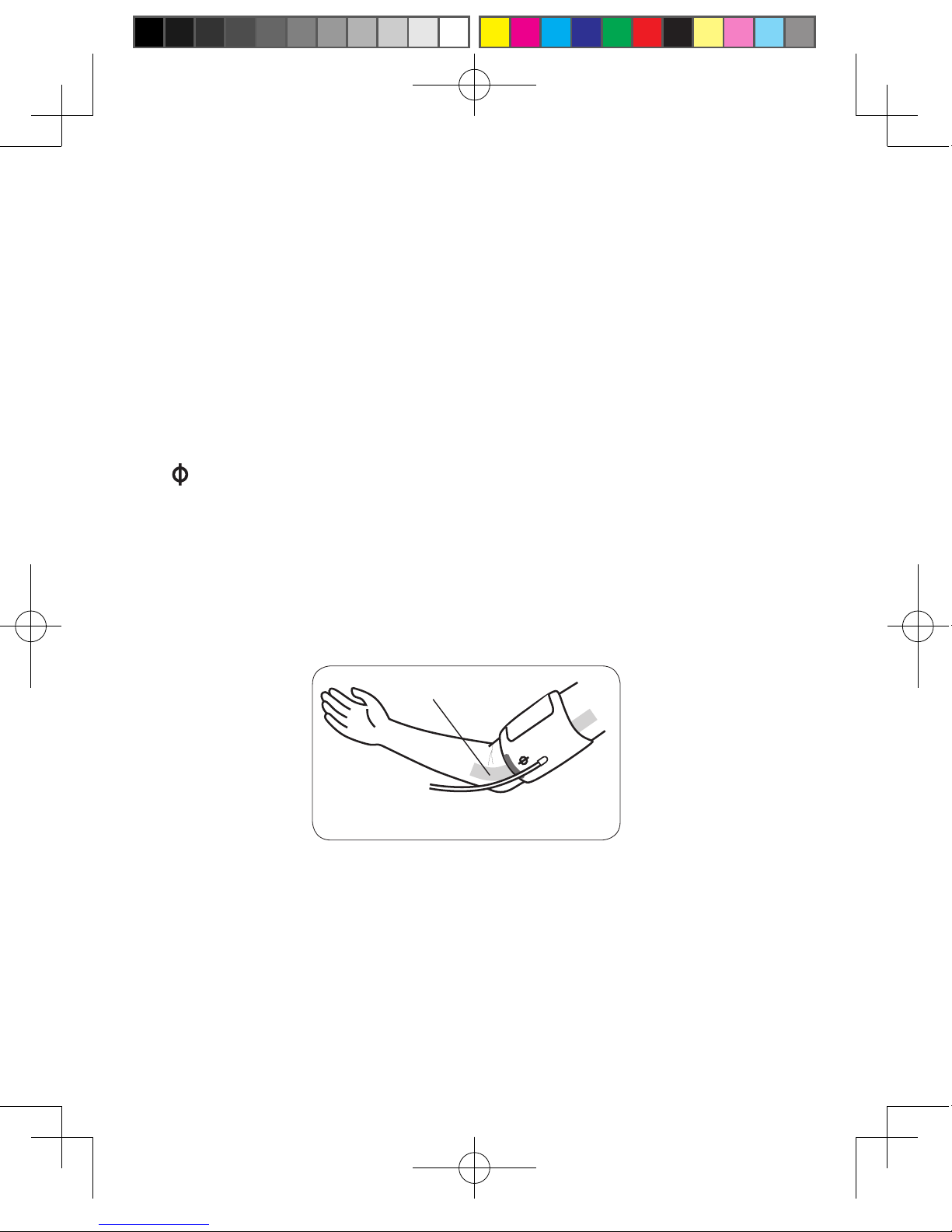

To use on the right arm, you must position the artery symbol
“ ” over the main artery. Locate the main artery by
pressing with two fingers approximately 1” (2 cm) above the
bend of your elbow on the inside of your right arm. Identify
where the pulse can be felt the strongest. This is your main
artery.
Main Artery
15-0144 BPA-730-CA_IM_v4--02.indd 16
2015/10/28 下午6:14

17
MEASUREMENT PROCEDURE
Important Notes:
• Blood pressure changes with every heartbeat and is in
constant fluctuation throughout the day.
• Blood pressure measurement can be affected by the
position of the user, his or her physiologic condition
and other factors. For greatest accuracy, wait 1 hour
after exercising, bathing, eating, drinking beverages
with alcohol or caffeine, or smoking to measure blood
pressure.
• Before measurement, it is suggested that you sit
quietly for 15 minutes as measurements taken during
a relaxed state will have greater accuracy. You should
not be physically tired or exhausted while taking a
measurement.
• During the measurement, do not talk or move your arm
or hand muscles.
• See page 22 for additional notes regarding your blood
pressure measurement.
If you are using this blood pressure monitor for the first
time, please remove the protective film from the screen.
15-0144 BPA-730-CA_IM_v4--02.indd 17
2015/10/28 下午6:14

18
1. With the cuff wrapped around your arm, press the START/STOP button.
Do not inflate the cuff unless it is wrapped around your arm. All digits will
light up to check the display functions. The checking procedure will be
completed after about 3 seconds.
2. After all symbols disappear, the display will
show “00”. The monitor is “Ready to Measure”
and will automatically inflate the cuff to start
measurement. The cuff will then begin deflating
as measurement continues.
Note:
This monitor will re-inflate automatically if the system detects
that your body requires more pressure for measurement.
3. When the measurement is completed, the cuff will
deflate entirely. Systolic pressure, diastolic pressure
and pulse will be shown simultaneously on the LCD
screen. The measurement is then automatically
stored into memory.
Note:
• This monitor automatically turns off approximately 1 minute after last
operation. You may also press the START/STOP button to turn the unit
off.
• To interrupt the measurement, you may press the START/STOP
(recommended), MEMORY or Date/Time Set ( ) buttons. The
cuff will deflate immediately after a button is pressed.
START
STOP
MEMORY
15-0144 BPA-730-CA_IM_v4--02.indd 18
2015/10/28 下午6:14

19

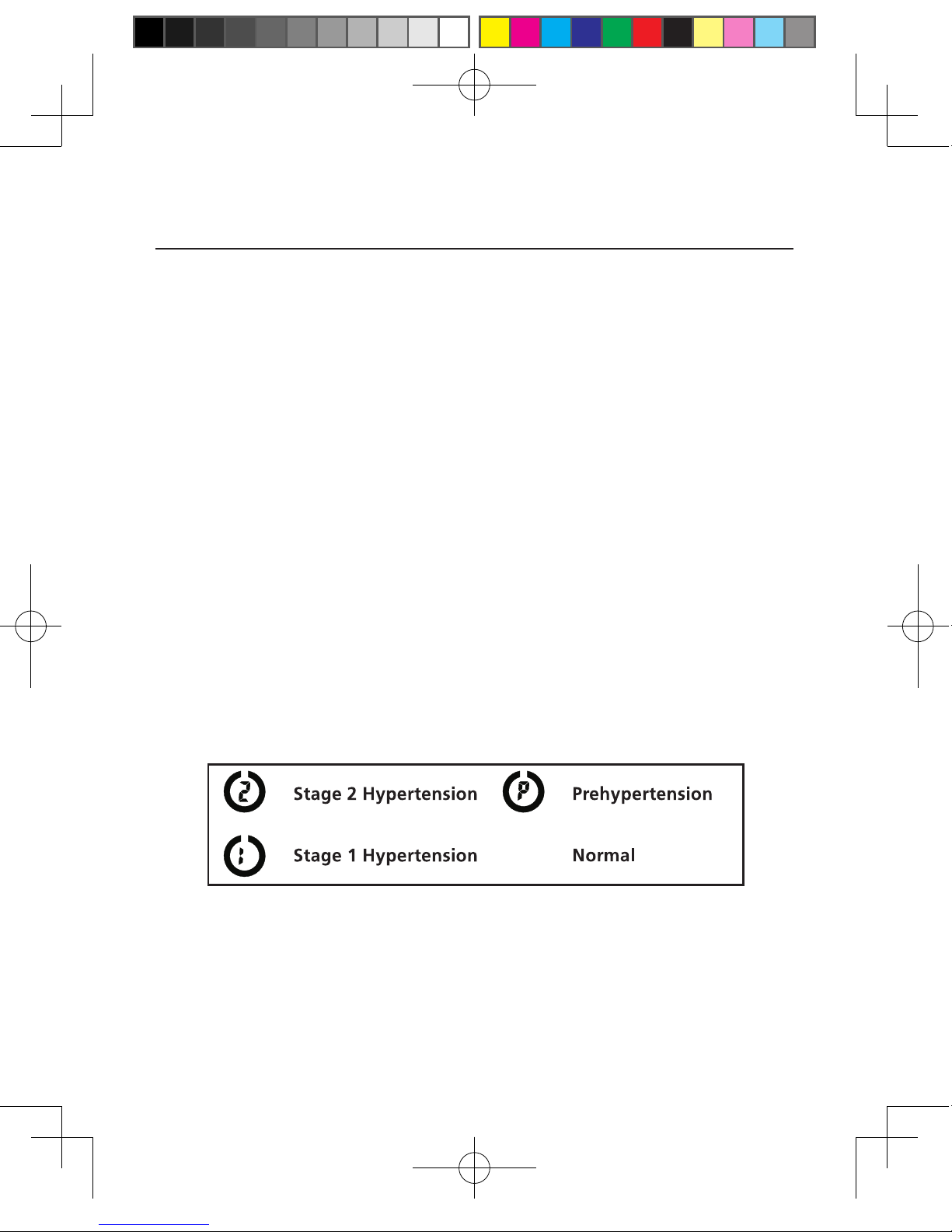

RISK CATEGORY INDEX
This monitor comes equipped with a Risk Category Index
that automatically compares each reading to defined levels
established by the U.S. National Institutes of Health’s (NIH)
National Heart Lung and Blood Institute as described earlier
in this manual, and provides a helpful cue if your reading
falls into one of the stages that could potentially indicate
increased risk. No cue is given if the reading falls in the
normal range as defined by NIH. Please note that cues
provided by this monitor are only intended to assist you
in using this table. The table and cues are only provided
for convenience to help you understand your non-invasive
blood pressure reading as it relates to the NIH information.
They are not a substitute for a medical examination by
your physician. It is important for you to consult with your
physician regularly. Your physician will tell you your normal
blood pressure range as well as the point at which you may
actually be considered to be at risk.
(No Symbol)
15-0144 BPA-730-CA_IM_v4--02.indd 19
2015/10/28 下午6:14
