Important Notes Regarding Your
Blood Pressure Measurement ................................. 23
Care, Maintenance & Cleaning ................................ 24
Potential for Electromagnetic Interference ............ 26
Troubleshooting ........................................................ 27
Specifications ........................................................... 28
5 Year Limited Warranty ........................................... 29
IB-BPA110_C--02.indd 2
2011/12/6 下午 12:34

3
IMPORTANT PRODUCT NOTICES AND SAFETY
INSTRUCTIONS
When using your blood pressure monitor, basic precau-
tions should always be followed. Please read and follow
all instructions and warnings before using this product.
Savethese instructions for future reference.
• Please note that this is a home healthcare product only
and it is not intended to serve as a substitute for the
advice of a physician or medical professional.
• Do not use this device for diagnosis or treatment of any
health problem or disease. Measurement results are
for reference only. Consult a healthcare professional for
interpretation of pressure measurements. Contact your
physician if you have or suspect any medical problem.
Do not change your medications without the advice of
your physician or healthcare professional.
• Proper cuff size is critical for accurate measurements.
Follow the instructions in this manual and printed on
the arm cuff to ensure the appropriate size of cuff is
being used.
• This product is not suitable for people with arrhythmias.
This device may have difficulty determining the proper
blood pressure for individuals with irregular heartbeat, dia-
betes, poor circulation of blood, kidney problems or for
users who have suffered from a stroke.
• The pulse display is not suitable for checking the
frequency of heart pacemakers.
IB-BPA110_C--02.indd 3
2011/12/6 下午 12:34

4
• Electromagnetic interference: The device contains
sensitive electronic components. Avoid strong electrical
or electromagnetic fields in the direct vicinity of the device
(e.g. mobile telephones, microwave ovens). These may
lead to temporary impairment of measurement accuracy.
• Use blood pressure monitor only for its intended use.
• Do not wrap the cuff around body parts other than
your arm.
• Not for use by or on persons under the age of 18.
• Do not plug or unplug the adapter power cord with
wet hands.
• Please use only the AC adapter included with this moni-
tor or 1.5V AA alkaline batteries for power supply.
Blood pressure measurements determined with this device
are equivalent to those obtained by a trained observer using
the cuff/stethoscope auscultatory method, within the limits
prescribed by the American National Standard, Manual,
electronic, or automated sphygmomanometers.
IB-BPA110_C--02.indd 4
2011/12/6 下午 12:34

5
ABOUT BLOOD PRESSURE
What is Blood Pressure?
Blood pressure is the pressure exerted on the artery
walls while blood flows through the arteries. The pressure
measured when the heart contracts and sends blood
out of the heart is systolic (highest) blood pressure. The
pressure measured when the heart dilates with blood
flowing back into the heart is called diastolic (lowest)
blood pressure.
Why Measure Your Blood Pressure?
Among today’s various health problems, those associated
with high blood pressure are very common. High blood
pressure dangerously correlates with cardiovascular dis-
eases. Therefore, blood pressure monitoring is important
for identifying those at risk.
BLOOD PRESSURE STANDARD
The table on the next page contains defined levels for
hypertension that are publicly available from the National
Heart Lung and Blood Institute at the U.S. National Institutes
of Health (NIH)
(http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html).
Users can compare their own blood pressure readings
against these defined levels to determine if they may be
potentially at increased risk.
IB-BPA110_C--02.indd 5
2011/12/6 下午 12:34

6
This table is applicable to most adults aged 18 and older.
Blood pressure tends to go up and down, even in people who
normally don’t have high readings. If your numbers stay above
the “normal” range most of the time, you may be at increased
risk and should consult your physician.
Although one can easily find where their own blood pressure
readings fall on this table, this monitor comes equipped with a
Risk Category Index that automatically compares each read-
ing to the defined levels and provides a helpful cue if your
reading falls into one of the stages that could potentially indi-
cate increased risk. For more information, refer to the RISK
CATEGORY INDEX section of this manual.
Please note that cues provided by this monitor are only
intended to assist you in using this table. The table and cues
are only provided for convenience to help you understand your
non-invasive blood pressure reading as it relates to the NIH
information. They are not a substitute for a medical examination
by your physician. It is important for you to consult with your
physician regularly. Your physician will tell you your normal blood
pressure range as well as the point at which you may actually be
considered to be at risk.
Category Systolic (mmHg) Diastolic (mmHg)
Normal Less than 120 and Less than 80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage 1 140-159 or 90-99
Stage 2 160 or higher or 100 or higher
IB-BPA110_C--02.indd 6
2011/12/6 下午 12:34

7
HOW THIS BLOOD PRESSURE MONITOR WORKS
This monitor uses innovative technology to detect your systolic
pressure, diastolic pressure and pulse. With one touch of a
button, the cuff will automatically inflate to block the blood flow
through your artery. Next, the deflation process starts. Smart
Measure™ Technology enables the monitor to automatically
inflate and deflate at the appropriate level for each individual.
Please note that any muscle movement during inflation or
deflation will cause measurement error. When measurement is
complete, the monitor will display your systolic pressure, dia-
stolic pressure, and pulse readings.
The monitor automatically finds where your measurement
results fall on the NIH’s National Heart Lung and Blood
Institute’s table and provides a cue if your reading falls into one
of the stages that could potentially indicate increased risk. For
more information, refer to the RISK CATEGORY INDEX section
of this manual.
The appearance of the icon indicates that a pulse irregu-
larity consistent with an irregular heartbeat was detected during
measurement. For more information, refer to the IRREGULAR
HEARTBEAT DETECTOR section of this manual.
Date/Time
Set Buttons
IB-BPA110_C--02.indd 7
2011/12/6 下午 12:34

8
NAME/FUNCTION OF EACH PART
Battery
Cover
User-Select
Button
START/STOP Button
Memory Recall Button
Air Tube
and Connector
( Located
on bottom
of unit)
Date/Time
Set Buttons
Arm Cuffs
LCD Display
Other Accessories Included : 1 6V DC Output AC Adapter and 4“AA” size, 1.5V
alkaline batteries
Note: Please unload the batteries when operating
with the AC adapter for an extended period of time.
IB-BPA110_C--02.indd 8
2011/12/6 下午 12:34

9

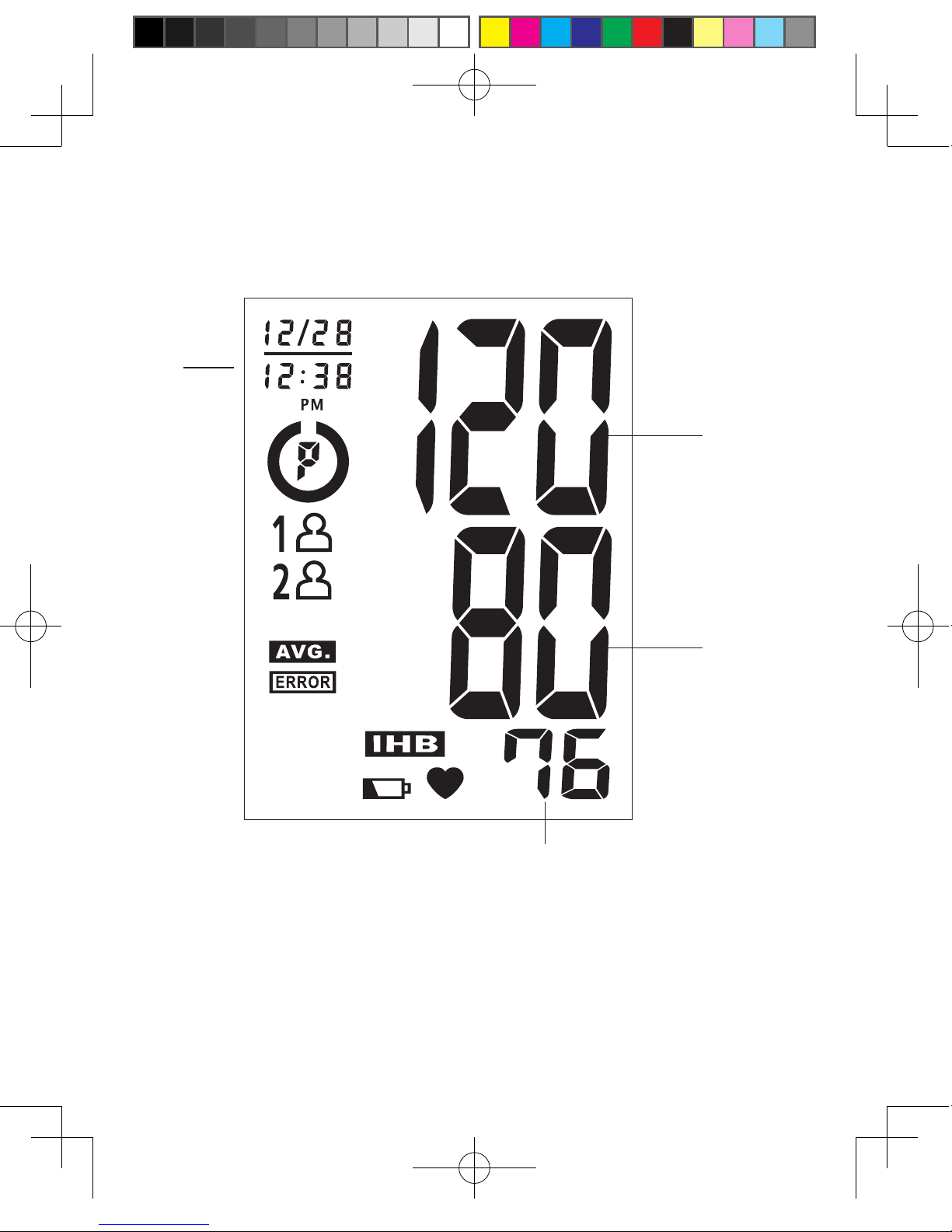

DISPLAY EXPLANATIONS
Systolic
Pressure
Diastolic
Pressure
Date/Time
Indicator
Heart Rate
IB-BPA110_C--02.indd 9
2011/12/6 下午 12:34

10
Measurement Error: Measure again. Wrap the cuff
correctly and keep arm steady during measurement.
Air Circuit Abnormality: Check cuff connection. Measure
again.
Pressure Exceeding 300 mmHg: Turn the unit off to clear,
then measure again.
Error Determining Measurement Data: Measure again.
DISPLAY SYMBOLS:
If and any of the following letters and numbers appear in the
area that systolic pressure should be displayed, an error has occurred
with your reading. See TROUBLESHOOTING section of this manual for
more information.
User 1: Appears when the monitor is operated by User 1.
User 2: Appears when the monitor is operated by User 2.
Weak Battery Symbol: Appears when batteries should be
replaced.
Pulse Symbol: Shows the heart rate per minute.
Irregular Heartbeat Detector: For more information, refer
to the IRREGULAR HEARTBEAT DETECTOR section of this
manual.
Memory Average: Displays average of last 3 readings
Risk Category Index: For more information, refer to the
RISK CATEGORY INDEX section of this manual.
/
START
STOP
/
START
STOP
/
START
STOP
/
START
STOP
IB-BPA110_C--02.indd 10
2011/12/6 下午 12:34

11

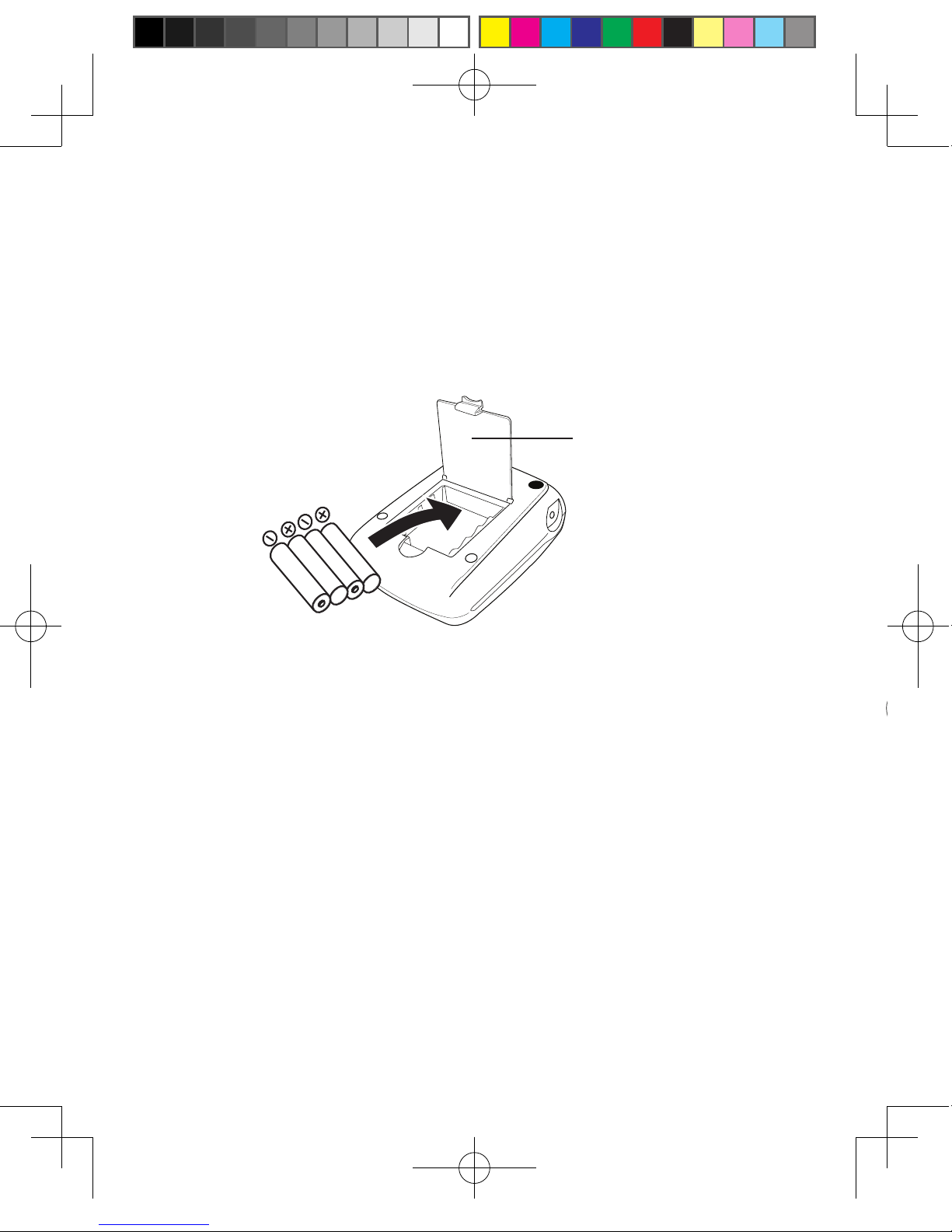

INSTALLING BATTERIES
1. Press down on latch and lift the battery cover to open the
battery compartment.
2. Install or replace 4 “AA ” sized batteries in the
battery compartment according to the indications inside the
compartment.
3. Close the battery cover by pushing in the top end of the
battery door.
Replace the batteries if:
1. The weak battery symbol appears on the display.
2. Nothing appears on the display when the power is
switched on.
As the supplied batteries are for test only, they may be
discharged earlier than batteries you buy in stores. Replace
all batteries at one time (as simultaneous set). Use only 1.5V
AA alkaline batteries. Remove batteries when unit is not in
use for extended periods of time. Date and time will need to
be reset if batteries are removed or replaced. Clean contacts
on battery and in battery compartment with a soft dry cloth
each time you install batteries.
Note: Batteries are hazardous waste. Do not dispose of them
together with the household garbage.
Battery
Cover
IB-BPA110_C--02.indd 11
2011/12/6 下午 12:34

12
USING THE AC ADAPTER
Note: • Please unload the batteries when operating with
an AC adapter for an extended period of time.
Leaving the batteries in the compartment for a
long time may cause leakage, which may lead to
damage to the unit.
• No batteries are needed when operating with
an AC adapter.
• Date and time will need to be reset if AC adapter
is unplugged.
1. Connect the AC adapter with the AC adapter jack in
the back of the unit as shown below.
2. Please use only the AC adapter included with this
monitor.
Connect AC
adapter here
AC Adapter
Input: 100-240V~0.18A 50/60Hz
Output: 6V DC 1A 6W Max
IB-BPA110_C--02.indd 12
2011/12/6 下午 12:34

13
DATE & TIME SET PROCEDURE
1. To adjust the date/time, press the Set button .
2. The display will show a blinking number showing the
month. Change the month by pressing the button.
Each press will increase the number by one in a cycling
manner. Press the Set button again to confirm the
entry, and the screen will show a blinking number repre-
senting the day of the month.
3. Change the date and time as described in Step 2 above,
using the button to change the numbers and the Set
button to confirm the entries.
Press the button
blinking month
increasing month
confirm the entry
repeat process to set date and time
IB-BPA110_C--02.indd 13
2011/12/6 下午 12:34

14
USING THE ARM CUFF
Very Important: Proper cuff size is critical to accurate
measurement.
This monitor comes with two sizes of arm cuffs that fits
arms with circumferences of:
Standard Size Fits 9”–13” (23 cm – 33 cm)
Large Size Fits 13”–17” (33 cm – 43 cm)
The appropriate cuff is suitable for your use if the
colored arrow falls within the solid color line as shown
below.
ARROW MUST FALL
WITHIN YELLOW BAND
ARROW MUST FALL
WITHIN YELLOW BAND
Center tube over
middle of arm
MODEL# PP-BPCUFF5
Position cuff
edge 0.6˝
–
1.0˝
(1.5
–
2.5cm) above elbow.
Center tube over
middle of arm.
Fit cuff s ecurely. Allow room for
two fingers to fit between the cu ff
and your arm.
Solid Colored Line
Colored Arrow
End of cuff
D-ring
IB-BPA110_C--02.indd 14
2011/12/6 下午 12:34

15
1. If the cuff is not assembled, pass the end of the
cuff furthest away from the tubing through the metal
D-ring in order to form a loop. The smooth side without
the felt material should be on the inside of the cuff loop.
2. Plug the cuff tube into the left side of the unit.
2~3 cm
(0.8”~1.2”)
Position cuff edge
0.8
–
1.2 inches (2
–
3cm)
above elbow.
Fit cuff
Allow
to fi
and
Cen
mi
Insert plug here
ARROW MUST FALL
WITHIN YELLOW BAND
D-ring
End of cuff
IB-BPA110_C--02.indd 15
2011/12/6 下午 12:34

16
3. Open the arm cuff so that your arm may be placed
through it.
4. Remove tight fitting clothing from your upper left
arm so that the cuff can be wrapped around your
exposed arm.
5. Position cuff edge 0.8-1.2
inches (2-3cm) above elbow.
6. Center tube over middle of arm.
7. Pull the end of the cuff so that it tightens
evenly around your arm. Press the hook
and loop material together to secure.
Allow room for 2 fingers to fit between the
cuff and your arm.
8. Lay your arm on a table (palm upward)
so the cuff is at the same height as your
heart. Make sure the tube is not kinked.
IB-BPA110_C--02.indd 16
2011/12/6 下午 12:34

17
Note:
If it is not possible to fit the cuff to your left arm, it
can also be placed on your right arm. However, all mea-
surements should be made using the same arm.
To use on the right arm, you must position the artery
symbol “ ” over the main artery. Locate the main artery
by pressing with two fingers approximately 1”
(2 cm) above the bend
of your elbow on the
inside of your right arm.
Identify where the pulse
can be felt the strongest.
This is your main artery.
MEASUREMENT PROCEDURE
Important Notes:
• Blood pressure changes with every heartbeat and is in
constant fluctuation throughout the day.
• Blood pressure measurement can be affected by the
position of the user, his or her physiologic condition and
other factors. For greatest accuracy, wait 1 hour after
exercising, bathing, eating, drinking beverages with
alcohol or caffeine, or smoking to measure blood
pressure.
• Before measurement, it is suggested that you sit quietly
for 15 minutes as measurements taken during a relaxed
state will have greater accuracy. You should not be
physically tired or exhausted while taking a
measurement.
Main Artery
IB-BPA110_C--02.indd 17
2011/12/6 下午 12:34

18
• During the measurement, do not talk or move your
arm or hand muscles.
• For additional notes regarding your blood pressure
measurement, refer to the IMPORTANT NOTES
REGARDING YOUR BLOOD PRESSURE section of
this manual.
1. Press the User Select Button to choose User 1
or User 2.
2. With the cuff wrapped around your arm, press the
START/STOP button. Do not inflate the cuff unless it
is wrapped around your arm. All digits will light up to
check the display functions. The checking procedure
will be completed after about 3 seconds.
OR
If you are using this blood pressure monitor for the first
time, please remove the protective film from the screen.
IB-BPA110_C--02.indd 18
2011/12/6 下午 12:34

19
3. After all symbols disappear, the display will
show “00”. The monitor is “Ready to Measure” and will
automatically inflate the cuff to start measurement.
4. The cuff will begin deflating as measurement continues.
Note: This monitor will re-inflate automatically if the system
detects that your body requires more pressure for
measurement.
5. When the measurement is
completed, the cuff will deflate entirely.
Systolic pressure, diastolic pressure and
pulse will be shown simultaneously on
the LCD screen. The measurement is
then automatically stored into
memory.
IB-BPA110_C--02.indd 19
2011/12/6 下午 12:34
