HomeMatic HM-Sec-SCo User manual

Installation and
Operating Manual (p. 32)
Funk-Tür-/Fensterkontakt, optisch
Wireless Door/Window Sensor,
optical
HM-Sec-SCo

32
Scope of delivery
Quantity Item
1 x HomeMatic Wireless Door/Window Sensor, optical
2 x Caps (brown/white)
1 x Double-sided adhesive stripes
2 x Countersunk head screws 2.2 x 13 mm
1 x Reecting sticker (for dark surfaces)
1 x 1.5 V LR03/micro/AAA battery
1 x Operating manual
1st English edition 06/2014
Documentation © 2014 eQ-3 Ltd., Hong Kong
All rights reserved. Translation of the original version in German. This manual
may not be reproduced in any format, either in whole or in part, nor may it be
duplicated or edited by electronic, mechanical or chemical means, without the
written consent of the publisher.
Typographical and printing errors cannot be excluded. However, the informa-
tion contained in this manual is reviewed on a regular basis and any neces-
sary corrections will be implemented in the next edition. We accept no liability
for technical or typographical errors or the consequences thereof.
All trademarks and industrial property rights are acknowledged.
Printed in Hong Kong.
Changes may be made without prior notice as a result of technical advances.
130873/V 1.0

33
Table of contents
1 Information about this manual ............34
2 Hazard information.....................34
3 General information about
the HomeMatic system..................36
4 Function and device overview ............36
5 Start-up..............................39
5.1 Mounting.............................39
5.2 Inserting and replacing battery............43
5.3 Inserting battery . . . . . . . . . . . . . . . . . . . . . . . 43
5.4 Teaching-in...........................46
5.5 Conguring newly taught-in devices........50
6 Errors and information indicated
by the device LED .....................51
6.1 Weak battery .........................51
6.2 Command not conrmed ................52
6.3 Duty cycle exceeded ...................52
6.4 Error messages and information
indicated by the device LED..............53
7 Restore factory settings . . . . . . . . . . . . . . . . . 55
8 Maintenance and cleaning ............... 57
9 General information about radio operation...58
10 Technical specications .................59

34
Information about this manual
1 Information about this manual
Read this manual carefully before beginning operation
with your HomeMatic components. Keep the manual so
you can refer to it at a later date if you need to.
If you hand over the device to other persons for use,
please hand over the operating manual as well.
Symbols used:
Attention!
This indicates a hazard.
Note. This section contains important additional
information.
Note. This section contains additional important
information about using the device in connec-
tion with the HomeMatic Central Control Unit.
2 Hazard information
Do not open the device. It does not contain any
parts that can be maintained by the user. In the
event of an error, please return the device to our
service department.
For safety and licensing reasons (CE), unau-
thorized change and/or modication of the prod-
uct is not permitted.

35
Hazard information
The device may only be operated in dry and
dust-free environment and must be protected
from the effects of moisture, vibrations, solar or
other methods of heat radiation, cold and me-
chanical loads.
The device is not a toy; do not allow children to
play with it. Do not leave packaging material ly-
ing around. Plastic lms/bags, pieces of polysty-
rene, etc. can be dangerous in the hands of a
child.
We do not assume any liability for damage to
property or personal injury caused by improper
use or the failure to observe the safety instruc-
tions. In such cases any claim under guarantee
is extinguished! For consequential damages,
we assume no liability!
This device operates using non-visible infra-red
light. Please keep a minimum distance of 20 cm
between the device and your eyes!

36
General information about the HomeMatic system
3 General information about the
HomeMatic system
This device is part of the HomeMatic home control sys-
tem and works with the bidirectional BidCoS® wireless
protocol. All devices are delivered in a standard con-
guration. The functionality of the device can also be
congured with a programming device and software.
The additional functions that can be made available in
this way and the supplementary functions provided by
the HomeMatic system when it is combined with other
components are described in the HomeMatic WebUI
Manual. All current technical documents and updates
are provided at www.homematic.com.
4 Function and device overview
The HomeMatic Wireless Door/Window Sensor, opti-
cal detects open and closed windows and doors with
an infra-red sensor (reection coupler) and transmits
the current status via radio signal to other HomeMatic
devices or the HomeMatic Central Control Unit. Even
while being out and about you can keep a close eye to
your windows and doors.
The device offers different application options and can
be used e.g. with a HomeMatic Wireless Radiator Ther-
mostat for regulation of the room temperature during
ventilation.

37
Function and device overview
Thanks to the two different caps, the colour of the de-
vice adapts to the door/window frames. Furthermore,
the door/window sensor can be easily mounted thanks
to the supplied adhesive stripes or screws.
The integrated temper contact sends an alarms e.g. to
the WebUI in case the cap is being removed.
Strong extraneous light and contamination of
the sensor can lead to functional disorders.
The Wireless Door/Window Sensor (HM-Sec-
SCo) is not compatible with the HomeMatic
Wireless Alarm Central Unit (HM-Sec-Cen).

38
Function and device overview
C
M
Y
CM
MY
CY
CMY
K
HM-Sec-SCo_BDA_Ansichten_140325_bearbeitet.pdf 1 28.03.2014 10:25:20
AB
G
E
F
D
C

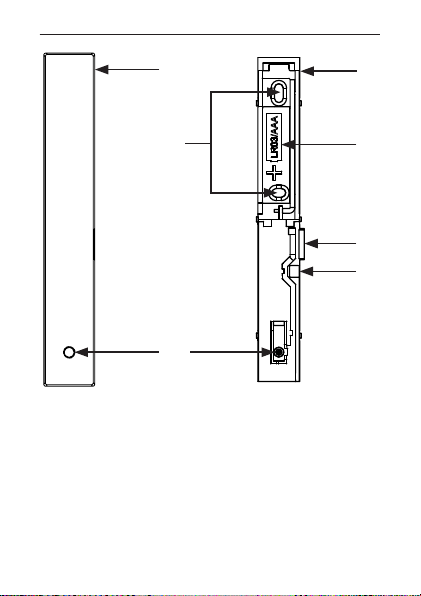

(A) Cap
(B) Electronic unit
(C) Screw holes
(D) Battery compartment
(E) Infra-red sensor (reection coupler)
(F) Tamper contact
(G) Device LED and teach-in button

39
Start-up
5 Start-up
5.1 Mounting
Please read this entire section before starting to
carry out the mounting procedure.
Do not yet place the cap!
5.1.1 Selecting a suitable mounting location
• Select a door or window for mounting the door/win-
dow sensor.
• Fasten the door/window sensor on the side of the
door/window where the handle is located, in the
upper third of the door/window frame (see „A„5.1.2
Adhesive stripe or screw mounting“ on page 40).

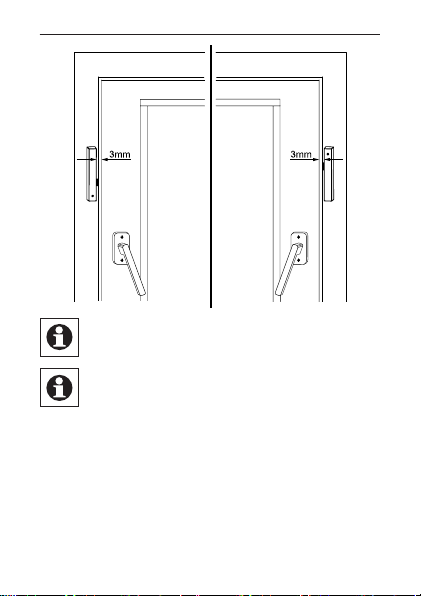

• The infra-red sensor (E) must point into the direction
of the door/window casement (see following gure).
The ideal spacing between the housing edge of
the door/window sensor and door/window case-
ment should be 3 mm (see following gure).
• If the door/window handle is located on the right
side you will have to turn around the door/window
sensor so that the infra-red sensor points into the
direction of the door/window casement also on this
side (see following gure).

40
Start-up
C
M
Y
CM
MY
CY
CMY
K
HM-Sec-SCo_BDA_Ansichten2_140325_bearbeitet.pdf 1 19.05.2014 15:44:22
If the door/window casement is too small the de-
vice can not be mounted.
For poorly reecting surfaces (e.g. dark door/
window frames) the supplied reecting sticker
has to be xed to the door/window casement on
the opposite of the infra-red sensor.
5.1.2 Adhesive stripe or screw mounting
You can x the door/window sensor by the supplied
• double-sided adhesive stripe or
• countersunk head screws.

41
Start-up

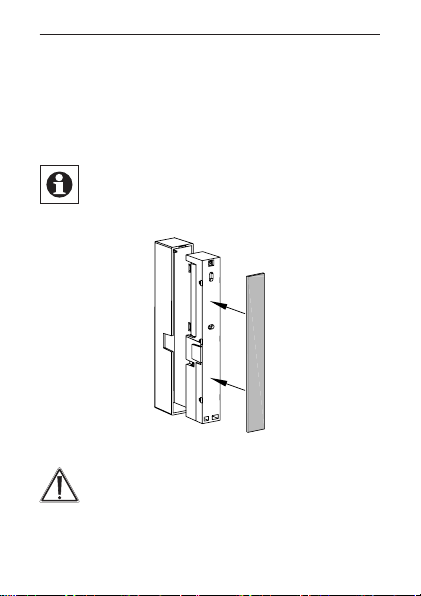

Adhesive stripe mounting
For mounting the door/window sensor by the adhesive
stripe, please proceed as follows:
• Attach the double-sided adhesive stripe to the back
of the electronic unit (B) and press the electronic
unit onto the desired position of the window frame.
Make sure that the mounting surface is smooth,
solid, non-disturbed, free of dust, grease and
solvents and not too cold to ensure long-time
adherence.
C
M
Y
CM
MY
CY
CMY
K
HM-Sec-SCo_BDA_Ansichten_140325_bearbeitet.pdf 1 28.03.2014 10:25:20
Screw mounting
Using screws will damage the door and/or win-
dow. For those living in rented accommodation,
this could lead to a landlord making a claim for
compensation or holding back a tenant’s de-
posit.

42
Start-up
For mounting the door/window sensor by screws,
please proceed as follows:
• Use a pen to mark the bore holes (C) on the door/
window frame.
• If you are working with hard surfaces you should
pre-drill the holes marked using a 1.5 mm drill (not
necessary for soft surfaces).
Use the countersunk head screws supplied to fasten
the door/window sensor.
• Place the electronic unit (B) to the desired mount-
ing location and turn both countersunk head screws
into the bore holes (C).
C
M
Y
CM
MY
CY
CMY
K
HM-Sec-SCo_BDA_Ansichten_140325_bearbeitet2.pdf 1 28.03.2014 10:43:37

43
Start-up
5.2 Inserting and replacing battery
Please read this entire section before inserting
or replacing the battery.
Please pay attention to the ashing signals of
the device LED while inserting the battery (see
„6.4 Error messages and information indicated
by the device LED“ on page 53).
5.3 Inserting battery

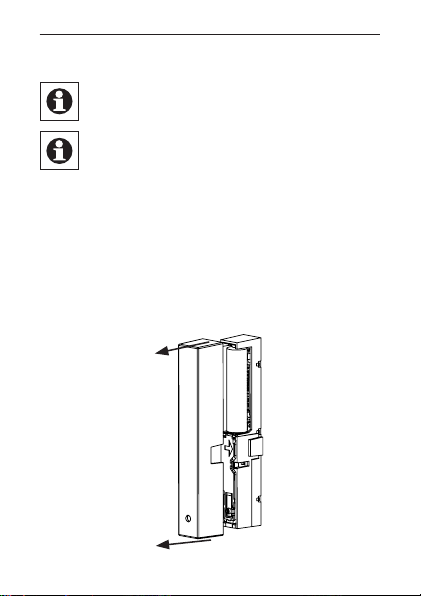

• Pull the cap (A) off the electronic unit (B). There-
fore, gently squeeze the cap from above and below
with your index nger and thumb. You will nd the
battery compartment (D) in the electronic unit.
C
M
Y
CM
MY
CY
CMY
K
HM-Sec-SCo_BDA_Ansichten_140325_bearbeitet.pdf 1 28.03.2014 10:25:20

44
Start-up
• Place the supplied 1.5 V LR03/micro/AAA battery
into the battery compartment (D), using the polarity
markings to ensure the polarity is correct.
C
M
Y
CM
MY
CY
CMY
K
HM-Sec-SCo_BDA_Ansichten_140325_bearbeitet1.pdf 1 26.03.2014 11:05:38
-
+
• Please pay attention to the ashing signals of the
device LED while inserting the battery (see „5.3.2
Response once the battery has been inserted“ on
page 45).
• Put the cap (A) back to the electronic unit.
5.3.1 Changing battery
Never recharge standard batteries. Do not
throw the batteries into a re. Do not expose
batteries to excessive heat. Do not short-circuit
batteries. Doing so will present a risk of explo-
sion.

45
Start-up
Used batteries should not be disposed of
with regular domestic waste! Instead,
take them to your local battery disposal
point.
If the device being controlled does not respond when a
signal is sent or if the ashing code indicating an empty
battery appears (5x red ashes), follow the instructions
of the previous section to replace the old battery with
one new of type LR03/micro/AAA. You must observe
the correct battery polarity.
5.3.2 Response once the battery has been inserted
Once the battery has been inserted, the sensor will rst
perform a self-test, which will take about two seconds.
Initialisation is carried out. The LED test display will
indicate that initialisation is complete: red, green and
orange for half a second each.
If an error occurs, this is indicated by the LED
ashing red (see „5.3.2 Response once the bat-
tery has been inserted“ on page 45).
The transmitter then sends a status message to the
CCU, which is indicated by the device LED lighting up
orange. If the sensors have been taught-in, the LED will
then ash green or red to indicate whether or not the
message has been received.

46
Start-up
5.4 Teaching-in
Please read this entire section before starting
the teach-in procedure!
To integrate the door/window sensor into your Home-
Matic system and enable it to communicate with other
HomeMatic devices (e.h. HomeMatic Radiator Ther-
mostat), you must teach it in rst. You can teach-in the
door/window sensor directly to other HomeMatic de-
vices or to the HomeMatic Central Control Unit
5.4.1 Teaching-in directly in to HomeMatic devices
If you would like to teach-in the door/window sensor to
one or more HomeMatic devices, you must put the de-
vices to be linked into teach-in mode and select the re-
quired teach-in channel. To do this, proceed as follows:
During teach-in, please make sure you maintain a
distance of at least 50 cm between the devices.
Activate the teach-in mode of your door/window sensor.
• To activate the teach-in mode of your door/window
sensor, briey press the teach-in button (G) of your
door/window sensor with a pointed object. The de-
vice LED ashes orange.
To exit teach-in mode, press the teach-in button
(G) again. The device LED lights up red.

47
Start-up
C
M
Y
CM
MY
CY
CMY
K
HM-Sec-SCo_BDA_Ansichten_140325_bearbeitet.pdf 1 28.03.2014 10:25:20
• Now put the device in to which you wish to teach-in
the door/window sensor into teach-in mode. Please
follow the relevant operating manual instructions of
the corresponding device.
The device LED lights up green to indicate that teach-
ing-in has been successful.
If no teach-in operations are carried out, teach-in
mode is exited automatically after 20 seconds. If
other devices are also in teach-in mode, they will
be taught-in.
If the sensor has already been taught-in to a
central control unit, it is blocked for direct teach-
in to other devices and the device LED lights up
red for 2 seconds.

48
Start-up
5.4.2 Teaching-in to a HomeMatic Central Control
Unit
Your device can be conveniently
• controlled and congured,
• connected directly to other devices or
• used in central control unit programs
by using the HomeMatic software "WebUI". Therefore,
your door/window sensor has to be taught-in to the
HomeMatic Central Control Unit rst. New devices are
taught-in to the central control unit via the HomeMatic
„WebUI“.
A soon as a component has been taught-in to a
central control unit, it can only be connected to
other components via this unit.
Each component can only be taught-in to one
CCU.
During teach-in, please make sure you maintain
a distance of at least 50 cm between the Home-
Matic devices and the central control unit.
To teach-in your device to the central control unit, pro-
ceed as follows:
• Open the "WebUI" user interface in your browser.
• Click the "Teach-in devices" button on the right-
hand side of the screen.

49
Start-up
• To activate teach-in mode, click "Start teach-in
mode".
• Teach-in mode remains activated for 60 seconds.
An information box shows how much teach-in time
remains.
• Meanwhile, activate the teach-in mode of the door/
window sensor to teach-in as well. Press the teach-
in button (G) briey using a pointed object. The de-
vice LED ashes orange.

50
Start-up
C
M
Y
CM
MY
CY
CMY
K
HM-Sec-SCo_BDA_Ansichten_140325_bearbeitet.pdf 1 28.03.2014 10:25:20
After a short time, the newly taught-in device will appear
in the inbox of your software interface. The button „In-
box (x new devices)“ indicates how many new devices
have been taught-in successfully.
• If required, you can teach-in additional devices by
repeating the steps described above for each de-
vice.
• Now congure the newly taught-in devices in the in-
box as described in section „Neu angelernte Geräte
kongurieren“ .
5.5 Conguring newly taught-in devices
Once you have taught-in your door/window sensor to
the HomeMatic Central Control Unit, it will be moved to
the inbox. Here, you must congure the device and its
associated channels in order to make them available
