SK-FML/SK-FSL Fiber Option
Modules Installation Instructions
Section 2: SK-FML/SK-FSL
Specifications
Table 2.1 lists the SK-FML multi-mode fiber-optic
digital audio ports specifications.
Table 2.2 lists the SK-FSL single-mode fiber-optic
digital audio ports specifications.
Section 1: Description
The Silent Knight/Farenhyt Emergency
Communication Systems that use the ECS-NVCM
(Network Voice Control Module) and the Silent
Knight/Farenhyt Fire Alarm Control Panels that use
the SK-NIC (Network Interface Card) support two
types of fiber-option modules to convert wire to fiber.
• SK-FML (Fiber-Optic
Multi-Mode, Receiver) • SK-FSL (Fiber-Optic Single-Mode, Transmitter)
SK-FML (Fiber-Optic Multi-Mode, Receiver)
The SK-FML is a fiber module that is used as one
channel to transmit or receive communications with
the ECS-NVCM (Network Voice Control Module) or
SK-NIC (Network Interface Card). It allows the multi-
mode fiber to network between the SK-FML module
boards.
Figure 1.1 illustrates the SK-FML fiber module.
Figure 1.1 SK-FML Circuit Board
SK-FSL (Fiber-Optic Single-Mode, Transmitter)
The SK-FSL is a fiber module that is used as one
channel to transmit or receive communications with
the ECS-NVCM (Network Voice Control Module) or
SK-NIC (Network Interface Card). It allows the
single-mode fiber to network between the SK-FSL
module boards.
Figure 1.2 shows the SK-FSL fiber module.
Figure 1.2 SK-FSL Circuit Board
Table 1.1 lists the models that are assigned to the
ECS-NVCM and SK-NIC.
ECS-NVCM SK-NIC
IFP-2100ECS IFP-75 IFP-2100 6808
IFP-300ECS IFP-300 6700 6820/6820EVS
Table 1.1 Network Voice and Interface Card
Modules
SK-FML Specifications
Type of Connector: Type ST
Maximum
Attenuation: 8 dbB for multi-mode with 62.5/125 micrometer cable
@ 200 µ.
Current Draw:
Standby Current: 0.053 A
Alarm Current: 0.053 A
Environment Rating: 32° to 120°F (0° to 49°C),
0% to 93%
Relative Humidity: Non-condensing at 90°F (30°C)
Table 2.1 SK-FML
SK-FSL Specifications
Type of Connector: Type LC
Maximum
Attenuation: 30 dB for multi-mode with 9/125 micrometer cable @ 1310 nm.
Current Draw:
Standby Current: 0.079 A
Alarm Current: 0.079 A
EnvironmentRating: 32° to 120°F (0° to 49°C),
0% to 93%
Relative Humidity: Non-condensing at 90°F (30°C)
Table 2.2 SK-FSL
firealarmresources.com

SK-FML/SK-FSL Fiber Option Modules Installation Instructions
2P/N LS10178-001SK-E Rev A
ECN: 17-0196
Section 3 Installation
Section 3.2 SK-FML/SK-FSL Installation
Section 3.1 Installation Requirements
CAUTION: STATIC SENSITIVE EQUIPMENT:
THIS EQUIPMENT IS SENSITIVE TO STATIC
ELECTRICITY. IT MAY BE DAMAGED IF NOT
PROPERLY HANDLED. TRANSPORTAND STORE
THIS UNIT INASTATIC-SHIELDING BAG.
FAILURE TO OBSERVE THIS REQUIREMENT
COULD CAUSE LATENT DAMAGE TO THE
EQUIPMENT WHICH MIGHT NOT MANIFEST ITSELF
UNTILAFTER THE EQUIPMENT IS PLACED IN
SERVICE.
DISCONNECT ALL POWER:
REMOVE ALL SOURCES OF POWER BEFORE YOU
SERVICE, REMOVE OR INSTALLANY UNITS.
All components should be located per the following
requirements:
• Installations are to be indoors only, in dry loca-
tions, protected from rain, water, and rapid
changes in temperature that could cause con-
densation. Equipment must be securely
mounted on rigid, permanent walls.
• Operating temperature shall not exceed the
range of 32° to 120° F (0 to 49° C).
• Operating humidity not to exceed 93% non-con-
densing at 90° F (32° C).
• All sub-assemblies and components are to be
located in compliance with the local, the national
codes and the manufacturer’s recommenda-
tions.
• All installation field wiring shall be in compliance
with the local code, the national code and the
manufacturer’s recommendations.
• Use the Architects and Engineering Specifica-
tions for detailed information on your Facility’s
Configuration.
1. Remove the unit from its static-shield bag,
observing proper static protection measures.
2. Visually inspect the unit for damage.
If any components are damaged, notify the
shipping carrier immediately. Report missing
components to the Silent Knight Customer
Service.
3. Use the Hardware Kit provided with the unit.
4. Plug the Fiber Module #1 into P6 of the ECS-
NVCM or SK-NIC circuit as shown in Location 1
in Figure 3.2.1 and Figure 3.2.2.
5. To connect the Fiber Module # 1 to the ECS-
NVCM or SK-NIC, insert and secure three
screws (#4-40 x 1/4”) as shown in Location 2 in
Figure 3.2.1 and Figure 3.2.2.
Section 3.2 SK-FML/SK-FSL Installation
(continued)
6. Plug the Fiber Module #1 into P5 of the
ECS-NVCM or SK-NIC circuit as shown in
Location 3 in Figure 3.2.1 and Figure 3.2.2.
7. To connect the Fiber Module #1 to the ECS-
NVCM or SK-NIC, insert and secure three
screws (#4-40 x 1/4”) as shown in Location 4 in
Figure 3.2.1 and Figure 3.2.2.

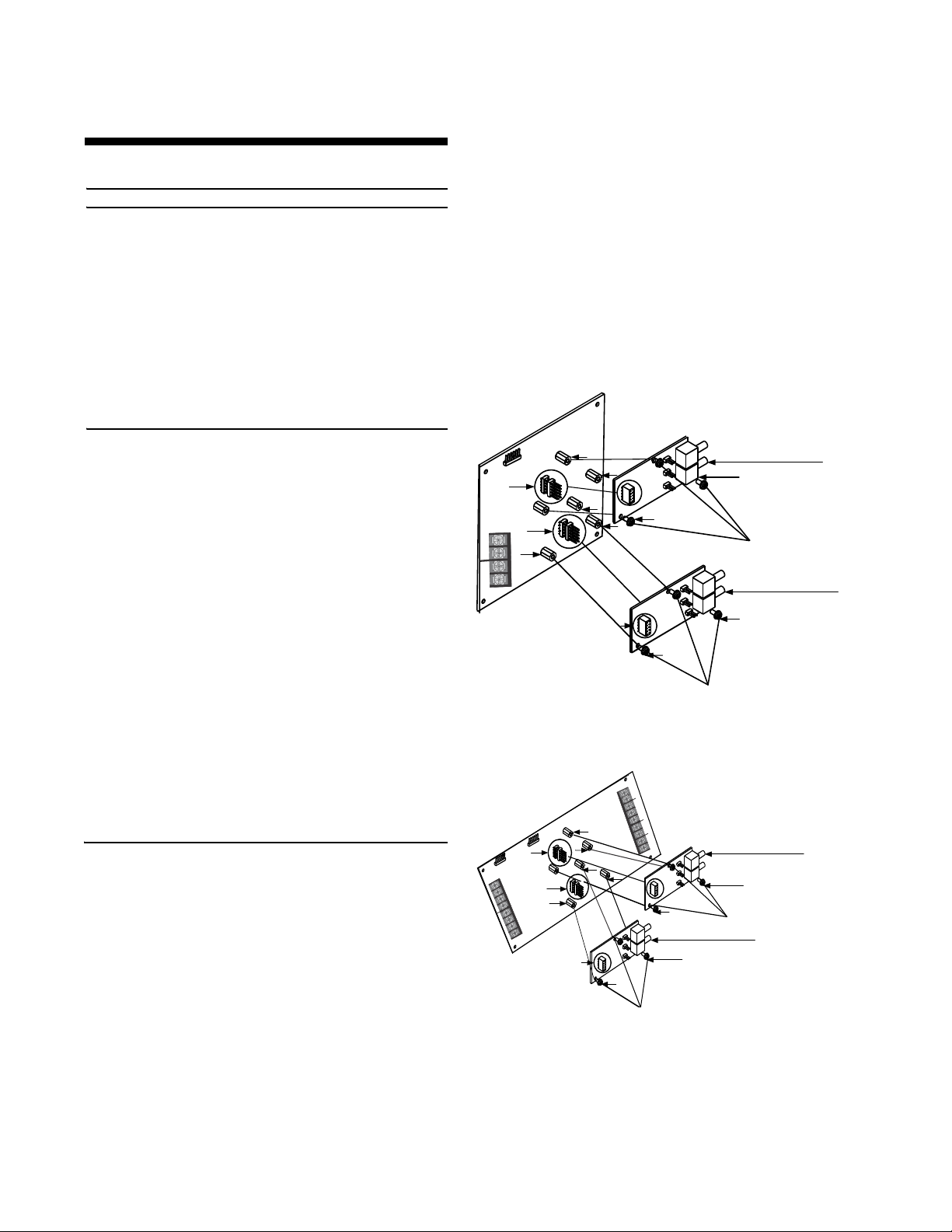

Figure 3.2.1 illustrates the SK-FML/SK-FSL installed
to the SK-NIC.
Note: FIBER MODULES:SK-FSLAND SK-FML. INSTALL
A MAXIMUM OF TWO BOARDS PER
INSTALLATION.THE FIBER MODULES CAN BE
COMBINED.
Figure 3.2.1 SK-FML Installation
Figure 3.2.2 illustrates the SK-FML/SK-FSL installed
to the ECS-NVCM.
Figure 3.2.2 SK-FSL Installation
2
4
2
2
4
4
4
2
1
1
3
3
4
4
22
SK-NIC
J6
J5
SK-FML
SK-FSL
ABAB
SK-FML
SK-FSL
1
FIBER MODULE #2
FIBER MODULE #1
SCREW
(#4-40 X ¼”)
(6.35 mm)
(3 PLACES)
SCREW
(#4-40 X ¼”)
(6.35 mm)
(3 PLACES)
12
22
4
1
4
3
4
4
4
4
21
J5
3
J6
22
—OUT+
VBUS2
—IN+
—OUT+
VBUS1
—IN+
PORT1
ABPORT2
AB
CMD2
COMMONCMD1AUXAUDIO
GNDIN
SK-FML
SK-FSL
ECS-NVCM
FIBER MODULE #2
FIBER MODULE #1
SCREW
(#4-40 X ¼”) (6.35 mm)
(3 PLACES)
SCREW
(#4-40 X ¼”) (6.35 mm)
(3 PLACES)
firealarmresources.com

SK-FML/SK-FSL Fiber Option Modules Installation Instructions
P/N LS10178-001SK-E-A 3
Section 4 Wiring
Section 4.2 SK-FML Installation Wiring
Terminals
Table 4.2.1 lists the SK-FML installation wiring
terminals.
Table 4.2.2 lists the SK-FML switch settings and
drive currents.
Section 4.4 SK-FSL Installation Wiring
Terminals
Table 4.4.1 lists the SK-FML installation wiring
terminals.
Section 4.2 and Section 4.4 list the wiring for the
fiber-optic modules.
• Fiber-Optic Multi-Mode
Module (SK-FML) • Fiber-Optic Single- Mode Module (SK-FSL)
Section 4.1 SK-FML Circuit Board
Diagram
Figure 4.1.1 illustrates the SK-FML PCB circuit
board diagram.
Figure 4.1.1 SK-FML Circuit Board Diagram
Designation Description
J1 Connects to the transmitting fiber.
(See Note)
J2 Connect to the receiving fiber.
(See Note)
SW1-1 Sets the optical output power for the
transmitting fiber. (See Table 4.2.2)
SW1-2 Sets the optical output power for the
transmitting fiber. (See Table 4.2.2)
SW1-3 Sets the optical output power for the
transmitting fiber. (See Table 4.2.2)
SW1-4 Not used.
P1 Plugs onto P5 (Port 1) or P6 (Port 2) of
the ECS-NVCM or SK-NIC.
NOTE: Use standard ST connector fiber-optic
cable, multi-mode, up to 200 µ (optimized for
62.5/125 µ). Signal loss up to 8dB maximum
between nodes.
Table 4.2.1 SK-FML Terminal Wiring Designations
J2
J1
FIBER-IN
FIBER-OUT
SW1-1 SW1-2 SW1-3 Drive
Current
OFF OFF OFF 10 mA
OFF OFF ON 20 mA
OFF ON OFF 32 mA
OFF ON ON 42 mA
ON OFF OFF 54 mA
ON OFF ON 64 mA
ON ON OFF 76 mA
ON ON ON 86 mA
NOTE: SW1-4 is not used.
Table 4.2.2 SK-FML Switch Settings/Drive Currents
Section 4.3 SK-FSL Circuit Board
Diagram
Figure 4.3.1 illustrates the SK-FSL, PCB circuit
board diagram.
Figure 4.3.1 SK-FSL Circuit Board Diagram
Designation Description
J1 Plugs on to P5 (Port 1) or P6 (Port 2)
of the ECS-NVCM or SK-NIC.
U6 Top connection connects to the
receiving fiber (IN).
Bottom connection connects to the
transmitting fiber (OUT).
NOTE: Use LC connector fiber-optic cable, single
mode, up to 1310 nm (optimized for 9/125 µ).
Signal loss up to 30 dB maximum between nodes.
Table 4.4.1 SK-FML Terminal Wiring Designations
J1 U6 FIBER IN
FIBER OUT
LED1
LED2
RX
TX
firealarmresources.com

SK-FML/SK-FSL Fiber Option Modules Installation Instructions
4P/N LS10178-001SK-E-A
Table 4.4.2 lists the SK-FSL LED Indicators. Section 5:Reference Documentation
Table 5.1 lists the UL-Controlled documentation
assigned to the Silent Knight Systems. If you require
detailed installation instructions on cabinetry, wiring
and specifications, you can download the following
UL-Controlled documents from the ESD site on the
Silent Knight Website (www.silentknight.com).
LED # Name Color Description
1 TX Green Lights while data is
transmitted on the Repeater.
When activity is detected, the
TX light flickers and turns ON.
If no activity is detected, the
TX light turns OFF.
2 RX Green Lights while data is received
on the Repeater.
When activity is detected, the
RX light flickers and turns ON.
When no activity is detected,
the RX light turns OFF.
Table 4.4.2 SK-FSL LED Indicators
Part Number Title
LS10143-001SK-E IFP-2100/ECS Installation and
Operation Manual
LS10144-001SK-E 6820-EVS Installation and
Operation Manual
LS10145-001SK-E IFP-300/ECS Installation and
Operation Manual
LS10146-001SK-E 6808 Installation and Operation
Manual
LS10147-001SK-E IFP-75 Installation and
Operation Manual
LS10148-001SK-E 6700 Installation and Operation
Manual
LS10169-001SK-E ECS-NVCM Installation Sheet
LS10171-001SK-E SK-NIC Installation Sheet
Table 5.1 Reference Documentation
