Honeywell COMBISAFE User manual

TEMPORARY EDGE
PROTECTION
SYSTEM DESCRIPTION
SMB System C

CONTENTS
Safety instructions 4
Important 5
General 5
Application area 5
Handling products 5
Traceability 5
DATA 6
Safety Post 4140/4145/4150 6
Safety Post 4141/4146/4151 7
Steel Mesh Barrier Mk II 3203 8
Steel Mesh Barrier 1.3 m Mk II 3204 8
Steel Mesh Barrier Make-Up 2,6 m Mk II 3217 9
Steel Mesh Barrier Make-Up 1,3 m Mk II 3218 9
Steel Mesh Barrier LightWeight Class ABC 2,6m 3240 10
Steel Mesh Barrier LightWeight Class ABC 1,5 m 3241 10
Steel Mesh Barrier LightWeight Class ABC 1,7 m 3242 11
Steel Mesh Barrier LightWeight Class A 2,6 m 3245 11
Steel Mesh Barrier LightWeight Class A 1,5 m 3246 12
Steel Mesh Barrier LightWeight Class A 2,0 m 3247 12
Steel Mesh Barrier LightWeight Class A 0,9 m 3248 13
Steel Mesh Barrier LightWeight Class A 0,5 m 3249 13
Steel Mesh Barrier LightWeight Make-Up 2,6 m 3260 14
Steel Mesh Barrier LightWeight Make-Up 1,5 m 3261 14
Steel Mesh Debris Barrier LightWeight 2,6 m 3266 15
Steel Mesh Debris Barrier LightWeight 1,5 m 3267 15

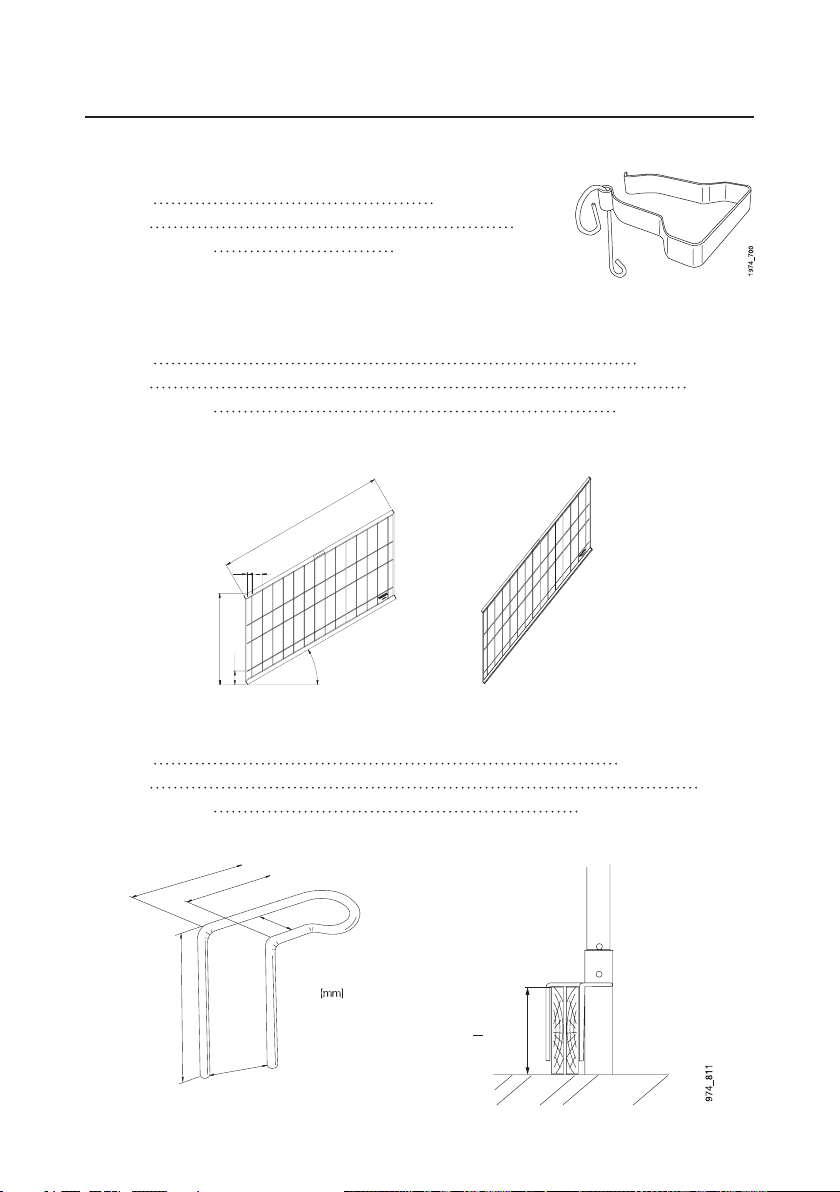

Barrier Clip 3220 16
Steel Mesh Barrier Stair 3226 16
Toeboard Holder 4110 16
Steel Mesh Barrier Holder 3222 17
Steel Mesh Barrier Adjuster 3224 17
Steel Mesh Barrier Hinge 3225 18

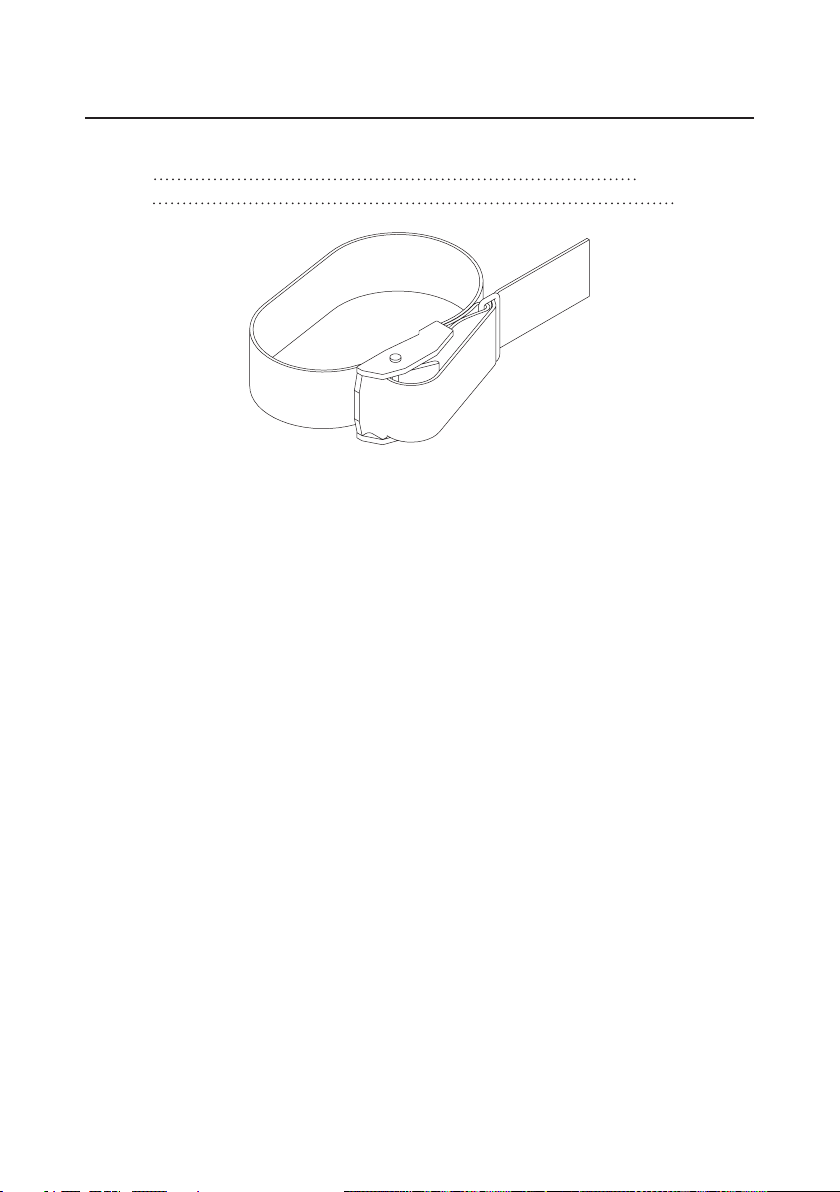

Combistrap 100335 19
Handling 20
Selection and dimensioning 20

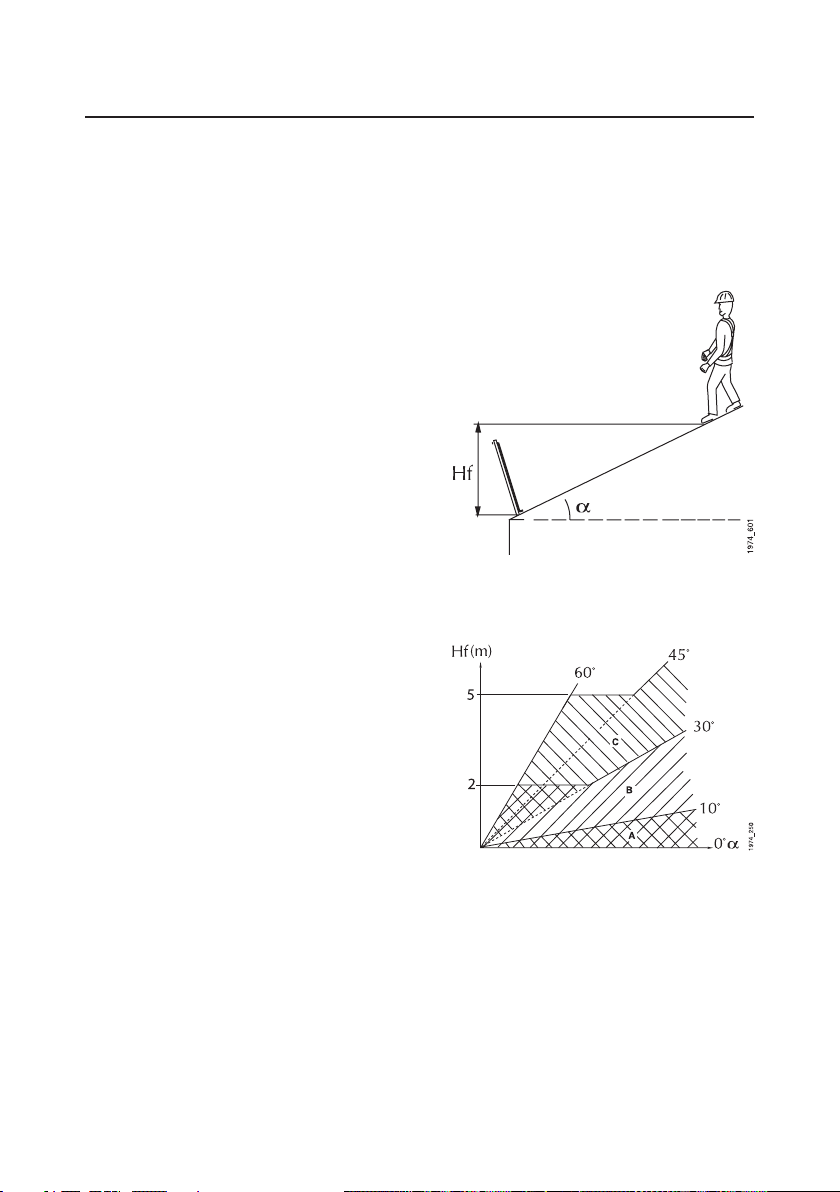

Classification 20
Distance between Safety Posts 21
Timber guardrails 21
Steel Mesh Barrier 21
Steel Mesh Barrier Stair 21
Framed Rail Barrier 21
Framed Mesh Barrier 21
Design of temporary edge protection 22
System C

Class A design 22
Class B design 22
Class C design 23
Corners 23
Overhang 23
Wind load 23
Ice and snow 24
Assembly 24
Fastening 24
Safety Posts 24
Steel Mesh Barrier Holder 3222 25
Safety Post without holder 28
Steel Mesh Barrier Make-Up 3217 & 3218 29
Barrier Clip 3220 30
Toeboard Holder 4110 33
Steel Mesh Barrier Adjuster 3224 34
Steel Mesh Barrier Hinge 3225 36
Checking 38
Inspection 38
Dismantling 38
Packing Steel Mesh Barrier 39
Packing Steel Mesh Barrier Stair 42
Maintenance 43
Safety checks 43
Reconditioning 43
Scrapping 43
Storage 43
© Combisafe International AB
UI SMB System C EN 2033
System C

4
Safety Instructions SMB System C
WARNING!
Always check products and
equipment before use.
Never use damaged or rusty
materials as this can affect safety.
WARNING!
Edge protection that is combined
or interlinked with products
other than Combisafe is not
recommended.
Combisafe product liability
only applies to combinations of
Combisafe products that have
been assembled in accordance
with the Combisafe TI-sheets and
System Description.
WARNING!
If the edge protection is subject to
a load that is too great, e.g.a fall,
the guardrail must be inspected
by a competent person before
being taken into service again.
Contact Combisafe in the event
of uncertainty.

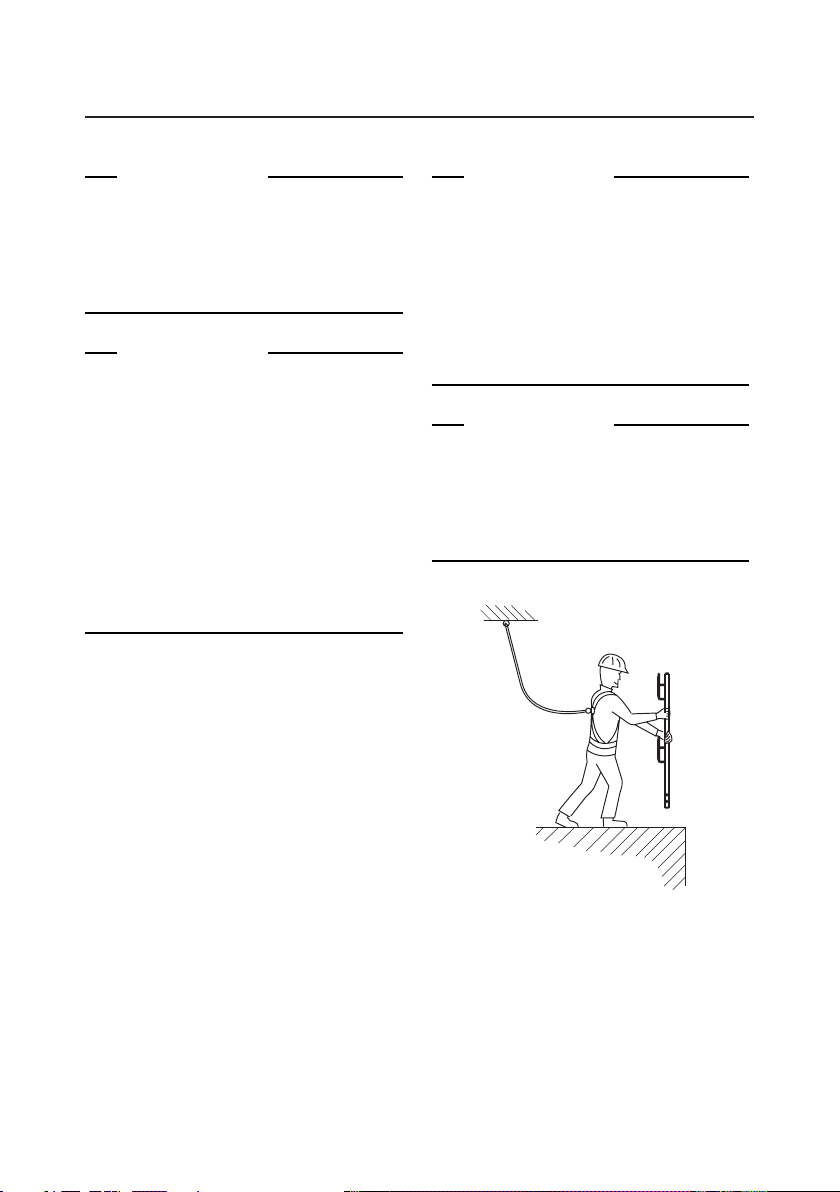

WARNING!
Always use personal fall arrest
equipment where there is a risk of
falling. This also applies to work
from a hydraulic lift platform.
1974_600
Safety instructions

5
SMB System C Safety Instructions
Important
Combisafe edge protection
products must always be used
together with the applicable
system description and the
TI-sheet for each product.
Always carry out an assessment
and produce a method statement
for the installation of the
Combisafe system.
To ensure safety in the workplace,
always consider:
• plan the fall protection at an
early stage.
• many fall accidents occur from a
low height.
• arrange suitable and safe access
to the workplace.
• close off the area below and
around the assembly site so that
persons are not injured by falling
tools or materials.
• keep order around the assembly
site.
• only use safety products that
have been inspected for safety.
• use tools intended for the work
to be performed.
• tighten screws properly and
check that hooks lock correctly.
General
Combisafe edge protection
products conform to the
requirements set out in the
European standard EN 13374.
Application area
Combisafe edge protection
products are intended for use as
temporary fall protection.
The products must not be used to:
• protect the general public,
• absorb impact from vehicles,
or
• prevent the collapse of large
quantities of, e.g., materials or
snow.
Handling products
Combisafe edge protection
products are designed for ease of
use and individual products weigh
less than 20 kg, however there are
a few exceptions.
Refer to national directives
concerning the handling of
materials.
Traceability
Most Combisafe products are
marked with a batch number for
inspection and traceability.
The batch number consists of a
letter and four digits and refers to
the place and date, year and week,
of manufacture for the product.
0345 signifies that the product
was manufactured in 2003 week
45. The number is generally
located close to the Cloxy hole on
the Safety Posts and attachments.

6
Data SMB System C
DATA
Safety Post
4140/4145/4150
System SMB System C
Weight 1.8 kg/2.1 kg/2.8 kg
Surface finish Aluminium
Conforms to EN 13374 class A, B, C
Spare parts list
Item Part no. Information
11131 Cloxy
2100536 Plastic Plug
2
1
Ø
48,7
L[m
m]
4140_ 001

7
SMB System C Data
Flexi Safety Posts
4141/4146/4151
System SMB System C
Weight 3.1 kg/3.4 kg/4.0 kg
Surface finish Aluminium
Conforms to EN 13374 class A, B, C
Safety Post no. L H
4141 1.15 m 1.05 m
4146 1.35 m 1.25 m
4151 1.8 m 1.35 m
Spare parts list
Item Part no. Information
11131 Cloxy
210518 SMB Holder
Body
3100175 M12 Hex
Screw
410520 Clamp
51000536 Plastic Plug,
PE-HD
Part numberItem
11331
100536
5
105182
100175, ISO 4017 - M12 x 30
3
105204
4141 ADJUSTABLE POST 1.15m
L
100
35
690
34
164
5
4
3
2
1
H
5
4
3
2
1

8
Data SMB System C

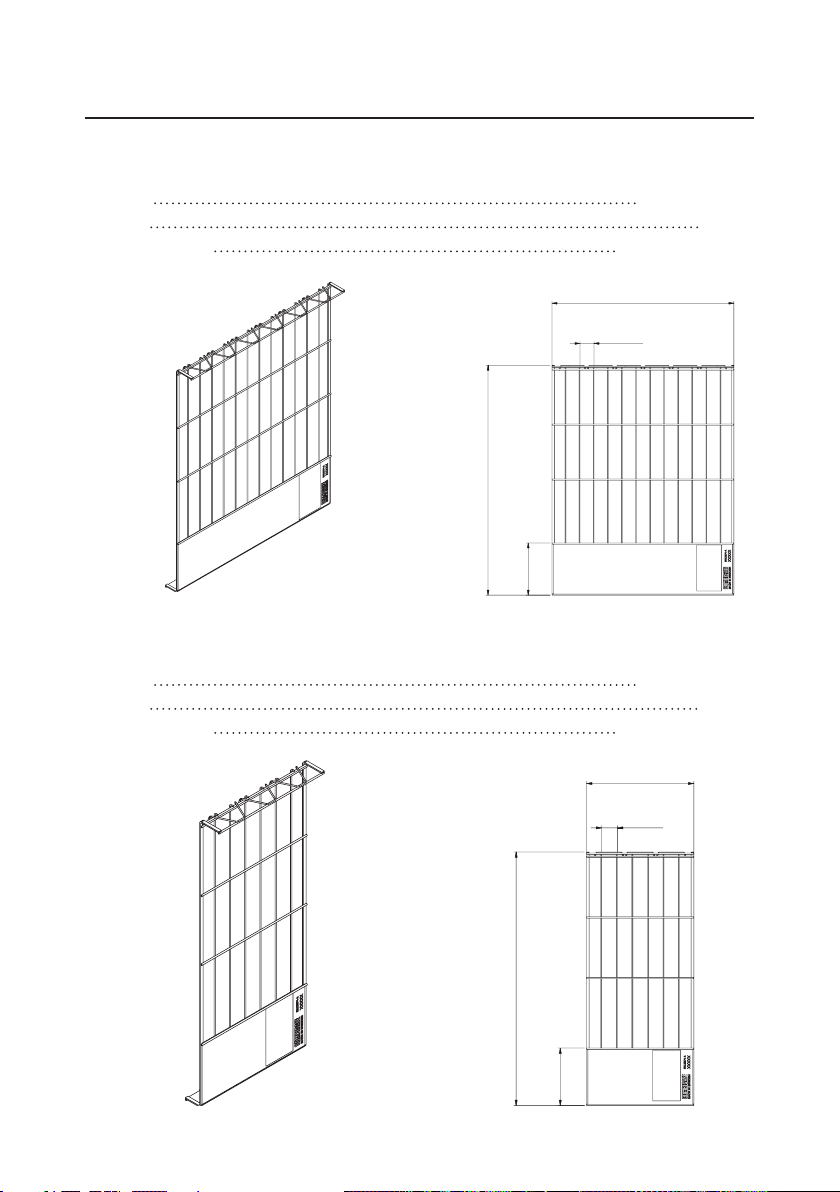

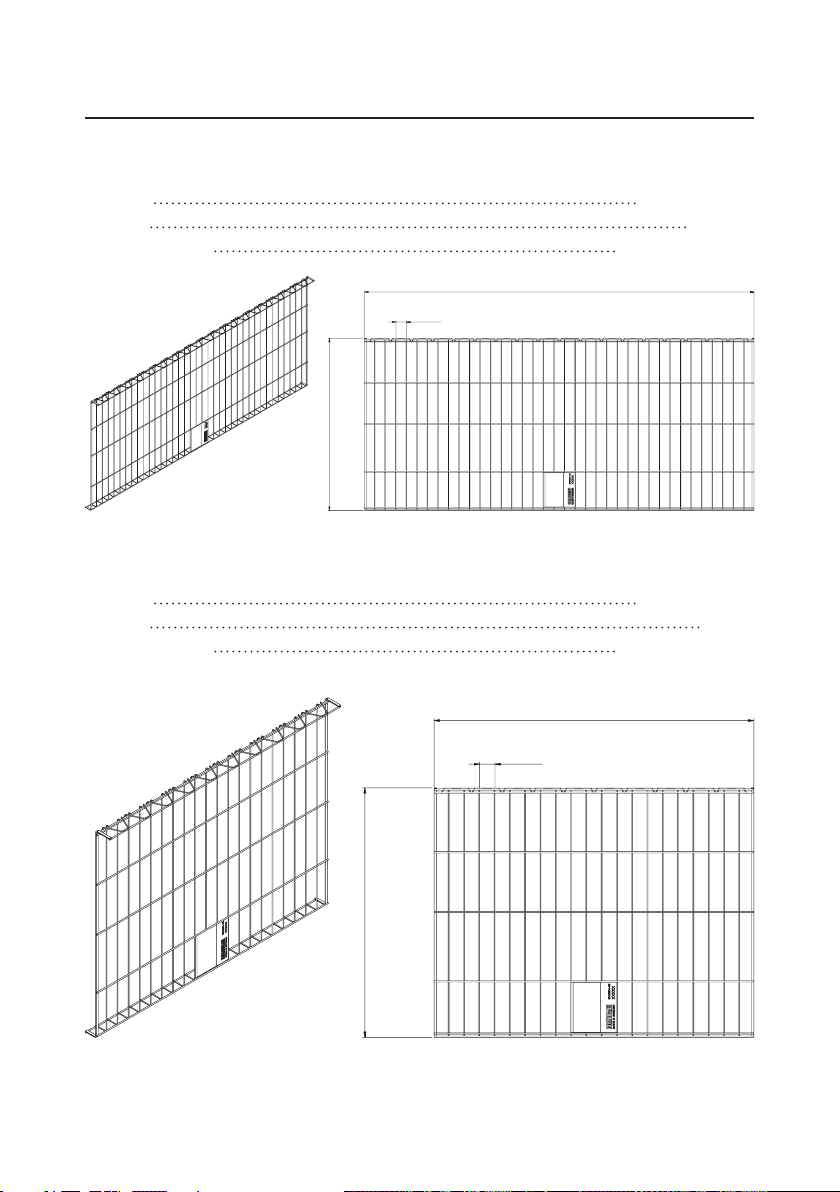

Steel Mesh Barrier Mk II 3203
Registered design
System SMB System
Weight 19.4 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B, C
Steel Mesh Barrier 1.3 m Mk II 3204
System SMB System
Weight 10.5 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B, C
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternational AB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[mm]
Enter signatureEnter signature14. 11. 2019XX
1:20
112, 117, 142TD 117, RAL 3020
3203 - 00
19,4 kg
Drawing Number - Revision
STEEL MESH BARRIER MkII
ISO: 2768-cL, 5817, 13920-AF
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
308
1150
2599
60
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternational AB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[ mm]
Enter signatureEnter signature14. 11. 2019XX
1:20
112, 117, 142TD 117, RAL 3020
3203 - 00
19,4 kg
Drawing Number - Revision
STEEL MESH BARRIER MkII
ISO: 2768-cL, 5817, 13920-AF
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
308
1150
2599
60
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternational AB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[ mm ]
Enter signatureEnter signature14. 11. 2019XX
1 : 20
112, 117, 142TD 117, RAL 3020
3204-00
10,5 kg
Drawing Number - Revision
SMB 1.3m MkII
ISO 2768-cL, ISO 13920-AF
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
1150
308
60
1339
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternational AB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[mm]
Enter signatureEnter signature14. 11. 2019XX
1 : 20
112, 117, 142TD 117, RAL 3020
3204-00
10,5 kg
Drawing Number - Revision
SMB 1.3m MkII
ISO 2768-cL, ISO 13920-AF
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
1150
308
60
1339

9
SMB System C Data

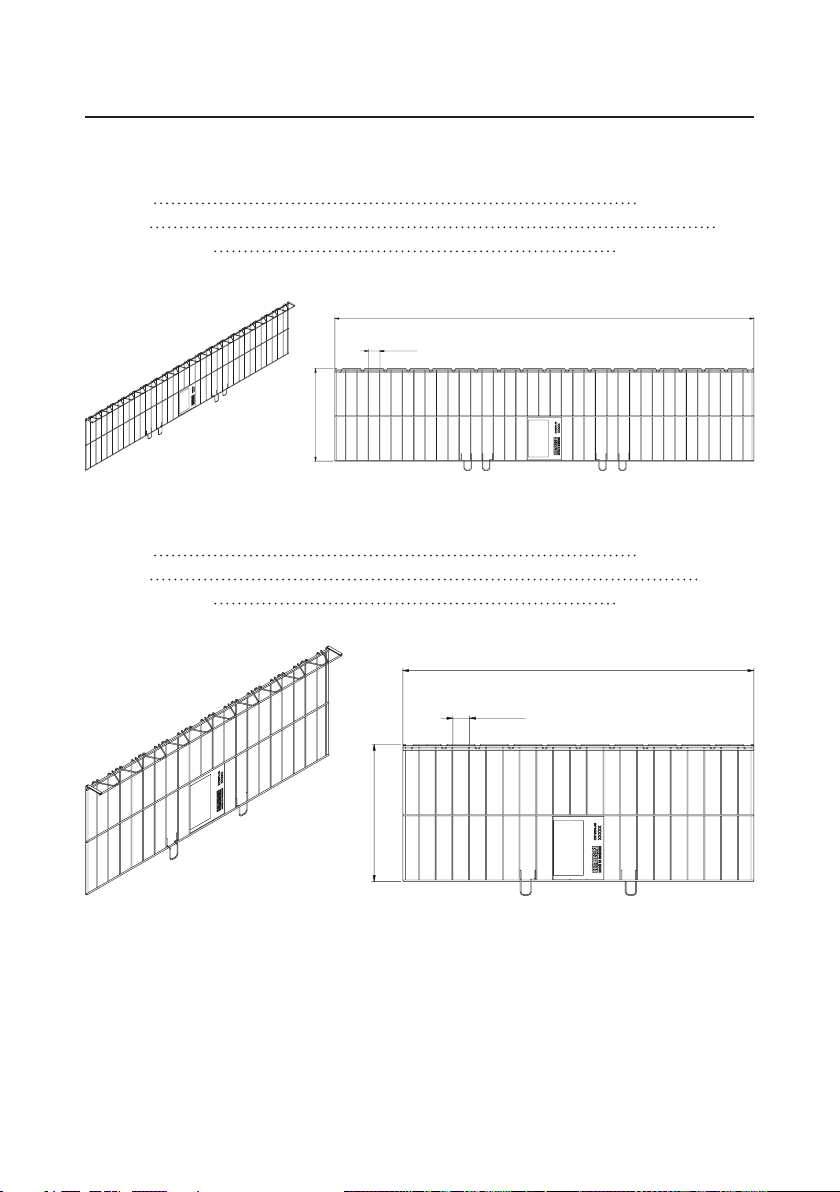

Steel Mesh Barrier Make-Up 2.6 m Mk II 3217
System SMB System
Weight 9.3 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B
Steel Mesh Barrier Make-Up 1.3 m Mk II 3218
System SMB System
Weight 5 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternational AB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[ mm ]
Enter signatureEnter signature14. 11. 2019XX
1:20
112,117,142TD 117, colour RAL 3020
3217-00
9,2 kg
Drawing Number - Revision
SMB MAKE UP PIECE MkII
ISO 2768-cL, ISO 13920-AF
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
575
2599
60
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternational AB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[mm]
Enter signatureEnter signature14. 11. 2019XX
1:20
112,117,142TD 117, colour RAL 3020
3217-00
9,2 kg
Drawing Number - Revision
SMB MAKE UP PIECE MkII
ISO 2768-cL, ISO 13920-AF
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
575
2599
60
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternational AB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[mm]
Enter signatureEnter signature14. 11. 2019XX
1:20
112,117,142TD 117, colour RAL 3020
3218-00
5,1 kg
Drawing Number - Revision
SMB MAKE UP PIECE 1.3m
MkII
ISO 2768-cL, ISO 13920-AF
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
575
1339
60
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternational AB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[ mm ]
Enter signatureEnter signature14. 11. 2019XX
1:20
112,117,142TD 117, colour RAL 3020
3218-00
5,1 kg
Drawing Number - Revision
SMB MAKE UP PIECE 1.3m
MkII
ISO 2768-cL, ISO 13920-AF
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
575
1339
60

10
Data SMB System C
Steel Mesh Barrier Lightweight Class ABC 2.6m 3240
Registered design
System SMB System
Weight 14.2 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B, C
Steel Mesh Barrier Lightweight Class ABC 1.5 m 3241
Registered design
System SMB System
Weight 8.7 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B, C
2602
261
1150
70,5
1474
1150
261
70.5

11
SMB System C Data
Steel Mesh Barrier Lightweight Class ABC 1.8 m 3242
Registered design
System SMB System
Weight 10 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B, C
Steel Mesh Barrier Lightweight Class A 2.6 m 3245
Registered design
System SMB System
Weight 12.2 kg
Surface finish Powder coated
Conforms to EN 13374 class A
1756
70.5
1150
261
2602
261
1150
211,514170,5

12
Data SMB System C
Steel Mesh Barrier Lightweight Class A 1.5 m 3246
Registered design
System SMB System
Weight 7. 8 kg
Surface finish Powder coated
Conforms to EN 13374 class A
Steel Mesh Barrier Lightweight Class A 2.0 m 3247
Registered design
System SMB System
Weight 10.1 kg
Surface finish Powder coated
Conforms to EN 13374 class A
1474
1150
261
211.5 70.5141
2038
1150
261
211.5 14170.5

13
SMB System C Data
Steel Mesh Barrier Lightweight Class A 0.9 m 3248
Registered design
System SMB System
Weight 5.7 kg
Surface finish Powder coated
Conforms to EN 13374 class A
Steel Mesh Barrier Lightweight Class A 0.5 m 3249
Registered design
System SMB System
Weight 3.6 kg
Surface finish Powder coated
Conforms to EN 13374 class A
910
70.5
261
1150
487
70.5
1150
261

14
Data SMB System C
Steel Mesh Barrier Lightweight Make-Up 2.6 m 3260
Registered design
System SMB System
Weight 7 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B
Steel Mesh Barrier Lightweight Make-Up 1.5 m 3261
Registered design
System SMB System
Weight 4.4 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B
2602
575
70.5
1474
575
70.5

15
SMB System C Data
Steel Mesh Debris Barrier Lightweight 2.6 m 3266
Registered design
System SMB System
Weight 11.7 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B
Steel Mesh Debris Barrier Lightweight 1.5 m 3267
Registered design
System SMB System
Weight 7. 3 kg
Surface finish Powder coated
Conforms to EN 13374 class A, B
2602
70,5
1150
1474
70.5
1150

16
Data SMB System C
Barrier Clip 3220
For Steel Mesh Barrier and Steel Mesh Barrier Make-Up
System SMB System C
Weight 0.1 kg
Surface finish Hot-dip galvanized
Steel Mesh Barrier Stair 3226
Registered design
System SMB System
Weight 14.1 kg
Surface finish Powder coated
Designed for staircase slopes of 30° but also works within +/- 5°Conforms
to EN 13374 class A
Toeboard Holder 4110
System SMB System C
Weight 0.5 kg
Surface finish Hot-dip galvanized
Conforms to EN 13374 class A
1962
55 120
160
30°
1044
>1
5
[mm]
150
130
95
50
65
062_4791

17
SMB System C Data
Steel Mesh Barrier Holder 3222
System SMB System C
Weight 1.3 kg
Surface finish Powder coated
Spare parts list
Item Part no. Information
115020
2100175
Steel Mesh Barrier Adjuster 3224
System SMB System
Weight 2.6 kg
Surface finish Hot-dip galvanized
Spare parts list
Item Part no. Information
110525
210526
310527 Fastening strap
with hook
410528
5100200
6100025
8.8-BZP100175, ISO 4017 - M12 x 30Hexagon head screw13
S235JR10520CLAMP12
Welded Steel10518SYSTEM C HOLDER BODY11
MaterialPart Number and/or Standard and DimensionTitle or DescriptionQty.Item
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[ mm ]
4. 4. 2012JS3. 4. 2012ML2012-04-02HAN29. 6. 2005HAN
1:5
112
3222 - 03
1,4 kg
Drawing Number - Revision
SYSTEM C SMB HOLDER
Calc. Weight General Tolerances Unit
Title
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternationalAB
©
A4
164
1
2
3
692
30
100
35
110
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternationalAB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[ mm ]
Enter signatureEnter signature2019 .14. 11XX
6 : 1
112
3224 - 00
2,9 kg
Drawing Number - Revision
SMB ADJUSTER
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
855
130-350
113.5
65
115
165
215
265
315
365
0
1
4
5
32 6

18
Data SMB System C
Steel Mesh Barrier Hinge 3225
Registered design
System SMB System S
Weight 0.7 kg
Surface finish Electro galvanized
Item Part no. Information
110534
210536
3100206
4100126
5100090
andthecontentsthereofmustnotbedisclosedtoanythirdparty,
This documentmustnotbecopiedwithoutourwrittenpermission,
norbeusedforanyunauthorizedpurpose.
CombisafeInternationalAB
©
A4
Approved DateApproved byChecked DateChecked byRevised DateRevised byCreation DateAuthor
Surface Treatment
Size Scale
Technical Directives
[ mm ]
Enter signatureEnter signature2019 .14. 11XX
2 : 1
112
3225 -00
0,7 kg
Drawing Number - Revision
SMB HINGE
ISO -2768cL
Calc. Weight Weld Quality Levels and/or General Tolerances Unit
Title
5
1
243

19
SMB System C Data
Combistrap 100335
System SMB System
Length 400 mm

20
Data SMB System C
Handling
Selection and dimensioning
Classification
Temporary edge protection is specified in EN 13374 into three different
classes, depending on the application and the likely load.
• Class A refers to a static load cor-
responding to a person leaning
against/holding the edge protection
or walking/stumbling against the
protection.
• Class B refers to a static and low
dynamic load corresponding to a
person leaning against/holding the
edge protection or walking/stum-
bling against it or falling against the
protection down a sloping surface.
• Class C refers to a high dynamic load
corresponding to a person falling
down a steeply sloping surface
Each Class is recommended for use with a range of roof slopes and
potential fall heights.
• Class A recommended for a work-
ing surface with a slope of α,
that is 0 – 10°.
• Class B recommended for a work-
ing surface with a slope of α,
that is 0 – 30°, or up to 60°, if the fall
height, Hf, does not exceed 2.0 m.
• Class C recommended for a work-
ing surface with a slope of α,
that is 30 – 45°, or up to 60°, if the
fall height, Hf, does not exceed 5.0 m.
Select products taking the needs of the workplace into consideration.
Some products can be used in several classes, but the conditions for
their usage then vary.
