Honeywell Dolphin
7800 Quick Start
More information available at POSMicro.com

Dolphin™7800
Quick Start Guide
78-QS Rev A
11/11
Aller à www.honeywellaidc.com pour le français.
Vai a www.honeywellaidc.com per l'italiano.
Für Deutsch gehe zu www.honeywellaidc.com.
Ir a www.honeywellaidc.com para español.
Para Português, acesse www.honeywellaidc.com.br.
Перейти на русскоязычный сайт www.honeywellaidc.com.
Pro češtinu jdi na www.honeywellaidc.com.
Pre slovenčinu choď na www.honeywellaidc.com
如要到中国 www.honeywellaidc.com（简体）。

Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in specifications
and other information contained in this document without prior notice, and the reader
should in all cases consult HII to determine whether any such changes have been made.
The information in this publication does not represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained herein; nor
for incidental or consequential damages resulting from the furnishing, performance, or
use of this material.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be photocopied, reproduced, or translated
into another language without the prior written consent of HII.
©2011 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
Patents
For patent information, please refer to www.honeywellaidc.com/patents.
Technical Assistance
Contact information for technical support, product service, and repair can be found at
www.honeywellaidc.com.
User Documentation
For localized versions of this document, and to download the User’s Guide, go to
www.honeywellaidc.com.
Limited Warranty
Refer to www.honeywellaidc.com/warranty_information for your product’s warranty
information.
Out of the Box
Verify that your carton contains the following items:
• Dolphin 7800 mobile computer (terminal)
• Main battery pack
• Quick Start Guide
Note: If you ordered accessories for your terminal, verify that they are also
included with the order.
Be sure to keep the original packaging in case you need to return the Dolphin
terminal for service.

Front Panel
Note: Your Dolphin model may differ from the model illustrated in this guide;
however, the features noted are standard for all 7800 models unless
otherwise indicated.
Front Speaker
General
Notification LED
Touch Panel
Display
SCAN Key
Blue Modifier Key
Power Key
or
End Call
Microphone
Red Modifier Key
Navigation Keys
Volume Control
Buttons
Right Scan/
Image Button
I/O Connector
Charge Indicator
LED
Left Scan/
Image Button
Right Soft Key
Left Soft Key
Send Call

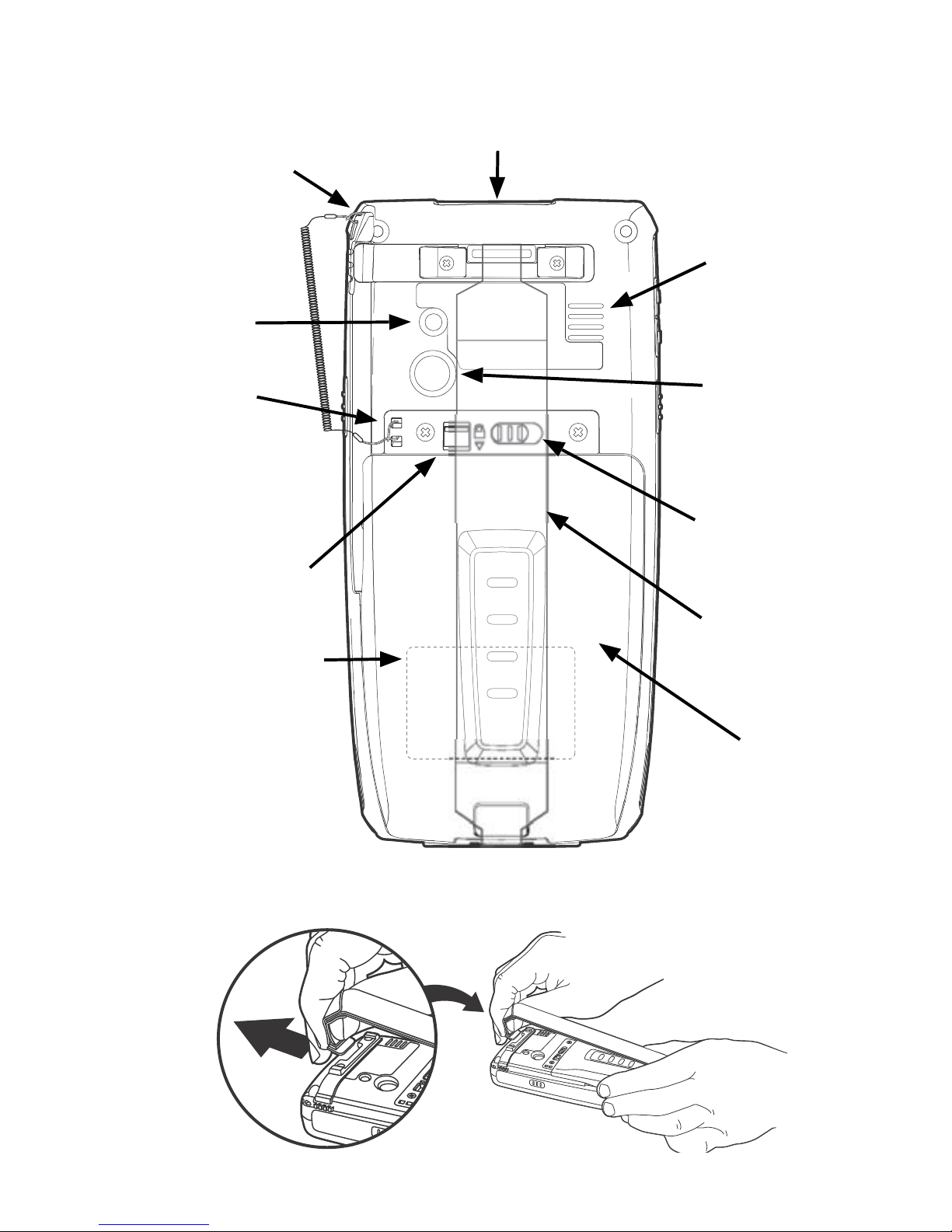

Back Panel
Releasing the Hand Strap
Scan/Imaging Engine Window*
Rear Speaker
Camera Flash
Color Camera
Lens
Battery Pack
SIM/Memory Card
Socket
(located under battery)
Stylus Tether/
Lanyard Slot
Battery Release
Button
Battery Lock
Stylus/Stylus Slot
Hand Strap
* LED and Laser Aimer
Aperture

Installing the Battery Pack
Dolphin 7800 model terminals are designed for use with standard battery
pack model 7800-BTSC (Li-ion 3.7 V, 8.9 watt hour) and extended battery
pack models 7800-BTXC and 7800-BTXCW (Li-ion 3.7 V, 14.8 watt hour)
manufactured for Honeywell International Inc.
The Dolphin 7800 is shipped with the battery packaged separately from the
terminal. Perform the steps illustrated below to install the battery.
Ensure all components are dry prior to placing the battery in the
terminal. Mating wet components may cause damage not covered by
the warranty.
Note: The terminal does not power ON unless the battery is locked .
We recommend use of Honeywell Li-ion battery packs. Use of any non-
Honeywell battery may result in damage not covered by the warranty.
Once the battery is installed, connect the terminal to one of the Dolphin 7800
charging peripherals to charge the battery pack.
Dolphin 7800 model terminals are designed for use with the following 7800
charging devices and cables: 7800-HB, 7800-EHB, 7800-NB, 7800-CB,
7800-DEX, 7800-MB, 7800-MC, 7800-USB, and 7800-USBH.
!
1
2
3
4
!

Charging the Dolphin
Dolphin terminals ship with the battery significantly discharged of power.
Charge the battery with a Dolphin charging device for a minimum of 4 hours
for the standard battery and 6 hours for the extended battery.
Note: Charge the Dolphin terminal for at least 24 hours prior to initial use to
ensure the internal backup battery is fully charged.
Ensure all components are dry prior to mating terminals/batteries with
peripheral devices. Mating wet components may cause damage not
covered by the warranty.

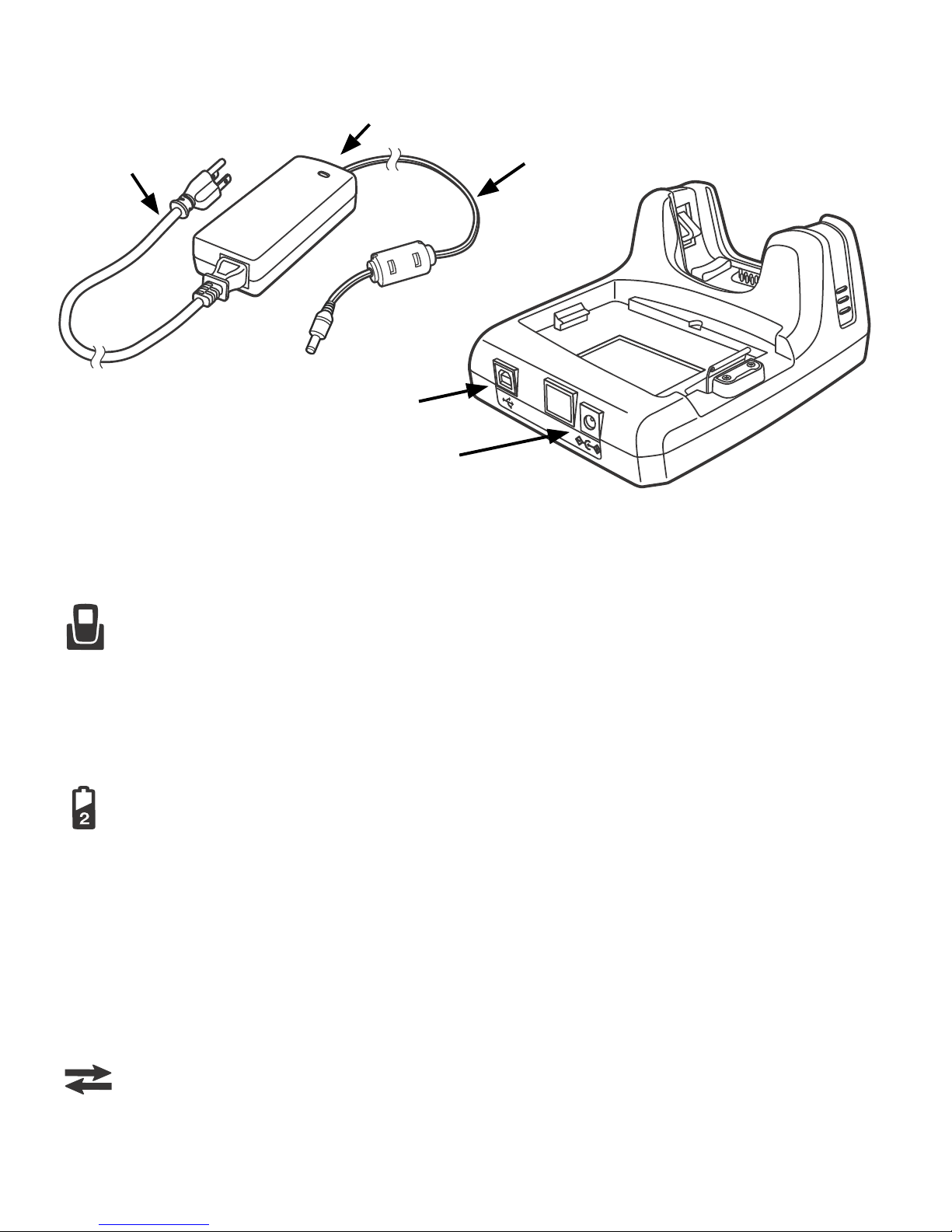

HomeBase (Model 7800-HB)
The 7800-HB charger is designed for use with Dolphin 7800 model terminals,
standard battery pack model 7800-BTSC (Li-ion 3.7V, 8.9 watt hour), and
extended battery pack models 7800-BTXC and 7800-BTXCW (Li-ion 3.7V,
14.8 watt hour) manufactured for Honeywell International Inc. Use only a UL
Listed power supply, which has been qualified by Honeywell with output rated
at 12VDC and 3 amps with the device.
HomeBase Parts
!
AUX Battery Well
AUX Battery LED COMM LED
Power/
Dock LED

HomeBase LED Indicators
Red The HomeBase has power but no terminal is docked.
Green The HomeBase has power and the terminal is properly
seated in the base.
Orange The auxiliary battery is charging.
Green The auxiliary battery has completed charging and is
ready for use.
Red
Flashing
The internal temperature of the auxiliary battery is too
hot or there is a battery error. Charge the auxiliary
battery in a cooler environment or replace the battery
with a new Honeywell battery.
USB Port Communication
Green A USB connection is established with the host
workstation.
DC Power Jack
USB Port
AC Power
Cord
Power Adapter
Power Cable

Charging/Communication Cables
(Model 7800-DEX, 7800-USB, and 7800-USBH)
Use only a UL Listed power supply, which has been qualified by Honeywell
with output rated at 5VDC and 3A with the device.
COMM Cable
Host Device
USB
Power Adapter
Cable
Plug Adapter
Client
Device
Power Adapter
Cable
Plug Adapter
DEX
or

Turning the Device On/Off
Press the Power key to turn the terminal ON.
Press and hold the Power key for approximately 5 seconds to turn the
terminal OFF .
Note: You should always turn the device OFF before removing the battery.
Suspend Mode
The terminal automatically enters Suspend Mode when the device is inactive
for a programmed period of time.
Press the Power or SCAN key to wake the terminal from Suspend Mode.

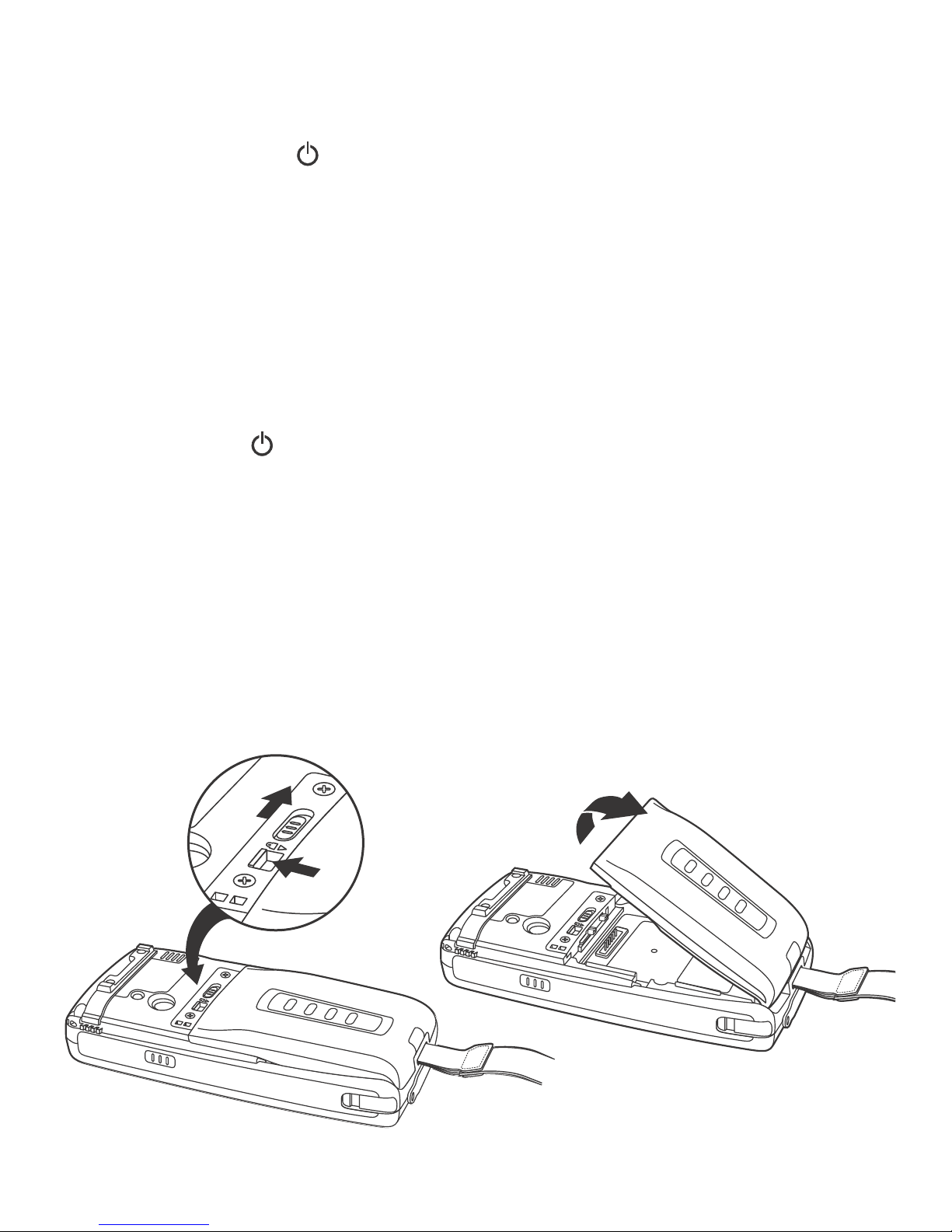

Removing the Battery Pack
1. Turn the terminal OFF and release the hand strap.
2. Unlock the battery.
3. Wait three seconds, then slide the battery release button away from the
stylus slot.
4. Remove the battery.
2
3
4

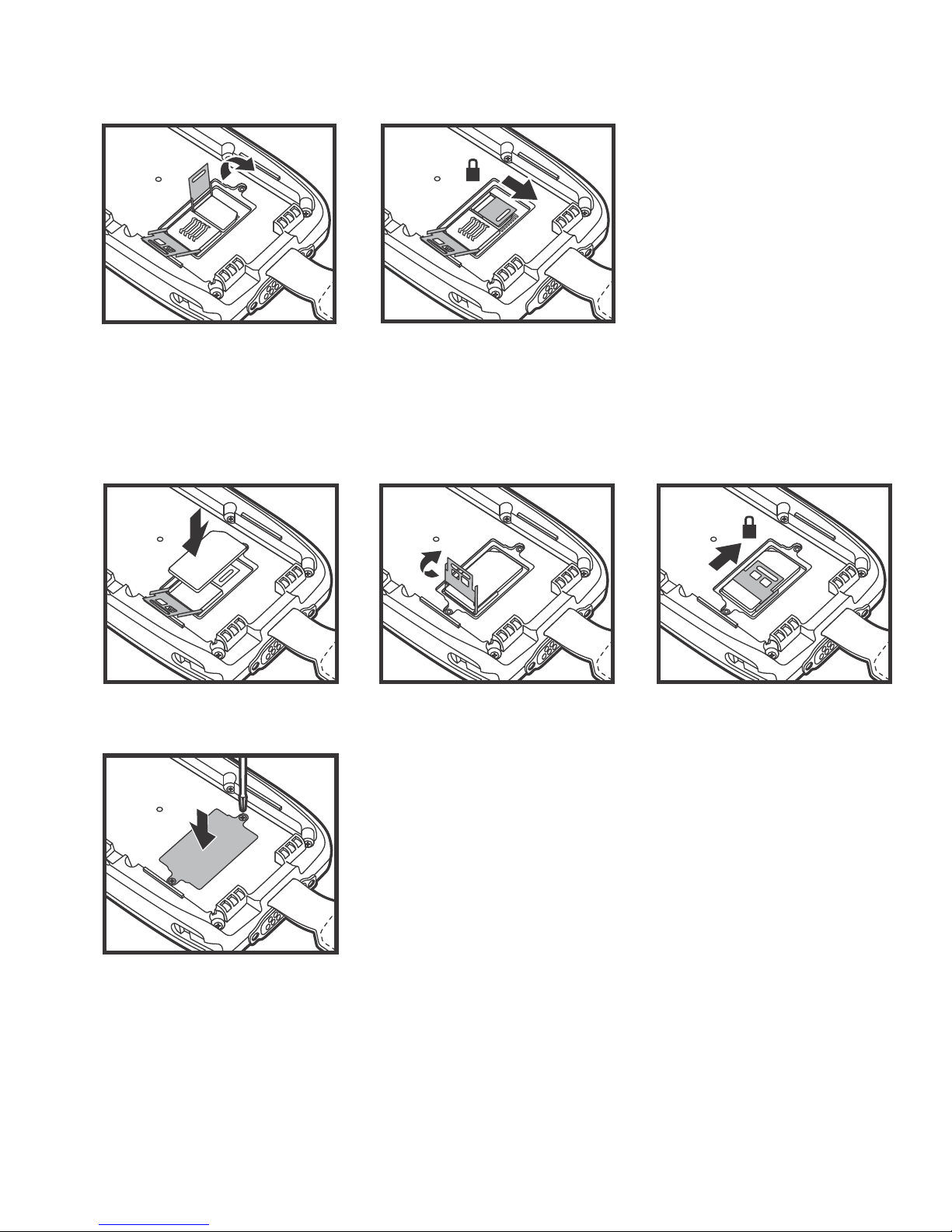

Installing the SIM Card and/or Memory Card
1. Turn OFF the terminal.
2. Release the hand strap and remove the battery pack.
3. Remove the screws and the protective shield covering the SIM/memory
card socket.
4. Unlock the SIM card latch by sliding the latch toward the stylus slot.
5. Lift the latch to reveal the SIM socket and the memory card latch.
Note: If a SIM card is installed, remove the card to reveal the memory
card latch.
If you are not installing a memory card, skip to step 10.
6. Unlock the memory card latch by sliding the latch toward the top of the
terminal.
7. Lift the latch to expose the memory socket.
8. Insert the MicroSD or MicroSDHC card.
345
678

9. Close and lock the memory card latch.
10. Insert the SIM card. Align the chamfered corner of the card with the
chamfered corner of the socket.
11. Close and lock the SIM card latch.
12. Reinstall the shield and screws to protect the socket.
13. Install and lock the battery. The terminal automatically starts the power
up sequence.
9a9b
10 11b11a
12

Modifier and Navigation Keys
Key Function
or
The blue and red keys are used in combination with other
keys to type special characters and perform system func-
tions. The keyboard is color-coded to indicate the character
typed or function performed when specific keys are pressed
immediately after the blue or red modifier key. Press a mod-
ifier key once to modify only the next key pressed. Press a
modifier key twice to toggle the modifier Lock ON or OFF.
The shift key toggles the keyboard between uppercase and
lowercase alphabet mode. Press the shift key once to mod-
ify only the next key pressed. Press the shift key twice to
toggle Caps Lock ON or OFF.
or Move the cursor one row or line up or down.
or Move the cursor one character Left or Right.
&
Raise the volume.
&
Lower the volume.
&
Move the cursor up one page.
&
Move the cursor down one page.
Blue
Red
Up
Down
Left
Right
Blue
Blue
Red
Red

Function Keys
Using the Color Camera
1. Tap > Demos > Camera Demo .
2. Point the camera lens at the object you want to capture. The camera lens
is located on the back panel of the terminal.
3. Center the object in the touch screen display.
4. Press the ENT key or tap Snap on the touch screen. The general
notification LED illuminates red during picture capture.
Note: Tap the green arrow to review or edit your pictures.
Tap the green box to exit the picture review/edit screen.
Key Function
Activates the scan and wakes the terminal from
Suspend Mode. The key location allows convenient one-
handed image-taking and/or bar code decoding.
Answers a phone call or initiates a phone call.
Ends and diconnects a phone call.
or
&
Turns the keyboard backlight ON or OFF.
Note: On terminals equipped with the 30-Key Numeric
(Calculator) Keyboard, the blue modifier key must
be pressed before the backlight key.
& Turns the flashlight on or off.
Blue
Red

Using the Scan Engine
1. Tap > Demos > Scan Demo .
2. Point the Dolphin terminal at the bar code.
3. Press and hold the SCAN key. The aiming beam or pattern appears and
the general notification LED illuminates red.
4. Center the aiming beam or pattern over the bar code.
Note: For optimum performance, avoid reflections by scanning the bar
code at a slight angle.
5. When the bar code is successfully decoded, the general notification LED
flashes green and the terminal beeps.
6. The bar code information is entered into the application in use.
Aiming Beam
The aiming beam is narrower when you hold the terminal closer to a bar code
and the aiming beam is wider when you hold it farther from the bar code.
The aiming beam must be aimed closer to symbologies that have smaller bars
or elements (mil size). The aiming beam must be aimed farther from
symbologies that have larger bars or elements (mil size).
N5603 Red High-Vis Aiming Pattern
If your Dolphin terminal is configured with a N5603 imager, high-vis aimers
frame the bar code for more intuitive aiming.

N5600 Green Aiming Beam
Linear Bar Code
2D Matrix Symbol
Resetting the Terminal
There are three types of system resets: a soft reset, a hard reset, or a factory
reset. The soft and hard resets preserve all data stored in the file system.
Contact a Honeywell technical support representative for more information on
how to perform a factory reset.
Soft Reset (Warm Boot)
A soft reset re-boots the device and preserves any objects created in RAM.
You would perform a soft reset when: the terminal fails to respond, after
installing some software applications, or after making changes to certain
system settings, such as network cards.
1. Press and hold the BLUE + END keys for approximately 5 seconds.
2. The general notification LED flashes orange then green for
approximately 3 seconds as the terminal resets.
3. When the reset is complete, the Home screen displays.

Hard Reset (Cold Boot)
A hard reset re-boots the device and closes any open applications running in
RAM at the time of the reset.
1. Press and hold the BLUE + SEND keys for approximately
5 seconds.
2. The general notification LED flashes orange then green for
approximately 3 seconds as the terminal resets.
3. When the reset is complete, the Home screen displays.
ActiveSync Communication
To synchronize data (e.g., e-mail, contacts, and calendar) between the
terminal and the host workstation (PC):
1. ActiveSync®(version 4.5 or higher) or Windows®Mobile
Device Center (WDMC) must be installed on your PC. You can download
the most current version of ActiveSync or WDMC from the Microsoft Web
site (http://go.microsoft.com/fwlink/?LinkId=147001).
Note: Dolphin terminals ship with ActiveSync already installed.
ActiveSync on your Dolphin terminal works with WDMC on PCs
running Windows Vista or Windows 7 and with ActiveSync on PCs
running Windows XP.
2. The Dolphin terminal and PC must be configured for the same
communication type.
3. Connect the terminal to the PC (using a Dolphin peripheral) to initiate
communication.
For additional information on ActiveSync or Windows Mobile Device Center
visit www.microsoft.com.
We recommend use of Honeywell peripherals, power cables, and power
adapters. Use of any non-Honeywell peripherals, cables, or power
adapters may cause damage not covered by the warranty.
!
