Honeywell Dolphin 7800 User manual

Dolphin™7800
with Android™2.3.4 Mobile Device Platform
Quick Start Guide
78-AND-QS Rev B
10/12
Aller à www.honeywellaidc.com pour le français.
Vai a www.honeywellaidc.com per l'italiano.
Gehe zu www.honeywellaidc.com für Deutsch.
Ir a www.honeywellaidc.com para español.
Para Português, acesse www.honeywellaidc.com.br.
Перейти на русскоязычный сайт www.honeywellaidc.com.
Pro češtinu jdi na www.honeywellaidc.com.
Türkçe için lütfen www.honeywellaidc.com sayfasını ziyaret ediniz.
Pre slovenčinu choď na www.honeywellaidc.com.
Idźna stronę: www.honeywellaidc.com po quick start w języku polskim.

Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in specifications
and other information contained in this document without prior notice, and the reader
should in all cases consult HII to determine whether any such changes have been made.
The information in this publication does not represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained herein; nor
for incidental or consequential damages resulting from the furnishing, performance, or
use of this material.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be photocopied, reproduced, or translated
into another language without the prior written consent of HII.
©2012 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
Out of the Box
Verify that your carton contains the following items:
• Dolphin 7800 mobile computer (terminal)
• 1GB, 2GB, or 4GB industrial grade microSD™ card (pre-installed)
• Main battery pack
• Quick Start Guide
If you ordered accessories for your terminal, verify that they are also included
with the order. Be sure to keep the original packaging in case you need to
return the Dolphin terminal for service.
Memory Card Specifications
Applications on your 7800 Android terminal utilize the microSD card to store
files and application data. To avoid errors or possible data loss, do not
operate the device without a memory card installed.
Honeywell recommends the use of Single Level Cell (SLC) industrial grade
microSD or microSDHC™ memory cards with Dolphin terminals for maximum
performance and durability. Contact a Honeywell sales representative for
additional information on qualified memory card options.

Front Panel
Note: Your Dolphin model may differ from the model illustrated in this guide;
however, the features noted are standard for all 7800 Android models
unless otherwise indicated.
Front Speaker
General
Notification LED
Touch Panel
Display
SCAN Key
Blue Modifier Key
Power Key
or
End Call
Microphone
Red Modifier Key
Navigation Keys
Volume Control
Buttons
Right Scan/
Image Button
I/O Connector
Charge
Indicator LED
Left Scan/
Image Button
Back Key
Home Key
Send Call
MENU Key

Back Panel
Releasing the Hand Strap
Scan/Imaging Engine Window*
Rear Speaker
Camera Flash
Color Camera
Lens
Battery Pack
SIM/Memory Card Socket,
with microSD card
pre-installed
(located under battery)
Stylus Tether/
Lanyard Slot
Battery Release
Button
Battery Lock
Stylus/Stylus Slot
Hand Strap
* LED and Laser Aimer
Aperture

Installing the Battery Pack
Dolphin 7800 model terminals are designed for use with standard battery
pack model 7800-BTSC (Li-ion 3.7 V, 8.9 watt hour) and extended battery
pack models 7800-BTXC and 7800-BTXCW (Li-ion 3.7 V, 14.8 watt hour)
manufactured for Honeywell International Inc.
The Dolphin 7800 is shipped with the battery packaged separately from the
terminal. Perform the steps illustrated below to install the battery.
Ensure all components are dry prior to placing the battery in the
terminal. Mating wet components may cause damage not covered by
the warranty.
Note: The terminal does not power ON unless the battery is locked .
We recommend use of Honeywell Li-ion battery packs. Use of any non-
Honeywell battery may result in damage not covered by the warranty.
Once the battery is installed, connect the terminal to one of the Dolphin 7800
charging peripherals to charge the battery pack.
Dolphin 7800 Android model terminals are designed for use with the following
7800 charging devices and cables: 7800-HB, 7800-CB, 7800-MB, 7800-MC,
and 7800-USB. The 7800 Android model does not support Ethernet.
We recommend use of Honeywell peripherals, power cables, and power
adapters. Use of any non-Honeywell peripherals, cables, or power
adapters may cause damage not covered by the warranty.
!
1
2
3
4
!
!

Charging the Dolphin
Dolphin terminals ship with the battery significantly discharged of power.
Charge the battery with a Dolphin charging device for a minimum of 4 hours
for the standard battery and 6 hours for the extended battery.
Note: Charge the Dolphin terminal for at least 24 hours prior to initial use to
ensure the internal backup battery is fully charged.
Ensure all components are dry prior to mating terminals/batteries with
peripheral devices. Mating wet components may cause damage not
covered by the warranty.
HomeBase (Model 7800-HB)
The 7800-HB charger is designed for use with Dolphin 7800 model terminals,
standard battery pack model 7800-BTSC (Li-ion 3.7V, 8.9 watt hour), and
extended battery pack models 7800-BTXC and 7800-BTXCW (Li-ion 3.7V,
14.8 watt hour) manufactured for Honeywell International Inc. Use only a UL
Listed power supply, which has been qualified by Honeywell with output rated
at 12VDC and 3 amps with the device.

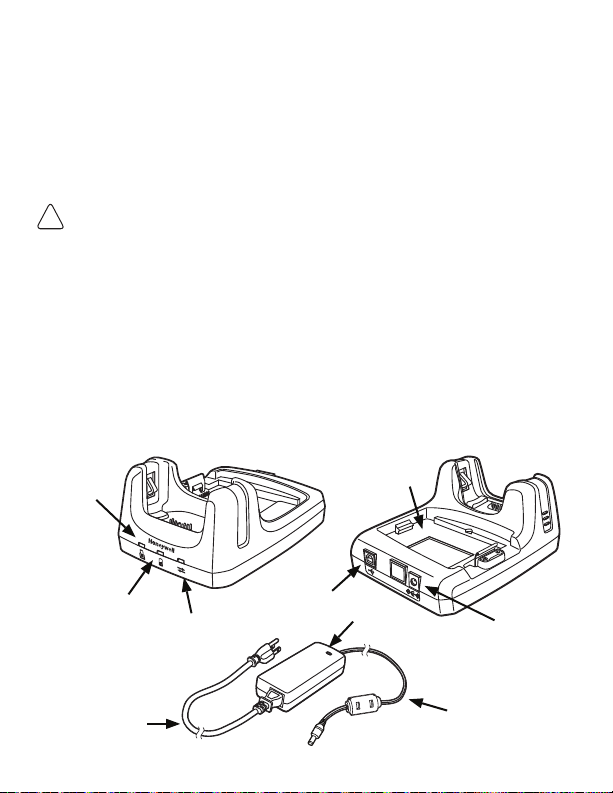

HomeBase Parts
!
AUX Battery Well
AUX Battery
LED COMM
LED
Power/Dock
LED
DC Power
Jack
USB Port
AC Power Cord
Power
Adapter
Power Cable

HomeBase LED Indicators
Charging/Communication Cable (Model 7800-USB)
Use only a UL Listed power supply, which has been qualified by Honeywell
with output rated at 5VDC and 3A with the device.
Red The HomeBase has power but no terminal is docked.
Green The HomeBase has power and the terminal is properly
seated in the base.
Orange The auxiliary battery is charging.
Green The auxiliary battery has completed charging and is
ready for use.
Red
Flashing
The internal temperature of the auxiliary battery is too
hot or there is a battery error. Charge the auxiliary
battery in a cooler environment or replace the battery
with a new Honeywell battery.
Green A USB connection is established with the host
workstation.
COMM Cable
Computer
USB
Power Adapter
Cable
Plug
Adapter

Suspend Mode
Suspend Mode turns the touch screen off and locks the terminal. To save
battery power, the terminal enters Suspend Mode when the device is inactive
for a programmed period of time. To adjust the timeout limit, tap the Apps
Launcher > Settings > Display > Screen Timeout.
1. Press and release the Power key to toggle the terminal in or out of
Suspend Mode.
2. Drag to the right on the touch screen to unlock the terminal.
Note: You should always place the terminal in suspend mode when replacing
the battery pack.
Silent Mode and Airplane Mode
1. Press and hold the Power key for approximately 5 seconds.
2. Tap Silent Mode or Airplane Mode on the Phone Options menu to
toggle the mode ON or OFF.
Note: When Airplane Mode is turned on, shows on the status bar.
Removing the Battery Pack
1. Press and release the Power key to enter Suspend Mode, then
release the hand strap.
2. Unlock the battery.
3. Wait three seconds, then slide the battery release button away from the
stylus slot.
4. Remove the battery.

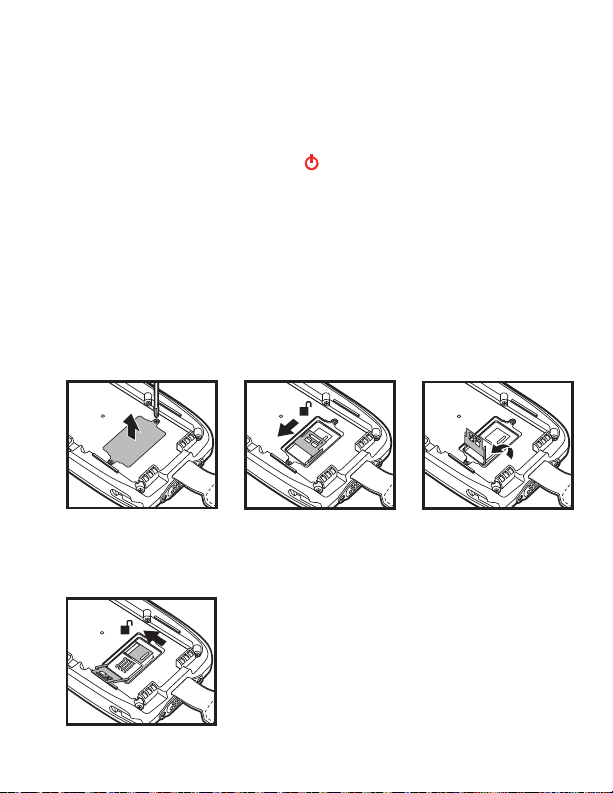

Installing the SIM Card and/or Replacing the Memory Card
Note: To prevent possible data corruption, you should unmount the microSD
card before removing the card from the terminal. To unmount the card,
tap the Apps Launcher
> Settings > Storage > Unmount SD card.
1. Press and release the Power key to enter Suspend Mode.
2. Release the hand strap and remove the battery pack.
3. Remove the screws and the protective shield covering the SIM/memory
card socket.
4. Unlock the SIM card latch by sliding the latch toward the stylus slot.
5. Lift the latch to reveal the SIM socket and the memory card latch.
Note: If a SIM card is installed, remove the card to reveal the memory
card latch.
If you are not replacing the memory card, skip to step 10.

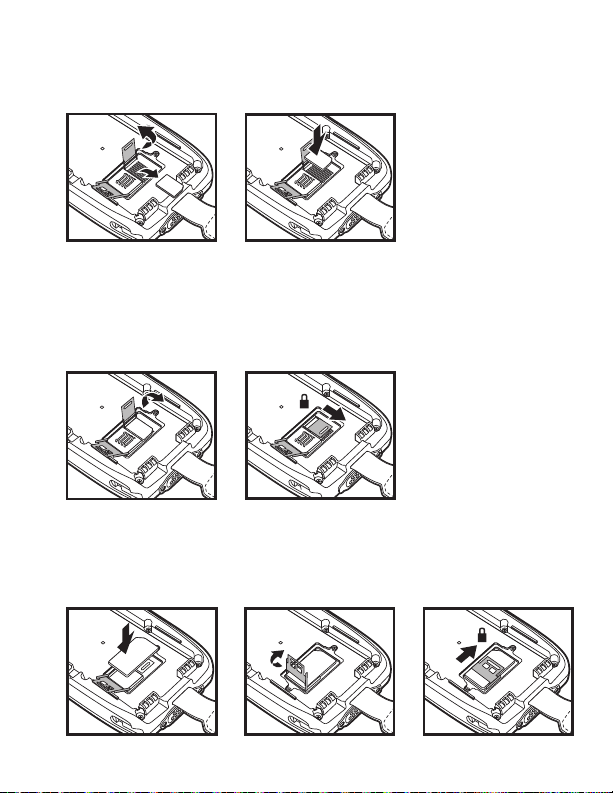

6. Unlock the memory card latch by sliding the latch toward the top of the
terminal.
345
6

7. Lift the latch and remove the memory card.
8. Insert the new microSD or microSDHC card.
Note: To avoid application errors or possible data loss, do not operate the
device without a memory card installed. Contact a Honeywell sales
representative for additional information on qualified memory card
options.
9. Close and lock the memory card latch.
10. Insert the SIM card. Align the chamfered corner of the card with the
chamfered corner of the socket.
11. Close and lock the SIM card latch.
78
9a9b
10 11b11a

12. Reinstall the shield and screws to protect the socket.
13. Install and lock the battery. The terminal automatically starts the power
up sequence.
Navigation Keys
Note: Additional functionality varies according to the application in use.
Key Function
Return to the Home screen.
Back to the previous screen.
Opens additional menu options.
or Move the cursor one row or line up or down.
or Move the cursor one character Left or Right.
&
Raise the volume.
&
Lower the volume.
Up
Down
Left
Right
Blue
Blue

Modifier Keys
Function Keys
Key Function
or
The blue and red keys are used in combination with other
keys to type special characters and perform system func-
tions. The keyboard is color-coded to indicate the character
typed or function performed when specific keys are pressed
immediately after the blue or red modifier key. Press a mod-
ifier key once to modify only the next key pressed. Press a
modifier key twice to toggle the modifier Lock ON or OFF.
The shift key toggles the keyboard between uppercase and
lowercase alphabet mode. Press the shift key once to mod-
ify only the next key pressed. Press the shift key twice to
toggle Caps Lock ON or OFF.
Key Function
Activates the scan. The key location allows convenient
one-handed image-taking and/or bar code decoding.
Answers a phone call or initiates a phone call.
Ends and disconnects a phone call.
& Turns the flashlight on or off.
Blue
Red
Red

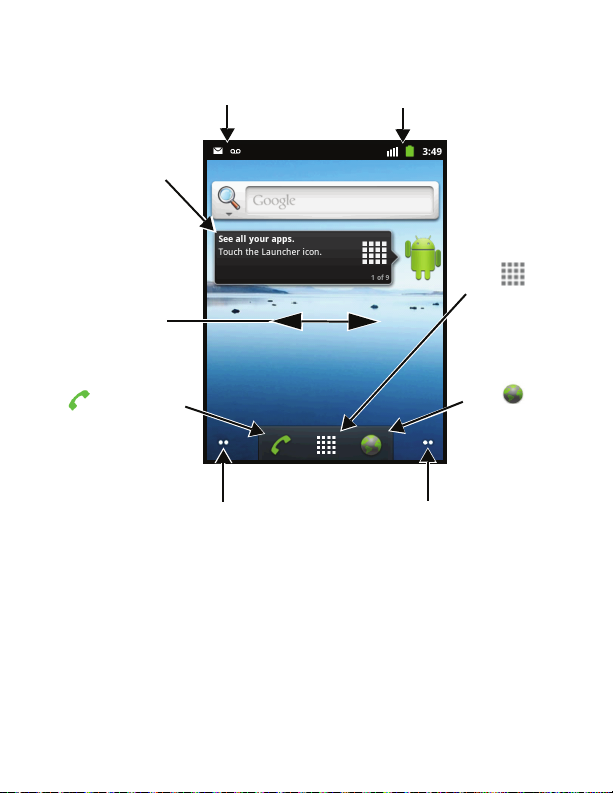

Home Screen
Personalize the Home Screen
Personalize the five Home screen panels for quick access to apps, folders,
and menus.
To add an item:
1. Tap and hold an empty spot on the Home screen.
2. Select the type of item (e.g., shortcut, widget, folder, or wallpaper).
3. Choose the item from the list or browse to the item you want to add.
Tap the widget to see
helpful tips for your
Dolphin device.
Tap the dots to scroll to the next Home screen panel.
Tap to
view the Apps
Launcher menu.
Tap to
access the
Internet.
Tap to access
the touch screen dialer.
Status IndicatorsNotifications
Swipe left or right
with your finger or
stylus to scroll between
Home screen panels.

To remove/delete an item:
1. Tap and hold the item.
2. When the unit vibrates, drag the item to the at the bottom of the
screen.
To move an item:
1. Tap and hold the item.
2. When the unit vibrates, drag the item to the new location, then release.
Note: The next panel automatically opens if you drag the item to the edge
of the touch screen.
Using the Color Camera
1. Tap > Camera .
2. Make sure the Camera/Video switch is set to .
3. Point the camera lens at the object you want to
capture, then tap .
Using the Scan Engine
1. Tap > Demos > Scan Demo .
2. Point the Dolphin terminal at the bar code.
Note: For optimum performance,
avoid reflections by scanning
the bar code at a slight angle.
3. Tap Scan or press the SCAN key.
4. The decode results display on the touch screen.
Camera Lens

Aiming Beam
The aiming beam is narrower when you hold the terminal closer to a bar code
and the aiming beam is wider when you hold it farther from the bar code.
The aiming beam must be aimed closer to symbologies that have smaller bars
or elements (mil size). The aiming beam must be aimed farther from
symbologies that have larger bars or elements (mil size).

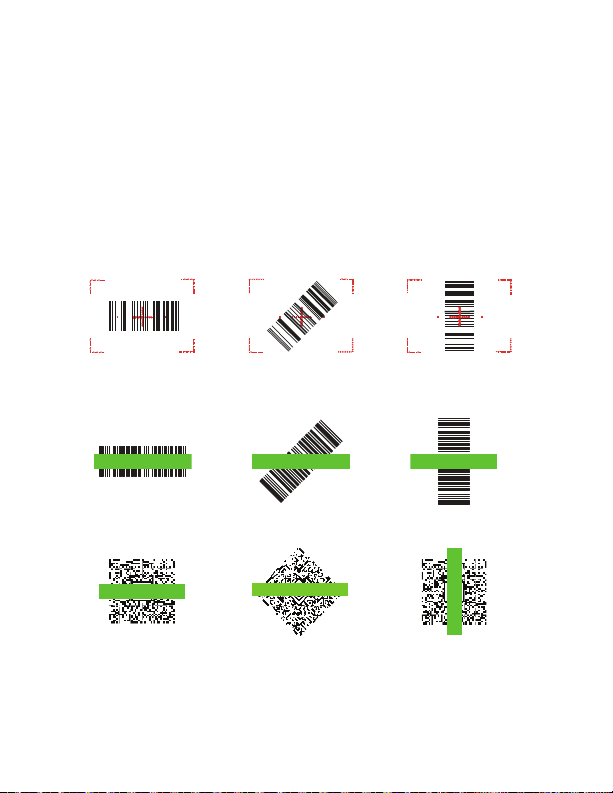

N5603 Red High-Vis Aiming Pattern
If your Dolphin terminal is configured with a N5603 imager, high-vis aimers
frame the bar code for more intuitive aiming.
N5600 Green Aiming Beam
Linear Bar Code
2D Matrix Symbol

Resetting the Terminal
There are two types of system resets: a hard reset or a factory reset. The hard
reset preserves all data stored in the file system. Contact a Honeywell
technical support representative for more information on how to perform a
factory reset.
Hard Reset (Cold Boot)
A hard reset re-boots the device and closes any open applications running in
RAM at the time of the reset.
Press and hold the Blue + Send keys for approximately 10 seconds.
OR
Press and hold the Power key for approximately 5 seconds, then tap
Reboot on the Phone Options menu.
Technical Assistance
Contact information for technical support, product service and repair can be
found at www.honeywellaidc.com.
User Documentation
For localized versions of this document, and to download the User’s Guide,
go to www.honeywellaidc.com.
Limited Warranty
Refer to www.honeywellaidc.com/warranty_information for your product’s
warranty information.
Patents
For patent information, please refer to www.honeywellaidc.com/patents.
