Honeywell Dolphin CT60 User manual

Dolphin™ CT60
powered by Android™
Quick Start Guide
CT60-A-EN-QS-02 Rev A
5/20

2
Out of the Box
Make sure that your shipping box contains these items:
• Dolphin CT60 mobile computer (Model CT60L0N or
CT60L1N)
• Rechargeable 3.85 VDC Li-ion battery
• Product documentation
If you ordered accessories for your mobile computer, verify that
they are also included with the order. Be sure to keep the original
packaging in case you need to return the mobile computer for
service.
Note: CT60L0N models do not include a WWAN radio.
Memory Card Specifications
Honeywell recommends the use of Single Level Cell (SLC)
industrial grade microSD™ or microSDHC™ memory cards with
Dolphin mobile computers for maximum performance and
durability. Contact a Honeywell sales representative for
additional information on qualified memory card options.

3
Mobile Computer Features
*Navigation Panel icons may vary depending on the unit type.
Scan Buttons
Microphone
Power
Button
Battery Status /
Notification LED
Good Read LED
Speaker
Touch Panel
Volume Buttons
Navigation Panel *

4
Note: Hand strap not shown.
Camera Lens
and Flash
Battery
Camera Button
Battery Latch
Imager
(LED / Laser Aperture)
SIM Card 1 Door
SIM Card 2 Door
(CT60L1N Model)
microSD Card
Door
Laser Safety
Label Location
I/O Connector
Speaker Port

5
Install a microSD Card (SD)
Note: Format the microSD card before initial use.
Note: Always power off the computer and remove the battery before
attempting to install or remove a card.
3 4
1
5
2

6
Install a microSIM Card (SIM 1)
Phone feature is available only on CT60L1N models.
On all models, when using a UICC card for NFC Secure Element
link encryption, install the card in SIM slot 1.
Note: Always power off the computer and remove the battery before
attempting to install or remove a card.
3 4
1
5
2

7
Install a Secondary microSIM Card (SIM 2)
Note: Feature available on CT60L1N Models only.
Note: Always power off the computer and remove the battery before
attempting to install or remove a card.
3 4
1
5
2

8
Install the Battery
The CT60 mobile computer ships with a Li-ion 3.85 VDC,
15.5 watt-hour battery manufactured for Honeywell
International Inc.
1
2 3

9
Charge the Mobile Computer
The CT60 mobile computer ships with a partially charged
battery. Charge the battery with a CT50 Series charging device
for a minimum of 4 hours. Using the computer while charging
the battery increases the time required to reach a full charge.
CT60 mobile computers are designed for use with the following
CT50 Series charging accessories: HomeBase, Ethernet
HomeBase, ChargeBase, NetBase, Quad Battery Charger,
Vehicle Power Adapter, Vehicle Dock, and USB Adapter.
Ensure all components are dry prior to placing the
battery in the computer. Mating wet components
may cause damage not covered by the warranty.
Assurez-vous que tous les composants sont secs
avant de placer la batterie dans l’ordinateur.
L’insertion de composants humides risque de
provoquer des dommages non couverts par la
garantie.
We recommend the use of Honeywell accessories and
power adapters. Use of any non-Honeywell
accessories or power adapters may cause damage not
covered by the warranty.
Mise en garde: Il est recommandé d'utiliser les
périphériques, les cordons d'alimentation et les
adaptateurs secteur conçus par Honeywell.
L'utilisation de tout périphérique, cordon
d'alimentation ou adaptateur secteur d'une autre
marque est susceptible de provoquer des dommages
non couverts par la garantie.

10
Ensure all components are dry prior to mating the
computers and batteries with peripheral devices.
Mating wet components may cause damage not
covered by the warranty.
Mise en garde: Assurez-vous que tous les composants
sont secs avant de connecter les terminaux/batteries
à des périphériques. L'insertion de composants
humides risque de provoquer des dommages non
couverts par la garantie.
We recommend use of Honeywell Li-ion battery
packs. Use of any non-Honeywell battery may result
in damage not covered by the warranty.
Nous recommandons l’utilisation de batteries Li-ion
de la marque Honeywell. L’utilisation d’une batterie
d’un autre fabricant est susceptible de provoquer des
dommages non couverts par la garantie.

11
Turn Power On/Off
The first time you power on the computer, a Welcome screen
appears. You can either scan a configuration bar code or use the
Wizard to manually set up the computer. Once setup is
complete, the Welcome screen no longer appears on startup
and Provisioning mode is automatically turned off (disabled).
To turn the computer on:
•PressandholdthePower button for approximately 3 seconds,
and then release.
To turn the computer off:
1. Press and hold the Power button until the options menu
appears.
2. Touch Power off.
Battery Replacement
Before removing the battery, always do one of the following:
• Power off the computer.
• Place the unit in Swap Battery mode (feature availability is
model dependent).
Swap Battery Mode
Swap Battery mode places the computer in a low power state so
that the battery can be removed for a short time. This feature is
not available on all models.
To activate Swap Battery mode:
1. Press and hold the Power button until the options menu
appears.
2. Touch Swap Battery and follow the on-screen instructions.

12
3. Once you replace the battery, press the Power button.
Sleep Mode
Sleep mode automatically turns the touch panel display off and
locks the computer to save battery power when the computer is
inactive for a programmed period of time.
1. Press and release the Power button to wake the computer.
2. Drag the toward the top of the display to unlock the
computer.
Adjust the Display Sleep Time
To adjust the amount of time before the display sleeps after
inactivity:
1. Swipe up from the bottom of the Home screen to access all
apps.
2. Touch Settings > Display > Advanced > Sleep.
3. Select the amount of time before the display goes to sleep.
4. Touch or to return to the Home screen.

13
About the Home Screen
To learn how to customize the Home screen, see the user guide.
Notification /
Status Bar
Search Bar
Home Screen
Panel
Favorites Tray

14
Navigation and Function Buttons
To learn more about how to remap a button, see the user guide.
Button Description
or
Back Return to the previous screen.
or
Recent Apps View and switch between
recently used apps.
or
Home Return to the Home screen.
Search Start a search on the computer
or the Internet.
Volume Raise or lower the volume of the
speaker.
Scan Press right or left scan button
to trigger the scanner.
Camera Press to open the camera app
and take a photo.

15
About Provisioning Mode
After completing the out-of-box set up process, Provisioning
mode is automatically turned off. Scanning a bar code to install
applications, certificates, configuration files, and licenses on
the computer is restricted unless you enable Provisioning mode
in the Settings app. To learn more, see the user guide.
Scan a Bar Code with the Scan Demo
Note: For optimum performance, avoid reflections by scanning the bar
code at a slight angle.
1. Swipe up from the bottom of the Home screen to access all
apps.
2. Touch Demos > Scan Demo.

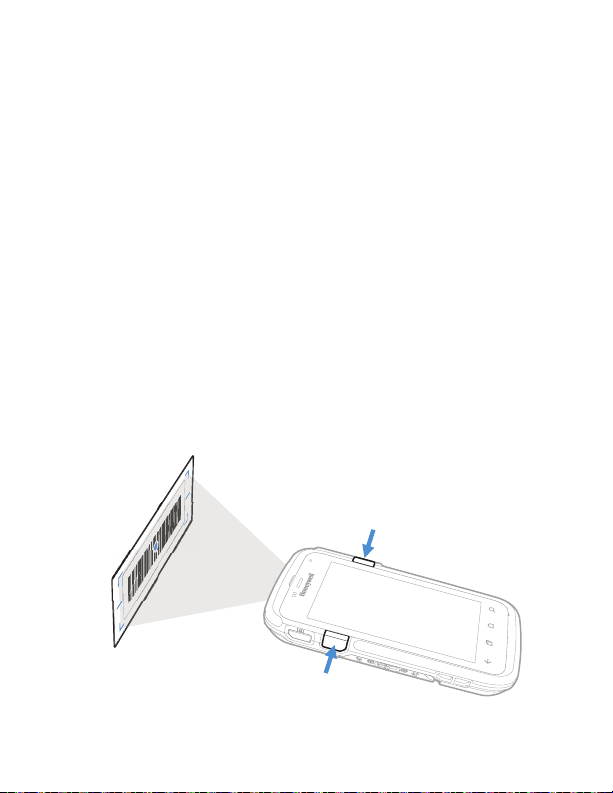

3. Point the computer at the bar code.
4. Touch Scan on the touch screen or press and hold a Scan
button. Center the aiming beam over the bar code.

16
The decode results appear on the screen.
Note: In the Scan Demo app, not all bar code symbologies are enabled
by default. If a bar code does not scan, the correct symbology may
not be enabled. To learn how to modify the default app settings,
see the user guide.
Sync Data
To move files between your CT60 and a computer:
1. Connect the CT60 to your computer using a USB charge/
communication accessory.
2. On the CT60, swipe down from the top of the screen to see
the notifications panel.
3. Touch the Android System USB Connection notification
twice, to open the options menu.
4. Select either Transfer files or Transfer photos (PTP).
5. Open the file browser on your computer.
6. Browse to the CT60. You can now copy, delete and move
files or folders between the computer and CT60 as you
would with any other storage drive (e.g., cut and paste or
drag and drop).
Note: When Provisioning mode is turned off, some folders are hidden
from view in the file browser.

17
Restart the Mobile Computer
You may need to restart the mobile computer to correct
conditions where an application stops responding to the system
or the computer seems to be locked up.
1. Press and hold the Power button until the options menu
appears.
2. Select Reboot.
To restart the computer if the touch panel display is
unresponsive:
•PressandholdthePower button for approximately 8 seconds
until the computer restarts.
Note: If you try to restart the computer and still experience issues, you
may need to see the user guide for information on how to perform
a Factory Reset (Clean Boot).
Support
To search our knowledge base for a solution or log into the
Technical Support Portal and report a problem, go to
www.hsmcontactsupport.com.
Documentation
Product documentation is available at www.honeywellaidc.com.
Limited Warranty
For warranty information, go to www.honeywellaidc.com and
click Resources > Product Warranty.

18
Patents
For patent information, see www.hsmpats.com.
