1 Introduction
1.1 Overview
ISA100 is a wireless protocol standard defined for industrial automation for Process Control and related
applications. The architecture of ISA100 is designed to be in coexistence with other wireless systems
conforming to this standard, in addition to other networks operating at 2.4 GHz such as ZigBee™,
WirelessHART™, 6LoWPAN, IEEE 802.11, Bluetooth™, and RFID systems. The Gen X ISA100 Radio
Hardware Module is 2.4GHz band, 802.15.4 Radio based hardware, and can host multiple software protocol
stacks like ISA100, zigbee™, 802.15.4, and WirelessHART™.
Figure 1: ISA100 Radio Board Block Diagram - Major Components

Release Independent
April 2018
ISA100 Gen X Radio Module User's Guide
Honeywell
11
REFERENCE - INTERNAL:
For Compliance Statements, refer to Appendix A:Compliance Statements
For Agency Label Information, refer to Appendix B: AgencyLabel
Information

ISA100 Gen X Radio Module User's Guide
Honeywell
Release Independent
April 2018
12
2 Specifications
2.1 Features
1. The operational frequency ranges from 2.4 GHz to 2.483 GHz.
2. The maximum number of channels allowed is 16.
3. The channel spacing must be 5 MHz ((2405, 2410,…..2475).
4. The transmitted power varies from -5 dBm to +20 dBm (adjusted as perantenna).
5. The type of modulation technique used is direct-sequence spread spectrum (DSSS).
6. The data rate is 250 kbps.
2.2 Electrical requirements
1. The operating voltage ranges from 2.7 Volts to 3.6 Volts.
2. The operating temperature ranges from -40 oC to +85 oC.
3. The electrical consumptions are:
Receive Mode (Rx): 19mA
Transmit Mode (Tx):80mA @16 dBm
Average Sleep Mode: 30uA (When Radio is not transmitting and receiving)
2. 3 Types of Antenna
The Antenna Connector used in the module is MMCX-J-P-H-ST-TH1, which is a Jack through-
hole connector and mates with all the MMCX Plug (preferred from Samtec). It is mandatory to
use a 50Ω connector towards the antenna for the described RF Power level performance.
The modular certification is performed for the antenna types (Refer to Table 1 Antenna Types).
The certification is void if you use any other antennas than the ones mentioned in the table.

Release Independent
April 2018
ISA100 Gen X Radio Module User's Guide
Honeywell
13
Table 1 Antenna Types
Sl.No
Antenna
Antenna gain
Power level settings
1
Centurion MAF94152 Omni
Antenna
-2
16
2
L-COM HG2402RDR-RSP
"Rubber-Duck"Omni Antenna
2
14
3
EM wave EM-B14503-MMP-
Z6
4
14
4
L-COM HGV-2404U Omni
Antenna
4
14
5
L-COM HGV-2409U Omni
Antenna
8
10
6
L-COM HG-2414D remote Dish
Antenna
14
6

ISA100 Gen X Radio Module User's Guide
Honeywell
Release Independent
April 2018
14
2.4 Transmitter Power Configuration
Table 3 provides the transmit power output generated by the Radio at the input of the
antenna connector present on the Radio board.
Table 2 Transmit Power Settings
S No.
Power Level
1
20dBm
2
19dBm
3
18dBm
4
17dBm
5
15dBm
6
14dBm
7
12dBm
8
11dBm
9
10dBm
10
6dBm
11
4dBm
12
3dBm
13
1dBm
14
0dBm
15
-1dBm
16
-5dBm

Release Independent
April 2018
ISA100 Gen X Radio Module User's Guide
Honeywell
15
3 Connector Details
There are two connectors on the Radio board:
1. Debug Connector for programming or to debug the firmware on the board
2. Sensor-Radio interface connector
3.1 Debug Connector Details
The debug connector is used for programming and/or debugging the firmware on the
board. Debug Connector Pin Details

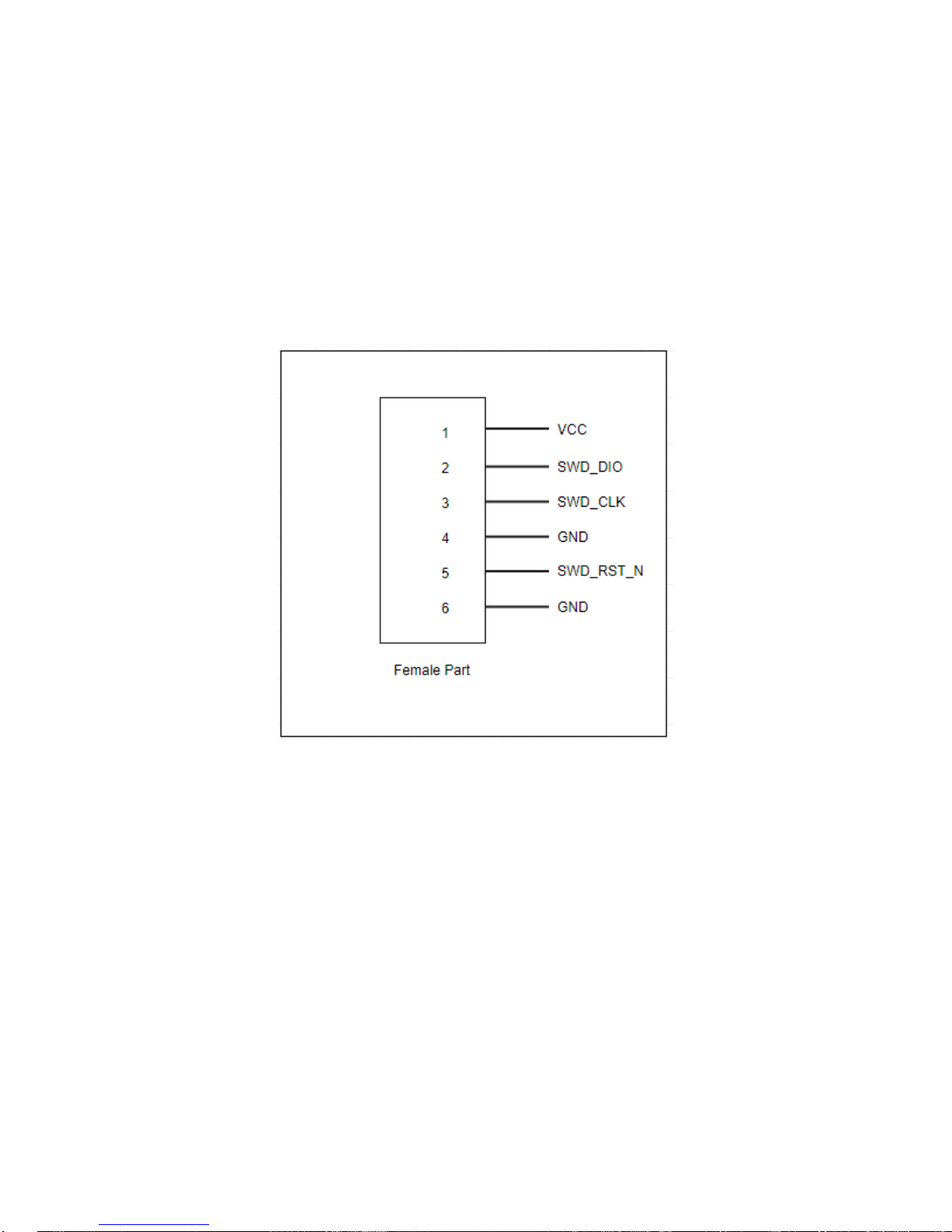

Figure 2: Debug connector pin details
SWS_DIO: data input/output
SWD_CLK: input clock
VCC: The operating voltage ranges from 2.7 Volts to 3.6 Volts.

ISA100 Gen X Radio Module User's Guide
Honeywell
Release Independent
April 2018
16
Connecting the Debug Connector to J-Link JTAG Connector
The following diagram explains the connection details of the Debug Connector to J-Link
JTAG Connector.
Figure 3: Connecting Debug Connector with J-LINK Connector

Release Independent
April 2018
ISA100 Gen X Radio Module User's Guide
Honeywell
17
Figure 4: Debug Connector Pin Marking

ISA100 Gen X Radio Module User's Guide
Honeywell
Release Independent
April 2018
18
Figure 5: FET and Radio Board Connection

Release Independent
April 2018
ISA100 Gen X Radio Module User's Guide
Honeywell
19
3.2 Sensor-Radio Interface Connector Details
The mating connector that connects the Radio interface is SFM-105-02-S-D-LC
Samtec.
MOSI, MISO, CS, and SCLK are used for SPI communication between the Radio and the
Sensor, whereas GPIO is used as General Purpose Input/output as well as interruptible
configurable pin.
Note: GPIO_02 pin in the Sensor-Radio interface connector is used as Sensor Data Ready
interrupts (SDR).GPIO_01 is the inverse of Chip Select(SPI_CS).

ISA100 Gen X Radio Module User's Guide
Honeywell
Release Independent
April 2018
20
Figure 6: Sensor-Radio Interface Connector
