Honeywell GENT S4 Instruction manual

The S4 Mains powered interface units (Part No's:
S4-34440-02 and S4-34440-12) are EN54-4
compliant battery backed power supplies that can
be directly connected to the Vigilon and Nano loop
and also have highly flexible interfacing capability.
The 4 channels can be individually configured to
provide Output and Input interface in various
configuration modes, to control external equipment
and receive input to allow the fire system to make
decisions and take actions. It is now possible to
have combined inputs and outputs giving a total of
8 external circuits connected (e.g. 4 sector outputs
and 4 confirmation inputs). The units have room to
accommodate optional modules on to DIN rails. It
has a configurable auxiliary power output that is
derived from its self contained mains power supply
unit, which is battery backed to continue to deliver
power in the event of mains supply failure.
Note a Nano system loop can only accept S4-34440-02.
Technical Data
Standards -
designed to meet
EN54:part 4:1998
EN54:part 17:2005
EN54:part 18:2005
Overall
dimensions
478mm x 322mm x 128mm
Assembled weight
(approximate)
7Kg (excluding batteries and
optional components fitted)
Enclosure Steel
Colour RAL7024 Graphite Grey
(fine textured)
Storage
temperature
-20 to 70ºC
Ambient operating
temperature
-10 to 45°C
Relative Humidity
(Non condensing)
up to 95%
Temperature5-45°C
Ingress Protection IP31(estimated)
Operating voltage 230V 50Hz +10% -6%
Rated current 0.7A
Input modes Input can be fault monitored,
voltage free, contacts OR
conventional detection zone
circuit. Refer to the
commissioning information for
more details.
Zone
Nominal voltage
Quiescent current
16V or 22.5V (default) ±15%
20mA per zone (default)
Zone short circuit current
limited to < 30mA
EN54 compliance limitation:
32 devices OR Maximum of
20 diode bases per zone
Output modes Outputs are monitored 24V
(nominal) 0.5A OR LED drive.
Refer to the commissioning
information for more details
Confirmation
modes
It is possible to configure all
Inputs and Outputs as
confirmation channels
Sector and
Auxiliary Outputs
Sector and Auxiliary Outputs
0.5A max each @ 24V +/-3V,
electronically current limited to
approximately 1A at 25oC
Maximum total output current:
S4-34440-02 = 1.5A
S4-34440-12 = 2.5A
Auxiliary power output:
12V / 24V ±0.5V (S4-34440-12)
or
24V ±3V (S4-34440-02)
Batteries Two types:
2 x 12V 2.1Ahr (1Kg each)
for S4-34440-02
2 x 12V 12Ahr (4.31Kg each)
for S4-34440-12
Compatible
# Backward compatibility
is possible, refer to your
supplier
Vigilon#:MCC ³V4.43 / V3.97
:LPC ³V4.41 / V3.97
Commissioning tool ³V1.27
Nano :MC ³V2.50
Commissioning tool ³2.x
4188-968 issue 2_Part 1_09-10_S4 mains interface 1
Data and Installation
S4 Mains Powered Interface
(S4-34440-02 & S4-34440-12)
by Honeywell
www.acornfiresecurity.com
www.acornfiresecurity.com

EN54-17 : 2005
(section 4.8)
data:
Vmax 42V IC max 0.4A
Vnom 40V IS max 1A
Vmin 24V IL max 20mA
VSO max 16V ZC max 0.1W
VSO min 8V
Emission BS EN61000-6-3: 2007 EMC for
residential, commercial & light
Industry.
Immunity BS EN50130-4: 1996 +
A1:1998 +A2 2003
for alarm systems
Maximum number
per loop
8 (with fully sectored outputs)
Load factor
(1000 maximum)
1
Terminals 3-way device (terminals
provided for spur or sub-loop)
&Repetitive switching of capacitive loads
greater than 1500uF is not possible and will result
in the thermal protection circuit automatically
reducing the output voltage.
Features
¨Fail-safe operation
A fail-safe operation is available on all sectored
outputs, if loop communications are lost for a defined
duration then the sector outputs will be turned ON.
Sector outputs will turn OFF immediately when
communication is restored.
¨Synchronisation
Adjustable synchronisation pulses can be selected
for all sector outputs to synchronise the operation of
devices such as xenon strobes or speech sounders.

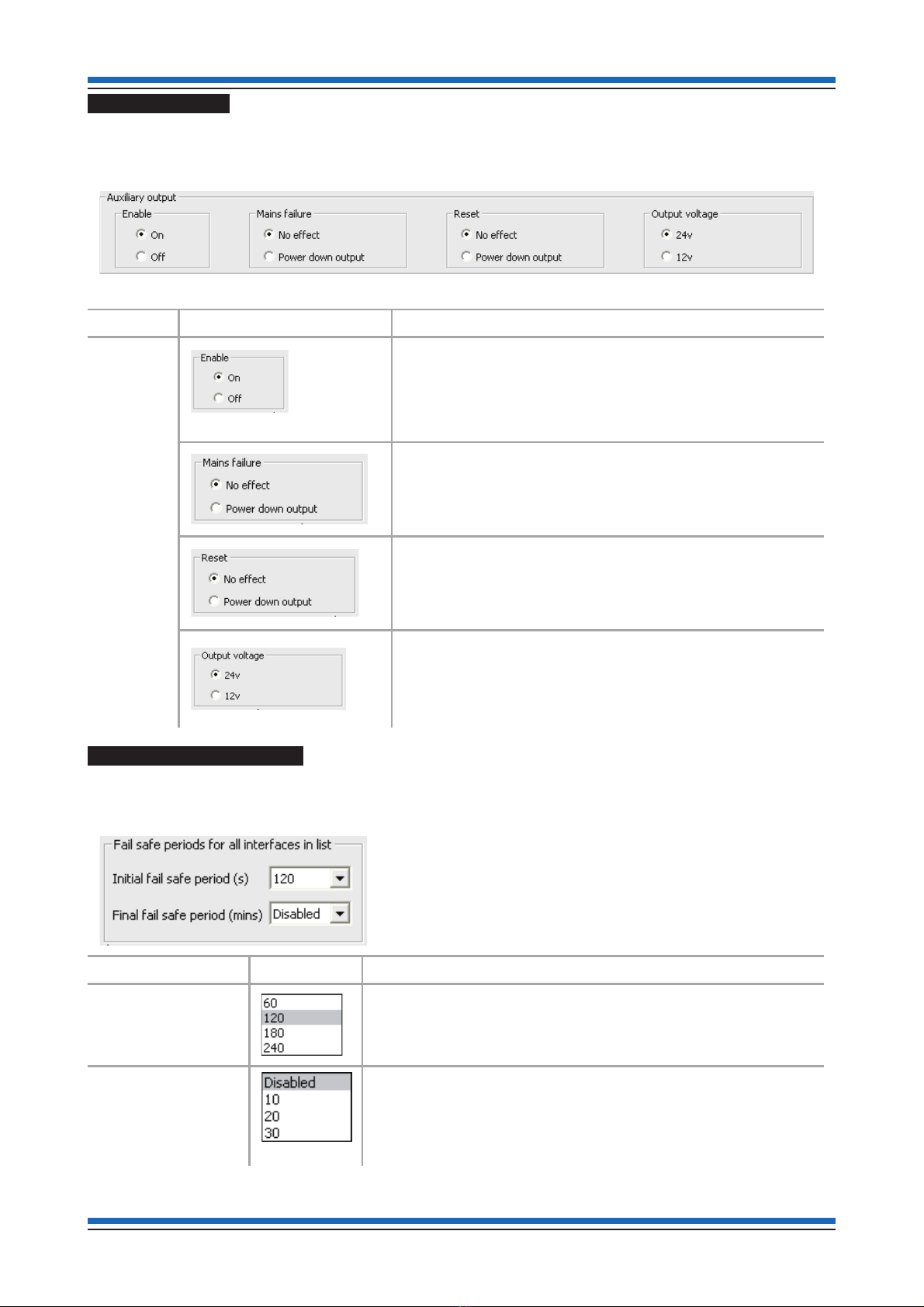

¨Auxiliary Output
The Auxiliary output can be programmed to
automatically turn OFF when a mains failure occurs
to preserve battery capacity. The output can also be
programmed to provide a reset pulse when a fire
reset occurs.
Data and Installation S4 Mains powered interface unit
2 4188-968 issue 2_Part 1_09-10_S4 mains interface
PB2
S+ Z+ Z-S-
SECTOR / ZONE1
PB3
S+ Z+ Z-S-
SECTOR / ZONE2
PB4
S+ Z+ Z-S-
SECTOR / ZONE3
PB5
S+ Z+ Z-S-
SECTOR / ZONE4
PB1
0C LC 01 L1 02 L2
LOOP LN
PB6
++--
AUX O/P
P3
FS6
T3.16A
CERAMIC
ANTI-SURGE
SW1-POWERUP
P7
Mains Powered
Interface Unit Mk 3
P1
DANGER
DO NOT
REMOVE

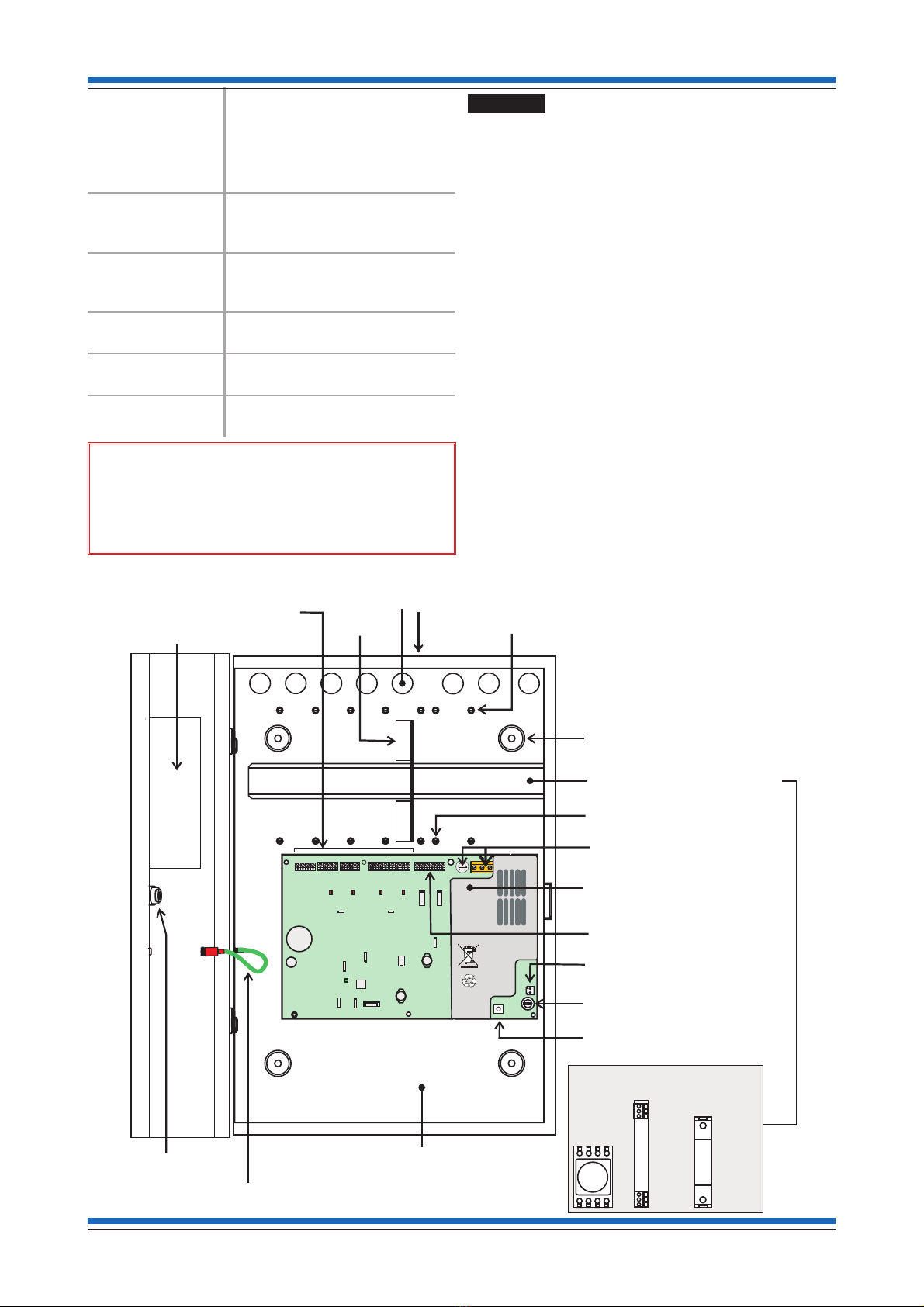

4 Backbox mounting points
T
op an
d
rear
cable entry points
Mains interface PCB
(Not all components shown)
Door lock
Terminals for Auxiliary output
and Zone/Sector circuits
Terminals for mains cable
+ mains fuse
Earth points for DIN rail modules
Backbox to door earth lead
DIN rail for optional modules
Quick reference label
Earth points for wiring
Loop terminals
Battery connector
Relay
Surge
Protection
IS Galvanic
Isolator
Metal
screen
FS8 F3.16A
QUICK
BLOW Battery fuse
Battery ‘Power up’
push button
Batteries are fitted here
during commissioning
www.acornfiresecurity.com
www.acornfiresecurity.com

Installation
The batteries are supplied in a separate pack.
Spare Parts packages Qty
Fuse 3.15A AS Ceramic
(20mm x 5mm)
1
Fuse 3.15A QB Glass
(20mm x 5mm)
1
Resistor 5.6K 0.6W 4
Resistor 470R 0.6W 8
Resistor 10K 0.5W 4
Battery Link 1
Battery Lead 1
Capacitor 22uF 35V 4
Instructions 1
keys are supplied in a plastic bag fitted to
the enclosure.
Cable termination
Mains supply
The mains supply cable must be a standard fire resisting
type and should meet PH30 classification, such as any
of the standard and enhanced loop cable. Requires a
minimum conductor cross sectional area of 0.75mm2.
&Ensure that the mains supply cable enters the
enclosure through a dedicated cable entry, located
adjacent to the mains terminal block and that is also
segregated from loop wiring.
"These fire alarm system products are not
designed to be powered from IT Power systems.
All mains powered equipment must be earthed. Mains
supply to any fire alarm control and indicating equipment
must be via an unswitched 5A fused spur unit. A
disconnect device must be provided to disconnect both
poles and must have a minimum gap of 3mm. The
disconnect device should be available as part of the
building installation and must be easily accessible after
installation is complete.
Wiring test
&DO NOT undertake high voltage insulation
tests WITH THE CABLES CONNECTED to the Mains
Interface unit and external equipment. Such a test
may damage the electronics circuitry in external
equipment and in the Mains Interface unit.
4188-968 issue 2_Part 1_09-10_S4 mains interface 3
S4 Mains powered interface unit Data and Installation
MICC CABLE
GLAND
BRASS
LOCKNUT
ZINC PLATED
LOCK WASHER
BOARD
TERMINALS
MICC CABLE
GLAND
BRASS
LOCKNUT
ZINC PLATED
LOCK WASHER
BOARD
TERMINALS
PANEL
enclosure
MICC
CABLE TERMINATION
GLAND
Softskin Cable
GLAND
CABLE TERMINATION
Softskin (Fire Tuf)
EARTH DRAIN
WIRE Should
not be more than
50mm long and
must be sleeved
BOARD
TERMINALS
BOARD
TERMINALS
PANEL
enclosure
Dedicated mains supply
from consumer unit
5A Unswitched
Fused spur unit
Ensure the mains supply remains
isolated until system commissioning
stage when the unit is powered up.
Mains Interface Backbox
N
L
PE
FS3
3.15A(T)
mains fuse
Disconnect Device
Minimum gap 3mm
www.acornfiresecurity.com
www.acornfiresecurity.com

Data and Installation S4 Mains powered interface unit
Gent by Honeywell reserves the right to revise this publication from time to time and make changes to the content hereof without
obligation to notify any person of such revisions of changes.
Hamilton Industrial Park, Waterside Road, Leicester LE5 1TN, UK Website: www.gent.co.uk
Telephone: [phone] Tech. Support: www.gentexpert.co.uk Fax (UK): [phone]
4 4188-968 issue 2_Part 1_09-10_S4 mains interface
by Honeywell
At the end of their useful life, the packaging,
product and batteries should be disposed of
via a suitable recycling centre and in
accordance with national or local legislation.
Do not dispose of with your normal household waste.
Do not burn.
WEEE Directive:
At the end of their useful life, the packaging,
product and batteries should be
disposed of via a suitable recycling centre.
External wiring
Options
These optional products should be mounted on the DIN rail.
&The relays and intrinsically safe products listed below should be mounted apart, a metal screen is
provided inside the enclosure.
19104-52 Low voltage power relay
17740-20 Intrinsically safe galvanic isolator for IS detectors and call points
02518-10 Intrinsically safe galvanic isolator for IS sounders
PB1
0C LC 01 L1 02 L2
LOOP
LOOP OUT
LOOP IN
LOOP
COMMON
PB6
++--
AUX O/P
External
Equipment
PB2, PB3,
PB4orPB5
S+ S-
SECTOR1,2,3or4
LED Output
PB2, PB3,
PB4orPB5
S+ S-
SECTOR1,2,3or4
10K EOLW
IS Sector Output
IS Galvanic
isolator (02518-10)
PB2, PB3,
PB4orPB5
Z+ Z-
ZONE 1, 2, 3 or 4
22uF EOL
Zone Input
PB2, PB3,
PB4orPB5
Z+ Z-
ZONE 1, 2, 3 or 4
5K6 EOL
IS Zone Input
PB2, PB3,
PB4orPB5
S+ S-
SECTOR1,2,3or4
10K EOLW
Sector Output
with Sounders
PB2, PB3,
PB4orPB5
S+ S-
SECTOR1,2,3or4
10K EOLW
Flyback
diode
Sector Output
with Inductive
load (eg Relay)
PB2, PB3,
PB4orPB5
Z+ Z-
ZONE 1, 2, 3 or 4
470R EOL
Switch Input
470R
IS Galvanic
isolator (17740-20)
Auxiliary Output:
12V# or 24V @ 0.5A
# - for S43440-12 only
11+ 12-
1+ 2-
12 11
21
Connected to
metal enclosure
End-of-line units
Capacitor 22uF
Resistor 470W
yellow, violet, brown
Resistor 5K6KW
green, blue, red
Resistor 10KW
Brown, black, orange
It is possible to
connect a number of
LEDs in series
(current is 1.5mA.
To avoid damage to equipment always
configure the interface inputs and
outputs before connecting the external
circuits.
Intrinsically
safe devices
Normally closed contacts
should be used for
fail-safe applications.
Intrinsically
safe devices
cable length
max.50m
cable length max.150m
cable length max.150m
cable length max.150m
cable length
max.50m
cable length
max.150m
cable length
max.150m
www.acornfiresecurity.com
www.acornfiresecurity.com

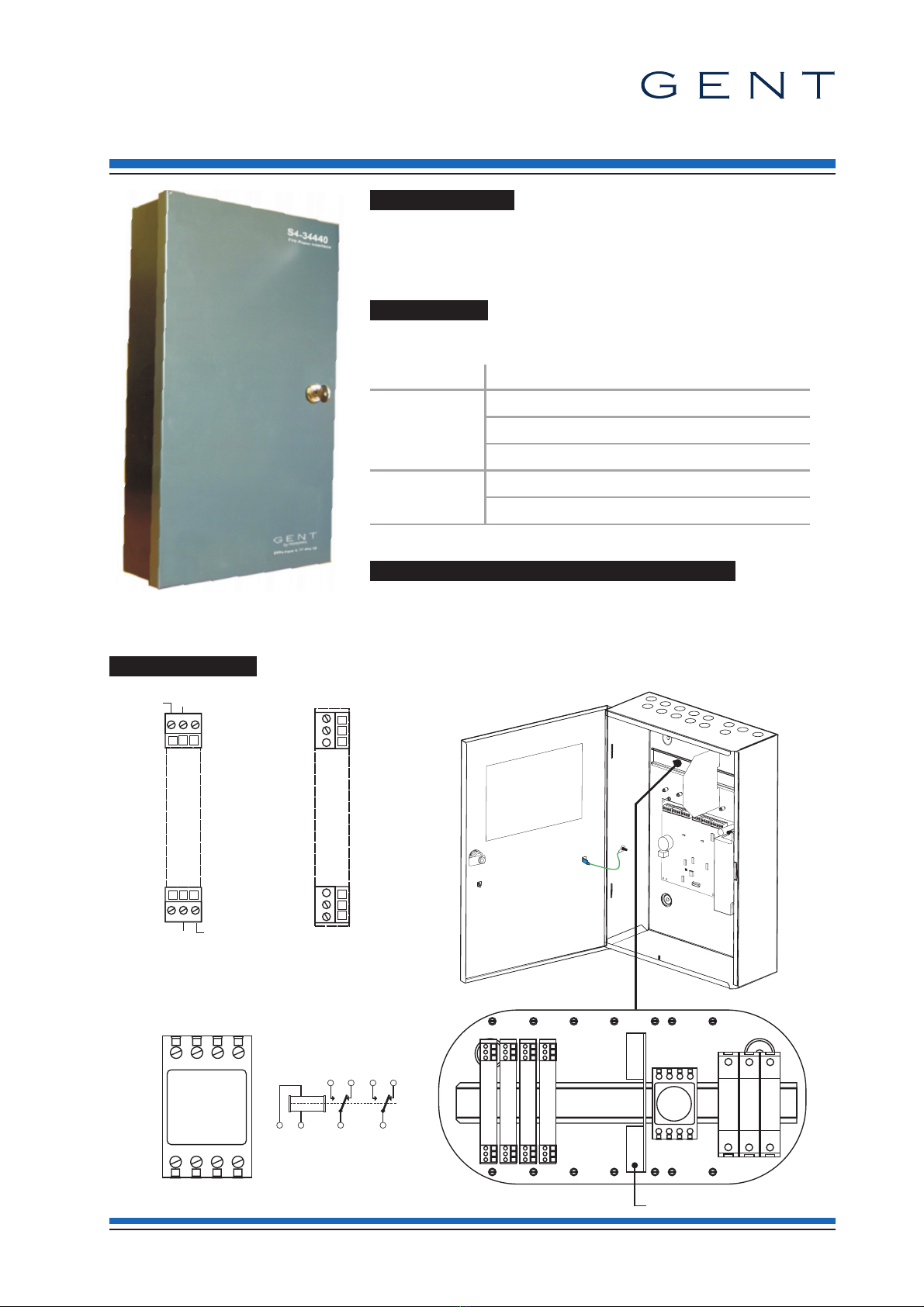

DIN rail modules
Factory settings
¨The S4 Mains powered interface channels1-4areallsetto
UNUSED.
¨The Auxiliary output is off and is unaffected by mains failure or
fire reset.
Compatibility
The S4 Mains powered interface unit is compatible for use in
Vigilon and Nano systems having the following panel firmware.
Control Panel having card and firmware
Vigilon Main Controller Card ³V4.43 / V3.97
Loop Processor Card ³V4.41 / V3.97
Vigilon Commissioning tool ³V1.27
Nano Main Controller ³V2.50
Nano Commissioning tool ³V2.x
Note a Nano loop can only accomodate S4-34440-12.
Backward Compatibility (for Vigilon loop)
An S4 Mains powered interface unit can be converted to be a
BACKWARD COMPATIBLE 34440 Mains powered interface unit
for use on a Vigilon loop. The conversion is done using a
S4 Interface programmer unit. For further information contact your
supplier.
4188-968 issue 2_Part 2_09-10_S4 mains interface 1
Commissioning information
S4 Mains powered interface
(S4-34440-02 & S4-34440-12)
by Honeywell
Mains Powered Interface
DIN Rail
Surge Protection
IS Galvanic Isolator
IS Galvanic Isolator
IS Galvanic Isolator
IS Galvanic Isolator
Surge Protection
Surge Protection
Relay
IS Galvanic Isolator
for
(
sounders
Part number: 02518-10)
MTL5021
Hazardous
area
1
2
-
Safe
area
-
11
12
IS Galvanic Isolator
for
(
detectors
Part number: 17740-20)
Pepperl+Fuchs
KFDO-CS-Ex1.51P
Hazardous
area
11+
Safe
area
12-
1+
2-
A2 21 11 A1
24 22 12 14
7812
6543
Relay (Part number: 19104-52)
A2 21 11A1
24Vdc Contacts rated at
10A / 250VAC
Metal Screen
24 22 1214
www.acornfiresecurity.com
www.acornfiresecurity.com

Commissioning information S4 Mains powered interface unit
2 4188-968 issue 2_Part 2_09-10_S4 mains interface
How to install batteries and Power up
The following illustration shows how to connect a pair of 12V 12Ah batteries for S4-34440-12 or 12V 2.1Ah
batteries for S4-34440-02 into a S4 Mains powered interface unit. The numbers j,k,l.. shows the order in
which to carry out the installation.
&
DO NOT fit the 12V 2.1Ah batteries inside the S4-34440-12 Mains powered interface unit .
Status Indicator LD1
Indicator LD1 colour meaning...
FLASH Green OK - Interface replies to a loop communication sequence.
Long FLASH
with loop communications
Amber There is a short circuit, open circuit or confirmation timeout on an
interface zone / sector channel.
Short FLASH Amber The interface loses synchronisation with the loop communications
sequence.
ON
continuously
Amber System error is detected (e.g. a configuration memory checksum /
validity check error or a Flash / RAM error).
A
A
P7
2 x 12V 2.1Ah Batteries
2 x 12V 12Ah Batteries
A
Mains Powered Interface PCB
M
a
i
ns
P
owere
d
Interface PCB
2 x 12V 2.1Ah Batteries
Black
Red
Mains Powered Interface
Status
indicator
ON
FLASH
LD1
Link
Battery
lead
Battery
lead
Link
P7
Mains Powered Interface PCB
2 x 12V 12Ah Batteries
Red
Black
Link
Battery
lead
Link
Battery
lead
The status indicator will only come
on if the unit has mains power or if
the batteries are connected and the
"battery power up" push is operated.
www.acornfiresecurity.com
www.acornfiresecurity.com

S4 Mains Powered Interface - Config. menu
Menu option you can use this option to.. notes
S4 Mains Powered
Interface...
...to configuring the S4-34440-02
and S4-34440-12 Mains powered
interface units.
Operation (The numbers  ...shows the order in which to the make selections and enter appropriate
data).
After opening the Mains Interface configuration window select the required interface from the system tree for
configuration.
Unused Mode
When a channel is not being used it must be setup as an unused channel.
Mode settings notes
Unused Set the channel mode to unused if
it is not required.
4188-968 issue 2_Part 2_09-10_S4 mains interface 3
S4 Mains powered interface unit Commissioning information
1a
S4 Mains powered interface..
Configuration
1b
1
M
enu se
l
ect
i
on
I
con se
l
ect
i
on
3
2
4
5
www.acornfiresecurity.com
www.acornfiresecurity.com

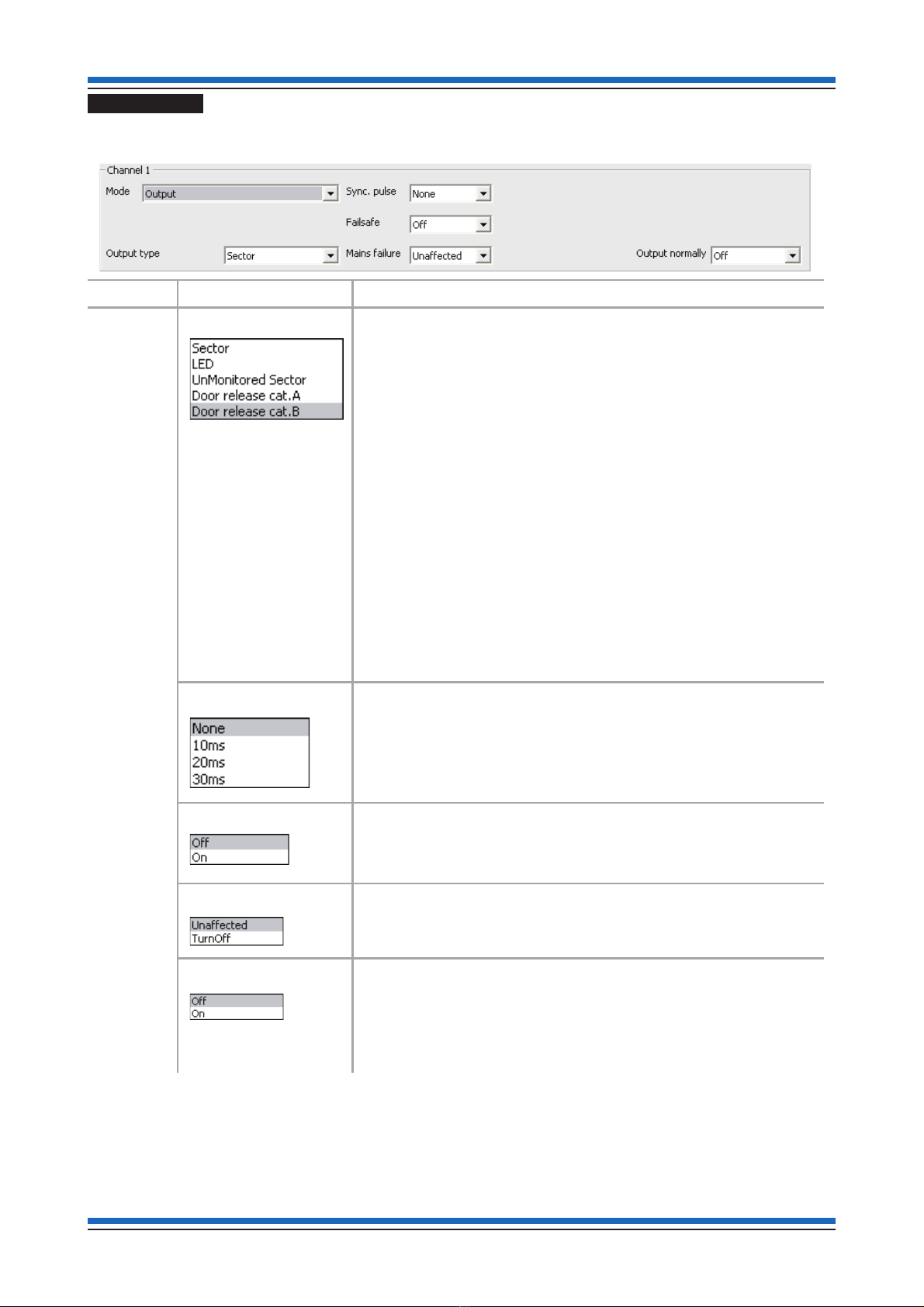

Output mode
This is when a channel is configured as an output and the channels input terminals are not used.
Mode settings notes
Output Output type The Sectored output is used to power a wide range of alarm products
such as sounders, bells door holders and relay. A series blocking diode
must be used.
The LED output drive of 1.5mA is available.
The Unmonitored sector output is for use with galvanic isolator, in
this mode no end-of-line resistor or series diode is required.
Unmonitored sector lines will have no associated analogue channels.
The Door release category A option is used for controlling door
release mechanisms that need to meet the requirement of BS7273 Part
4. With Category A the outputs are operated (doors released) from fire,
fault and disablement events.
The Door release category B option is used for controlling door
release mechanisms that need to meet the requirement of BS7273 Part
4. With Category B the outputs are operated (doors released) from fire
events.
Sync. pulse The outputs sends a synchronisation pulse every 10s, the output is
turned off for a short duration. The duration can be programmed to be
approximately 10, 20 or 30ms for compatibility with a wide range of
annunciation devices that require synchronisation such as strobes,
sounders and voice sounders.
Failsafe When On it allows the setting of Fail safe periods for all Mains
powered interface outputs, where outputs are used for fire doors control
applications. When set to 'On' the Initial fail safe period defaults to
120s and the Final fail safe period defaults to disabled. See page 14.
Mains failure To preserve battery capacity for essential functions it is possible to
configure individual outputs to deactivate 'Turn Off' during a mains
power failure.
Output normally This is when a sectored output is configured to work in an inverse
manner. An ON setting will cause the output to turn OFF. Note that in
this mode sector wiring is effectively unmonitored, it is only monitored
when the output is de-energised. This feature may be used with
equipment such as magnetic door holders to ensure the fire door release
once a fire has been detected.
Commissioning information S4 Mains powered interface unit
4 4188-968 issue 2_Part 2_09-10_S4 mains interface
www.acornfiresecurity.com
www.acornfiresecurity.com

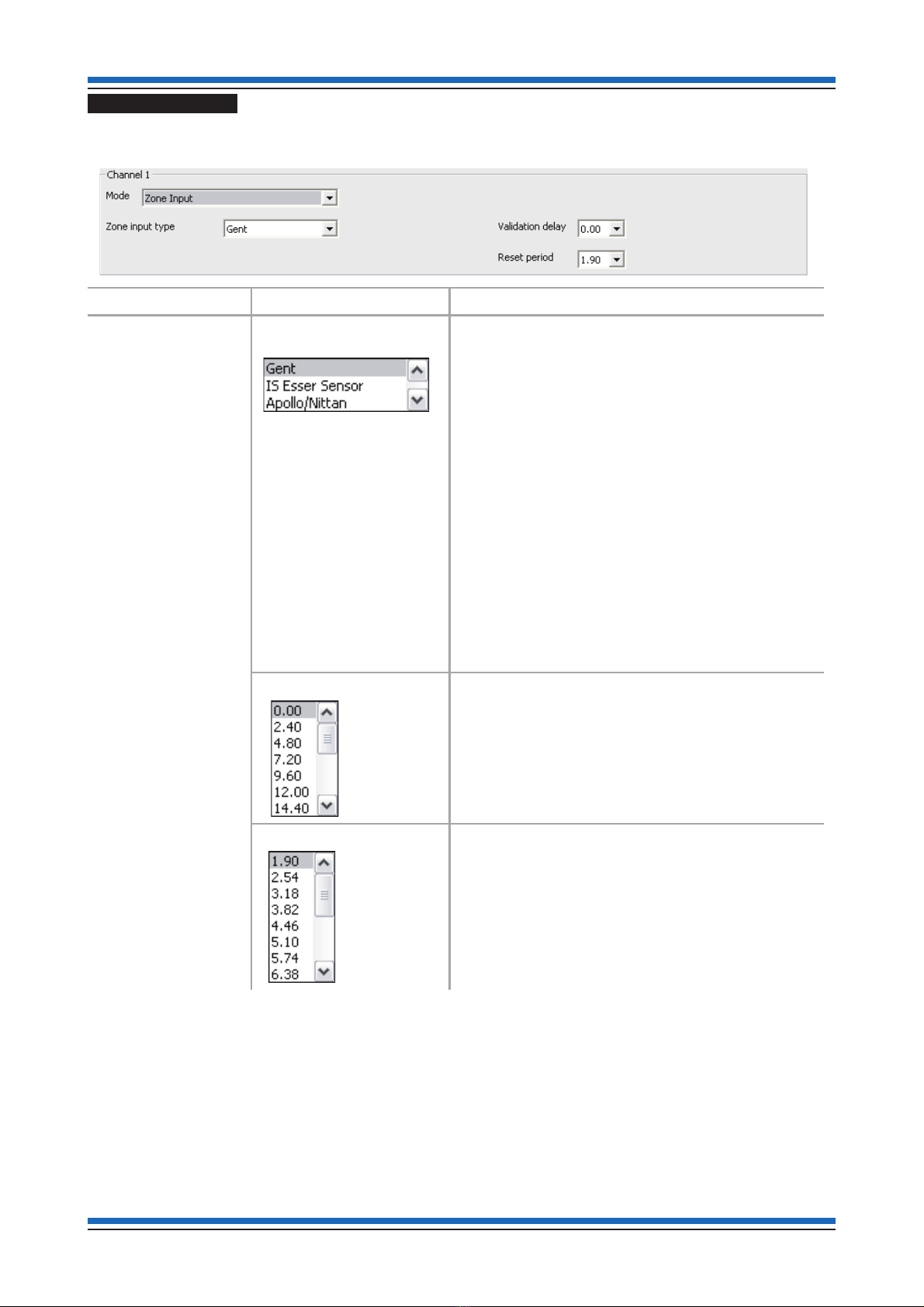

Zone Input mode
This example shows how to set a channel as a Zone input.
Mode settings notes
Zone Input Zone Input Type The Zone Input Type monitors 'conventional' detectors
and call points, with manual call points having 470
ohms resistor in series with Normally Open contacts.
When Gent detectors operate they will draw a constant
current of 30mA. A standard end-of-line capacitor
must be fitted across the Z+ and Z- terminals. Each
zone input can have up to 20 standard detectors
connected with the diode base option.
A Zone Input Type can accommodate a range of
different products to operate at different zone input
thresholds:
Gent (Type 0)
IS Esser Sensor (Type 1)
Apollo/Nittan (Type 2)
Tanlentum Flame (Type 3)
Det-tronics Flame (Type 4)
S/C Fire (Type 5)
Validation Delay The purpose of the alarm Validation Delay is to
minimise false alarms. The alarm validation timeout can
be any value in the range 0 (off) to 37.5 seconds.
During alarm validation delay timeout period the
interface will suppress fire event by applying a reset to
the zone circuit and then wait for a second confirming
fire signal.
Reset Period Other detector types may need a specific Reset period
which can be set here in seconds.
4188-968 issue 2_Part 2_09-10_S4 mains interface 5
S4 Mains powered interface unit Commissioning information
www.acornfiresecurity.com
www.acornfiresecurity.com

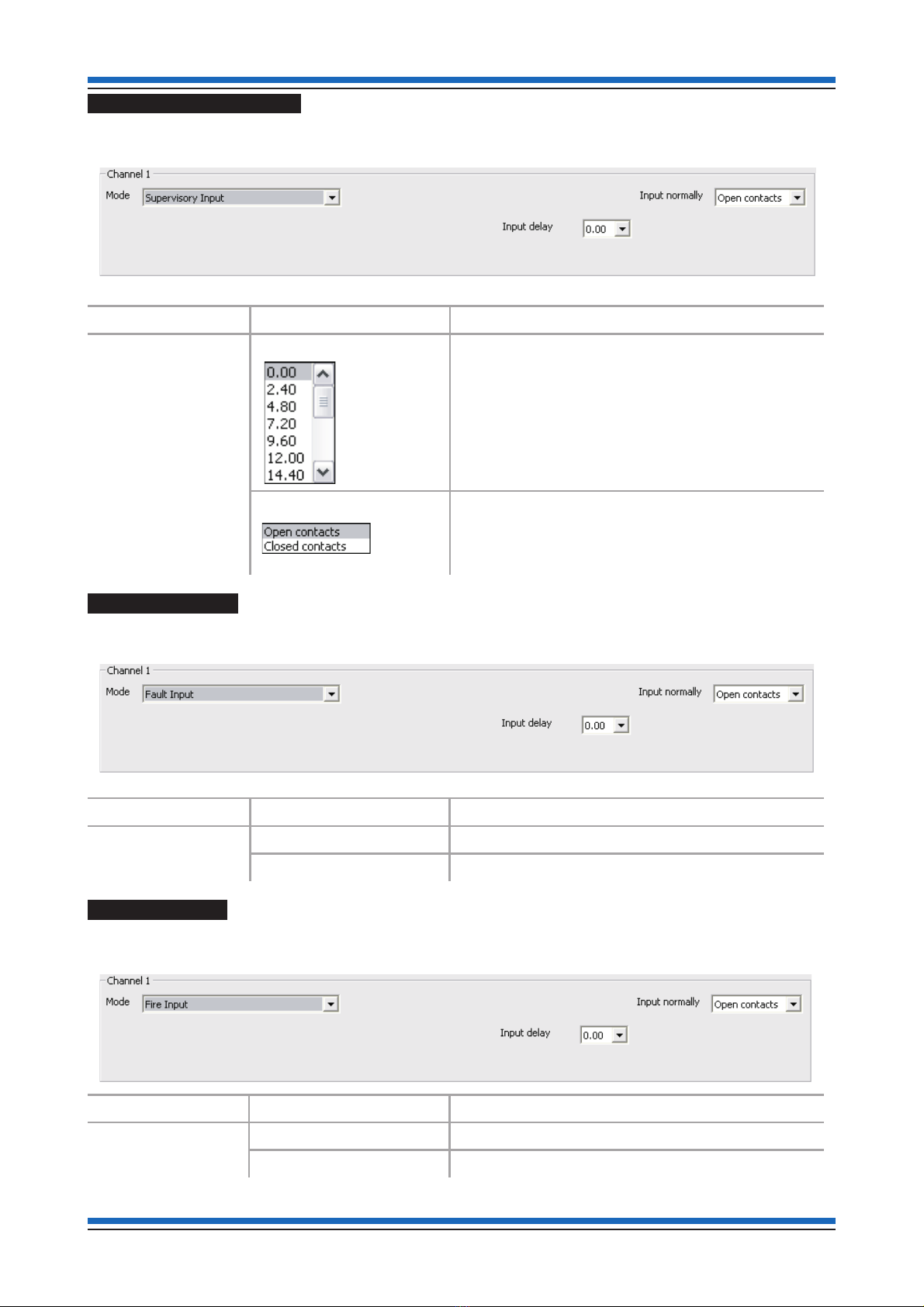

Supervisory Input mode
This example sets the respective channel as a Supervisory input.
Mode settings notes
Supervisory input Input delay The Input Delay is the time before the input is
accepted by the interface, this will filter any noise or
spurious signals, commonly know as "bounce". This
time is the debounce period. The input delay timeout
can be any value in the range 0 to 36 seconds.
Input normally The input channel can be configured to operate with
normally open or normally closed contacts.
Note normally closed operation should be selected if
fail safe contact monitoring is required.
Fault Input mode
This example shows how to set a channel as a Fault input.
Mode settings notes
Fault input Input delay As described for Supervisory input.
Input normally As described for Supervisory input.
Fire Input mode
This example shows how to set a channel as a Fire input.
Mode settings notes
Fire Input Input delay As described for Supervisory input.
Input normally As described for Supervisory input .
Commissioning information S4 Mains powered interface unit
6 4188-968 issue 2_Part 2_09-10_S4 mains interface
www.acornfiresecurity.com
www.acornfiresecurity.com

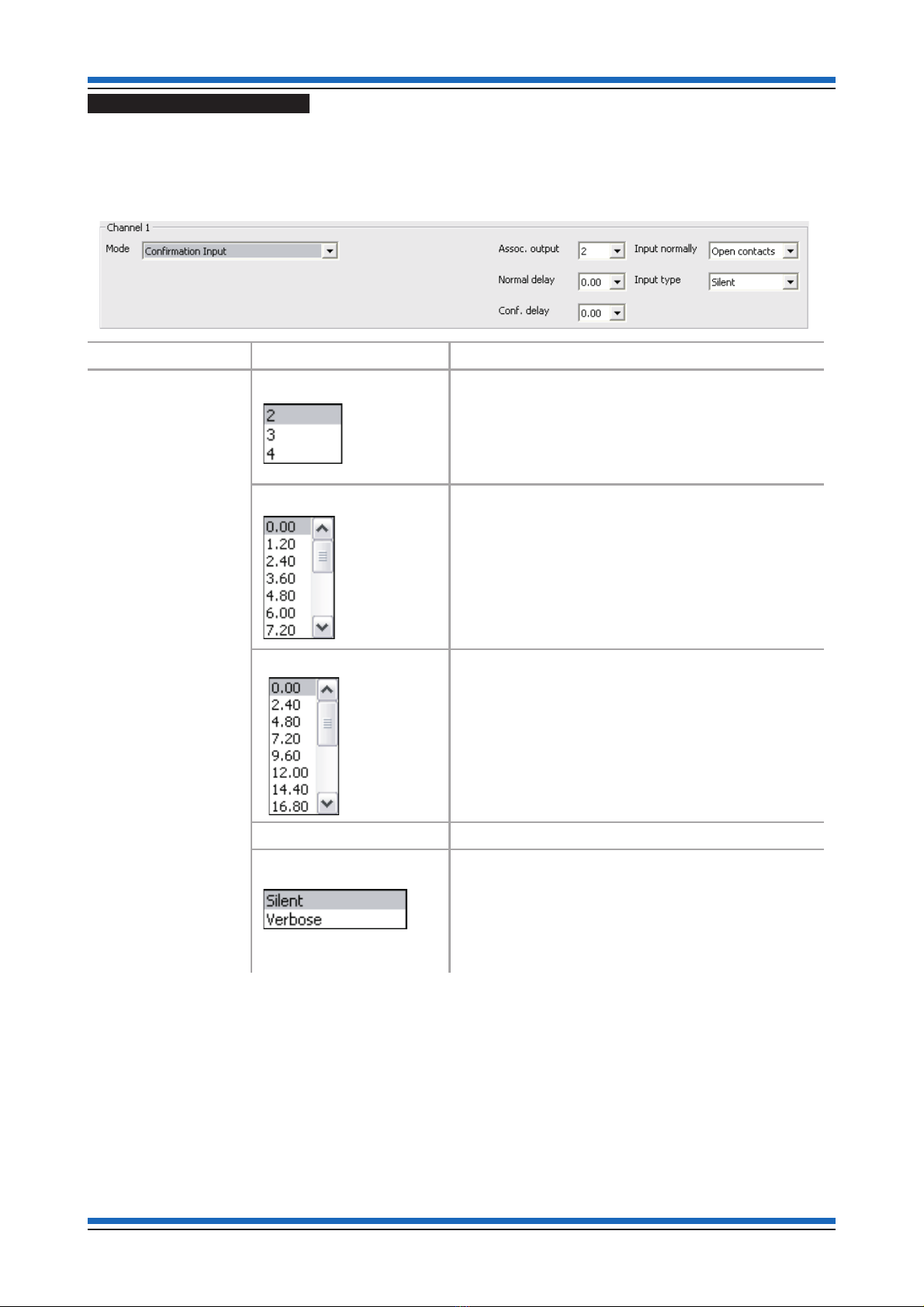

Confirmation Input mode
The purpose of a Confirmation Input is to allow the system to monitor the correct operation of an output,
which relies on external equipment sending back the correct signal. In this mode use a 470ohms end-of-line
resistor with another 470ohms resistor being switched in parallel across the Z+ and Z- terminals to provide
the feedback signal.
Mode settings notes
Confirmation Input Associated output The selected output channel is associated with the
confirmation input channel. Note channel 1 cannot be
selected for associated output as it is already being used
as an output, however this would be possible if the
channel was configured as a combined input/output
channel.
Normal delay The Normal delay is the time before a confirmation
input is accepted by the interface, this will filter any
noise or spurious signals, commonly know as "bounce".
This time is the debounce period.
Confirmation delay This is the delay time before a confirmation input is
accepted by the interface and is how long the interface
waits for a confirmation signal before it brings up a
fault message.
Input normally See page 6.
Input type The verbose setting will generate true/false supervisory
messages whenever the input changes state, as well as
generate timeout fault if the change does not occur
before the delay has elapsed.
The silent setting will only give a timeout fault.
4188-968 issue 2_Part 2_09-10_S4 mains interface 7
S4 Mains powered interface unit Commissioning information
www.acornfiresecurity.com
www.acornfiresecurity.com

Confirmation Output mode
A channel is configured as a confirmation output and is associated with an input at another channel, but not
its own channel.
Mode settings notes
Confirmation Output Output type: See page 4.
Fail safe See page 4.
Mains Failure See page 4.
Associated Input The selected input channel is associated with the
confirmation output channel. Note channel 1 cannot be
selected for associated input as it is already being used
as an output.
Output Normally See page 4.
Output with Zone Input mode
This is when a channel is configured as an output and the channels input terminals are Zone Input.
Mode settings notes
Output / Zone input Zone input type See page 5.
Output type See page 4.
Sync. pulse See page 4.
Failsafe See page 4.
Mains failure See page 4.
Validation delay See page 5.
Reset period See page 5.
Output normally See page 4.
Commissioning information S4 Mains powered interface unit
8 4188-968 issue 2_Part 2_09-10_S4 mains interface
www.acornfiresecurity.com
www.acornfiresecurity.com

Output with Supervisory Input mode
This is when a channel is configured as an output and the channels input terminals are Supervisory Input.
Mode settings notes
Output / Supervisory
input
Output Type See page 4.
Sync. pulse See page 4.
Failsafe See page 4.
Mains Failure See page 4.
Input Delay See page 6.
Input normally See page 6.
Output normally See page 4.
Output with Fault Input mode
This is when a channel is configured as an output and the channels input terminals are Fault Input.
Mode settings notes
Output / Fault input Output type See page 4.
Sync pulse See page 4.
Failsafe See page 4.
Mains Failure See page 4.
Input Delay See page 6.
Output normally See page 4.
4188-968 issue 2_Part 2_09-10_S4 mains interface 9
S4 Mains powered interface unit Commissioning information
www.acornfiresecurity.com
www.acornfiresecurity.com

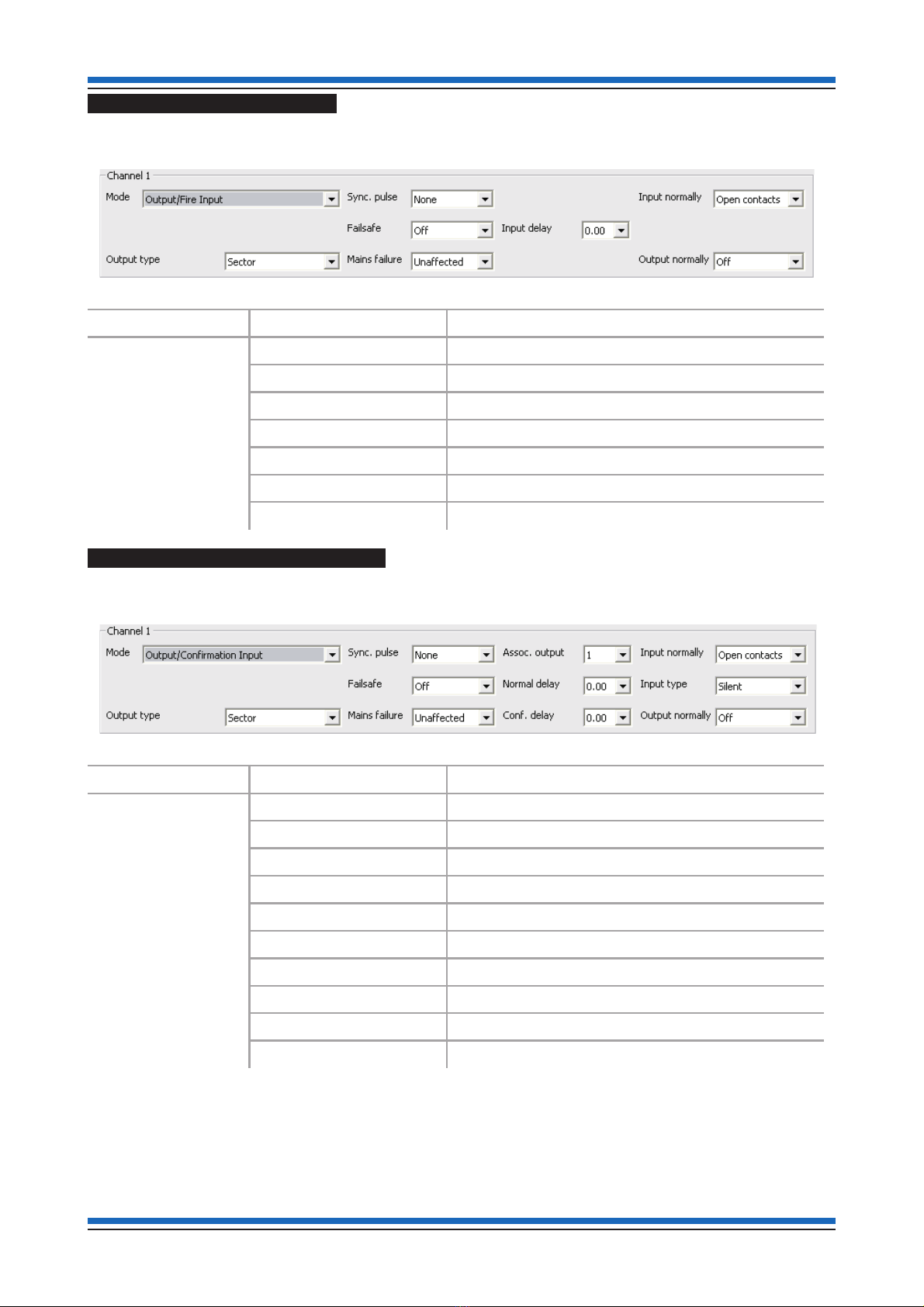

Output with Fire input mode
This is when a channel is configured as an output and the channels input terminals are Fire Input.
Mode settings notes
Output / Fire input Output Type See page 4.
Sync. pulse See page 4.
Failsafe See page 4.
Mains failure See page 4.
Input Delay See page 6.
Input normally See page 6.
Output normally See page 4.
Output / Confirmation Input mode
This is when a channel is configured as an output and the channels input terminals are Confirmation Input.
Mode settings notes
Output /
Confirmation input
Output type See page 4.
Sync. pulse See page 4.
Failsafe See page 4.
Mains failure See page 4.
Associated output See page 7.
Normal delay See page 7.
Conf. delay See page 7.
Input normally See page 6.
Input type See page 7.
Output normally See page 4.
Commissioning information S4 Mains powered interface unit
10 4188-968 issue 2_Part 2_09-10_S4 mains interface
www.acornfiresecurity.com
www.acornfiresecurity.com

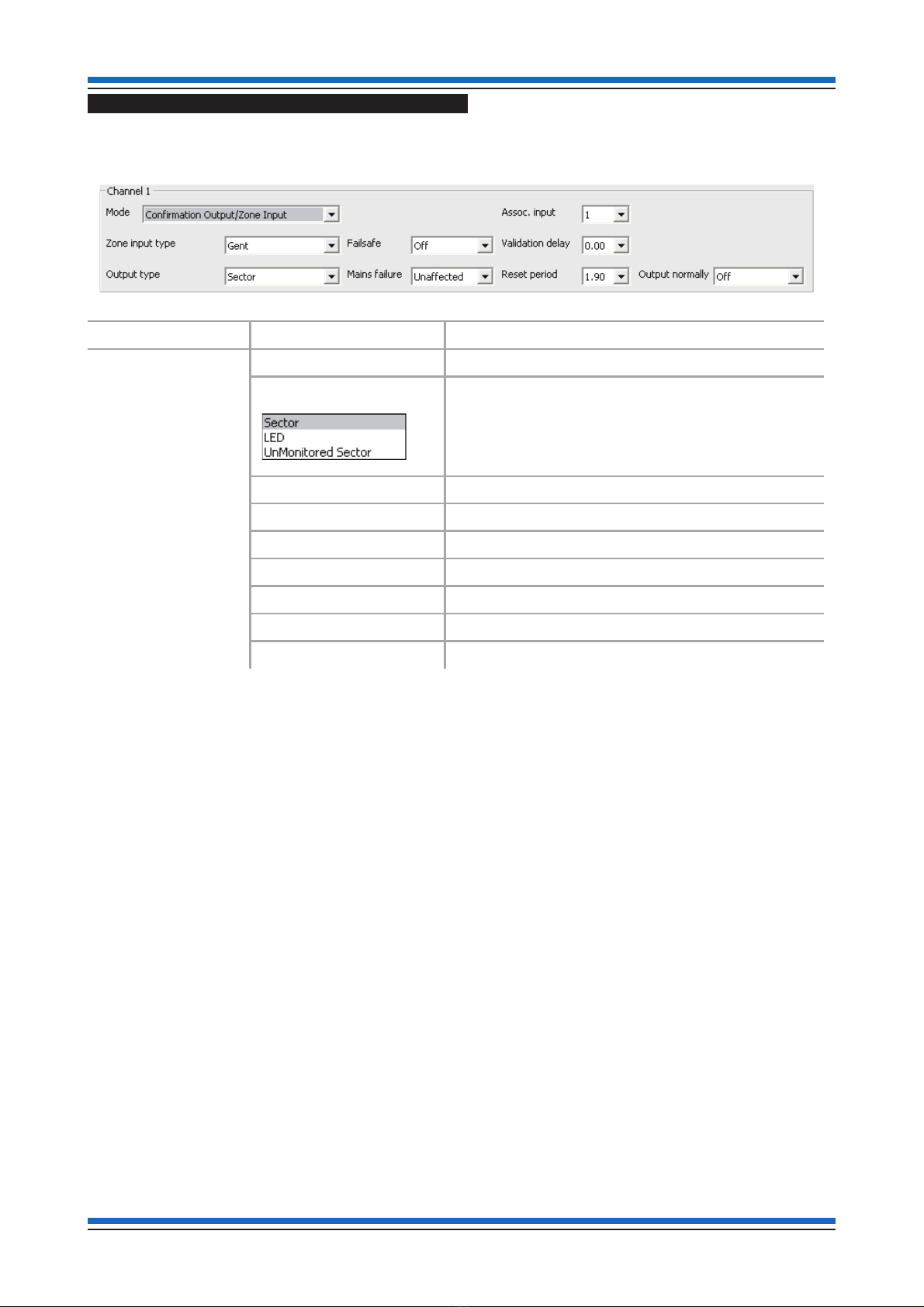

Confirmation Output with Zone Input mode
This example shows how to set a confirmation output when there is a state change on the associated Zone
input.
Mode settings notes
Confirmation
Output/Fault Input
Zone Input Type See page 5.
Output Type: See page 4.
Failsafe See page 4.
Mains failure See page 4.
Output normally See page 4.
Associated Input See page 8.
Validation Delay See page 5.
Reset Period See page 5.
Output Normally See page 4.
4188-968 issue 2_Part 2_09-10_S4 mains interface 11
S4 Mains powered interface unit Commissioning information
www.acornfiresecurity.com
www.acornfiresecurity.com

Confirmation Output with Supervisory Input mode
This example shows how to set a confirmation output when there is a state change on the associated
Supervisory input.
Mode settings notes
Confirmation
Output/Supervisory
Input
Output type: See page 4
Failsafe See page 4.
Mains failure See page 4.
Output normally See page 4.
Associated input: The selected input channel is associated with the
confirmation output channel.
Input delay See page 6.
Input normally See page 6.
Commissioning information S4 Mains powered interface unit
12 4188-968 issue 2_Part 2_09-10_S4 mains interface
www.acornfiresecurity.com
www.acornfiresecurity.com

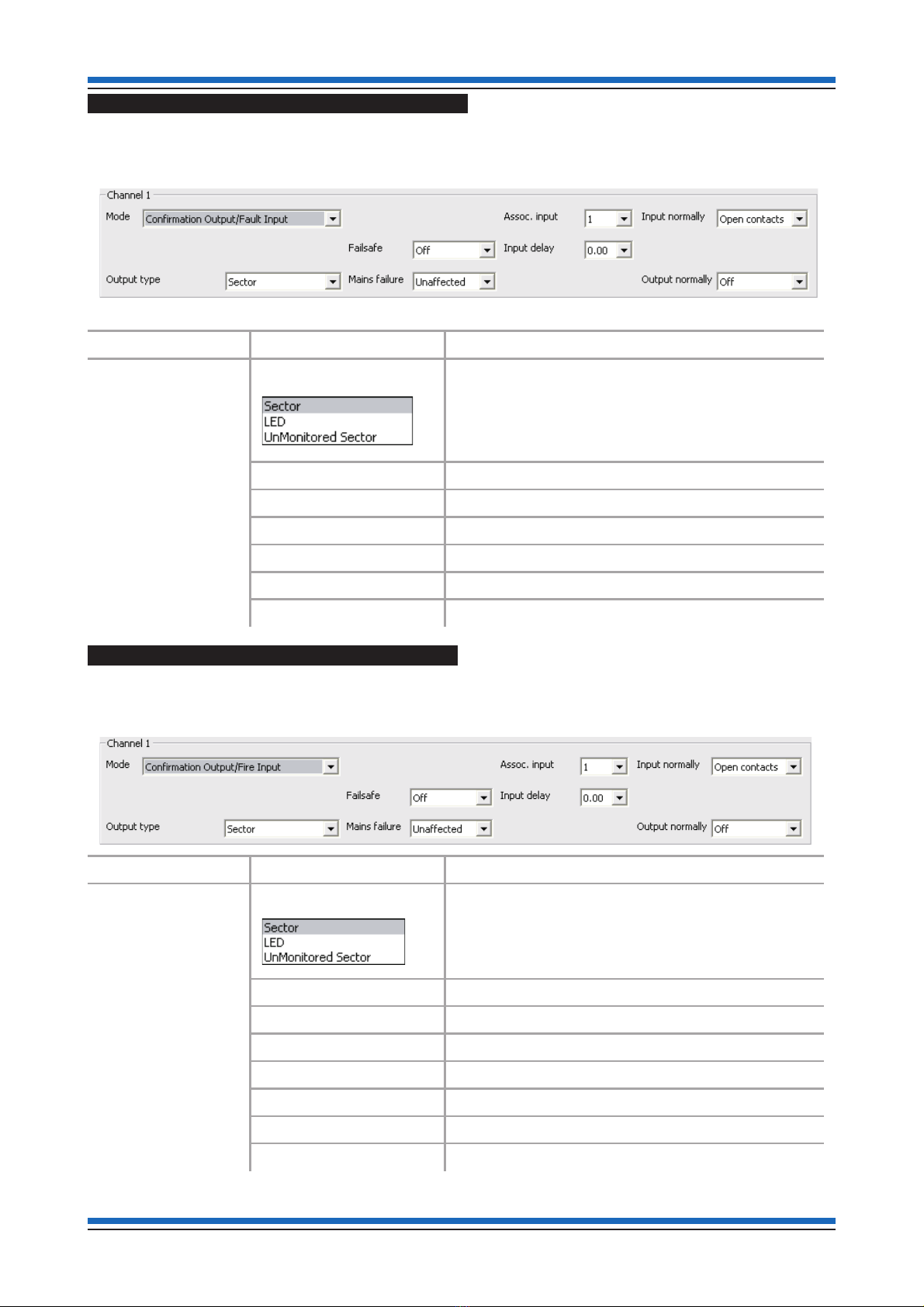

Confirmation Output with Fault Input mode
This example shows how to set a confirmation output when there is a state change on the associated fault
input.
Mode settings notes
Confirmation
Output/Fault Input
Output Type: See page 4.
Failsafe See page 4.
Mains failure See page 4.
Output normally See page 4.
Associated Input See page 8.
Input Delay See page 6.
Input Normally See page 6.
Confirmation Output with Fire Input mode
This example shows how to set a confirmation output when there is a state change on the associated fire
input.
Mode settings notes
Confirmation
Output/Fault Input
Output Type: See page 4.
Failsafe See page 4.
Mains failure See page 4.
Output normally See page 4.
Associated Input See page 8.
Input Delay See page 6.
Input Normally See page 6.
Output normally See page 6.
4188-968 issue 2_Part 2_09-10_S4 mains interface 13
S4 Mains powered interface unit Commissioning information
www.acornfiresecurity.com
www.acornfiresecurity.com

Auxiliary output
The interface has an auxiliary output rated at 1A max. The output voltage can be programmed as
unregulated 24V (+/-3V) on the S4-34440-02 or regulated 12V/24V (+/-0.5V) on the S4-34440-12.
Mode settings notes
Auxiliary
output
When 'On' the auxiliary output is enabled and is disabled when
set to 'Off'.
The “Off” setting should be selected when the auxiliary output is
unused to maximise the battery standby period.
If there is a mains failure then the auxiliary output can be
switched off to preserve battery supply for essential inputs and
outputs.
Option for any equipment that needs a reset pulse to remove a
latched condition, such as a conventional beam that is powered
from the auxiliary terminal and signals a fire condition with relay
contacts connected to a line configured as a switch input.
Select the required output voltage. The 12V option is for
S4-34440-12 Interface unit only.
Fail Safe period settings
The fail safe periods are associated with the all the Mains powered interface units in a standalone system
where Outputs are configured for Door release Category A applications ONLY, see page 4.
Mode settings notes
Initial fail safe period
(seconds)
If there is a fault preventing detection of fire, disablement of fire
detection or other conditions preventing fire detection operation, like
supply failure, then the Outputs will turn 'On' (ie doors released) after
an initial fail safe period of 120s (default).
Final fail safe period
(minutes)
If there are three fail safe conditions that occur within a period set
here then the Outputs are latched 'On' (ie doors released) and can only
be reset by powering down the interface and then powering it up
again. This final fail safe period can be disabled by selecting the
'Disabled' setting, which is a default setting.
Commissioning information S4 Mains powered interface unit
14 4188-968 issue 2_Part 2_09-10_S4 mains interface
www.acornfiresecurity.com
www.acornfiresecurity.com

This page has been intentionallly left blank.
4188-968 issue 2_Part 2_09-10_S4 mains interface 15
S4 Mains powered interface unit Commissioning information
www.acornfiresecurity.com
www.acornfiresecurity.com

Commissioning information S4 Mains powered interface unit
16
www.acornfiresecurity.com
www.acornfiresecurity.com
