Honeywell RAEGuard 2 PID User manual

___________________________________
User Guide
___________________________________
P/N: H-D03-4001-000
Rev M February 2018
RAEGuard 2 PID

RAEGuard 2 PID User’s Guide
1
Contents
Section 1: RAEGuard 2 PID User’s Guide
1General Information ............................................................6
2General Specifications.........................................................8
2.1 RAEGuard 2 PID Specifications...........................8
2.2 Proper Product Disposal At End Of Life...............9
3Operation...........................................................................10
4Physical Description..........................................................11
5Physical Dimensions .........................................................11
6Installation and Access Instructions..................................12
6.1 Mounting .............................................................12
6.2 Instrument Disassembly ......................................14
6.3 Electrical Wiring .................................................15
6.4 Wiring Procedure.................................................16
6.5 Earth Grounding Instructions..............................17
6.5.1 External Earth Grounding................................17
6.5.2 Internal Earth Grounding.................................17
6.5.3 Finished Grounding Wires ..............................18

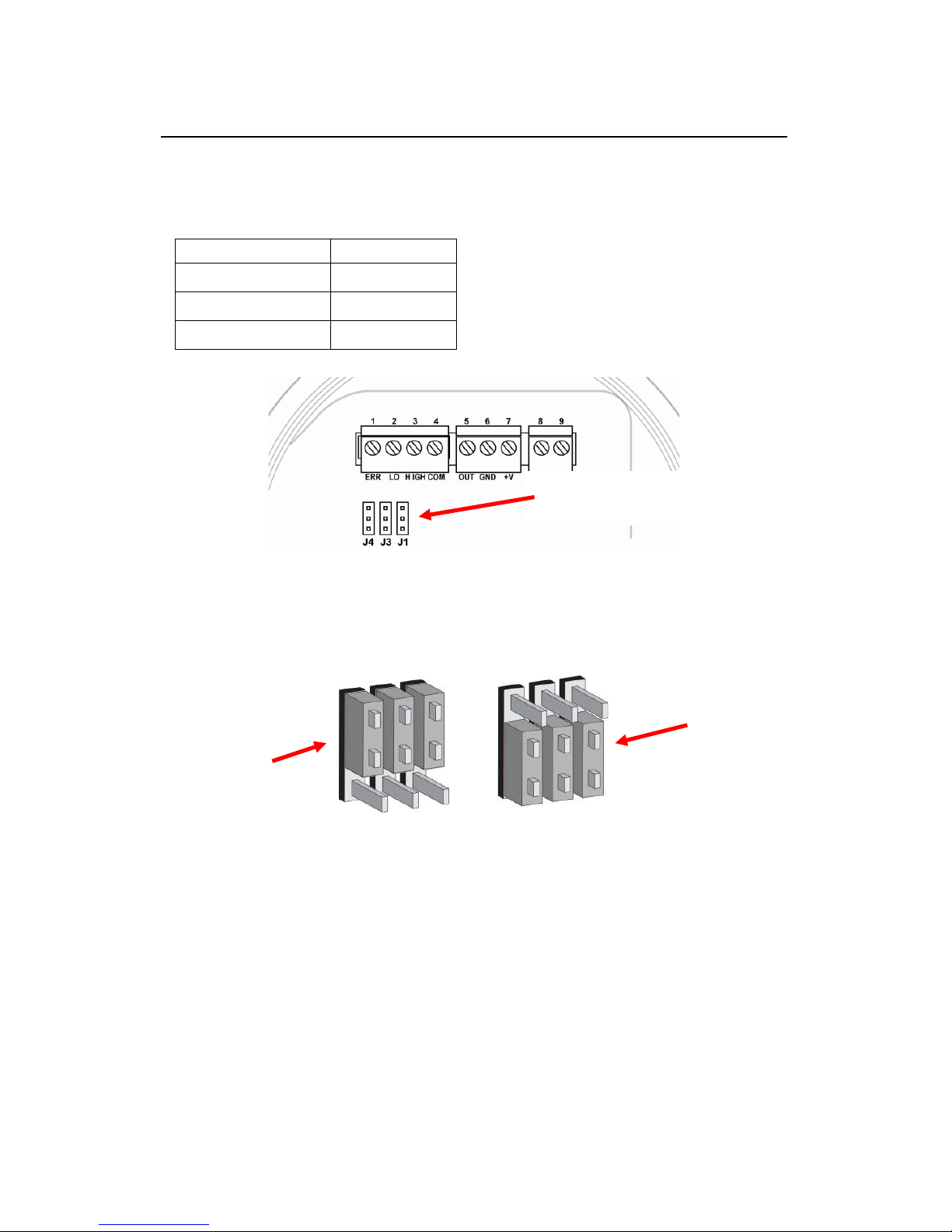

6.6 Alarm Contact Setup ...........................................18
7Display And User Interface...............................................20
7.1 User Interface ......................................................20
7.2 Magnet Key.........................................................20
7.3 Using The Magnet Key .......................................21
7.4 System Initialization............................................21
7.5 Reading Display ..................................................21
7.6 Instrument Status Display....................................22
8Navigating Settings ...........................................................23
9Programming Menus .........................................................27
Zero/Fresh Calibration.........................................................27
Meas. Unit* ......................................................................27
High Alarm.......................................................................27
Temp. Unit........................................................................27
Span Calibration.................................................................27
Meas. Range* ...................................................................27
Low Alarm........................................................................27

RAEGuard 2 PID User’s Guide
2
Language ..........................................................................27
Set Span Value .................................................................27
Meas. Gas* .......................................................................27
Ext. Alarm Delay*............................................................27
Pump Duty (%)*...............................................................27
Calibration Type*.............................................................27
Pump Cycle(s)* ................................................................27
Calibration Gas*...............................................................27
Pump Status*....................................................................27
Bus Baudrate ....................................................................27
Analogout 4mA ................................................................27
Analogout 20mA................................................................27
Unit ID..............................................................................27
LCD Contrast....................................................................27
LCD Backlight..................................................................27
Change Password*............................................................27
9.1 Entering Programming Mode..............................28
9.2 Calibration...........................................................29
9.3 Measurement (Advanced Mode).........................32
9.4 Alarm Setting.......................................................35
9.5 Monitor Setup......................................................37
10 Calibration..................................................................43
10.1 Zero Calibration...................................................44
10.2 Span Calibration..................................................46
11 Alarm Signal Summary..............................................48
12 Maintenance ...............................................................50
13 DigiPID Sensor Module Replacement .......................50
14 Troubleshooting..........................................................52
SECTION 2: DigiPID User’s Guide
SAFETY INSTRUCTIONS.....................................................54
15 Read Before Operating...............................................55
15.1 DigiPID Marking.................................................56
15.2 Operation Area and Conditions...........................57
15.2.1 Hazardous Areas classified by Zones............57
15.2.2 Hazardous Areas classified by Divisions......57

RAEGuard 2 PID User’s Guide
3
15.3 Instruction For Safe Use......................................57
15.4 Use In Hazardous Areas......................................58
15.5 Year of manufacture............................................58
15.6 Specifications ......................................................59
16 General Information ...................................................60
17 Grounding (Earth Connection)...................................61
18 Physical Description...................................................62
19 Sensor Parts And Dimensions....................................63
20 Operating the Sensor Module.....................................64
20.1 Preparing The Sensor For Use.............................64
21 Using The Sensor Module..........................................65
21.1 Gas Flow Routing Connection ............................65
21.2 Sensor Module Calibration..................................66
21.3 Maintenance And Calibration..............................68
21.4 Replacing the Lamp And Filter...........................68
22 Replacing The Sensor’s Teflon UV Shield................70
23 Sensor & Lamp Cleaning/Replacement .....................73
23.1 Cleaning The PID Sensor....................................73
23.2 Cleaning The Lamp Housing Or
Changing The Lamp............................................74
23.3 Cleaning The Instrument.....................................75
23.4 Ordering Replacement Parts................................75
23.5 Special Servicing Note ........................................75
24 Electronic Waste Disposal..........................................76
25 Appendix A: Range, Sensor and
Related Configuration ................................................77
26 ModBus/RS-485 Information.....................................77
27 Appendix B: Controlled Section ................................79
27.1 Scope ...................................................................79
27.2 Contents...............................................................79
27.3 Scope ...................................................................81
27.4 Responsibility......................................................81
27.5 Contents...............................................................81
28 Technical Support.......................................................89
29 Honeywell Analytics Contacts...................................89

RAEGuard 2 PID User’s Guide
4
© Honeywell International ©2018. All Rights Reserved.
This document is the confidential and proprietary information of
Honeywell. Reproduction and distribution of these materials without
the express written consent of Honeywell is strictly forbidden.
While this information is presented in good faith and believed to be
accurate, Honeywell disclaims the implied warranties of
merchantability and fitness for a purpose and makes no express
warranties except as may be stated in its written agreement with and
for its customer.
In no event is Honeywell liable to anyone for any direct, special, or
consequential damages. The information and specifications in this
document are subject to change without notice.
These commodities, technology, or software were exported from the
United States in accordance with the Export Administration
Regulations. Diversion contrary to U.S. law prohibited.
This product may contain or be derived from materials, including
software, of third parties. The third-party materials may be subject to
licenses, notices, restrictions and obligations imposed by the licensor.
The licenses, notices, restrictions and obligations, if any, may be
found in the materials accompanying the product, in the documents or
files accompanying such third party materials, in a file named third-
party licenses on the media containing the product, or at
http://www.honeywell.com/ps/thirdpartylicenses.
Honeywell, RAEGuard 2 PID, and DigiPID are U.S. registered
trademarks of Honeywell International Inc. Other brand or product
names are trademarks of their respective owners.

RAEGuard 2 PID User’s Guide
5
Section 1: RAEGuard 2 PID User’s Guide

RAEGuard 2 PID User’s Guide
6
1 General Information
The RAEGuard 2 PID is a fixed photoionization detector (PID) that
measures a broad range of volatile organic compounds (VOCs). It
operates on 10 to 28 VDC and provides an analog (4-20mA) three-
wire signal output, and RS-485 Modbus digital signal output.
RAEGuard 2 PID uses an intelligent processing platform and digital
sensor technology, supports multiple ranges and resolutions, and can
perform off-line calibration and environmental self-adaptation.
RAEGuard 2 PID has a graphic display and local sound alarm and
light status indicator. A magnetic key interface enables the detector to
be calibrated and operational parameters adjusted with the explosion-
proof enclosure in place. In addition, the PID module can be easily
removed in hazardous locations for calibration or maintenance.
Key features:
•Digital Smart Sensor Technology
•Three wires, supports 4-20mA analog output
•Operates in flow-through mode and can be used in most
environments
•RS-485 digital communication in ModBus protocol
•Explosion-proof stainless-steel enclosure for hazardous
environment applications
•Magnetic-key interface eliminates the need to open the explosion-
proof housing when adjusting parameters.
•Matrix LCD of 128x64 supports graphic display
•LED alarms when High or Low alarm point is reached
•Operation at 10 to 28 VDC
•Three dry contacts (<30V, 2A) normally open (or normally closed),
one for High and Low alarm, another for Fault alarm

RAEGuard 2 PID User’s Guide
7
Applications:
•Refineries, petrochemical and natural gas plants
•Metallurgical
•Chemical, medication
•Environmental protection
•Electricity, communications
•Fire protection
•Utilities
•Pulp and paper, printing
•Storage
•Sewage disposal
•Food, brewing
•Scientific research, education, homeland security
Hazardous Location Classification:
ATEX
II 2 (1) G Ex db [ia Ga] IIC T4 Gb
UL/CSA
Class I, Div. 1, Groups A B C D T4
IECEx
TR CU
Ex db [ia Ga] IIC T4 Gb
1Ex d [ia Ga] IIC T4 Gb X

RAEGuard 2 PID User’s Guide
8
2 General Specifications
2.1 RAEGuard 2 PID Specifications
Basic Parameters
Principle
PID (photoionization detector)
Sensor
Digital Smart Sensor
Sampling
Internal diaphragm pump
Working Current
DC 10 to 28V, 210mA at 24V
Power
<5W
Output
•4-20mA
•Three-level programmable alarm relays
(30 VDC, 2A)
•
RS-485 (Supports Modbus)
IP Rating
IP-65
Mechanical
Interface
3/4" NPT Male
Installation
2" pipe-holding or wall mounting
User Interface
Three-key magnetic bar adjustment
Calibration
Two or three points
Environmental Parameters
Temperature
-20° C to +55° C (-4° F to 131° F)
Humidity
0 to 95% relative humidity, non-condensing
Pressure
90 to 110kPa
Display
Display
128x64 matrix backlit LCD, supports graphic
display

RAEGuard 2 PID User’s Guide
9
RAEGuard 2 PID Specifications (continued)
Physical Parameters
Dimensions,
L x W x H
257 x 201 x 107 mm
(10.1" x 7.9" x 4.2")
Material
Stainless steel
Weight
3.5 kg (7.7 lbs)
Certification
ATEX
II 2 (1) G Ex db [ia Ga] IIC T4 Gb
UL/CSA
Class I, Div. 1, Groups A B C D T4
IECEx
Ex db [ia Ga] IIC T4 Gb
TR CU
1Ex d [ia Ga] IIC T4 Gb X
Ex Entity
Parameters
Um: 28VDC (input supply)
Sensor Specifications: See DigiPID sensor section on page 59.
2.2 Proper Product Disposal At End Of Life
The Waste Electrical and Electronic Equipment
(WEEE) directive (2012/19/EU) is intended to
promote recycling of electrical and electronic
equipment and their components at end of life. This
symbol (crossed-out wheeled bin) indicates
separate collection of waste electrical and electronic
equipment in the EU countries. This product may
contain one or more Nickel-metal hydride (NiMH),
Lithium-ion, or Alkaline batteries. Batteries must
be recycled or disposed of properly.
At the end of its life, this product must undergo separate
collection and recycling from general or household waste.
Please use the return and collection system available in your
country for the disposal of this product.

RAEGuard 2 PID User’s Guide
10
3 Operation
The calibration of all newly purchased Honeywell Analytics
instruments should be tested by exposing the sensor to a known
concentration calibration gas before the instrument is used or put into
service. Prior to factory shipment, the RAEGuard 2 PID is calibrated
and tested. However, the user should calibrate the instrument before
the first use.
Kit Accessories include: RAEGuard 2 Magnet Key, and User’s
Guide.

RAEGuard 2 PID User’s Guide
11
4 Physical Description
The RAEGuard 2 PID can be easily installed and integrated with
various control systems. It is designed with flexible pipe-
holding/wall-mounting options and standard connection terminals.
5 Physical Dimensions
The physical dimensions are as shown:
201mm (7.9")
290 mm
(11.4")
133 mm
(5.23")
107mm
(4.2")

RAEGuard 2 PID User’s Guide
12
6 Installation and Access Instructions
6.1 Mounting
First, decide where the transmitter will be mounted. (Refer to
installation drawing, below.) Drill two holes in mounting surface,
with the center of the holes 5.25" (133mm) apart.
Besides directly mounting the RAEGuard 2 PID to a wall, it can be
mounted on a pipe.
WARNING
1. To prevent ignition of hazardous atmospheres, area must
be free of flammable vapors and supply circuit must be
disconnected before removing cover.
2. For European application, the installation must comply
with the requirements of EN 60079-14.

RAEGuard 2 PID User’s Guide
13
Note: When installing the RAEGuard 2 PID, make sure the sensor is
vertically oriented (pointing straight down). Also, make sure the
water-trap filter is connected to the gas inlet labeled “IN” (the longer
of the two inlets). Note: Only operate the RAEGuard 2 PID in a non-
condensing environment.
Wall
Pole

RAEGuard 2 PID User’s Guide
14
6.2 Instrument Disassembly
Prior to service: Make sure power is OFF. Observe all
Hazardous Location Safety procedures.
1. Loosen the fastening bolt
before unscrewing the
housing lid. Unscrew the
housing lid from the housing
body by rotating it counter-
clockwise. (As shipped, one
of the conduit holes is
covered by the provided hex-
head plug. The other conduit
is for wire connections.)
3.Tilt the instrument assembly
90˚.
4.
Unlock the 24-pin connector
on the ribbon cable.
5.
Lift the entire instrument
assembly out of the housing.
6.
Unscrew the sensor by
turning it counterclockwise.
Disassembled instrument.
2. Pull off the retaining
clip to release the
instrument assembly.

RAEGuard 2 PID User’s Guide
15
To reassemble the instrument:
1Reconnect the 24-pin connector of the ribbon cable and lock it in
place.
2Fasten the cable to the board.
3Mate the board with the clip on the left side and tilt it over.
4Click the board into place.
5Screw on the sensor, making sure not to block the gas inlet hole
and connectors.
6Screw on the housing top.
7Screw down the fastening bolt.
6.3 Electrical Wiring
The detector connects to peripheral equipment via three terminal
blocks. These blocks accept 12AWG to 24AWG wire (0.2 to 4.0
mm2).
Terminal blocks

RAEGuard 2 PID User’s Guide
16
6.4 Wiring Procedure
1. Inside the housing bottom, unplug the two green terminal block
plugs from the terminal block on the PC boards.
Note: The terminal block plugs accept 12 AWG to 24 AWG wire.
2. Lace the wires through the RAEGuard 2 PID’s wire hole(s) and
connect wires to the corresponding pin numbers of the terminal
blocks:
Terminal Terminal Definition
Terminal
description
No.
Block 1
Failure Alarm Contact
ERR
1
Low Level Alarm Contact
LOW
2
High Level Alarm Contact
HIGH
3
Switch signal Common Contact
COM
4
Block 2
4-20 mA Output
OUT
5
Power Supply Negative
GND
6
Power Supply Positive
+V
7
Block 3
RS485A terminal
485A
8
RS485B terminal
485B
9

RAEGuard 2 PID User’s Guide
17
6.5 Earth Grounding Instructions
6.5.1 External Earth Grounding
Fasten the crimped ground wire with hardware as illustrated below.
The wire should have a minimum cross-section area of 4mm2for its
conductor.
6.5.2 Internal Earth Grounding
Use the same hardware as shown in the illustration of external earth
grounding. The wire should be no less than the size of the power lines.
Signal grounding can connect to a cable’s shielding layer if shielded
cable is used. If a separate wire is used for grounding, its cross section
should be greater than that of the power line.
M4 flat washer
M4 Split washer
M4 Screw
Wire
(Min. 4 mm2
cross-section)
Crimped terminal
Internal earth
grounding

RAEGuard 2 PID User’s Guide
18
6.5.3 Finished Grounding Wires
Internal and external grounding are shown here, as well as an
alternate external grounding point. Always follow local electrical
guidelines.
6.6 Alarm Contact Setup
The alarm contacts can drive external alarms such as a light or buzzer.
By default, the three relays are set for normally open (NO) operation,
meaning that contact is closed when in alarm.
You can separately change each relay from normally open to
normally closed (NC) operation by changing the position of the
jumpers on the internal printed circuit board.
Alternate
earth
grounding
point
Internal earth
grounding
External earth
grounding

RAEGuard 2 PID User’s Guide
19
Three jumper blocks are located below the three green terminal
blocks. They are labeled (from left to right): J4, J3, and J1. Here are
their functions:
Jumper
Function
J1
High
J3
Low
J4
Error
Lift off the jumper for each one that you want to change and slide it
back on, either connecting the middle and top points or middle and
bottom points.
Important!
Once the system is operational, test the functionality of all three
relays.
Note: The relays may be disabled based on the sensor that is attached
to the RAEGuard 2 PID. Certain sensors, such as the 1-1000 ppm
DigiPID, disable the correction factor library and relays of the
RAEGuard 2 unit. Users who require these functions should use the
0.1-1000 ppm DigiPID sensor module.
Jumper blocks
Normally
Open
Normally
Closed
