Hoonved ED 650 E User manual

R
Instructions for user
ED 650 E/S
CA 90/120
Ed. 04/2000

2
ED 650 E/S - CA 90/120
DICHIARAZIONE DI CONFORMITA’ - DECLARATION OF CONFORMITY
DECLARATION DE CONFORMITE - KONFORMITÄTS ERKLÄRUNG
Noi - The following - Nous soussignés - Die Unterzeichnete Fa:
dichiariamo sotto la nostra esclusiva responsabilità che il prodotto
hereby declares under full responsability that the following product
attestons sous notre entière responsabilité que le produit suivant
erklärt unter eigener Verantwortung, dass folgende Produkte
LAVASTOVIGLIE- DISH WASHER - LAVEVAISSELLES - GESCHIRRSPÜLMASCHINE
(descrizione del prodotto - product description - description du produit - Produktbeschreibung)
ED 650 E ......, ED 650 S ......, CA 90 ......, CA120 ......,
(tipo modello - type modèle - type model - Typ Modell)
al quale questa dichiarazione si riferisce è conforme alle seguenti norme:
auquel se référé cette dèclaration, est conforme aux normes suivantes:
to which this declaration refers, is conform wirh the following standards:
auf welche sich diese Erklärung bezieht, folgendem Standard entsprechen:
EN 60335-1 (1988) + A2, A5,A6, A51, A52,A53, A54, A55.
Sicurezza degli apparecchi elettrici d’uso domestico e similare. Norme generali.
Safety of household and similar electrical appliances - General requirements.
EN 60335-2-58 (1993)
Sicurezza degli apparecchi elettrici d’uso domestico e similare. Parte 2°: Norme particolari lavastoviglie per uso collettivo.
Safety of machine - Basic concept general for design - Technical principles and specifications.
in base a quanto prescritto dalle Direttive:
selon ce qui est prevu par les Directives:
on the basis of what is foreseen by the Directives:
aufgrund der vorgesehenen Richtlinien:
Decliniamo ogni responsabilità per sinistri a persone o a cose derivanti da manomissioni da parte di terzi o da carenze di manutenzione o riparazione.
Nous déclinons toute responsabilité pour sinistres à personnes ou à objet qui derivent de l’invention de la part de tiers non specialistes ou de
carences de manutention ou reparation.
We decline any responsability for injuries or damage derived from machine misuse, abuse by others or impropermachine maintenance or repairs.
Wir lehnen jegliche Verantwortung für Schäden an Personen oder Dingen ab, die auf fehlerhaftes Eingreifen Dritter oder auf mängelhafte Wartung
oder Reparation zurückzuführen sind.
- Data emissione -
2001
- Date d’ emission -
- date of issue -
- Ausgabedatum -
HOONVED S.r.L.
via Ugo Foscolo, 1 - 21040 Venegono Superiore - (VA- ITALIA)
EN 55014 (1993)
Limiti e metodi di misura caratteristiche di radiodisturbo degli apparecchi elettrodom. , utensili portatili ed apparecchi elettrici simili.
Limits and methods of measurement of radio disturbance characteristic of motor-operated and thermal appliances for household
and similar purposes.
73/23/CEE, 93/68/CEE (LVD) 89/336/CEE, 92/31/CEE, 93/68 CEE (EMC)
89/392/CEE, 92/368/CEE, 93/68/CEE (MACHINERY)
Joakim Granfors
Consigliere D’Amministrazione

3
ED 650 E/S - CA 90/120
DISHWASHING MACHINE
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
The illustrations concerning these instructions are on the
inside of the back cover
.
Realizzato da Hoonved srl (VA) U.T.- Tel. [phone]
- Cod. 33538 - Ed.04/00
Mod.
ED 650 E - CA 90
ED 650 S - CA 120

4
ED 650 E/S - CA 90/120
GBR IMPORTANT
Becomethoroughlyfamiliarwiththecontentsofthimanualbeforeinstalling,settingup,adjustingandservicingdiswashermachine
Mod. ED 650 E/S - CA 90/120 .
Only contact an authorized technical center or HOONVED in the event of breakdowns or faulty machine operation.

5
ED 650 E/S - CA 90/120
INDICE - INDEX
Avvertenza.......................................................... pag. 4
Important
Important
Hinweis
Atencion
Dimensioni d'ingombro..................................... pag. 6
Overall dimensions
Dimensions d'encombrement
Platzbedarfmasse
Dimensiónes
Dati tecnici.......................................................... pag. 7
Technical data
Données techniques
Technischen daten
Nociones praticas
Descrizione comandi......................................... pag. 8
Decription of the controls
Description des commandes
Beschreibung der Bedienvorrichtungen
Descripcion de los mandos
ITALIANO............................................................ Pagina10
ENGLISH............................................................. Page 16
FRANÇAIS........................................................... Page 22
DEUTSCH............................................................ Seite 28
ESPAÑOL............................................................ Página 34

6
ED 650 E/S - CA 90/120
DIMENSIONI DI INGOMBRO - OVERALL DIMENSIONS - DIMENSIONS D'ENCOMBREMENT
PLATZBEDARFSMASSE - DIMENSIÓNES
B
905
1860÷1890
380
150÷180
725 255
A
140
95
165 505
1420÷1450
850
600 600
1825
380
220
470 160
200
320
220
320
625
B
C
A
C
B
A: Raccordo di Scarico - Drain pipe fitting - Raccord de vidange - Abwasseranschluß - Enlace de descarga
B: Entrata dell'acqua - Water inlet - Entrée de l'eau- Wasseranschluß - Alimentacìon idrica
C: Allacciamento elettrico - Electric supply - Raccordement électrique - Stromversorgung - Alimentacìon Electrica
*
A: Entrata dell'acqua - Water inlet - Entrée de l'eau- Wasseranschluß - Alimentacìon idrica
B: Raccordo di Scarico - Drain pipe fitting - Raccord de vidange - Abwasseranschluß - Enlace de descarga
C: Allacciamento elettrico - Electric supply - Raccordement électrique - Stromversorgung - Alimentacìon Electrica
720
930
100
500175 45
380
600
1870 ÷1925
145 ÷200
481
700
200
70
165 246
217
132
CB12.5 12.557
57 12.512.5
82
FORI Ø 10
145 ÷200
A
h.utile
400
27
13
Ø 7
90°
7
610
710
628
518
110
A
1420 ÷1475
Versione Nave
Marine Version
Version Naval
Schiffsversion
Version Naval

7
ED 650 E/S - CA 90/120
Cons. acqua per ciclo
Water cons. cycle
Cons. d’eau par cycle
Wass.pro Zyklus
Cons. agua por ciclo
Capacità boiler
Boiler capacity
Cap. du chauffe-eau
Boilerkapazität
Capacidad hervidor
Umidità relativa
Environ. humid. min/max
Humidité relative
Relative Feuchte
Humedad relativa
Temperatura lavaggio
Wash temperature
Température de lavage
Spültemperatur
Temperatura de lavado
Peso macch. imball.
Gross weight
Poids de la mach. emb.
Gewicht der verp.Masch.
Peso de la maq.embal.
Peso netto
Net weight
Poids net
Reingewicht
Peso netto
Temp. di funz. e stocc.
Envir. temper. min/max.
Temp. de fonct. et stock.
Betriebs- und Lagert.
Temper. de funzionam.
Raccordo di scarico
Drain pipe fitting
Raccord de vidange
Abwasseranschluß
Enlace de descarga
ED 650 S Ø 1"G 110 kg 130 kg 5°÷40°C 20 ÷90 % 50°÷60°C
CA 120
ED 650 E Ø 1"G 100 kg 126 kg 5°÷40°C 20 ÷90 % 50°÷60°C
CA 90
Livello pressione acustica
Noise level
Niveau de pression sonore
Schalldruckpegel
Nivel de presion acustica
Temp. max entrata acqua
Water inlet max. temper.
Temper. max. entree eau.
Max. Temperatur-Wasser.
Temper.màxi. entr. agua
Temperatura risciacquo
Rinse temperature
Température de rinçage
Klarspültemperatur
Temperatura de aclarado
ED 650 S 80°÷90°C 50°C < 70 dB (A) 370 W
CA 120
ED 650 E 80°÷90°C 50°C < 70 dB (A)
CA 90
Allacciam. elett.
Electric supply
Raccor. électr.
Stromversorgu.
Aliment. electri.
Resistenza boiler
Boiler heat.elem.
Résist. ch.-eau
Boilerheizwiderst.
Resistt. hervid.
Produz. cest./ora
Bas.output p/h
Débit paniers/h
Produk. korbe/st.
Produc. can./hora
Potenza totale
Total power
Puissance totale
Gesamtleistung
Enlace total
Resist. vasca
Tank heating el.
Résistance cuve
Wannenheizwid.
Resistencia tina
Pompa lavaggio
Wash pump
Pompe de lavage
Spülpumpe
Bomba de lavado
DATI TECNICI - TECHNICAL DATA - DONNÈE TECHNIQUES - TECHNISCHE DATEN - DATOS TECNICOS
Pompa aumento pressione
Rinse pump
Pompe de rinçage
Drucksteigerungspumpe
Bomba de aclarado
ED 650 S 48 l 8,2 l 2÷4 bar. Ø 3/4"G. 3,5 l 55/90/120 s 500 x 500 mm
CA 120
ED 650 E 48 l 8,2 l 2÷4 bar. Ø 3/4"G. 3,5 l 72/120/180 s 500 x 500 mm
CA 90
Capacità vasca
Tank capacity
Capacité de la cuve
Wannenkapazität
Capacidad tina
Alimentazione idrica
Mains supply of w.
Alimentation en eau
Wasseranschluß
Alimentacíon idrica
Durata ciclo
Cycle lenght
Durée du cycle
Zyklusdauer
Duracíon del ciclo
Dimensioni cestello
Basket dimensions
Dimensions du panier
Korbgröße
Dimensiones cubeta
ED 650 S 65/40/30 400V3 N~50Hz 11100 W 10000 W 3000 W 1100 W
CA 120 400V3 ~50Hz 11100 W 10000 W 3000 W 1100 W
400V3 N~50Hz 7100 W 6000 W 3000 W 1100 W
400V3 N~60Hz 7100 W 6000 W 3000 W 1100 W (60Hz)
230V~50/60Hz 7100 W 6000 W 3000 W 1100 W
230V3~50Hz 7100 W 6000 W 3000 W 1100 W
230V3~60Hz 7100 W 6000 W 3000 W 1100 W(60Hz)
ED 650 E 50/30/20 400V3N~50/60Hz 6900 W 6000 W 3000 W 900 W
CA 90 400V3N~50Hz 10900 W 10000 W 3000 W 900 W
440V3~60Hz 10900 W 10000 W 3000 W 900 W
400V3~50Hz 10900 W 10000 W 3000 W 900 W
400V3~60Hz 6900 W 6000 W 3000 W 900 W
230V~50Hz 6900 W 6000 W 3000 W 900 W
230V3~50Hz 6900 W 6000 W 3000 W 900 W

8
A 90/120

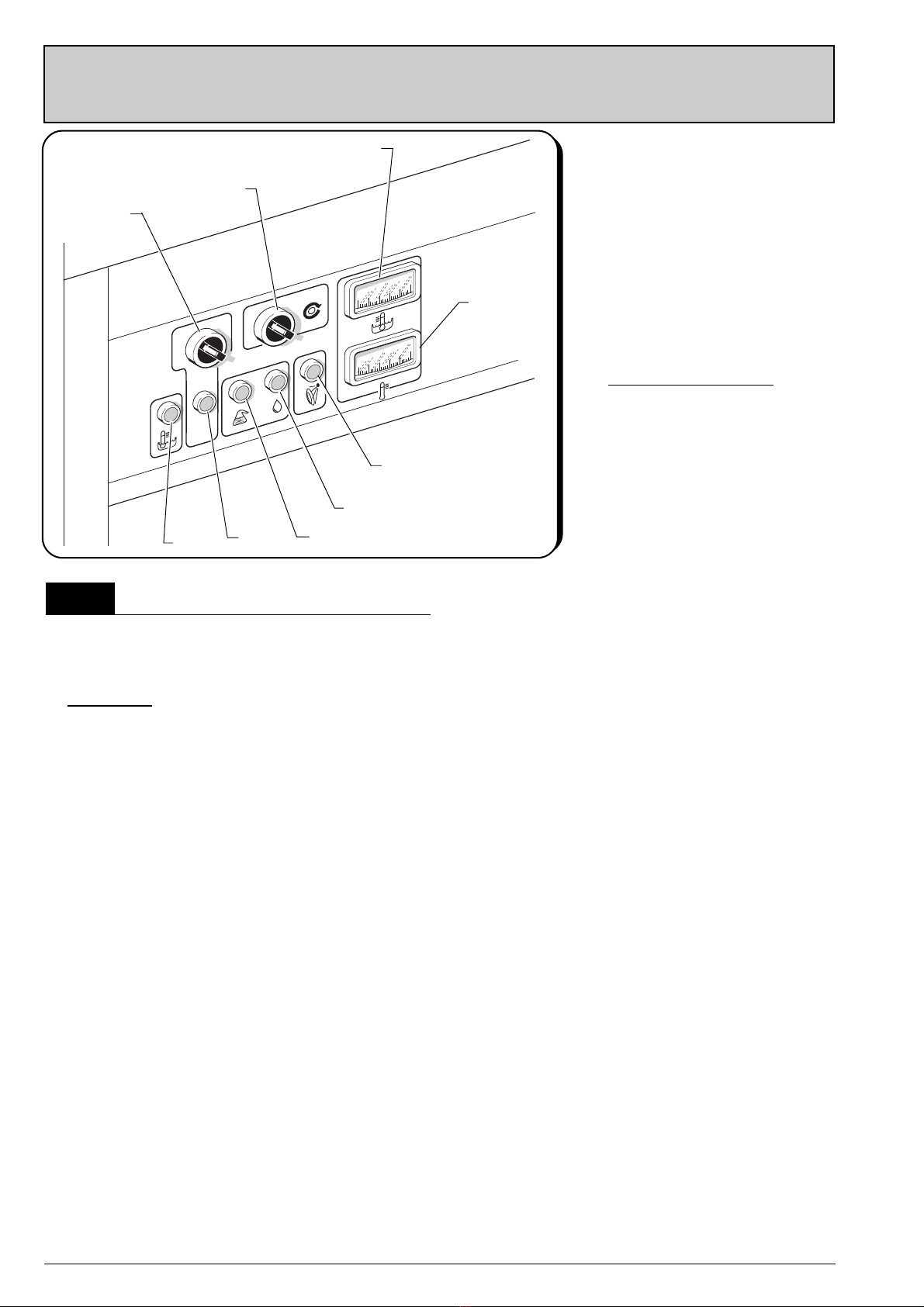

CONTROL PANEL
KEY
1) Line selector
2) Washing time selector
3 time settings for mod. ED 650 E/S
3) Tub thermometer
4) Boiler thermometer
(for Mod. ED 650 S only)
5) Temperature reached warning light
6) Mains warning light
7) Detergent low warning light
(for Mod. ED 650 S only)
8) Rinsing agent low warning light
(for Mod. ED 650 S only)
9) Cycle light
ITA
01
III III
50 60 70 80
40
30
30 40 50 60
20
10
12
3
4
5678
9
ED 650 E/S - CA 90/120
DESCRIPTION OF CONTROLS
•Line selector (1)
Turned on position “I” ON, this enables normal machine
operation; turned to position “0” OFF, it disables all
machine functions.
Drain phase (line off)
(on machines with drain pump only)
Selector switch turned left makes the manual drain.
•Washing time selector (2)
Turned to the various positions, this is used to set the
programmed washing time.
•Tub thermometer (3)
Indicated the temperature of the water in the washing
tank.
•Boiler thermometer (4)
(for Mod. ED 650 S only)
Indicates the temperatures of the water in the rinsing
boiler.
•“Temperature reached” warning light (5)
Flashed whilst the water in the boiler is being heated.
Remains permanently on once the set temperature has
been reached.
•Mains warning light (6)
When on, indicates that the power source is connected.
•Detergent level alarm light (7)
(for Mod. ED 650 S only)
When on, indicates that there is insufficient detergen in
the relative can.
•Rinsing agent level alarm light (8)
(for Mod. ED 650 S only)
When on, indicates that there is insufficient rinsing agent
in the relative can.
•Cycle light (9)
When on, indicates that the cycle is operating.
GBR

16
ED 650 E/S - CA 90/120
PARTICULAR RECOMMENDATIONS
FOR THE OPERATOR
-Do not operate the machine without having become fully
familiar with the contents of this manual and without having
acquired a comprehensive knowledge of the specific
techniques and machine controls.
-Checkthat the areain whichthe machineis tobe installed is
compatible with the dimensions of the machine itself before
installing this latter.
-Only use lifting and handling means as are adequate to the
weightofthemachinewhenthismustbeinstalledorremoved
either completely or in part.
-Never allow unauthorized or unqualified personnel to start,
adjust, operate or repair the machine. Always refer to this
manual for the necessary operations.
-The mechanical parts and electrical/electronic components
situated inside the machine are protected by entirely closed
panels.
-Always ensure that the main switch has been set to the
“OFF”positionbeforecleaningand/orservicingthemachine
and before removing any guard. This will disconnect the
power source during the operator’s intervention.
-The electrical powering system must be equipped with an
automatic release system prior to the main machine switch
and with a suitable grounding system that complies with all
the requisites established by industrial provisions for the
prevention of accidents.
-Always disconnect the power source if work must be carried
out on the main switch or in its vicinity.
-Allinspectionsandmaintenanceoperationsrequiringremoval
of the safety guards are carried out under the complete
responsibility of the users.
These operations should therefore only be carried out by
specialized and authorized technical personnel.
-Check that none of the accident preventing safety devices
(barriers, guards, casings, microswitches, etc.) have been
tamperedwithandthattheyareallperfectlyfunctionalbefore
operating.These devicesshould berepaired ifthis isnot the
case.
-Never remove the safety devices.
-To prevent personal risks, only use power tools that are
correctlyconnectedto the groundingtap andthat conformto
the national safety regulations.
-Neverevertamperwiththeelectricalsystemorwithanyother
mechanism.
-Never ever use the hands or unsuitable instruments to
locateleaks frompipes. Air,fluids underpressure orirritants
couldcauseseriousdamagetobothpersonsand/orproperty.
-Neverusethehandsinsteadofadequatetoolswhenoperating
the machine.
-Never use the hands or other objects to stop moving parts.
-PAY THE UTMOST ATTENTION TO THE DATA PLATES
AFFIXED TO THE MACHINE WHENEVER WORKING ON
THIS OR ON THEIR NEAR VICINITY.
-Theuser is obligedto keepall thedata platesand stickers in
a legible condition.
-It is essential for the user to replace all data plates and
stickersasmayhavedeterioratedforanyreasonorasarenot
clearlyvisible,orderingnewonesfromtheSparesServiceof
HOONVED.
-Contact the person in charge of maintenance in the event of
malfunctionsordamagetothemachinecomponentswithout
proceeding with further repairs.
-It is absolutely forbidden for anyone to use the machine for
purposes other than those explicitly established and
documented.Themachinemustalwaysbeusedintheways,
times and places established by common sense, the laws in
forceineachnation,evenwhentherearenospecificprovisions
to govern the sector in the specific country of use.
-HOONVED declines all responsibility for accidents or
damage to either persons or propertry as may arise
followingfailure to comply with eitherthe relativesafety
provisions or the instructions herein.
-These instructions, together with the provisions
governing machine installation and electrical
connections form an integral part of the Accident
Preventing Industrial regulations in force in each
individual country.
-THESESAFETYPROVISIONSINTEGRATEANDDONOT
SUBSTITUTE THE SAFETY PROVISIONS LOCALLY IN
FORCE.
-NEVERevermakehurriedorinaccuraterepairsascould
jeopardize the correct operation of the machine.
-ALWAYS ASK FOR HELP FROM SPECIALIZED
PERSONNEL IN CASE OF DOUBT.
-ANY TAMPERING BY THE USER RELIEVES THE
MANUFACTURER FROM ALL LIABILITY, THE USER
BEINGINTHISCASESOLELYRESPONSIBLETOWARDS
THE COMPETENT ACCIDENT PREVENTION
AUTHORITIES.
ENGLISH

17
ED 650 E/S - CA 90/120
1.1 GENERAL DESCRIPTION
The dishwashers of the ED 650/CA line give an excellent
idea of the know-how achieved by Hoonved in the field of
machines for catering sector.
They are true professional washing systems that can be
integrated by the use of shelves, tables, etc.
Thewashingdegreeisunrivalledforplates,cutlery,glasses,
cups, trays and crockery. Model ED 650 E/CA 90 can
wash up to 900 plates per hour, while model ED 650 S/
CA120canwashuptoasmanyas1200platesinanhour.
The models feature different productive capacities.
1.2 TYPE OF USE AND IMPROPER USE
These machines have been designed and built to wash
crockery placed in special baskets and using detergent
and rinsing agent.
•Permitted crockery: glasses, teacups, trays, coffee
cups, saucers, cutlery made of materials suitable for
dishwashersandofasizeabletofitintothebasketand
machine.
•Use of specific detergents and rinsing agents for
industrial purposes normally available in the shops is
permitted.
ATTENTION
Anyimproperuseofthemachinerelievesthemanufacturer
from all and every responsibility for accidents or damage
to persons and property, also voiding all conditions of
guarantee.
1.3 TRANSPORT, SHIPMENT AND
STORAGE (Fig. 2)
-The machine is normally shipped in a cardboard box
closed by straps.
-Whentransportingthepackedmachine,usealifttruck
ortranspallet,positioningtheboxontherelativeforks.
ATTENTION
The machine must be sheltered from the weather when
shipped and stored.
1.4 INSPECTIONS ON ARRIVAL
When the machine arrives, check that the packaging is in
a perfect condition and that there is no visible damage.
If everything is in order, remove the packaging (unless
other instructions have been received from the
manufacturer) and check that the machine is free from
damage caused by transport.
Now check whether there has been any damage to the
structure, crushing or breakages.
If damage or imperfections are discovered:
1 - Immediately notify the haulage contractor both by
phone and in writing by registered letter with return
receipt attached;
2 - Informthemanufacturerbyregisteredletter(withreturn
receipt attached).
IMPORTANT
Norificationofdamageorfaultsmustbeimmediate,inany
casewithin 3days fromthedateon whichthemachineis
received.
1.5 UNPACKING (Figs 2-3-)
Proceed in the following way in order to remove the
packing:
1. Cut the straps (10) that hold the cardboard in place.
2. Remove the box (11) by lifting it upwards.
3. Remove the protective film from the machine.
4. Removethemachinefromthebasebyliftingitfromthe
lower part of the casing.
5. Allpackingmustbecollectedandnotleftwithinchildren’s
reach since it could become a source of danger. The
packing can be disposed of in the same way as solid
urban waste.
Lift the machine by raising the lower part of the casing
using a lift truck or transpallet.

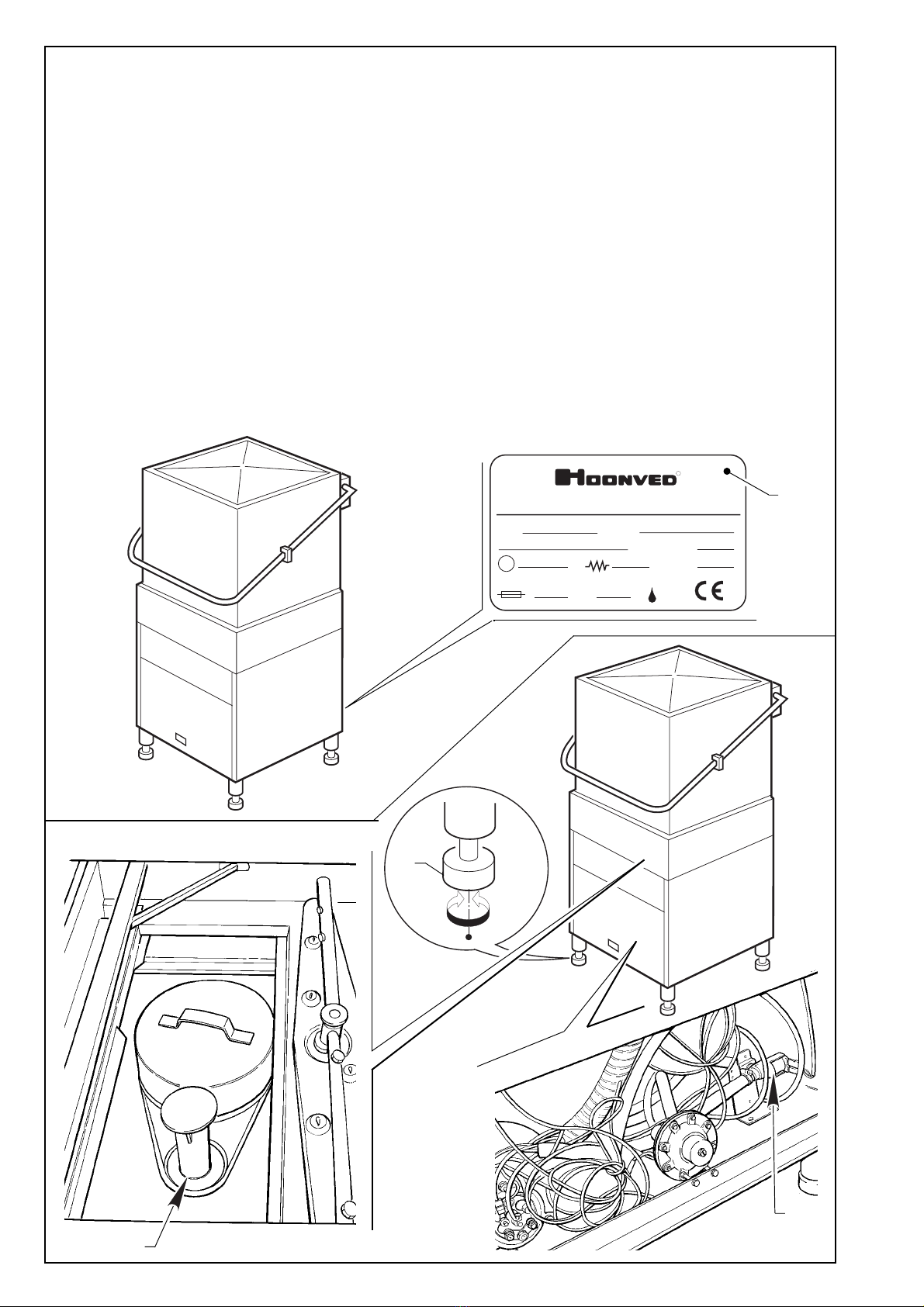

1.6 MACHINE IDENTIFICATION (Fig. 4)
-The serial number and machine data are stamped on
the data plate (12) affixed to the rear part of the
machine itself.
IMPORTANT
Alwaysstate the model and serial number of themachine
when requesting technical assistance or ordering spare
parts.
1.7 DESCRIPTION OF THE SAFETY
DEVICES
• Models ED 650 E/S-CA90/120 are equipped with a
safetymicroswitchthatblocksthe washingpumpif the
tub access door is accidentally opened, and of other
electronic safety devices.
•The electrical parts are enclosed by panels locked by
screws.
•The machine is fitted with an equipotential ground
conductor.
• Safety overflow to prevent water from spilling.
1.8 REFERENCE STANDARD
•The machine and its safety devices has been built in
compliance with the following standards:
•Essentialsafety requisites pursuant to Directive 73/23
EEC Annex 1 modified by Directive 93/68 EEC,
Directive 89/336 CEE.
ENGLISH

18
Part 3:
For the
3.1 DETERGENT DISPENSER (Optional)
(Fig. 7)
The machine is equipped with an automatic detergent
dispenser.
•Insert the red supply tube (20) into the cannister
(21).
ATTENTION
Always wash the hands under running water if they come
into contact with detergent, or comply with the specific
indications pertaining to the utilized type of detergent.
•Proceed with a few no-load cycles until the intake and
delivery tubes have filled.
To adjust the dispenser, refer to the relative enclosed
manual and to the utilized type of detergent.
3.2 FILLING THE RINSING AGENT DISENSER
(Fig. 7)
•Insert the transparent tube (22) into the cannister (23)
containing rinsing agent. (Dilute the rinsing agent with
water, indicatively 1 part rinsing agent to 10 parts
water. Refer to the specific instructions given with the
rinsing agent itself).
•Start the machine as described in paragraph 3.3. The
dispenser will suck about 3 cm of liquid from the
cannister.
•Fill during the cycle by opening (slightly) and closing
the door until the tube has completely filled.
3.2.a Adjusting the dose (Fig. 7)
•Start the machine as described in paragraph 3.3 amd
hold a glass up to the light at the end of the cycle.
•Thedropsofwaterontheglasswillindicateinsufficient
dosage while, the streaking or spotting will indicate,
instead, an excessive dosage.
•Regulate by means of the plug (24), turning clockwise
todecreasethequantityoranticlockwisetoincreaseit.
IMPORTANT
These data are indicative and not binding since they may
vary according to the hardness of the water or the utilized
type of detergent and rinsing agent.
ATTENTION
If the utilized product (detergent or rinsing agent) is
changed,itisadvisabletoflushoutthedosingsystemwith
water and to then proceed by filling the dispensers.
3.3 PREPARING THE MACHINE AND THE
WASHING OPERATIONS
3.3.a Preparing the machine (Fig. 8)
1. Turn on the main power switch prior to the machine.
2. Open the water supply cock.
ENGLISH
Part 3:
For the operator

19
ED 650 E/S - CA 90/120
3. Check that the cannister of detergent (Optional) and
rinsingagentcontainsufficientproductfordailyneeds.
4. Turn the mains selector (1). The washing tub will
immediately begin to fill. Once the correct level has
been reached, the water will automatically begin to
heat. This is indicated by a flashing light (5). Wait until
thepresettemperaturehasbeenreachedandthelight
(5) becomes fixed.
5. Open the door and pour the quantity of detergent
indicatedbythemanufacturerdirectlyintothetub.This
operationneednot becarriedout whenthemachineis
equipped with the optional dispenser.
6. Choose the cycle length by means of the selector (2).
3.3.b Washing operations (Fig 8)
1. Load the dirty crockery into the basket (as indicated in
Fig. 10).
2. Load the basket with dirty crockery depending on the
configuration.
2. Raise the lid and place the basket with the dirty
crockery in the tub.
3. Close the lid. The washing and rinsing cycle will
automaticallybeginandthewarninglight(9)willcome
on.
4. The light (9) will go out to indicate that the cycle has
terminated.Nowopenthedoorandremovethebasket.
5. Add a half of coffee cup of detergent after every 5/6
washes. This operation need not be carried out if the
machine is equipped with the optional dispenser.
The doses are indicative and not binding since they
varyaccordingtothehardnessofthewaterandutilized
type of detergent.
IMPORTANT
Keep the lid shut between cycles to prevent the water in
the tub from cooling.
ATTENTION
Dooropeningduringthecyclewillblockmachineoperation
in the same way as an EMERGENCY device.
To interrupt the cycle, open the tub door in the following
way:
•Slightly lift the lid and wait a few seconds for the
pressure of the water in the spray arms to drop and to
then completely rise.
•This operation is very important since it prevents the
operator from being wetted or scalded as during the
rinsing phase, the water reaches a temperature of
90°C.
•The light (9) Fig. 8 will flash. Shut the lid within 10
seconds and the cycle will continue from where it left
off,otherwiselight (9)willgo outandthecyclemustbe
re-started from the beginning.
3.3.c Changing the water (Fig. 9)
Thisoperationmustbecarriedoutafterevery10cyclesor
so, according to the amount of accumulated dirt.
1. Remove the tub filters (25).
2. Switchoffthemachineasindicatedinparagraph3.3.d,
thenlifttheoverflow(26)andallowthetubtocompletely
drain.
3. Refittheoverflow(26)and thefilters(25) initshousing
and repeat the machine preparation operations as
indicated in paragraph 3.3.a.
3.3.d Manual drain (Fig. 1)
(on machines with drain pump only)
To manually empty tha water fraom the tub, turn left the
switchselector(1),theemptyistemporized;attheendthe
pump will be stopped.
3.3.e Switch-off (Fig. 6)
Attheendoftheworkday,setthelineswitch(1)toposition
“0”OFF,discomnnectthemainswitchinstalledpriortothe
machine and turn off the water delivery cock.
ATTENTION
Disconnect the main circuit-breaker prior to the machine
and turn off the water delivery cocks if the dishwasher is
faulty or operates badly.
Only allow the manufacturer’s authorized after-sales
service center to make repairs.
3.3.f Alarms (Fig. 8)
The machine will set to the alarm status in the following
cases:
•Tub refilling timeout.
If tank filling fails to terminate within 20 minutes, the
machinewillsettothealarmstatus.Thisisindicatedby
fast flashing warning light (9). Switch off the machine
by turning selector (1) to 0 “OFF” to reset the alarm.
•Overheating.
If the temperature of the water in the boiler exceeds
98°C,themachinewillsettothealarmstatus,inhibiting
all functions and any cycle in progress. The alarm
status is indicated by fast flashing warning light (5).
Thealarmautomaticallydisactivates when the tempe-
rature drops below 90°C. Failing this, switch off the
machine by turning selector (1) to 0 “OFF” to reset.
•Heating timeout.
The machine will set to the alarm status if, after 20
minutes continuous boiler heating, the temperature
remains less than 45°C. This is indicated by fast
flashing warning light (5).
Switch off the machine by turning selector (1) to 0
“OFF” to reset.
ATTENTION
Contact the after-sales service center if the alarm
continuously activates.
3.4 LOW LEVEL DETERGENT AND
RINSING AGENT INDICATORS
Beforebeginning the cycle, make sure that warning lights
(7) and (8) Fig. 8 are off. If one of these lights flashes, this
ENGLISH

20
ED 650 E/S - CA 90/120
means that the respective product is at a low level.
Light (7) - Detergent
Light (8) - Rinsing agent
4. CLEANING (Fig. 9)
4.1 General information
Strictcompliancewiththemaintenanceinstructionsinthis
sectionwillkeepyourmachineinagoodworkingcondition
and will notably reduce the need for repairs.
ATTENTION
Ifanymachinecomponentbecomesfaulty,FIRSTCHECK
that all the instructions given in the previous paragraphs
have been complied with during use.
Repairs must be carried out immediately, as soon as the
fault occurs. This will prevent the trouble from becoming
worse and damaging other parts.
4.2 Daily cleaning (Fig. 9)
ATTENTION
Daily operations to carry out when work has ended, with
the machine off, the main circuit-breaker disconnected,
the water cocks off and the washing tub empty.
1. Remove the filters (25) on top of the tube.
2. Lifttheoverflowpipe(26)tocompletelydrainthewater
from the tub.
3. Thoroughly clean the inside parts of the machine.
4. Remove the pump safety filter (27).
5. Wash the filters under running water and fit them
correctly back in their housings.
ATTENTION
Neverevercleantheoutsidepartsofthemachinewithjets
of water.
Never use corrosive or acid cleaning products, wire wool
or steel brushes since these could damage the machine.
5. PREVENTION MAINTENANCE (Fig. 9)
ATTENTION
The preventive maintenance operations must be carried
out with the machine off, the main circuit-breaker
disconnected,thewaterdeliverycocksoffandthewashing
tub empty.
5.1 Checking and cleaning the spray arms and
nozzles
(Fig. 9)
Periodically check to make sure that the spray arm (28),
the rinsing arm (29) and the relative nozzles are not
clogged.
Cleaning the unit:
1. Unscrew the ring nut (30) and lift the spray arms (28)
and (29).
2. Wash the washing and rinsing spray arms.
Clean the nozzles if they are clogged and then fit the
parts exactly back in their original positions.
3. Remount all parts by complying with the above
instructions in reverse.
6. TEMPORARY INACTIVITY
If the machine is to remain inactive for a certain period of
time, disconnect the electrical power source and turn off
the water delivery cocks. Leave the tub door open.
•Drain off the water from the boiler by placing a vessel
under it.
7. DEMOLITION
Whenthemachinemustbescrapped,firstdrainthewater
from the tub and boiler as indicated in the previous points
anddisconnectthemachinefromthewaterandelectricity
mains. Now dispose of the components as prescribed by
the current laws in force.
The instructions, drawings, tables and everything
else in this manual are of a confidential technical
nature. For this reason, none of the information may
beeithercompletelyorpartiallyduplicatedordisclosed
to third parties without prior written authorization
from HOONVED which is the sole proprietor and
whichreservestherighttomakeanymodificationsas
may be considered necessary without advance
warning.
ENGLISH

21
ED 650 E/S - CA 90/120
TROUBLESHOOTING
PROBLEMS
The machine fails to turn on.
The machine does not fill with
water.
Insufficient washing.
Insufficient rinse.
CAUSES
Main switch disconnected.
Water cock shut.
Dirty fill pipe filter.
Rinsing nozzle clogged.
Overflow pipe not well
connected.
Wrong pump rotation
direction.
Clogged washing nozzles.
Dirty washing filter.
Clogged washing blade.
No detergent.
Machine not in temperature
(Green light (5) Fig. 8)
Insufficient washing
conditions.
Clogged rinsing nozzles.
Clogged boiler by limestone.
Low main pressure
(less than 2 bar. - 200 Kpa).
Insufficient temperature.
Bad location of the nozzles or
damaged nozzles.
SOLUTIONS
Turn on the switch.
Turn on the clock.
Detach the fill pipe (15 Fig. 6) and clean the filter
(17).
Unscrew and clean the nozzles (31 Fig. 9) under
running water.
Check the right connection of the overflow pipe (26
Fig. 9)
Call the technician to reverse 2 of the 3 wires on
the main switch.
Clean the washing blade (28 Fig. 9).
Clean the filters (25 e 27 Fig. 9).
Remove and clean the balde (28 Fig. 9)
Add detergent and fill the dispenser.
Wait the green fixed light (5) Fig. 8.
Check the correct washing phase.
Unscrew and clean the nozzles (31Fig. 9) under
running water.
Call after-sales service.
Wait pressure recovery or purchase a new
pressure pump.
Call after-sales service.
Check the right location of the nozzles and replace
damaged ones.
ENGLISH

La ditta costruttrice si riserva il diritto di apportare
modifiche che si renderanno utili ai propri prodotti
senza comprometterne le caratteristiche essenziali.
The manufacturer reserves the right to modify its
products,whenevernecessary,withoutaffectingtheir
main features.
Le constructeur se réserve le droit de modifier ses
produits sans en compromettre les caractéristiques
essentielles.
Der Hersteller behält sich das Recht vor , seine Pro-
dukte abzüandern , falls es notwendig sei , ohne die
haupteigenschaften des Gerät zu wechseln.
LaFirma constructorasereserva elderecho demodi-
ficar sus productos sin comprometerne las caracter-
isticas esenciales.
40

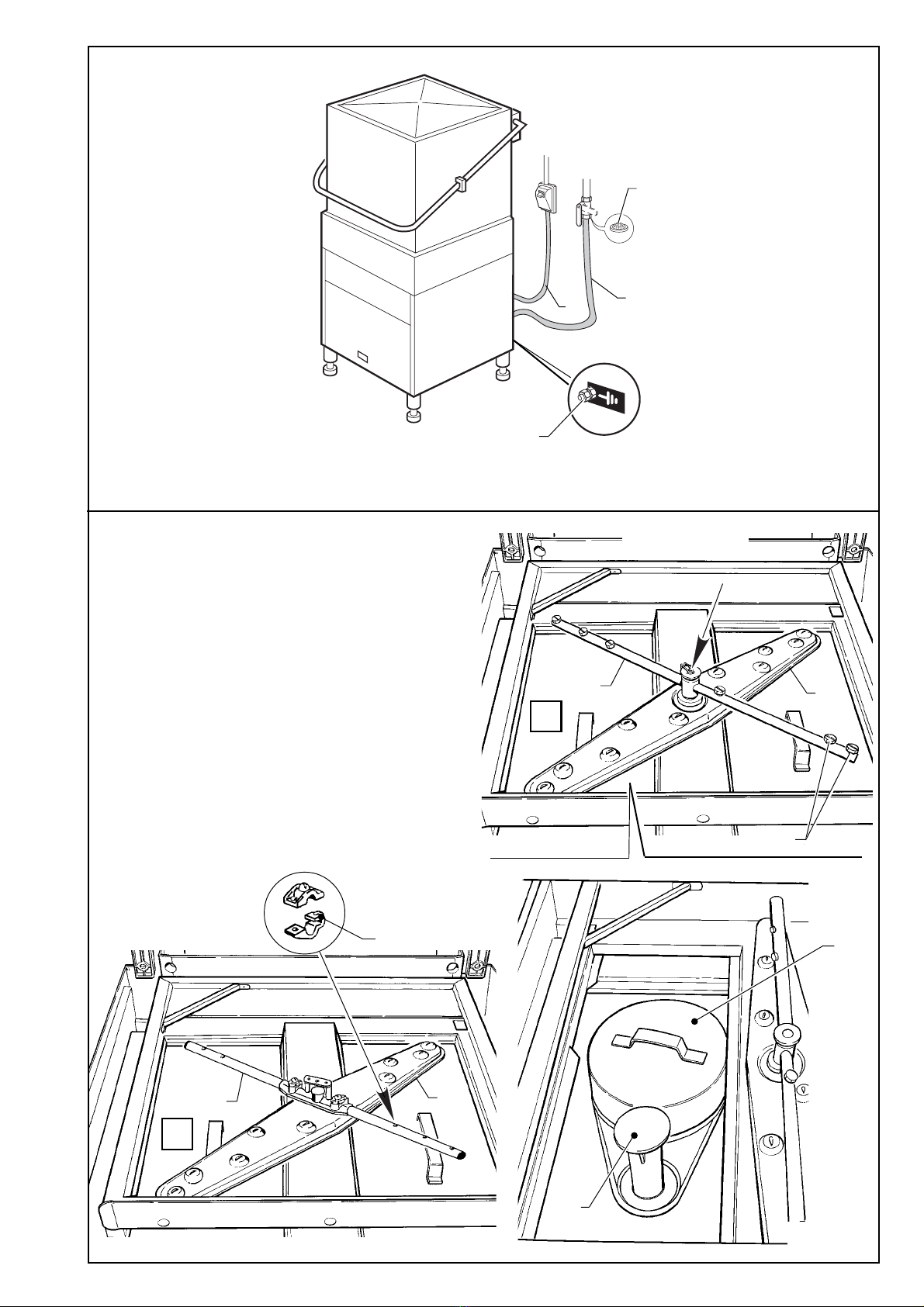

Fig. 9
26
27
31
a
Fig. 6
15
17
18
19
ED 650 S
ED 650 E 31
28
28
25 29
29
25

Fig. 4
13
14
16
Mod.
R
HOONVED s.r.l.
Via U. Foscolo, 21040Venegono Sup.re (VA-ITALIA)
Matr.
Max.
M
IP
12

HOONVED s.r.l.
Via U. Foscolo, 21040 - Venegono S. (VA) - ITALY
Tel. 0331 - 856111 - Fax. 0331 - 865223
R
33538
