Horizon Fitness ELITE 2.1E User manual

ELITE SERIES
2.1E
4.1E
Elliptical User’s Guide

CAUTION
Read all precautions and instructions in this manual before using this equipment.
Save this manual for future reference.
CAUTION
!
Table of Contents
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY (2.1E) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY (4.1E) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
ELLIPTICAL OPERATION & ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

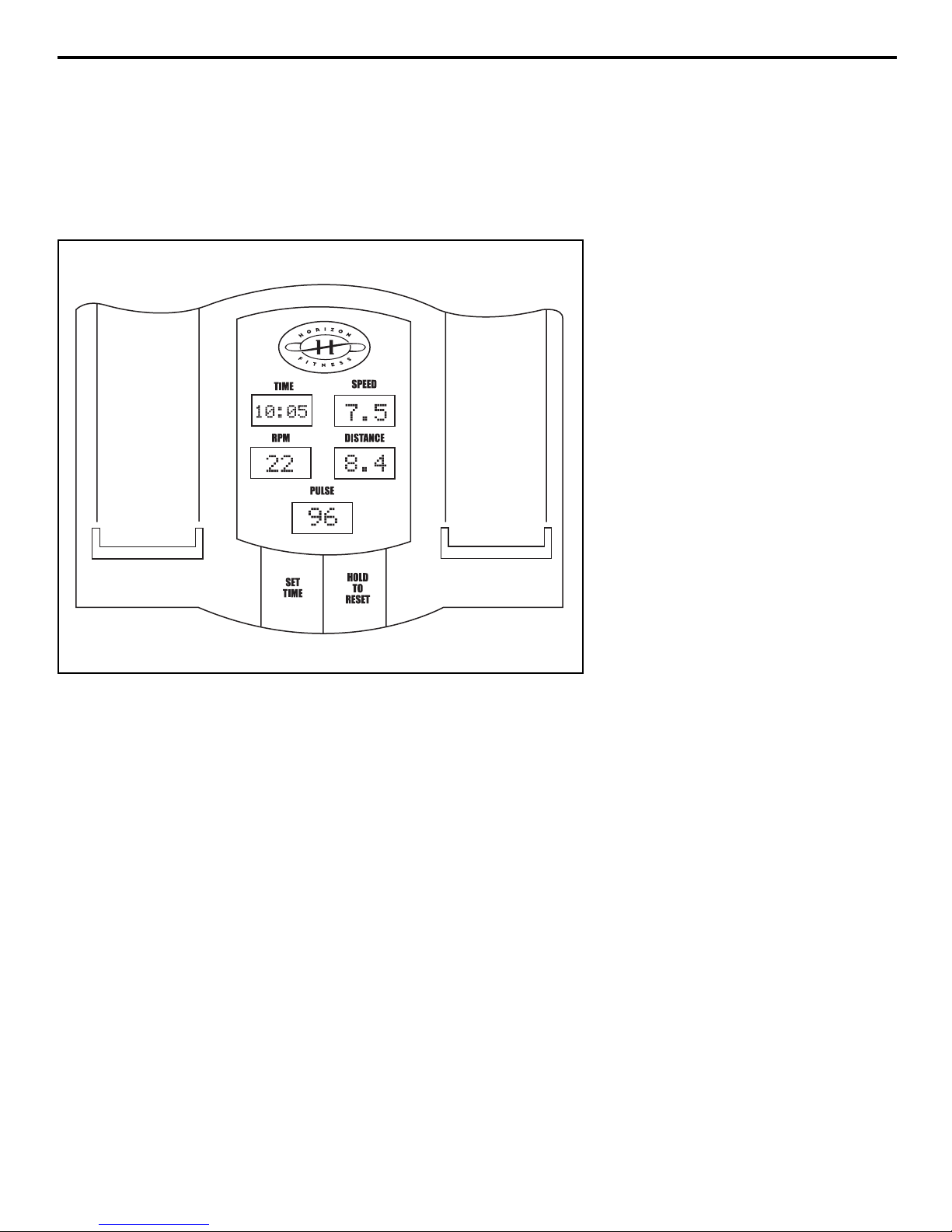

CONSOLE FEATURES & DISPLAY (2.1E & 4.1E) . . . . . . . . . . . . . . . . . . . . . . . . .15
PROGRAM PROFILES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PROGRAM CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
USING YOUR RACE PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
USING YOUR THR ZONE PROGRAMS 1 & 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
USING YOUR CUSTOM USER PROGRAMS 1 & 2 . . . . . . . . . . . . . . . . . . . . . . . .27
TROUBLESHOOTING & MAINTENANCE PROCEDURES . . . . . . . . . . . . . . . . . . . .28
COMMON PRODUCT QUESTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
MONITORING YOUR HEART RATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
HEART RATE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
DEVELOPING A FITNESS PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
WARM UP & COOL DOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ACHIEVING YOUR FITNESS GOALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
WEEKLY LOG SHEETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
MONTHLY LOG SHEETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
2

SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed. Read all instructions
before using this exercise product.
WARNING!
To reduce the risk of burns, fire, electrical shock or injury to persons:
•Use this exercise product for its intended use as described in this user’s guide. Do not use attach-
ments not recommended by the manufacturer.
•Never drop or insert any object into any opening.
•Do not remove the elliptical trainer's side covers. Service should be performed only by an author-
ized Horizon Fitness service provider.
•Never operate this elliptical trainer if it has a damaged cord or plug, if it is not working properly, if
it has been damaged, or immersed in water.
•Keep the cord away from heated surfaces.
•Do not use outdoors.
•Only use the power cord provided with your elliptical trainer.
•Never place the power cord under carpeting or place any object on top of the power cord, which
may pinch or damage it.
•Unplug your elliptical trainer before moving it.
Important Precautions
3
WARNING

CAUTION!
•If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising immediately
and consult your physician before continuing.
•Do not turn pedal arms by hand.
•Do not wear clothing that might catch on any part of the elliptical trainer.
•Make sure handlebars are secure before each use.
•Read the owner's guide before operating this elliptical trainer.
•Maintain a comfortable pace. Do not ‘sprint’ above 80 rpms on this machine.
•To maintain balance it is recommended to keep a grip on the handlebars while exercising, mount-
ing or dismounting the machine.
OPERATION
It is essential that your elliptical trainer is used only indoors, in a climate controlled room. If your
elliptical trainer has been exposed to colder temperatures or high moisture climates, it is strongly rec-
ommended that the elliptical trainer is warmed up to room temperature before first time use. Failure
to do so may cause premature electronic failure.
CHILDREN
•Keep children off of your elliptical trainer at all times.
•When the elliptical is in use, young children and pets should be kept at least 10 feet away.
CLEANING
•Clean with soap and slightly damp cloth only. Never use solvents.
USER CAPACITY
•2.1E=275 lbs, 4.1E=300 lbs
4
CAUTION
!

5
CAUTION:
BEFORE BEGINNING ANY EXERCISE PROGRAM, ALWAYS CONSULT YOUR PHYSICIAN. IF YOU
EXPERIENCE CHEST PAINS, NAUSEA, DIZZINESS OR SHORTNESS OF BREATH, STOP EXERCIS-
ING AND CONSULT YOUR PHYSICIAN BEFORE CONTINUING.
IMPORTANT: PLEASE READ BEFORE USE!
CAUTION!
ASSEMBLY
There are several areas during the assembly process of a elliptical trainer that special attention must
be paid. It is very important to follow the assembly instructions correctly and to make sure all parts
are firmly tightened. If the assembly instructions are not followed correctly, the elliptical trainer
could have frame parts that are not tightened and will seem loose and may cause irritating noises. To
prevent damage to the elliptical trainer, the assembly instructions must be reviewed and corrective
actions should be taken.
Before proceeding, find your elliptical trainer’s serial number located under the left side cover
for all models and enter it in the space provided below. Also locate the model name for all
models which is located on the side cover. (see drawing below)

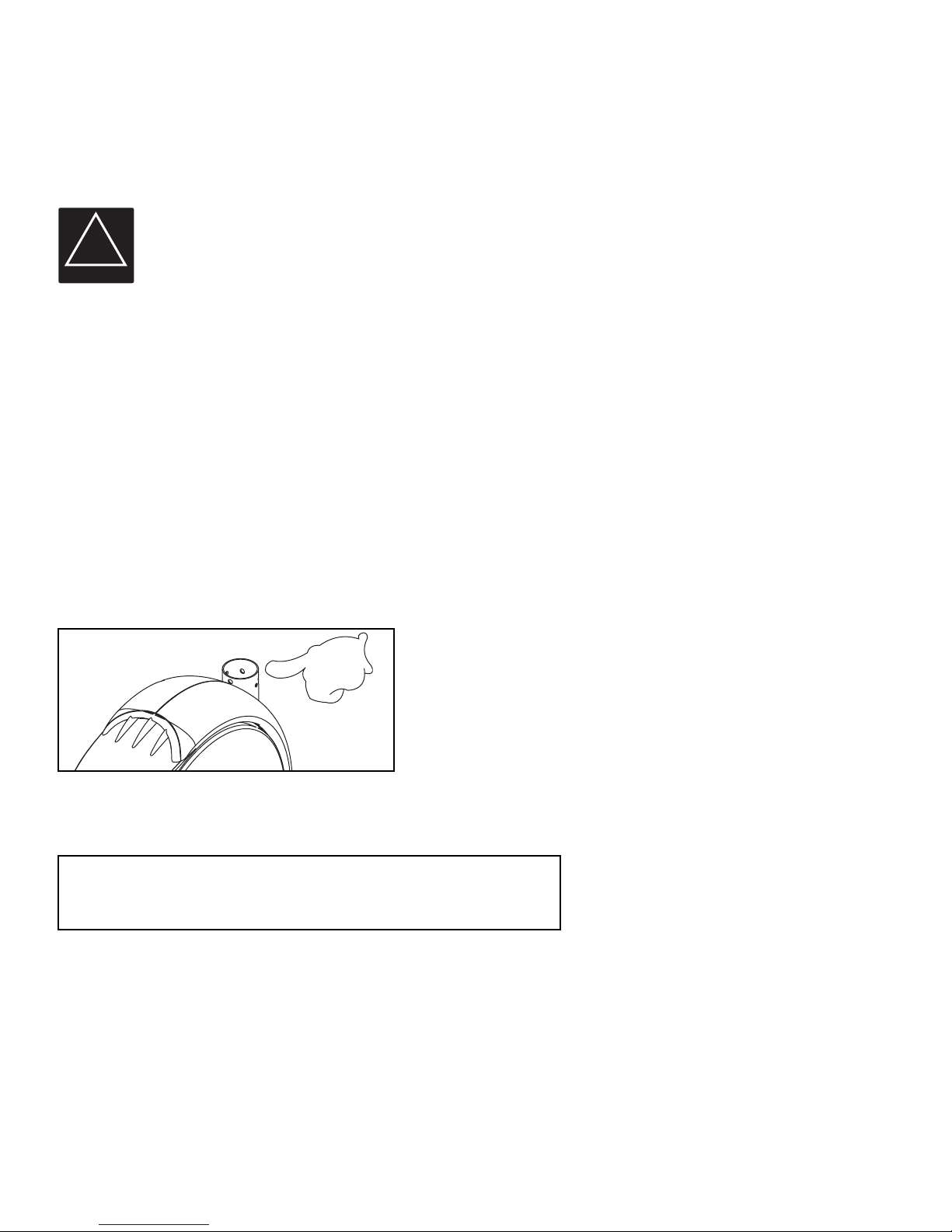

SERIAL NUMBER AND MODEL NAME LOCATION:
Note: Serial number lable is located on the front side of the console mast base.
ENTER YOUR SERIAL NUMBER IN BOX BELOW:
Refer to this number when calling for service, and also enter this serial number on your
Warranty Card and in your own records. Be sure to read the Safety Instructions and complete
user’s Guide before using your new elliptical trainer.
WARRANTY REGISTRATION
Your warranty card must be completed and sent to Horizon Fitness within thirty days of purchase or regis-
tered on line at www.horizonfitness.com, before a warranty claim can be processed. Please keep receipt
with owner’s guide as it may be required for a warranty claim. Make sure to send in warranty registration
card to validate your warranty.
CAUTION
!

6
CONGRATULATIONS! on choosing a Elite Series elliptical trainer.
You’ve taken an important step in developing and sustaining an exercise program! Your elliptical
trainer is a tremendously effective tool for achieving your personal fitness goals. Regular use of your
elliptical trainer can improve the quality of your life in so many ways.
Here are just a few of the health benefits of aerobic exercise:
•Weight Loss
•A Healthier Heart
•Improved Muscle Tone
•Increased Daily Energy Levels
•Reduced Stress
•Help In Countering Anxiety and Depression
•An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your new elliptical trainer will help
you eliminate the obstacles that prevent you from getting in your exercise time. Inclement weather
and darkness won't interfere with your workout when you use your elliptical trainer in the comfort of
your home. This manual provides you with basic information for using and enjoying your new
machine. A more complete knowledge of your new elliptical trainer will assist you in realizing your
goal of a healthy lifestyle.
Before You Begin
Water Bottle Stoppers
Console Mast
Console Mast Boot
Pivoting Foot Pad
Pedal Arm
Guide Rail
Levelers
Console
Handle Bar
Grip Pulse
Tension Knob
Front Foot Tube
Transport Wheel
Link Arm
Console
Handle Bar
Grip Pulse
Front Foot Tube
Transport Wheel
Link Arm
Console Mast
Console Mast Boot
Pivoting Foot Pad
Pedal Arm
Guide Rail
Levelers

7
Assembly
2.1E ASSEMBLY
UNPACKING
Unpack the product where you will be using it. Place the product on a level flat surface. It is recom-
mended that you place a protective covering on your floor. Note: It is recommended that you apply
grease to the threads of each bolt as you assemble the product, to prevent loosening and noise. Also,
during each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in
before completely tightening any ONE bolt.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY! Place your elliptical
trainer on a level flat surface. It is recommended that you place a protective covering on your floor.
PARTS
• 1 Front Foot Tube
• 2 Upper Handlebars
• 2 Lower Handlebars
• 2 Pedal Link Arms
• 2 Pedal arms
• 2 Guide Rails
• 1 Console
• 1 Console Mast
• 1 Console Mast Boot
• 1 Tension Knob
• 2 AA Batteries
• 2 Foot Pads
• 2 Crank Boots
• 2 Front Upper Handlebar Covers
• 2 Back Upper Handlebar Covers
• 1 Hardware Pack
TOOLS (included)
•4mm Allen Wrench
•5mm Allen Wrench/
Phillips Screw Driver
•13/15mm Flat Wrench
•17mm Wrench
If you have any questions, or if there are any missing parts, we will guarantee complete satisfaction.
PLEASE CALL OUR TOLL-FREE DIRECT CUSTOMER ASSISTANCE CENTER @ 1-800-244-4192
Mon.-Fri., 8 a.m.-5 p.m. CST (excluding holidays).

8
F) 17mm Nut
Qauntity: 2
K) 25mm Teflon
Coated Washer
Quantity: 4
L) Wavy Washer
Quantity: 2
I) 15mm Screw
Quantity: 4
J) Arc Washer
Quantity: 3
H) 20mm Screw
Quantity: 2
G) 13mm Nut
Quantity: 3
E) 8mm Set Screw
Quantity: 4
B) 70mm Bolt
Quantity: 3
O) 17mm Wrench
Quantity: 1
P) 15/13mm Wrench
Quantity: 1
N) 4mm Allen
Quantity: 1
M) 5mm Allen/
Screw Driver
Quantity: 1
U) Lock Washer
Quantity: 3
D) 15mm Bolt
Quantity: 6
C) 12mm Bolt
Quantity: 3
R) White Teflon Washer
Quantity: 4
T) 40mm Bolt
Quantity: 2
S) Sleeve
Quantity: 2
Q) 8mm Bolt
Quantity: 8
2.1E HARDWARE
A) 20mm Bolt
Quantity: 2

9
1 2 3
45 6
78 9
STEP 1:
ATTACH FRONT TUBE.
Note: Make sure not to tighten
bolts until all assembly steps have
been completely assembled and
aligned.
STEP 2:
ATTACH LEFT & RIGHT GUIDE
RAILS.
STEP 3:
ATTACH CONSOLE MAST AND
CONSOLE MAST BOOT.
Note: Make sure to loosen the
water bottle screws in order to fit
the console cable through the
mast. DO NOT PINCH WIRES!
STEP 4:
ATTACH LEFT & RIGHT PEDAL
ARMS AND PEDAL ARM COVERS.
Note: Black ‘Teflon’ surface of K
should be facing the pedal arm.
STEP 5:
ATTACH LEFT & RIGHT LOWER
HANDLE BARS TO CONSOLE
MAST AND ATTACH LEFT &
RIGHT UPPER HANDLEBARS.
ATTACH H-BAR COVERS. Note:
Bolts and washers are pre-assem-
bled.
STEP 6:
ATTACH LEFT & RIGHT FOOT
PADS TO FOOT PLATE/LINK ARM.
ATTACH PIVOTING FOOT PLATE
TO PEDAL ARM.
STEP 7:
ATTACH LEFT & RIGHT LINK
ARMS TO THE LEFT & RIGHT
LOWER HANDLE BARS.
STEP 8:
ATTACH TENSION KNOB
STEP 9:
ATTACH CONSOLE AND CON-
NECT ALL WIRES.
Note: DO NOT PINCH WIRES!
Note: Bolts are pre-assembled to
console.
A
B
G
C
JU
B
K
F
H
E
I
L
Q
Q
D
G
S
T
R

10
Assembly
4.1E ASSEMBLY
UNPACKING
Unpack the product where you will be using it. Place the product on a level flat surface. It is recom-
mended that you place a protective covering on your floor. Note: It is recommended that you apply
grease to the threads of each bolt as you assemble the product, to prevent loosening and noise. Also,
during each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in
before completely tightening any ONE bolt.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY! Place your elliptical
trainer on a level flat surface. It is recommended that you place a protective covering on your floor.
PARTS
• 1 Front Foot Tube
• 2 Upper Handlebars
• 2 Lower Handlebars
• 2 Pedal Link Arms
• 2 Foot Pads
• 2 Pedal arms
• 2 Guide Rails
• 1 Console
• 1 Console Mast
• 1 Console Mast Boot
• 1 Rear Rail Stabilizer
• 1 Power Supply
• 2 Crank Boots
• 2 Front Upper Handlebar Covers
• 2 Back Upper Handlebar Covers
• 1 Hardware Pack
TOOLS (included)
•4mm Allen Wrench
•5mm Allen Wrench/
Phillips Screw Driver
•13/15mm Flat Wrench
•17mm Wrench
If you have any questions, or if there are any missing parts, we will guarantee complete satisfaction.
PLEASE CALL OUR TOLL-FREE DIRECT CUSTOMER ASSISTANCE CENTER @ 1-800-244-4192
Mon.-Fri., 8 a.m.-5 p.m. CST (excluding holidays).

11
F) 17mm Nut
Qauntity: 6
V) Arc Washer
Quantity: 4
L) Wavy Washer
Quantity: 2
I) 15mm Screw
Quantity: 4 J) Arc Washer
Quantity: 3
H) 20mm Screw
Quantity: 2
G) 13mm Nut
Quantity: 3
E) 8mm Set Screw
Quantity: 4
B) 70mm Bolt
Quantity: 1
O) 17mm Wrench
Quantity: 1
P) 15/13mm Wrench
Quantity: 1
N) 4mm Allen
Quantity: 1
M) 5mm Allen/
Screw Driver
Quantity: 1
U) Lock Washer
Quantity: 3
D) 15mm Bolt
Quantity: 6
C) 12mm Bolt
Quantity: 3
R) White Teflon Washer
Quantity: 4
T) 40mm Bolt
Quantity: 2
S) Sleeve
Quantity: 2
Q) 8mm Bolt
Quantity: 8
4.1E HARDWARE
A) 20mm Bolt
Quantity: 2
K) 70mm Bolt
Quantity: 4
W) 25mm Teflon
Coated Washer
Quantity: 4

12
STEP 6:
ATTACH LEFT & RIGHT FOOT
PADS TO FOOT PLATE/LINK ARM.
ATTACH PIVOTING FOOT PLATE
TO PEDAL ARM.
STEP 7:
ATTACH LEFT & RIGHT LINK
ARMS TO LEFT & RIGHT LOWER
HANDLE BARS.
STEP 8:
ATTACH CONSOLE AND CON-
NECT ALL WIRES.
Note: DO NOT PINCH WIRES!
Note: Bolts are pre-assembled to
console.
STEP 1:
ATTACH FRONT TUBE.
Note: Make sure not to tighten bolts until all assembly
steps have been completely assembled and aligned.
STEP 2:
ATTACH LEFT & RIGHT GUIDE RAILS AND REAR RAIL-
STABILIZER.
Note: Make sure all the levelers are leveled.
STEP 3:
ATTACH CONSOLE MAST AND
CONSOLE MAST BOOT.
Note: Make sure to loosen the
water bottle screws in order to fit
the console cable through the
mast. DO NOT PINCH WIRES!
STEP 4:
ATTACH LEFT & RIGHT PEDAL
ARMS AND PEDAL ARM COVERS.
Note: Black ‘Teflon’ surface of W
should be facing the pedal arm.
STEP 5:
ATTACH LEFT & RIGHT LOWER
HANDLE BARS TO CONSOLE
MAST AND ATTACH LEFT &
RIGHT UPPER HANDLE BARS.
ATTACH H-BAR COVERS.
Note: Bolts and washers are pre-
assembled.
1 2
345
678
A
F
V
K
GB
J
U
W
H
FE
I
Q
QST
R
G
L
D
F
K
V
C

13
POWER
The console on your (2.1E) is powered by 2 AA batteries, which are replaceable through the back
side of the console. Your elliptical itself, is powered by you.
Your programmable (4.1E) elliptical trainer is powered by a power supply. The power supply must be
plugged into the power jack, which is located in the front of the machine near the front foot tube.
LEVELING
The elliptical trainer should be level for optimum use. Once you have placed the elliptical trainer
where you intend to use it, raise or lower the adjustable levelers located on the bottom of the rear
base frame. Once you have leveled the elliptical trainer, lock the levelers in place by tightening the
wing nuts against the frame.
Elliptical Operation & Adjustments
FOOT POSITIONING
Your elliptical trainer offers a variety of foot positions. Moving your foot to the forward most position
of the foot pad increases your step height, which will create a feel similar to a step machine. Placing
your foot toward the back of the foot pad decreases your step height and creates more of a gliding
feel, similar to a smooth walk or run.
Your elliptical trainer also allows you to pedal both forward and backwards to offer a variation to your
workout and to focus on other major leg muscle groups such as your hamstrings and calves.

14
MOVING
Your elliptical trainer has a pair of transport wheels built into the front of the frame. To move, firmly
grasp the back end of the frame, carefully lift and roll.
CAUTION!
Our elliptical trainers are well built and heavy, weighing up to 200lbs.! Use care and additional help
if necessary when moving.
CAUTION
!

15
2.1E QUICK START UP
Simply begin exercising. The console will automatically begin counting up and tracking your informa-
tion.
RESET
Press and hold the reset button on the console.
Console Features & Display

16
PROGRAMMING
CHOOSING YOUR TIME
Press the ‘SET TIME’ button on the console to select your workout time (time is set in 1 minute
increments).
STARTING YOUR WORKOUT
Start pedaling, the console will automaticly begin counting down.
CHOOSING A RESISTANCE
At any time during your workout you can change your resistance by adjusting the tension knob locat-
ed on the console mast. The resistance levels vary from 1-15; 1 being the easiest, 15 being the most
difficult. Turn the tension knob clockwise to increase resistance.
FINISHING YOUR WORKOUT
Remember to gradually slow down your pace before stopping your workout. The machine will not stop
moving if you stop your feet abruptly. After you have finished your workout, the console will ‘beep’
several times to let you know your workout is finished.

17
TIME
Shown as Minutes:Seconds. View the time remaining or the time elapsed in
your workout.
DISTANCE
Shown as Miles. View the accumulated distance during your workout.
RPM
Shown as Revolutions per Minute. Improve striding technique while reducing
leg muscle fatigue by striding between 60 & 70 RPM.
PULSE
Shown as Beats Per Minute. Used to monitor your heart rate during
your workout (displayed when contact is made with both grips. Pulse
can only be viewed while on the pulse screen).
SPEED
Shown as your speed in miles per hour.

4.1E QUICK START UP
Simply press the “Start” button to begin exercising. The console will automatically default to the
Manual program unless another program is selected.
RESET
Press and hold the “Stop” button to reset the elliptical trainer.
4.1E CONSOLE VIEW
18

TIME
Shown as Minutes:Seconds. View the time remaining or the
time elapsed in your workout.
DISTANCE
Shown as Miles. View the accumulated distance during your
workout.
10:00
8.4
Distance/SpeedDistance/Speed
310
CALORIES
Shown as total accumulated calories burned during your work-
out.
60
RPM
Shown as Revolutions per Minute. Improve striding technique
while reducing leg muscle fatigue by striding between 60 & 70
RPM.
19
10.7
Distance/SpeedDistance/Speed
SPEED
Speed shown as speed in miles per hour.

20
RESISTANCE
During a workout, the amount of resistance can be adjusted by pressing the quick resistance or
up/down buttons on the console. The resistance levels vary from level 1 to 16 (level 1 being the easi-
est and level 16 being the most difficult).
WATTS
A measurement of your energy expenditure. May be used to
evaluate and quantify your fitness progress over time.
160
PULSE
Shown as Beats per Minute. You can monitor your heart rate
at any time during your workout by holding the heart rate grips
or wearing the chest transmitter.
120.
PROFILE
Allows you to view your program intensity while you
exercise. Each horizontal row of LED’s represents 1
resistance level.
