ELLIPTICAL OWNER’S MANUAL
Read the ELLIPTICAL GUIDE before using this OWNER’S MANUAL.
Delos ProDelos

23
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
elliptical could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to
the elliptical, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your elliptical’s serial number located on the front stabilizer tube and enter it in the space provided
below. Also locate the model name which is next to the serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
SERIAL NUMBER:
MODEL NAME: Horizon elliptical
WarninG

4 5
Delos
Delos Pro
Delos
Delos Pro
UnpacKinG
Unpack the product where you will be using it. Place the elliptical carton on a level flat
surface. It is recommended that you place a protective covering on your floor. Never
open box when it is on its side.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
If you have questions or if
there are any missing parts,
contact your local dealer.
neeD Help?
pre ASSEMBLY
Main partS inclUDeD:
1 main frame
2 handlebar and pedal sets
1 console mast set
1 console box
1 main parts box:
(Handle axle, Front and rear stabilizers)
partS pacKinG inclUDeD:
1 hardware paperboard
1 plastic parts bag
1 Owners manual
1 Power Cord

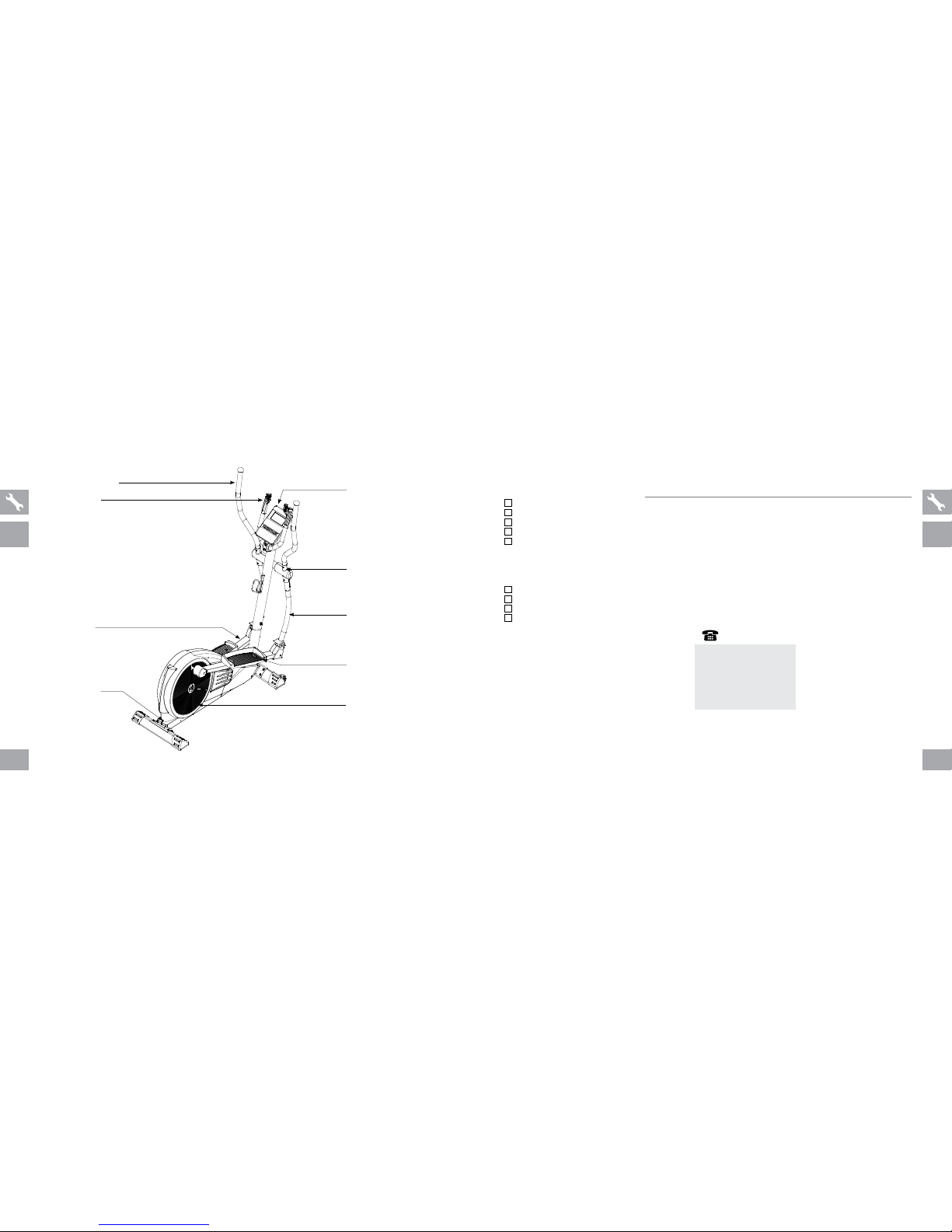

UPPER HANDLEBAR
PULSE GRIPS
PEDAL ARM
( DELOS PRO )
FOOTPAD
CONSOLE
UPPER HANDLEBAR COVER
LOWER HANDLEBAR
CRANK COVER
POWER CORD
SOCKET

6 7

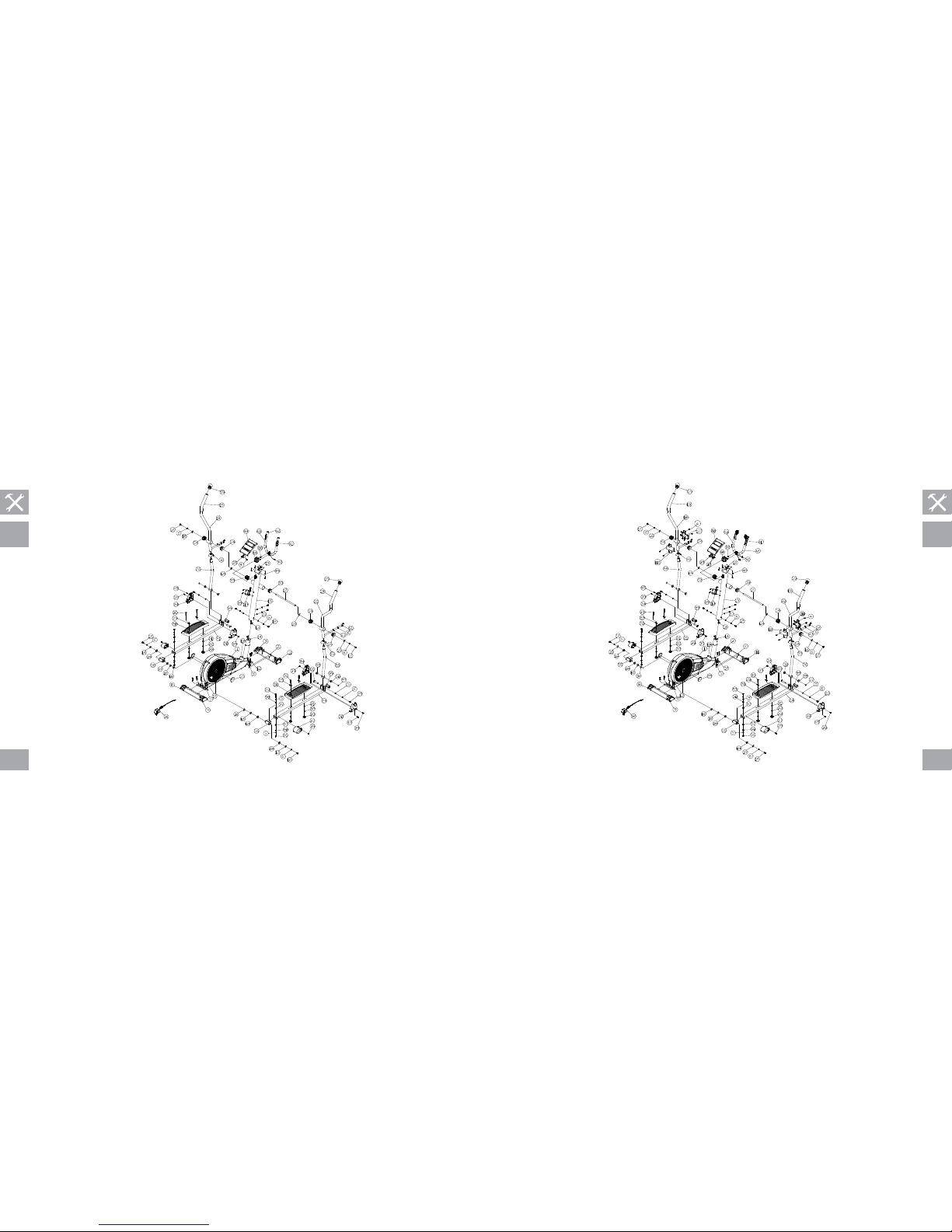

DeloS & DeloS pro proDUct Spare part liSt
Delos
Delos Pro
Delos
Delos Pro
SCREW (4)
Φ4 x Φ15
Qty: 8 PCS
(Delos Pro Only)
SCREW (23)
M8*55
Qty: 2 PCS
FLAT WASHER (5)
Φ8 x Φ16 x T1.5
Qty: 12 PCS
ARC WASHER (27)
Φ8 x Φ22 x T1.5
Qty: 8 PCS
SPRING WASHER (6)
Φ8
QTY: 10 PCS
SPRING WASHER (32)
Φ6
QTY: 4 PCS
SCREW (39)
Φ5 x 15
QTY: 8 PCS
L-WRENCH
8 mm
L-WRENCH WITH
SCREWDRIVER
8 mm
MULTI-USE
FLAT WRENCH
SCREW (45)
Φ4 x 20
QTY: 2 PCS
BOLT (88)
M8 x 20
QTY: 2 PCS
NUT (96)
M8
QTY: 2 PCS
screw (49)
M5 x 12
Qty: 4 PCS
PEDAL TUBE (98)
QTY: 4 PCS
WAVY WASHER (109)
Φ16 x Φ30 x T0.6
QTY: 2 PCS
PEDAL ADJUSTING KNOB (33)
QTY: 4 PCS
PEDAL WASHER (29)
QTY: 4 PCS
BOLT (12)
M8*15
QTY: 18 PCS
BOLT (30)
M6*52
QTY: 4 PCS
FLAT WASHER (16)
Φ8.5*Φ32*T2.0
QTY: 2 PCS
FLAT WASHER (31)
Φ6.5*Φ13*T1.5
QTY: 4 PCS

8 9
WASHER (5)
Φ8 x Φ16 x T1.5
QTy: 4
BOLT (12)
M8 x 15
QTy: 4

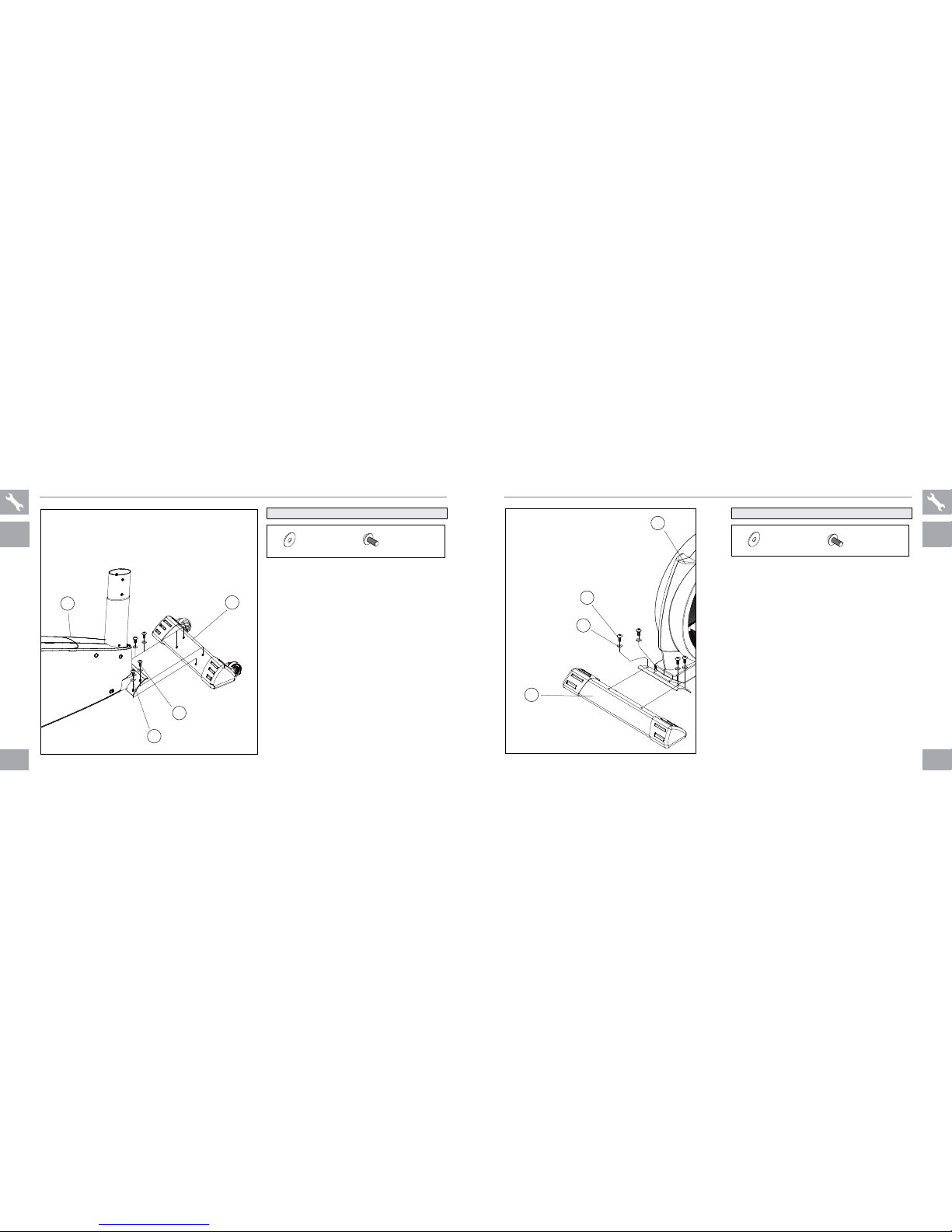

A Attach the REAR STABILIzER TUBE(8) to the
MAIN FRAME(1) using 4 BOLTS (12), and 4
WASHERS (5).
1
12
5
8
ASSEMBLY Step 1 ASSEMBLY Step 2
Delos
Delos Pro
Delos
Delos Pro
A Attach the FRONT STABILIzER TUBE(2) to the
MAIN FRAME(1) using 4 BOLTS (12), and 4
WASHERS (5).
WASHER (5)
Φ8 x Φ16 x T1.5
QTy: 4
BOLTT (12)
M8 x 15
QTy: 4
HarDWare partS: HarDWare partS:
12
12
5

10 11
ASSEMBLY Step 3 ASSEMBLY Step 4
Delos
Delos Pro
HarDWare partS: HarDWare partS:
Delos
Delos Pro
15
13
14
27
12
1
6
15
20
16
17
16
12
12
109
109
6
6
18

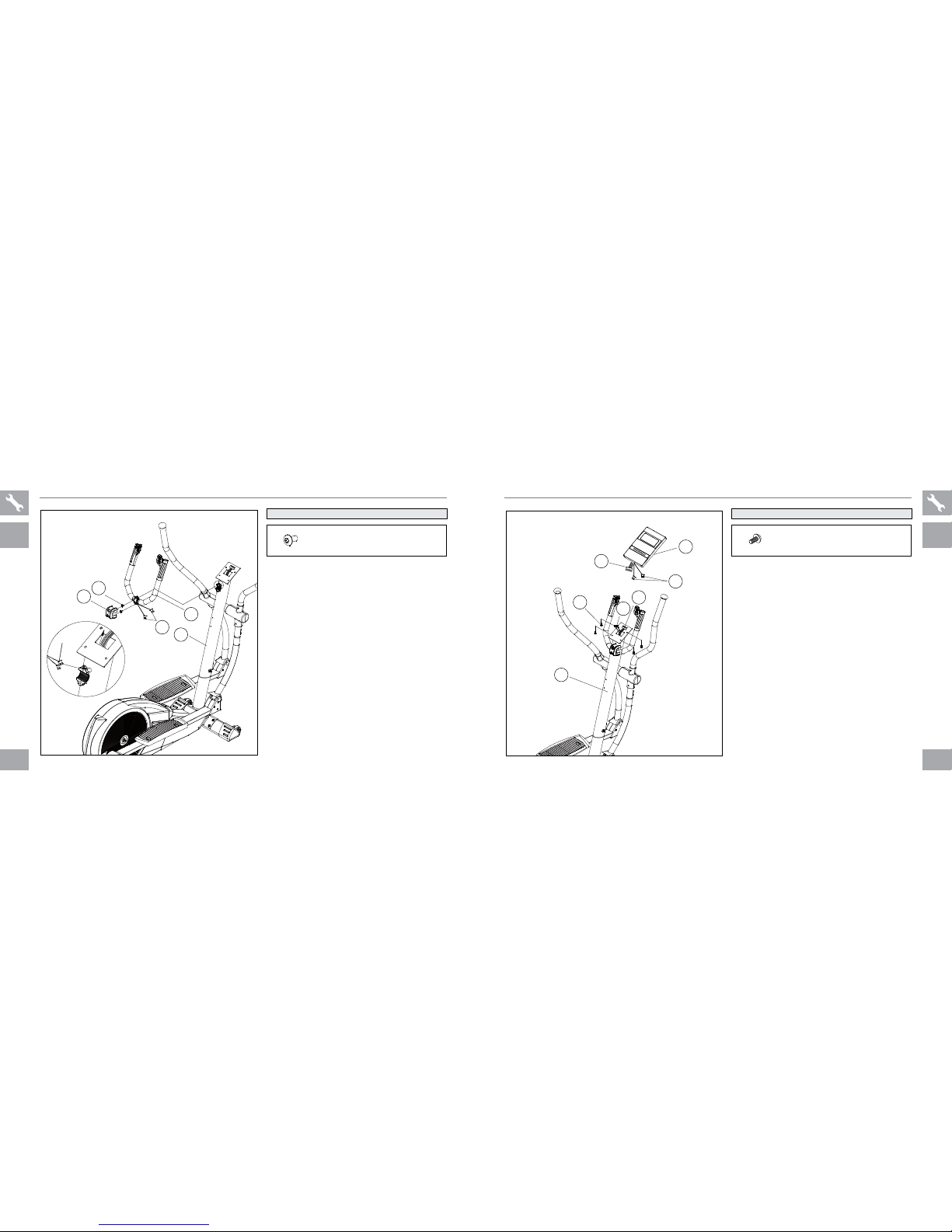

A Slide HANDLE AxLE (17) to the console mast
carefully and slide 2 WAVy WASHERS (109).
B Slide upper handlebar to the console mast and attach
using 2 BOLTS(12), 2 SPRING WASHERS (6) and
2 FLAT WASHERS (16).
WAVy WASHER (109)
Φ16 x Φ30 x T0.3
QTy: 2
FLAT WASHERSCREW (16)
Φ8.5 x Φ32 x T2.0
QTy: 2
SPRING WASH ER (6)
Φ8
QTy: 2
BOLT (12)
M8 x 15
QTy: 2
A Carefully connect the upper and lower CONSOLE
CABLE (13&14) inside the console mast.
B Gently slide the CONSOLE MAST(15) onto
the MAIN FRAME (1) and attach console mast
to main frame using 4 BOLTS(12), 4 SPRING
WASHERS (6) and 4 ARC WASHERS (27).
(Note : Be careful not to pinch any wires while
attaching)
SPRING WASH ER (6)
Φ8
QTy: 4
BOLT (12)
M8 x 15
QTy: 4
ARC WASHER (27)
Φ8 x Φ22 x T1.5
QTy: 4

12 13

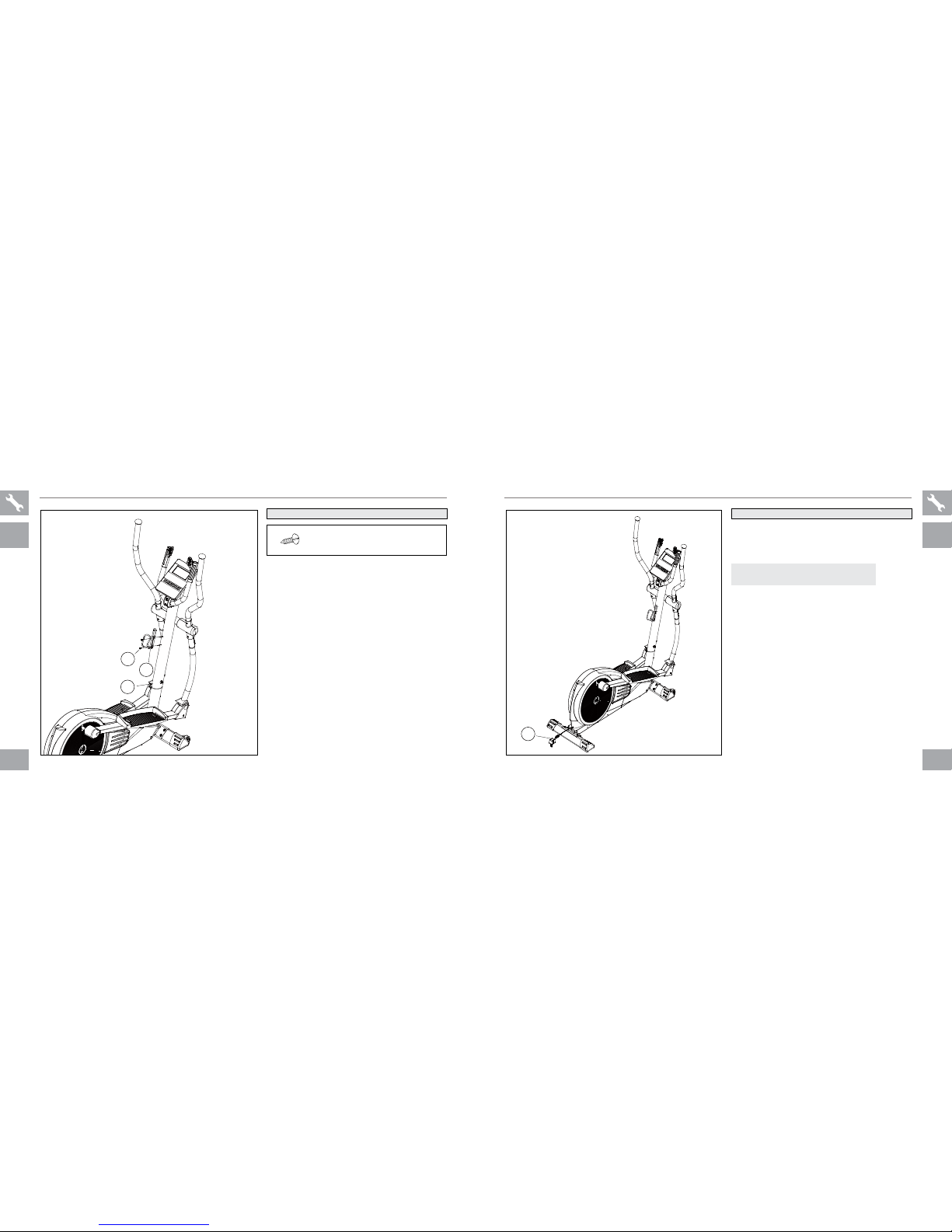

A Insert LOWER HANDLEBAR COVER (50) to the
LOWER HANDLEBAR (26) on both sides
B Connect UPPER and LOWER HANDLEBAR
(20&26) with 2 BOLTS (12), 2 SPRING WASHERS
(6) and 2 ARC WASHERS (27).
C Repeat steps A & B to connect parts 18 to 26.
SPRING WASH ER (6)
Φ8
QTy: 4
ARC WASHER (27)
Φ8 x Φ22 x T1.5
QTy: 4
BOLT (12)
M8 x 15
QTy: 4
ASSEMBLY Step 5 ASSEMBLY Step 6
Delos
Delos Pro
HarDWare partS: HarDWare partS:
Delos
Delos Pro
50
50
20
26
26
27
12
6
18
56
5
5
21
24
23
98
98
96
A Connect right PEDAL ARM (24) to CRANK (56)
using preassemble parts: 1 SCREWS(23), 2
WASHERS (5), 2 SLEEVES (98) and 1 NUT (96).
B Repeat above steps on the opposite side of the
elliptical.
WASHER (5)
Φ8 x Φ16 x T1.5
QTy: 4
NUT (96)
M8
QTy: 2
SCREW (23)
M8 x 55
QTy: 2
SLEEVE (98)
QTy: 4

14 15
ASSEMBLY Step 7 ASSEMBLY Step 8( DELOS PRO ONLY )
Delos
Delos Pro
HarDWare partS: HarDWare partS:
Delos
Delos Pro
21 31
32
33
30
29
28
( L )
110
112
111
107
4
4

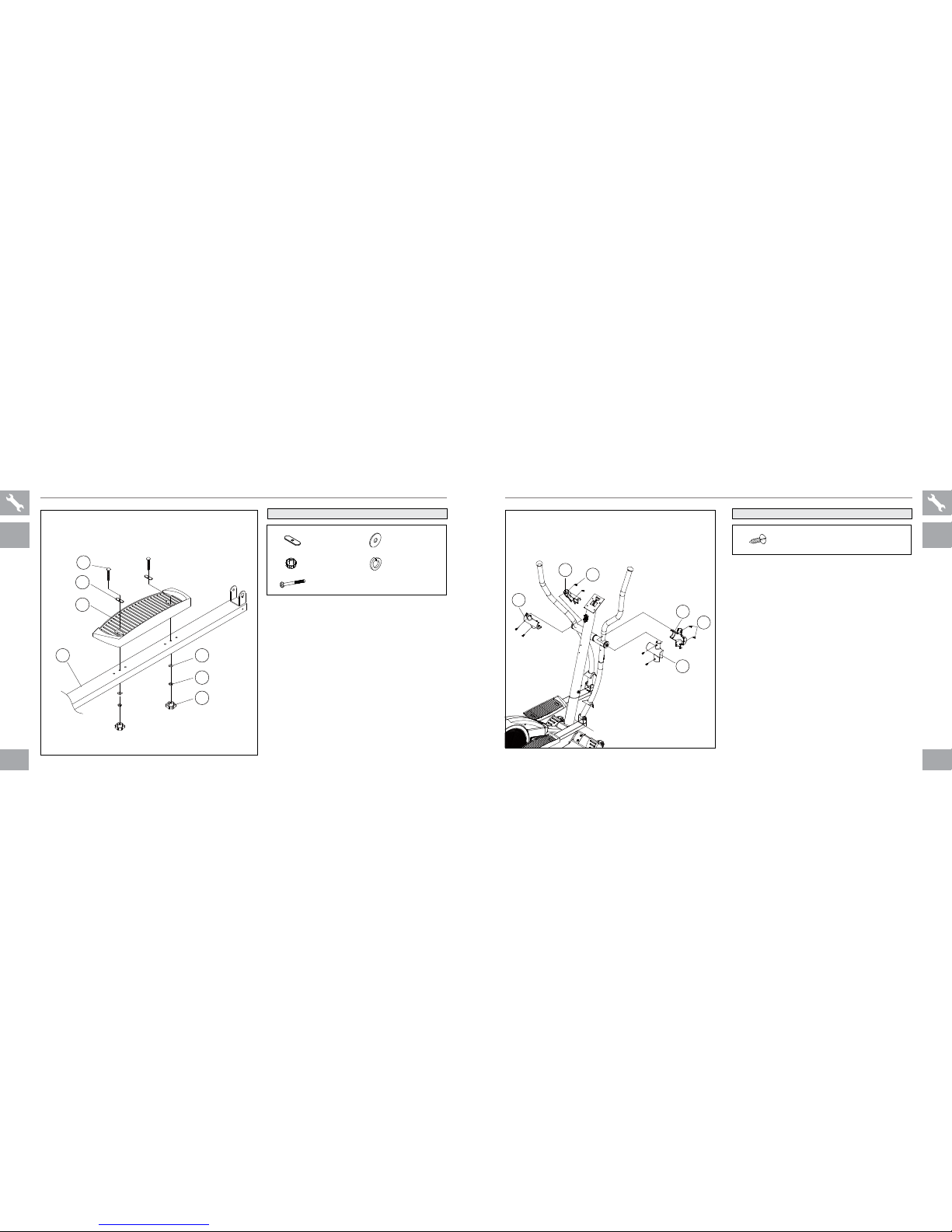

A Connect LEFT PEDAL (28) to LEFT PEDAL ARM
(21) with 2 BOLTS(30), 2 PEDAL WASHERS (29), 2
SPRING WASHERS (32), 2 FLAT WASHERS (31)
and 2 ADjUSTING KNOBS (33).
B Repeat above on the right pedal with RIGHT PEDAL
ARM. (28&24)
PEDAL WASHER (29)
QTy: 4
ADjUSTING KNOB (33)
QTy: 4
SPRING WASH ER (32)
Φ6
QTy: 4
FLAT WASHER (31)
Φ6.5 x Φ13 x T1.5
QTy: 4
BOLT (30)
M6 x 52
QTy: 4
A Connect right front and rear HANDLEBAR COVER
(111&112) using 4 SCREWS (4).
B Repeat above on the opposite side of handlebar with
LEFT COVERS. (107&110)
SCREW (4)
Φ4 x 15
QTy: 8
( DELOS PRO )

16 17
ASSEMBLY Step 9 ASSEMBLY Step 10
Delos
Delos Pro
Delos
Delos Pro
HarDWare partS: HarDWare partS:
39
39
37
37
45
45
34
34
24
38
38
39 39
39
39
21
A Connect RIGHT PEDAL ARM COVERS (34&38)
to RIGHT PEDAL ARM (24) beneath HANDLEBAR
COVER (50).
B Repeat step A on the opposite side of the pedal arm.
SCREW (39)
Φ5 x 15
QTy: 4
SCREW (45)
Φ4 x 20
QTy: 2
A Insert left and RIGHT REAR CRANK COVER (37) to
pedal crank with 2 SCREWS (39).
SCREW (39)
Φ5 x 15
QTy: 2
( DELOS PRO )
( DELOS PRO )

18 19
ASSEMBLY Step 11 ASSEMBLY Step 12
Delos
Delos Pro
HarDWare partS: HarDWare partS:
Delos
Delos Pro
35
49
15
13
40
115
48
44
88
15
43
40
A Unscrew the pre-attached fixing handlebar screws.
B Insert HAND GRIP PULSE CABLE (40) through
console mast (as shown at left).
C Connect fixing handlebar to CONSOLE MAST (15)
with 2 BOLTS (88) and cover with FIxING HANDLE
COVER (44).
BOLT (88)
M8 x 20
QTy: 2
( DELOS PRO ) ( DELOS PRO )
A Connect the CONSOLE CABLES (40&13) with the
CONSOLE (35&115).
B Carefully tuck the cons ole cables into the console
mast before attaching the console.
C Attach the console to the console mast with SCREWS
(49) preinstalled on console.
(Note : Be careful not to pinch any wires while attaching
the console.)
SCREW (49)
M5 x 12
QTy: 4

20 21
ASSEMBLY Step 13 ASSEMBLY Step 14
Delos
Delos Pro
A Connect adaptor to the elliptical.
HarDWare partS: HarDWare partS:
Delos
Delos Pro
36
15
113
39
YOU ARE FINISHED!
A Attach WATER BOTTLE HOLDER (#113) to
CONSOLE MAST (#15) using 2 SCREWS (39).
SCREW (39)
Φ5 x 15
QTy: 2
( DELOS PRO ) ( DELOS PRO )

22 23
ELLIPTICAL OPERATION
This section explains how to use your elliptical’s console and programming.
The BASIC OPERATION section in the ELLIPTICAL GUIDE has instructions for the following:
• location oF tHe elliptical
• Foot poSitioninG
• MoVinG tHe elliptical
• leVelinG tHe elliptical
• poWer/ManUal incline operation
• USinG tHe Heart rate FUnction
MoVinG tHe elliptical
WarninG!
Our ellipticals are heavy, use care and additional help if necessary when moving.
Failure to follow instructions could result in injury.
Delos
Delos Pro
( DELOS PRO )

24 25

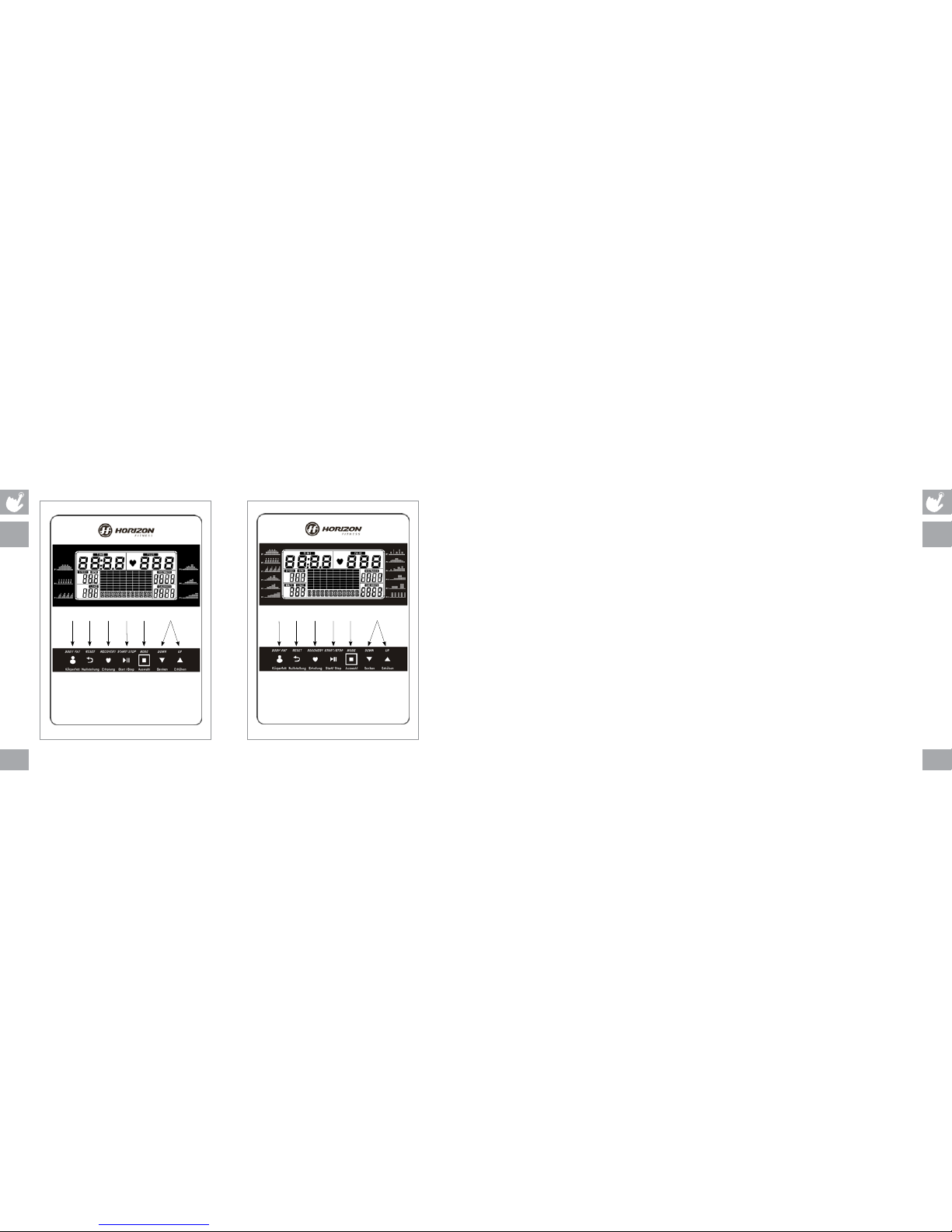

a) Up/DoWn Key
1) Press to increase and decrease the value.
2) Press to scroll and browse items which you can select.
3) Press to increase and decrease the resistance.
B) MoDe Key
1) Changing display and confirm data setting .
2) Under STOP status, press Mode key and Up key together to show
the Thermometer.
3) After Body Fat testing press Mode key to change display.(refer
to body fat operation on page26 for more information)
c) Start/Stop Key
To start and pause a workout.
D) recoVery Key
If heart rate data is available, you can press Recovery key to start
the Recovery function.(Refer to Recovery operation on page 26
for more information)
e) reSet Key
When data setting, press Reset key to default value.
Hold the Reset key for 3 seconds to reset the system at anytime
during workout.
F) BoDy Fat
For evaluating body fat and BMI index. (Refer to page 26 for more
operation information)
Delos
Delos Pro
Delos
Delos Pro
DeloS conSole DiSplay DeloS pro conSole DiSplay DeloS & DeloS pro conSole operation
SetUp yoUr perSonal Data
This console is able to store your personal data which includes
name, gender, age and weight. This allows you to start your workout
more quickly. To set up your data, please follow the procedure as
below,
1) Select user from 1 to 4
2) Select your gender
3) Select your age
4) Select your weight
5) The console is able to store up to 4 users’ data and you may
modify your setting before your daily workouts.
Start yoUr WorKoUt
1) Make sure the power is on.
2) Press Mode key to enter main menu after finish user setting.
3)
Press Up/Down key to select workout in main menu, then press
mode key to confirm.
4) To choose preset programs please select program and press
mode key.
5) After workout selection, press Up/Down key to set the
workout time.
6) Press Start key to start the workout.
QUicK Start
1) Make sure the power is on.
2) Simply press the “START” key and begin exercising.
A AB BC CD DE EF F

26 27
• p4 MoUntain cliMB: Improves performance and
stamina by raising the resistance level to high peaks to
simulate the most difficult outdoor terrains.
• p5 atHlete traninG: Complete exercise program to
help you enhance body performance.
• p6 peaK perForMance: Increasing resistance for
advanced users to tones your muscles, and challenges
yourself.
For operation of manual, HRC and User programs please refer
to general operation in page 25.
• p1 WeiGHt loSS: Promotes weight loss by raising
and lowering the resistance level, while keeping you in
your fat burning zone.

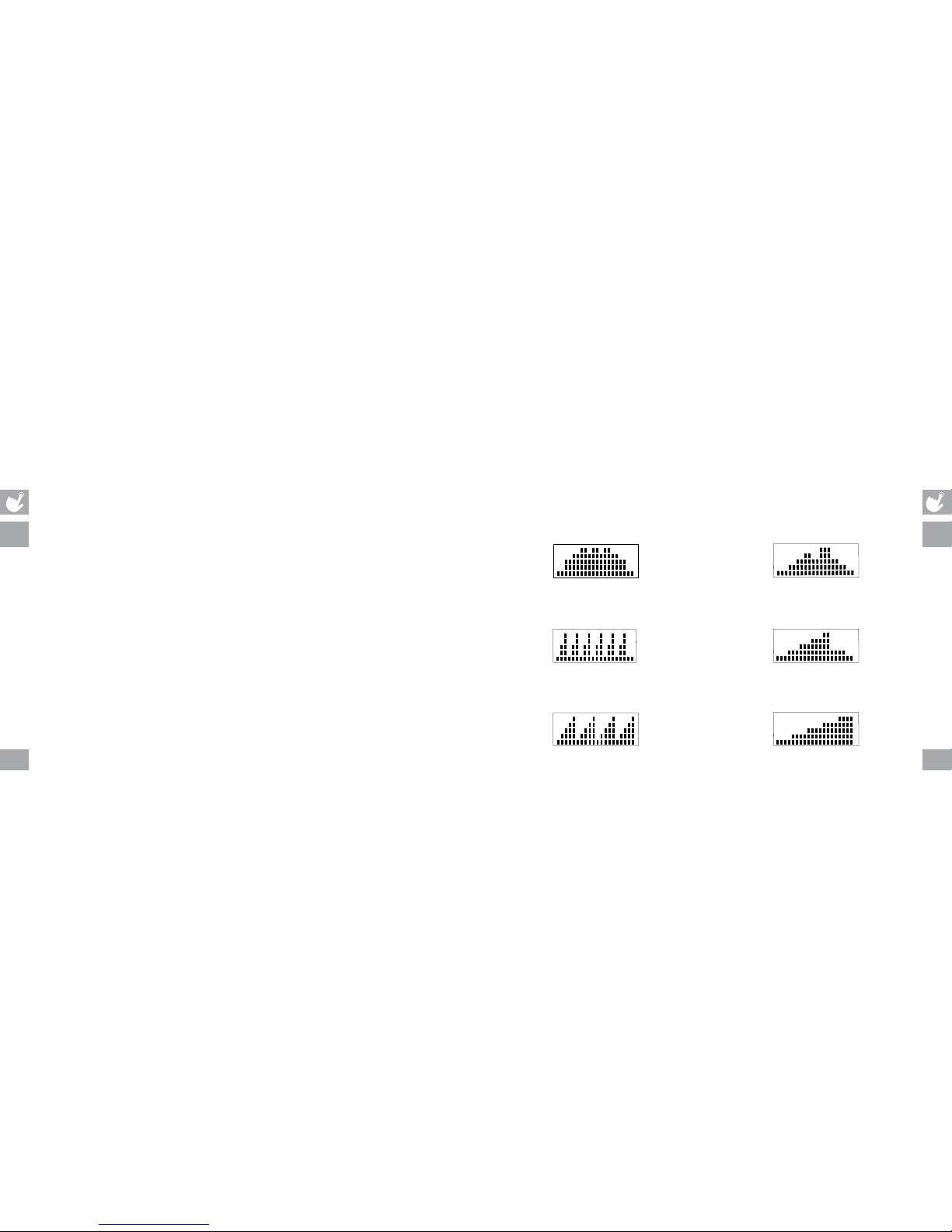

DeloS preSet proGraM proFileS
• p2 interValS: Improves your strength, speed, and
endurance by raising and lowering the resistance
levels throughout your workout to involve both your
heart and muscles.
• p3 Fat BUrn: Challenges with various
combinations of hills and valleys (resistance) to burn
more fat when exercising.
ManUal
Select manual at main menu and press start before workout
selection.
Hrc
1) finish personal data setting and enter main menu.
2) select HRC program at main menu and press mode key to
enter setting
3) select among 55%, 75% and 90% target or choose H.R.C.
Target to set your desired number between 30 to 230.
USer proGraM
1) select User program at main menu and use up/down and
mode key to set your own workout
2) press mode key for 3 seconds for confirming setting
WorKoUt recoVery
After exercising for a period of time(more than 30 seconds), Press
RECOVERY key, hold onto the handgrips to conduct a workout
recovery test.
TIME will be counting down from 00:60 to 00:00 and then show
your heart rate recovery status from F1,F2….to F6.
(F1-F6 stands for your Fitness quotient, as F1 being the best result)
User may keep exercising to improve the heart rate recovery status.
(Press the RECOVERY button again to return the main display)
Delos
Delos Pro
Delos
Delos Pro
BoDy Fat MeaSUreMent
1) Press BODY FAT button to enter while selecting workout in
main menu.
2) Select user from U1 to U4 then press START key.
3)
Holding both handgrip for 8-10 seconds then test results
(percentage and BMI rate) will be displayed on LCD for 30
seconds or press Mode key to change display.
WattS control (DeloS pro only)
1) Finish user setting and enter workout selection.
2) Select Watts control program at main menu and press mode key.
3) Set target watt value by using up/down key.
4) Press start after finish setting.
enerGy SaVer
To minimize energy consumption, your machine will enter energy
saver mode automatically when not in use
and could be quickly waken up with a touch of a button.

28 29
Delos
Delos Pro
Delos
Delos Pro
• p4 MoUntain cliMB: Improves performance and
stamina by raising the resistance level to high peaks to
simulate the most difficult outdoor terrains.
• p5 atHlete traninG: Complete exercise program to
help you enhance body performance.
• p6 peaK perForMance: Increasing resistance for
advanced users to tones your muscles, and challenges
yourself.
• p2 interValS: Improves your strength, speed, and
endurance by raising and lowering the resistance
levels throughout your workout to involve both your
heart and muscles.
• p3 Fat BUrn: Challenges with various
combinations of hills and valleys (resistance) to burn
more fat when exercising.
For operation of manual, HRC and User programs please refer
to general operation in page 25.
• p1 WeiGHt loSS: Promotes weight loss by raising
and lowering the resistance level, while keeping you in
your fat burning zone.
• p10 Hill: Improves performance and stamina by raising
the resistance level to high peaks to simulate the hill
environment.
• p11 joGGinG: Improve heart and lung capacity by
simulates daily jogging.
• p12 rollinG:
Improves your strength, speed and endurance
by automatically changing the resistance levels through-out
your workout.
• p8 plateaU: Simulates plateau hiking by increasing
and decreasing the resistance gradually.
• p9 Fat BUrn interVal: Gradually increasing
resistance with hills and valleys allows user to reach
their daily target.
For operation of manual, HRC and User programs please refer
to general operation in page 25.
• p7 aFter BUrner: Recover your heart and
muscles after intensive workout.
DeloS pro preSet proGraM proFileS DeloS pro preSet proGraM proFileS

30 31
MonitorinG yoUr Heart rate
FeeDBacK
Your Horizon Fitness elliptical trainer offers two heart rate feedback options. You may choose to use the heart rate handlebars, or the
chest transmitter (sold separately) for a hands free workout.
Heart rate HanDleBar
Place the palm of your hands directly on the heart rate handlebars. Both hands must grip the bars for your heart rate to register.
When gripping the handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Try to maintain moderate
pressure while holding onto the heart rate handlebars. It is recommended that you hold the handlebars only long enough the see your
heart rate readout on the console. You may experience an erratic readout if consistently holding the handlebars.
teleMetric cHeSt tranSMitter (SolD Separately)
Prior to wearing the chest transmitter on your chest, moisten the two rubber electrodes with water. Center the chest strap just below
the breast or pectoral muscles, directly over your stermum, with the logo facing out. NOTE: The chest strap must be tight and properly
placed to receive an accurate and consistent readout. If the chest strap is too loose, or positioned improperly, you may receive an erratic
or inconsistent heart rate readout.
If you have any problems with the heart rate function please refer to pages 10, 11 and 24 in the elliptical guide.
WarninG!
The heart rate function is not a medical device. Various factors may affect the accuracy of your heart rate reading. The heart rate
reading is intended only as an exercise aid.
Delos
Delos Pro
Delos
Delos Pro

32 33
DeloS eXploDeD VieW
Delos
Delos Pro
DeloS pro eXploDeD VieW
Delos
Delos Pro
DeloS & DeloS pro
Max. User Weight: 135 kg / 300 lbs
Product Weight: 45 kg / 99 lbs.
Overall Dimension: 151 x 66 x 161 cm / 59” x 26” x 63”

34 35
DeloS partS liSt
Delos
Delos Pro
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
1
1
1
1
14
14
2
1
1
2
1
20
1
1
1
4
1
1
2
1
1
2
2
1
2
2
8
2
4
4
4
4
4
2
1
1
2
2
20
1
2
1
1
1
14
1
2
1
4
2
2
1
2
4
2
2
2
4
main frame
front stabilizer
front stablizer end cap
console HR cable
ø8xø16xø1.5 flat washer
ø8 spring washer
transportation wheel
rear stablizer
rear stablizer end cap, left
leveling adjusting knob
front stablizer right end cap
m8x15 screw
upper console cable
lower console cable
console mast
ø8.5xø32xt2.0 flat washer
handle axle
upper handlebar left
upper handle foam
upper handlebar right
left pedal arm
crank
m8x55 screw
right pedal arm
ø8x25
lower handlebar
ø8xø22xT1.5 arc washer
pedal
pedal washer
m6*52 bolt
ø6.5*ø13*t1.5 flat washer
ø6 spring washer
pedal adjusting knob
pedal arm covers (left)
console cable
adaptor
rear crank cover
pedal arm covers (right)
ø5*15 screw
hand grip pulse cable
hand grip pulse
fix handlebar foam
fix handlebar
fix handlebar cover
ø4*20 screw
m6x15 idler screw
transportation wheel axle
console
m5*12 screw
handlebar cover
10x1.25 crank nut
ø6.5*ø16*t1.5 flat washer
handle axle cover
upper handlebar axle cover
hub
crank to pedal arm bracket
ø21.4*ø16*ø0.25 wavy washer
lower swing arm bushing
NO. NO.DESCRIPTION DESCRIPTION QTY QTY
Delos
Delos Pro
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
108
109
113
114
2
2
1
2
2
1
1
2
2
1
2
1
1
1
2
1
2
2
1
1
1
9
1
1
1
3
3
1
2
2
20
1
1
2
2
1
1
3
4
4
2
1
1
1
1
4
2
2
1
2
1
1
upper handlebar end cap
lower swing arm to pedal arm pin
cable
ø10.5*ø20*ø1.5 flywheel flat washer
ø10 flywheel nut
motor
motor cable
ø17.2*ø22*t0.3 crank wavy
crank cover
sensor fixing plate
ø17.2 crank bearing spring
sensor bracket screw
idler bearing spacer
magnet return spring
ø8*50 screw
magnetic bracket
6203z(z2) crank bushing
m6 nut
tension wheel
magnetic sensor
pulley
m5x15 screw
m5 nut
idler fixing plate
idler holder
idler fixing tube
m6*12mm screw
m6x52 magnetic brake
6001z (z2v1) idler bearing
m8 *20 screw
ø4 * 12 mm screw
#55 fly wheel
#20 fly wheel axle
6001z(z2) flywheel bearing
ø12(id 11.1mm) flywheel spring washer
ø6.5ø22t1.5 flat washer
belt
m8 nut
rear pedal arm bushing
pedal tube
pedal arm end cap
left side cover rear
left side cover front
right side cover rear
right side cover front
crank bushing
ø19 wavy washer
ø19*ø31.8*ø1.5 flat washer
rear stablizer end cap, right
ø16*ø30*t0.3 wavy washer
water bottle holder
console mast cover
NO. NO.DESCRIPTION DESCRIPTION QTY QTY

36 37
DeloS pro partS liSt
Delos
Delos Pro
1
1
1
1
14
14
2
1
2
2
1
20
1
1
1
4
1
1
2
1
1
2
2
1
2
2
8
2
4
4
4
4
4
2
1
1
2
2
20
1
2
1
1
1
14
1
2
1
4
2
2
1
2
4
2
2
2
4
Main frame
front stabilizer
front stablizer end cap
handlebar cover screw
ø8*ø16*ø1.5 flat washer
ø8 spring washer
Transportation wheel
Rear stablizer
Rear stablizer end cap, left
Leveling adjusting knob
Front stablizer right end cap
m8*15 Screw
Upper console cable
Lower console cable
Console mast
ø8.5*ø32*t2.0 flat washer
Handle axle
Upper handlebar left
Upper handle foam
Upper handlebar right
Left pedal arm
Crank
m8*55 screw
right pedal arm
ø8*25
lower handlebar
ø8*ø22*t1.5 arc washer
pedal
pedal washer
M6*52 Bolt
ø6.5*ø13*T1.5 flat washer
ø6 Spring washer
Pedal adjusting knob
pedal arm covers (left)
console cable
adaptor
rear crank cover
pedal arm covers (right)
ø5*15 screw
hand grip pulse cable
hand grip pulse
fix handlebar foam
fix handlebar
fix handlebar cover
ø4*20 screw
M6x15 idler screw
transportation wheel axle
console
M5*12 screw
handlebar cover
10x1.25 crank nut
ø6.5*ø16*T1.5 flat washer
handle axle cover
upper handlebar axle cover
hub
crank to pedal arm bracket
ø21.4*ø16*ø0.25 wavy washer
lower swing arm bushing
NO. NO.DESCRIPTION DESCRIPTION QTY QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
Delos
Delos Pro
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
2
2
1
2
2
1
1
2
2
1
2
1
1
1
2
1
2
2
1
1
1
9
1
1
1
3
3
1
2
2
20
1
1
2
2
1
1
3
4
4
2
1
1
1
1
4
2
2
1
1
2
1
1
1
1
1
1
upper handlebar end cap
lower swing arm to pedal arm pin
cable
ø10.5*ø20*ø1.5 flywheel flat washer
ø10 flywheel nut
motor
motor cable
ø17.2*ø22*T0.3 crank wavy
crank cover
sensor fixing plate
ø17.2 crank bearing spring
sensor bracket screw
idler bearing spacer
magnet return spring
ø8*50 screw
magnetic bracket
6203Z(Z2) crank bushing
M6 nut
tension wheel
magnetic sensor
pulley
M5x15 screw
M5 nut
idler fixing plate
idler holder
idler fixing tube
M6*12mm screw
M6x52 Magnetic brake
6001Z (Z2V1) idler bearing
M8 *20 screw
ø4 * 12 mm screw
#55 fly wheel
#20 fly wheel axle
6001Z(Z2) flywheel bearing
ø12(ID 11.1mm) flywheel Spring washer
ø6.5ø22T1.5 flat washer
belt
M8 nut
rear pedal arm bushing
Pedal tube
pedal arm end cap
left side cover rear
left side cover front
right side cover rear
right side cover front
crank bushing
ø19 wavy washer
ø19*ø31.8*ø1.5 flat washer
left handlebar cover, front
rear stablizer end cap, right
ø16*ø30*T0.3 wavy washer
left handlebar cover, rear
right handlebar cover, front
right handlebar cover, rear
water bottle holder
console mast cover
console HR cable
NO. NO.DESCRIPTION DESCRIPTION QTY QTY
