Horizon Fitness T103 User manual

FITNESS T101
GS950T T102 T103
CT7.1
Read the TREADMILL GUIDE before using this OWNER'S MANUAL.
Lire le GUIDE DU TAPIS ROULANT avant de se servir du present MANUEL D'UTILISATION.
Lea la GUiA DE LA CAMINADORA antes de usar este MANUAL DEL PROPIETARIO.

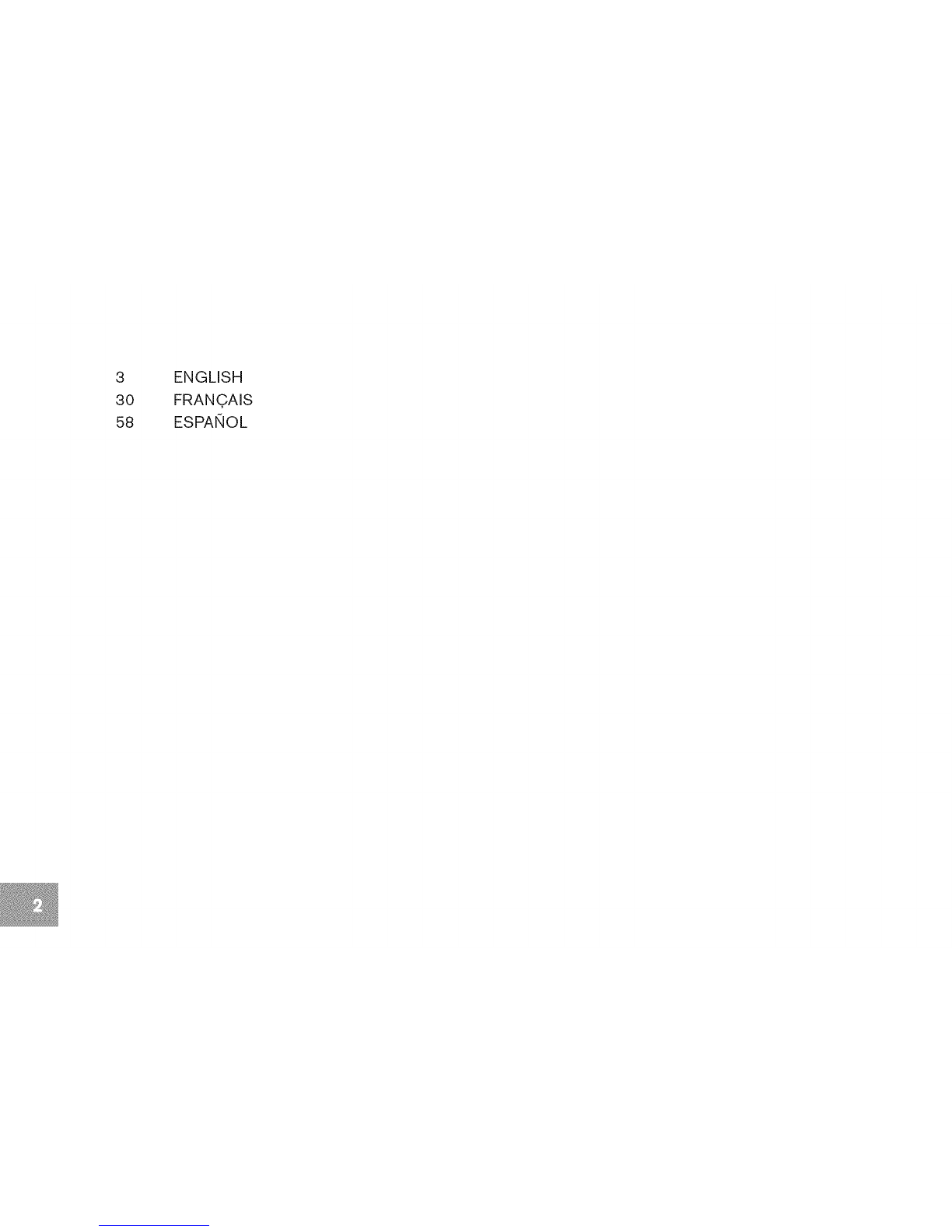

3 ENGLISH
30 FRANQAIS
58 ESPAI'T4OL

SPEAKERS READING RACK
CONSOLE FAN
(T101 ONLY)
WATER BOTTLE HOLDER \
\\
GRIP PULSE HANDRAILS
//
ON/OFF SWITCH
CIRCUIT BREAKER--
POWERCORD
TRANSPORT WHEEL T
TOUCH PAD PANEL AND DISPLAY WINDOWS
CONSOLE
IPOD/MP3 PLAYER POCKET
SAFETY KEY PLACEMENT
CONSOLE MAST
FOOT LOCK LATCH (UNDERNEATH DECK)
MOTOR COVER
SIDE RAIL
ROLLER END CAP
RUNNING BELT /RUNNING DECK REAR ROLLER
ADJUSTMENT BOLTS

IPOD/MP3 PLAYER POCKET READING RACK
SPEAKERS
CONSOLE FAN
GRIP PULSE HANDRAILS
ON/OFF SWITCH
CIRCUIT BREAKER--
i i
i
POWER CORD
TRANSPORT WHEEL
TOUCH PAD PANEL AND DISPLAY WINDOWS
CONSOLE
WATER BOTTLE HOLDER
SAFETY KEY PLACEMENT
CONSOLE MAST
/FOOT LOCK LATCH (UNDERNEATH DECK)
MOTOR COVER
SIDE RAIL
ROLLEREND CAP
RUNNING BELT /RUNNING DECK REAR ROLLER
ADJUSTMENT BOLTS

TOOLS INCLUDED:
[] 6 mm T-Wrench
[] 5 mm L-Wrench
PARTS INCLUDED:
[] 1 Console Assembly
[] 2 Console Masts
[] 3 Hardware Bags
[] 1 Safety Key
[] 1 Audio Adapter Cable
[] 1 Bottle of Silicone Lubricant
(for 2 applications)
[] 3 iPod _ Dock Inserts (T103 only)
[] 1 iPod :_Dock Rubber Plug (T103 only)

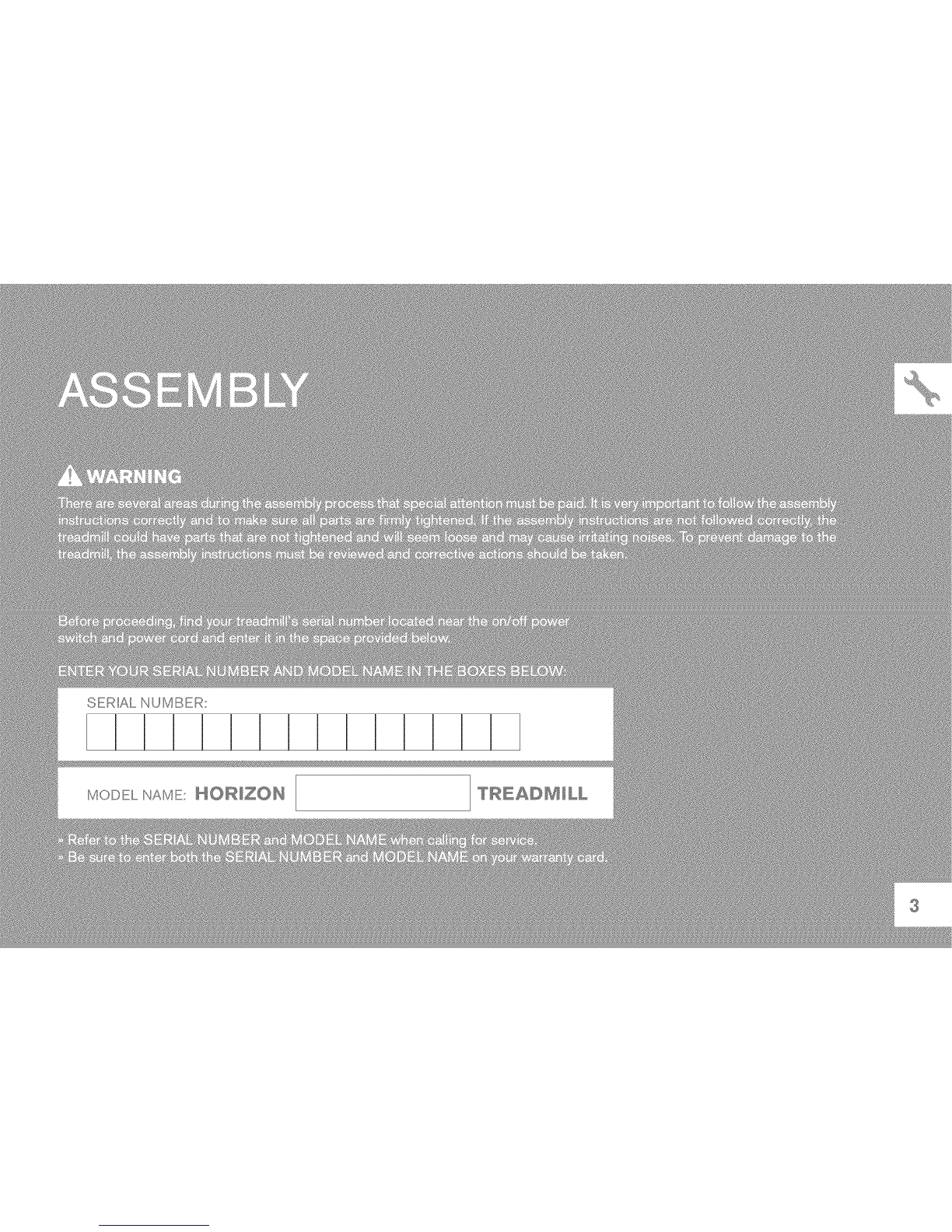

PRE ASSEMBLY
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled and in the upright folded
position, with the lock latch secure. Unpack the unit where it will be used. The enclosed
treadmill is equipped with high-pressure shocks and may spring open if mishandled.
Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill.
,_ WARNING
DONOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do SO in the assembly instructions. You may
remove the plastic Wrap fr0m c0ns0!e masts
'_ NEED HELP?
If you have questions or if
there are any missing parts.
contact Customer Tech
Support. Contact information
s located on the back panel
of this manual.
,_ WARNING
FAILURE TO FOLLOW THESE INSTRUCT!ONS COULD RESULT IN INJURY!
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.

ASSEMBLY STEP 1
I HARDWARE BAG 1CONTENTS : ]
BOLT (A)
20 mm
Oty: 4
SPRING WASHER (B) FLAT WASHER (C)
15 mm 15 mm
Qty: 4 Oty: 4
RUNNING DECK
LEFT i
CONSOLE @
MAST
/
B
C
Cut the yellow banding straps and lift the
RUNNING DECK upward until the FOOT
LATCH locks. Remove all contents from
underneath the running deck.
Open HARDWARE BAG 1.
With the RUNNING DECK in the raised
position, attach the LEFT CONSOLE MAST
to the BASE FRAME using 4 BOLTS (A),
4 SPRING WASHERS (B) and 4 FLAT
WAS H E RS (C).

ASSEMBLY STEP 2
IHARDWARE BAG2CONTENTS : ]
BOLT (A) SPRING WASHER (B) FLAT WASHER (C)
20 mm 15 mm 15 mrn
Qty: 4 Qty: 4 Qty: 4
_._ BOLTS (A)
• _ SPRING WASHERS (B)
(C)
A
B
C
Open HARDWARE BAG 2.
Pull LEAD WIRE through RIGHT CONSOLE
MAST. After pulling the lead wire through the
mast, the top of the CONSOLE CABLE should
be located at the top of the mast. Detach and
discard the lead wire.
With the RUNNING DECK in the raised
position, attach the RIGHT CONSOLE
MAST to the BASE FRAME using 4 BOLTS
(A), 4 SPRING WASHERS (B) and 4 FLAT
WAS H E RS (C).
NOTE: Be carefu ! n0tt0 pinch any Wires
while assembling the right console mast.

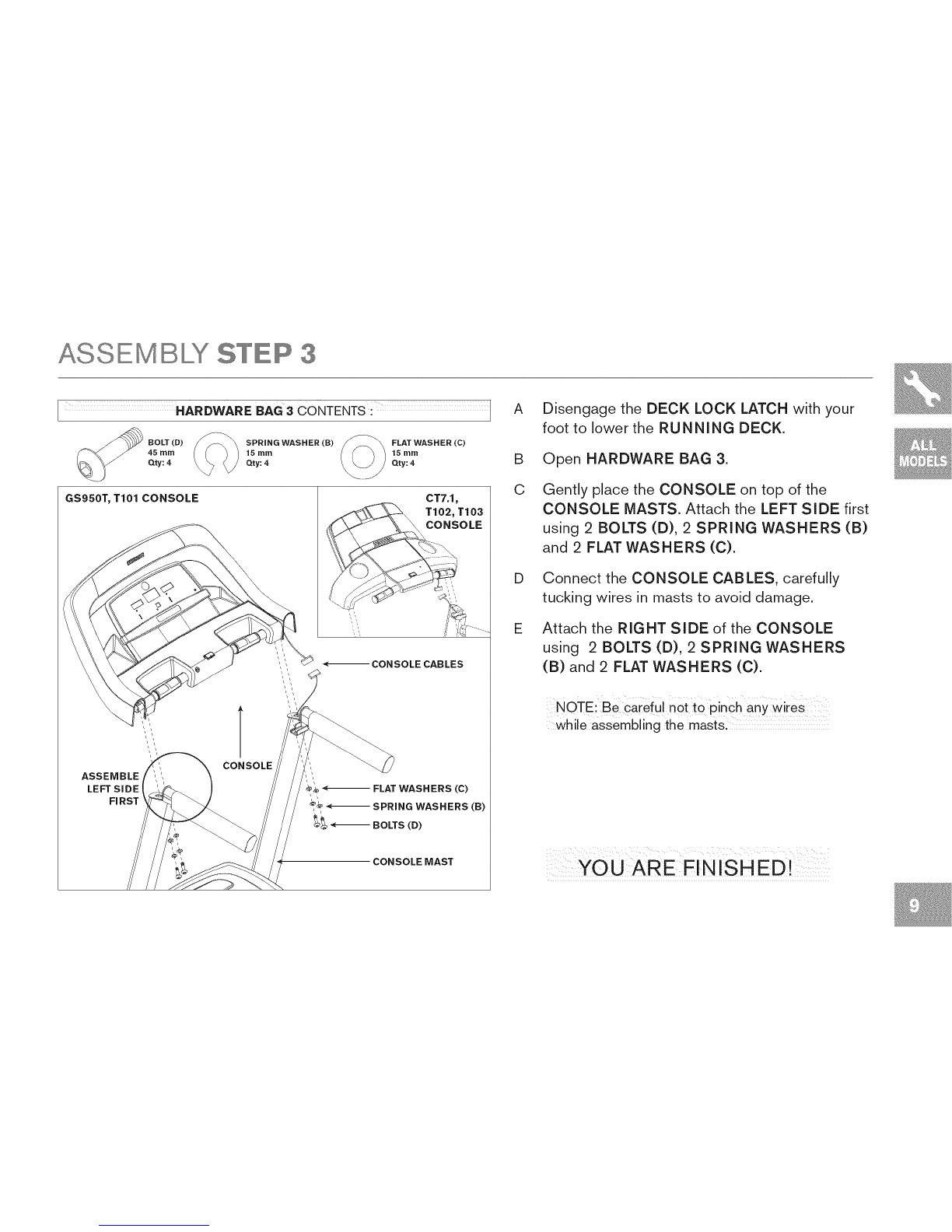

ASSEMBLY STEP 3
BAG : ]
HARDWARE 3 CONTENTS
BOLT (D) SPRING WASHER (B) /_-_ FLAT WASHER (C)
45 turn 15 turn _15 rnm
Qty: 4 Qty: 4 Qty: 4
GS950T, T101 CONSOLE CT7,1,
T102, T103
CONSOLE
CONSOLE CABLES
ASSEMBLE
LEFT SiDE
FIRST ,® FLAT WASHERS (C)
'_ <_ SPRING WASHERS (B)
,<_ BOLTS (D)
CONSOLE MAST
B
C
Disengage the DECK LOCK LATCH with your
foot to lower the RUNNING DECK.
Open HARDWARE BAG 3.
Gently place the CONSOLE on top of the
CONSOLE MASTS. Attach the LEFT SiDE first
using 2 BOLTS (D), 2 SPRING WASHERS (B)
and 2 FLAT WASHERS (C).
Connect the CONSOLE CABLES, carefully
tucking wires in masts to avoid damage.
Attach the RIGHT SIDE of the CONSOLE
using 2 BOLTS (D), 2 SPRING WASHERS
(B) and 2 FLAT WASHERS (C).
NOTE: Be careful not to pinch anywires
while assembling the masts.
YOU ARE FIN ISH ED !

@ @

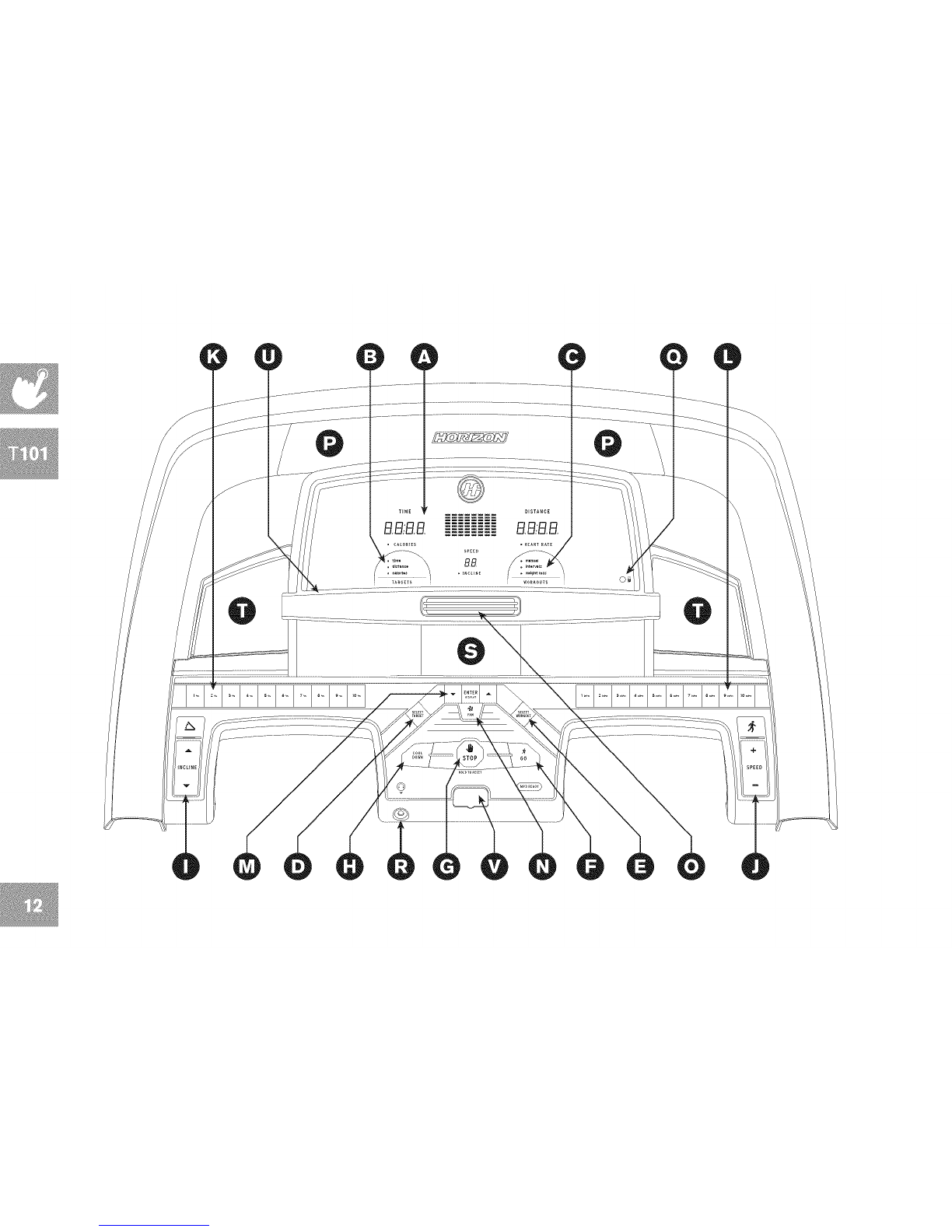

T101 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) TARGET LED iNDiCATORS: indicate what target (if any) is set for the current program.
C) WORKOUT LED INDICATORS: indicate what workout is set for the current program.
D) SELECT TARGET: press to select your desired target.
E) SELECT WORKOUT: press to select your desired workout.
F) GO: press to begin exercising, start your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) COOL DOWN: press to enter cool down mode. Cool down lasts for 4 minutes and reduces speed and incline to allow your
heart to readjust to decreased demand.
I) INCLINE A/"v KEYS: used to adjust incline in small increments (0.50/0 Increments).
J) SPEED +/= KEYS: used to adjust speed in small increments (0.1 Mph increments).
K) INCLINE QUICK KEYS: used to reach desired incline more quickly.
L) SPEED QUICK KEYS: used to reach desired speed more quickly.
M) ENTER AND A/"_" KEYS: used to adjust target and workout settings. Press ENTER to change display feedback during workout.
N) FAN KEY: press to turn fan on and off.
O) FAN: personal workout fan.
P) SPEAKERS: music plays through speakers when your CD /MP3 player is connected to the console.
Q) AUDIO IN JACK: plug your CD /MP3 player into the console using the included audio adaptor cable.
R) AUDIO OUT /HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) MP3 PLAYER POCKET: used to store your MP3 player.
T) WATER BOTTLE POCKETS: holds personal workout equipment.
U) READING RACK: holds reading material.
V) SAFETY KEY POSITION: enables treadmill when safety key is inserted.

GS950T CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) TARGET LED iNDiCATORS: indicate what target (if any) is set for the current program.
C) WORKOUT LED INDICATORS: indicate what workout is set for the current program.
D) SELECT TARGET: press to select your desired target.
E) SELECT WORKOUT: press to select your desired workout.
F) GO: press to begin exercising, start your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) COOL DOWN: press to enter cool down mode. Cool down lasts for 4 minutes and reduces speed and incline to allow your
heart to readjust to decreased demand.
I) INCLINE A/"v KEYS: used to adjust incline in small increments (0.50/0 Increments).
J) SPEED +/= KEYS: used to adjust speed in small increments (0.1 Mph increments).
K) INCLINE QUICK KEYS: used to reach desired incline more quickly.
L) SPEED QUICK KEYS: used to reach desired speed more quickly.
M) ENTER AND A/v KEYS: used to adjust target and workout settings. Press ENTER to change display feedback during workout.
N) SPEAKERS: music plays through speakers when your CD /MP3 player is connected to the console.
O) AUDIO IN JACK: plug your CD /MP3 player into the console using the included audio adaptor cable.
P) AUDIO OUT /HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
Q) MP3 PLAYER POCKET: used to store your MP3 player.
R) WATER BOTTLE POCKETS: holds personal workout equipment.
S) READING RACK: holds reading material.
T) SAFETY KEY POSITION: enables treadmill when safety key is inserted.

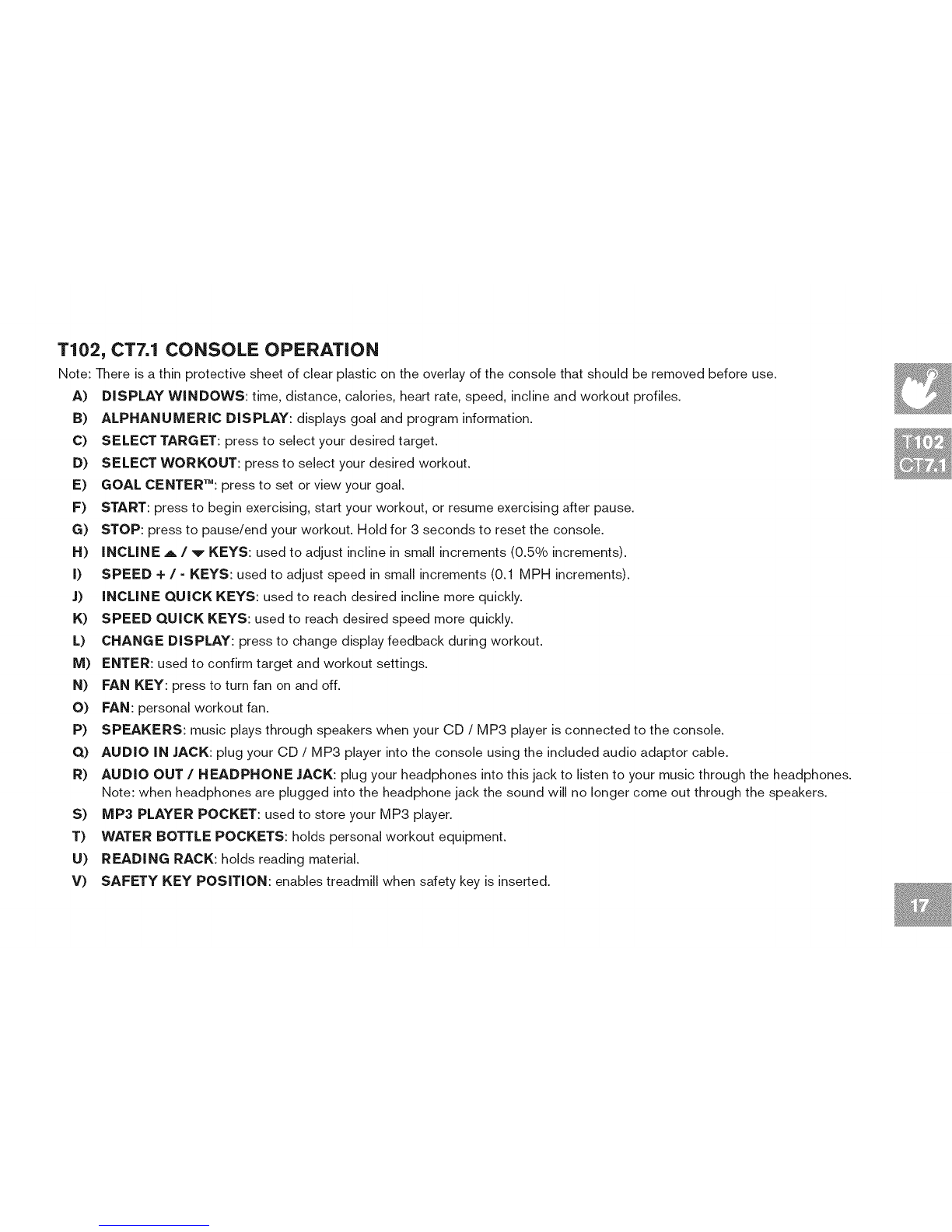

T102, CT7,1 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) ALPHANUMERIC DISPLAY: displays goal and program information.
C) SELECT TARGET: press to select your desired target.
D) SELECT WORKOUT: press to select your desired workout.
E) GOAL CENTERTM: press to set or view your goal.
F) START: press to begin exercising, start your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) INCLINE -_ / vKEYS: used to adjust incline in small increments (0.50/0 increments).
I) SPEED +/=KEYS: used to adjust speed in small increments (0.1 MPH increments).
J) INCLINE QUICK KEYS: used to reach desired incline more quickly.
K) SPEED QUICK KEYS: used to reach desired speed more quickly.
L) CHANGE DISPLAY: press to change display feedback during workout.
M) ENTER: used to confirm target and workout settings.
N) FAN KEY: press to turn fan on and off.
O) FAN: personal workout fan.
P) SPEAKERS: music plays through speakers when your CD /MP3 player is connected to the console.
Q) AUDIO IN JACK: plug your CD /MP3 player into the console using the included audio adaptor cable.
R) AUDIO OUT /HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) MP3 PLAYER POCKET: used to store your MP3 player.
T) WATER BOTTLE POCKETS: holds personal workout equipment.
U) READING RACK: holds reading material.
V) SAFETY KEY POSITION: enables treadmill when safety key is inserted.

/
\

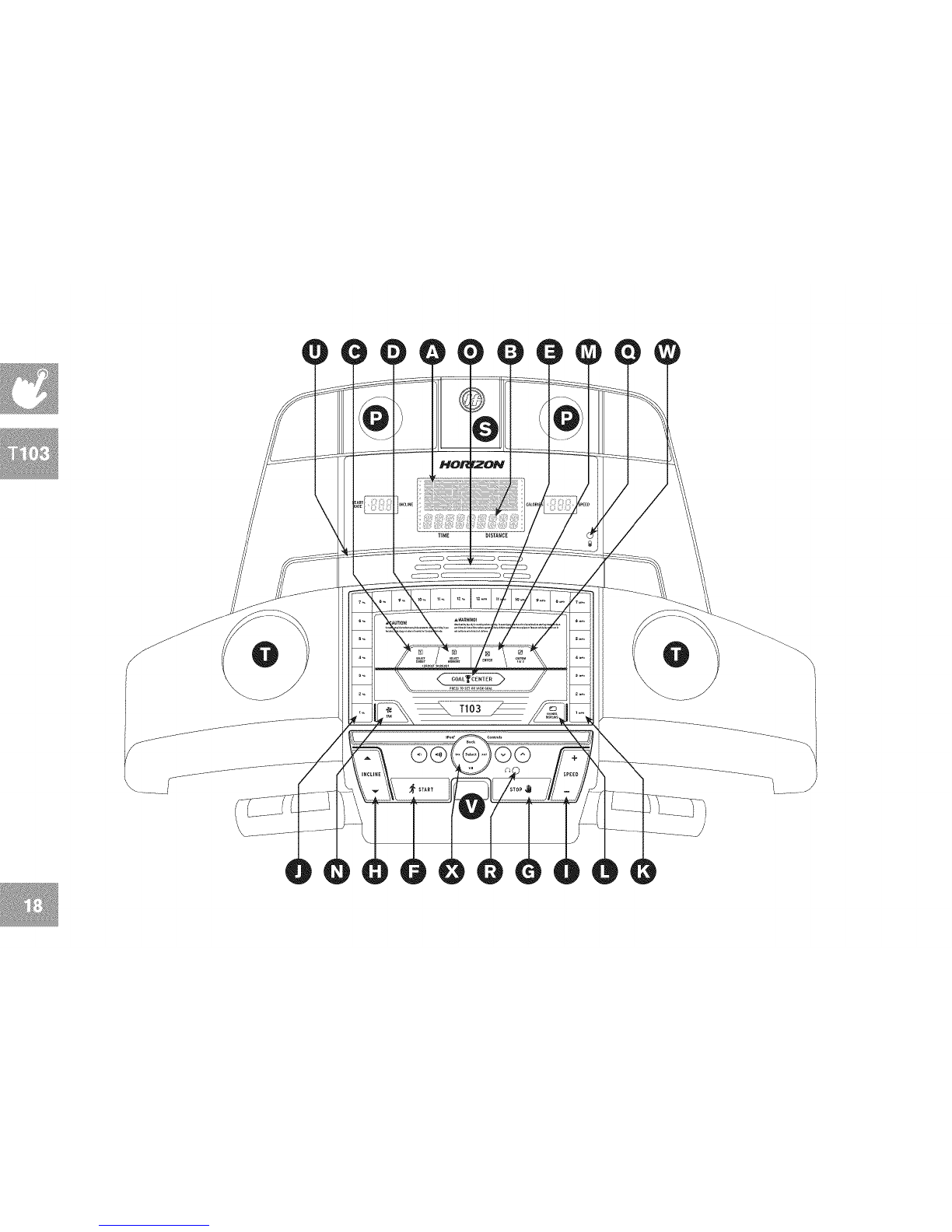

T103 CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) ALPHANUMERIC DISPLAY: displays goal and program information.
C) SELECT TARGET: press to select your desired target.
D) SELECT WORKOUT: press to select your desired workout.
E) GOAL CENTERTM: press to set or view your goal.
F) START: press to begin exercising, start your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) iNCLiNE A/vKEYS: used to adjust incline in small increments (0.50/0 increments).
I) SPEED +/= KEYS: used to adjust speed in small increments (0.1 MPH increments).
J) iNCLiNE QUICK KEYS: used to reach desired incline more quickly.
K) SPEED QUICK KEYS: used to reach desired speed more quickly.
L) CHANGE DISPLAY: press to change display feedback during workout.
M) ENTER: used to confirm target and workout settings.
N) FAN KEY: press to turn fan on and off.
O) FAN: personal workout fan.
P) SPEAKERS: music plays through speakers when your CD /MP3 player is connected to the console.
Q) AUDIO iN JACK: plug your CD /MP3 player into the console using the included audio adaptor cable.
R) AUDIO OUT /HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) IPOD _ DOCKING STATION: used to dock and charge your iPod (not included).
T) WATER BOTTLE POCKETS: holds personal workout equipment.
U) READING RACK: holds reading material.
V) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
W) CUSTOM 1 OR 2 KEY: press to select Custom 1 or Custom 2 program.
X) IPOD _ CONTROLS: press to adjust your attached iPod audio settings. See page 23 for more info.

DISPLAY WI N DOWS
, TIME: Shown as minutes : seconds. View the time
remaining or the time elapsed in your workout.
. DISTANCE: Shown as miles. Indicates distance
traveled or distance remaining during your workout.
, SPEED: Shown as MPH. Indicates how fast your
walking or running surface is moving.
.INCLINE: Shown as percent. Indicates the incline of
your walking or running surface.
. CALORIES: Total calories burned or calories
remaining left to burn during your workout.
-HEART RATE: Shown as BPM (beats per minute).
Used to monitor your heart rate (displayed when
contact is made with both pulse grips).
, PROGRAM PROFILES: Represents the profile of
the program being used (speed during speed based
programs and incline during incline based programs).
. TARGETS:
T101, GS950T: LED lights up next to currently
selected target. If no LED is lit, no target is activated.
T102, T103, CT7.1 : target will be displayed in the
alphanumeric window on the bottom of the display.
.WORKOUTS:
T101, GS950T: LED lights up next to currently selected
workout.
T102, T103, CT7.1: workout will be displayed in the
alphanumeric window on the bottom of the display.
TIME
[B:-..32
CALORIES
_mmm
SPEED
5.3
_NCLINE
DISTANCE
2.0W
HEART RATE
TIME
/B:92
CALORIES
......./5
m_
n_m
DISTANCE
2.0W
PULSE
/ / iiiii _ mm
mmmm
mmmmmm
mmmmmmmm
mmmmmmmmmm
ll=b_--J =l _--_lrH. I
nZI.ZiC C.U "l
TIME DISTANCE
CALORIES _ SPEED
