Horizon Fitness RST 5.6 User manual

TREADMILL ASSEMBLY
& USER’S GUIDE
FOR MODEL :
RST5.6

3
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
CONGRATULATIONS and THANK YOU for your purchase of this Horizon Fitness treadmill!
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Fitness treadmill
can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components. It's a
commitment we back with one of the strongest frame-to-motor warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
Horizon Fitness delivers.
INTRODUCTION
Important Precautions
Assembly
Before You Begin
Treadmill Operation
Conditioning Guidelines
Troubleshooting & Maintenance
Limited Warranty
CONTACT INFORMATION
4
6
12
15
22
28
31
Back Cover
TABLE OF CONTENTS

4
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
SAVE THESE INSTRUCTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Sears at the number listed on
the back cover of this manual.
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.

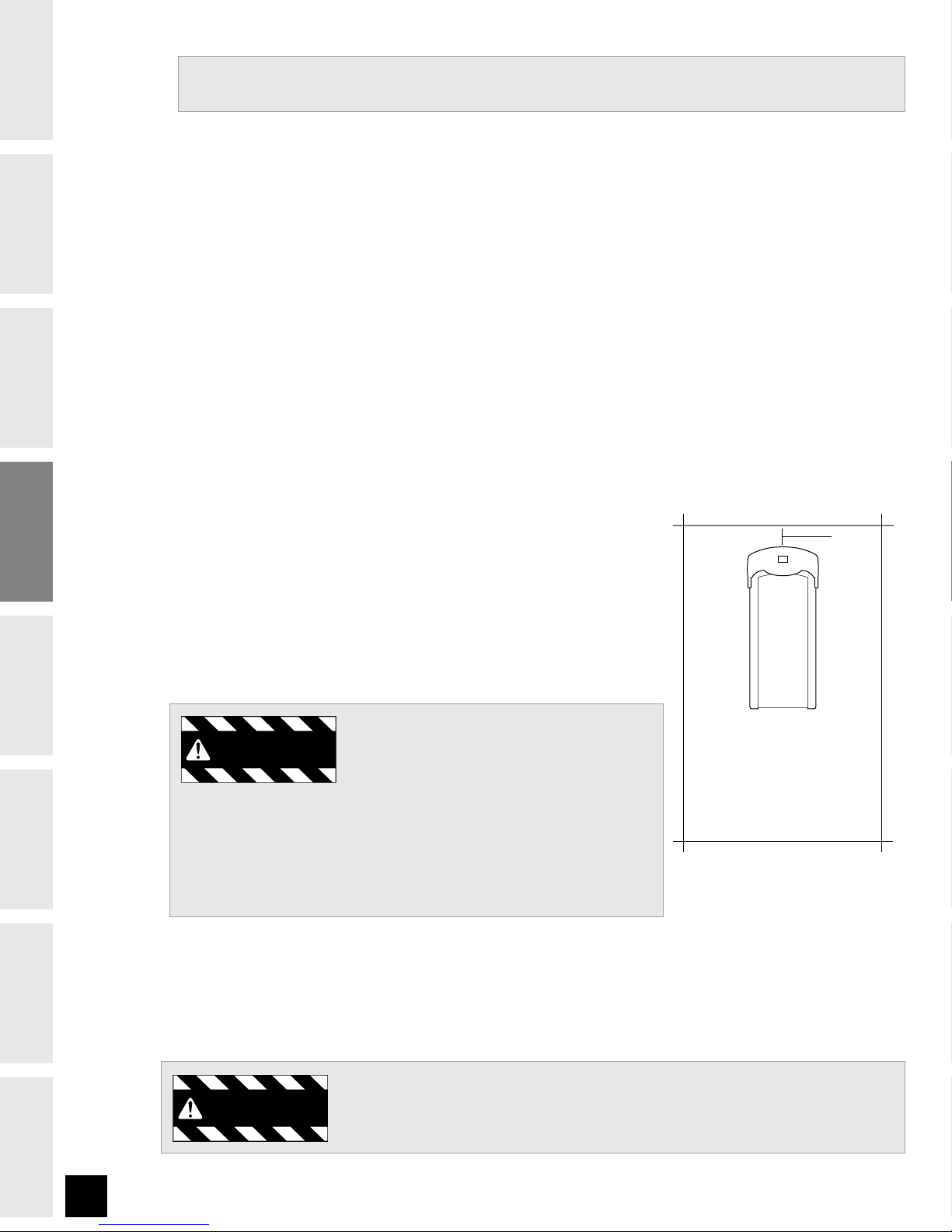

This product is for use on a nominal 110-volt circuit
and has a grounding plug that looks like the illustration
to the right. This product must be used on a dedicated
circuit. To determine if you are on a dedicated circuit,
shut off the power to that circuit and observe if any other
devices lose power. If so, move devices to a different
circuit. Note: There are usually multiple outlets on one
circuit. It is recommended that the treadmill be used
with a 20 amp circuit for optimal performance.
IMPORTANT PRECAUTIONS
WARNING
WARNING
3-Pole Grounded Outlet
GROUNDED
TREADMILL
POWER CORD

5
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
To reduce the risk of burns, fire, electrical shock or injury to persons:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmill should not be used by persons weighing more than 275 pounds. Failure to comply will void
the warranty.
• The treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school
or institutional setting. Failure to comply will void the warranty.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages,
porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
OTHER SAFETY TIPS FOR YOUR TREADMILL
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 20 amp circuit, without
the use of an additional extension cord and/or power strip. Failure to comply may void
the warranty.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING

6
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
UNPACKING

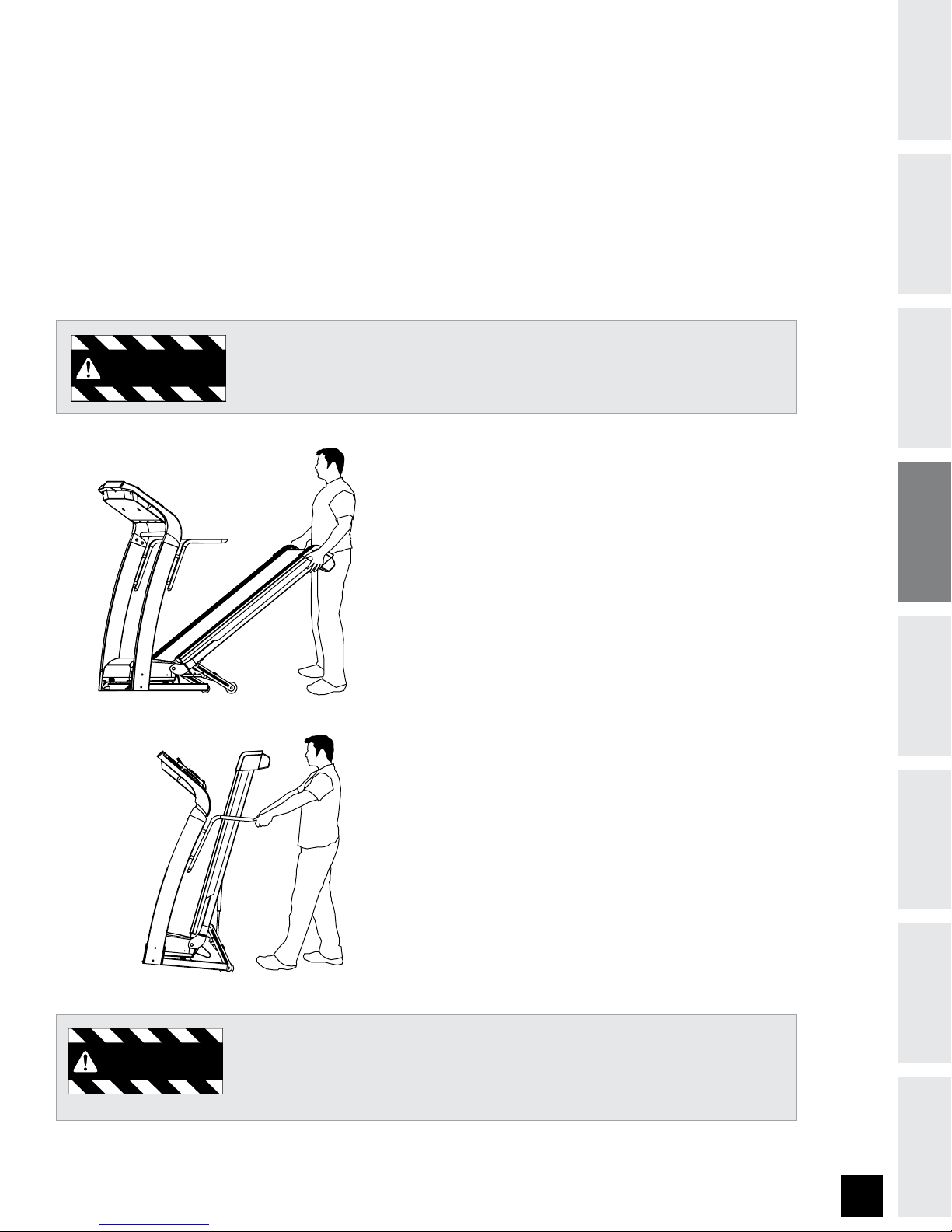

Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. Never
grab hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW
THESE INSTRUCTIONS COULD RESULT IN INJURY!
Before proceeding, find your treadmill’s serial number
and model name located under the deck on the frame
crossbar and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOxES BELOW:
SERIAL NUMBER:
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
WARNING

7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
TOOLS INCLUDED
PARTS INCLUDED
1 Safety Key
1 Console Assembly (located under treadmill deck)
1 Power Cord
3 Hardware Bags
2 Roller End Caps
2 Console Masts
READING RACK
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
MAST INSERTS
ON/OFF SWITCH
CIRCUIT BREAKER
ORTHOFLEX CELL CUSHION
TRANSPORT WHEELS
FOOT LOCK LATCH
POWER CORD
CONSOLE
LCD DISPLAY
SAFETY KEY PLACEMENT
HANDLEBAR EXTENSIONS
MOTOR COVER
RUNNING BELT / RUNNING DECK
SIDE RAIL
ROLLER END CAP
CONSOLE MAST
REAR ROLLER
ADJUSTMENT BOLTS
If you have questions or if there are any missing parts, contact 1-800-4-MY-HOME®.
Further contact information is located on the back cover of this manual.
For a complete exploded diagram, see Quick Start and Parts Guide (included in the owner’s manual bag).
5mm Allen Wrench
6mm T-Wrench
Screwdriver

8
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Disassemble box and remove the cardboard packaging that is not beneath the treadmill. Do not attempt to
lift the treadmill at this time. Remove plastic wrap from console masts.
*NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in
before completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of
hardware. Any grease, such as lithium bike grease is recommended.
Open HARDWARE BAG 1.
Pull LEAD WIRE through RIGHT
CONSOLE MAST to drag upward.
Place RIGHT CONSOLE MAST
into upright position using 2
BOLTS (A) and 2 FLAT WASHERS
(B), then tighten. Be sure to
hold the CONSOLE MAST firmly,
as it will not stay in the upright
position on its own.
*NOTE: Do not pinch CONSOLE
CABLE when placing the mast
onto the main frame.
Repeat on the left side.
*NOTE: There is no wire in the
LEFT CONSOLE MAST.
PRE-ASSEMBLY
ASSEMBLY STEP 1
A)
B)
C)
D)
BOLT (A)
55 mm
Qty: 4
FLAT WASHER (B)
Qty: 4
HARDWARE BAG 1 CONTENTS :
CONSOLE CABLELEAD WIRE RIGHT CONSOLE MAST
CONSOLE MAST
BOLT (A)
FLAT WASHERS (B)

9
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
SCREW (C)
ROLLER END CAP
MAIN FRAME
ASSEMBLY STEP 2
NOTE: There is no hardware bag for this step.

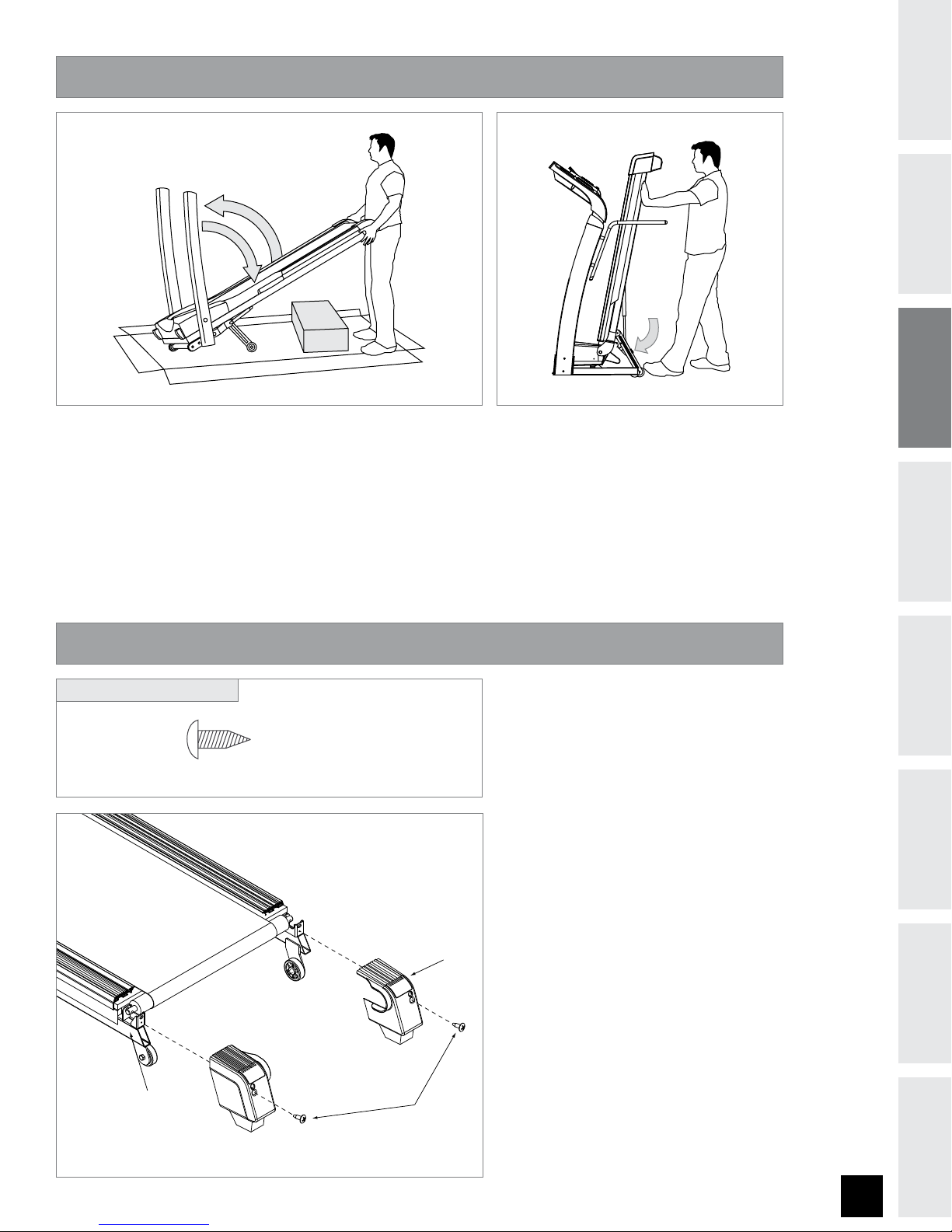

A) Lift the RUNNING DECK until LOCK LATCH on side of treadmill is fully engaged.
B) Remove CONSOLE from box and place out of the way.
C) Lower the treadmill RUNNING DECK from the folded position by stepping on LOCK LATCH
on the bottom left side of the deck.
1
3
2
Open HARDWARE BAG 3.
Slide left ROLLER END CAP onto
MAIN FRAME and attach with
SCREW (C).
Repeat on other side.
ASSEMBLY S T EP 3
HARDWARE BAG 3 CONTENTS :
SCREW (C)
12 mm
Qty: 2
A)
B)
C)
LOCK LATCH

10
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
* NOTE: Be careful not to pinch any
wires while assembling the masts.

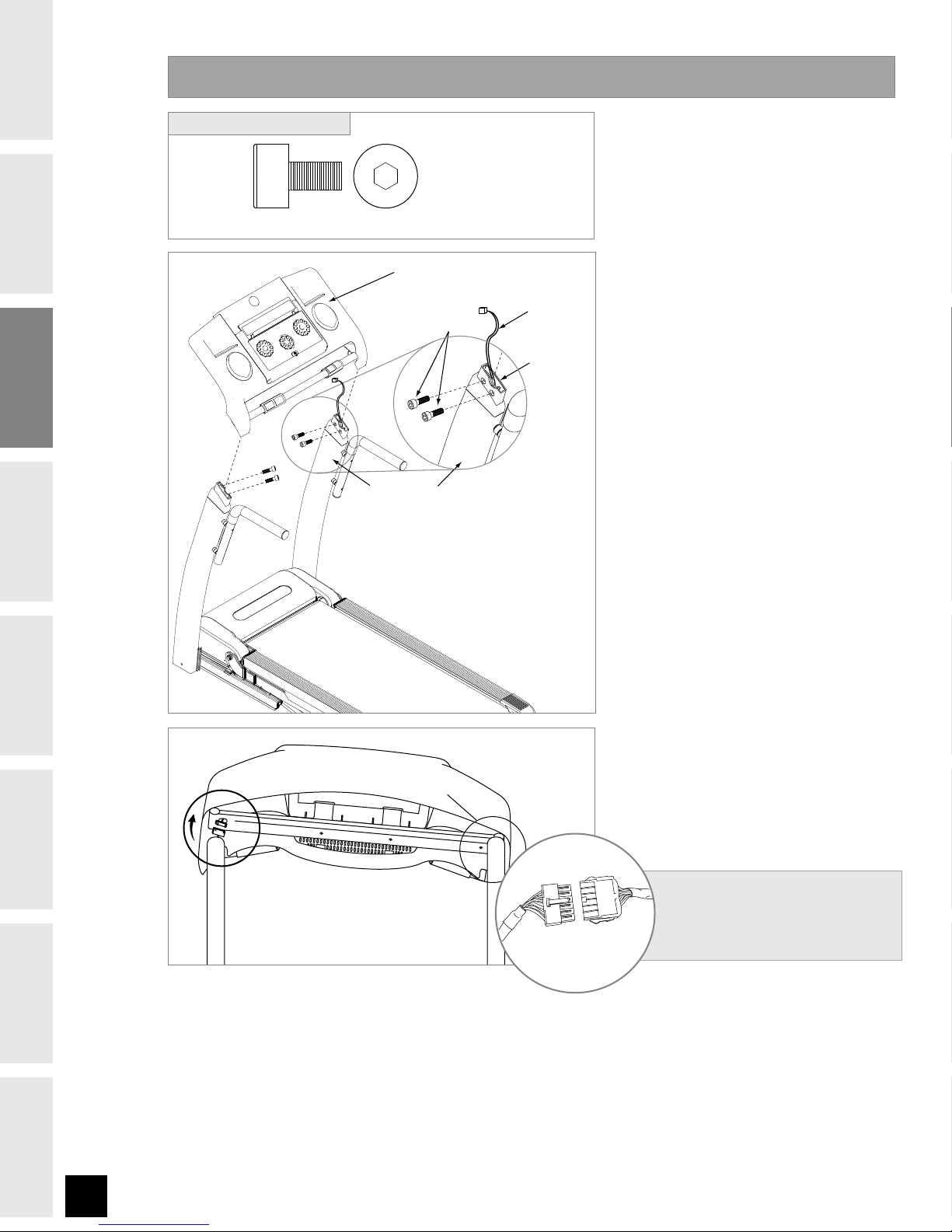

A) Open HARDWARE BAG 4.
B) Place the CONSOLE on
CONSOLE MASTS. Slide the
brackets that are underneath
the CONSOLE onto the brackets
in the top of the CONSOLE
MASTS. The CONSOLE brackets
fit inside the CONSOLE MAST
brackets.
C) Place 2 BOLTS (D) into side of
left CONSOLE MAST and lightly
tighten.
D) Gently lift right side of the
CONSOLE to connect the
CONSOLE CABLE. Carefully tuck
wires in mast to avoid damage.
*NOTE: Do not pinch console
cable. Be sure the console cable
prongs are aligned and the ends
are tightly seated into each
other.
E) Repeat step D above to secure
the console to the RIGHT
CONSOLE MAST.
F) Tighten all bolts completely.*
ASSEMBLY STEP 4
BOLT (D)
Qty: 4
top view
HARDWARE BAG 4 CONTENTS :
BOLT (D)
CONSOLE MAST
MAST INSERT
CONSOLE
CONSOLE CABLE
ASSEMBLED IN STEP 4-D

11
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
YOU’RE FINISHED!

12
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE YOU BEGIN
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.
LOCATION OF THE TREADMILL
Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start the
treadmill at a fast running speed and attempt to jump on!
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your
clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation
of the safety key every 2 weeks.
NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR
CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT
COME OFF YOUR CLOTHING.
WARNING
3 feet
6 feet
3 feet
1 foot
WARNING

13
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
PROPER USAGE
Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in
small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When
not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow
the MAINTENANCE schedule located on page 31. in this manual. Keep your body and head facing forward. Do
not attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if
you feel pain, faint, dizzy or are short of breath.
Do not operate the treadmill if the power cord or plug is damaged.
If the treadmill appears to not be working properly, do not use the treadmill.
FOLDING
Firmly grasp the back end of the treadmill. Carefully
lift the end of the treadmill deck into the upright
position until the foot lock latch engages and
securely locks the deck into position. Make sure the
deck is securely latched before letting go.
UNFOLDING
To unfold, firmly grasp the back end of the treadmill.
Gently press down on the foot lock latch with your
foot until the lock latch disengages. Carefully lower
the deck to the ground.
NOTE: The foot-lock latch is located at the bottom
left side of the deck.
MOVING
Your treadmill has a pair of transport wheels built
into the frame. To move, make sure the treadmill is
folded and securely latched. Then firmly grasp the
handlebars, tilt the treadmill back and roll.
Our Treadmills are heavy; use care and additional help if necessary when moving.
Do not attempt to move or transport treadmill unless it is in the upright, folded
position with the lock latch secured. Failure to follow these instructions could
result in injury.
WARNING
WARNING

14
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
CENTERING THE RUNNING BELT
The running belt has been properly adjusted at
the factory before it was shipped. At times the
belt can move off-center during shipment. Before
operating the treadmill, make sure the belt is
centered and remains centered to maintain
smooth operation.
CAUTION: Do not run belt faster than 1/2 mph
while centering. Keep fingers, hair and clothing
away from belt at all times.
If the running belt is too far to the right
side: With the treadmill running at 1/2 mph, turn
the right adjustment bolt clockwise 1/4 TURN at
a time (using the supplied allen wrench). Check
the belt alignment. Allow belt to run a full cycle
to gauge if more adjustment is needed. Repeat if
necessary, until the belt remains centered during
use.
If the running belt is too far to the left
side: With the treadmill running at 1/2 mph, turn
the right adjustment bolt counter-clockwise 1/4
TURN at a time (using the supplied allen wrench).
Check the belt alignment. Allow belt to run a full
cycle to gauge if more adjustment is needed.
Repeat if necessary, until the belt remains centered
during use.
Belt is too far to the right side
Belt is too far to the left side
TENSIONING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment.
CAUTION: Running belt should NOT be moving during
tensioning. Over-tightening the running belt can
cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
If you can feel a slipping sensation when running on
the treadmill, the running belt must be tightened. In
most cases, the belt has stretched from use, causing
the belt to slip. This is a normal and common
adjustment. To eliminate this slipping, TURN THE
TREADMILL OFF and tension BOTH THE REAR ROLLER
BOLTS using the supplied allen wrench, turning them
1/4 TURN to the right as shown. Turn the treadmill
on and check for slipping. Repeat if necessary, but
NEVER TURN the roller bolts more than 1/4 turn at
a time. Belt is properly tensioned when the slipping
sensation is gone.

15
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
A) ADjUSTABLE MONITOR DISPLAY: Incline, Time, Distance, Pulse, Calories, and Speed.
B) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
C) START: Simply press to begin exercising.
D) PROGRAM KEYS: Used to select your program.
E) +/- KEYS: Used to adjust program settings.
F) ENTER: Used to confirm settings.
G) INCLINE ARROW KEYS: Press to adjust incline (0.5% increments).
H) QUICK INCLINE KEYS: Press to reach desired incline more quickly. Select before pressing SET INCLINE key.
I) SET INCLINE KEY: Used to confirm incline change. Press after selecting INCLINE with QUICK INCLINE keys.
j) SPEED ARROW KEYS: Press to adjust speed (0.1 MPH increments).
K) QUICK SPEED KEYS: Press to reach desired speed more quickly. Select before pressing SET SPEED key.
L) SET SPEED KEY: Used to confirm speed change. Press after selecting SPEED with QUICK SPEED keys.
M) USER FAVORITE KEYS: Retains a user’s favorite program settings in memory.
N) SAFETY KEY POSITION: Enables treadmill operation when safety key is in place.
O) WATER BOTTLE / CD / MP3 HOLDER: Holds personal workout equipment.
P) READING RACK: Holds reading material.
Q) HEART RATE CONTACT GRIP: Monitors heart rate from your palms.
TREADMILL OPERATION
T
H
R
Z
O
N
E
C
U
S
T
O
M
I
N
T
E
R
V
A
L
S
M
A
N
U
A
L
R
O
L
L
I
N
G
H
I
L
L
S
H
I
L
L
C
L
I
M
B
Incline Speed
Start
Favorite
1
Favorite
2
Stop
Hol d to Re set
ENTER
1
6
10
5
2
7
3
84
9
SET
SPEED
1
6
10
5
2
7
3
84
9
SET
INCLINE
TIME DISTANCE PULSEINCLINE SPEEDCALORIES
CGQ Q
H
A
I
M
K
L
M
F
B
D
JN
P
EO O

16
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
INCLINE • Shown as Percent. Indicates the incline of the treadmill deck surface.
TIME • Shown as Minutes:Seconds. Indicates the time remaining or the time elapsed in your workout.
DISTANCE • Shown as Miles. Indicates distance traveled during your workout.
ADjUSTABLE MONITOR DISPLAY
TIME DISTANCE PULSEINCLINE SPEEDCALORIES
PULSE • Shown as Beats Per Minute. Indicates your heart rate (displayed when contact is made with both
pulse grips).
CALORIES • Indicates total calories burned during your workout.
SPEED • Shown as MPH. Indicates the speed of the treadmill belt.
TIME DISTANCE PULSEINCLINE SPEEDCALORIES
PULSE GRIPS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart
rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping
the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose,
cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure
to clean the pulse sensors to ensure proper contact can be maintained.
HEART RATE

17
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
Check to make sure nothing is on the treadmill and that nothing will hinder the
movement of the treadmill.
Plug in the power cord and turn the treadmill ON.
Stand on the side rails of the treadmill.
Attach the safety key clip to part of your clothing.
Insert the safety key into the safety key slot located on the console.
You have two options to start your workout:
QUICK START UP
Simply press the START key to begin working out. OR...
SELECT A PROGRAM
Select a program using the PROGRAM KEYS.
Once a program has been chosen, press ENTER.
SELECT A LEVEL
Select a program level using the +/- KEYS.
Once a program level has been chosen, press ENTER.
SET TIME
Set time using the +/- KEYS or use the default time.
Once time has been set, press START.
Note: If the MANUAL (P1) program is selected, set TIME, INCLINE, and SPEED using the
+/- KEYS. Press ENTER to confirm each selection then press START. For more information
regarding the custom program or THR Zone program, please see the “PROGRAM INFORMATION”
section.
FINISHING YOUR WORKOUT
When your workout is complete, the ADjUSTABLE MONITOR DISPLAY will flash and beep. Your workout
information will be displayed on the console for 30 seconds and then reset.
CLEAR CURRENT SELECTION
To clear the current program selection or screen, hold the STOP button for 4-5 seconds.
GETTING STARTED / SELECTING A PROGRAM
1)
2)
3)
4)
5)
6)
A)
B)

18
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
PROGRAM INFORMATION
PROGRAM: MANUAL (P1)
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
PEAK
INTERVALS
MOUNTAIN
CLIMB
Walk or run a series of alternating SPEED levels. Time-based goal with 10 difficulty levels to choose from.
INTERVALS PROGRAM SEGMENTS
WARM-UP 1 2 3 4
SEGMENTS ARE REPEATED UNTIL SELECTED TIME
IS REACHED
COOL-DOWN
Time 2:00 2:00 1:30 :30 1:30 :30 2:00 2:00
Level 1 1.0 1.5 2.0 4.0 2.0 4.0 1.5 1.0
Level 2 1.0 1.5 2.0 4.5 2.0 4.5 1.5 1.0
Level 3 1.3 1.9 2.5 5.0 2.5 5.0 1.9 1.3
Level 4 1.3 1.9 2.5 5.5 2.5 5.5 1.9 1.3
Level 5 1.5 2.3 3.0 6.0 3.0 6.0 2.3 1.5
Level 6 1.5 2.3 3.0 6.5 3.0 6.5 2.3 1.5
Level 7 1.8 2.6 3.5 7.0 3.5 7.0 2.6 1.8
Level 8 1.8 2.6 3.5 7.5 3.5 7.5 2.6 1.8
Level 9 2.0 3.0 4.0 8.0 4.0 8.0 3.0 2.0
Level 10 2.0 3.0 4.0 8.5 4.0 8.5 3.0 2.0
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times. Units are MPH.)
PROGRAM: INTERVALS (P2)
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
PEAK
INTERVALS
MOUNTAIN
CLIMB
Motivates with different combinations of SPEED. Time-based goal with 10 difficulty levels to choose from.
ROLLING HILLS PROGRAM SEGMENTS
WARM-UP 1 2 3 4 5 6 7 8
SEGMENTS ARE REPEATED UNTIL SELECTED TIME
IS REACHED
COOL-DOWN
TIME 2:00 2:00 :30 :30 :30 :30 :30 :30 :30 :30 2:00 2:00
Level 1 1.0 1.5 2.0 2.5 3.0 3.5 4.0 3.5 3.0 2.5 2.3 1.5
Level 2 1.3 1.9 2.5 3.0 3.5 4.0 4.5 4.0 3.5 3.0 2.6 1.8
Level 3 1.5 2.3 3.0 3.5 4.0 4.5 5.0 4.5 4.0 3.5 3.0 2.0
Level 4 1.8 2.6 3.5 4.0 4.5 5.0 5.5 5.0 4.5 4.0 3.4 2.3
Level 5 2.0 3.0 4.0 4.5 5.0 5.5 6.0 5.5 5.0 4.5 3.8 2.5
Level 6 2.3 3.4 4.5 5.0 5.5 6.0 6.5 6.0 5.5 5.0 4.1 2.8
Level 7 2.5 3.8 5.0 5.5 6.0 6.5 7.0 6.5 6.0 5.5 4.5 3.0
Level 8 2.8 4.1 5.5 6.0 6.5 7.0 7.5 7.0 6.5 6.0 4.9 3.3
Level 9 3.0 4.5 6.0 6.5 7.0 7.5 8.0 7.5 7.0 6.5 5.3 3.5
Level 10 3.3 4.9 6.5 7.0 7.5 8.0 8.5 8.0 7.5 7.0 5.6 3.8
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times. Units are MPH.)
PROGRAM: ROLLING HILLS (P3)
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
PEAK
INTERVALS
MOUNTAIN
CLIMB
Allows ‘On The Fly’ manual SPEED and INCLINE changes. Time-based goal.

19
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
PROGRAM: HILL CLIMB (P4)
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
PEAK
INTERVALS
MOUNTAIN
CLIMB
PROGRAM: CUSTOM (P5)
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
PEAK
INTERVALS
MOUNTAIN
CLIMB
Lets you create and reuse a perfect workout for you with specific speed, incline and time combination.
The ultimate in personal programming. Time-based goal.
1) Select CUSTOM 1 or 2 using the PROGRAM KEYS, then press ENTER.
2) Set TIME using the +/- KEYS and press ENTER.
NOTE: If the program is previously stored:
After you set the time and press START, the previously stored program
will begin.
3) Choose the desired SPEED for each segment, using the SPEED ARROW KEYS
and press ENTER. Note: You will need to press ENTER after each segment.
4) Choose the desired INCLINE for each segment, using the INCLINE ARROW
KEYS and press ENTER. Note: You will need to press ENTER after each
segment.
5) Press START to begin your program.
Simulates climbing and descending a hill by automatically varying incline. 10 difficulty levels to choose from.
HILL CLIMB PROGRAM SEGMENTS
INCLINE WARM -UP 1 2 3 4 5 6 7 8 9 10
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
COOL-DOWN
TIME 2:00 2:00 :30 :30 :30 :30 :30 :30 :30 :30 :30 :30 2:00 2:00
Level 1 0.0 0.0 1.0 1.5 2.0 2.5 3.0 3.0 2.5 2.0 1.5 1.0 0.0 0.0
Level 2 0.0 0.0 1.5 2.0 2.5 3.0 3.5 3.5 3.0 2.5 2.0 1.5 0.0 0.0
Level 3 0.0 1.0 2.0 2.5 3.0 3.5 4.0 4.0 3.5 3.0 2.5 2.0 1.0 0.0
Level 4 0.0 1.5 2.5 3.0 3.5 4.0 4.5 4.5 4.0 3.5 3.0 2.5 1.5 0.0
Level 5 0.0 1.5 3.0 3.5 4.0 4.5 5.0 5.0 4.5 4.0 3.5 3.0 1.5 0.0
Level 6 0.0 1.5 3.5 4.0 4.5 5.0 5.5 5.5 5.0 4.5 4.0 3.5 1.5 0.0
Level 7 0.0 1.5 4.0 4.5 5.0 5.5 6.0 6.0 5.5 5.0 4.5 4.0 1.5 0.0
Level 8 0.0 2.0 4.5 5.0 5.5 6.0 6.5 6.5 6.0 5.5 5.0 4.5 2.0 0.0
Level 9 0.0 2.0 5.0 5.5 6.0 6.5 7.0 7.0 6.5 6.0 5.5 5.0 2.0 0.0
Level 10 0.0 2.0 5.5 6.0 6.5 7.0 7.5 7.5 7.0 6.5 6.0 5.5 2.0 0.0
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times. Units in % grade.)

20
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Automatically adjusts incline to maintain your Target Heart Rate. Perfect for simulating the intensity of your
favorite sport or everyday activity. Time-based goal.
1) Select THR ZONE using PROGRAM KEYS, then press ENTER.
2) Choose a TARGET HEART RATE using the +/- KEYS and press ENTER.
Note: Use the chart provided in this guide to determine your target heart rate (page
24).
3) Set TIME using the +/- KEYS and press ENTER.
4) Press START to begin your program.
•At this time, your program has been successfully saved into memory, and can be used
for future workouts.
•To RESET your program information and delete it from memory, press and hold the
ENTER key for 5 seconds (after you have selected the THR ZONE program).
After the warm-up period, the INCLINE level will increase gradually to get you to the entered TARGET HEART
RATE ZONE. Once you are at the TARGET HEART RATE ZONE (plus or minus 5 beats per minute) the INCLINE level
will remain until you rise above or drop below your TARGET HEART RATE ZONE at which time the incline would
adjust accordingly. It there is no heart rate detected, the incline will not change. If your heart rate is 25 beats
over your target zone the program will shut down. There is a cool down at the end of the program. At this time,
the program will gradually decrease the incline level to give you a smooth cool down.
60% OF MAx HEART RATE: Used for beginners and longer workouts. Lower intensity and longer duration
helps burn fat more efficiently.
65% OF MAx HEART RATE: Used for beginner to intermediate users and mid to long range workouts. Lower
intensity and longer duration helps burn fat more efficiently.
70% OF MAx HEART RATE: Used for intermediate users and mid range cardio workouts. While this range
burns fat it really challenges the cardiovascular system and helps strengthen the heart.
75% OF MAx HEART RATE: Used for advanced users and short to mid range cardio workouts. Burns fat,
tones muscles and challenges the heart.
80% OF MAx HEART RATE: Used for advanced users and short workouts. Burns fat, strengthens and tones
muscles, and challenges the entire cardiovascular system.
PROGRAM: THR ZONE (P6)
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
PEAK
INTERVALS
MOUNTAIN
CLIMB
