Hoshizaki KM-1300SAH-E User manual

PARTS LIST
STACKABLE CRESCENT CUBER
89/336
73/23
HOSHIZAKI
KM-1300SAH-E
KM-1300SRH-E
NUMBER: 71217
ISSUED: April 7, 2003
REVISED: December 6, 2004

2
HA
CONTENTS
Auxiliary Codes .................................................................................................................... 3
Material Abbreviations..........................................................................................................4
A. Ice Cuber Assembly ......................................................................................................... 5
KM-1300SAH-E ............................................................................................................... 5
KM-1300SRH-E ............................................................................................................... 8
B. Refrigeration Circuit ....................................................................................................... 10
KM-1300SAH-E (1/2) ..................................................................................................... 10
KM-1300SAH-E (2/2) ..................................................................................................... 11
KM-1300SRH-E (1/2) ..................................................................................................... 14
KM-1300SRH-E (2/2) ..................................................................................................... 15
C. Water Circuit ................................................................................................................... 18
KM-1300SAH-E, KM-1300SRH-E ................................................................................. 18
D. Control Box Assembly .................................................................................................... 21
KM-1300SAH-E ............................................................................................................. 21
KM-1300SAH-E, KM-1300SRH-E ................................................................................. 22
E. Label Location ................................................................................................................ 24
KM-1300SAH-E ............................................................................................................. 24
KM-1300SRH-E ............................................................................................................. 26
F. Transformer Box Assembly.............................................................................................. 28
KM-1300SAH-E, KM-1300SRH-E ................................................................................. 28
G. Evaporator ..................................................................................................................... 30
KM-1300SAH-E, KM-1300SRH-E ................................................................................. 30
H. Pump Motor Assembly ................................................................................................... 32
KM-1300SAH-E, KM-1300SRH-E ................................................................................. 32
J. Accessories .................................................................................................................... 34
KM-1300SAH-E, KM-1300SRH-E ................................................................................. 34

3
HA
Auxiliary Codes
KM-1300SAH-E M-0 December 2001
M-1 February 2002
M-2 August 2002
N-0 January 2003
N-1 March 2003
P-0 December 2003
P-1 July 2004
KM-1300SRH-E N-1 April 2003
P-0 September 2004
IMPORTANT
IEC standards require that the clamping means of earthing terminals be adequately
secured against accidental loosening and that accessible metal parts of the
icemaker which may become live in the event of an insulation fault be permanently
and reliably connected to an earthing terminal within the icemaker or to the
earthing contact of the icemaker inlet.
This is accomplished in this icemaker through the use of stainless steel toothed
washers, Hoshizaki Part # 7R22-0400.

4
HA
Material Abbreviations
Aluminum
AL = Aluminum
Copper
CU = Copper
Plastic
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
Rubber
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
Steel
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
Auxiliary Code
K-0
Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.
"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.
Designates significant part changes within the same year. Base is 0 and this number advances for
each change.
Example: P-1
"P" indicates 2004.
"1" indicates the first significant part change for 2004.
Marks Located Under the Auxiliary Code
- = Part deleted.
x = Part deleted and replaced by "o" part.
o = New part in place of "x" part.

5
HA
A. Ice Cuber Assembly
KM-1300SAH-E
L-0, M-0, M-1, M-2, N-0, N-1, P-0, P-1

6
HA
Index
No.
Description Part Number
L-0 M-0 M-1 M-2 N-0
N-1
P-0
P-1
B REFRIGERATION CIRCUIT - 1A0207A03 11x1
-1A0207A07 o1 1 1
C WATER CIRCUIT - 2A0835A02 11111
D CONTROL BOX ASSEMBLY - 2A2347A01 111-
-2A2535A01 11
D1 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 33333
E LABEL LOCATION - 2A2348A01 111-
-2A2532A01 11
FTRANSFORMER BOX
ASSEMBLY
334324A01 11111
F1 HEX HEAD BOLT W/WASHER 5 X10 7B0130510 44444
1 EVAP. CASE - 1A0603G06 11111
2 CONTROL BOX COVER GS 3A0174-01 111-
GS 3A2386-01 11
2A T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 33333
3 SQUARE WASHER BRASS 433537-02 11111
4 SCREW - GROUNDING BRASS 433304-02 11111
5 BUSHING SR-34-2 420472-05 11111
6 JUNCTION BOX COVER GS 4A1767-01 11111
6A T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 11111
7 BULB HOLDER ABS 328919-01 11111
8 SPACER PE 443545-01 11111
9 BULB HOLDER (C) ABS 216340G01 11111
9A TRUSS HEAD SCREW SS, 4X12 7C32-0412 22222
10 CAPILLARY RING EP RUBBER 425307-01 11111
11 SPACER ABS 439727-01 11111
12 BULB HOLDER (D) GS 328742-01 11111
12A T2 SCREW SS, 4X16 7P32-0416 22222
13 FRONT PANEL - BRACKET SS 323903-01 11111
13A T2 SCREW SS 7P32-0412 33333
TOOTH WASHER M4, SS 7R22-0400 22222
14 SPACER ABS 324321-01 11111
15 TOP INSULATION ABS, PE 324216G01 11111
16 FRONT INSULATION ABS, PE 324215G01 11111
17 THUMBSCREW ABS, SS 415949G01 11111
18 SIDE PANEL (R) SS 2A2226G01 11111
18A TRUSS HEAD SCREW SS, 4X8 7C32-0408 11111
19 TOP PANEL SS 2A2255-01 11111
19A TRUSS HEAD SCREW SS, 4X8 7C32-0408 33333
TOOTH WASHER M4, SS 7R22-0400 22222
20 LOUVER (B) ABS 1A0548-01 44444
21 PUSH RETAINER - 4A2414-01 12 12 12 12 12
22 - - -
23 AIR FILTER (B) ABS 2A2063G01 44444
24 - - -
Title: A. Ice Cuber Assembly Model: KM-1300SAH-E
Material or
Model
Number
Required Number

7
HA
Index
No.
Description Part Number
L-0 M-0 M-1 M-2 N-0
N-1
P-0
P-1
25 FRONT PANEL (A) SS 2A2224-02 11111
25A TRUSS HEAD SCREW SS, 4X16 7C32-0416 22222
TOOTH WASHER M4, SS 7R22-0400 22222
26 TERMINAL BLOCK 4A1026-01 11111
26A PAN HEAD SCREW 3X16 7C11-0316 22222
27 GASKET L=1219 4A0808L02 11111
Title: A. Ice Cuber Assembly Model: KM-1300SAH-E
Material or
Model
Number
Required Number

8
HA

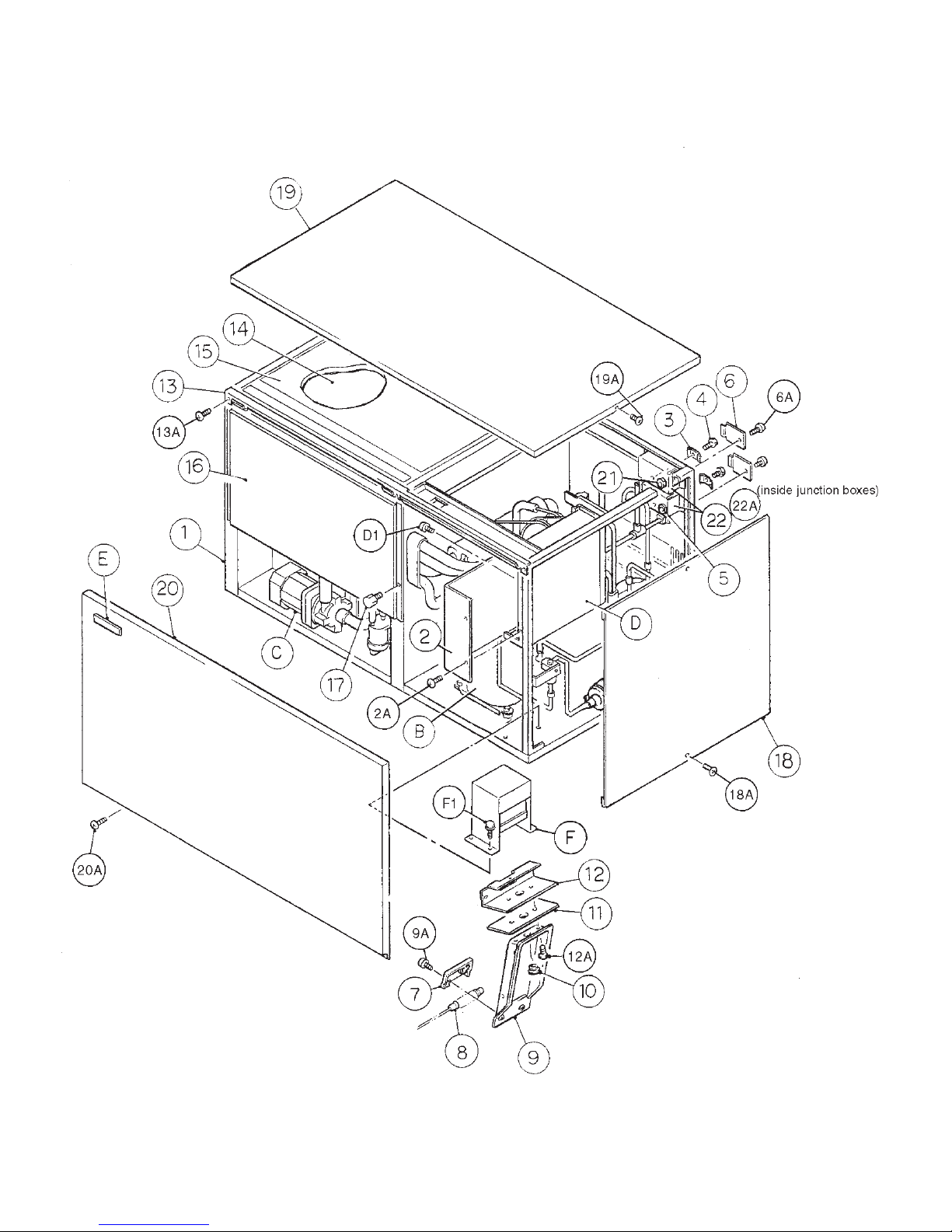

A. Ice Cuber Assembly
KM-1300SRH-E
N-1, P-0

9
HA
Index
No.
Description Part Number
N-1
P-0
B REFRIGERATION CIRCUIT - 1A0207A07 1
C WATER CIRCUIT - 2A0835A01 1
D CONTROL BOX ASSEMBLY - 2A2535A01 1
D1 T2 SCREW 4X8 7P31-0408 3
E LABEL LOCATION - 2A1331A01 1
FTRANSFORMER BOX
ASSEMBLY
- 334324A01 1
F1 HEX HEAD BOLT W/WASHER 5X10 7B0130510 4
1 EVAP. CASE HS-1002 105860G33 1
2 CONTROL BOX COVER GS 3A2386-01 1
2A T2 SCREW 4X8 7P31-0408 3
3 SQUARE WASHER BRASS 433537-02 2
4 SCREW - GROUNDING BRASS 433304-02 2
5 BUSHING SR-30-1 420472-03 1
6 JUNCTION BOX COVER GS 4A1767-01 2
6A T2 SCREW 4X8 7P31-0408 2
7 BULB HOLDER ABS 328919-01 1
8 SPACER PE 443545-01 1
9 BULB HOLDER (C) ABS 216340G01 1
TRUSS HEAD SCREW 4X12, SS 7C32-0412 2
10 BUSHING EP RUBBER 425307-01 1
11 SPACER ABS 439727-01 1
12 BULB HOLDER (D) GS 328742-01 1
T2 SCREW 4X16, SS 7P32-0416 2
13 FRONT PANEL - BRACKET SS 323903-01 1
T2 SCREW 4X12, SS 7P32-0412 3
14 SPACER ABS 324321-01 1
15 TOP INSULATION ABS, PE 324216G01 1
16 FRONT INSULATION ABS, PE 324215G01 1
17 THUMBSCREW ABS, SS 415949G01 1
18 SIDE PANEL (R) SS 2A2226G01 1
18A TRUSS HEAD SCREW 4X8, SS 7C32-0408 1
19 TOP PANEL SS 2A2255-01 1
19A TRUSS HEAD SCREW 4X16, SS 7C32-0416 3
20 FRONT PANEL (A) SS 2A2224-01 1
20A TRUSS HEAD SCREW 4X16, SS 7C32-0416 2
21 BUSHING SR-34-2 420472-05 1
22 TERMINAL BLOCK 4A1026-01 2
22A PAN HEAD SCREW 3X16 7C11-0316 4
Title: A. Ice Cuber Assembly Model: KM-1300SRH-E
Material or
Model
Number
Required Number

10
HA

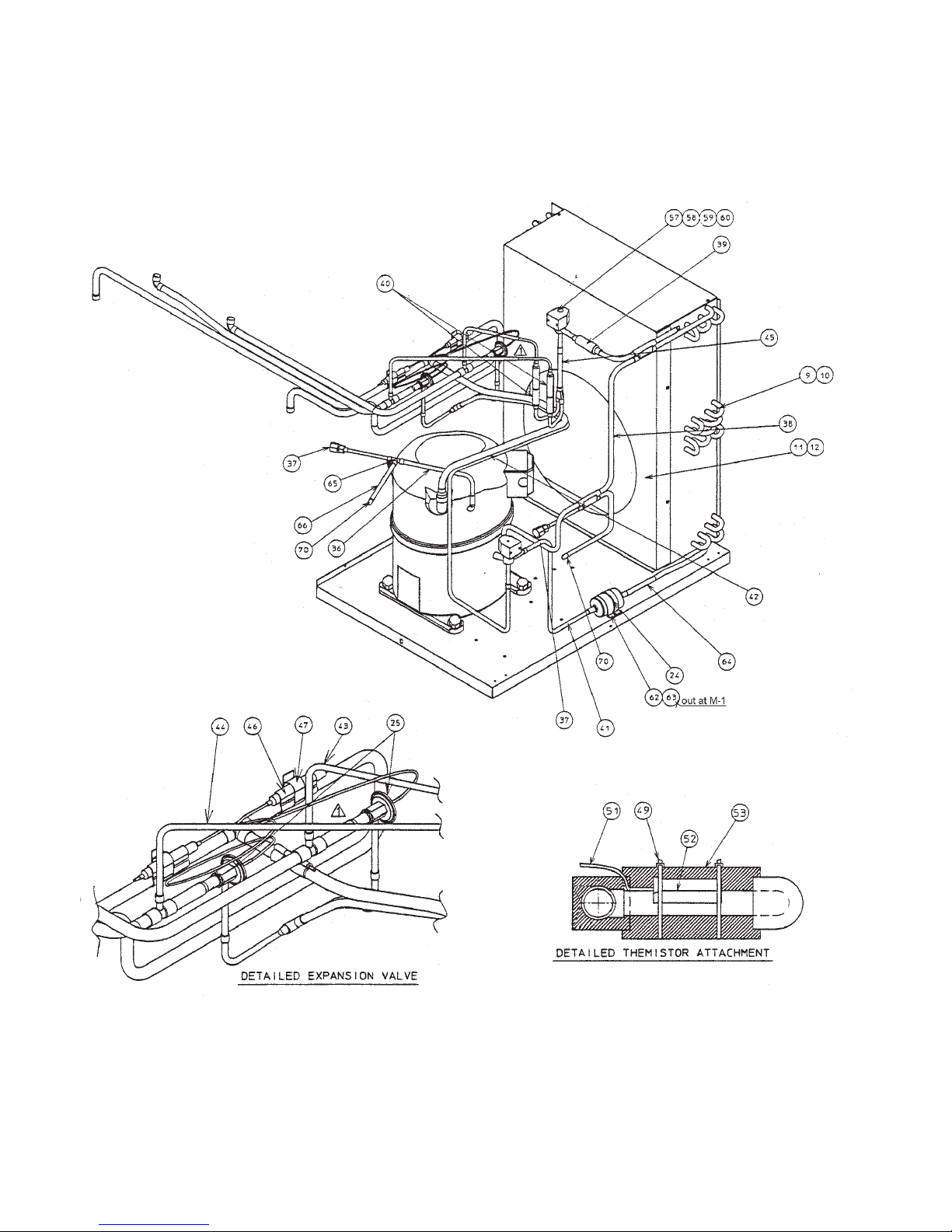

B. Refrigeration Circuit
KM-1300SAH-E (1/2)
M-0, M-1, M-2, N-0, N-1, P-0, P-1

11
HA
B. Refrigeration Circuit
KM-1300SAH-E (2/2)
M-0, M-1, M-2, N-0, N-1, P-0, P-1

12
HA
Index
No.
Description Part Number
M-0 M-1 M-2 N-0
N-1
P-0 P-1
G EVAPORATOR - 104696A01 111111
1 REAR FRAME GS 4A0883G01 111111
2 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 222222
3 SIDE FRAME (A) GS 219472G01 111111
4 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 333333
5 SIDE FRAME (B) GS 323901G01 1111-
3A3027-01 11
6 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 444444
7 FRONT FRAME GS 325857-01 111111
8 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 444444
9 CONDENSER - 213621-01 111111
10 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 444444
11 SHROUD GS 213696-01 111111
12 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 666666
13 COMPRESSOR CS14K6E-PFJ 4A1749-01 111111
14 BOLT 8X45 437889-01 444444
15 GROMMET - 434922-01 444444
16 SPACER - 434921-01 444444
17 FAN MOTOR BRACKET GS 327180-01 111111
18 HEX HEAD BOLT w/WASHER Zinc, 5X12 7B0130512 444444
19 FAN MOTOR U90B1, 7190-
1031
440911-01 11111-
5KPM84DFK1
48AS
4A3158-01 1
20 SELF-LOCKING NUT No. 8-32 7N21I0832 444444
21 - - -
22 - - -
23 FAN BLADE AD12CW25 4A0197-01 111111
24 DRIER CW-0325-S 4A1413-01 1x1
- 4A2666-01 o11111
25 EXPANSION VALVE HFE-10NHD-2 4A1414-01 222222
26 - - -
27 FRAME SEAL EPDM 323925-01 444444
28 T2 SCREW SS, 4X12 7P32-0412 444444
29 HOT GAS VALVE BRACKET GS 442162-01 111111
30 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 222222
31 LINE VALVE BRACKET GS 4A1406-01 111111
32 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 222222
33 PRESSURE SWITCH ACB-1UB09 433441-07 111111
34 PRESSURE SWITCH BRCKT. GS 434938-01 111111
35 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 111111
36 COPPER TUBE - ACCESS
VALVE
COPPER 4A1391-01 111111
37 ACCESS VALVE - 457729-01 222222
38 COPPER TUBE (A) - HIGH
SIDE
COPPER 2A1020G01 111111
Title: B. Refrigeration Circuit Model: KM-1300SAH-E
Material or
Model
Number
Required Number

13
HA
Index
No.
Description Part Number
M-0 M-1 M-2 N-0
N-1
P-0 P-1
39 STRAINER - 441569-02 111111
40 CHECK VALVE SKC30564 4A1373-01 222222
41 COPPER TUBE - LINE VALVE COPPER 3A0933-01 1-
COPPER 2A2312-01 11111
42 HEAT EXCHANGER - 1A0206G01 111111
43 COPPER TUBE (R) - LOW
SIDE
COPPER 3A1094G02 111111
44 COPPER TUBE (L) - LOW
SIDE
COPPER 3A1093G02 111111
45 COPPER TUBE - HOT GAS COPPER 3A0212G01 111111
46 HOLDER / EXP. VALVE - 3/8 SS 3A0107-01 222222
47 CLAMP SS 443461-02 222222
48 INSULATION TUBE L=40 7762-1330 333333
49 CABLE TIE CV-200 7920-0010 777777
50 EXP. VALVE COVER PE FOAM 3A0944-01 222222
51 THERMISTOR - 429006-03 111111
52 HOLDER - THERMISTOR COPPER 427430-01 111111
53 INSULATION - THERMISTOR PE FOAM 427441-01 111111
54 INS. RUBBER TUBE EPDM 323975G01 111111
55 INSULATION PE FOAM 436671-01 111111
56 WIRE SADDLE VWS4238-C 4A0338-02 333333
57 VALVE BODY 70 440352-01 222222
58 COIL - VALVE ABS-25-1-HD-2 440353-01 222222
59 BOLT 4X6 440353F01 222222
60 TRUSS HEAD SCREW Zinc, 4X8 7C31-0408 444444
61 - - -
62 DRIER BRACKET GS 4A0807-01 1-
NYLON TIE - 8911-0301 11111
63 T2 SCREW Zinc, 4X8 7P31-0408 2-
64 COPPER TUBE (D) - HIGH
SIDE
COPPER 4A0921-01 111111
65 TEE COPPER 420041-03 111111
66 EVACUATION TUBE COPPER 4A1553-01 111111
67 INSULATION HOLDER SS 3A0979-01 111111
68 T2 SCREW SS, 4X8 7P32-0408 222222
69 - - -
70 END CAP 4A1413F01 222222
71 CLAMP - 4A2338-01 11111
Title: B. Refrigeration Circuit Model: KM-1300SAH-E
Material or
Model
Number
Required Number

14
HA
B. Refrigeration Circuit
KM-1300SRH-E (1/2)
N-1, P-0

15
HA
B. Refrigeration Circuit
KM-1300SRH-E (2/2)
N-1, P-0

16
HA
Index
No.
Description Part Number
N-1
P-0
G EVAPORATOR - 104696A01 1
1 REAR FRAME GS 4A0883G01 1
2 T2 SCREW 4X8, SS 7P32-0408 2
3 SIDE FRAME (A) GS 219472G01 1
4 T2 SCREW 4X8, SS 7P32-0408 3
5 SIDE FRAME (B) GS 323901G01 1
6 T2 SCREW 4X8, SS 7P32-0408 4
7 FRONT FRAME GS 325857-01 1
8 T2 SCREW 4X8 , SS 7P32-0408 4
9 REAR PANEL GS 2A0752G01 1
10 T2 SCREW 4X8, 7P31-0408 6
11 COMPRESSOR CS14K6E-PF 4A1749-02 1
12 BOLT 8X45 437889-01 4
13 GROMMET - 434922-01 4
14 SPACER - 434921-01 4
15 - - -
16 - - -
17 RECEIVER PR. MN 437652-01 1
18 HEX HEAD BOLT W/WASHER 5X10 7B0130510 3
19 DRIER - 4A2666-01 1
20 EXP. VALVE HFE-10NHD-2 4A1414-01 2
21 - - -
22 FRAME SEAL EPDM 323925-01 4
23 T2 SCREW 4X12, SS 7P32-0412 4
24 HOT GAS VALVE BRACKET GS 442162-01 1
25 T2 SCREW 4X8 7P31-0408 2
26 LINE VALVE BRACKET GS 4A1406-01 1
27 T2 SCREW 4X8 7P31-0408 2
28 PRESSURE SWITCH ACB-1UB09 433441-07 1
29 PRESSURE SWITCH
BRACKET
GS 434938-01 1
30 T2 SCREW 4X8 7P31-0408 1
31 COPPER TUBE - ACCESS
VALVE
COPPER 4A1391-01 1
32 ACCESS VALVE 446715-01 1
33 COUPLING COPPER 434136G01 1
34 TUBE HOLDER (L) GS 438245-01 1
35 T2 SCREW 4X8 7P31-0408 2
36 COUPLING COPPER 433751G01 1
37 TUBE HOLDER (S) GS 438246-01 1
38 COPPER TUBE (A) - HIGH
SIDE
COPPER 2A1025G01 1
Title: B. Refrigeration Circuit Model: KM-1300SRH-E
Material or
Model
Number
Required Number

17
HA
Index
No.
Description Part Number
N-1
P-0
39 STRAINER - 441569-02 1
40 CHECK VALVE SKC30564 4A1373-01 2
41 COPPER TUBE - LINE VALVE COPPER 3A2312-01 1
42 COPPER TUBE (B) - HIGH
SIDE
COPPER 324213G01 1
43 COPPER TUBE (C) - HIGH
SIDE
COPPER 324212-01 1
44 HEAT EXCHANGER - 1A0206G01 1
45 COPPER TUBE (R) - LOW
SIDE
COPPER 3A1094G01 1
46 COPPER TUBE (L) - LOW
SIDE
COPPER 3A1093G01 1
47 COPPER TUBE - HOT GAS COPPER 3A0212G01 1
48 HOLDER / EXP. VALVE - 3/8 SS 3A0107-01 2
49 CLAMP SS 443461-02 2
50 INSULATION TUBE L=40 7762-1330 2
51 CABLE TIE CV-200 7920-0010 8
52 EXP. VALVE COVER PE FOAM 3A0944-01 2
53 THERMISTOR - 429006-03 1
54 HOLDER - THERMISTOR COPPER 427430-01 1
55 INSULATION - THERMISTOR PE FOAM 427441-01 1
56 INSULATED RUBBER TUBE EPDM 323975G01 1
57 INSULATION PE FOAM 436671-01 1
58 WIRE SADDLE VWS4238-C 4A0338-02 3
59 VALVE BODY 70 440352-01 2
60 COIL - VALVE ABS-25-1-HD-2 440353-01 2
61 BOLT 4X6 440353F01 2
62 TRUSS HEAD SCREW 4X8 7C31-0408 4
63 - - -
64 NYLON TIE - 8911-0301 1
65 - - -
66 TEE COPPER 420041-03 1
67 EVACUATION TUBE COPPER 4A1553-01 1
68 INSULATION HOLDER -340979-01 1
69 T2 SCREW 4X8, SS 7P32-0408 2
70 END CAP 4A1413F01 2
71 CLAMP - 4A2338-01 1
Title: B. Refrigeration Circuit Model: KM-1300SRH-E
Material or
Model
Number
Required Number

18
HA
C. Water Circuit
KM-1300SAH-E, KM-1300SRH-E
M-0, M-1, M-2, N-0, N-1, P-0, P-1

19
HA
Index
No.
Description Part Number
M-0 M-1 M-2 N-0 N-1
P-0
P-1
H PUMP MOTOR ASSEMBLY (S-0862) 215692A02 11111
H1 TRUSS HEAD SCREW SS, 5X8 7C32-0508 22222
1 WATER SUPPLY PIPE COPPER 4A0768G05 11111
1A T2 SCREW 4X8 7P31-0408 22222
2 RUBBER GASKET NR 413854-03 11111
3 WATER VALVE BRACKET GS 321443-01 11111
3A T2 SCREW 4X8 7P31-0408 11111
4 WATER VALVE 4A1176-02 11111
5 DISTRIBUTOR HOSE (A) DYNAFLEX 325738-01 11111
6 JOINT PIPE ABS 439297-01 11111
7 DISTRIBUTOR HOSE (B) DYNAFLEX 325738-02 11111
8- - -
9 HOSE CLAMP SS, 13.5 mm 427443-07 66666
10 SPRAY TUBE ABS 437049G01 66666
11 SPRAY GUIDE (A) PE 208586-01 18 18 18 18 18
12 SEPARATOR (A) ABS 213622-01 22222
13 SEPARATOR (B) ABS 2A0100-01 22222
14 CUBE GUIDE ABS 214243-01 22222
15 HOSE (A) EPDM 435091-01 11111
16 DISTRIBUTOR ABS 438276G01 11111
17 HOSE CLAMP SS, 32 mm 427443-09 22222
18 DISTRIBUTOR HOSE (C) EPDM 323985-01 22222
19 HOSE CLAMP SS, 25 mm 427443-03 88888
20 HOSE (B) EPDM 436599-01 11111
21 VALVE HOUSING - DRAIN ABS 323613-01 11111
21A T2 SCREW 4X10, SS 7P32-0410 33333
22 SPRING SS 322110-01 11111
23 VALVE SHEET EPDM 433705-01 11111
24 OVERFLOW CAP PE 323978-01 11111
25 JOINT - OVERFLOW ABS 323923-02 11111
26 BUSHING (KM-1300SAH-E) - 420470-03 22222
(KM-1300SRH-E) -420470-06 22222
27 FLOAT SW. BRACKET SS 3A0449-01 11111
27A T2 SCREW 4X8, SS 7P32-0408 22222
28 CONNECTOR - FLOAT SWITCH EPDM 3A1325-03 11111
29 FLOAT SWITCH FS-0893B-1 4A0886-01 11111
29A TRUSS HEAD SCREW 4X10, SS 7C32-0410 22222
30 CLAMP No.4253 427902-05 11111
Title: C. Water Circuit Model: KM-1300SAH-E, KM-1300SRH-E
Material or
Model
Number
Required Number

20
HA
Index
No.
Description Part Number
M-0 M-1 M-2 N-0 N-1
P-0
P-1
31 "O" RING 1AP18 7611-P018 11111
32 "O" RING 1AG35 7611-G035 11111
33 DRAIN HOSE EPDM 324757-01 11111
34 DRAIN AC 309246-01 11111
35 "O" RING 1AP15 7611-P015 11111
36 WIRE SADDLE 4A0338-02 88888
37 JOINT HOSE DYNAFLEX 439296-01 11111
38 DISTRIBUTOR (B) ABS 439239-01 11111
39 FLANGE EPDM 439267-02 11111
40 VINYL HOSE L=415 7716-2732 11111
41 HOSE CLAMP 427443-05 11111
42 FLOAT SWITCH STOP SS 4A0137-01 11111
43 INSULATION HOSE L=80 7762-3555 11111
44 INSULATION HOSE L=120 7762-3555 11111
45 INSULATION HOSE L=150 7762-3555 11111
46 SILICONE HOSE L=140 7730I3812 11111
47 SILICONE HOSE L=390 7730I3896 11111
Title: C. Water Circuit Model: KM-1300SAH-E, KM-1300SRH-E
Material or
Model
Number
Required Number
