Hoshizaki KM-500MAF-E User manual

(FINAL) PARTS LIST
MODULAR CRESCENT CUBER
89/336
73/23
HOSHIZAKI
NUMBER: 71156
ISSUED: NOV. 16, 1999
KM-500MAF-E
KM-500MWF-E
REVISED: JULY 2, 2002

HA
2
Auxiliary Codes
KM-500MAF-E J-0 APRIL 1999
J-1 JUNE 1999
K-0 DEC., 1999
L-0 JAN., 2001
L-1 APRIL 2001
KM-500MWF-E J-1 SEPT. 1999
K-0 DEC., 1999
L-0 JAN., 2001
IMPORTANT
IEC standards require that the clamping means of earthing terminals be
adequately secured against accidental loosening and that accessible metal parts
of the icemaker which may become live in the event of an insulation fault be
permanently and reliably connected to an earthing terminal within the icemaker or
to the earthing contact of the icemaker inlet.
This is accomplished in this icemaker through the use of stainless steel toothed
washers, Hoshizaki Part # 7R22-0400.

HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitritrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" (interchangeable)
skipped. So, "K" indicates "2000". part.
Ex.2 L-0 o = New part for "x" in the
"L" is the next in alphabetical same auxiliary code.
order. So, "L" indicates "2001".
Ex.3 L-1
Each time a part is changed non-interchangeably
in a year, this number advances.

HA
4

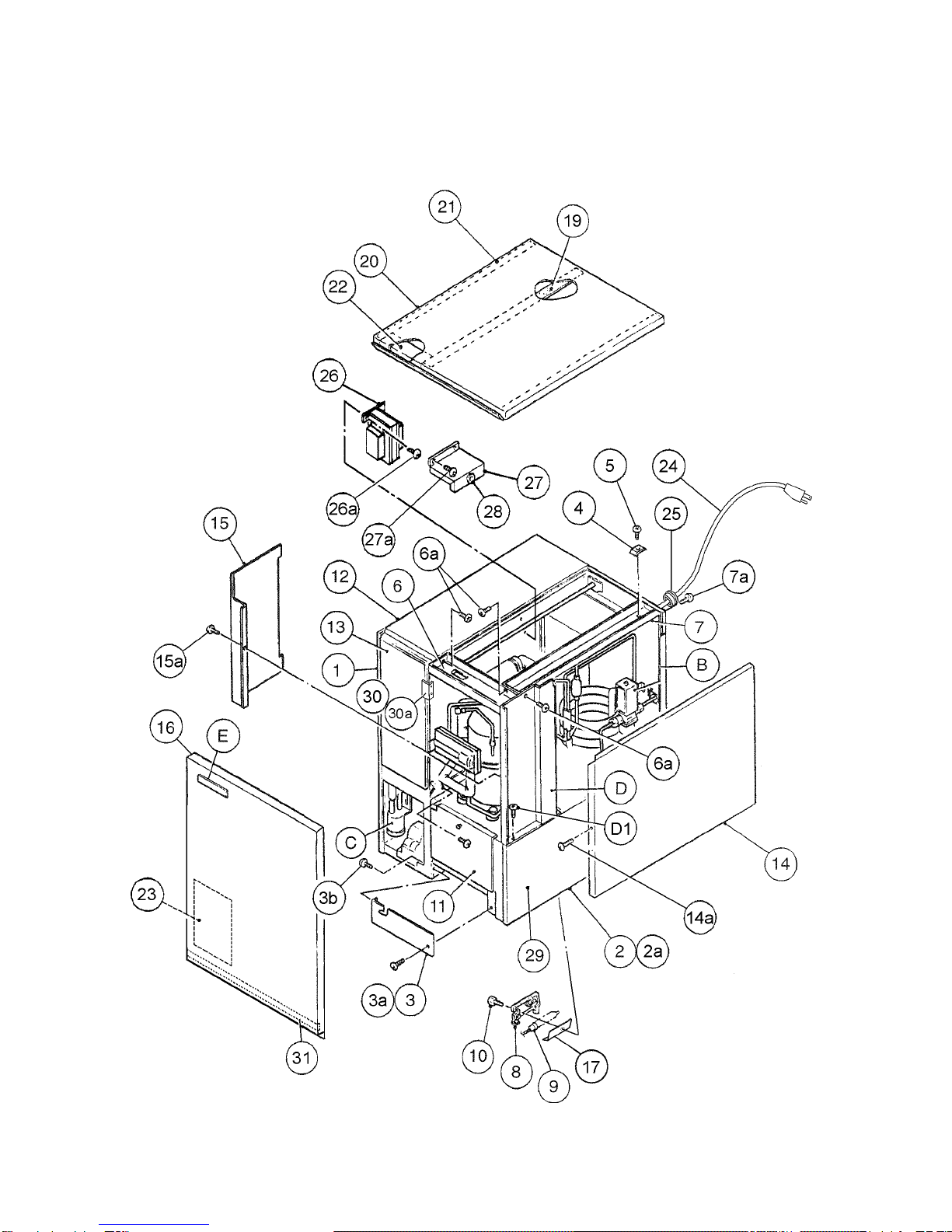

KM-500MAF-E A. ICE CUBER ASSEMBLY J-0, J-1, K-0, L-0, L-1

HA
5
MODEL: KM-500MAF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0 L-0 L-1
B REFRIGERATION CIRCUIT - 1A0420A02 1 1 1 1
C WATER CIRCUIT - 2A0971A02 1 1 1 1
D CONTROL BOX ASSEMBLY - 2A1538A02 1 1 x1
- 2A1964A02 o1 1
D1 T2 SCREW 4X8 7P31-0408 4 4 4 4
E LABEL LOCATION - 3A1368A01 1 1 1 x1
- 3A1368A02 o1
1 EVAP. CASE HS-1012 1A0277G03 1 1 x1
HS-1012 1A0532G03 o1 1
2 BASE - 2A1321G06 1 1 1 1
2a FT SCREW 4X8 7F31-0408 7 7 7 7
3 FRAME ABS 3A0217G01 1 1 1 1
3a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1 1
3b TRUSS HEAD SCREW 4X25, SS 7C32-0425 2 2 2 2
4 SQUARE WASHER BRASS 433537-02 1 1 1 1
5 SCREW - GROUNDING BRASS 433304-02 1 1 1 1
6 TOP FRAME GS 3A1366-01 1 1 1 1
6a T2 SCREW 4X8 7P31-0408 4 4 4 4
7 SIDE FRAME GS 332465G01 1 1 1 1
7a T2 SCREW 4X8 7P31-0408 1 1 1 1
8 BULB HOLDER PE 328919-01 1 1 1 1
9 SPACER PE 443545-01 1 1 1 1
10 THUMBSCREW SS, ABS 415949G03 2 2 2 2
11 BASE COVER SS 321525G01 1 1 1 1
12 TOP INSULATION PP 215730G01 1 1 1 1
13 FRONT INSULATION PP 215731G01 1 1 1 1
14 SIDE PANEL (R) SS 211811G06 1 1 1 1
14a T2 SCREW 4X8, SS 7P32-0408 1 1 1 1
15 CONTROL BOX COVER GS 332466-01 1 1 1 1
15a T2 SCREW 4X8 7P31-0408 1 1 1 1

HA
6
MODEL: KM-500MAF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0 L-0 L-1
16 FRONT PANEL SS 3A1175G01 1 1 1 1
17 LOUVER (B) ABS 103121-03 2 2 2 2
18 BARRIER GS 4A0362-01 1 1 1 1
18a T2 SCREW 4X8 7P31-0408 2 2 2 2
19 TAPPING SCREW ( BLACK) STEEL, 4x8 433954-01 2 2 2 2
20 TOP PANEL SS
(324859A03)
220465-01 1 1 1 1
21 GASKET PVC
(324859A03)
427014-04 2 2 2 2
22 INSULATION PE FOAM
(324859A03)
438012-01 1 1 1 1
23 AIR FILTER (B) ABS 208283G03 2 2 2 2
24 DEFLECTOR SS 4A1951-01 1 1 1 1
25 GASKET (A) (324859A03) 324859-03 1 1 1 1
26 POWER SUPPLY CORD - 452359-02 1 1 1 1
27 BUSHING CEE SR-6P30 450414-01 1 1 1 1
28 TRANSFORMER PY12-19204 446202-01 1 1 1 1
28a PAN HEAD SCREW W/
WASHER (LF)
4x8 7C1230408 4 4 4 4
29 TRANS COVER GS 446359-01 1 1 1 1
29a T2 SCREW 4x8 7P31-0408 2 2 2 2
30 BUSHING OCB-500 428394-02 1 1 1 1
31 SIDE PANEL (R) – BASE SS 212620-01 1 1 1 1
32 BARRIER – INSULATION - 4A1167-01 1 1 1
32a T2 SCREW 4X8 7P31-0408 2 2 2
33 GASKET L=554 4A0808L02 1 1

HA
7
KM-500MWF-E A. ICE CUBER ASSEMBLY J-1, K-0, L-0

HA
8
MODEL: KM-500MWF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-1 K-0 L-0
B REFRIGERATION CIRCUIT - 1A0421A02 1 1 1
C WATER CIRCUIT - 2A0971A02 1 1 1
D CONT. BOX ASSEMBLY - 2A1538A01 1 1 1
D1 T2 SCREW 4X8 7P31-0408 4 4 4
E LABEL LOCATION - 3A1369A01 1 1 1
1 EVAP. CASE HS-1012 1A0277G03 1 x1
HS-1012 1A0532G03 o1 1
2 BASE - 2A1321G05 1 1 1
2a FT SCREW 4X8 7F31-0408 7 7 7
3 FRAME - 3A0217G01 1 1 1
3a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1
3b TRUSS HEAD SCREW 4X25, SS 7C32-0425 2 2 2
4 SQUARE WASHER BRASS 433537-02 1 1 1
5 SCREW - GROUNDING BRASS 433304-02 1 1 1
6 TOP FRAME GS 3A1366-01 1 1 1
6a T2 SCREW 4X8 7P31-0408 4 4 4
7 SIDE FRAME GS 332465G01 1 1 1
7a T2 SCREW 4X8 7P31-0408 2 2 2
8 BULB HOLDER PE 328919-01 1 1 1
9 SPACER PE 443545-01 1 1 1
10 THUMBSCREW SS, ABS 415949G03 2 2 2
11 BASE COVER SS 321525G01 1 1 1
12 TOP INSULATION PP 215730G01 1 1 1
13 FRONT INSULATION PP 215731G01 1 1 1
14 SIDE PANEL (R) SS 211811G06 1 1 1
14a T2 SCREW 4X8, SS 7P32-0408 1 1 1
15 CONTROL BOX COVER GS 332466-01 1 1 1
15a T2 SCREW 4X8 7P31-0408 1 1 1

HA
9
MODEL: KM-500MWF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-1 K-0 L-0
16 FRONT PANEL SS 3A1175G02 1 1 1
17 DEFLECTOR SS 4A1951-01 1 1 1
18 - - -
19 GASKET (A) (324859A03) 324859-03 1 1 1
20 TOP PANEL SS ,
(324859A03)
220465-01 1 1 1
21 GASKET PVC,
(324859A03)
427014-04 2 2 2
22 INSULATION PE FOAM,
(324859A03)
438012-01 1 1 1
23 FRONT COVER P.S 2A0182-01 1 1 1
24 POWER SUPPLY CORD - 452359-02 1 1 1
25 BUSHING CEE SR-6P30 450414-01 1 1 1
26 TRANSFORMER PY12-19204 446202-01 1 1 1
26a PAN HEAD SCREW W/
WASHER (LF)
4x8 7C1230408 4 4 4
27 TRANS COVER GS 446359-01 1 1 1
27a T2 SCREW 4x8 7P31-0408 2 2 2
28 BUSHING OCB-500 428394-02 1 1 1
29 SIDE PANEL (R) – BASE SS 212620-01 1 1 1
30 BARRIER –INSULATION - 4A1167-01 1 1
30a T2 SCREW 4X8 7P31-0408 2 2
31 GASKET L=554 4A0808L02 1 1

HA
10
KM-500MAF-E B. REFRIGERATION CIRCUIT J-0, J-1, K-0, L-0, L-1

HA
11
MODEL: KM-500MAF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0 L-0 L-1
1 CONDENSER - 220491-01 1 1 1 1
2 T2 SCREW 4X8 7P31-0408 2 2 2 2
3 SHROUD GS 2A0606-01 1 1 1 1
4 T2 SCREW 4X8 7P31-0408 2 2 2 2
5 BARRIER GS 433693-04 1 1 1 1
6 T2 SCREW 4X8 7P31-0408 2 2 2 2
7 REAR PANEL GS 3A1367-01 1 1 1 1
8 T2 SCREW 4X8 7P31-0408 3 3 3 3
9 COMPRESSOR AKA9455ZXC 4A1925-01 1 1 1 1
10 MOTOR PROTECTOR 8300MRAK30 4A1919-02 1 1 1 1
11 BOLT 8x45 437889-01 4 4 4 4
12 SPACER 027-0072-02 434404-01 4 4 4 4
13 GROMMET 527-0039-04 434403-01 4 4 4 4
14 FAN MOTOR BRACKET GS 327179-01 1 1 1 1
15 HEX BOLT ASSEMBLY (LF) 5X12, SS 7B0230512 4 4 4 4
16 FAN MOTOR U90B1,
7190-1031
440911-01 1 1 1 1
17 SELF-LOCKING NUT NO. 8-32 7N21I0832 4 4 4 4
18 FAN BLADE AD10CW32 444898-01 1 1 1 1
19 DRIER CW-0325-S 4A1413-01 1 1 1 1
20 ENDCAP 4A1413F01 2 2 2 2
21 DRIER BRACKET GS 445847-01 1 1 1 1
22 T2 SCREW 4X8 7P31-0408 1 1 1 1
23 EXPANSION VALVE AN 3/4 SW65 4A1870-01 1 1 1 1
24 EVAPORATOR - 106492G01 1 1 1 1
25 T2 SCREW 4X16, SS 7P32-0416 4 4 4 4
26 VALVE BODY 70 440352-01 1 1 1 1
27 COIL - VALVE ABS-25-1-HD-
2
440353-01 1 1 1 1
28 BOLT 4x6 440353F01 1 1 1 1

HA
12
MODEL: KM-500MAF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0 L-0 L-1
29 TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2 2
30 PRESSURE SWITCH ACB-1UB09 433441-07 1 1 1 1
31 PRESSURE SWITCH
BRACKET
GS 434938-01
1 1 1 1
32 T2 SCREW 4X8 7P31-0408 1 1 1 1
33 - - -
34 ACCESS VALVE TCJ-2F20NHDU-
1
457729-01 2 2 2 2
35 COPPER TUBE (A) - HIGH
SIDE
COPPER 2A1435G01
1 1 1 1
36 COPPER TUBE (D) - HIGH
SIDE
COPPER 3A1238G01
1 1 1 1
37 HEAT EXCHANGER - 2A1478G01 1 1 1 1
38 ELBOW COPPER 417395-03 1 1 1 1
39 COPPER TUBE - HOT GAS COPPER 2A1488G01 1 1 1 1
40 COPPER TUBE (J) COPPER 4A1815G01 1 1 1 1
41 HOLDER / EXP. VALVE –1/2 SS 3A0112-01 1 1 1 1
42 CLAMP SS 443461-02 1 1 1 1
43 EXPANSION VALVE COVER PE FOAM 4A1168-01 1 1 1 1
44 THERMISTOR - 429006-03 1 1 1 1
45 HOLDER - THERMISTOR COPPER 427430-01 1 1 1 1
46 CABLE TIE CV-200 (PLT-
2M)
7920-0010 12 12 12 12
47 INSULATION - THERMISTOR
(A)
PE FOAM 439368-01 1 1 1 1
48 INSULATION - THERMISTOR
(B)
PE FOAM 439368-02 1 1 1 1
49 RUBBER INSULATION (A) EPDM 3A1044-01 1 1 1 1
50 RUBBER INSULATION (B) EPDM 3A1045-01 1 1 1 1
51 INSULATION HOLDER SS 4A1550-01 1 1 1 1

HA
13
KM-500MWF-E B. REFRIGERATION CIRCUIT J-1, K-0, L-0

HA
14
MODEL: KM-500MWF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-1 K-0 L-0
1 REAR PANEL GS 2A1580-01 1 1 1
2 T2 SCREW 4X8 7P31-0408 5 5 5
3 COMPRESSOR AKA9455ZXC 4A1925-01 1 1 1
4 MOTOR PROCTECTOR 8300MRAK30 4A1919-02 1 1 1
5 BOLT 8x45 437889-01 4 4 4
6 SPACER 027-0072-02 434404-01 4 4 4
7 GROMMET 527-0039-04 434403-01 4 4 4
8 CONDENSER - WATER-
COOLED
- 2A1429-01 1 1 1
9 HEX BOLT ASSEMBLY (LF) 5X10, SS 7B0230510 3 3 3
10 WASHER SS 4A0655-03 3 3 3
11 DRIER CW-0325-S 4A1413-01 1 1 1
12 ENDCAP - 4A1413F01 2 2 2
13 DRIER BRACKET GS 445847-01 1 1 1
14 T2 SCREW 4X8 7P31-0408 1 1 1
15 EXP. VALVE AN 3/4 SW65 4A1870-01 1 1 1
16 EVAPORATOR - 106492G01 1 1 1
17 T2 SCREW 4X16, SS 7P32-0416 4 4 4
18 VALVE BODY 70 440352-01 1 1 1
19 COIL - VALVE ABS-25-1-HD-
2
440353-01 1 1 1
20 BOLT 440353F01 1 1 1
21 TRUSS HEAD SCREW 4X8 7C31-0408 2 2 2
22 PRESSURE SWITCH ACB-2UB04 433441-05 1 1 1
23 PRESSURE SWITCH
BRACKET
GS 434938-01 1 1 1
24 T2 SCREW 4X8 7P31-0408 1 1 1
25 MALE CONNECTOR BRASS 4A1087-01 1 1 1
26 WATER REGULATOR V46DA-3 4A0911-03 1 1 1
27 TRUSS HEAD SCREW 4X6 7C31-0406 2 2 2

HA
15
MODEL: KM-500MWF-E TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-1 K-0 L-0
28 COPPER TUBE (A) - HIGH
SIDE
COPPER 2A1435G01 1 1 1
29 COPPER TUBE (B) - HIGH
SIDE
COPPER 3A1249-01 1 1 1
30 COPPER TUBE (C) - HIGH
SIDE
COPPER 4A1829G01 1 1 1
31 COPPER TUBE (D) - HIGH
SIDE
COPPER 3A1238G01 1 1 1
32 HEAT EXCHANGER - 2A1432G01 1 1 1
33 ELBOW COPPER 417395-03 1 1 1
34 COPPER TUBE - HOT GAS COPPER 2A1467G01 1 1 1
35 COPPER TUBE (J) COPPER 4A1815G01 1 1 1
36 - - -
37 ACCESS VALVE TCJ-2F20NHDU-
1
457729-01 2 2 2
38 COPPER TUBE (A) - WATER
CIRCUIT
COPPER 3A1251G01 1 1 1
39 COPPER TUBE (B) - WATER
CIRCUIT
COPPER 4A1830G01 1 1 1
40 HOLDER/EXPANSION VALVE -
1/2
SS 3A0112-01 1 1 1
41 CLAMP SS 443461-02 1 1 1
42 EXPANSION VALVE COVER PE FOAM 4A1168-01 1 1 1
43 THERMISTOR - 429006-03 1 1 1
44 HOLDER - THERMISTOR COPPER 427430-01 1 1 1
45 CABLE TIE CV-200 (PLT-
2N)
7920-0010 12 12 12
46 INSULATION - THERMISTOR
(A)
PE FOAM 439368-01 1 1 1
47 INSULATION - THERMISTOR
(
B
)
PE FOAM 3A1045-01 1 1 1

HA
16
KM-500MAF-E, MWF-E C. WATER CIRCUIT J-0, J-1, K-0, L-0, L-1

HA
17
MODEL: KM-500MAF-E, MWF-E TITLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0 L-0 L-1
F PUMP MOTOR ASSEMBLY HS-0102 321444A04 1 1 1 1
F1 TRUSS HEAD SCREW 4X16, SS 7C32-0415 1 1 1 1
F2 FLAT WASHER M4, SS 7W22-0400 1 1 1 1
F3 SPLIT LOCK WASHER M4, SS 7L22-0400 1 1 1 1
F4 HEX NUT M4, SS 7N12-0400 1 1 1 1
1 WATER SUPPLY PIPE COPPER 4A0768G06 1 1 1 1
1a T2 SCREW 4X8 7P31-0408 2 2 2 2
2 RUBBER GASKET NR 413854-03 1 1 1 1
3 WATER VALVE BRACKET GS 3A0736-01 1 1 1 1
3a T2 SCREW 4X8 7P31-0408 1 1 1 1
4 WATER VALVE V-19 4A1176-03 1 1 1 1
4a TRUSS HEAD SCREW 4X8 7C32-0408 2 2 2 2
5 HOSE CLAMP SS, 18MM 427443-05 1 1 1 1
6 SPRAY TUBE PE 433520G01 2 2 2 2
7 SPRAY GUIDE (A) PE 208586-01 6 6 6 6
8 CUBE GUIDE ABS 212088-01 1 1 1 1
9 SUCTION HOSE EPDM 433466-01 1 1 1 1
10 PUMP MOTOR BRACKET PC 211408-01 1 1 1 1
10a FLAT HEAD SCREW 4X12, SS 7F32-0412 1 1 1 1
11 VINYL HOSE L=625 7716-2025 1 1 1 1
12 VINYL HOSE L=110 7716-2025 1 1 1 1
13 HOSE CLAMP SS, 25MM 427443-03 9 9 9 9
14 "O" RING 1AG35 7611-G035 1 1 1 1
15 VALVE HOUSING - DRAIN ABS 321001-01 1 1 1 1
15a T2 SCREW 4X10, SS 7P32-0410 3 3 3 3
16 SPRING SS 3A0875-01 1 1 1 1

HA
18
MODEL: KM-500MAF-E, MWF-E TITLE:C. WATER CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0 L-0 L-1
17 VALVE SHEET EPDM 433705-01 1 1 1 1
18 DRAIN HOSE - 433468-01 1 1 1 1
19 OVERFLOW CAP PE 321002-01 1 1 1 1
20 OVERFLOW PIPE ABS 430722-03 1 1 1 1
21 “O”RING EPDM 4A1234-01 1 1 1 1
22 CONNECTOR –FLOAT
SWITCH
EPDM 3A1325-01 1 1 1 1
23 FLOAT SWITCH 163795 4A0886-01 1 1 1 1
23a T2 SCREW 4X12, SS 7P32-0412 2 2 2 2
24 SILICONE HOSE L=140 7730I3896 2 2 2 2
25 WIRE SADDLE VWS4238-C 4A0338-02 4 4 4 4
26 BUSHING OCB-750 428394-01 1 1 1 1
27 DISTRIBUTOR EPDM 432820-01 1 1 1 1
28 DISTRIBUTOR HOSE - 439374-01 1 1 1 1
29 HOSE CLAMP SS, 13.5 MM 427443-07 2 2 2 2
30 ELBOW - 433467-01 2 2 2 2
31 JOINT PIPE ABS 439329-01 1 1 1 1
32 CONNECTING PIPE DYNAFLEX 4A1142-02 1 1 1 1
33 HOSE CLAMP SS, 20 MM 427443-06 1 1 1 1
34 FLOAT SWITCH STOP SS 446358-01 1 1 1 1
35 INSULATION (E) PE FOAM 4A0392-01 1 1 1 1

HA
19
KM-500MAF-E, MWF-E D. CONTROL BOX ASSEMBLY J-0, J-1, K-0, L-0, L-1

HA
20
MODEL: KM-500MAF-E, MWF-E TITLE:D. CONTROL BOX ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER
J-0
J-1
K-0 L-0 L-1
G CONTROL ASSEMBLY - 4A0388A02 1 1 1 1
G2 T2 SCREW 4X8 7P31-0408 2 2 2 2
1 CONTROL BOX - 332464G01 1 1 x1
- 2A1851-01 o1 1
2 CAPACITOR 15MFD 440V 4A1267-01 1 1 1 1
3 CAPACITOR –STARTING 72-88 MFD, 330
VAC
3A1414-01 1 1 1 1
4 STRAP GS 434580-11 1 1 x1
GS 434580-07 o1 1
5 T2 SCREW 4X8 7P31-0408 1 1 1 1
6 STARTER GE3ARR3CT3AN5 4A1107-06 1 1 1 1
7 T2 SCREW 4X8 7P31-0408 1 1 1 1
8 MAGNETIC CONTACTOR VC-20 428393-01 1 1 1 1
9 BRACKET 428393F01 1 1 1 1
10 T2 SCREW 4X8 7P31-0408 2 2 2 2
11 TRANSFORMER 26D285H 3A0172-01 1 1 1 1
12 T2 SCREW 4X8 7P31-0408 2 2 2 2
13 CAPACITOR 250 VAC, 5.5 MFD 4A1025-03 1 x1
250 VAC, 5.5 MFD 4A2128-03 o1 1 1
14 T2 SCREW 4X10 7P31-0410 1 1 1 1
15 CONTROLLER BOARD HOS-001A 2A1410-01 1 1 1 1
16 BOARD SUPPORT CBLS37-M 4A0336-03 4 4 4 4
17 BUSHING SB-1093-15 420470-03 1 1 1 1
18 BUSHING OCB-500 428394-02 1 1 1 1
19 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2 2
20 CAPACITOR (KM-500MAF-E
ONLY)
250 VAC, 2.5 MFD 4A1025-05 1 x1
250 VAC, 2.5 MFD 4A2128-05 o1 1 1
21 T2 SCREW (KM-500MAF-E
O
NLY)
4X10 7P31-0410 1 1 1 1
