HP SDCAB-0603 User manual

SDCAB-0603 (PEZ)
User Guide
Part number: xxxxxx-xxx
First edition: MM/YYYY

2
Legal notices
Never leverage legal and notice information. For the most current requirements, refer to HP Standard 004-0 Legal Notices for
Product Documentation, Promotional Materials, and Software and Media located at
http://standards.inet.cpqcorp.net/smc/hpstd/hpstds.htm

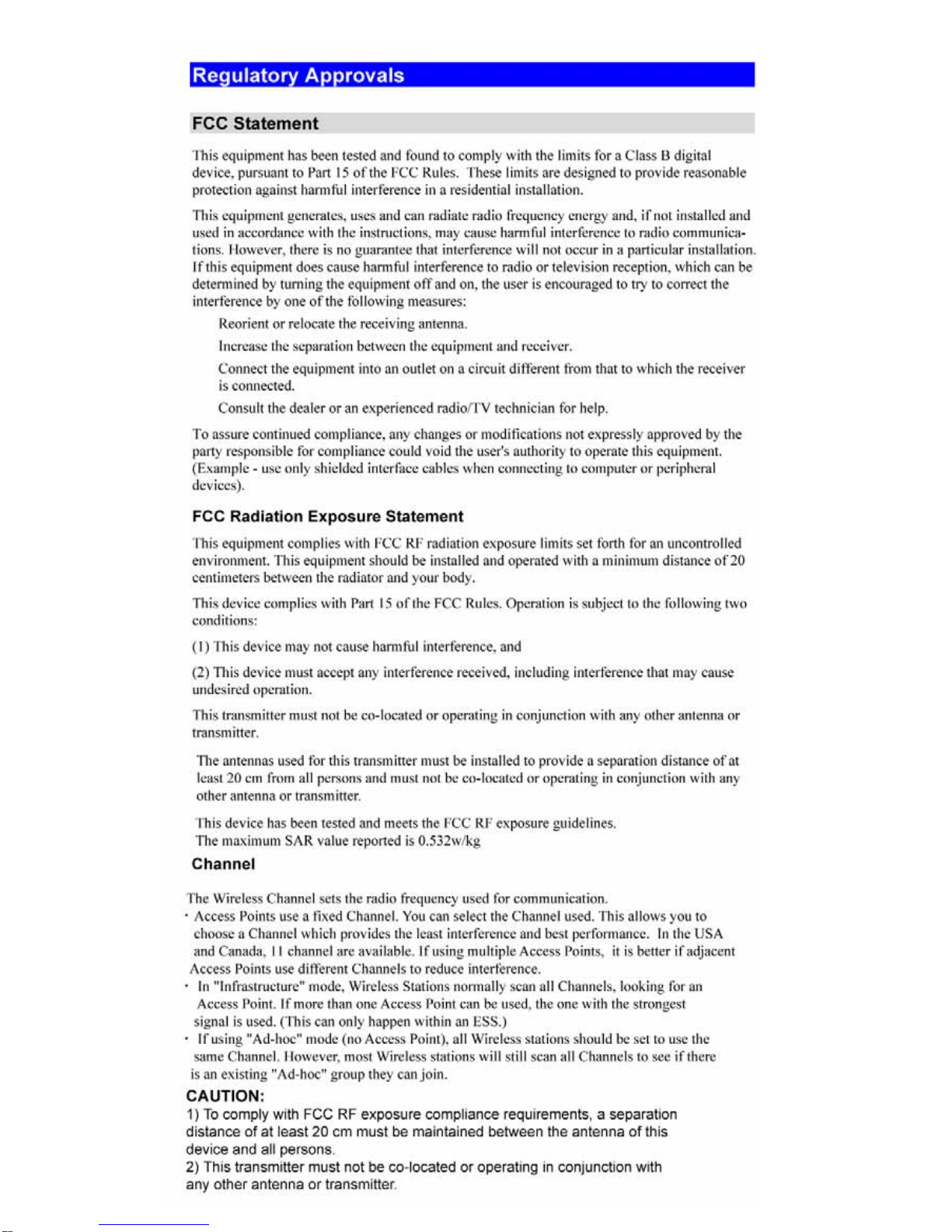

CANADA STATEMENT
Operation is subject to the following two conditions:
(1) this device may not cause interference and
(2) this device must accept any interference,including interference that may cause
undesired operation of the device
To prevent radio interference to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding.
Note:
This device has been designed to operate with an antenna having amaximum gain of 2 dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The
require antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the EIRP is not more than required for successful communication.

Contents 3
Contents
Revision history
Revision tables..........................................................................................................................................................4
1 Introduction
1-1 Package Contents.......................................................................................................................................5
1-2 Physical Details..............................................................................................................................................6
1-3 LED Table .......................................................................................................................................................7
1-4 Operating System.........................................................................................................................................7
1-5 List of Supported HP Devices ......................................................................................................................7
2 Physical Installation
2-1 Procedure...........................................................................................................................................................8
3 Software Installation
3-1 Installation Procedure.......................................................................................................................................9
3-2 WPS icon in the System Tray...........................................................................................................................12
3-3 Managing Print Jobs .......................................................................................................................................12
3-4 Using the HP Director.......................................................................................................................................12
4 Advanced Application
4-1 Overview...........................................................................................................................................................14
4-2 Advanced Configuration...............................................................................................................................14
4-3 User Installation ................................................................................................................................................18
4-3 WPS icon in the System Tray...........................................................................................................................21
5 Troubleshooting
5-1 Overview...........................................................................................................................................................22
5-2 General Problems............................................................................................................................................22
6 Specification
6-1 WPS Specification............................................................................................................................................23
6-2 Wireless Dongle Specification........................................................................................................................23
Appendix A
Index

4 錯誤! 尚未定義樣式。
Revision history
Revision tables
Table 1 Revisions
Date Edition Revision
March 27, 2006 First Original Readme.doc released by Sercomm
Revision history

錯誤! 尚未定義樣式。 5
1 Introduction
Congratulations on the purchase of your WPS. Your WPS was designed to provide a simple and
efficient network printing and multi-function solution.
1-1 Package Contents
The WPS package contains the following items. If any item is missing, please contact your dealer
immediately.
• The WPS unit
• The Wireless Dongle unit
• One CD-ROM containing all support programs and this manual
• Quick installation guide
• Power Adapter (3.3V, 2A)
• USB Cable
Figure 1-1
Introduction

6 錯誤! 尚未定義樣式。
1-2 Physical Details
• WPS
Figure 1-2
• Wireless Dongle
Figure 1-3

錯誤! 尚未定義樣式。 7
1-3 LED Table
There are three (3) LED indicators on the top panel - Power (Green), 802.11G (Blue) and Attention
(Amber). The following table describes common situations and explains what the lights mean.
Table 1-1 LED Table
POWER (GREEN) 802.11G (BLUE) ATTENTION (Amber)
Power Off Off Off Off
Power On On Off Off
Device initialized On On Off
Data Transmission On Blinking Off
No MFP connected to USB
Port On On/Blinking On
FW Upgrade (data
transmission) On Blinking Off
FW Upgrade (write to Flash) Blinking Off Off
1-4 Operating System
The following operating systems are supported:
• Windows XP Home/Professional Stock
• Windows XP Home/Professional SP2
• Windows XP Home/Professional SP1
• Windows 2000 Professional SP4
1-5 List of Supported HP Devices
HP AiOs for Home and Home Office:
PSC 1210, 1350, 1410, 1507, 1315, 1510, 1600, 1610, 2110, 2175, 2210, 2355, 2410, 2510.
Photosmart 2575, 2610, 3210, 2710, 3310.
Officejet 4110, 4125, 5110, 5510, 5610, 6110, 6210, 7210, 7310, 7410.
Photo printers:
Photosmart 145, 230, 245, 325, 375, 7260, 7350, 7550, 7660, 7850, 7960, 8050, 8250, 335, 385, 422, 475,
425, 428.
Deskjet printers:
Deskjet 3425, 3450, 3520, 3550, 3650, 3745, 3820, 3930, 3940, 3845, 5150, 5550, 5740, 5850, 6540, 6840,
9650, 9670.
Introduction

8 錯誤! 尚未定義樣式。
2 Physical Installation
2-1 Procedure

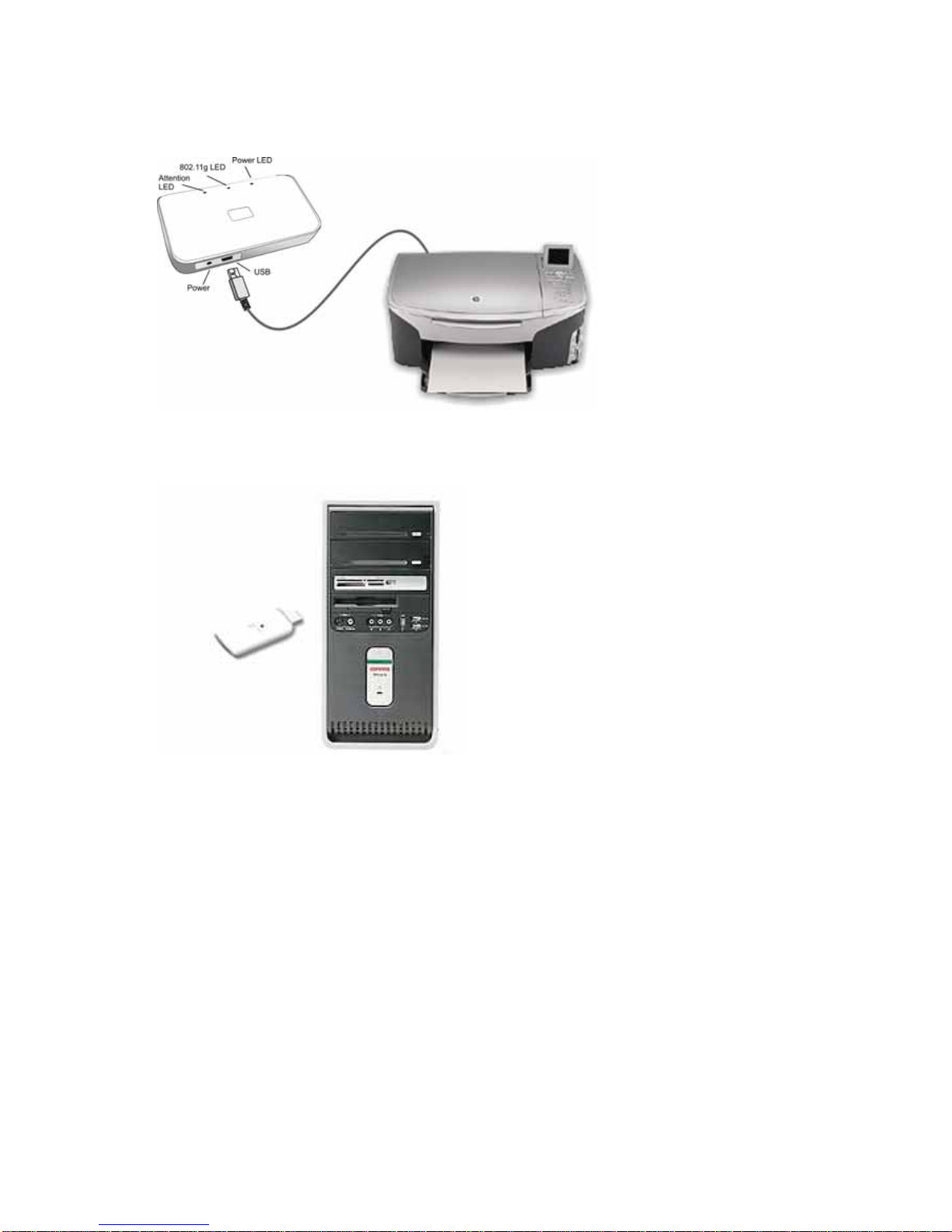

Figure 2-1
1. Make sure the WPS and MFP (Multi-Function Peripheral) are powered OFF.
2. Connect the MFP to the USB port on the WPS.
3. Connect the Power Adapter to the WPS Power port, power on the MFP.
4. Power on the WPS.
5. Check the WPS LEDs:
• The Power LED should be ON.
• The 802.11g LED should be ON.
• The Attention LED should be Off.
6. Begin Software installation.

錯誤! 尚未定義樣式。 9
3 Software Installation
3-1 Installation Procedure
Step 1. Insert the Setup Wizard CD-ROM into your CD-ROM drive. The Setup Wizard should run
automatically, and the Welcome screen should appear. If it does not start automatically, click the
Start button on your computer and choose Run. In the field that appears, enter D:\autorun.exe (if “D”
is the letter of your CD-ROM drive).
Figure
Step 2. Click Install to install the necessary drivers.
Figure
Step 3. Select I accept the terms in the license agreement, then click Next.
Software Installation

10 錯誤! 尚未定義樣式。
Figure
Step 5. Connect Wireless Dongle to your PC. After detecting the Dongle unit, this screen will be closed
and you are ready to move to the next step.
Figure
Step 6. This screen indicates that wizard is copying necessary files into your hard drive.
NOTE: If the following screen appears, please make sure the components on this screen are
activated.
Software Installation

錯誤! 尚未定義樣式。 11
Figure
Step 7. Click Connect and Finish.
Installation is now complete.
Figure
Now, please insert the WPS CD-ROM to install the software.

12 錯誤! 尚未定義樣式。

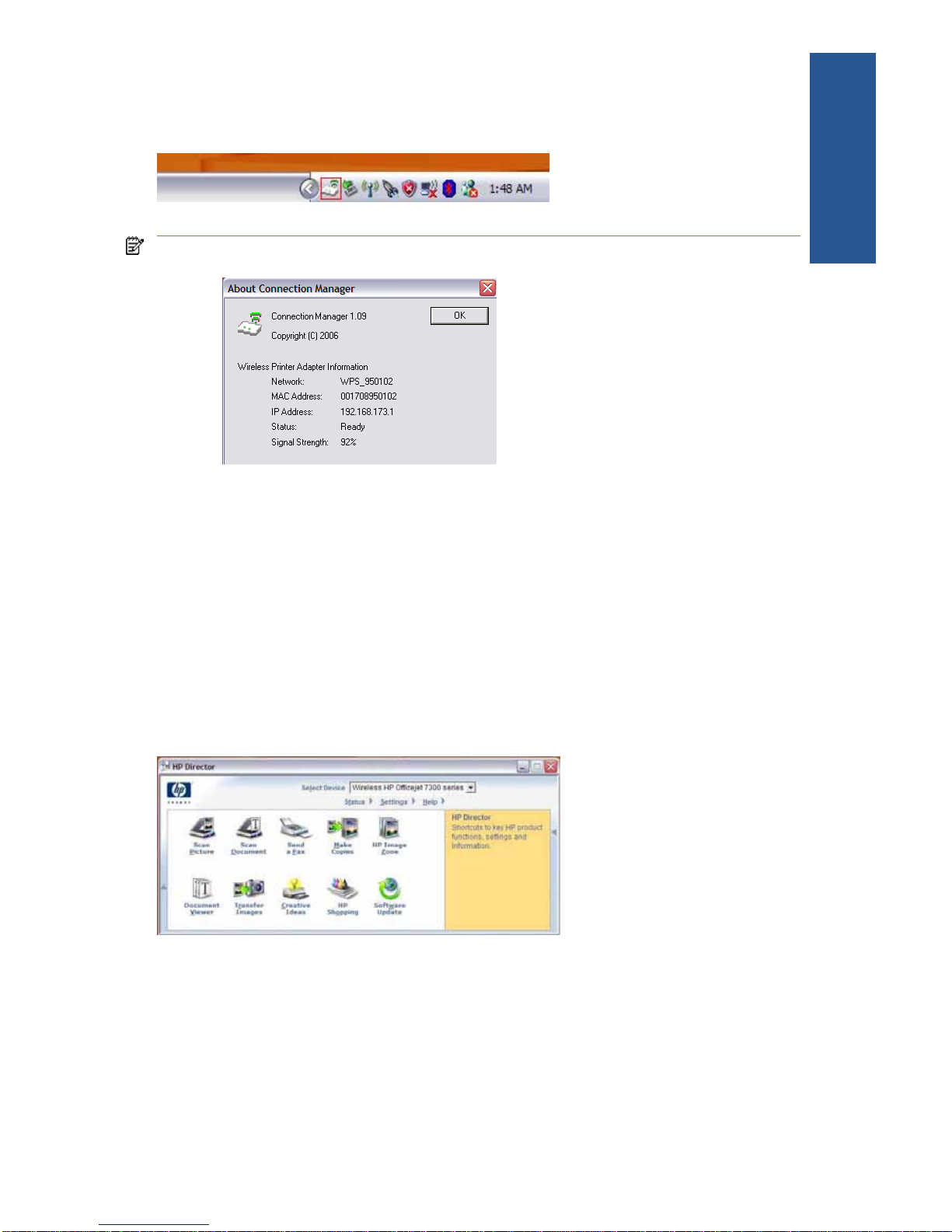

3-2 WPS icon in the System Tray
When the installation is complete, the WPS icon will appear on the system tray. You are now ready to
use the MFP.
Figure
NOTE: You can right click the WPS icon and select About to get more information of the WPS
connection. See the following sample screen:
3-3 Managing Print Jobs
Print jobs can be managed in the same way as any Windows printer. Opening the Printers folder (Start
- Settings – Printers and Faxes), you will notice that the HP device (ex. Wireless HP Officejet 7300 series)
had been set for the default printer. You can double-click the printer to check current printing jobs.
3-4 Using the HP Director
The HP Director is installed on your computer when you install the HP software. You can do more with
your HP MFP by using the HP Director software. This software provides enhanced copy, scan, and
photo functionality. For more information, see the onscreen HP Direct Help.
1. Open the HP Director from the desktop icon or the start menu.
Figure
2. Select the HP device (ex. Wireless HP Officejet 7300 series) from the drop-down list.
3. Choose the desired feature to use.
Software Installation

錯誤! 尚未定義樣式。 13

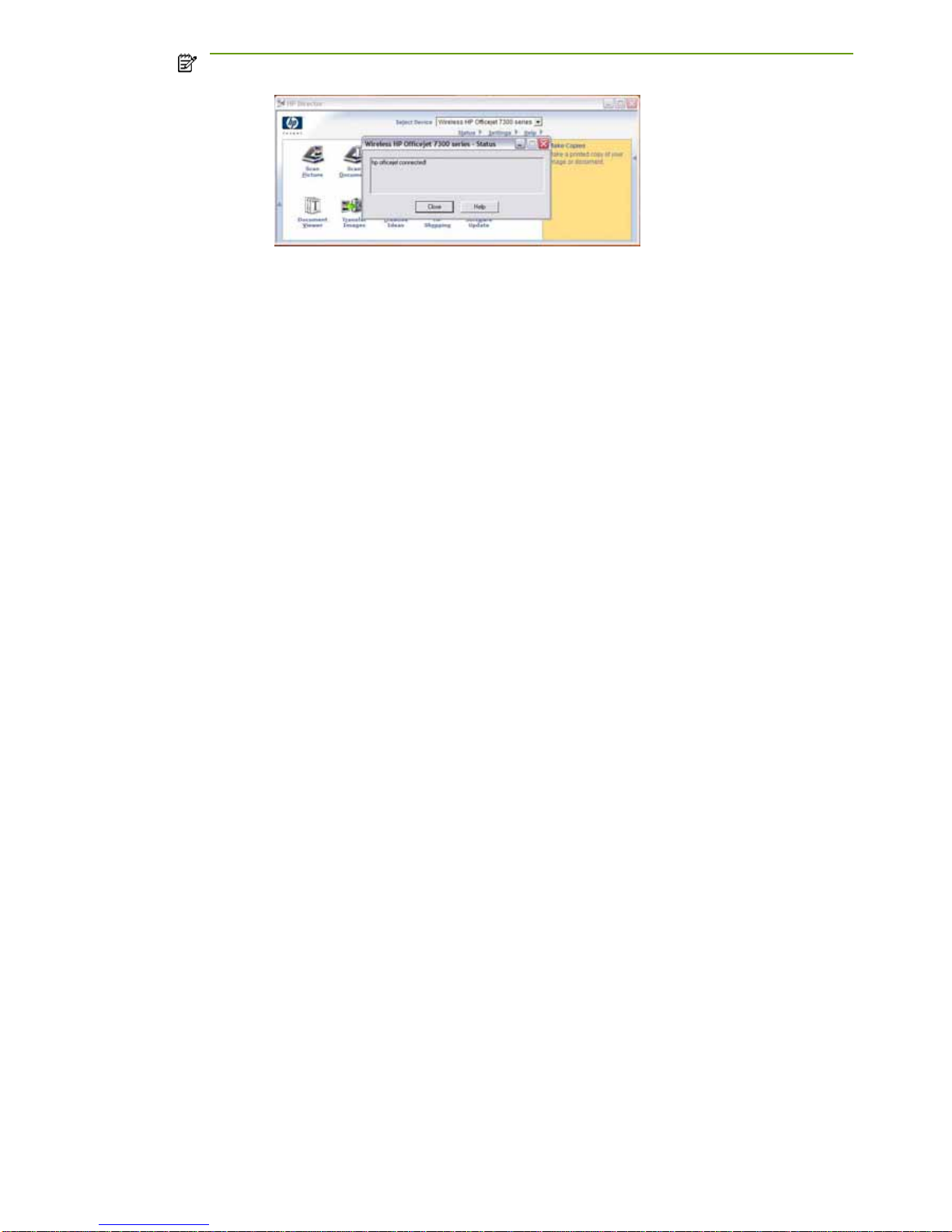

IMPORTANT: You can click the Status menu to check the connection of the HP device. The status
should always be connected.

14 錯誤! 尚未定義樣式。
4 Advanced Application
4-1 Overview
You can also share your MFP with other computers over an existing network. The computer directly
connected to the Wireless Dongle has access to all of the MFP’s features. You can then use the
Access Point to link your Wireless Stations to your wired LAN. The Wireless stations and devices on the
wired LAN are then on the same network. The other computers, which on the same network can use
all the features of MFP as well.
Advanced application will help you to establish multi-solutions shared by users in your wired LAN.
NOTE: You still need to connect the Wireless Dongle with your PC to take advantage of the
advanced configuration.
Figure
4-2 Advanced Configuration
Step 1. Select Start – Programs – Wireless Printer Adapter
Step 2. Click Advanced Setup
Figure
Step 3. On the screen shown above, select Yes or No as required.

錯誤! 尚未定義樣式。 15
Step 4. Select the desired Access Point.
Figure

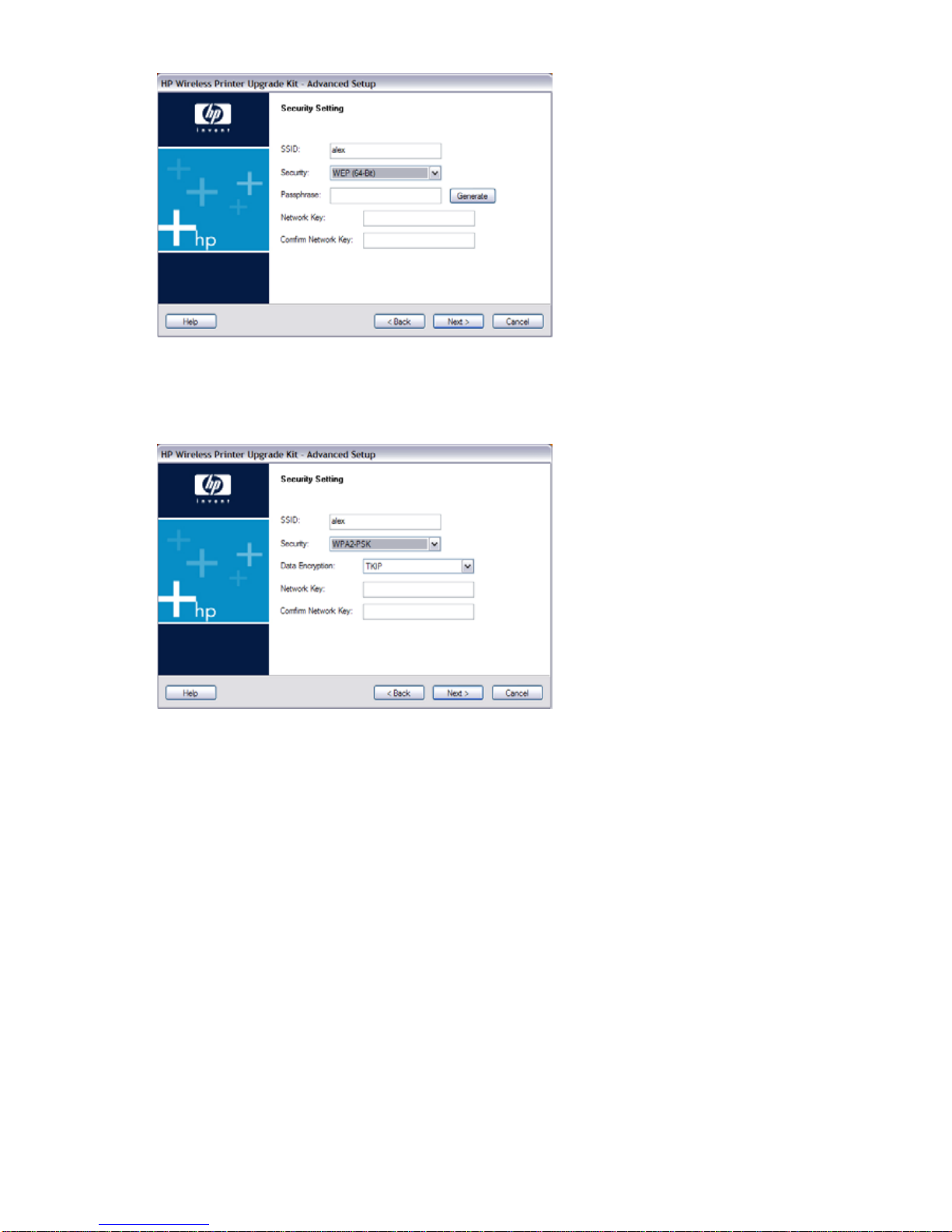

Step 5. Click Next to move to the Security Setting screen.
Figure
• SSID - All Wireless stations MUST use the same SSID/ESSID to communicate with one another.
• Security – There are 5 options for Wireless security:
• Disabled - no data encryption is used.
• WEP (64 – Bit) - data is encrypted using the Wired Equivalent Privacy (WEP) 64-bit (weak
security) standard.
• WEP (128 – Bit) - data is encrypted using the WEP 128-bit (a little better security) standard.
• WPA-PSK - data is encrypted using the Wi-Fi Protected Access with Preshared Key standard.
Introduced in 2003, WPA is wireless security with far greater protection than WEP. WPA-PSK
offers two encryption methods, TKIP and AES, with dynamic encryption keys.
• WPA2-PSK – WPA2 is a stronger version of WPA.
Advanced Application

16 錯誤! 尚未定義樣式。
Figure
• Passphrase – Enter a Passphrase, also called a pre-shared key, of 8 to 63 characters. The longer
and more complex your Passphrase, the more secure your network will be.
• Network Key – Enter the Network key in this field.
• Confirm Network Key – Re-enter the Network key here.
Figure
• Data Encryption – Select the desired option. Other Wireless Stations must use the same method.
• Network Key – Enter the Network key in this field.
• Confirm Network Key – Re-enter the Network key here.

錯誤! 尚未定義樣式。 17

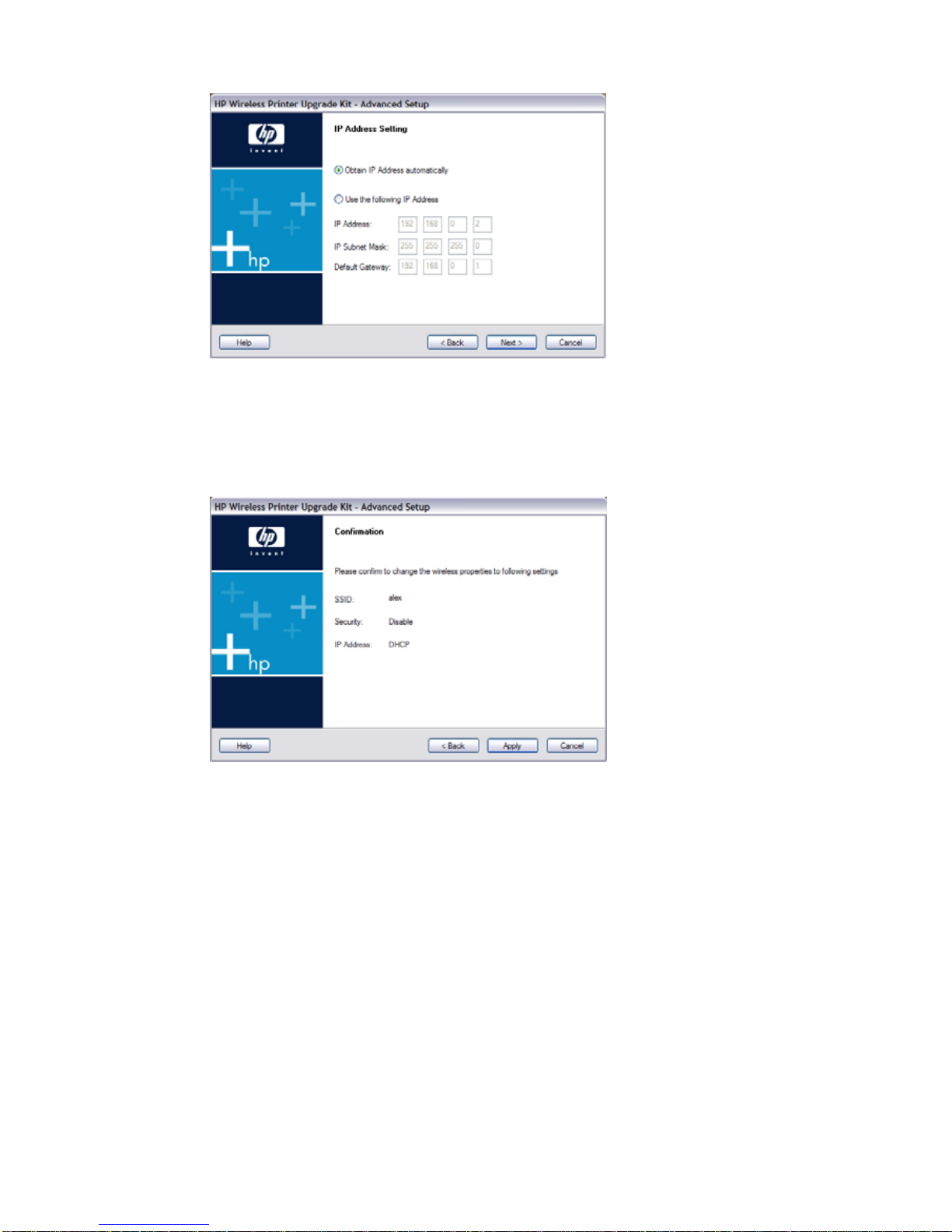

Step 6. The IP Address Setting screen will be displayed.
Figure
• Select Obtain IP Address automatically if your LAN has a DHCP Server, otherwise select Use
following IP address.
• If you click Use the following IP address, enter an unused address from the address pools used in
your LAN.
Use the same IP Subnet Mask and Default Gateway in your LAN.
Step 7. The Confirmation screen will appear. After reviewing the settings, click Apply to save them.
Figure

18 錯誤! 尚未定義樣式。

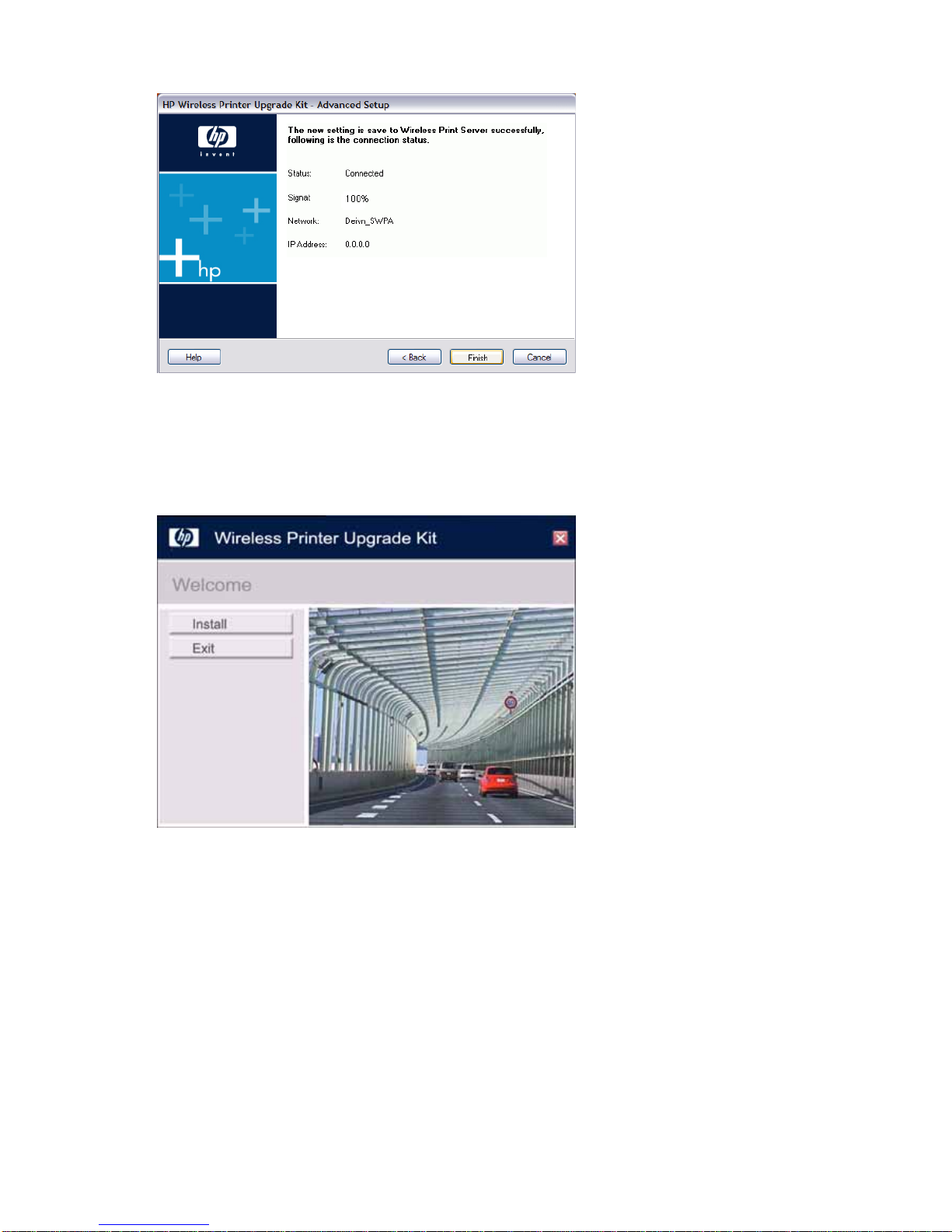

Step 8. The following Successful screen is displayed next.
Figure
Step 9. Click Finish to exit the Wizard.
4-3 User Installation
Step 1. Insert the Setup Wizard CD-ROM into your CD-ROM drive.
Figure
Step 2. Click Install to install the necessary drivers.
