Preface
This guide describes how to configure and troubleshoot your HP
VISUALIZE fx2+, fx4+ and fx6+Graphics Cards, herein referred to
generically as fx+.
Additional Information and Help
For more information on your graphics card and the accessories available
with this product, you can visit the following page on HP’s web site:
•HPVISUALIZE Personal Workstation product specifications, latest
drivers, FAQs, and support information:
http://www.hp.com/visualize/support
Electrostatic Discharge (ESD) Precautions
Electrostatic charges can damage the integrated circuits on printed
circuit boards. To prevent such damage from occurring, observe the
following precautions during board unpacking and installation:
• Stand on a static-free mat.
• Wear a static strap to ensure that any accumulated electrostatic
charge is discharged from your body to ground.
• Create a common ground for the equipment you are working on by
connecting the static-free mat, static strap, routing nodes, and
peripheral units to that piece of equipment.
• Keep uninstalled printed circuit boards in their protective antistatic
bags.
• Handle printed circuit boards by their edges, once you have removed
them from their protective antistatic bags.

6
Important Safety Information
WARNING If you have any doubt that you can lift the HP VISUALIZE Personal
Workstation or display safely, do not try to move it without help.
For your safety, always connect the equipment to a grounded
wall outlet. Always use a power cord with a properly grounded
plug, such as the one provided with this equipment, or one in
compliance with you national regulations. This HP VISUALIZE
Personal Workstation is disconnected from the power by
removing the power cord from the power outlet. This means the
Personal Workstation must be located close to a power outlet
that is easily accessible.
For your safety, never remove the HP VISUALIZE Personal
Workstation’s cover without first removing the power cord from
the power outlet, and any connection to the telecommunications
network. Always replace the cover on the Personal Workstation
before switching it on.
To avoid electric shocks, do not open the power supply. There
are no user-serviceable parts inside.
This HP VISUALIZE Personal Workstation is a class 1 laser
product. Do not attempt to make any adjustment to the laser
units.
Before handling the HP VISUALIZE fx Graphics Card, first wait
until the board has cooled down completely. The graphics card
can become very hot during use.

7
Installation Notice
Products designated in the applicable Hewlett-Packard price list as
customer-installable can be installed by computer-knowledgeable
customers who carefully read and follow the instructions provided.
Customers who elect to have the product installed by our field personnel
are charged the applicable field installation charge, as covered under the
standard terms and conditions. For more information, please contact
your local sales representative.
Revision History
The revision history for each edition of the manual is listed below:
Edition Revision History
E0600 Second Printing

8

9
1HPVISUALIZE fx2+, fx4+, fx6+
Graphics Cards and Texture
Module

10 Chapter1
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Introduction
Introduction
This section contains brief overviews of the HP VISUALIZE fx+ Graphics
Card and the HP VISUALIZE fx+ Texture Module. This section then
provides important safety instructions that you should follow when
handling the HP VISUALIZE fx+ Card and Texture Module.
The HP VISUALIZE fx+ Graphics Card
The HP VISUALIZE fx+ Graphics Card is a high-end OpenGL graphics
card that features the latest high-performance 3D graphics technology.

Chapter 1 11
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Introduction
The OpenGL graphics card accelerates your 3D graphics design and
visualization and improves the quality of your graphics.
The HP VISUALIZE fx+ graphics subsystem occupies two accessory slots
in your Personal Workstation (one PCI and one AGP Pro). It brings you:
• A world-class geometry engine, using dedicated floating-point
processors based on PA-RISC technology
• 18MB SGRAM video memory
• Full OpenGL 1.1 hardware features and extensions support
• HP Color Recovery dithering
• Acceleration of the HP OpenGL occlusion culling extension.
• Stereo vision support
• Optional hardware texture accelerator module with 16MB SDRAM of
dedicated texture memory.

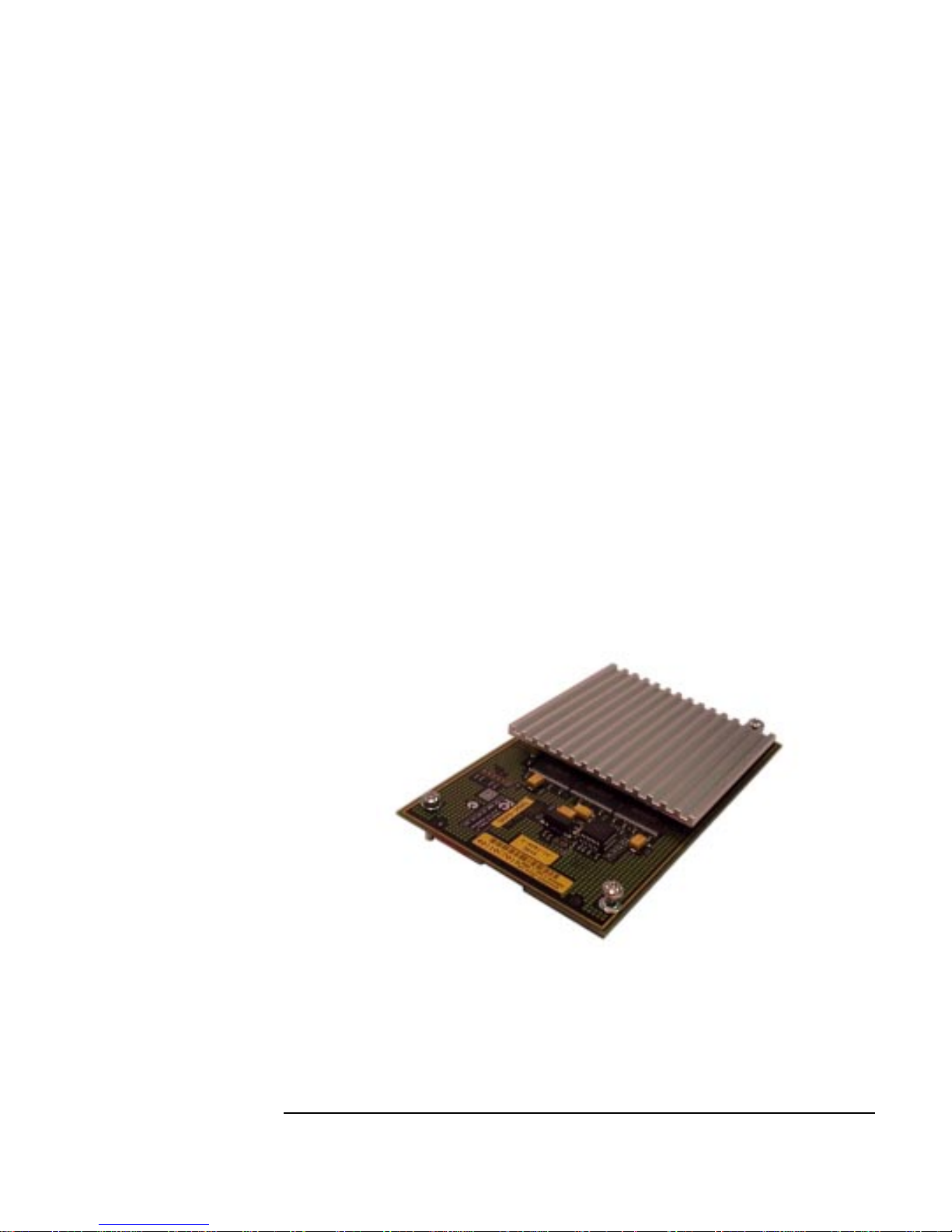

The HP VISUALIZE fx+ Texture Module
The HP VISUALIZE fx+ Texture Module is an add-on accessory for the HP
VISUALIZE fx+ Graphics card.

12 Chapter1
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Introduction
The HP VISUALIZE fx+ Texture Module provides:
• Accelerated hardware texture mapping
• 16MB dedicated SDRAM (Synchronous DRAM) memory for textures.
• Accelerated hardware accumulation buffer support.
Important Safety Instructions
CAUTION Static electricity can damage electronic components. Therefore, anytime
you handle an accessory such as the HP VISUALIZE fx+ graphics card or
Texture Module, you should use an electrostatic strap if you have one.
You should turn all equipment OFF. Do not let your clothes touch the
accessory. To equalize the static electricity, rest the antistatic bag on top
of the Personal Workstation while you are removing the accessory from
it. You should also handle the accessory as little as possible and with
care.
WARNING For your safety, never remove the Personal Workstation’s cover
panels without first removing the power cord from the power
outlet and any connection to a telecommunications network.
Always replace the cover panels on the Personal Workstation
before switching it on again.
Before handling the HP VISUALIZE fx+ Graphics card, first wait
until the card has cooled down completely before touching it.
The card can become very hot during use.

Chapter 1 13
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Installing the HP Visualize fx+ Graphics Card
Installing the HP VISUALIZE fx+ Graphics Card
This section contains the following subsections:
• Removing the Left-Side Panel
• Installing the HP VISUALIZE fx+ Graphics Card
• Replacing the Left-Side Panel
• Updating the HP VISUALIZE fx+ Driver
• Configuring the HP VISUALIZE fx+ Driver
• Troubleshooting

14 Chapter1
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Installing the HP Visualize fx+ Graphics Card
Removing the Left-Side Panel
The procedure in this section explains how to remove the left-side panel
of your Personal Workstation (use the Personal Workstation’s front panel
as the reference).
Front Panel
Left-Side Panel

Chapter 1 15
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Installing the HP Visualize fx+ Graphics Card
1. Remove the left-side panel’s two thumb screws, found at the back of
the unit. See Figure 1-1.
Figure 1-1 Removing the Left-Side Panel Thumb Screws
Thumb Screws

16 Chapter1
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Installing the HP Visualize fx+ Graphics Card
2. Slide the left-side panel toward the rear of the Personal Workstation
approximately 0.5 inches as shown in Figure 1-2.
Figure 1-2 Sliding the Left-Side Panel to the Rear of the Personal
Workstation

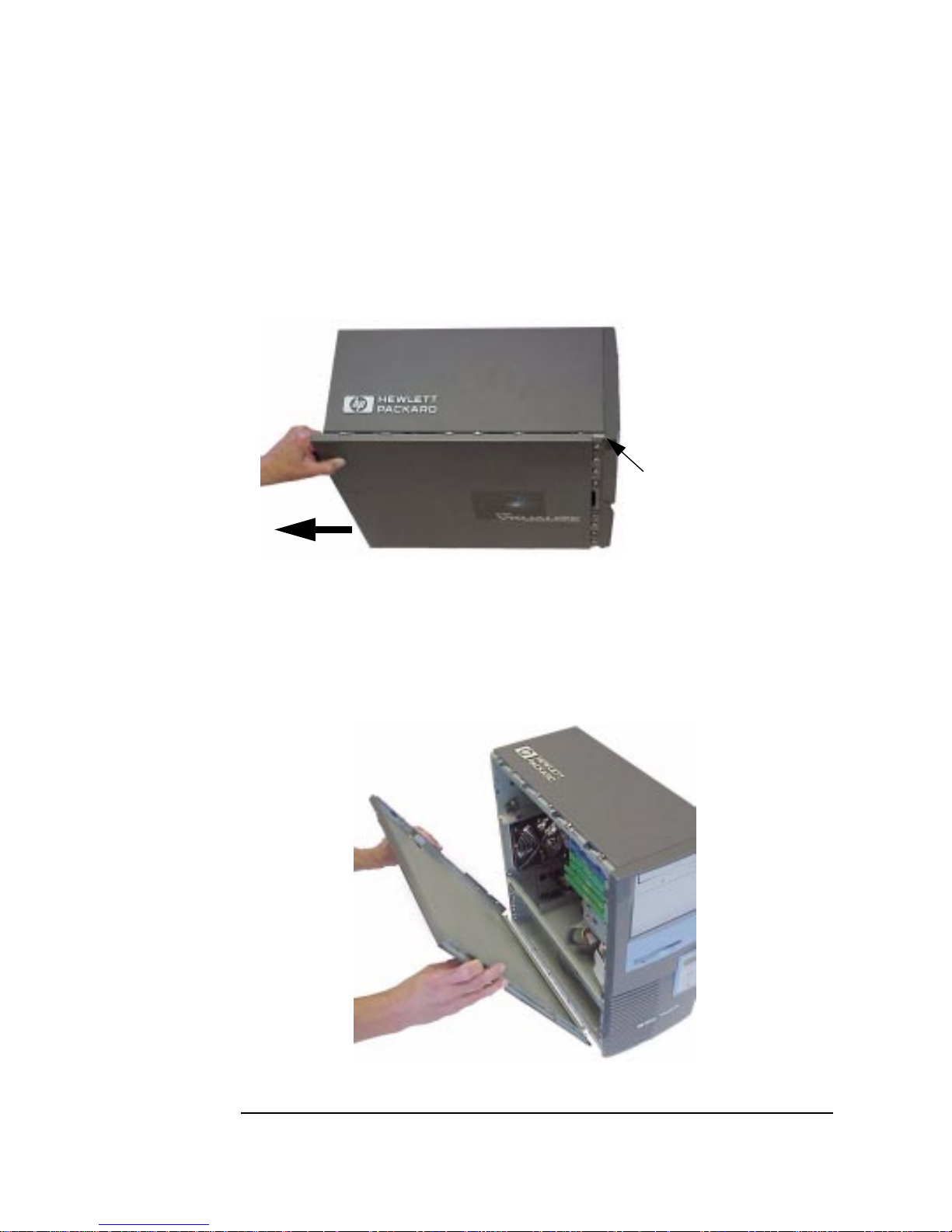

3. Remove the left-side panel by grasping the rear part of the panel as
shown in Figure 1-3 and pulling the panel outward. Next, lift the
panel up and away from the Personal Workstation, and place it where
its exterior surface cannot be damaged.
Figure 1-3 Removing the Left-Side Panel
This gap is approximately
0.5 inches.

Chapter 1 17
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Installing the HP Visualize fx+ Graphics Card
Installing the HP VISUALIZE fx+ Card
1. If your system already has a HP VISUALIZE fx+ card occupying the
AGP Pro and PCI accessory slots, please proceed to the section
“Removing the HP VISUALIZE fx+ Graphics Card.” If another vendor’s
card is occupying these slots, please follow this vendor’s directions for
removing the card before proceeding.
2. Ensure that all power cords and telecommunications cables are
disconnected.
3. Ensure that all cables are correctly routed and flat against the system
so that they do not obstruct the HP VISUALIZE fx+ Graphics card.

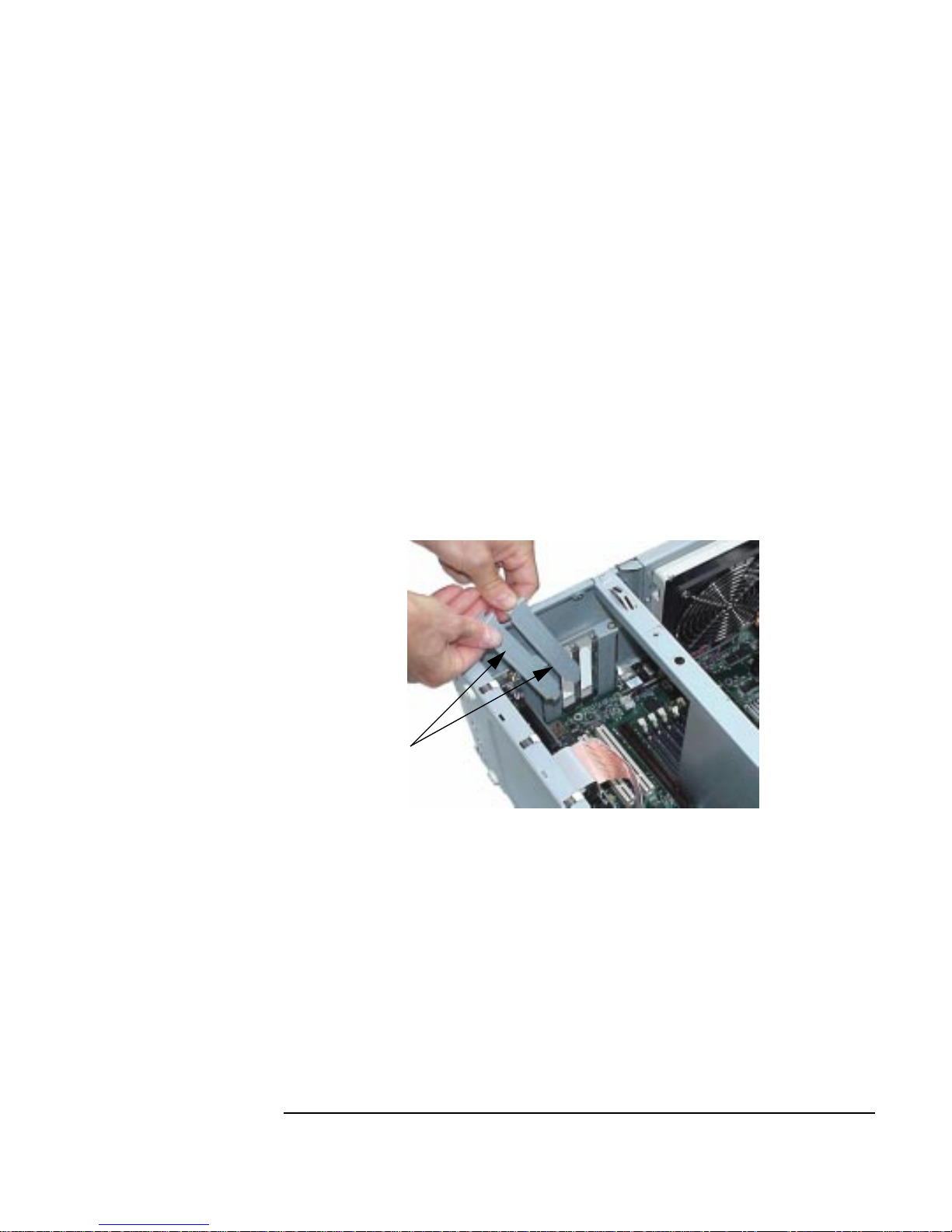

Since the HP VISUALIZE fx+ Graphics Card occupies two accessory
slots (one AGP Pro and one PCI), it may be necessary to remove two
bulkhead blanks, using a Torxscrewdriver.
4. Place the Personal Workstation on its side.
Bulkhead Blanks

18 Chapter1
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Installing the HP Visualize fx+ Graphics Card
5. Hold the card with both hands, aligning the bulkhead edge of the card
with the empty bulkhead slot, and the right edge of the card with the
guide located to the right, on the plastic speaker and fan mount. Use
the slot as a guide to carefully slide the card down toward the AGP
Pro and PCI connectors on the system board.
6. Align the card’s AGP contact fingers and PCI contact fingers with
their appropriate system board connectors and push the card firmly
into position.

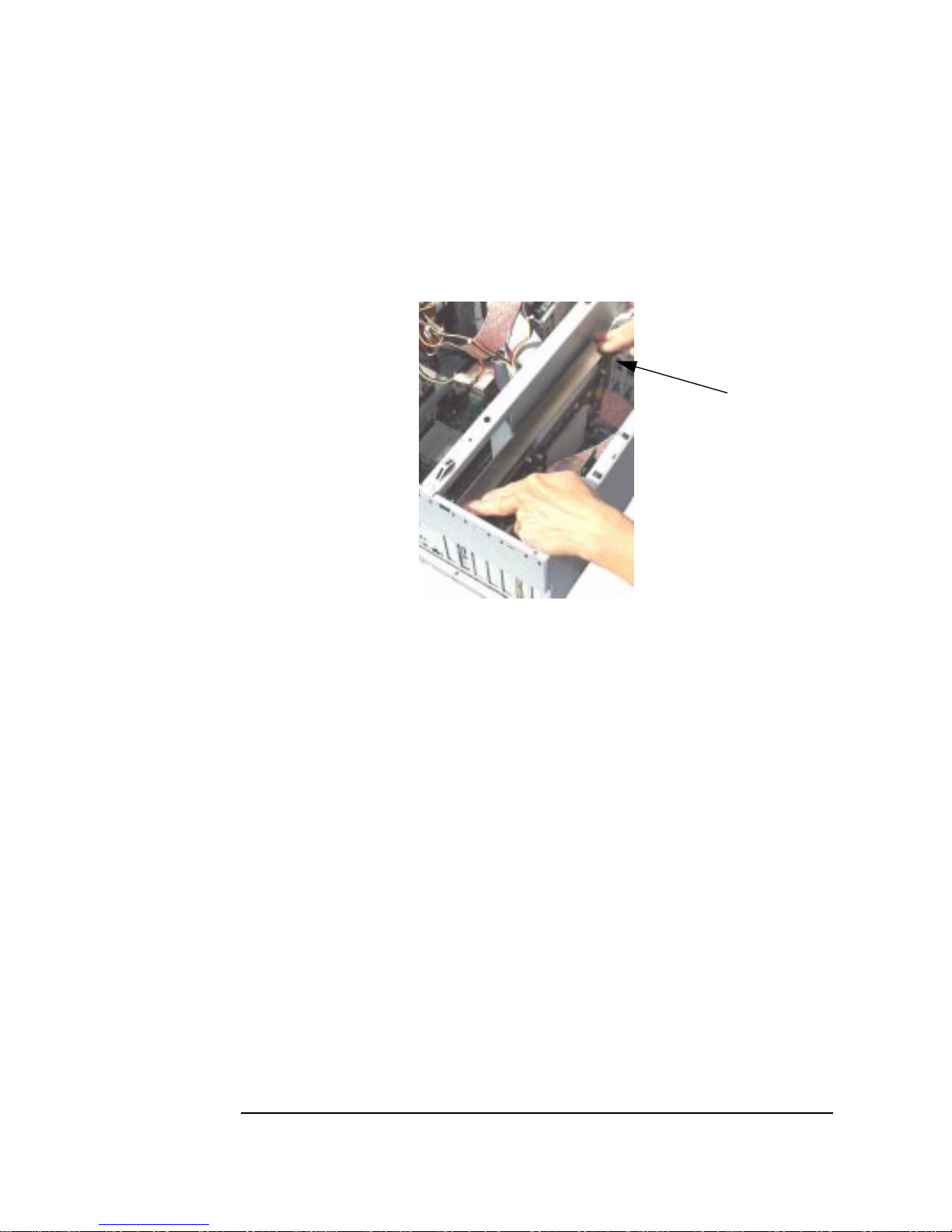

Guide on
Fan Mount

Chapter 1 19
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Installing the HP Visualize fx+ Graphics Card
7. Verify that the card’s contact fingers are fully seated in their
connectors before securing them with the three screws: two accessory
slot screws and one retaining screw. The retaining screw you need to
secure is located on the plastic speaker and fan mount as shown
below.

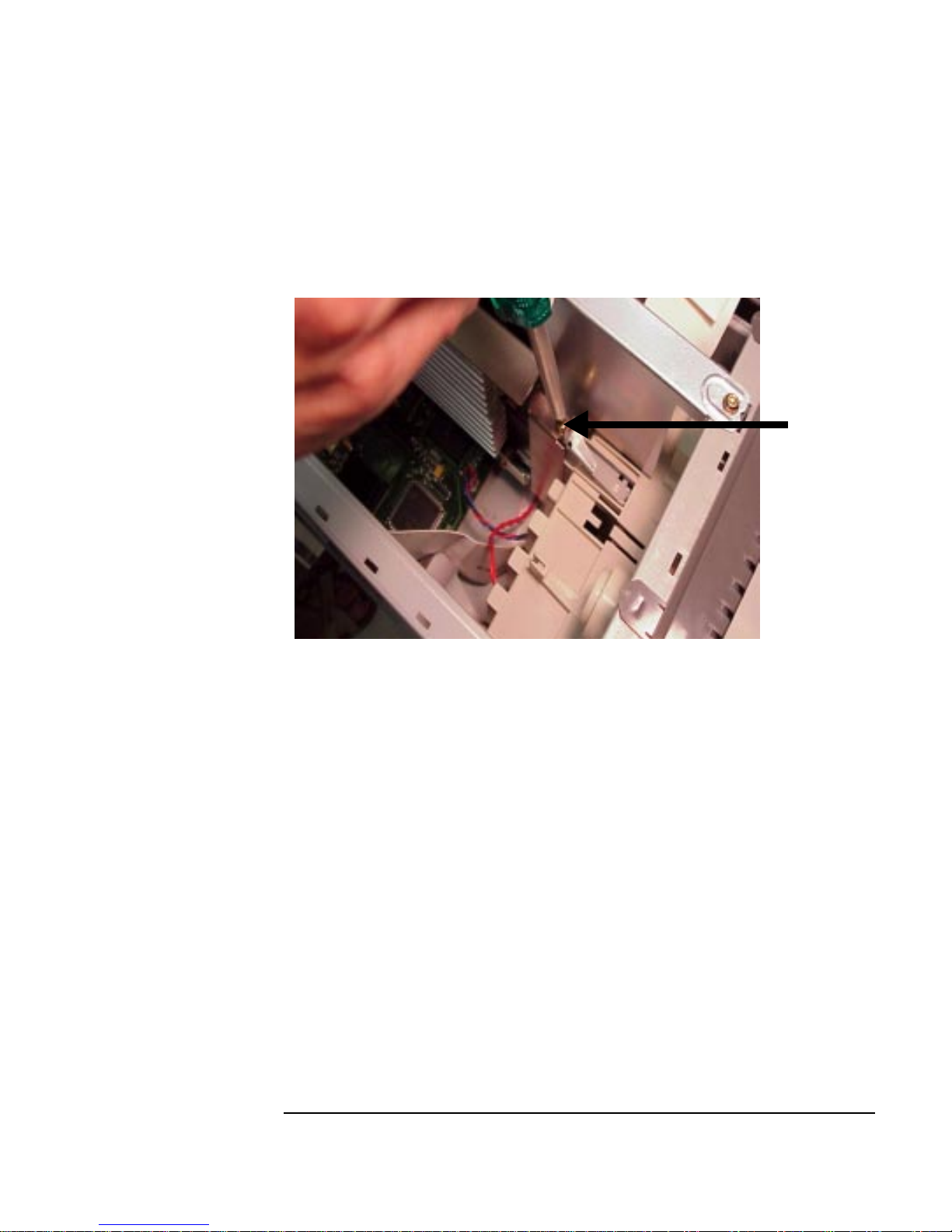

RRRetaining
Screw

20 Chapter1
HP Visualize fx2+, fx4+, fx6+ Graphics Cards and Texture Module
Installing the HP Visualize fx+ Graphics Card

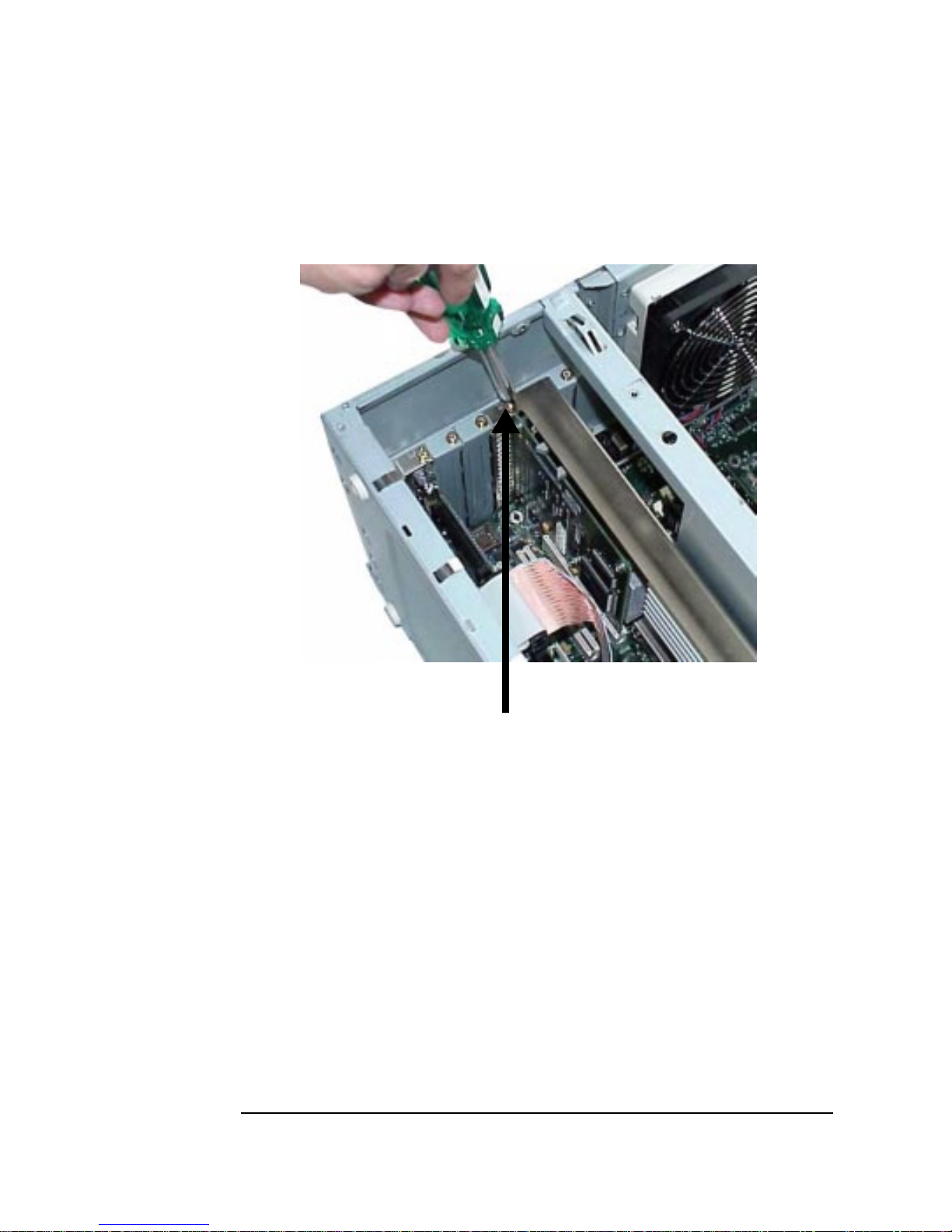

The accessory slot screws which must be secured are located on the
bulkhead side of the chassis as shown below.
Accessory Slot Screw
