hpmont HD09-2S0P2G User manual

V1.1 2017.07
HD09 Series
Smart Inverter
User Manual
Single-phase 220 - 240V, 0.25 - 2.2kW
Three-phase 380 - 460V, 0.4 - 5.5kW

FOREWORD
Thank you for purchasing HD09 series smart inverter manufactured by Shenzhen
Hpmont Technology Co., Ltd.
This User Manual describes how to use HD09 series inverters and their installation
wiring, parameter setting, troubleshooting and daily maintenance etc.
Before using the product, please read through this User Manual carefully. In addition,
please do not use this product until you have fully understood safety precautions.
Note:
Preserve this Manual for future use.
If you need the User Manual due to damage, loss or other reasons, please contact
the regional distributor of our company or directly contact our company Technical
Service Center.
If you still have some problems during use, please contact our company Technical
Service Center.
Due to product upgrade or specification change, and for the purpose of
improving convenience and accuracy of this manual, this manual’s contents may
be modified.
Telephone: [phone] or 189 4871 3800

Version and Revision Records
Version information: At the bottom right corner of the front cover.
Time: 2017/07
Version: V1.1
Revised chapter Revised contents
Chapter 4
Chapter 5
• AI termials can be selected as DI input, see clause 4.2
• Modify input and output routh, see clause 5.1.1
• Add selection of power terminals wiring lugs, see clasue 5.1.2
Chapter 8 • Add F00.17 (Running direction), F00.19 (Dead time from positive rotation to oppositve
rotation), F00.20 (External keypad), F00.21 – F00.25 (Sleep function)
• Add parameter copy function: F01.02 add function 2/3, add parameter F00.13
• Add F03.03 – F03.16 (Ace. and Dec. parameter)
• Modify F04.16 (Integral regulation selection) default value: [0]
• Modify F06.01 - F06.06 (Multi-frequency) default value: [5.0Hz]
• Add F08.04 (Rated Rpm of motor)
• Add F09.09 – F09.12 (Motor compensation function), F09.14 (Auto-voltage adjustment
function). Modify defination of F09.15: Oscillation-suppression mode
• Add F15.44 (AI as function of DI). DI function (F15.00 – F15.03, F15.44) add: 26/27 (Ace. and
Dec. time selection)
• Modify F17.03 (Host PC response time) default: [1ms], add F17.10 (Detecting time when
network communication over time)
• Add group F18 (Display control parameter)
• Add F19.12 – F19.15 (Instant power failure without stop), F17.37 (Frequency adjust range),
F17.39 (Input voltage)
• Add F20.00 (Over-load protection function)

CONTENTS
Chapter 1 Safety Information .................................................................................................................................. 1
Chapter 2 Product Information ............................................................................................................................... 3
2.1 Nameplate................................................................................................................................................................. 3
2.2 Rated Value............................................................................................................................................................... 4
Chapter 3 Machenical Installation ..........................................................................................................................5
3.1 Dimension and Weight......................................................................................................................................... 5
3.2 Requirement for the Installation Site .............................................................................................................. 6
3.3 Installation of Exterior Keypad........................................................................................................................... 7
Chapter 4 Electrical Installation .............................................................................................................................. 9
4.1 Power Terminals and Connection...................................................................................................................10
4.2 Control Terminals and Connection.................................................................................................................11
4.3 External Keypad or Upper Computer ............................................................................................................14
Chapter 5 Technical Data .......................................................................................................................................15
5.1 Peripheral Accessories Selection.....................................................................................................................15
5.2 Braking Resistor.....................................................................................................................................................16
5.3 Technical Data........................................................................................................................................................17
Chapter 6 Keypad ....................................................................................................................................................19
Chapter 7 Troubleshooting....................................................................................................................................21
Chapter 8 Parameter ...............................................................................................................................................25

Shenzhen Hpmont Technology Co., Ltd. Chapter 1 Safety Information
HD09 Series User Manual V1.1 －1－
Chapter 1 Safety Information
Safety Definition
Pay attention to contents with following marks in the user manual or on the product.
Danger: A Danger contains information which is critical for avoiding safety hazard.
Warning: A Warning contains information which is essential for avoiding a risk of damage to products or other
equipements..
Note: A Note contains information which helps to ensure correct operation of the product.
Professional Staff
Only qualified electrical engineer can perform electrical installation.
Only professional staff that received special training and authorized can carry out maintenances.
Danger
W
arning
Note

Shenzhen Hpmont Technology Co., Ltd. Chapter 2 Product Information
HD09 Series User Manual V1.1 －3－
Chapter 2 Product Information
2.1 Nameplate
Nameplate Label
Name plate label is pasted on right side of the product. Its contents are shown in the following figure.
Power Label
Power label is below the keypad for recognizing the products easily and quickly.
Power label includes motor power and supply voltage. See 2.2 Rated Value, page 4.
Its contents are shown in the following figure.
MODEL: HD09-4T0P7G
0.75kW
POWER:
3PH 380-460V 3.4A 50/60Hz
INPUT:
1.5kVA 0-460V 2.3A 0-1000Hz
OUTPUT:
1.00Version:
Product model
Motor power
Input specification
Output specification
Software version
Serial number
HD09-4T0P7G
Power Label
HD09-2S0P7G
Power Label
Power Label
Motor power
Power voltage

Chapter 2 Product Information Shenzhen Hpmont Technology Co., Ltd.
－4－HD09 Series User Manual V1.1
2.2 Rated Value
Single-phase: 200 - 240V, 50/60Hz
Size Model Motor power
(kW)
Rated input
current (A)
Rated volume
(kVA)
Rated output
current (A)
Size A HD09-2S0P2G 0.25 4.3 0.6 1.7
Size A HD09-2S0P4G 0.4 5.8 1.0 2.5
Size A HD09-2S0P7G 0.75 10.5 1.5 4.0
Size A HD09-2S1P5G 1.5 18.5 2.8 7.5
Size A HD09-2S2P2G 2.2 24.1 3.8 10.0
Three-phase: 380 - 460V, 50/60Hz
Size Model Motor power
(kW)
Rated input
current (A)
Rated volume
(kVA)
Rated output
current (A)
Size A HD09-4T0P4G 0.4 1.8 1.0 1.4
Size A HD09-4T0P7G 0.75 3.4 1.5 2.3
Size A HD09-4T1P5G 1.5 5.2 2.5 3.8
Size A HD09-4T2P2G 2.2 7.3 3.4 5.1
Size B HD09-4T4P0G 4.0 11.9 5.9 9.0
Size B HD09-4T5P5G 5.5 15.0 8.5 13.0

Shenzhen Hpmont Technology Co., Ltd. Chapter 3 Machenical Installation
HD09 Series User Manual V1.1 －5－
Chapter 3 Machenical Installation
• After opening the package, if damage or incompleteness is found, please do not install it and
contact our distributor or us for solutions.
• When conveying the inverter, please employ suitable tools according to its weight. Please avoid
scratch to the product. Be careful: rollover and drop may cause hurt.
• Avoid scaps of the drill slip into the inverter during installation.
• For inverter with more than 2 year’s storage, please use regulator to power it slowly.

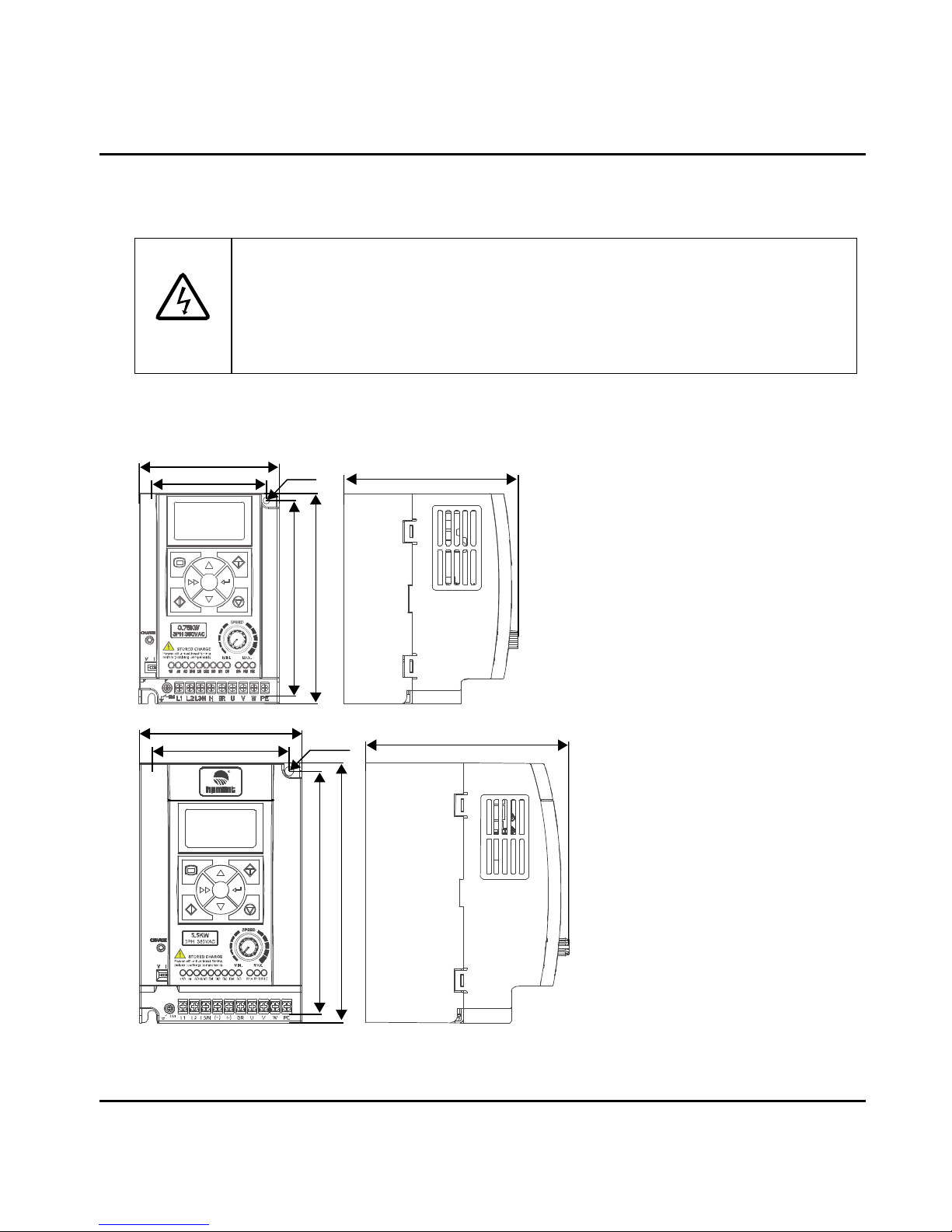

3.1 Dimension and Weight
Size A:
Dimension: 100×150×125 mm
Mounting dimension: 82×140 mm
Mounting aperture: 5 mm
G.W.: 1.5 kg
Size B:
Dimension: 116×185×145 mm
Mounting dimension: 98×174 mm
Mounting aperture: 6.5 mm
G.W.: 2.7 kg
Danger
82
1
0
0
2-Ø5
140
150
125
98
11
6
2-Ø6.5
174
185
145

Chapter 3 Machenical Installation Shenzhen Hpmont Technology Co., Ltd.
－6－HD09 Series User Manual V1.1
3.2 Requirement for the Installation Site
Ensure the installation site meets the following
requirements:
• Do not install at the direct sunlight, moisture,
water droplet location;
• Do not install at the flammability, explosive,
corrosive gas and liquid locations;
• Do not install at the oily dust, fiber and metal
powder location;
• Be vertical installation on fire-retardant material
with a strong support;
• Install at where the humidity is less than 95%RH
and non-condensing location;
• Install at where the vibration is 3.5m/s2in 2 - 9Hz, 10m/s2in 9 - 200Hz (IEC60721-3-3);
• This inverter meets IP20, and Pollution Degree level 2 (Dry, Non conducting dust pollution);

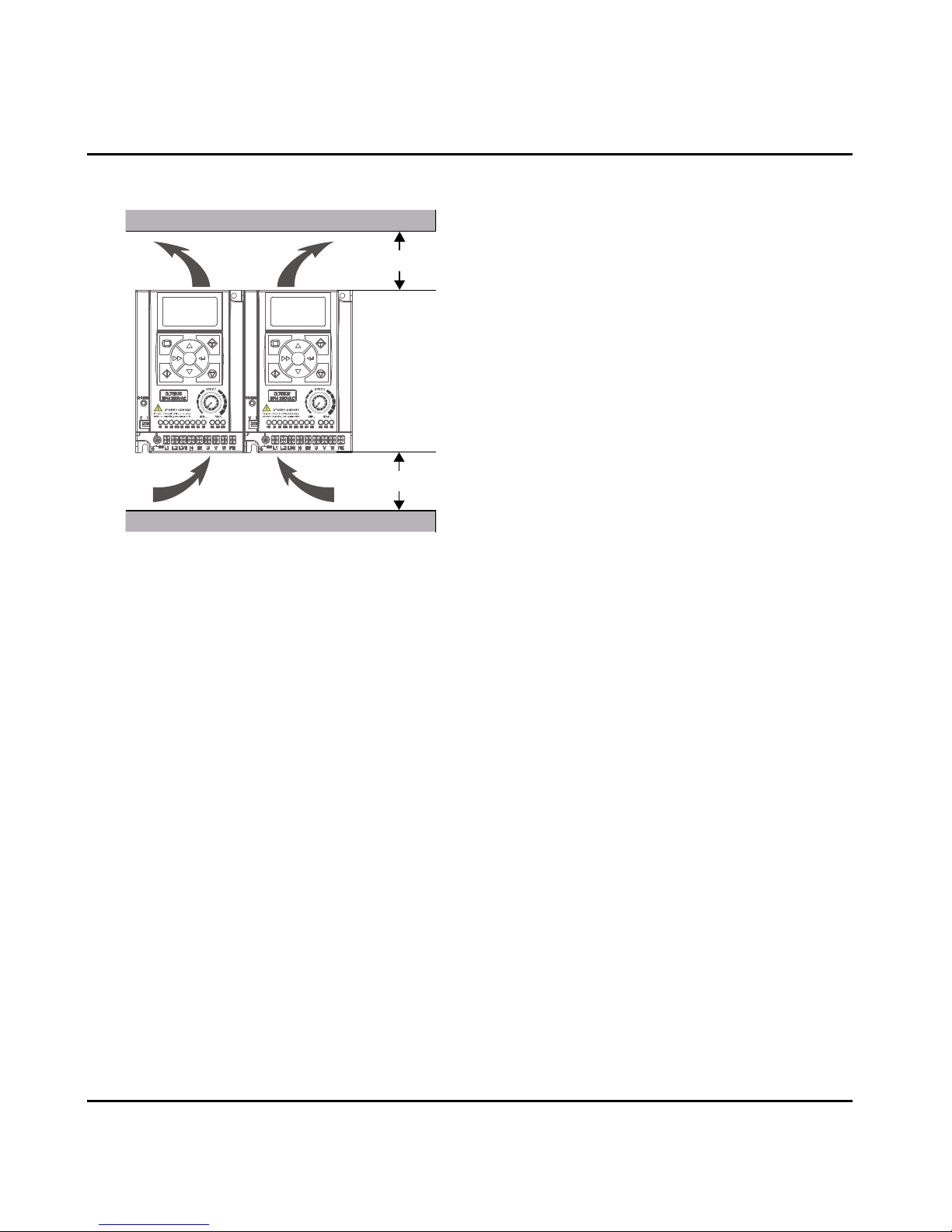

• Make sure adequate cooling space for the inverter so as to keep the ambient temperature between
-10 - 40℃, as shown in the figure at the left;
It needs derating use if the inverter operation temperature exceeds 40℃. The derating value of the
output current of the inverter shall be 2% for each degree centigrade, Max. allowed temperature is
50℃.
≥100 mm
≥100 mm

Shenzhen Hpmont Technology Co., Ltd. Chapter 3 Machenical Installation
HD09 Series User Manual V1.1 －7－
3.3 Installation of Exterior Keypad
HD09 allows installing the optional keypad on the keypad of control door cabinet. The optional
keypads are HD-LED-P and HD-LED-S.
3.3.1 Installation of HD-LED-P
HD-LED-P needs a mounting base HD-KMB for installation. Firstly install the base on the keypad of
control door cabinet, and then install HD-LED-P inside the base.
The HD-KMB base and mounting aperture sizes are shown in the following figure (unit: mm).
3.3.2 Installation of HD-LED-P-S
There are 2 installation methods selectable for HD-LED-P-S: install with screws or a mounting base.
Packing contents: mounting base, keypad, 2 pieces of M3x5 screws, 1 meter extension cable.
Installatio
n
Door cabinet
76.5±0.2
134.5±0.2
142
86 44.8
1.8
Mountin
g
a
p
erture sizeHD-KMB size

Chapter 3 Machenical Installation Shenzhen Hpmont Technology Co., Ltd.
－8－HD09 Series User Manual V1.1
To Install with Screws
Install the HD-LED-P-S on the keypad of control door cabinet with screws.
Dimension and mounting aperture sizes are shown in the following figure (unit: mm).
To Install with a Mounting Base
Firstly install the mounting base HD-KMB-S on the keypad of control door cabinet, and then install
HD-LED-S inside the base.
The HD-KMB-S base and mounting aperture sizes are shown in the following figure (unit: mm).
HD-LED-P-S dimension Mountin
g
aperture size
10.7 20
61
2-Ø4
31
20 11.5
25.4
70
40 16.5
32.3
Installatio
n
Door cabinet
Door cabinet
90
74
Mounting aperture size
75.5±0.2
68.5±0.2
19
1.8
Installatio
n
HD-KMB-S size

Shenzhen Hpmont Technology Co., Ltd. Chapter 4 Electrical Installation
HD09 Series User Manual V1.1 －9－
Chapter 4 Electrical Installation
• Only qualified electrical engineer can perform wiring job.
• Only when the power supply switch is completely off can you do the wiring job.
• Check that the operation is effective and reliable after conneting to the emergency stop
terminal of external power supply.
• You must wrap the bare metal part of the power terminal with insulating tape.
• Do not touch the wire terminals of the inverter when it is live.
Ensure the power supply is completely off
Only when the power supply switch is completely off can you do the wiring job.
Steps:
First, disconnect the power supply of the inverter.
Second, wait till the internal power supply indicator goes out (its position shown in the following
figure) or wait until 5 minutes later.
Danger
Power supply indicator

Chapter 4 Electrical Installation Shenzhen Hpmont Technology Co., Ltd.
－10－HD09 Series User Manual V1.1
4.1 Power Terminals and Connection
Power Terminal Description
Terminal Description
L1, L2, L3/N Three-phase AC power input
terminals
L1, L3/N One-phase AC power input
terminals
U, V, W Output terminals, connect to
AC motor
(+), BR Braking resistor connection
terminals
PE Ground terminal, connect to
the ground
123
Terminal Description
L1, L2, L3/N Three-phase AC power
input terminals
L1, L3/N One-phase AC power
input terminals
U, V, W Output terminals,
connect to AC motor
(+), BR Braking resistor
connection terminals
(+), (-) DC supply input
terminals
PE Ground terminal,
connect to the ground
L1
Size A:
L2 L3/N
(+)BR
UVW
PE
L1 L2 L3/N
PE
WVU
BR(+) (-)
Size B:

Shenzhen Hpmont Technology Co., Ltd. Chapter 4 Electrical Installation
HD09 Series User Manual V1.1 －11－
Power Terminal Connection
Power Terminal Wiring is as shown in following figure.
For selection of contactor, MCBB, power supply cable, motor cable, ground cable and braking resistor,
please refer to section 5.1.1 Wiring Specifications of Input and Output, page 15.
4.2 Control Terminals and Connection
Control Terminals Description
Terminal Description
+10 External power Max. output current100mA
AI
Analogue input
The DIP switch decides the voltage input or current input
• Voltage 0 - 10V, impedance 32kΩ (Factory setting)
• Current 0 - 20mA, impedance 500Ω
Digital input (DI
function)
When AI is used as DI, switch signals above 6V can be received
• Function F15.44 is the same with DI1 - DI3 (F15.00 - F15.02)
AO Analogue output Voltage 0 - 10V
GND Power ground Analogue and digital site, 0V
DI1, DI2, DI3 Digital input Effective with GND short circuit
L1 L2 L3/N (+) BR UVW
Braking resistor*
HD09
MCCB
Contactor
Supply
ground
3～
(-) PE
M
3～
*Braking resisto is
optional three-phase
model type exclusively
+10 AI AOGND
DI1 DI2 DI3 DI4 DO R1A R1B R1C
VI
1
ON
DIP Switch
VI
1
ON

Chapter 4 Electrical Installation Shenzhen Hpmont Technology Co., Ltd.
－12－HD09 Series User Manual V1.1
Terminal Description
DI4 Digital input
Effective with GND short circuit
or
High frequency input (F15.03 set as No. 53 function)
• Max. frequency 50.0kHz (F16.17 setting)
DO Digital output
Open collector output
• External voltage 10 - 30VDC, max. current 50mA
or
High frequency input (F15.19 set as No. 38 function)
• Max. frequency 50.0kHz (F16.26 setting)
R1A, R1B, R1C Relay output
• Contact rating: 250VAC / 3A or 30VDC / 1A
• R1B, R1C: normally closed; R1A, R1C: normally open
Note:
Limit the current within 3A if the relay terminal is to connect to AC 220V voltage signal.
Control Terminals Connection
The following figure shows wire connection of control terminal (factory setting).
+10
AI
Reference frquency: refer to F16.19
Frequency setting sources : refer to F16.01
REV function: refer to F15.00
REV function: refer to F15.01
External power: +10V, Max. output current100mA
Power ground:0V, analogue and digital site
Unused
Inverter is running: refer to F15.19
Relay output
Inverter fault: refer to F15.20
AO
GND
DI1
DI2
DI3
DI4
DO
R1A
R1B
R1C
V
Unused

Shenzhen Hpmont Technology Co., Ltd. Chapter 4 Electrical Installation
HD09 Series User Manual V1.1 －13－
Analogue Input Connection
Digital Input Connection
Digital Output Connection
+10
HD09
AI GND
VI
1
ON
AI
HD09
GND
VI
1
ON
DI1 DI2 DI3 DI4 GND
HD09 HD09
DI1 DI2 DI3 DI4 GND
Externalcontroller
Dry contact
connection NPNconnection
10－30VDC 10kΩ
DO GND
+
-
HD09
+10 GND
DO
HD09
f
Relay coil Digital frequency
meter

Chapter 4 Electrical Installation Shenzhen Hpmont Technology Co., Ltd.
－14－HD09 Series User Manual V1.1
4.3 External Keypad or Upper Computer
The RJ45 terminal can connect the optional keypad or upper computer, as shown in the following
figure.
RJ45
Pin Definition
1, 3 +5V
2 485+
4, 5, 6 GND
7 485-
8 Unused
Keypad Can connect the optional keypad to realize keypad control
• Refer to Chapter 6 Keypad, page 19
Upper Computer Can connect the upper computer to realize communication control
• The upper computer includes PLC, touch screen, PC, etc.
Connection Cable
• 1m conncection cable [HD-CAB-1M]
• 2m conncection cable [HD-CAB-2M]
• 3m conncection cable [HD-CAB-3M]
• 6m conncection cable [HD-CAB-6M]
RJ45 Connection
cable
Keypad or
upper computer
RJ45
18

Shenzhen Hpmont Technology Co., Ltd. Chapter 5 Technical Data
HD09 Series User Manual V1.1 －15－
Chapter 5 Technical Data
5.1 Peripheral Accessories Selection
5.1.1 Wiring Specifications of Input and Output
The AC supply to the drive must be installed with suitable protection against overload and
short-circuits, i.e. MCCB (molded case circuit breaker) or equivalent device.
The recommended specification of MCCB, contactor & cables were shown as following tables.
The size of earth wire should not be smaller than the requirement in 4.3.5.4 of IEC61800-5-1.
Size Model MCCB
(A)
Contactor
(A)
Power Cable
(mm2)
Motor Cable
(mm2)
Ground Cable
(mm2)
Size A HD09-2S0P2G 16 10 0.5 0.2 2.5
Size A HD09-2S0P4G 16 10 0.75 0.5 2.5
Size A HD09-2S0P7G 16 10 2.5 0.5 2.5
Size A HD09-2S1P5G 20 16 6.0 1.5 6.0
Size A HD09-2S2P2G 32 20 6.0 2.5 6.0
Size A HD09-4T0P4G 10 10 0.5 0.2 2.5
Size A HD09-4T0P7G 10 10 0.5 0.5 2.5
Size A HD09-4T1P5G 16 10 1.0 0.5 2.5
Size A HD09-4T2P2G 16 10 1.5 0.75 2.5
Size B HD09-4T4P0G 25 16 2.5 2.5 2.5
Size B HD09-4T5P5G 32 25 4.0 4.0 4.0
Note:
1. Please select braking resistor based on the above table.
Bigger resistor can protect the braking system in fault condition, but oversized resistor may bring a
capacity decrease, lead to over voltage protection.
2. The braking resistor should be mounted in a ventilated metal housing to prevent inadevertent contact
during it works, for the temperature is high.
