Read this first
Thank you for buying the INFOBAR A02 (simply called the 'product' from
here on).
Before you start using the product, read the Exemptions and Safety
precautions in the Basic Manual to ensure you use it correctly and safely.
※Names of companies and products noted in this document are
trademarks or registered trademarks of their respective companies. The
® and TM symbols are not used in this document.
※The screen images in this document may be different from the actual
screen. Also note that some parts of the screen images may be omitted.
※This manual uses the abbreviation 'app' in place of 'application'.
Basic Operations Setup
■Basic operation of keys
Volume key
Adjust the volume of the paging
tone and the call volume.
Power key
Turns on the power.
Function key
Lists apps and data.
Home key
Returns to the iida Home.
Back key
Goes back to the previous screen.
Task key
Shows the recently used app.
Display (Touch panel)
Touch with your finger to operate.
Back key , Home key and Task key are operable only when
the touch panel is displayed.
■Turning on the power
《Unlock screen》
Hold down .
※After a while, the unlock
screen appears.
On the Unlock screen,
slide upward.
Description of functions
This "Setting Guide" describes the main basic operations
and initial setup. For more information on various functions,
refer to the "Basic Manual" or the "Instruction Manual"
(Japanese) app that can be used on the product.
■Basic touch panel operations
Tap/double tap
Lightly touch an item on the screen
with your finger and then release your
finger.
Tap the same position twice
consecutively is called a double tap.
Long touch
Keep touching an
item with your
finger.
Slide
While your finger
is gently touching
the screen, move
it in the desired
direction.
Flick
Operate the screen
by quickly moving
(flicking) your finger
up, down, right, or
left.
■Inputting characters
The software keyboard can be used when an app that requires
character or numeric input is started up, or when you touch a
character input area.
①
②
③
④
⑤
⑥
⑦
⑧
⑨ ⑩ ⑪
Input Mode
①When inputting characters, the characters assigned to a key
are displayed in reverse order.
②Moves the cursor left.
③Tap this key while inputting characters to perform
alphanumeric and Japanese Kana conversion. Tap this
key before inputting characters to display a pictograph,
symbol or emoticon list.
④Changes the input mode.
⑤Deletes the character to the left of the cursor.
⑥Moves the cursor right.
⑦Inputs spaces.
⑧ Inputs a carriage return and finalizes the characters being input.
⑨Toggles between upper-case and lower-case characters.
⑩Input characters.
⑪Inputs a ' , ', ' . ', symbol, or space.
This section explains the Setup (setup wizard) when you turn
on the power for the first time.
■Step 1: Setting the language
Select 日本語 (Japanese),
English (Japan) or English
(United States) ⇒次へ
(Next)
■Step 5: Setting Google Location
This displays a
confirmation screen.
Check the content and
proceed.
Under certain settings
the camera records
location information
along with photos.
Keep this in mind when
sharing photos with
others.
If you do not want
the camera to record
location information,
change the camera
settings.
Select whether to
use the Google's
location service
⇒
Next
Select whether to
sync data in the
product with data on
the Internet ⇒Next
■Step 4: Settings for other services
To use other services
shown on the screen,
tap the services and do
the settings.
Tap Next
■Step 3: Setting up a Google account
Set up Google account to use Google app such as Gmail and Play Store, etc.
Tap Google To create a new Google
account, tap New.
※If you already have a Google
account, tap Existing.
Input your name ⇒▶Input a mail address ⇒▶
※You cannot use a mail address
that is already being used by
another user.
Input your password ⇒▶
If the Authenticating
screen appears, enter
the characters that are
displayed on the screen,
and then tap ▶.
Input the question and answer to
use if you forget your password
and the reserve address
※
⇒ ▶
※If you have no other mail
address, remain as blank.
To not join Google+, tap Not
now
※To join Google+, tap Join
Google+.
Check the content ⇒▶Select whether to use your
Google account to back up
information ⇒▶
■Step 7: au Easy Setting
The settings to use the convenient au functions and services are easy to do.
Check the content ⇒Next Tap Registration Check the content ⇒OK Tap au IDの設定・保存 (Set/save au
ID)
Input your security number ⇒OK
※The initial value of a security number is a
four digit number chosen by the customer
and noted on the application form.
Input your password ⇒利用規約
に同意して新規登録 (Agree terms
of service and register)
※When you want to use any value other than
au phone number to create your ID, tap お
好きなau IDを新規登録したい方はこちら
(New registration of au ID).
About Quick Tips
When the initial setup are finished, a quick tip is displayed.
Quick tip is a brief explanation that is displayed over the screen when you use
a function for the first time.
Tap to display the iida Home.
About the setup wizard
Tap Setup on the iida Home to start the wizard and redo the initial settings.
Tap 終了 (End)
※To set the information needed to
reissue a password, tap 設定画面へ
(Go to setting screen).
Confirm the content. To backup
the contacts (address book), tap
Accept ⇒Next
※If you do not backup the contacts
(address book), tap Next.
Confirm the content. If you use
widgets, tap Accept ⇒Next
※If you do not use widgets, tap Next.
Confirm the content ⇒Finish
※Tap and select the 'Don't show again'
check box to stop the 'au Easy Setting'
from appearing every time you restart
the product.
■Setup of E-mail
Use of e-mail (@ezweb.ne.jp) requires an LTE NET subscription.
If you did not subscribe when you purchased your product, contact an au shop or Customer
Service Center.
The e-mail address is decided automatically when you do the initial settings. You can change
your E-mail address decided at the initial setup later.
On the iida Home, tap
E-mail
Check the content ⇒ 接続
する (Connect)
Check your E-mail
address ⇒ 閉じる (Close)
E-mail (@ezweb.ne.jp) settings
■Changing your e-mail address
You can change your e-mail address decided at the initial setup later. 《E-mail settings screen》
On the iida Home, tap E-mail Tap Tap E-mail settings Tap Other settings Check the content ⇒ 接続する
(Connect)
Tap Eメールアドレスの変更
(Change your E-mail address)
Input your security number ⇒ 送信
(Send)
Check the content ⇒ 承諾する (I
accept)
Input your E-mail address ⇒ 送信
(Send)
OK ⇒ 閉じる (Close)
■Step 2: Setting Internet connections
Select an Internet
connection method ⇒
Next
Set the Wi-Fi network to
connect ⇒Next
For information on how to set the Wi-Fi network, see ʻWireless LAN
(Wi-Fi) settingsʼon the back side of this document.
Setting Guide
Setup (continued)
■Step 6: Setting the iida UI
Check the content ⇒
Agree ⇒Next
January 2013, 1st Edition
Sold by: KDDI CORPORATION •OKINAWA CELLULAR TELEPHONE COMPANY
Imported by: HTC NIPPON Corporation
Manufactured by: HTC Corporation
●Basic operations
This section explains the basic
operating procedures.
●Setup
This section explains the settings to be
made when you turn on the power for
the first time.
●E-mail (@ezweb.ne.jp) settings
E-mail is a service that allows you to
exchange mail messages with mobile
phones that support e-mail and with
computers. The e-mail address is
decided automatically when you do
the setup. You can change your e-mail
address decided at the initial setup later.
●Network settings
Perform these settings to use Wi-Fi
network or Wi-Fi tethering.
●Lost terminal support settings
Settings you need to do to be ready in
case your product is lost or stolen.
●Sending and receiving data via
infrared communication
The product can exchange data
with devices that have an infrared
communication function.
●Making and receiving calls
You can also place phone calls by using
People.
●Moving data
You can move data from your old phone
to the product.
●Data backup
You can backup the data to microSD
memory cards.
●au災害対策 (au Disaster
Countermeasure) app
This is an app that you can use 災害用
伝言板 (Disaster Message Board), 緊急
速報メール (Emergency Rapid Mail) (緊
急地震速報 (Earthquake Early Warning),
災害・避難情報 (Disaster and Evacuation
Information) and 津波警報 (Tsunami
Warning)) and 災害用音声お届けサービ
ス(Disaster Voice Messaging Service).
●Saving power
You can save battery power by turning
off functions that are not being used.
●Updating PRL (roaming area
information)
Set so that optimal network equipment is
automatically selected for communication.

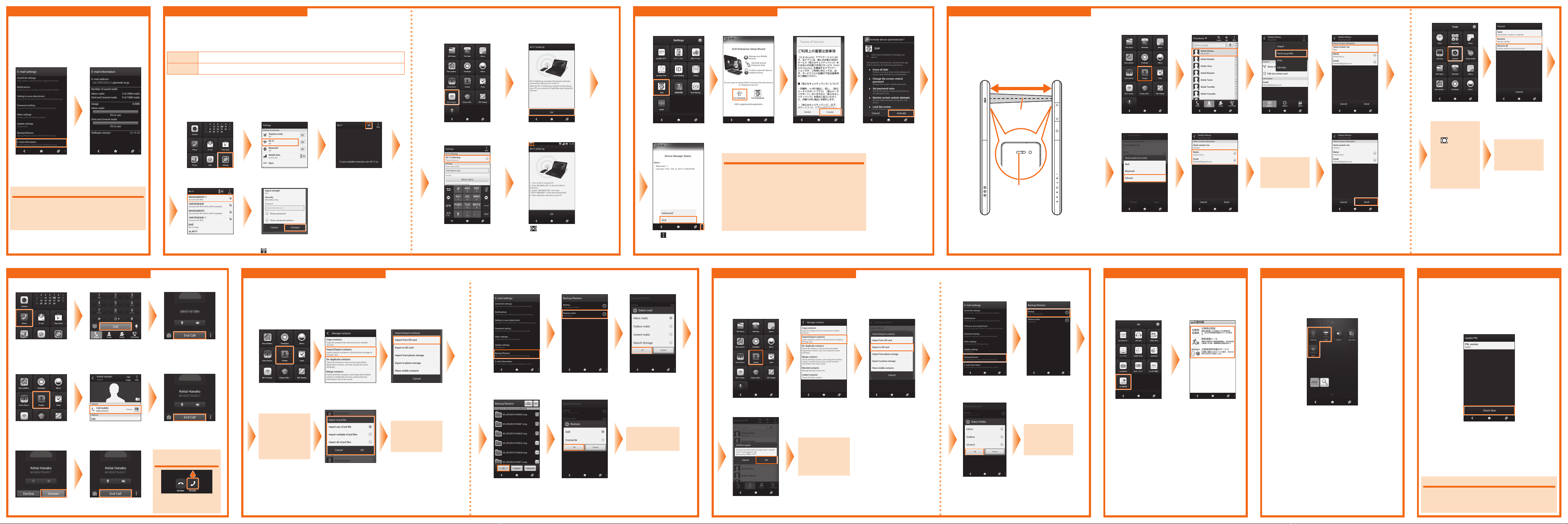

Network settings
Saving power
■Wireless LAN (Wi-Fi) settings
You can connect to the Internet using a wireless LAN (Wi-Fi) environment built in your home, or a public
wireless LAN environment away from home.
Before making Wi-Fi settings, check the following information.
SSID The name set for the public wireless LAN service or wireless LAN device to be connected to
Password The password to connect to the public wireless LAN service or wireless LAN device
※Connection to all public wireless LAN services is not guaranteed.
※You may need a separate contract with the service provider to use some public wireless LAN services.
※Enabling the Wireless LAN (Wi-Fi) function uses a lot of battery power.
We recommend turning off the wireless LAN (Wi-Fi) function when not using it.
※It is recommended to make security settings such as 'WEP' or 'WPA/WPA2 PSK', etc. to prevent unauthorized accesses.
Perform this operation in the environment where you can receive signals from the wireless LAN
devices that you want to access and the public wireless LAN service.
On the iida Home, tap
Settings
Tap Wi-Fi Tap Off to turn it On
Tap the network (SSID) to
connect to
Input the password ⇒ Connect
※The settings are finished when
appears on the screen.
When you want to use the product continuously for a longer
period of time, turn off the functions not in use (Wi-Fi, Wi-Fi
tethering, and GPS) to reduce battery power consumption.
■Turning functions on/off
To switch on/off each function, flick the iida Home to the
left to display the widget Home and tap the widget of the
function.
Making and receiving calls Moving data
■Moving E-mail (@ezweb.ne.jp) messages
On the E-mail setting
screen, tap Backup/
Restore
Tap Restore mails. Inbox mails/Outbox mails/
Unsent mails/Search
Storage
⇒ OK
When the progress
bar disappears, the
data has been moved.
Place a check mark to the
data to move
⇒ OK
※Tap Select all to select
all the data listed.
Tap Add/Overwrite ⇒OK
※When you selected
Overwrite, tap OK on
the confirmation screen.
Lost terminal support settings
This section explains the lost terminal support settings of the 安心セキュリティパック (Anshin Security Pack).
●The 安心セキュリティパック (Anshin Security Pack) is a paid service.
On the iida Home, tap
3LM
Tap For Consumer Check the content ⇒
I Accept
Tap Activate
About ウイルスバスター for au (VirusBuster for au)
If you are subscribing to 安心セキュリティパック (Anshin
Security Pack), set up the 'ウイルスバスター for au (Virus
Buster for au)' after finishing the initial setup.
On the iida Home, tap auお客さまサポート (au Customer
Support)※⇒サポート＆サービス (support and service) ⇒安
心セキュリティパック (Anshin Security Pack) ⇒ウイルスバス
ター for au (VirusBuster for au).
※The screen to confirm terms of use appears at the initial start-up.
Confirm the content, and then tap 同意する (Agree) ⇒トップ (Top).
Tap ⇒Quit
au災害対策 (au Disaster Countermeasure) app
The au 災害対策 (au Disaster Countermeasure) is an app that you
can use
災害用伝言板 (Disaster Message Board) service, 緊急速
報メール
(Emergency Rapid Mail) service that distributes 緊急地
震速報
(Earthquake Early Warning), 災害・避難情報 (Disaster and
Evacuation Information) and
津波警報 (Tsunami Warning), and 災害
用音声お届けサービス
(Disaster Voice Messaging Service).
On the iida Home, tap au
災害対策 (au Disaster
Countermeasure)
Tap 災害用伝言板 (Disaster
Message Board)/
緊急速報メー
ル
(Emergency Rapid Mail)/ 災害
用音声お届けサービス
(Disaster
Voice Messaging Service)
•災害用伝言板 (Disaster Message Board) is a service that
lets you register information about your well-being on LTE
NET whenever an earthquake of low-6 intensity or greater
or some other large-scale disaster occurs.
• 緊急速報メール (Emergency Rapid Mail) is a service that simultaneously
delivers notifications about
緊急地震速報 (Earthquake Early Warning)
and
津波警報 (Tsunami Warning) issued by the Japan Meteorological
Agency, and national and local
災害・避難情報 (Disaster and Evacuation
Information) bulletins to the au phones in the relevant area.
•災害用音声お届けサービス (Disaster Voice Messaging Service)
is a service to record voices with a smartphone and deliver them
as a voice message to people to whom you want to deliver the
information that you are safe when a large-scale disaster occur.
■Backup of the E-mail (@ezweb.ne.jp)
messages
On the E-mail setting
screen, tap Backup/
Restore
Tap Backup
When the progress
bar disappears,
the backup is
completed.
Tap the folder you
want to backup to
select the checkbox
⇒ OK
Sending and receiving data via infrared communication
The product can exchange data with devices that have an
infrared communication function.
To conduct infrared communications, both the sender and the
receiver of the data need to make preparations. Before sending
the data, make sure that the receiver is ready.
Ensure to keep the infrared port of the product aimed at the
other device's infrared port until the data communication is
complete.
20 cm or less
from the center line
±15 degree or
less
Infrared port
■Sending data
A user operation for sending data varies depending on the function. This section describes the operation to send a contact (profile).
e.g.) When sending a profile
On the iida Home, tap
People
Tap My profile Tap Menu ⇒ Send my
profile
Tap Send contact via
Aim the infrared
port of the product
at the other device's
infrared port.
Tap Infrared Tap the data to send to
select it
Tap Send ⇒ follow the on
screen instructions
■Making calls
On the iida Home, tap
Phone
Tap the dial buttons to
input the phone number
you want to call
⇒ tap Call
To hang up the call, tap
End Call
■Making calls from People
On the iida Home, tap
People
Tap a person ⇒tap the
number you want to call
To hang up the call, tap
End Call
■Receiving calls
When a call comes in while
in screen lock mode
Slide 'Accept' upward
When a call comes in, tap
Answer
To hang up the call, tap
End Call
You can move the data to the product from your old mobile phone by using a microSD memory card.
•First, save the data from your old phone to a microSD memory card. For detailed operation,
please refer to the instruction manual of your old phone.
•Insert the microSD memory card on which you saved the data into the product.
■Moving contacts
On the iida Home, tap
People
Tap Menu ⇒Manage
contacts ⇒Import/
Export contacts
Tap
Import from SD card
If 'Create contact
under account'
appears, select
Phone to save the
contacts on the
product.
When the progress
bar disappears, all
the contacts have
been moved.
Select contacts data
(vCard file) ⇒tap OK
Data backup
※In this document, 'microSD memory card' and 'microSDHC memory card' are abbreviated as 'microSD memory card'.
You can back up the contacts registered or E-mail (@ezweb.ne.jp) messages sent or received on
the product to microSD memory cards.
•Install a microSD memory card on the product in advance.
■Backup of contacts
On the iida Home, tap
People
Tap Menu ⇒ Manage contacts
⇒ Import/Export contacts
Tap Export to SD card
When the progress
bar disappears,
the backup of
the contacts is
completed.
Tap the account ⇒
confirm the content
⇒ OK
Updating PRL (roaming area information)
PRL (Roaming Area Information) contains information on
roaming areas of overseas partner providers who have signed an
international roaming contract with KDDI (au). Updating the PRL
to the latest information enables the product to automatically
select optimal network equipment for communication.
When purchasing this product and before traveling abroad,
update the PRL to the latest version.
On the iida Home, tap Settings ⇒Mobile data ⇒Update
PRL ⇒Check Now
Listen voice prompt played after connected, then hang up
the phone.
After the phone is hung up, updating PRL starts. It may
take approximately ten minutes to update.
About PRL update
No telephone or communication charges are incurred to update
PRL.
Note, however, that depending on area, PRL may not be updated.
■Checking your e-mail address
You can check your e-mail address from the E-mail settings
screen.
For the information on how to display the E-mail settings
screen, see ʻChanging your e-mail addressʼon the front side
of this guide.
On the E-mail settings
screen, tap E-mail
information
This displays the e-mail
address of the product.
About PC mail settings
Tap Mail on the iida Home to configure PC mail (POP3/
IMAP), company Exchange Server mail, Gmail, Yahoo! mail
and Microsoft Hotmail.
For details, see the "Instruction Manual" app.
E-mail (@ezweb.ne.jp) settings (continued)
■Receiving data
On the iida Home,
tap Infrared
Tap Receive
When the infrared
function is turned
on, is displayed
on the status bar.
Aim the infrared
port of the product
at the other device's
infrared port to
receive the data.
Perform the
operation by
following the on-
screen instructions.
■Setup of Wi-Fi tethering
You can use the product as the wireless LAN hot spot to connect the Internet from the
client (PC, etc.) that does not supports wireless LAN (Wi-Fi).
※To use the tethering function, a separate subscription is required.
On the iida Home, tap Wi-Fi
Hotspot
Tap OK
Tap Wi-Fi tethering to select
the checkbox.
When is displayed at the top
of the screen, follow the on-screen
instructions to connect from the
client (PC, etc.) to the product.
