HTC One (E8) User manual

HTC One (E8)
User guide
HTC Confidential 20140625
For Certification Only

Conventions used in this guide
In this user guide, we use the following symbols to indicate useful and important
information:
This is a note. A note often gives additional information, such as what happens
when you choose to do or not to do a certain action. A note also provides
information that may only be applicable to some situations.
This is a tip. A tip gives you an alternative way to do a particular step or procedure,
or lets you know of an option that you may find helpful.
This indicates important information that you need in order to accomplish a certain
task or to get a feature to work properly.
This provides safety precaution information, that is, information that you need to be
careful about to prevent potential problems.
7 Conventions used in this guide
HTC Confidential 20140625
For Certification Only

Important note on recoverable data
Files and other data that have been deleted, cleared, removed, or erased from
your device may still be recoverable by third-party data recovery software.
Even a factory reset may not permanently erase all data from your phone,
including personal information.
8 Important note on recoverable data
Important RF Notice
This device was tested for compliance with the applicable FCC and Industry
Canada specific absorption rate (SAR) limits for radio frequency (RF)
exposure during typical body-worn operations. To ensure that RF exposure
levels remain at or below the tested levels, use a belt-clip, holster, or similar
accessory that maintains a minimum separation distance of 1.0 cm between
your body and the device, with either the front or back of the device facing
towards your body. Such accessories should not contain any metallic
components. Body-worn accessories that do not meet these specifications
may not ensure compliance with applicable SAR limits and their use should be
avoided.
HTC Confidential 20140625
For Certification Only

Unboxing
HTC One (E8)
1. USB connector
2. 3.5mm headset jack
3. Dual speakers
4. VOLUME
5. microSD™card tray with eject
hole
6. Proximity sensor
7. Front camera
8. Notification LED
9. POWER
10. nano SIM card tray with eject hole
If you want to use a case, please don’t cover and block the proximity sensor.
Purchase a case designed for HTC One (E8).
9 Unboxing
HTC Confidential 20140625
For Certification Only

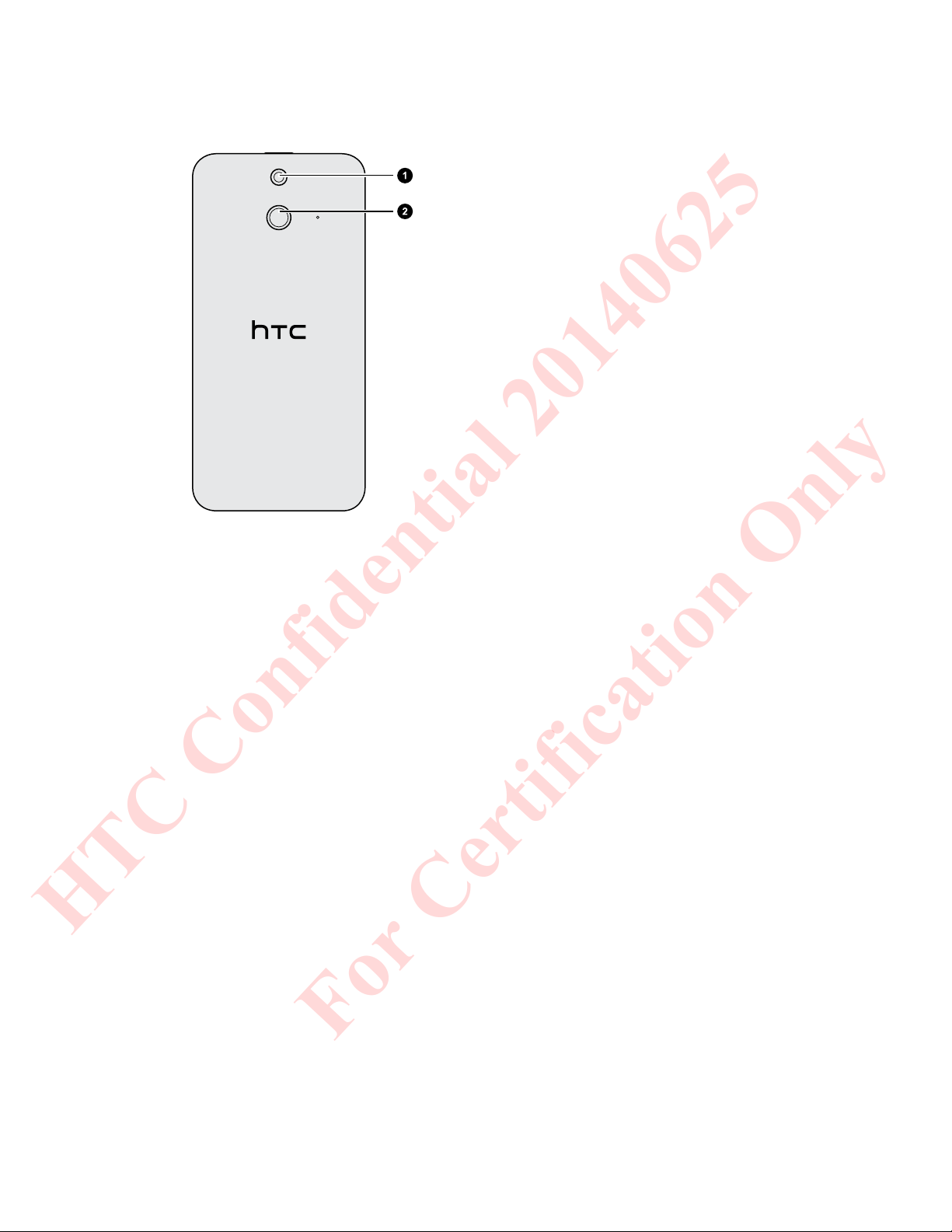

Back panel
1. LED flash
2. Camera
10 Unboxing
HTC Confidential 20140625
For Certification Only

nano SIM card
HTC One (E8) uses a nano SIM card.
You need a provisioned nano SIM card to connect to the mobile_operator 4G/LTE™
network and to support roaming on compatible GSM networks. The nano SIM card is
preinstalled on HTC One (E8). If you need to remove or replace the card, refer to the
following instructions.
Use a standard nano SIM card only. Inserting a modified card that is thicker than the
standard nano SIM card may cause the card to not fit properly or damage the card
slot.
Inserting a nano SIM card
1. Hold the phone face up.
2. Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject
hole next to the nano SIM card slot.
3. Push the tip all the way into the hole until the card tray ejects.
4. Pull the card tray out.
5. Place the nano SIM card (contacts facing down) into the tray.
6. Insert the card tray back into the slot.
11 Unboxing
HTC Confidential 20140625
For Certification Only

Removing a nano SIM card
Make sure to switch off HTC One (E8) before removing the card.
1. Hold the phone face up and the top panel facing you.
2. Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject
hole next to the nano SIM card slot.
3. Push the tip all the way into the hole until the card tray ejects.
4. Pull the card tray out, and remove the nano SIM card.
5. Make sure that you insert the empty card tray back into the slot.
Storage card
Use a storage card to store your photos, videos, and music. When you need to free up
phone storage space, you can also move certain apps to the storage card, if the apps
support this feature.
The storage card is optional and sold separately.
§Moving apps to the storage card doesn't back up the apps. If you do a factory
reset, your phone loses the apps. You'll need to reinstall them.
§When you remove the storage card and insert it in another phone, the apps on the
storage card won't be installed automatically to the other phone. You'll need to
reinstall them.
12 Unboxing
HTC Confidential 20140625
For Certification Only

Inserting the microSD card
1. Hold the phone face up.
2. Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject
hole next to the microSD card slot.
3. Push the tip all the way into the hole until the microSD card tray ejects.
4. Pull the microSD card tray out, and place the microSD card (contacts facing
down) into the tray.
5. Insert the microSD card tray back into the slot.
Unmounting the storage card
When you need to remove the storage card while HTC One (E8) is on, unmount the
storage card first to prevent corrupting or damaging the files in the storage card.
1. Go to Settings, and then tap Storage.
2. Tap Unmount SD card.
13 Unboxing
HTC Confidential 20140625
For Certification Only

Removing the microSD card
Make sure to unmount your microSD card before removing it.
1. Hold the phone face up and the top panel facing you.
2. Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject
hole next to the microSD card slot.
3. Push the tip all the way into the hole until the microSD card tray ejects.
4. Pull the microSD card tray out, and remove the microSD card.
After removing the microSD card, make sure that you insert the empty microSD card
tray back into the slot.
14 Unboxing
HTC Confidential 20140625
For Certification Only

Charging the battery
Before you turn on and start using HTC One (E8), it is recommended that you charge
the battery.
Use only the adapter and the USB cable that came with HTC One (E8) to charge
the battery. When the battery power is too low, make sure to use the power
adapter to charge, not the USB cable connection with your computer.
1. Insert the small end of the USB cable into the USB connector.
2. Insert the other end of the USB cable into the power adapter.
3. Plug in the power adapter to an electrical outlet to start charging the battery.
§As a safety precaution, the battery may stop charging to avoid overheating.
§When you're using the Internet and charging the battery, HTC One (E8) may
become warmer. This is normal.
§To conserve energy, unplug the power adapter from the electrical outlet after you
finish charging.
Switching the power on or off
Switching the power on
Press the POWER button until HTC One (E8) vibrates.
When you turn on HTC One (E8) for the first time, you’ll need to set it up.
Switching the power off
1. If the display is off, press the POWER button to turn it back on. If you've set up
a lock screen, you need to unlock it.
2. Press and hold the POWER button for a few seconds.
3. Tap Power off on the options menu.
15 Unboxing
