HTC S710D User manual

HTCCONFIDENTIAL1
IS-5344-01-R3
htcS710D
修手册
恒熙安卓助手

HTCCONFIDENTIAL2
IS-5344-01-R3
1. Introduction.........................................................................................................................错误！未定义书签。
1.1 Product Features............................................................................................................ 误！未定义书签。
1.2 Product overview............................................................................................................ 误！未定义书签。
1.3 ProductTips................................................................................................................... 误！未定义书签。
2. Device Disassemblingand AssemblingProcedure.....................................................................................15
2.1 Toollist......................................................................................................................................................15

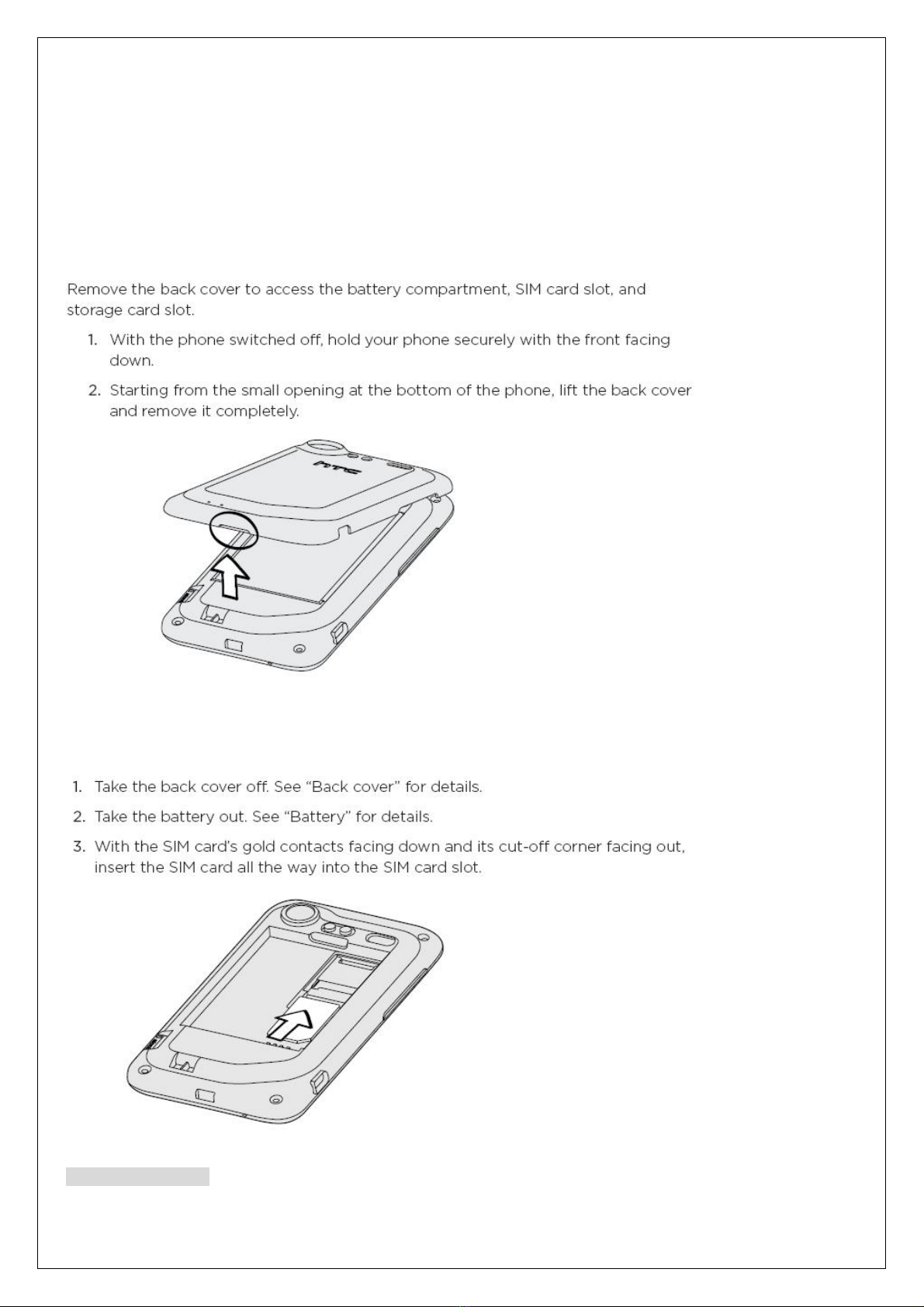

2.2 Disassemblingprocedure..........................................................................................................................16
2.3 Assembling procedure...............................................................................................................................24
2.4 Repairorassemblytips.................................................................................................. 误！未定义书签。
2.5 Unitlabel location explanation......................................................................................... 误！未定义书签。
3. ROMRe-flashProcedure....................................................................................................错误！未定义书签。
3.1 Latest ROMversion inquiry............................................................................................. 误！未定义书签。
3.2 ROMupgrade thruRUU(Re-flashUpgrade Utility)......................................................... 误！未定义书签。
3.3 RomImage upgrade thruSDcard................................................................................... 误！未定义书签。
4. DIAGNOSTICPROGRAM...............................................................................................................................41
4.1 Diagnosticmode testing.................................................................................................. 误！未定义书签。
4.2 OSMode Testing.......................................................................................................................................50
4.3 WriteUnitS/NtoDeviceviaASP_PC_Agent.............................................................................................55
4.4 Hardwarecalibration..................................................................................................................................59
5. Power measurementtest...............................................................................................................................62
5.1 Mainboardleakage currentTest Procedure...............................................................................................62
5.2 Battery rundowntest procedure.................................................................................................................66
6. CosmeticInspection Criteria.........................................................................................................................67
6.1 Classesdefinition of inspectivearea..........................................................................................................67
6.2 Displayinspection...................................................................................................................................... 69
6.3 Mainunitinspection...................................................................................................................................70
7. GenericSpare PartListandPhotos..............................................................................................................73
7.1 SPLforRepair...........................................................................................................................................73
7.2 BoardLevel2.5Repairs............................................................................................................................78
7.3 FRU M/Badditionalpartslocation..............................................................................................................81
8. RFAntennaSpecification..............................................................................................................................82

HTCCONFIDENTIAL3
IS-5344-01-R3
1. 产品介绍
1.1 产品功能
Fe
atures
Target
lOnShelfSchedule:March,2011
lMarket:VzW
Platform
lUltraslimPDAphone
lAndroidOS
Dimension
l120 x64x11.65 mm
Processor/Chipset
lQualcommMSM8655, 1GHz
Memory
l4GeMMC
lRAM: 768MB
LCD Module
l4.0 inchSuperLCDWVGAresolution
l16M-colorLCD
lCapacitivetouchscreenwithmulti-touchcapability
CDMA20001X,1xEV-DO Rel0/A/B,HSPA/GSM/GPRS/
EDGEFunction
lInternaldiversityantenna
lCDMA800/1900MHz+UMTS/HSPA900/2100MHz+
lGSM/GPRS/EDGE850/900/1800/1900MHz
lCDMA2000 1x/ EVDOrev.0/EVDOrev. Anetwork
uCDMA2000 1x/ EVDO/ EVDOrev.A(800/1900MHz)
ü800 (Cell):824~849,869~894Mhz
ü1900 (PCS): 1850~1910,1930~1990Mhz
uCDMA2000 EVDO/1xRTT andIS-95A/Bvoiceor
data
üDatarate:
²CDMA2000 EVDOrev.0,153.6kbps,
2.4MbpsFL
²CDMA1xRTT, 153.6kbpsRLandFL
²
CDMA2000 EVDOrev.A,
1.8MbpsRL,
u3.1MbpsFL
uQuickPagingChannelsupport
uSlottedmodepagechannelsearching
u800 Hzfast forwardpowercontrol
uConvolutionandTurbo encoding/decoding
support
u13 kbpsQCELPand8kbpsEVRC vocoder
uSMS(MO, MT)
uSMSoverEVDO
uReserveR-UIMconnection
uSupplementaryservices:
üCallwaiting/forwarding
üCallerID
üMulti-partyconferencecall-3-waycall
w/Mutefeature
lHSPA/UMTSandGSM/GPRS/EDGEnetwork
uHSPA/UMTSDual-band (900/2100Mz)
ü900:880-915MHz, 925-960MHz
ü2100: 2100:1920-1980MHz,2110-2170MHz
uGSM/GPRS/EDGE
ü850:824-849, 869-894MHz
ü900:880-915, 925-960MHz
ü1800:1710-1785,1805-1880MHz
ü1900:1850-1910,1930-1990MHz
uHSDPA /UMTS
ü3GPPRelease6compliant
ü14.4Mbpspeakrate
uHSUPA
ü3GPPRelease6compliant
ü5.76Mbpspeakrate[operatordependant]
uEqualizer[HSDPA channelsonly]
uE-GPRSFunction
üEGPRSclass B

HTCCONFIDENTIAL4
IS-5344-01-R3
ü
Multi
-
slotstandardclass 12 [10,operator
dependent]
üPBCCH
uSpeechcodec:AMRNB, EFR,FR,HR
uSMS(MO, MT), concatenatedSMS(640 characters)
uPINSecurity
uSupplementservices:
üCallholding/waiting/forwarding
üCallbarring
üCLI(CallingLineIdentity)
üDisplayownnumber
üNetworkselection
üCell broadcast
üMulti-partyconferencecall-3-waycallw/Mute
üfeature
üSpoolicon
üPhase2+ unstructuredsupplementaryservice
üdata
üNetworkLock
üCPHS(partialsupport)
lGlobalroaming
lHandoverandcellselectionbetweenGSM/EDGEand
UMTS
lAutobandswitching
lTTY/TDD function
lUSIM/SIM
u1.8/3Vof UICC
uUSIMApplicationatleastaccordingto3GPPTS
31.102
uSIMApplicationToolKitrelease96 complete, 98
class3,and99 partial
uEAP-SIM
uOvertheAir(OTA)programming
uFDN
u
ADN
uSecurityPin1&2control
StandaloneGPS(Qualcommbasedsolution)
lInternalGPSantenna
lSupport NMEA0183version 3.0orabove
lDynamicallyallocateparallelchannelGPS receiver
lAcquisition time
uHot start:8seconds,averageTTFF(opensky&
staticcondition)
uWarmstart:60seconds, averageTTFF (opensky
&staticcondition)
uColdstart: 75seconds, averageTTFF(open sky&
staticcondition)
lUpdaterate: once/1sec(default)
lGPS Accuracy
uPosition:<15 meters,95%successfulrate
uVelocity:0.05meter/secsteadystate
A-GPS(QualcommBasedsolution)
lSupport MS-Based&MS-AssistedA-GPS
lE911 LocationInformation(fordeviceshippedtoUS)
lStandard3GPPA-GPScompliance
u3GPPTS44.031(RRLP5.12)
u3GPPTS25.305(GSM&UMTS)
lPerformancerequirement
uTTFF (95%successfulrate):<20seconds
u2DLocationError(95%successfulrate):<100m
uSensitivityrequirement(conductedmode)
üGPS foronesatellite: upto-142dBm
üGPS forremainingsatellite: upto-147dBm
u3GPPTS25.171compliance(Requirementfor
supportofAssistedGlobalPositioningSystem)
u3GPP34.171 (Terminalconformance
specification,AssistedGlobalPositioningSystem)

HTCCONFIDENTIAL5
IS-5344-01-R3
u
3GPPTS34.108(Commontest environmentsfor
userEquipmentconformancetesting)
MotionG-sensor
lTri-AxisAccelerometer
lResolution:3.9milli-g
lAssistuserinterfacetoperformautomaticscreen
lrotationwhenusersrotatethedisplayinbrowserand
lalbumapplications.
lSupportcameraapplicationtorecordtheorientationof
photos
DigitalCompass
lCompassresolution: ±1degree (displaysdegreesand
lcardinalpoints)
l2D/3D(2/3channel)sensor
lWithin ±5degreesaccuracy
l+-1200uTMagneticfluxmeasuringrange
lSupport automaporientationalignment
Proximitysensor
AmbientLightSensor
FMRadio
lTuningrange: 87.5-108MHz
lFMsensitivity: 8uV@(S+N)/N=26dB
lAutochannelsearch
lSupport 3.5mminantenna usage
DigitalCamera
l8MPColorCMOSwithautofocus
l720p HDcamcorder
l2XPowerLEDflashlight
l1.3MPColorCMOSFFfrontcamera(TBD)
Key/Button
lVolumeup/downbutton
lPowerbutton
lSearchkey(virtual)
lHomekey(virtual)
l
Back key(virtual)
lMenu key(virtual)
Notification
lOnebi-colors(Green&Amber)LEDfornotificationsand
chargingstatus
lNotificationbysound, vibration,LEDsorstatusshown
on thedisplay
Audio
lBuilt-indualmicrophonesfornoisereduction
lReceiver
lLoud speakerforHands-Free supported
lFullduplex
lHTCHi-FiExperience(DSP CodecChip)
uSound effectof SRS(forheadphone)
uSound enhancements
uNoisecancellation
lAudiosampling rate
u16-bitswith8KHz,11KHz, 22KHz,44.1KHz
lAMR/AAC/WAV/WMA/MP3codec
lAudioPathRouting
uBluetooth
uReceiver
uSpeaker
uHeadset
HAC M3andT3class
Hangerhole
Connectivity&Interface
uBluetooth
uCompliant withv2.1(3.0whenavailable)withEDR
uClass2transmitpower
uSupportedprofiles:
üGAP (genericaccess profile)
üSPP (serialportprofile)
üDUN (dial-upnetworking)

HTCCONFIDENTIAL6
IS-5344-01-R3
ü
GOEP (genericobjectexchangeprofile)
üSDAP (ServiceDiscoveryApplicationProfile)
üHSP (headset profile)
üHFP1.5(handsfree profile)
üA2DP(AdvancedAudioDistributionprofile)
üAVRCP(Audio/VideoRemotecontrolProfile)
üOPP (objectpushprofile)
üPBAP (PhoneBookAccess Profile)
üFTP(Filetransferprofile, ServerOnly)
uCo-exist withWiFi
lWi-Fi
uIEEE 802.11b/g/ncompliant
uInternalWLANantenna
uDatarateautofallback forextendedrange
uELPmode
uSecurity802.11iandAES
uHowever, OSdoesn’tsupport802.11iandAES
üWPAauthentication –WEP, WPA,PSK,
EAPTLS, PEAP,LEAP
üSignaling interfacesbetweentheterminal
deviceand theservers: mutuallyauthenticated
and encryptedutilizingTLS(RFC2246)with
RC4
encryptionwithSGA1usedasthemessage
integritycheck
uQoS
ü802.11WMEQoS
ü802.11e
l5-pinmicro-USB
uUSB 2.0withhighspeedclient
uSupport USBchargingandsynchronization
uMass storagesupport
l3.5mmaudiojack
uSupport audioandmicrophone
l1.8/3VUSIM/SIMcardslot
l
MicroSDCardSlot
uSupport SD2.0/ SDHC
lRFConnectorfortesting
lPower
lBattery
uRemovablebattery,1,450 mAh
lBatterylife
uWCDMAstandbytime:250~370hours
(DRX=64~512)
uGSMstandbytime:240~290hours(MF=2~6)
uWCDMAtalktime:110~380mintues(TX
power=24~0dbm)
uGSMtalktime:230~580minutes(power
level=33~5dbm)
uCDMAdigitalusagetime:390minsto410 mins
basedon CDG89.
uCDMAstandbytime:290hoursto305hours
basedon CDMAHybridmode, SCI=2withQPCH
off.
lACadaptors
uACinput:100 ~240VAC, 50/60Hz
uThedeviceshall beabletodetecttheACadapter
ucompliedwithChinaadapterstandard.
uDC output:5Vand1A
lSupportWireless charger
LiquidIndicator
Accessories
lQuickstartguide[Inbox]
lStandardbattery[Inbox]
lAccessoryleaflet[Inbox](OwnBrandonly)
lACadapter,TCP300A[Inbox]
lMicro-USB cable, DC M411[Inbox]
lSimpletypewiredremotecontroller,RC E160[Option]
lAudioadaptercable(3.5mm,withpickup buttonand
mic), HSU350

HTCCONFIDENTIAL7
IS-5344-01-R3
l
Mono BluetoothHeadset,BHM300
lMono BluetoothHeadset,BHM400
lMicro-SDcard
lCarcharger, CCC200
lScreenprotector
lMicroSDcard(Inboxornotandsizedependson sku)
lExtendedbattery,2150mAh
Customerrequirements&CompatibilityTest:
Pleaserefertotheaccessorycompatibilitylist document
GMSApplications(subjecttoGoogle'sapproval)
lGmail
lGoogleMaps
lGoogleTalk
lMarket
lSearch
lSetup Wizard
lStreet View
lSync
lVoiceSearch(USonly)
lYouTube
Value-addedApplications&Enhancement
lCalculator
lCalendar
lCallHistory
lCamcorder
lCamera
lClock
lDesk Clock
lReader
lGallery
lFacebook
lFlashLight
lFMRadio
l
FriendStream
lHome
lInternet
lLocations
lMail
lMessages
lMusic
lNews
lPDFViewer
lPeep
lPeople
lPhone
lPowerSaverapplication (InSettings)
lQuickoffice
lQuickLookup
lHTCRecommends
lSearchPeople
lSettings
lSetup
lSIMToolkit
lStocks
lTeeter
lTransferData(DataMoveIn)
lVideos
lVoiceRecorder
lWeather
Home HTCSense
lNavigation Framework
lGoogleWidget
lHTCWidget Manager
lBookmarks
lCalendar
lClock
lFMRadio

HTCCONFIDENTIAL8
IS-5344-01-R3
l
FriendStream
lHTCRecommends
lMail
lMessages
lMusic
lNews
lNearby
lPeople
lPhotoAlbum
lPhotoFrame
lPowerand datawidgets
lProfile(Mute/Vibrate/Sound)
lRingtone
lSearch
lSettings
lStocks
lSyncAll
lTwitter
lTipwidget
lWeather
lWi-FiHotspot
AndroidModule&Enhancement
lAndroidSystem
lAccessibility
lAccounts&sync
lAGPS (DefaultbyGoogleserver)
lBluetoothProfile-A2DP,AVRCP,FTP, HFP, HSP,
lOPP,PBAP
lCodec:
uImageencode&decode: JPG
uImagedecode: BMP,GIF, PNG
uAudioencode&decode: AMR-NB
uAudiodecode: AAC,AAC+, eAAC+, AMR-WB, MID,
MP3,OGG, WAV
l
Videoencode&decode: H.263, MPEG
-
4
lVideodecode: H.264"
lCodec
uVideodecode:WMV
uAudiodecode:WMA"
lCSclient
lDLNA
lCodec-xvid
lDRM1.0(CD, FL,SD)
lFileBrowser
lFlash10.1
lGesture
lHardwareAccelerator
uVideodecode: H.264
uVideoencode: H.263,MPEG-4
uAudiodecode: AAC"
lHTCFlashPlayer
lHTCCommonSense
lHTCCommonControl
lHTCSync
lHTCMediaUploader
lIMF
lLocationPicker
lLock Screen
lLiveWallpaper
lMediaUploader
lMicrosoft ExchangeActiveSync
lUSB tethering
lMultiTouch
lMultimediaFramework
lRingtoneTrimmer
lRSS Reader
lStreamingMediaPlayer
lSmartDataRoaming

HTCCONFIDENTIAL9
IS-5344-01-R3
l
Text Selection
lText-to-speech
lTouchInput Chinese(PinYin,Cangjie, Stroke, Handwriting)
lTouchInput
lQuickSearchBox
lConnecttoPC
lVPN
lWi-FiHotspot
lWi-FiSettings
Regulatory
lGCFcertification [Operatordependent]
lR&TTE: EMC/EMI, SafetySAR
lWiFiCertification
lPTCRBApproval
lBQB(BluetoothQualification Body)certification
lUSB Certification
lCBcertificate/report
lUAELAB
lICASA
lNATTest
lFCC approval
lFCC HearingAidCompatibility

HTCCONFIDENTIAL10
IS-5344-01-R3
1.2 产品外观
前面
上面
1Earpiece
2Touchscreen
3HOME
4Microphone
5MENU
6BACK
7SEARCH
81.3megapixel front
9Notification LED
10 Light/Proximitysensor
*You’ll see the HOME, MENU, BACK,and
SEARCH buttonswhen yourphone isswitched
on and whenyou turnyourphone sideways,
thesebuttonsrotatealong withthe screen
10

HTCCONFIDENTIAL11
IS-5344-01-R3
右面
后面

HTCCONFIDENTIAL12
IS-5344-01-R3
1.3 使用提示
Removingthebackcover
InsertingtheSIMcard

HTCCONFIDENTIAL13
IS-5344-01-R3
RemovingtheSIMcard
Insertingthestoragecard

HTCCONFIDENTIAL14
IS-5344-01-R3
GSM/ WCDMA&GPS 天线位置
注意: 功能测试时需盖好电池盖.
执行软启
关闭系统并重新开机。如果按电源键无反应，请取也电池数秒，然后装上电池再开机
执行硬启
1. 关机状态下，按住音量向下键，然后再按一下电源键
2. 按音量向下键选择 factoryreset,然后按电池键确定
进行 bootloader 模式
1. 关机状态下，按住音量向下键，然后再按一下电源键，进入 bootloader 模式
GSM/ WCDMA
天线
GPS 天线

HTCCONFIDENTIAL15
IS-5344-01-R3
2.Device DisassemblingandAssemblingProcedure
2.1Tool list
Level
No.
Item
Vendor
P/N
L1
1 MicroUSB DATAinterfaceCable
2 Earphone Headset
3 ACAdapter
4 WLANAP
5
Lv2MicroMemoryCardwithDiag.test
program(need be encoded byHTC) HTCdesign DCT-00120
6 Unit current consumption test fixture HTCdesign MLT-00001
7 GenericProduct BatteryHolderHTCdesign MLT-00015
8 Powersupply
9 Current Meter
10 Mobiletester
L2
1 Opening tool HTCspecialtools RTT-00006
2 Hand tools
3 Airgun
4 Labelprinter(400Dpiresolutionand
above)
5 VIVO LCMand bezelassemblyjig HTCdesign RTT-00196
6 Mainairpressingjig HTCdesign RTT-00120
7 Oven (forLCMand bezeldisassembly)
8 0.15 mmsteelstrip HTCspecialtools RTT-00094
9 Psensorcalibration fixture HTCdesign RTT-00135
10 Psensorheightincreasing block 1.5cm HTCdesign RTT-00211
L2.5 1 Lead-free Soldering station
2 Airheater

HTCCONFIDENTIAL16
IS-5344-01-R3
2.2Disassemblingprocedure
Toolsneeded forAssembling and
Disassemblingthe device:
1. Torxscrew-driverT6
2. Phillipsscrew-driver#00
3. Opening tool (P/N: RTT-00006)
4. Cleaning cloth
5. Plastictweezers
6. ESDwrist strap.
7. OvenforLCD and bezelrework purpose.
8. 0.15mm steel stripforLCD and bezelrework
purpose. (P/N:RTT-00094)
9. VIVOLCMand bezel assemblyjig.(P/N:
RTT-00196)
10. Mainairpressing jig. (P/N: RTT-00120 )
Takeoutthebatterycoverasphotoshowninthe
direction of the arrow.
P/N:37H2001x-00M
8
9
10

HTCCONFIDENTIAL17
IS-5344-01-R3
Takeoutthe batteryasphotoshowninthe
direction of the arrow.
P/N:35H00152-01M
Loosen7screwsfromthe housing atthe
location indicatedwithTorxscrew-driverT6.
P/N:72H04996-00M
Insert the opening toolbetween bezeland
housing atmicroSDside and then slide it to
separatebezeland housing.
Note Don’tinserttheopening tool atUSB
port side topreventdamage LCM
FPC.
Takeoutthe housing.
P/N: 74H01873-00M

HTCCONFIDENTIAL18
IS-5344-01-R3
Useopening tool totakeoutspeakerasphoto
shown.
P/N: 36H00972-00M
Useopening tool toremoveflashboardasphoto
shown.
P/N: 51H00621-00M
Takeoutmaincamerashielding cover.
P/N:74H01933-00M
Note
The shielding covermaystick
on the housing when you take
out the housing.
Loosentwoscrewsasphotoshown.
P/N:72H04994-00M

HTCCONFIDENTIAL19
IS-5344-01-R3
Takeoutthe audiojackrubberasphotoshown.
P/N: 71H03556-00M
TakeoutmicroUSBring asphotoshown.
P/N:72H04984-00M
Disconnectvibratorasphotoshown.
P/N:36H00966-00M
Removetwoyellowkaptonson the two
connectorsand disconnectLCMFPCandvirtual
keyFPCasphotoshow.
P/N:76H03583-00M

HTCCONFIDENTIAL20
IS-5344-01-R3
Carefully,lift mainboardup and towardright
direction toloosen the latchasphotoshown.
Continue abovestep toturnoverthe mainboard
asphotoshownand then removethe yellow
kapton and disconnect touchpanel FPC.
P/N: 76H03583-00M
Removethe 2nd camera’syellowkapton and
disconnect 2nd cameraasphotoshown.
P/N:76H03583-00M
P/N:54H00367-00M
Removethe maincamera’syellowkapton and
then disconnectmaincameraasphotoshown.
P/N:76H02467-00M
P/N:54H00363-00M
