HTC Touch Diamond2 User manual

Quick Start Guide

Please Read Before Proceeding
THE BATTERY IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX.
DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING.
YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT
TO DISASSEMBLE THE DEVICE.
PRIVACY RESTRICTIONS
Some countries require full disclosure of recorded telephone conversations, and
stipulate that you must inform the person with whom you are speaking that the
conversation is being recorded. Always obey the relevant laws and regulations of your
country when using the recording feature of your PDA Phone.
LIMITATION OF DAMAGES
To the maximum extent permitted by applicable law, in no event shall HTC or its
providers be liable to user or any third party for any indirect, special, consequential,
incidental or punitive damages of any kind in contract or tort, including, but not
limited to, injury, loss of revenue, loss of goodwill, loss of business opportunity, loss of
date, and/or loss of profits arising out of, or related to, in any manner, or the delivery,
performance or nonperformance of obligations, or use of the weather information,
stock data, data or documentation hereunder regardless of the foreseeability thereof.
FOR MORE INFORMATION
For health, safety, and regulatory information, see “Safety and Other Notices”.

Table of Contents
1. Welcome to the HTC Touch Diamond2 Quick Start Guide.....5
2. Inside the Box .........................................................................................5
3. Getting to Know the HTC Touch Diamond2 ................................6
4. Installing the SIM Card, Battery, and Storage Card ...................7
5. Charging the Battery............................................................................9
6. Starting Up...............................................................................................9
7. The Home Screen................................................................................10
8. Lock Screen............................................................................................11
9. Using the Start Screen.......................................................................13
10. Making Your First Call.........................................................................14
11. Making a Video Call ............................................................................15
12. Entering Information..........................................................................16
13. Basic Settings........................................................................................17
14. Adding Favorite Contacts.................................................................20
15. Viewing Conversations......................................................................22
16. Sending a Text Message....................................................................23
17. Sending an MMS Message...............................................................23
Contents

Table of Contents
18. Setting Up an Internet Email Account .........................................24
19. Using Wi-Fi .............................................................................................25
20. Mobile Internet ....................................................................................26
21. Bluetooth................................................................................................27
22. Keeping Track of Appointments ....................................................28
23. Capturing Photos and Recording Videos....................................29
24. Viewing Photos and Videos .............................................................30
25. Connecting Your Phone to a Computer......................................31
26. Synchronizing Your Phone with Your Computer......................32
27. Copying Files to the Storage Card.................................................33
28. Synchronizing Music Files ................................................................33
29. Listening to Music on Your Phone.................................................34
30. Resetting Your Phone.........................................................................35
31. Safety and Other Notices..................................................................36

Quick Start Guide 5
1. Welcome to the HTC Touch Diamond2 Quick Start Guide
Congratulations on your purchase of the HTC Touch Diamond2.
This Quick Start Guide will help you get started with your Windows Mobile® 6.5
Professional powered Touch Phone. We’ve arranged this Quick Start Guide in a way that it
starts from when you open the box and then it walks you through the features we feel that
you want to know or use right away when you turn on your phone for the first time.
For a more complete guide in using your phone, please refer to the User Manual PDF
which can be downloaded from the HTC website at http://www.htc.com/au/support.aspx.
2. Inside the Box
You should find the following items inside the box.
HTC Touch Diamond2 phone
Battery
AC adapter
Wired stereo headset
USB sync cable
Screen protector
Quick Start Guide
Pouch
Extra stylus
•
•
•
•
•
•
•
•
•

6 Quick Start Guide

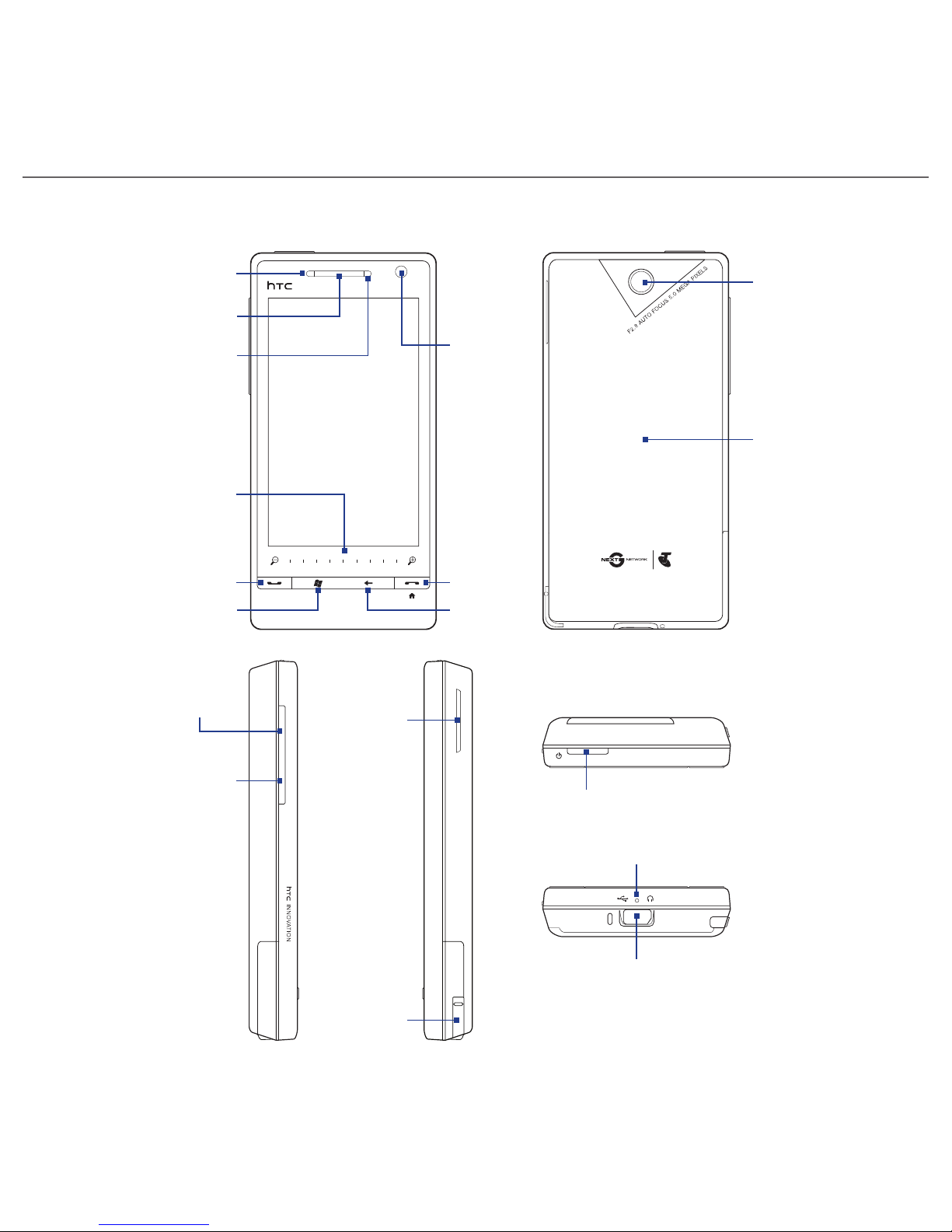

3. Getting to Know the HTC Touch Diamond2
Speaker
POWER
Stylus
VOLUME UP
VOLUME
DOWN
Earpiece
Touch Screen
START
END
Second
Camera
TALK/SEND
Back Cover
5.0
Megapixel
Camera
Sync Connector/
Earphone Jack
Microphone
Light Sensor
BACK
Notification LED
Zoom Bar

Quick Start Guide 7
4. Installing the SIM Card, Battery, and Storage Card
Make sure your phone is turned off before installing the SIM card and battery. You also
need to remove the back cover before you can install these components.

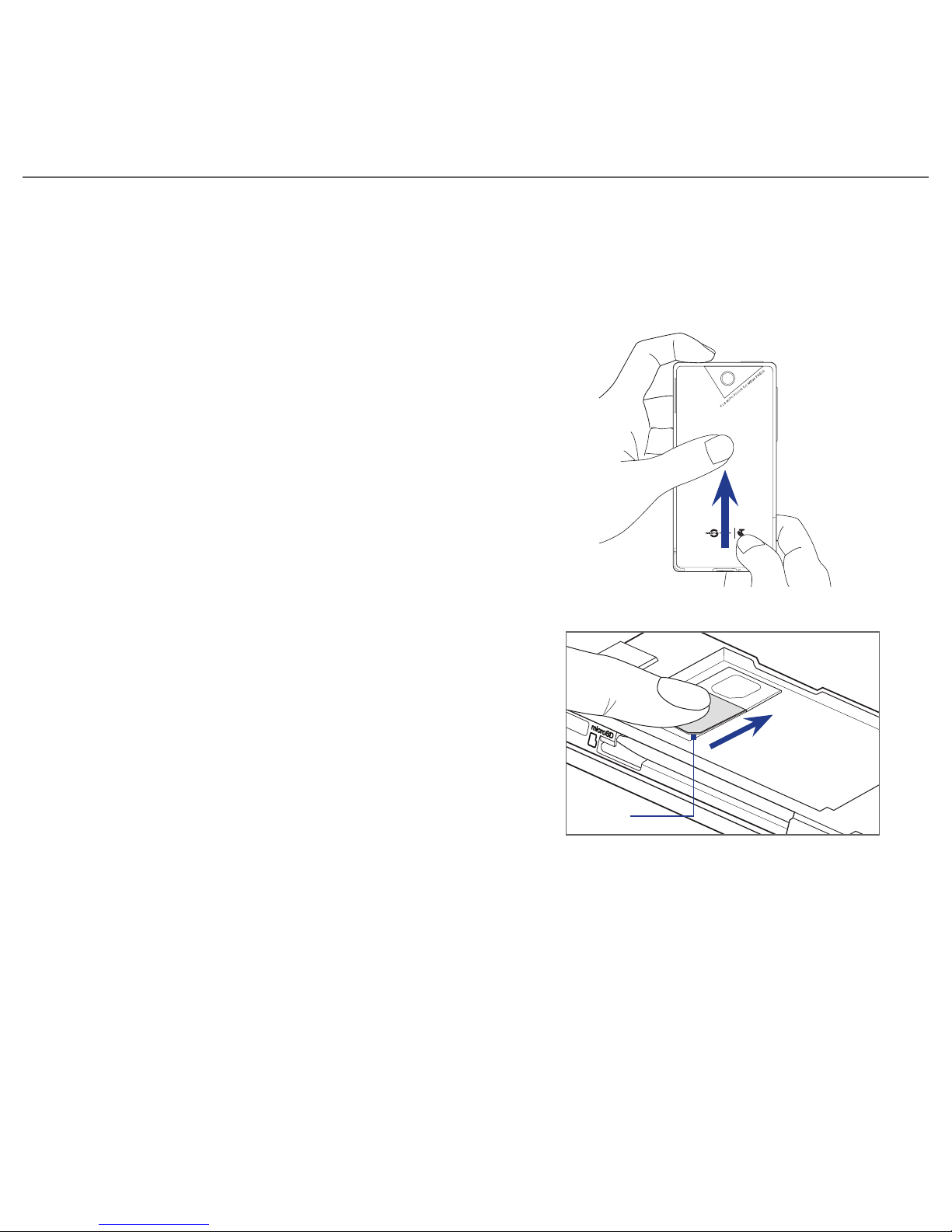

To remove the back cover
Make sure your phone is turned off.
Firmly hold the phone with both hands and
the front panel facing down.
Push the back cover up with your thumbs
until it disengages from the phone and then
slide it up to remove.
1.
2.
3.
To install the SIM card
Remove the battery if it is installed.
Locate the SIM card slot, then insert the SIM
card with its gold contacts facing down and
its cut-off corner facing out the card slot.
Slide the SIM card completely into the slot.
1.
2.
3.
Cut-off
corner

8 Quick Start Guide

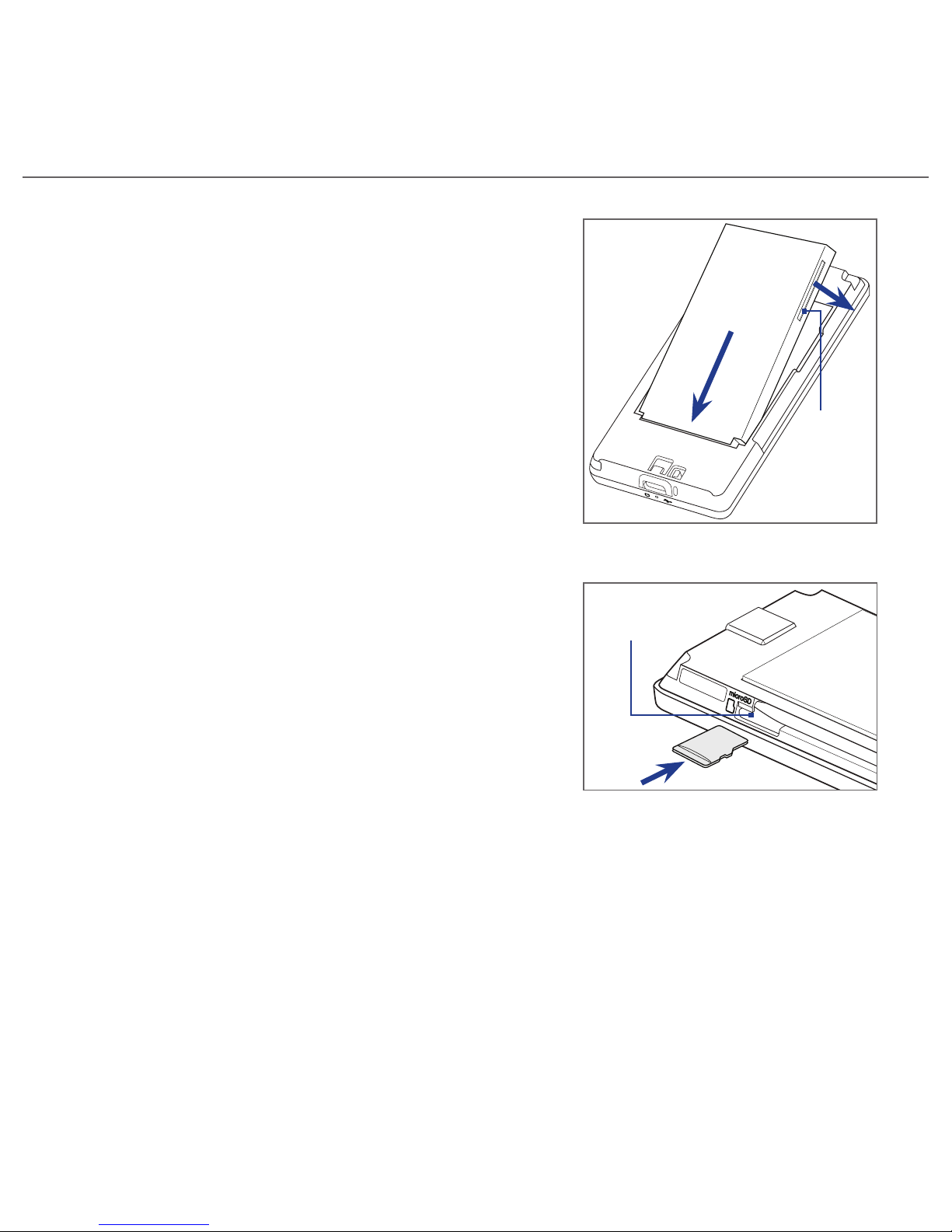

To install the battery
Align the battery’s exposed copper contacts
with the battery connectors at the bottom
part of the battery compartment.
Insert the contacts side of the battery first and
then gently push the battery into place.
Replace the back cover.
1.
2.
3.
Notch
To install a microSD™card
Locate the storage card slot, then insert the
microSD card into the slot with its gold contacts
facing down until it clicks into place.
Note To remove the microSD card, press it to eject it
from the slot.
Storage
card slot
For information on how to remove or replace these components on your phone, refer to
the “Getting Started” chapter in the User Manual PDF.

Quick Start Guide 9
5. Charging the Battery
New batteries are shipped partially charged. Before you start using your phone, it is
recommended that you install and charge the battery.
To charge the battery
Connect the USB connector of the AC adapter to the sync connector at the bottom
of your phone.
Plug in the AC adapter to an electrical outlet to start charging the battery.
6. Starting Up
After installing the battery and charging the battery, you can now power on and start
using your phone.
To turn on the power
Press the POWER button.
On first time use, the phone installs customized settings, and then displays the SIM Card
Changed screen. Follow the on-screen instructions to import the contacts to your device.
To turn off the power
If the display is off, press the END/POWER button to turn the display back on.
Press and hold the END/POWER button for a few seconds.
Tap Yes when prompted.
1.
2.
1.
2.
3.

10 Quick Start Guide
7. The Home Screen
The Home screen of your phone allows finger-touch access to the most widely-used functions,
such as People, Messages, Internet, and more. The Home screen has the following tabs::
Home Music Settings
CalendarNews and
Sport
TV
Photos
and Videos
People
DownloadsMessages
Email
Internet
and Search
Telstra
Applications
Favorite
Programs

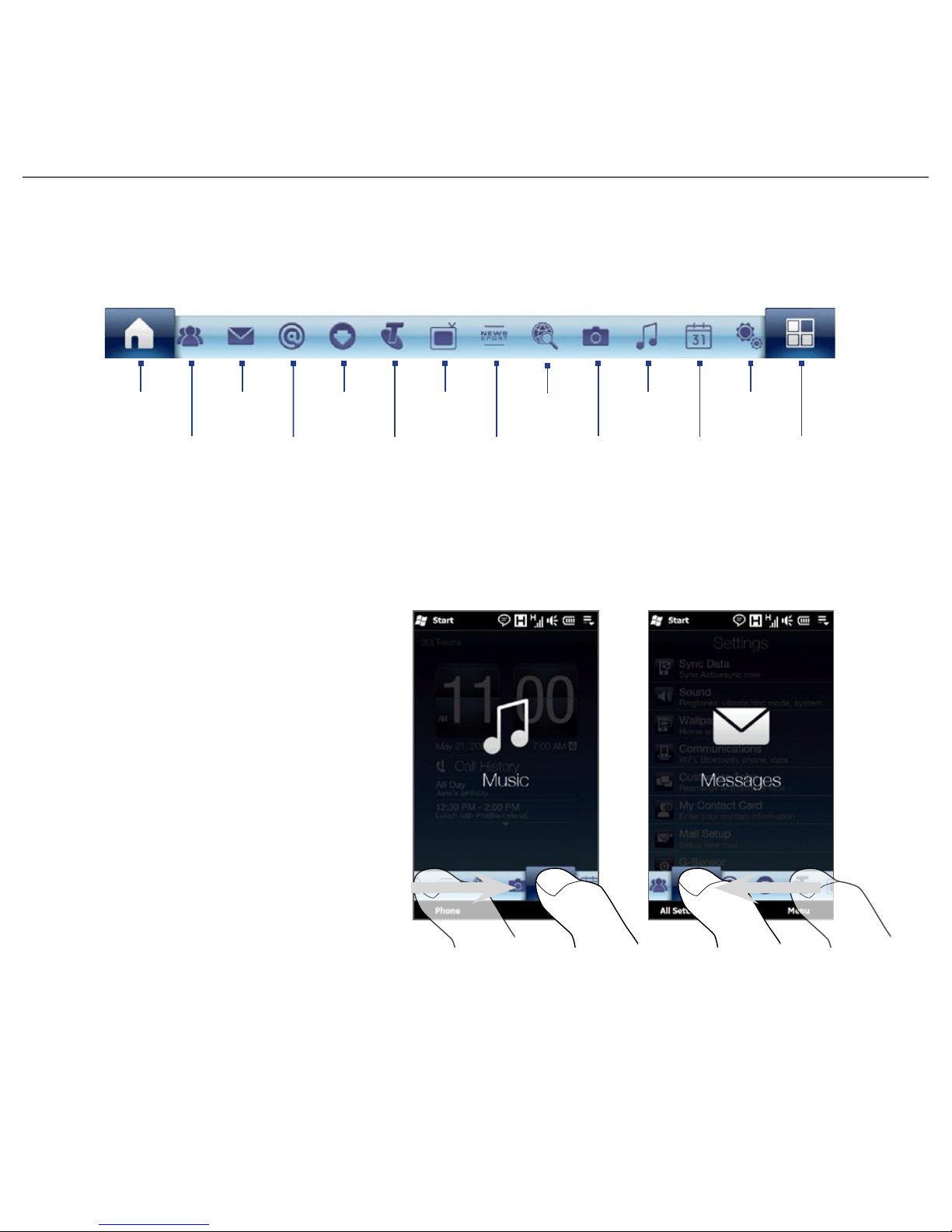

To switch between the tabs of the Home screen
Do any of the following:
Tap the desired tab on the Home screen.
Press and hold your finger
on the active tab, and then
slide your finger right or
left over the tabs. Release
when you have selected
the desired tab.
Swipe left across the
screen to move to the next
tab, and swipe right across
the screen to move to the
previous tab.
•
•
The following sections in this Quick Start Guide will show you how to use some of the
Home screen tabs. For complete information about using the Home screen, refer to the
User Manual PDF.
•

Quick Start Guide 11
8. Lock Screen
The Lock screen is displayed whenever your phone is locked. You can lock your phone to
prevent accidental button or LCD display presses when the phone is in your bag or pocket.
When your phone is locked, you are still notified of new messages, missed calls, and
upcoming appointments. You can also receive a call and adjust the phone volume when
the phone is locked.
Locking and unlocking your phone
The phone is locked when the time out for a phone password has elapsed. You can also
lock the phone manually.

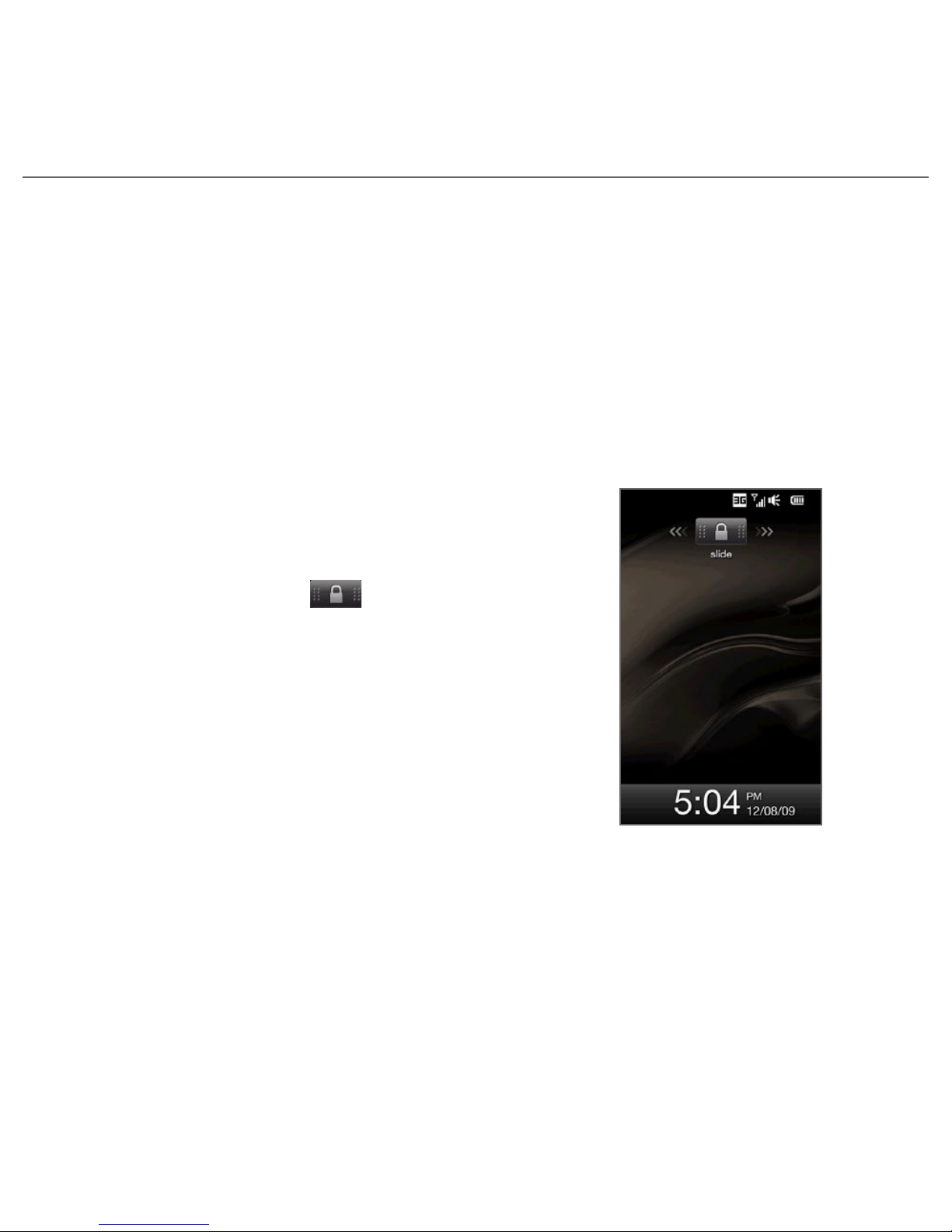

To lock your phone
Press and hold the END button.
To unlock your phone
Slide the Lock button ( ) left or right.
If you have locked the phone with a password, you
will be prompted for the password when you unlock
the phone.

12 Quick Start Guide
Checking notifications when the phone is locked
You are notified of missed calls, new email and text messages, and upcoming appointments
even when the phone is locked. The Lock button displays the number of notifications.
To view notifications
On the Lock screen, tap the Lock button ( ). Notification buttons representing
each type of received information, such as missed calls, new email, and new text
messages, are then displayed below the Lock button.
Slide a notification button right or left to view the respective information. For
instance, slide the Missed Call button ( ) to access the Call History and view the
missed calls.
Upcoming
appointment
Receiving a call when the phone is locked
You can receive and answer calls even when your phone is locked. After you end the call,
your phone remains locked and the Lock screen is displayed. You need to unlock to use
your phone.
1.
2.

Quick Start Guide 13
9. Using the Start Screen
The Start screen gives you one-touch access to the programs and settings of your phone.

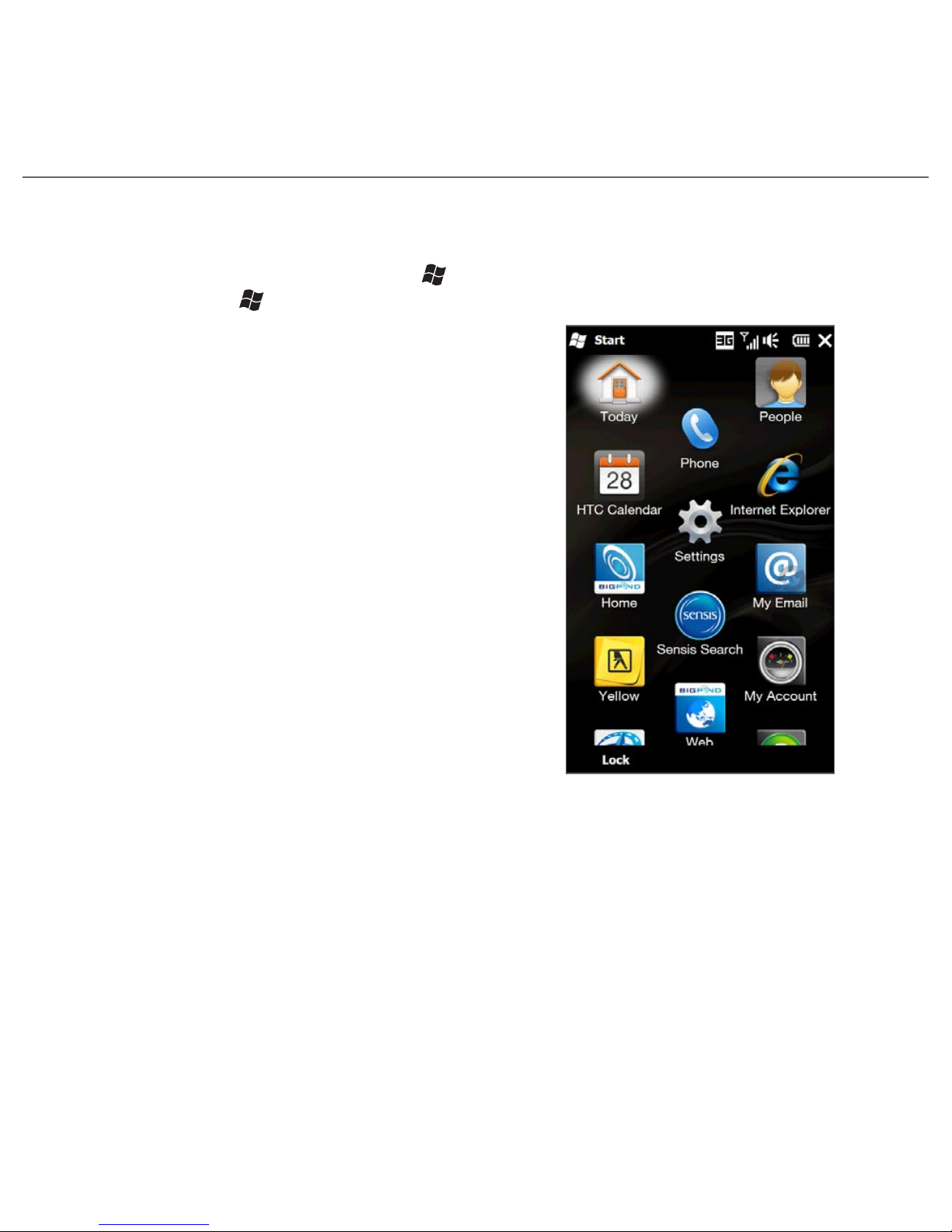

To open the Start screen, tap Start ( ) at the top left corner of the screen, or press the
START button ( ).
On the Start screen:
Swipe your finger up or down to scroll
through the screen.
Tap the Today icon to return to the
Home screen. See “Home” in Chapter 3
for details.
Tap a program icon to open the
corresponding program.
Tap the Settings icon to access the
settings of your phone.
Tap Lock at the bottom-left corner of the
Start screen to lock your phone. See “Lock
Screen” for details.
Press the START button to close the Start
screen.
•
•
•
•
•
•
To move an icon to the top of the Start screen
You can move often used icons to the top of the Start screen for easy access.
Press and hold the icon that you want to move.
Tap Move to Top.
The icon is moved to the top of the Start screen.
To return an icon to its original location, press and hold the icon and then tap Move
Down.
1.
2.

14 Quick Start Guide
10. Making Your First Call
On the Home screen, tap Phone.
Tap the keys on the keypad to enter the phone
number.
Tip If you tapped a wrong number, tap to erase
each subsequent digit of a number. To erase the
entire number, press and hold .
Tap Talk to place the call.
Tip When in a call, use the VOLUME UP/DOWN buttons
on the side of the phone to adjust the phone
volume.
When a call is in progress, tap End Call or press
END to hang up.
1.
2.
3.
4.
Accepting or rejecting an incoming call
To answer a call
Press the TALK/SEND button, or fully slide the center
button of the Answer/Ignore bar to the left.
To reject a call
Press the END/POWER button, or fully slide the
center button of the Answer/Ignore bar to the right.
To mute the ring without rejecting the call
Tap Mute Ring or press the VOLUME DOWN button.

Quick Start Guide 15
To reject the call and automatically send a preset text message to the caller
When you receive a phone call, tap Send Text to reject the call and automatically send a
preset text message to the caller.
Note To change the automatic text message that is sent to the caller when you reject the call, on
the Phone screen, tap Menu > Options > Advanced tab.
11. Making a Video Call
On the Phone screen, tap the phone number to call,
tap , then tap the Video Call button.
Notes • The other party’s image will appear on the screen
about 3 to 5 seconds after a connection is established,
depending on the signal strength. The streaming
images quality may also be influenced by the signal.
• You need to use a 3G-enabled SIM card and activate
the video calling service on your call plan to make
video calls.
Changing the video call settings
On the Phone screen, or on the screen of the ongoing
video call, tap Menu > Video Call Options and set the
general video call and services options.
Note While on a video call, you can change certain settings such as the size and brightness of the
image, and the camera to use. Refer to the User Manual for details.

16 Quick Start Guide
12. Entering Information
When you start a program or select a field that allows you to enter text or numbers, a
keyboard icon will be displayed at the bottom center of the screen to indicate that the on-
screen keyboard is available for use. Tap the keyboard icon to display or hide the on-screen
keyboard.
Tap the Input Selector arrow that appears next to the keyboard icon to open a menu from
which you can select different keyboard layouts and customize text input settings. You can
choose from these keyboard layouts: Full QWERTY, Compact QWERTY, and Phone Keypad.
Note The available options on the input panel vary according to the region in which you purchased
your phone.

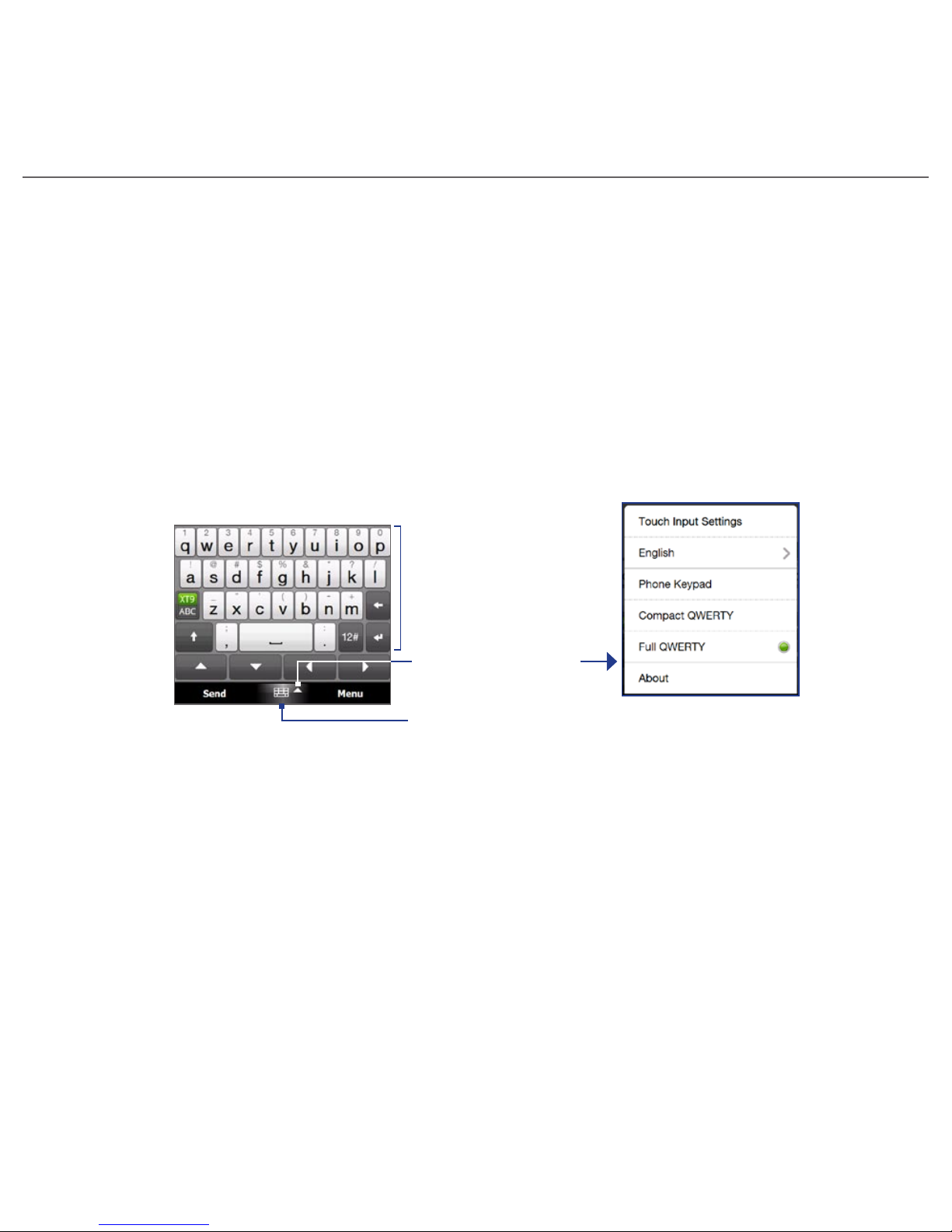

Input Panel
(Full QWERTY)
Input Selector arrow
Keyboard icon Text input methods
To enter text, simply tap the keys on the onscreen keyboard. Depending on the keyboard
layout selected, you may need to tap the same key more than once to select the desired
character.
For more information about using the different input methods, refer to the “Entering Text”
chapter in the User Manual PDF.

Quick Start Guide 17
13. Basic Settings
Customize your phone settings to suit your personal needs.
Ringtone
Tap Start > Settings, and then tap Sound.
Tap Ringtone, select the desired ringtone in the list, and then tap Done.
Phone profile
A profile is a preset that determines how your phone will alert you when there are
incoming phone calls. To select a profile:
Tap Start > Settings, and then tap Sound.
Under Profiles, choose one of the following: Normal, Vibrate, Silent, or Automatic.
Notes •Automatic sets your phone to vibrate only when you receive phone calls during
scheduled appointments in your Calendar.
• If you have set an alarm and you select the Vibrate or Silent profile, you will not hear the
alarm sound when the alarm goes off.
Wallpaper
You can change the background image of the Home tab.
Tap Start > Settings, and then tap Wallpaper. The Album program opens.
Tap an image to set it as the Home tab wallpaper. If the image you want to use is not
displayed, tap Albums and navigate to the folder where the image is located.
1.
2.
1.
2.
1.
2.

18 Quick Start Guide

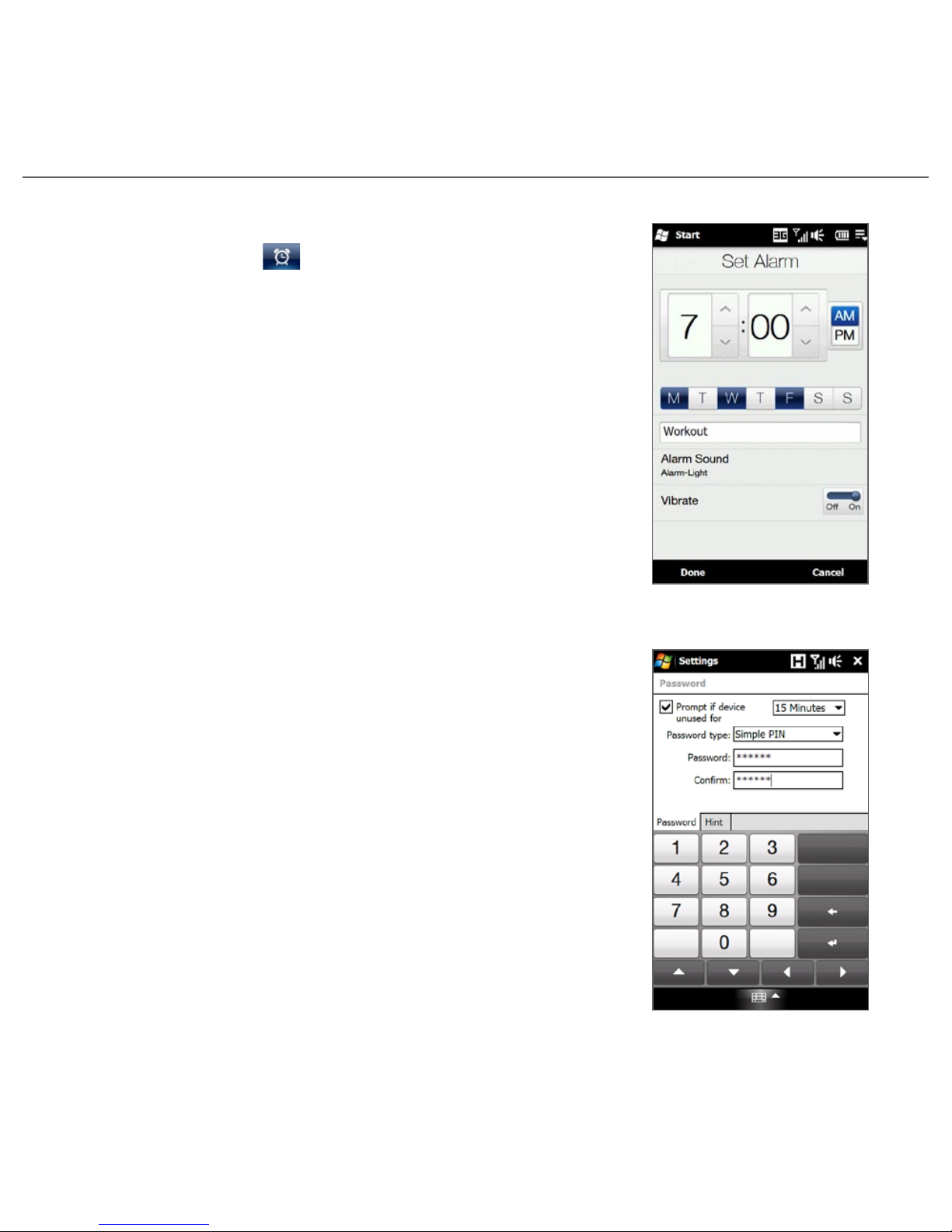

Alarm clock
On the Home tab, tap the clock and then tap the
Alarm tab ( ). You can set up to three alarms
on this tab.
Tap an alarm time.
On the Set Alarm screen, adjust the alarm time
(hour and minutes), then tap the day of the week
for the alarm.
Tip Select multiple days by tapping each desired day.
Tap a selected day to exclude it from the alarm.
Enter the alarm description, select the alarm
ringtone, and then choose whether you want the
phone to vibrate when the alarm goes off.
Tap Done.
1.
2.
3.
4.
5.
Phone lock
Enabling phone lock requires you to enter a password
to unlock your phone after it has been left idle for a set
period of time.
Tap Start > Settings, and then tap All Settings.
On the Personal tab, tap Lock.
Select the Prompt if device unused for check box
and choose the time to elapse before your phone
requires password entry.
Select the Password type.
Enter and confirm the password and then tap OK.
1.
2.
3.
4.
5.

Quick Start Guide 19
SIM card PIN
Enabling the SIM card PIN requires you to enter a PIN number first before you can use the
phone features of the phone.
Tap Start > Settings, and then tap Communications.
On the Comm Manager screen, tap Phone > PIN Code.
Enter the PIN, tap OK, and then tap OK on the dialog box.
Tips •To change the PIN, tap Change PIN on the Phone Settings screen.
•Emergency calls can be placed at any time, without requiring a PIN.
Backlight and battery saving settings
Conserve battery power by adjusting backlight and battery saving settings.
Tap Start > Settings, and then tap All Settings.
On the System tab, tap Power.
On the Backlight tab, clear the Auto adjust backlight check box, and then adjust
the brightness for battery power and for AC power by dragging the battery power
and external power sliders.
On the Advanced tab, set when you want the backlight and phone screen to turn
off when using battery and external power.
Tap OK.
For more information about the settings on your phone to the “Managing Your Phone”
chapter in the User Manual PDF.
1.
2.
3.
1.
2.
3.
4.
5.

20 Quick Start Guide
14. Adding Favorite Contacts
On the Home screen’s People tab, you can add up to 15 favorite contacts. This allows you
to quickly make calls, send text messages, and send email messages to contacts who you
most frequently communicate with.
Note The first time you access the People tab, My Contact Card opens and lets you enter
and save your contact information. My Contact Card enables you to easily share your
contact information with family and friends. Follow the onscreen instructions to complete
My Contact Card.
To add contacts to your phone
Before you can add favorite contacts to the People tab,
you need to add or import contacts to your phone’s
contacts list.
On the Home screen, slide to the People tab, tap All
People, and then tap New on top of the list.
Enter the contact information, and then tap OK to
return to the Contacts tab of the People screen.
Tip If you want to import SIM contacts to your phone, tap
Start > SIM Manager, tap Menu > Select All, and then
tap Menu > Save to Contacts. (Copying SIM contacts to
your phone results in duplicate contacts when you view
them on the Contacts tab of the People screen).
1.
2.
To add favorite contacts to the People tab
On the Home screen, slide your finger to the People tab.
Tap one of the plus (+) icons, or tap Add Favorite.
On the Select a Contact screen, tap the name of the desired contact.
Select a phone number or email address to associate to the favorite contact.
Note If there is no picture assigned to the contact, the next screen allows you to select or take
a picture of the contact.
1.
2.
3.
4.
