Huawei HG532s User manual

HG532s Home Gateway
User Guide
HUAWEI TECHNOLOGIES CO., LTD.

HG532s Home Gateway
V100R001
User Guide
Issue 01
Date 2012-05-21
Part Number 202506
Huawei Technologies Co., Ltd. provides customers with comprehensive
technical support and service. Please feel free to contact our local office
or company headquarters.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huaweidevice.com
Email: [e-mail]

Copyright © Huawei Technologies Co., Ltd. 2012. All
rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means
without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei
Technologies Co., Ltd and possible licensors. Customers shall not in any manner
reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse
engineer, lease, assign, or sublicense the said software, unless such restrictions are
prohibited by applicable laws or such actions are approved by respective copyright
holders under licenses.
Trademarks and Permissions
, , and
are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of
their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and may not be activated or may be
limited by local network operators or network service providers. Thus the descriptions
herein may not exactly match the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any information or
specifications contained in this manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS’’. EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE
SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will
obtain all necessary governmental permits and licenses in order to export, re-export or
import the product mentioned in this manual including the software and technical data
therein.

Contents
1 Warnings and Precautions ....................................................... 1
2Connecting the Cables and Getting Started................................... 8
2.1 Connecting Cables Using the ADSL Port ........................................8

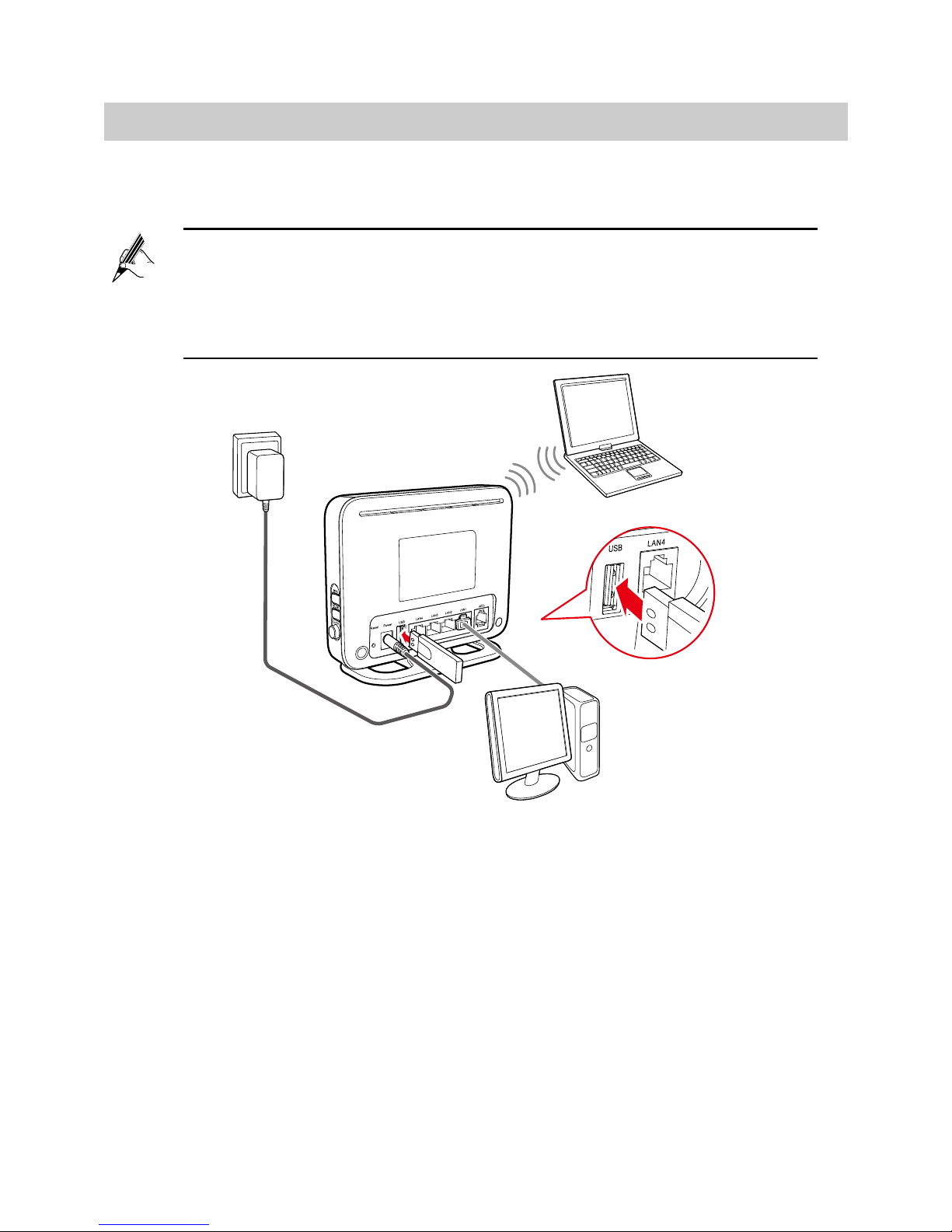

2.2 Connecting Cables Using the USB Port ..........................................9
2.3 Powering On the HG532s............................................................10
3Setting Network Access Parameters............................................ 11
3.1 Logging in to the Web-Based Configuration Utility .......................11
3.2 Configuring a Wireless Account...................................................12
3.3 Configuring a Dial-Up Connection for Internet Access...................12
4Setting Up a Wireless Connection ............................................... 13
4.1 Setting up a Wireless Connection Using the WPS Button.......13
4.2 Setting up a Wireless Connection Manually ............................14
5Using the USB Port .................................................................... 16
5.1 Going Online Using a USB Modem .............................................16
5.2 Accessing portable Storage Devices Using the FTP Server .............17
5.3 Accessing a Printer Using the Printer Server .................................18
6 Maintenance Guide ................................................................. 19
6.1 Changing the User Name and Password for the Web-Based
Configuration Utility.........................................................................19
6.2 Enabling or Disabling the Wireless Network Function ...................20
Using the WLAN Button ............................................................20
Using the Web-Based Configuration Utility..................................20
6.3 Changing the Wireless Network Name and Password.....................20
6.4 Changing the PIN code for your SIM card ...............................21
6.5 Restoring Default Settings ...........................................................22
7FAQs ......................................................................................... 23
8Technical Specifications.............................................................. 29

8.1 Indicators ...................................................................................29
8.2 Ports and Buttons........................................................................31
8.3 Default Settings ..........................................................................33
8.4 Product Specifications.................................................................33

1
1 Warnings and Precautions
To use the device properly and safely, read these warnings and precautions
carefully and strictly observe them during operation. Unless otherwise specified,
the term "device" refers to the device and its accessories.
Basic Requirements
During storage, transportation, and operation of the device, keep it dry and
prevent it from colliding with other objects.
Do not dismantle the device. In case of any fault, contact an authorized
service center for assistance or repair.
Without authorization, no organization or individual can change the
mechanical, safety, or performance design of the device.
When using the device, observe all applicable laws and regulations and
respect the legal rights of other people.
Environmental Requirements for Using the Device
Before connecting and disconnecting cables, stop using the device, and
then disconnect it from the power supply. Ensure that your hands are dry
during operation.
Keep the device far from sources of heat and fire, such as a heater or a
candle.
Keep the device far from electronic appliances that generate strong
magnetic or electric fields, such as a microwave oven or a refrigerator.
Place the device on a stable surface.
Place the device in a cool and well-ventilated indoor area. Do not expose
the device to direct sunlight.
Use the device in an area with a temperature ranging from 0°C to 40°C.
Do not block the openings on the device with any object. Reserve a
minimum space of 10 cm around the device for heat dissipation.

2
Do not place any object (such as a candle or a water container) on the
device. If any foreign object or liquid enters the device, stop using the device
immediately, power it off, remove all the cables connected to it, and then
contact an authorized service center.
During thunderstorms, power off the device, and then remove all the cables
connected to it to prevent it from getting damaged due to lightning strikes.
Precautions for Using Wireless Devices
When using the device, ensure that the antenna of the device is at least 20
cm away from all persons.
Do not use the device where using wireless devices is prohibited or may
cause interference or danger.
The radio waves generated by the device may interfere with the operation of
electronic medical devices. If you are using any electrical medical device,
contact its manufacturer for the restrictions on the use of the device.
Do not take the device into operating rooms, intensive care units (ICUs), or
coronary care units (CCUs).
Areas with Inflammables and Explosives
Do not use the device where inflammables or explosives are stored, for
example, in a gas station, oil depot, or chemical plant. Otherwise,
explosions or fires may occur. In addition, follow the instructions indicated in
text or symbols.
Do not store or transport the device in the same box as inflammable liquids,
gases, or explosives.
Accessory Requirements
Use only the accessories supplied or authorized by the device manufacturer.
Otherwise, the performance of the device may get affected, the warranty for
the device or the laws and regulations related to telecommunications
terminals may become null and void, or an injury may occur.
Do not use the power adapter if its cable is damaged. Otherwise, electric
shocks or fires may occur.

3
Ensure that the power adapter meets the specifications indicated on the
device nameplate.
Ensure that the power adapter meets the requirements of Clause 2.5 in
IEC60950-1/EN60950-1 and it is tested and approved according to national
or local standards.
For pluggable device, the socket-outlet shall be installed near the device
and shall be easily accessible.
The adapter shall be installed near the equipment and shall be easily
accessible.
Only can use adapter as below:
−Adapter mfg: Shenzhen OCT Xinqiao Technology Co.,Ltd,
−Dongguan Shilong Fuhua Electronic Co.,Ltd
−Adapter 1 model: HW-120100B6W
−I/P:100-240V,50/60Hz,0.5A,O/P 12V, 1.0A
−Adapter 2 model: HW-120100E6W
−I/P:100-240V,50/60Hz,0.5A,O/P 12V, 1.0A
−The plug considered as disconnect device of adapter.
Safety of Children
Keep the device and its accessories out of the reach of children. Otherwise,
they may damage the device and its accessories by mistake, or they may
swallow the small components of the device, causing suffocation or other
dangerous situations.
Maintenance
If the device is not used for a long time, power it off, and then remove all the
cables connected to it.
If any exception occurs, for example, if the device emits any smoke or
unusual sound or smell, stop using the device immediately, power it off,
remove all the cables connected to it, and then contact an authorized
service center.
Do not trample, pull, or overbend any cable. Otherwise, the cable may get
damaged, causing malfunction of the device.

4
Before cleaning the device, stop using it, power it off, and then remove all
the cables connected to it.
Use a clean, soft, and dry cloth to clean the device shell. Do not use any
cleaning agent or spray to clean the device shell.
Disposal and Recycling Information
This symbol on the device (and any included batteries) indicates that
the device (and any included batteries) should not be disposed of as
normal household garbage. Do not dispose of your device or batteries
as unsorted municipal waste. The device (and any batteries) should
be handed over to a certified collection point for recycling or proper disposal at
the end of its life.
For more detailed information about the recycling of the device or batteries,
contact your local city office, the household waste disposal service, or the retail
store where you purchased this device.
The disposal of this device is subject to the Waste from Electrical and
Electronic Equipment (WEEE) Directive of the European Union. The purpose
for separating WEEE and batteries from other waste is to minimize any
environmental impact and health hazard due to the presence of hazardous
substances.
Reduction of Hazardous Substances
This device is compliant with the EU Registration, Evaluation, Authorisation
and Restriction of Chemicals (REACH) Regulation (Regulation No
1907/2006/EC of the European Parliament and of the Council) and the EU
Restriction of Hazardous Substances (RoHS) Directive (Directive 2002/95/EC
of the European Parliament and of the Council). For more information about
the REACH compliance of the device, visit the Web
site www.huaweidevice.com/certification. You are recommended to visit the
Web site regularly for up-to-date information.
EU Regulatory Conformance
This device should be installed and operated with a minimum distance of 20
cm between the antenna and all persons.

5
Български: С настоящето Huawei Technologies Co., Ltd. декларира, че
този уред съответства на основните изисквания и другите разпоредби на
Директива 1999/5/EC.
Česky: Huawei Technologies Co., Ltd., tímto prohlašuje, že toto zařízení je ve
shodě se základními požadavky a dalšími souvisejícími opatřeními směrnice
1999/5/EC.
Dansk: Huawei Technologies Co., Ltd. erklærer hermed at denne enhed er i
overensstemmelse med de obligatoriske krav og andre relevante
bestemmelser i direktiv 1999/5/EF.
Nederlands: Hierbij verklaart Huawei Technologies Co., Ltd. dat dit apparaat
in overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EC.
English: Hereby, Huawei Technologies Co., Ltd. declares that this device is in
compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
Eesti: Käesolevaga kinnitab Huawei Technologies Co., Ltd., et see seade
vastab Direktiivi 1999/5/EÜ põhinõudmistele ja teistele asjakohastele
määrustele.
Suomi: Huawei Technologies Co., Ltd. vakuuttaa täten, että tämä laite on
yhdenmukainen direktiivin 1999/5/EY olennaisten vaatimusten ja direktiivin
muiden asiaankuuluvien lausumien kanssa.
Français (Européen): Le fabricant déclare que ce produit est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Deutsch: Huawei Technologies Co., Ltd. erklärt hiermit, dass dieses Produkt
die erforderlichen Bestimmungen und andere relevante Verordnungen der
Richtlinie 1999/5/EG einhält.
Ελληνικά: Δια της παρούσης η Huawei Technologies Co., Ltd. δηλώνει ότι
αυτή η συσκευή συμμορφώνεται με τις βασικές απαιτήσεις και άλλες σχετικές
διατάξεις της οδηγίας 1999/5/Ε.Κ.
Magyar: Jelen nyilatkozaton keresztül a Huawei Technologies Co., Ltd.
kijelenti, hogy a készülék megfelel az EC/5/1999 Irányelv összes lényeges
követelményének és vonatkozó előírásának.
Gaeilge: Fograíonn Huawei Technologies Co., Ltd leis seo go bhfuil an fheiste
seo i gcomhlíonadh leis na fíor-riachtanais agus na forálacha eile maidir le
Treoir 1999/5/AE.
Italiano: Col presente documento, Huawei Technologies Co., Ltd. dichiara che
questo dispositivo è conforme ai requisiti essenziali e alle altre disposizioni
applicabili della Direttiva 1999/5/CE.

6
Latviski: Ar šo Huawei Technologies Co., Ltd. paziņo, ka šī ierīce
atbilst Direktīvas 1999/5/EC pamatprasībām un piemērojamajiem
nosacījumiem.
Lietuviškai: Šiuo Huawei Technologies Co., Ltd. praneša, kad šis įtaisas
atitinka Direktyvos 1999/5/EC pagrindinius reikalavimus ir taikomas sąlygas.
Malti: Hawnhekk, Huawei Technologies Co., Ltd. tiddikjara li dan it-tagħmir hu
konformi mal-ħtiġijiet essenzjali u provvedimenti rilevanti oħrajn ta’ Direttiva
1999/5/KE.
Polski: Wymieniona w tym dokumencie firma Huawei Technologies Co., Ltd.
deklaruje, że niniejsze urządzenie spełnia zasadnicze wymagania w zakresie
zgodności oraz inne odnośne postanowienia Dyrektywy 1999/5/EC.
Português (Europeu) : Deste modo, a Huawei Technologies Co., Ltd. declara
que este dispositivo está em conformidade com os requisitos essenciais e
outras provisões relevantes da Directiva 1999/5/CE.
Română: Prin prezenta Huawei Technologies Co., Ltd. declară că acest
dispozitiv este conform cu cerinţele esenţiale şi alte prevederi relevante ale
directivei 1999/5/CE.
Slovenčina: Huawei Technologies Co., Ltd. týmto vyhlasuje, že zariadenie je v
súlade so základnými požiadavkami a inými relevantnými predpismi Smernice
1999/5/ES.
Slovenščina: Huawei Technologies Co., Ltd. izjavlja, da je ta naprava v skladu
z bistvenimi zahtevami in drugimi ustreznimi določbami Direktive 1999/5/ES.
Español (Europeo) : Con el presente documento, Huawei Technologies Co.,
Ltd. declara que este dispositivo cumple con los requisitos esenciales y con las
demás disposiciones correspondientes de la Directiva 1999/5/CE.
Svenska: Huawei Technologies Co., Ltd. förklarar härmed att denna produkt
överensstämmer med de grundläggande kraven och andra relevanta
föreskrifter i direktiv 1999/5/EG.
For the declaration of conformity, visit the Web
site www.huaweidevice.com/certification.
Notice: Observe the national local regulations in the location where the device
is to be used. This device may be restricted for use in some or all member
states of the European Union (EU).
Notice: This device can be operated in all European countries.
France: Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5
MHz.

7
Italy: For private use, a general authorisation is required if WAS/RLAN's are
used outside own premises. For public use, a general authorisation is required.
Norway:This subsection does not apply for the geographical area within a
radius of 20 km from the centre of Ny-Ålesund.
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device complies with part 68 of the FCC Rules.
This device should be installed and operated with a minimum distance of 20 cm
between the antenna and all persons.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved
by Huawei Technologies Co., Ltd. may void the FCC authorization to operate
this device.

8
2 Connecting the Cables and Getting Started
Thank you for purchasing the HG532s Home Gateway (hereinafter referred to
as the HG532s).
You can go online using the ADSL and USB modem services. However, you
can only use one type of service at one time. The default way of going online is
using the ADSL service, though you can go online using the USB modem
service when you cannot access the network using the ADSL services.
2.1 Connecting Cables Using the ADSL Port
The following figure shows an example of how to connect the cables. In this
example, the HG532s is connected to a desktop computer, a laptop computer,
and a telephone.
1
3
2
4
5
6
a
b
c
1. Power adapter
2. Desktop computer
3. Telephone
4. Splitter
5. Telephone wall jack
6. Laptop computer
a. MODEM port
b. PHONE port
c. LINE port

9
2.2 Connecting Cables Using the USB Port
If you do not have ADSL service in your home, you can go online using the USB
modem service (through the USB port).
If you have ADSL service in your home and want to go online using
the USB modem service, make sure that the ADSL port is not
connected to a router or telephone outlet, otherwise the USB
modem will not work even if there is no Wide Area Network (WAN)
connection.
1
2
3
4
1.
Power adapter
2. Desktop computer
3.
USB modem 4.
Laptop computer

10
2.3 Powering On the HG532s
After connecting the cables, press the On/Off button on the side panel to power
on the HG532s.
After you power on the HG532s, the Power indicator light turns on.
−When connecting cables using the ADSL port, The ADSL indicator lights up
and starts blinking. This indicates that the asymmetric digital subscriber line
(ADSL) port activation is in progress. The blinking may last from 40 seconds
to 3 minutes. When the ADSL indicator stops blinking and remains on, the
HG532s is working properly.
−When going online using the USB port, the USB indicator light turns on.
This indicates that the HG532s is working properly. When the USB indicator
light starts blinking, data is being transmitted between the HG532s and the
connected device.
To power off the HG532s, press the On/Off button on the side
panel, and then unplug the power adapter.

11
3 Setting Network Access Parameters
3.1 Logging in to the Web-Based Configuration
Utility
Most parameters of the HG532s are preset before delivery to meet common
application scenarios at homes. To check the HG532s's working status or to
configure certain advanced network functions, use the web-based configuration
utility.
To log in to the HG532s's web-based configuration utility:
Step 1 Launch a browser on your computer. Enter http://192.168.1.1 in the
address box, and press Enter.
Step 2 On the login page, enter your user name (default is user) and
password (default is user).
If the user name and password have been changed, use the correct
user name and password for login.
Step 3 Click Login.
After verification, the web-based configuration utility is displayed.
The first time you log in to the web-based configuration utility, a quick
configuration wizard is displayed. To skip the wizard and further
configure your HG532s, click Here when the following message
displays: Click Here to enter the advanced configuration page.

12
3.2 Configuring a Wireless Account
The configuration wizard page is displayed when wireless parameters have not
been modified. To set the wireless network name and password for wireless
connections on the wizard page, do as follows:
Step 1 Log in to the HG532s's web-based configuration utility.
Step 2 In the displayed Quick Configure Home Gateway: Wireless
Network page. Set WLAN SSID and Key, and click Next.
After you set the wireless network name and password, the home page of
the web-based configuration utility is displayed. A navigation menu is displayed
on the left.
3.3 Configuring a Dial-Up Connection for Internet
Access
The HG532s works in bridge mode by default. To set up a dial-up connection for
Internet access, you must install and configure PPP dial-up software. The
following example uses a computer running the Windows XP operating system
to describe how to set up a dial-up connection:
Step 1 Choose Start > All Programs > Accessories > Communications >
Network Connections.
Step 2 In Network Tasks, click Create a new connection. In the New
Connection Wizard window, click Next.
Step 3 Select Connect to the Internet, and click Next.
Step 4 Select Set up my connection manually, and click Next.
Step 5 Select Connect using a broadband connection that requires a user
name and password, and click Next.
Check the label on the HG532s's rear panel for SSID and WLAN
Key. The preceding configuration needs to be performed only once.
You can also configure the wireless network name and password by
choosing Basic > WLAN. For details, see section 6.3 "Changing the
Wireless Network Name and Password".

13
Step 6 In ISP Name, enter a name for the dial-up connection, and click Next.
Step 7 Select Anyone's use or My use only, and click Next.
Step 8 Enter the user name and password provided by your operator for
dial-up connections, and click Next.
Step 9 Select Add a shortcut to this connection to my desktop, and click
Finish.
The preceding steps need to be performed only once. After you complete the
procedure, a dial-up connection icon will appear on your computer desktop.
To connect to the Internet, double-click the dial-up connection icon, and click
Connect in the dialog box.
4 Setting Up a Wireless Connection
If a wireless network adapter is available on your computer, you can connect
your computer to the HG532s over a wireless connection.
The method for installing the wireless adapter and its driver varies
according to different vendors. For details, see the installation guide
provided by the vendor of your wireless adapter.
The HG532s’s wireless network function is enabled by default. To check the
function status, see section 6.2 "Enabling or Disabling the Wireless Network
Function".
There are two methods for setting up a wireless connection between the
HG532s and your computer.
4.1 Setting up a Wireless Connection Using the WPS
Button
The HG532s supports the Wi-Fi Protected Setup (WPS) function in Push Button
Configuration (PBC) mode. If your wireless network adapter also supports the
WPS function, do the following to connect your computer to the
HG532s wirelessly:

14
Step 1 Press and hold the WPS button for over 1 second on the side panel of
the HG532s.
The WPS indicator on the HG532s starts blinking, indicating that the
HG532s is in the WPS negotiation state.
Step 2 Within 2 minutes, enable the WPS negotiation function on the
computer.
Wait for a while, the WPS indicator of the HG532s stops blinking and
remains on, indicating that a wireless connection is set up between the
HG532s and the computer.
−You need to wait for 10 seconds to 120 seconds.
−The WPS indicator is on for about 300 seconds, and then turns off.
4.2 Setting up a Wireless Connection Manually
If your network adapter does not support the WPS function, you can also set up
a wireless connection manually.
The following example uses a computer running the Windows XP operating
system to describe how to set up a wireless connection using the
default wireless network name and password:
Step 1 Start the wireless configuration service of the Windows XP operating
system as follows:
1. Right-click My Computer to display a short-cut menu, and choose
Manage.
2. In the Computer Management window, choose Computer
Management (Local) > Services and Applications > Services.
3. Right-click Wireless Zero Configuration to display a shortcut
menu, and choose Properties.
4. Check that Service status is Started. If Service status is not
Started, click Start.
5. Click OK to close the dialog box, and the close the Computer
Management window.

15
Step 2 Find the wireless network name (SSID) and its password (WLAN Key)
printed on the label on the HG532s's rear panel.
Step 3 Configure the wireless network connection on the computer as
follows:
1. Choose Start > All Programs > Accessories >
Communications > Network Connections.
2. In the Network Connections window, right-click Wireless Network
Connection to display a shortcut menu, and choose Properties.
3. In the Wireless Network Connection Properties dialog box, click
the Wireless Networks tab.
4. Select Use Windows to configure my wireless network settings.
5. Click View Wireless Networks.
6. In the Wireless Network Connection dialog box, select
the wireless network whose name is the same as the one you
recorded in Step 2, and click Connect.
7. In the dialog box, enter the password you recorded in Step 2, and
click Connect.
After the system verifies the password, Connected appears on
the wireless network icon in the wireless network list, indicating that
your computer has established a wireless connection to the
HG532s.
8. Close the Wireless Network Connection dialog box.
You need to set up a wireless connection only once.Then you can
access the wireless network anytime you want as long as that
the wireless network name and password are not changed. When
the HG532s is working properly, your computer connects to the
HG532s automatically after its wireless function is enabled.
