Huawei AR515 Series User manual

Quick Start Guide
AR515
03 (2018-10-26)
Part number: 31507749

Packing List
1
Installation accessory package:
- DC power input cable
- GPS+LTE diversity antenna
- Wi-Fi remote antennas
- Warranty card
- Certificate
- LTE main antenna
- Quick Start Guide
- Mounting brackets and screws
Site Environment
Do not place this product in an environment with flammable or explosive gases, or smoke.
The installation site must be free from leaking or dripping water or heavy dew. If the relative humidity is high,
use dehumidifiers or air conditioners with dehumidification features.
The installation site must be well ventilated, and the air vents of the router must not be blocked.
Do not place the router in a dusty environment.
Leave more than 100 mm clearance at two sides and the rear of the router for heat dissipation.
100mm
Safety Guidelines
To ensure personal and equipment safety, observe all the safety precautions on the equipment and in this
document. and items do not cover all the safety precautions and are only supplementary to
the safety precautions.
Follow all the safety precautions and instructions provided by Huawei. The safety precautions outlined in this
document are only those that Huawei can predict. Huawei is not liable for any consequence that results from
violation of regulations pertaining to safe operations or safety codes pertaining to the design, production,
and equipment use.
WARNING CAUTION
WARNING AR515GW-LM9-D and AR515CGW-L are class A products. In a domestic environment, these products may
cause radio interference in which case the user may be required to take the adequate measures.
During installation and maintenance, take ESD protection measures, for example, wear ESD gloves or an ESD
wrist strap.
During router transport, movement, and installation, prevent the router from colliding with objects like doors,
walls, or shelves.
This product is used in restricted scenarios and must be operated by trained personnel.
Do not place other objects on the router.
CAUTION
Figures in this document are for reference only and may not show the actual appearance of the router.
NOTE
AR515GW-LM9-D
- Power connector
- Cable tray
- Ground cable
- Warranty card
- Waterproof cover
- Binding cables
- Quick Start Guide
- Screws
AR515CGW-L
Installation accessory package:

2
Installing the Router
Connect cables to the router, bundle the cables with cable ties, and cut off redundant part of cable
ties with diagonal pliers.
Unlock the lock on the router, loosen the captive screws on the hard disk cage, and pull the hard
disk cage out.
1
2
Remove the hard disk connector.
3
Leave at least 100 mm of clearance around the router for heat dissipation.
Do not place other objects on the router.
If there is sufficient space in the vehicle, make the cable outlet side and hard disk side face left and right
respectively to facilitate maintenance.
If there is not sufficient space in the vehicle, make the cable outlet side face outward.
CAUTION
4.1 Installing AR515GW-LM9-D

3
Connect the hard disk connector to the hard disk, use two screws to fix them, and install them in
the hard disk cage.
While holding the hard disk with one hand, use a Phillips screwdriver to tighten the four M3x6
screws at the back of the router.
4
5
Insert the hard disk cage into the router, tighten the captive screws on the hard disk cage, and
lock the hard disk cage using the key.
6

4
Insert the SIM card into the SIM card holder.
8
Install the SIM card cover back and fix it with the six screws.
9
Use the Phillips screwdriver to remove the six screws on the SIM card cover, and then remove the
SIM card cover. Keep the screws for later use.
7

5

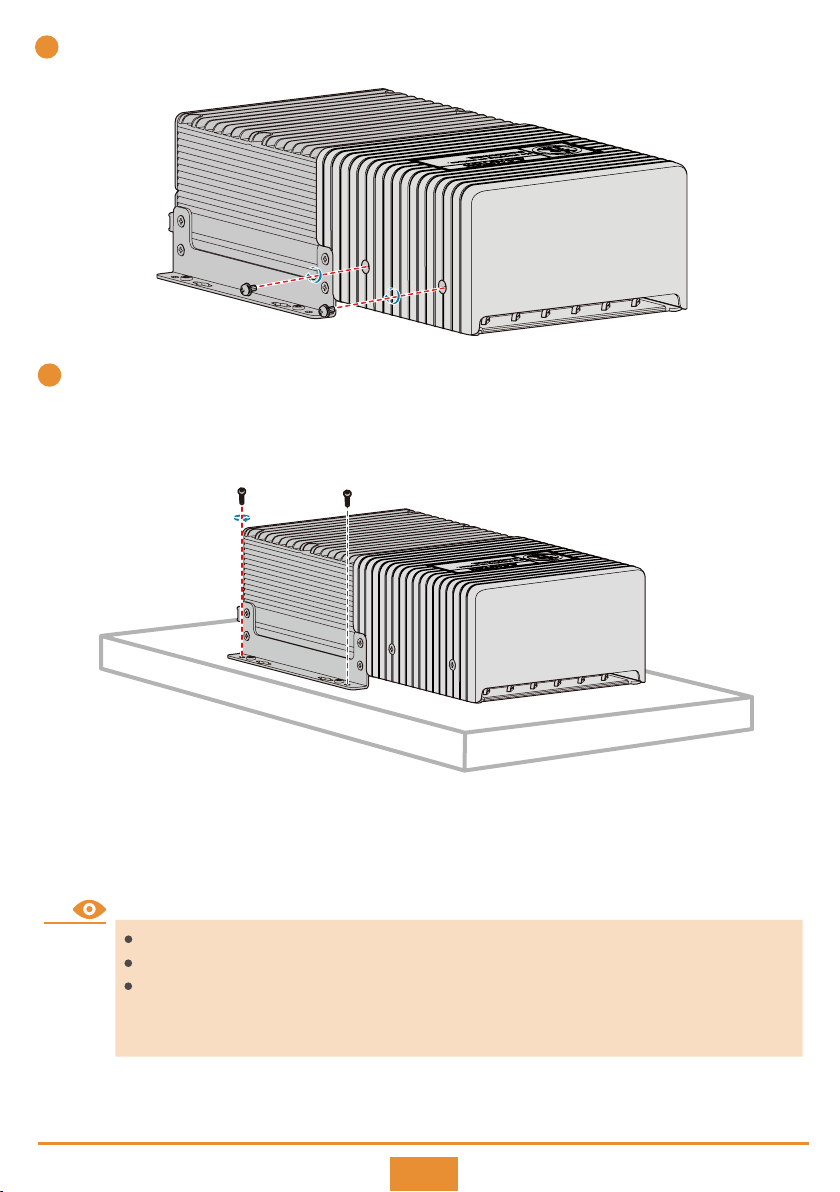

Fix the two mounting brackets on two sides of the router with six M5x10 screws using the Phillips
screwdriver.
10

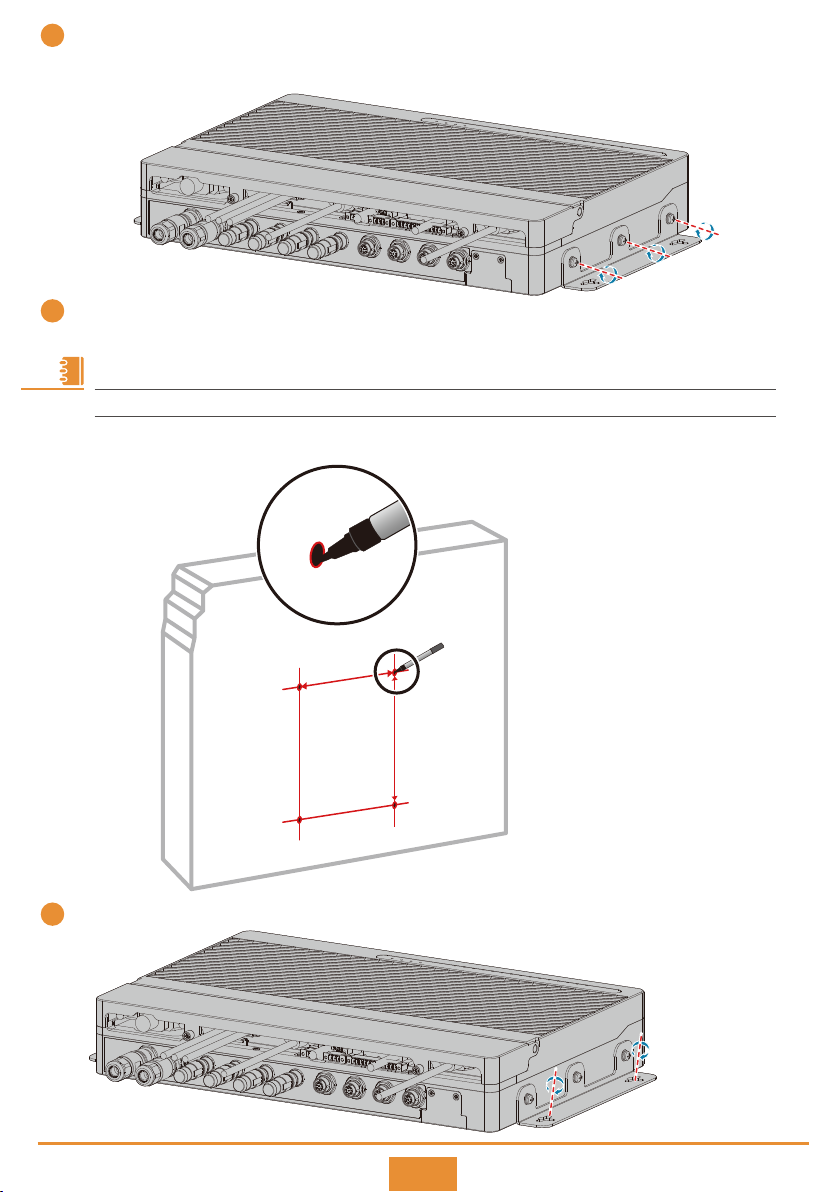

Use a measuring tape to determine positions of four mounting holes for the mounting brackets on
the luggage rack. The diameter of each mounting hole is 6 mm.
11
Use four M5 nuts and bolts to fix the router on the luggage rack.
12
155.5 mm
451.5 mm
Adjust positions of the mounting holes if necessary.
NOTE

6

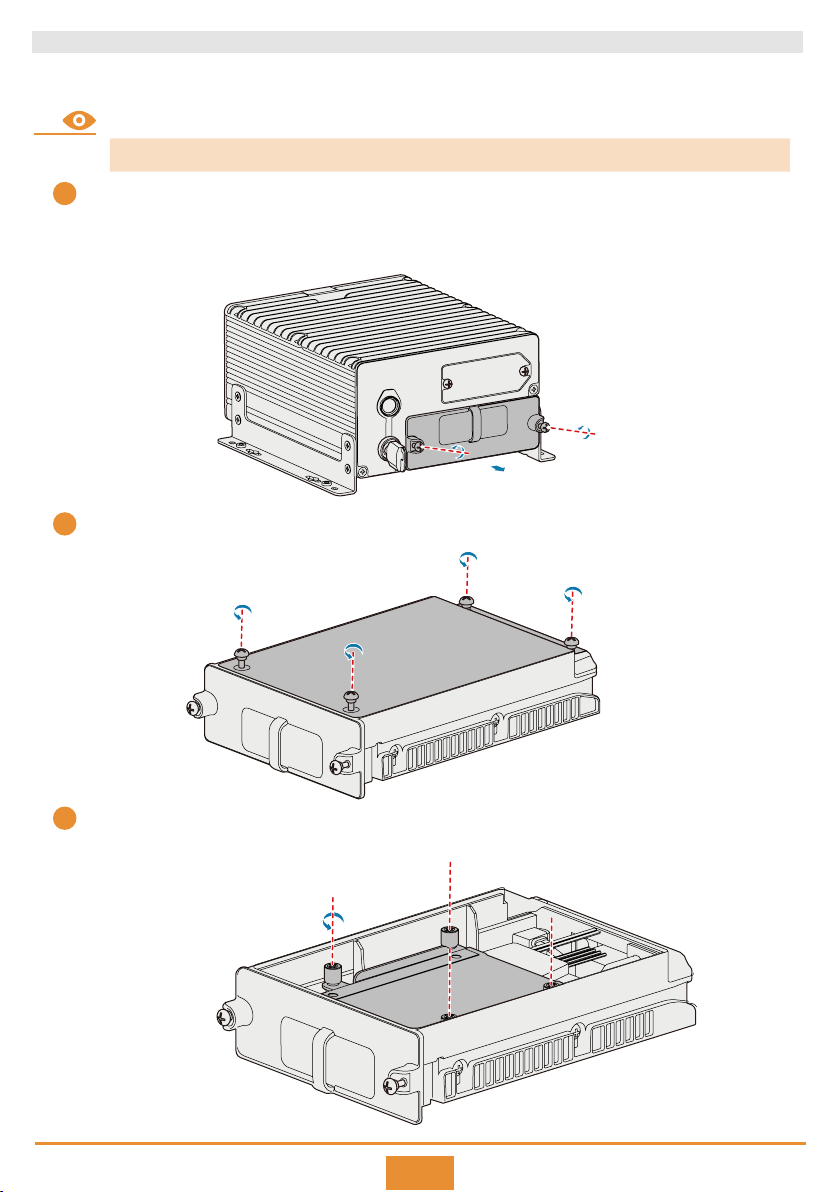

CAUTION The hard disk enclosure cannot be inserted or removed when the power is on.
Loosen the four screws on the hard disk enclosure using the Phillips screwdriver, and remove
the hard disk cover.
Loosen the four captive screws on the hard disk enclosure using the Phillips screwdriver, and
remove the hard disk tray.
2
3
Turn the key counterclockwise until it stops to unlock the hard disk lock, unlock the hard
disk lock, loosen the two fastening screws using the Phillips screwdriver, and pull out the
hard disk enclosure.
1
Installing hard disk and SIM cards
4.2 Installing AR515CGW-L

7
Install the hard disk tray to the hard disk enclosure, hold the connector in place, and then tighten
the four captive screws.
Install the hard disk cover back to the router, and then tighten the four screws.
5
6
Install a SIM card into the router.
7
Use the Phillips torque screwdriver to tighten the four M3x6 screws on the back of the hard disk
with a torque of 5.5 Kgf.cm to fix the hard disk on the hard disk tray in the correct direction.
4
b. Insert the SIM card into the SIM card holder. When you hear a click, the SIM card is completely
seated in the holder.
c. Install the SIM card cover back to the router, and then tighten the two screws.
abc
a. Use the Phillips screwdriver to loosen the two screws, and remove the SIM card cover from the
router. Keep the SIM card cover for later use.

8
Screws on the router must be tightened solid to ensure that the router can sustain long-time
vibration when the vehicle is running.
Sufficient clearance must be reserved around the router for later cable connection and router
maintenance.
Scenario 1 Installing the Router on a Horizontal Plane in a Vehicle
CAUTION
Connect all cables of the router.
1
Connect cables in the sequence from bottom to top and from right to left. Otherwise, some cables
cannot be connected properly.

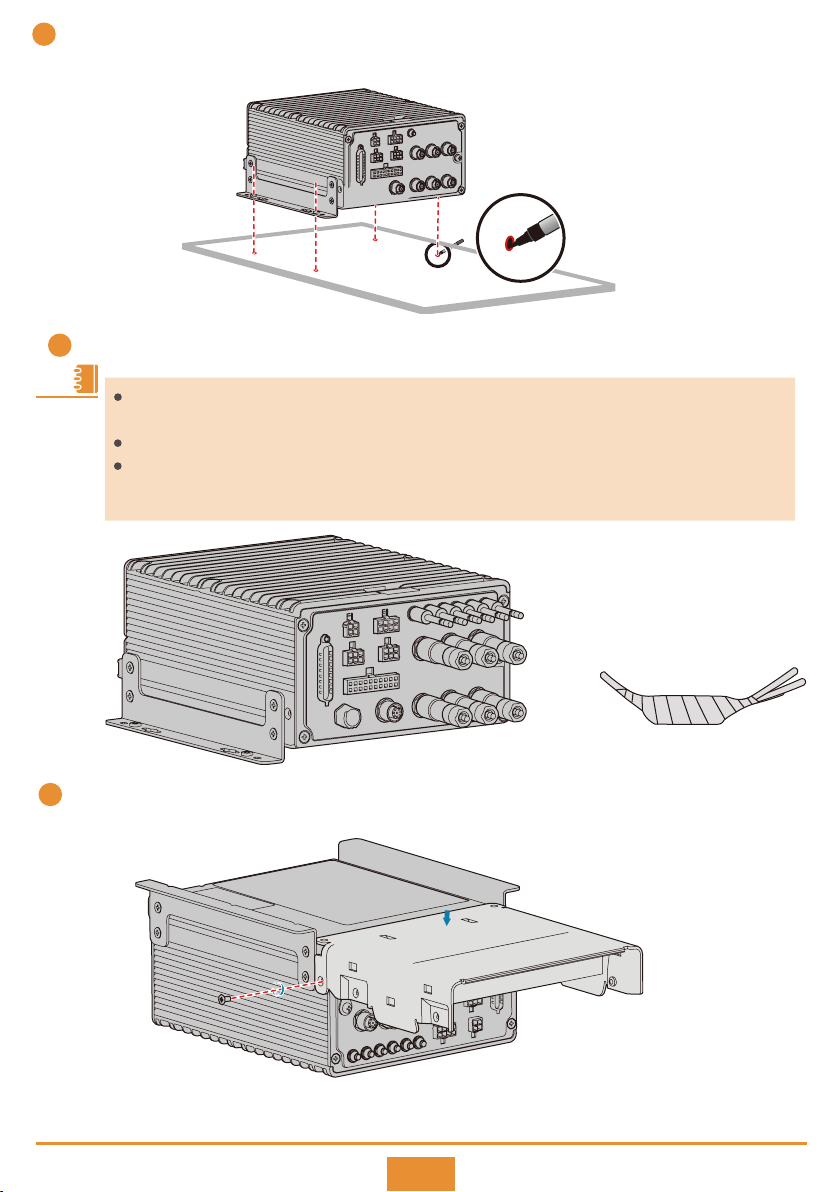

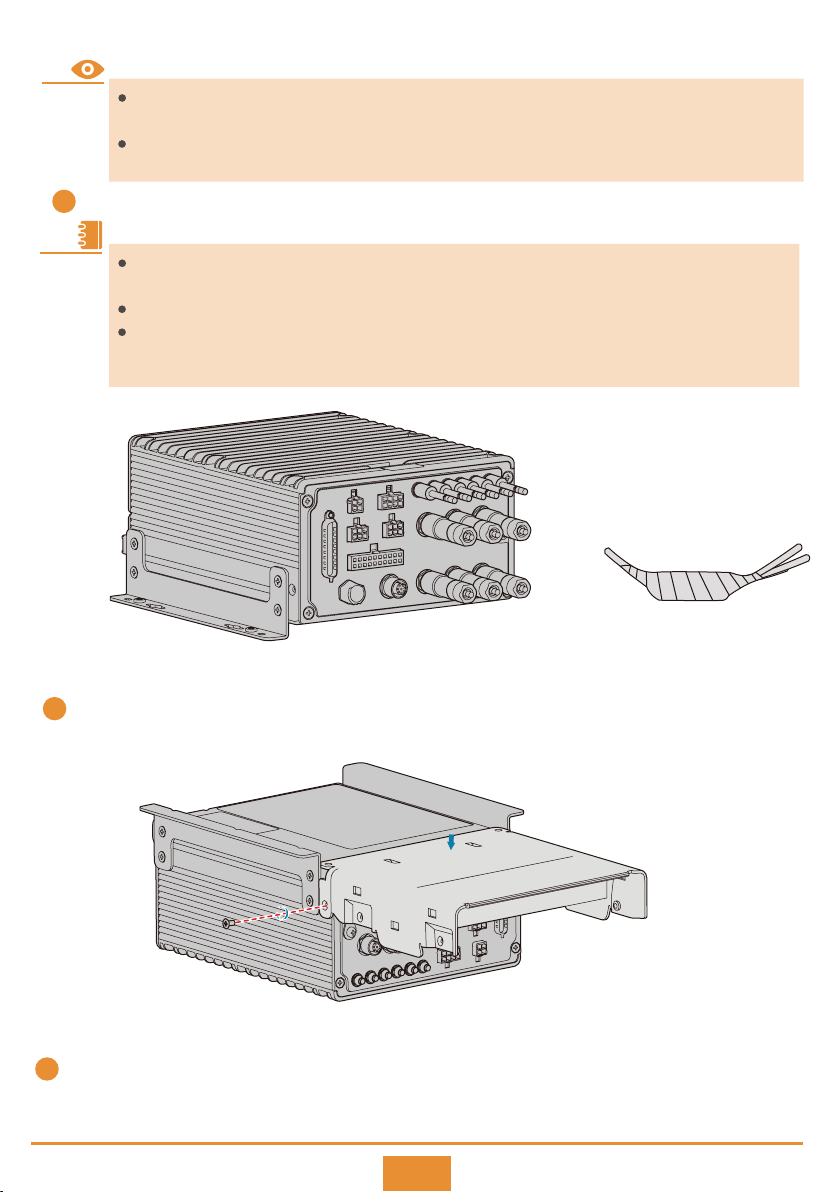

If a waterproof cover needs to be installed, ensure that the ground cable is routed downwards.
The 04152259, 04152260, and 04152261 cables need to be wrapped by waterproof tapes to prevent
the power-off caused by water.
Connect the positioning pins on the cable tray to the bottom of the router, and then use the
Phillips screwdriver to tighten the two M4x8 screws to install the cable tray on the router.
In the vertical direction, categorize the cables into six groups based on the port positions, use
cable ties to bundle the cables, and fix them on the holes for binding cables on the cable tray.
2
3
NOTE
Waterproof tape

9
CAUTION
Install the router on a horizontal plane in the vehicle.
5

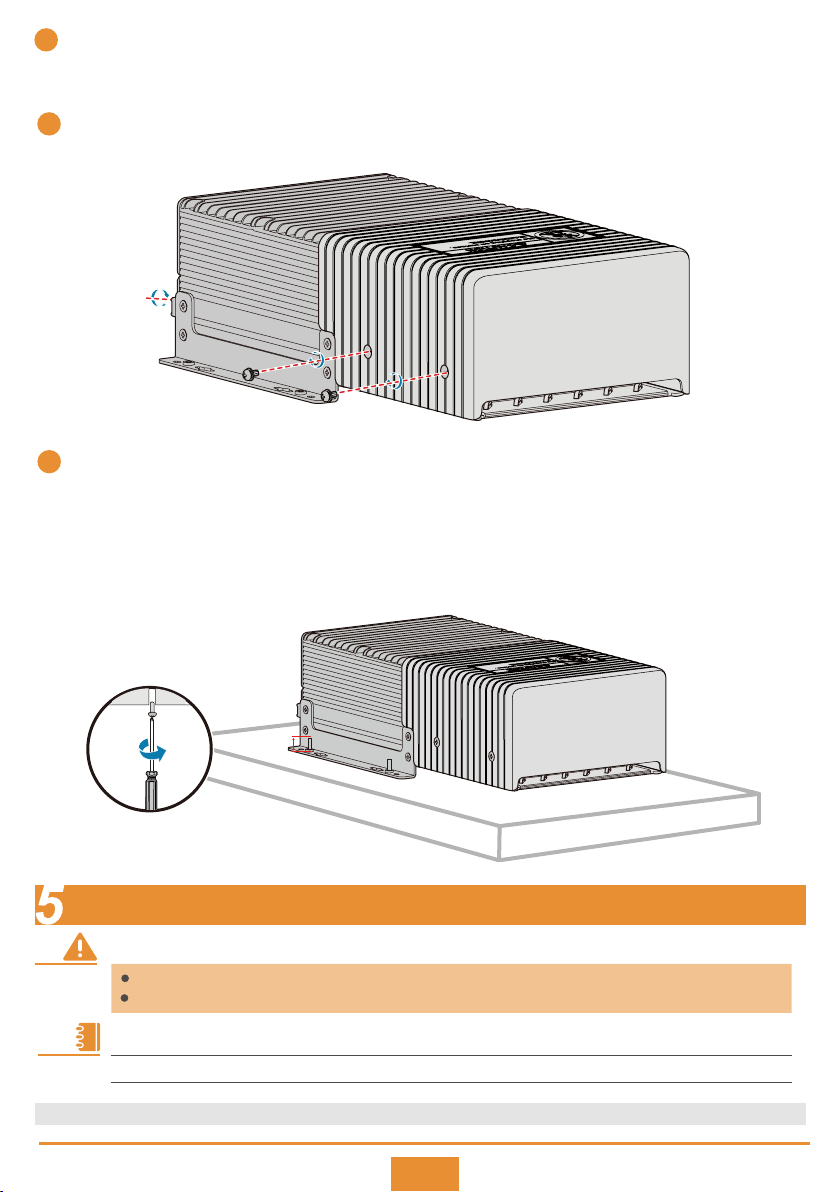

a. Attach the mounting brackets to the horizontal plane reserved for the router, and mark the
positions of the four mounting holes for the M4 bolts.
b. Secure the router on the plane with four ST4.2 self-tapping screws.
Leave at least 100 mm of clearance around the router for heat dissipation.
Do not place other objects on the router.
If the luggage rack is deep enough, make the cable outlet side and hard disk side face left and
right respectively to facilitate maintenance. Leave at least 400 mm of clearance on the hard disk
enclosure side.
Scenario 2 Installing the Router on a Luggage Rack
Use the Phillips screwdriver to tighten the four M4x10 screws to install the waterproof cover on
the cable tray.
4

10
Connect all cables of the router.
2
Connect cables in the sequence from bottom to top and from right to left. Otherwise, some cables
cannot be connected properly.
If a waterproof cover needs to be installed, ensure that the ground cable is routed downwards.
The 04152259, 04152260, and 04152261 cables need to be wrapped by waterproof tapes to prevent
the power-off caused by water.
Connect the positioning pins on the cable tray to the bottom of the router, and then use the
Phillips screwdriver to tighten the two M4x8 screws to install the cable tray on the router.
3
NOTE
Waterproof tape
Determine the positions of the mounting holes on the paperboard based on the distance
between each two of the four self-clinching nuts on the mounting bracket.
1

11
Do not connect cables while the power is on.
Do not power on the router before you finish connecting and routing cables.
WARNING
For details about pin assignments and cable connections, see the Hardware Description.
NOTE
Connecting the Router
In the vertical direction, categorize the cables into six groups based on the port positions, use
cable ties to bundle the cables, and fix them on the holes for binding cables on the cable tray.
4
Use the paperboard to determine the position of the router on the luggage rack. Select four
proper M4 pan head screws based on the thickness of the luggage rack, and use the Phillips
screwdriver to tighten the screws from the back of the luggage rack to the four self-clinching nuts.
After the installation, the end of each screw must be at least 2 mm higher than the corresponding
self-clinching nut.
6
Use the Phillips screwdriver to tighten the four M4x10 screws to install the waterproof cover on
the cable tray.
5
5.1 Connecting AR515GW-LM9-D
2 mm or longer

12
12
34
12
34

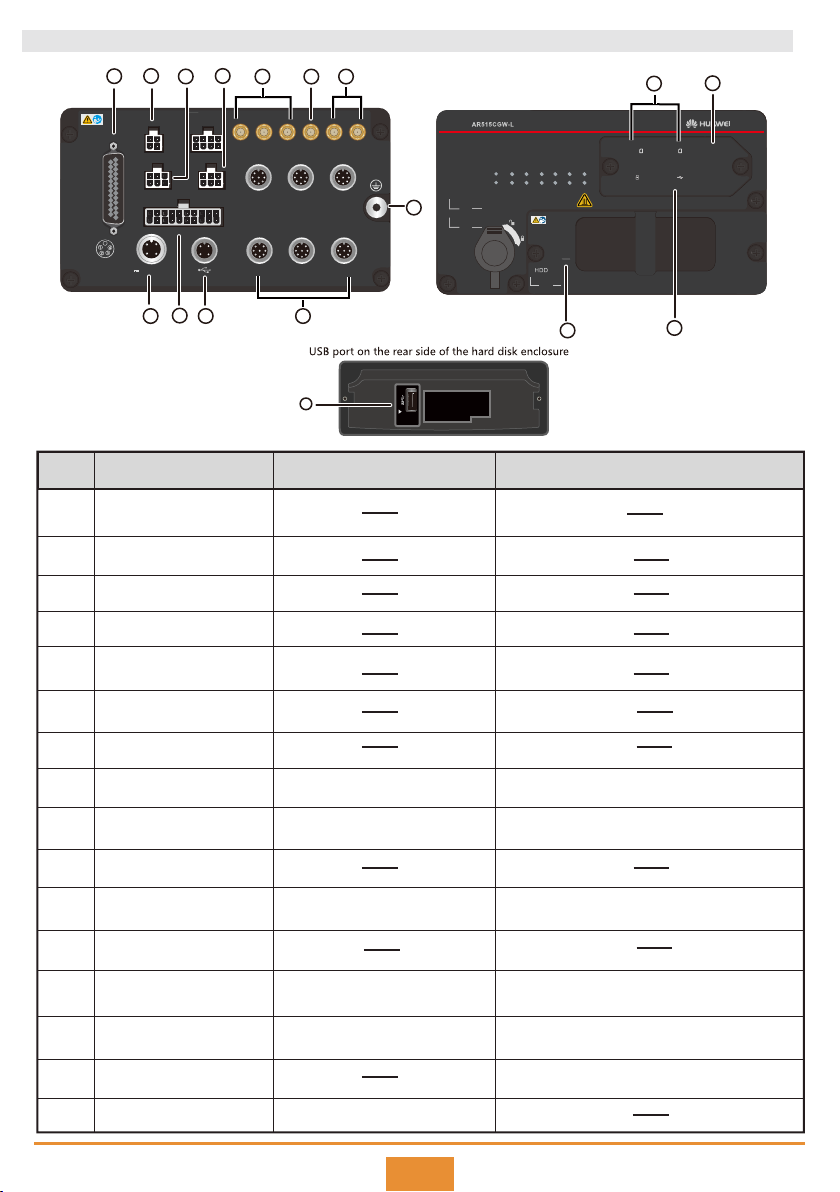

CONSOLE
RS485/232
4*RS232;2*CAN;1*RS485/422;8*IO VGA
210
LTE DIV WiFi 1 GPS LTE MAIN WiFi 0
AR515GW-LM9-D
INP UT
INPUT OUTPUT
OUT PUT
10.8-36 V; 8.5-2.5 A 12 V; 2.5 A
LAN
WAN
GE0 GE1 GE2 GE3 GE0 GE1 GE2 GE3
1
12 13 14 15
16
23 2 34 5 6 7 8 9 10 11
No. Cable Connect To Remarks
Data terminal Provides a DB9 interface to for serial
data transmission.
Provides interfaces with various functions.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DB37 adapter cable
LTE antenna
WI-FI antenna
USB interface (host)
GPS antenna
VGA cable
HDMI cable
Earphone line
Device with a VGA interface
Device with an HDMI port
Earphone
Provides HDMI video output.
Provides VGA video output.
Microphone line
RS485/RS422 cable
Console cable
Power cable Power source
Microphone Provides audio input.
Provides power input.
Power cable
M12 cable
SIM card
Powered device Provides power output.
Provides wireless communication.
Provides an 8-core M12 interface.
Switch or a terminal such as
a camera or PC
Ground cable is optional part.
Ground pointGround cable
Provides audio output.

13
5.2 Connecting AR515CGW-L
No. Cable Connect To Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
51: -
2: -
3: +
4: +
: ACC
5
WiFi0
MIC
WiFi1WiFi2 GPS/BDS LTE MAINLTE DIV
RS232_A
RS485_A
RS232_B
RS485_B FE0 (PoE)
(MGMT)
FE2 (PoE)FE1 (PoE)
FE4 (PoE) FE5 (PoE)FE3 (PoE)
12-24V;12-6A
VGA+AV
AR515CGW-L
SIM1 SIM2
SS
CON
RST
SD
HDD
IR SYS
PWR USB
WIFI
2.4G
WIFI
5G
FE0FE1 FE2FE3 FE4FE5FE5
LTEHDD
GPS
BDS
SIM1 SIM2
SS
CON
RST
SD
SYS
PWR USB
WIFI
2.4G
WIFI
5G
FE0 FE1 FE2 FE3 FE4 FE5FE5
LTEHDD
GPS
BDS
GND GND
+5V +12V
DO*2+DI*8+AI*2
16
10
13 14
15
12
11
1
5
7
6
987
4
23
USB port on the rear side
of the hard disk enclosure
Pluggable disk enclosure
WI-FI antenna
USB interface (host)
LTE antenna
Boolean Input/Output
Cable
6-pin Serial Cable
4-pin Power Output Cable
DB25 Audio and
Video Cable
GPS/BDS Remote Antenna
Micro USB Cable
Power cable
M12 A Code cable
M12 cable
SIM card
Ground cable
Power source Provides power input.
Data terminal Provides a Micro USB interface to for
serial data transmission.
Provides power output.
Provides wireless communication.
Provides an 8-core M12 interface.
Switch or a terminal such as
a camera or PC
Ground point
In-vehicle peripheral
Devices with VGA or CVBS
ports and speakers
Provides VGA video, CVBS video, and
audio output.

14
Use a Console cable to connect a PC to the Console interface of the router.
1
Start the terminal simulation software, create a connection, specify the connected port, and set
communication parameters as follows:
2
NOTE If your PC's operating system provides terminal simulation software (like HyperTerminal in Windows 2000), you do
not need to install additional terminal simulation software. If the PC runs on an operating system without terminal
simulation software (like Windows 7), install third-party terminal simulation software on the PC by referring to user
manual or online help.
A PC may have more than one serial port. Select the port to which the RS232 cable is connected. Generally, COM1 is
used. If you modify the serial port communication parameters on the router, modify the communication parameters
on the PC to ensure that they use the same communication parameters, and then set up the connection again.
Bits per second (B): 9600
Data bits (D): 8
Parity (P): None
Stop bits (S): 1
Flow control (F): None
If you forget the login password, restore the password according to the Troubleshooting.
After successful login, you can configure the router on the command line interface. For more information, see the
CLI-based Configuration.
WARNING
NOTE The default user name is admin and the default password is Admin@huawei.
Press Enter until a message is displayed asking you to enter the username and password. (The following
information is for reference only.)
3
Login authentication
Username:admin
Password:
<Huawei>
Info: The entered password is the same as the default. You are advised to change
it to ensure security.
Logging In to the Router
Powering On the Router
NOTE
Indicator states when the router is running normally
Indicator Description
PWR
SYS
Steady green: The system power supply is normal.
Slow blinking green: The system is running properly.
2
Turn on the power switch of the external power supply system.
3
Check the PWR and SYS indicators. If they are in normal states,
check other indicators on the router.
Before powering on the router, complete the following operations:
Connect the power cable.
Verify that the input voltage is within the normal range.
1
For more information about indicators,
see the Hardware Description.
The DC input voltage of the
AR515GW-LM9-D is in the range of
10.8 V to 36 V.
The DC input voltage of the
AR515CGW-L is in the range of 9 V to
36 V.

15
Open Source Software Notice
In V200R008C20 and later versions, you can run the display copyright command in the user view to view the
open source software notice.
Log in to Huawei enterprise technical support website (http://support.huawei.com/enterprise), and
select a specific product model and version to find its documentation.
Log in to Huawei enterprise support community (http://support.huawei.com/ecommunity) and post
your questions in the community.
If you experience difficulties in solving problems according to in this document, contact the local
Huawei office for technical support. Find the contact information at
http://e.huawei.com/en/service-hotline.
Huawei Enterprise
Technical Support
Obtaining Product Documentation and Technical Support
Hereby, Huawei Technologies Co., Ltd. declares that the radio equipment type is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
www.huawei.com/en/product-certification.
Declaration of Conformity
Trademarks and Permissions
Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd.
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the
property of their respective holders.
Qualification Card
PASS
Qualification Card
Unique Identifier: trade name: HUAWEI; product name: Router;
model number: AR515 series routers
Responsible Party- U.S. Contact Information
Huawei Technologies USA Inc.
5700 Tennyson Parkway, Suite 500
Plano, Texas 75024
Main: 214-919-6000 / TAC Hotline: [phone]
FCC Compliance Statement ( for products subject to Part 15)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Supplier’s Declaration of Conformity (SDoC)
