General Information
Product Overview
GAI-Tronics’ ICS (Industrial Communications
System) and SP2 (Serverless Page/Party) systems are
modular industrial communication systems. The
subsets covered by this publication are designed for
indoor use with remote amplifiers in ICS and SP2
systems.
The desktop subset enables page and party line
communication when installed with a remote
amplifier. The remote subset includes a pressbar
handset, an internal speaker with volume control,
and a five-party rotary selector switch (multi-party
subset only).
The desktop subset is designed for desktop
placement or wall-mount installation. The compact
size is made possible by housing most of the support
electronics in a separate remote amplifier enclosure.
The subset is designed for indoor applications. The
DB25 subset interconnect cable permits mounting the subset up to 10 feet from the amplifier.
Features
• one-way page announcements over
system speakers
• full-duplex party line communication
• durable, ABS plastic housing • built-in speaker with volume control

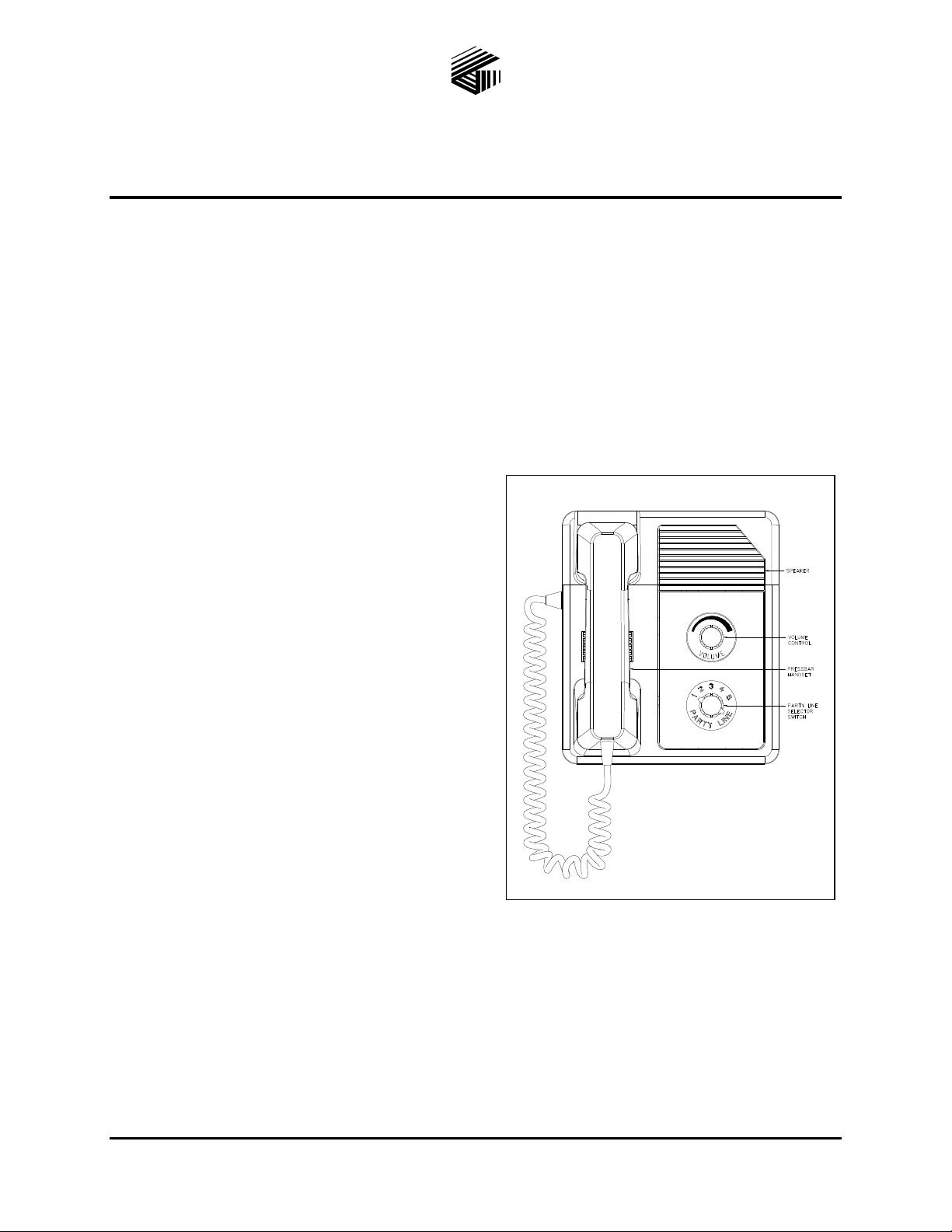

Figure 1. ICS/SP2 Multi-Party Desktop Subset

Pub. 42004-429C
ICS/SP2 Page/Party® Desktop Subset Page 2 of 5
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-429C.docx
01/20
Options
• single party line operation • conformal coating for PCBA
Installation
Important Safety Instructions
• Read, follow, and retain instructions—All safety and operating instructions should be read and
followed before operating the unit. Retain instructions for future reference.
• Heed warnings—Adhere to all warnings on the unit and in the operating instructions.
• Attachments—Attachments not recommended by the product manufacturer should not be used, as
they may cause hazards.
• Servicing—Do not attempt to service this unit by yourself. Opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
• DB25 connection—The ICS/SP2 remote subset DB25 interconnect cable is designed for use only
with ICS/SP2 remote amplifiers. Do not use any other cable to connect an ICS/SP2 subset to its
matching amplifier.
WARNING —Do not install this equipment in hazardous areas. Such installations may cause a
safety hazard and consequent injury or property damage.
Figure 2. ICS/SP2 Multi-Party Desktop (wall-mount) Subset Outline

Pub. 42004-429C
ICS/SP2 Page/Party® Desktop Subset Page 3 of 5
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-429C.docx
01/20
NOTE: The desktop subset can be placed on a desk or wall mounted.
Wall-Mount Installation
To mount the subset on a vertical surface:
1. Remove the four screws from the bottom of the subset’s housing.
2. Rotate the bottom section of the housing 180º.
3. Reassemble the top to the bottom with the four screws.
4. Pull out the handset hook and rotate it 180º.
This allows the handset to remain on hook when wall mounted
5. Mount the subset in the desired location.
6. Continue with step two of the desktop installation instructions below.
Desktop Installation
1. Place the subset at the desired location.
2. Plug the interconnect cable into the subset and tighten the thumbscrews on the DB25 connector.
3. Route the opposite end of the cable to the remote amplifier location.
4. Plug the interconnect cable into the remote amplifier and tighten the thumbscrews on the DB25
connector.
Figure 3. Typical Desktop Installation

Pub. 42004-429C
ICS/SP2 Page/Party®Desktop Subset Page 4 of 5
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-429C.docx
01/20
Operation
For paging and subsequent party line conversation:
1. Lift the handset.
2. If requesting conversation: Use the five-position rotary selector switch (if equipped) to select a free
party line.
3. Press the handset pressbar and speak into the handset microphone.
4. Page the desired individual(s) or make an announcement.
5. If requesting conversation:
1. Designate the party line selected in Step 2.
2. Wait for the designated individual to respond.
Full-duplex communication takes place on the selected party line without broadcasting over the
system’s speakers.
6. Place the handset back on hook when finished.
Responding to a page:
1. Select the appropriate party line at any ICS/SP2 station.
2. Lift the handset.
Full-duplex communication can take place on the party line without broadcasting over the speakers.
3. Place the handset back on hook when finished.
NOTE:ICS/SP2 Page/Party subsets incorporate a noise-canceling microphone to reduce transmitted
ambient noise. This requires the user to place the microphone as close as possible to their
mouth.
Troubleshooting
The following table is provided to aid qualified service personnel in troubleshooting problems with the
ICS/SP2 Page/Party desktop subset.
Problem
Potential Cause
subset not functional
•Verify the DB25 interconnect cable is properly terminated between the
subset and the remote amplifier.
•Refer to general troubleshooting section in the ICS/SP2 Remote
Handset/Speaker Amplifier manual for adjustments and settings that affect
ICS/SP2 subset operation.

Pub. 42004-429C
ICS/SP2 Page/Party®Desktop Subset Page 5 of 5
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-429C.docx
01/20
Specifications
Handset
Microphone....................................................................................................................................... dynamic
Receiver......................................................................................................dynamic, hearing aid compatible
Cord .........................................................................................................retractile, 6-foot extended, Hytrel®
Material................................................................................................................................................... ABS
External control...............................................................................................push-to-page handset pressbar
Subset Specifications
Construction/finish................................................black ABS Cycolac®housing with aluminum front panel
Mounting....................................................desktop or wall mount; two 0.20-inch (5.1 mm) mounting holes
Overall dimensions .............................................8.94 H × 7.60 W × 4.56 D in (227.1 × 193.0 × 115.8 mm)
Shipping weight....................................................................................................................... 5.0 lb (2.3 kg)
Net weight................................................................................................................................ 3.0 lb (1.4 kg)
Environmental
Temperature range (operation and storage).............................................−22 ºF to 158 ºF (−30 ºC to 70 ºC)
Humidity....................................................................................................................... 95% non-condensing
Approvals
NRTL certified for use in US and Canada.............................................................................UL/CSA 60950
CE Mark

(Rev. 10/06)
