Huffy 21463607 User manual

103/04 P/N 21463607
© COPYRIGHT 2000 by HUFFY SPORTS
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-333 061
Internet Address: http://www.huffysports.com
Portable System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
REQUIRED TOOLS AND
MATERIALS:
• Two People
• Tape Measure
• Wood Board (Scrap)
• Wrenches: (Two) 7/16”, 1/2”, 9/16”, 3/4” or Large and
Small Adjustable Wrenches
• Safety Goggles
• Sawhorse or Support Table
• Step Ladder 8 ft. (2.4 m)
• Garden Hose or Sand (225 lb.) (102 kg)
• Hammer
• Tape
• Phillips Head Screw Driver
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO PROPERTY.
WARNING!

2
P/N 21463607 03/04

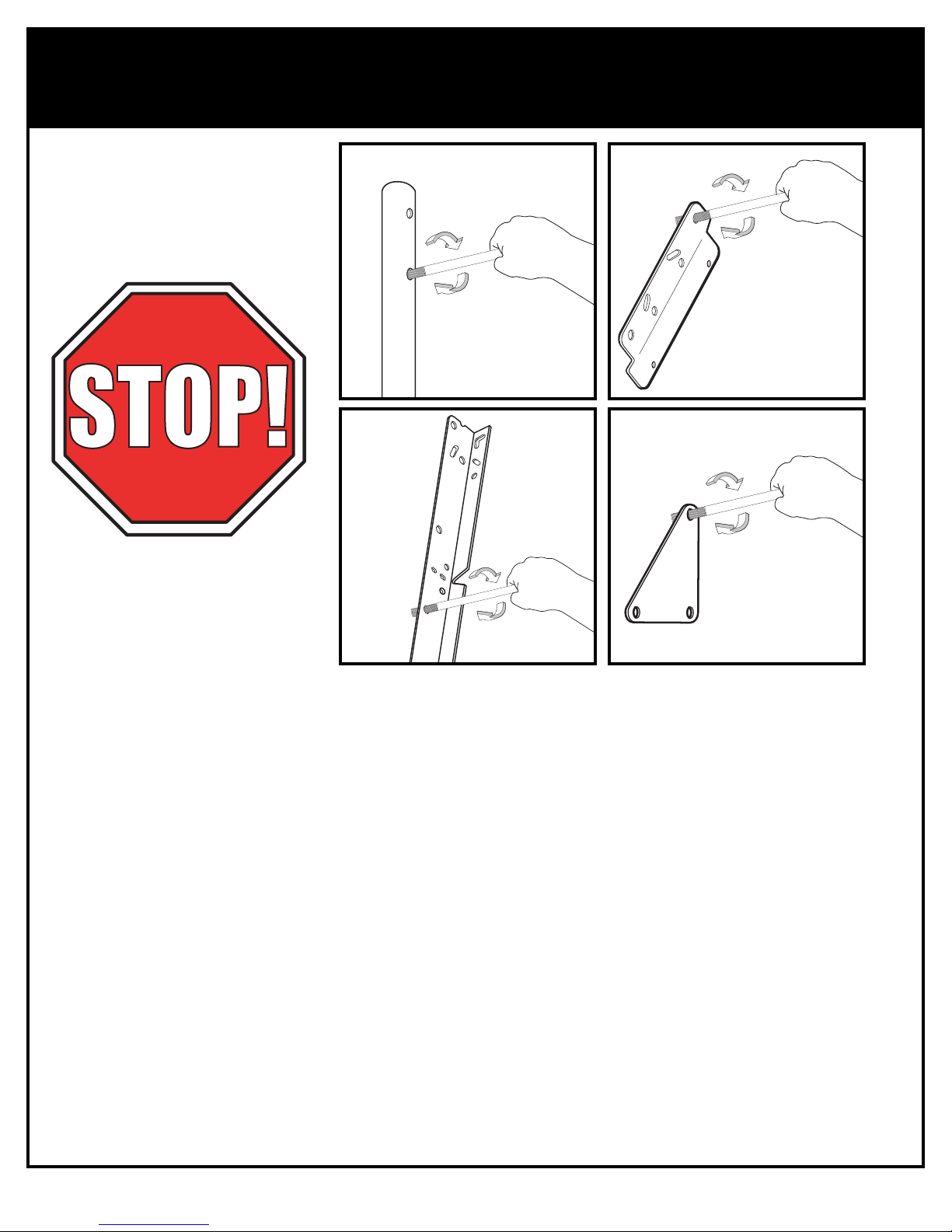

BEFORE YOU START!
To ensure optimal playability of backboard system, a close tolerance fit between the elevator
components and hardware is required. Test-fit large bolts into large holes of elevator tubes,
backboard brackets, and triangle plates. Carefully rock them in a circular motion to ream out
any excess paint from holes if necessary.
AVANT DE COMMENCER !
Pour garantir l'utilisation optimale du panneau, les composants du système élévateur et la visserie doivent être bien
ajustés (serrés). À titre d'essai, insérez les gros boulons dans les gros trous des tubes du système élévateur, des supports
du panneau et des plaques triangulaires. Basculez-les avec précaution en imprimant un mouvement circulaire pour
éliminer l'excédent de peinture, si nécessaire.
¡ANTES DE COMENZAR!
Para asegurar el óptimo rendimiento del sistema del respaldo en el juego, se requiere un ajuste de tolerancia estrecha
entre los componentes del elevador y el herraje. Pruebe el ajuste de los pernos grandes en los orificios grandes de los
tubos elevadores, soportes del respaldo y placas triangulares. Cuidadosamente muévalos en círculos para eliminar
cualquier exceso de pintura, si es necesario.
VORBEREITENDE MASSNAHMEN
Um sicherzustellen, dass das Korbwandsystem optimal für den Spielbetrieb geeignet ist, müssen die Komponenten der
Verlängerungsvorrichtung und die verschiedenen Befestigungsteile fest miteinander verschraubt werden. Große Schrauben
zur Probe in die großen Löcher der Verlängerungsrohre, Korbwandklammern und Dreiecksplatte stecken und diese
vorsichtig in einer Kreisbewegung hin- und herbewegen, um eventuelle Farbrückstände aus den Bohrungen zu entfernen.

03/04 P/N 21463607
3
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT
IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
Owner must ensure that all players know and follow
these rules for safe operation of the system.
• DO NOT HANG on the rim or any part of the system
including backboard, support braces or net.
• During play, especially when performing dunk type
activities, keep player's face away from the backboard, rim
and net. Serious injury could occur if teeth/face come in
contact with backboard, rim or net.
• Do not slide, climb, shake or play on base and/or pole.
• After assembly is complete, fill system completely with
water or sand and stake to the ground. Never leave system
in an upright position without filling base with weight, as
system may tip over causing injuries.
• When adjusting height or moving system, keep hands and
fingers away from moving parts.
• Do not allow children to move or adjust system.
• During play, do not wear jewelry (rings, watches, necklaces,
etc.). Objects may entangle in net.
• Surface beneath the base must be smooth and free of
gravel or other sharp objects. Punctures cause leakage and
could cause system to tip over.
• Keep organic material away from pole base. Grass, litter,
etc. could cause corrosion and/or deterioration.
• Check pole system for signs of corrosion (rust, pitting,
chipping) and repaint with exterior enamel paint. If rust has
penetrated through the steel anywhere, replace pole
immediately.
• Check system before each use for proper ballast, loose
hardware, excessive wear and signs corrosion and repair
before use.
•Check system before each use for instability.
• Do not use system during windy and/or severe weather
conditions; system may tip over. Place system in the
storage position and/or in an area protected from the wind
and free from personal property and/or overhead wires.
• Never play on damaged equipment.
• See instruction manual for proper installation and
maintenance.
• When moving system, use caution to keep mechanism from
shifting.
• Keep pole top covered with cap at all times.
• Do not allow water in tank to freeze. During sub-freezing
weather add non-toxic antifreeze, sand or empty tank
completely and store. (Do not use salt.)
• Use extreme caution if placing system on sloped surface.
System may tip over more easily.
201241 2/99
In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339

4
P/N 21463607 03/04
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
To ensure safety, do not attempt to assemble this system without following the instructions carefully. Check
entire box and inside all packing material for parts and/or additional instruction material. Before beginning
assembly, read the instructions and identify parts using the hardware identifier and parts list in this
document. Proper and complete assembly, use, and supervision are essential for proper operation and to
reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed,
maintained, and operated properly.
Most injuries are caused by misuse and/or not following instructions.
Use caution when using this system.
• If using a ladder during assembly, use extreme caution.
• Two (2) people are recommended for this operation.
• Check base regularly for leakage. Slow leaks could cause system to tip over unexpectedly.
• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to
separate during play and/or transport of the system.
• Climate, corrosion or misuse could result in system failure.
• Minimum operational height is 6' 6" (1.98 m) to the bottom of backboard.
• This equipment is intended for home recreational use only and NOT excessive competitive play.
• Read and understand the warning label affixed to pole. Label is shown to the right.
• The life of your basketball pole depends on many conditions. The climate, placement of the pole, the
location of the pole, exposure to corrosives such as pesticides, herbicides or salts are all important.
• If technical assistance is required, contact Huffy Sports.
• Adult supervision is recommended when adjusting height.
2
2
1
3

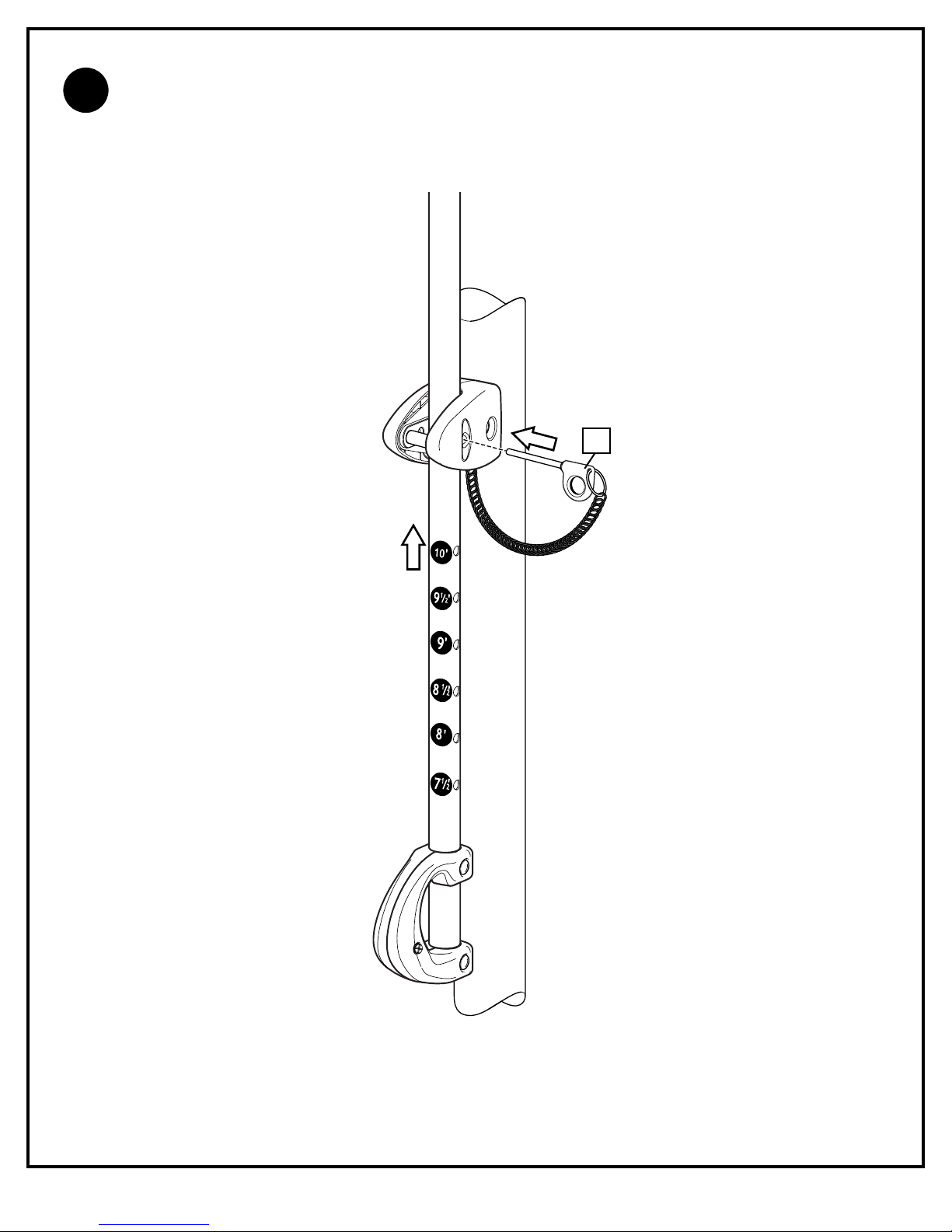

TO ADJUST BACKBOARD:
1. While holding handle, remove pin.
2. Move elevator up or down to
desired height.
3. Replace pin full length to lock
system at desired height.
201252 2/99
1
2
4
3
MOVING SYSTEM
1. Adjust basketball backboard
height to lowest position.
2. While holding pole, rotate
basketball system forward
until wheels engage with
ground.
3. Move basketball system to
desired location.
4. Carefully rotate basketball
system upright.
5. Reattach ground restraint and
check system for stability.
HEIGHT ADJUSTMENT
54

03/04 P/N 21463607
5
For more information on assembly, placement, proper
use, and maintenance, visit The American Basketball
Council website at http://www.smarthoops.com.
IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections;
hardware and additional parts are packed inside.
NOTICE TO ASSEMBLERS
ALL Huffy Sports Basketball Systems, including those used for DISPLAYS, MUST be assembled
and ballasted with sand or water according to the instructions. Failure to follow instructions
could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.
WARRANTY CARD:
Please remember to complete your product
registration form either on-line at:
www.huffysports.com or mail-in the
enclosed postcard.

6
P/N 21463607 03/04
Get to know the basic parts of your basketball system.....
FRONT
PANEL
BACKBOARD
FRONT
RIM
BASE
POLE

03/04 P/N 21463607
7
PARTS LIST - (See Hardware Identifier)
Item Qty. Part No. Description
1 1 200503 Cover, Black
2 1 806620 Base Assembly
3 1 804833 Exacta Height Assembly
4 1 908006 Top Pole Section
5 1 908107 Middle Pole Section
6 1 908005 Bottom Pole Section
7 2 206934 Large Eyebolt, 3/8”
8 2 203063 Nylon Insert Lock Nut, 3/8-16
9 1 206634 Rod, 1/2 x 9-1/2 Long
10 1 203099 Nut, Ny-lock, 5/16-18
11 4 201681 Spacer, Plastic .530 I.D. x .88 Long
12 1 202662 Bolt, Hex Head, 5/16-18 x 4-1/2 Long
13 2 200341 Nut Cover
14 5 203100 Hex Flange Nut 5/16-18
15 1 204832 Bracket, Pole Mount
16 2 203053 Carriage Bolt, 5/16-18 x 4 Long
17 4 203232 Washer, Metal, 3/4” O.D.
18 4 201124 Lock Nut, 3/8-16
19 4 206360 Bolt, Hex Head, 3/8-16 x 2-5/8 Long
20 2 204858 Spacer, Plastic Biscuit
21 2 204857 Spacer, Metal 1/2” O.D. x 1.44 Long
22 2 204859 Cover, Pin Slide
23 1 203038 Carriage Bolt, 5/16-18 x 2-3/4 Long
24 1 204850 Pin, Locking
25 1 204853 Lanyard, Black Coil
26 4 201683 Spacer, .530 I.D. x 1.5 Long
27 2 900964 Bracket, Backboard Support
28 2 200874 Spacer, Steel .402 I.D. x .5 O.D. x 1.5 Long
29 6 206244 Bolt, Hex Head, 1/2-13 x 8 Long
30 4 201642 Spacer, Plastic, .530 I.D. x .625 Long
31 7 206340 Lock Nut, Hex Head, 1/2-13
32 2 904820 Elevator Tube, Lower - Long
33 1 204837 Spring, Counter Balance
34 1 900235 Rim
35 2 904808 Elevator Tube, Upper - Short
36 2 201682 Spacer, .530 I.D. x 1.875
37 2 900867 Plate, Triangle, (Black)
38 1 207103 Cap, Pole Top
39 2 200520 Screw, #8 x 1/2
40 1 202605 Bolt, Hex, 1/2-13 x 4.25 Long
41 1 206219 Plug, Tank Cap
42 12* 201219 Net Clip, (White)
43 1 204290 Net
44 1 204444 Black Nylon Rope
45 1 203124 Stake, Tie Down
46 1 201252 Label, Height Adjustment and Moving
47 6 203309 Washer, .406 I.D. x 1 O.D. Flat
48 4* 205528 Bolt, Hex Flange, 5/16-18 x 1 Long
49 1 206990 Reinforcement Bracket
NOTE: Hardware kit is designed for more than one style of basketball
system. Not all hardware will be used.
* YOU MAY HAVE EXTRA PARTS WITH THIS MODEL.
WARNING: IF YOUR SYSTEM IS EQUIPPED WITH AN ACRYLIC
BACKBOARD, EXAMINE BACKBOARD FOR ANY DAMAGE THAT MAY
HAVE OCCURRED DURING SHIPMENT. CRACKS IN THE BACKBOARD
COULD RESULT IN SUDDEN BREAKAGE. IF BACKBOARD IS DAMAGED
IN ANY WAY PRIOR TO OR AFTER ASSEMBLY, CALL TOLL-FREE
NUMBER:
U.S. 1-800-558-5234; CANADA: 1-800-284-8339; http://www.huffysports.com

8
P/N 21463607 03/04

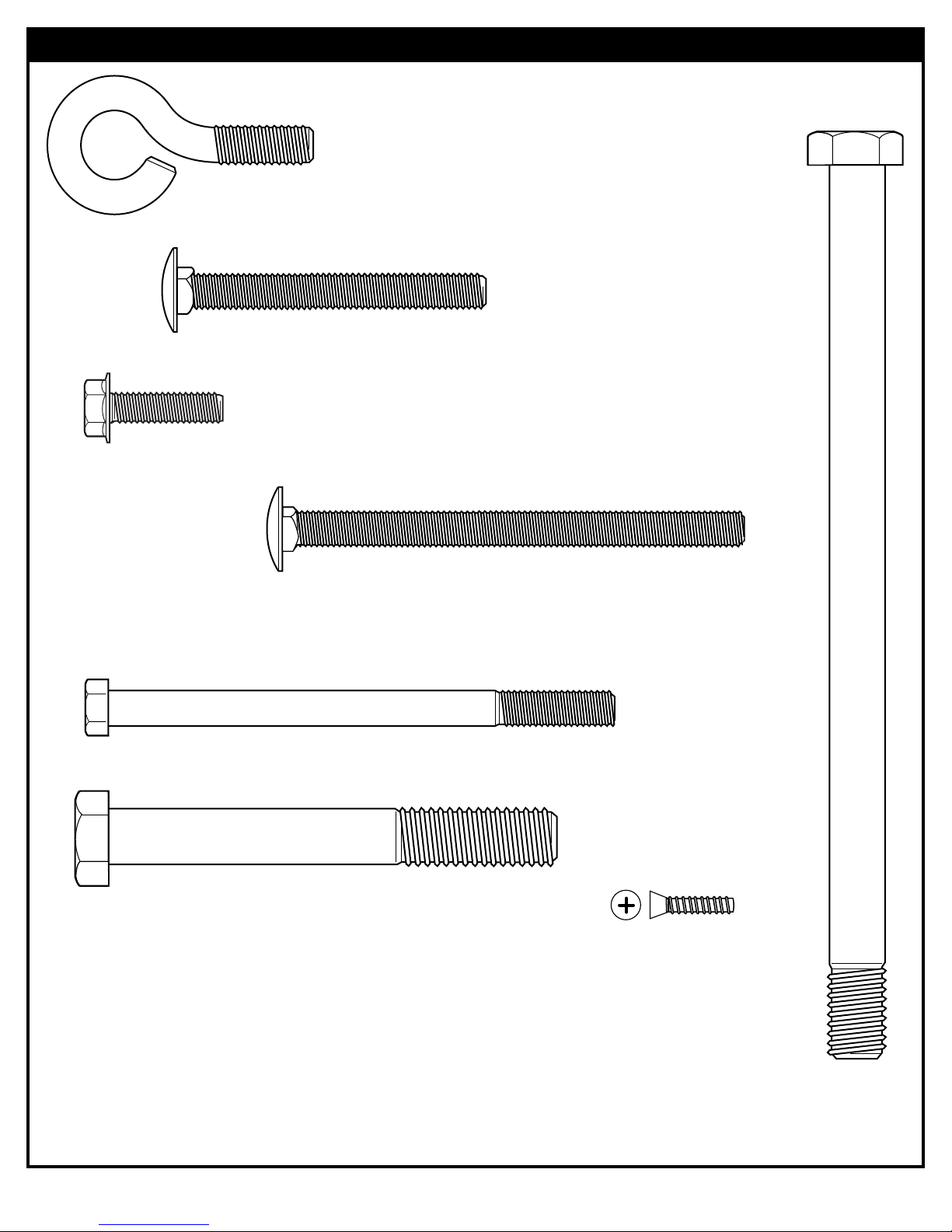

HARDWARE IDENTIFIER (BOLTS & SCREWS)
* You may have extra parts with this model.
Item #7 (2)
Item #40 (1)
Item #50 (2)
Item #23 (1)
Item #29 (6)
Item #16 (2)
Item #12 (1)
Item #48 (4)

03/04 P/N 21463607
9
HARDWARE IDENTIFIER (STEEL SPACERS)
HARDWARE IDENTIFIER (NUTS & WASHERS)
HARDWARE IDENTIFIER (PLASTIC SPACERS CAPS & CLIPS)
Item #28 (2)
Item #21 (2)
Item #13 (2)
Item #20 (2)
Item #26 (4)
Item #30 (4)
Item #36 (2)
Item #11(4)
Item #42 (12)*
Item #18 (4)
Item #14 (11)
Item #10 (1)
Item #8 (2)
Item #31 (7)
Item #17 (4)
Item #47 (6)

10
P/N 21463607 03/04
TOOLS REQUIRED FOR THIS SECTION HARDWARE USED IN THIS SECTION
(not actual size)
SECTION A: ASSEMBLE THE BASE
And/Or:
This is what your system will look like
when you’ve finished this section:
Item #50
Item #23
Item #16
Item #12 (1)
Item #19
Item #21
Item #13
Item #20
Item #18
Item #14
Item #10 Item #8
Item #19
Item #47
1/2” 9/16”
Wrenches
(2) 1/2”
(2) 3/4”
(2) Socket Wrenches
and Sockets
Extension
Phillips-
Head
Screwdriver

03/04 P/N 21463607
11

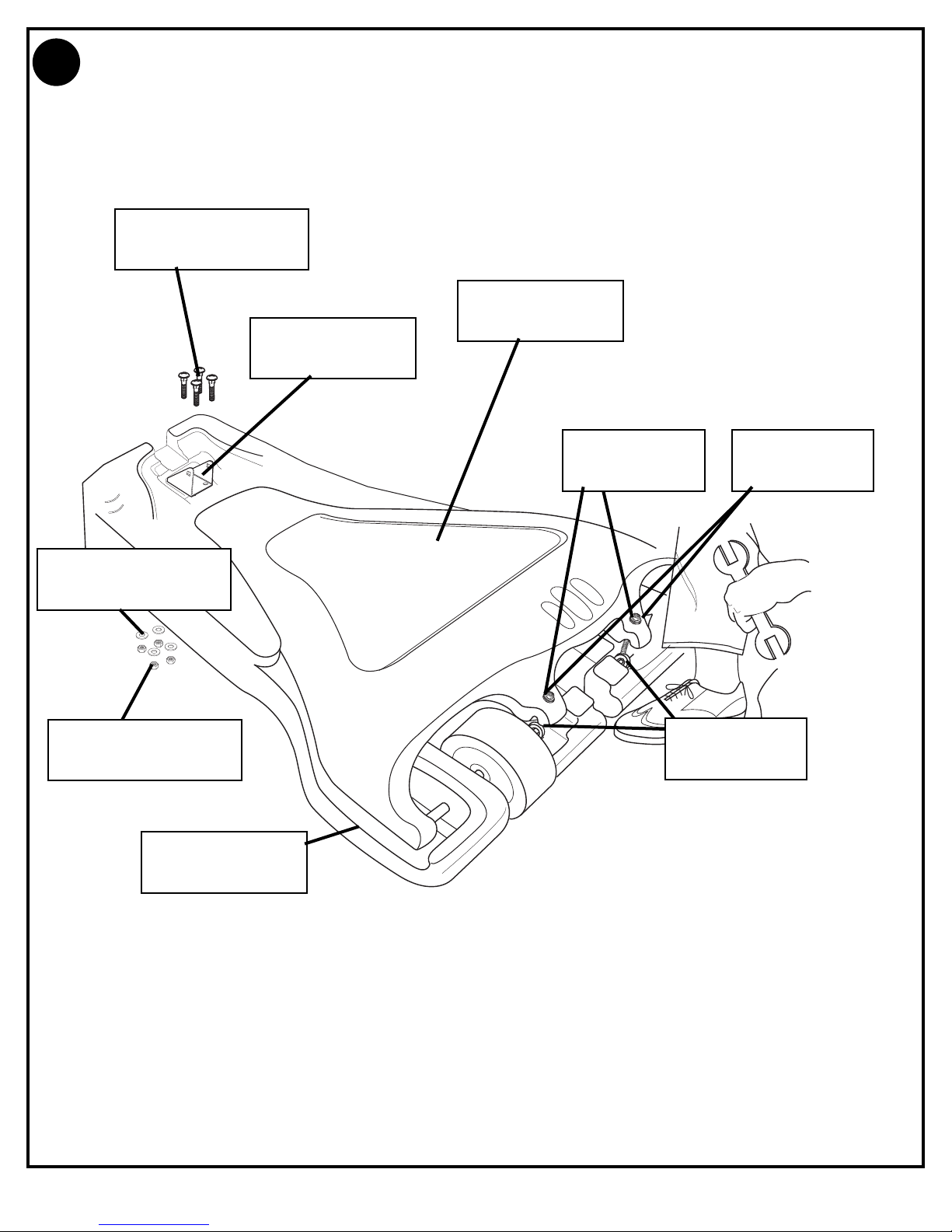

1A. Check the following pre-assembled base areas for tightness: Eye bolts P/N
203452, Washer P/N 203218, Nut P/N 203100, Carriage Bolts P/N 203223 .
Eye bolts
P/N 203452
Washer
P/N 203218
Nut
P/N 203100
Front Cover
P/N 206002
Pole Bracket
P/N 201581
Carriage Bolts
P/N 203223
Hex Flange Nut
P/N 203100
Washer
P/N 203218
Base
P/N 206620

12
P/N 21463607 03/04
Check the following pre-assembled handle areas for tightness: Screw P/N
2048032, Nut P/N 203100, Carriage Bolts P/N 203103 .
Carriage Bolt P/N 203103
Nut P/N 203100
Nut P/N 203100
Handle, Right
P/N 204856
Handle, Left
P/N 204855
Screw P/N 204803
Carriage Bolt P/N 203103
Height Adjustment Rod
P/N 904833
Label,Height
Indicator
P/N 204872
Label,Height
Indicator
P/N 204872
1B.

03/04 P/N 21463607
13
2. Mark pole sections with tape (not supplied) as shown.
6
5
4
3.
WOOD SCRAP
(NOT SUPPLIED)
5
4
While maintaining alignment, bounce middle pole section (5)
into top section (4) using a wood scrap as shown until the
top pole no longer moves toward the taped reference mark
on the middle pole. Upright assembly.
Tape (Not Supplied)
Center
alignment slot
of middle pole
section (5) in a
lower hole of
top pole section
(4) as shown.
IMPORTANT!:
POLE SECTIONS
SHOULD HAVE A
3-1/2" (9 CM) MINIMUM
OVERLAP.
NOTE:

14
P/N 21463607 03/04
4. Bounce top (4) and middle (5) pole
assembly onto bottom pole section (6)
using a wood scrap as shown. Bounce
until the top and middle pole assembly no
longer moves toward the taped reference
mark on the bottom pole.
5. Install bolt (12) through bracket and bottom pole section (6) and secure with nut
(10) as shown. Nut should be tightened until flush (even) with locknuts outer edge.
4
5
6
WOOD SCRAP
(NOT SUPPLIED)
12 10
6
RODS SHOWN ARE
FOR VISUAL
REPRESENTATION
OF ALIGNMENT
AND ARE NOT
SUPPLIED WITH
THE HARDWARE
IMPORTANT!:
Holes in top (4) and
bottom pole (6) sections
MUST align to correctly
position elevator system
toward playing surface.
POLE SECTIONS
SHOULD HAVE A
3-1/2" (9 CM) MINIMUM
OVERLAP.
NOTE:

03/04 P/N 21463607
15

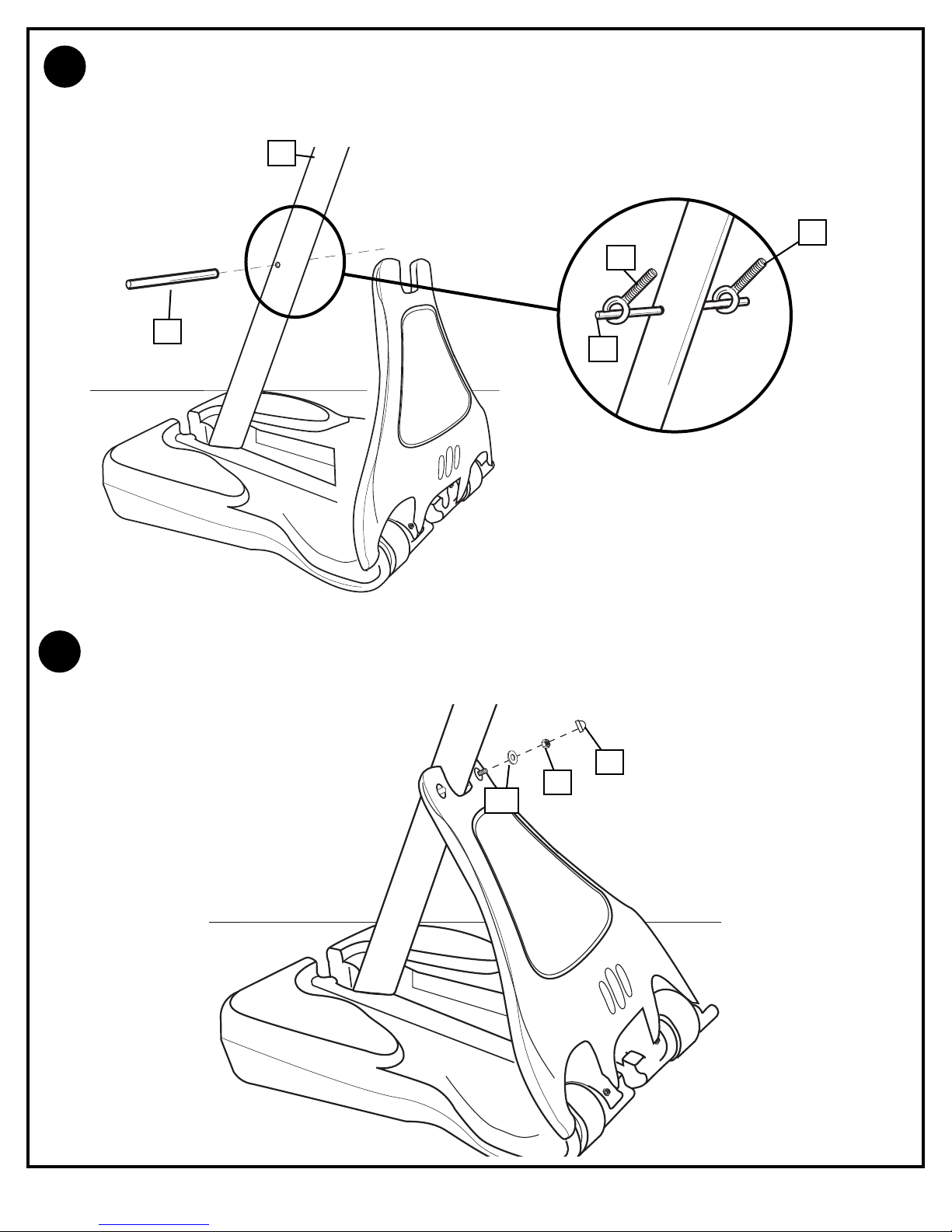

Install rod (9) through bottom pole section (6) as shown. Install large eye bolts (7)
onto rod (9) as shown.
7. Secure cover to rod (9) using washers (47) nuts (8) and nut covers (13) as shown.
6.
9
7
6
9
7
13
8
47

16
P/N 21463607 03/04
8.Install pole mount bracket (15) and reinforcement bracket (49) with carriage bolts
(16) as shown. Tighten flange nuts (14) completely.
4
15
14
14
49
16
16
9. Attach spacers (20, 21) to pole mount bracket (15) with bolts (19), washers (17),
and nuts (18) as shown.
15
17
17
18
19
17
17
21
20
20
21
IMPORTANT!:
Tighten just until
washers (17) stop
moving.

03/04 P/N 21463607
17
Assemble lanyard (25) to locking pin (24) as shown (FIG A). Attach covers (22) onto
pole mount bracket (15) with carriage bolt (23) and nut (14) as shown.
10.
15
14
24
22
22
25
23
FIG. A
25
24
Loop end of pin
lanyard (25) over
carriage bolt (23)
as it passes
through the pole
mount bracket
(15) during this
assembly.
IMPORTANT!:
23
25
24

18
P/N 21463607 03/04
Insert handle assembly through pole mount assembly as
shown. Lock pole assembly in place at the 10’ (3.05 m)
mark with pin (24).
24
11.

03/04 P/N 21463607
19
TOOLS REQUIRED FOR THIS
SECTION
HARDWARE USED IN THIS SECTION
(not actual size)
SECTION B: ATTACH THE BACKBOARD
Phillips-
Head
Screwdriver
This is what your system will look like
when you’ve finished this section:
Item #40
Item #50
Item #29
Item #19
Item #28
Item #26
Item #30
Item #36
Item #61
Item #42
Item #18
Item #31
Item #55
Item #48
Wrenches
(2) 1/2"
(2) 9/16”
(2) 3/4”
(2) Socket
Wrenches
and Sockets
And/Or
1/2” 9/16”
Extension
3/4”

20
P/N 21463607 03/04
Assemble backboard brackets (27) using spacers (28), bolts (19), and nuts (18) as
shown.
1.
28
28
19
19
18
18
27
