Huffy 89225 User manual

1P/N 21154401 01/04
IMPORTANT!
To ensure prompt and correct handling of any problems, or to answer any questions, please contact the Sample and
Display Technician at 1-800-558-5234.
REQUIRED TOOLS AND
MATERIALS:
• 2 People
• Wrenches: (Two each) 7/16”, 1/2”, 9/16”, and 3/4” or Pliers
• Phillips Screwdriver
• 2 Step Ladders, 8 ft. (2.4 m)
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO PROPERTY.
WARNING!
Display System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
Models
89225
&
89226

P/N 21154401 01/04 2
BEFORE YOU START!
To ensure optimal playability of backboard system, a close tolerance fit between the elevator
components and hardware is required. Test fit large bolts into large holes of elevator tubes,
backboard brackets and triangle plates. Carefully rock them in a circular motion to ream out
any excess paint from holes if necessary.
AVANT DE COMMENCER !
Pour garantir l'utilisation optimale du panneau, les composants du système élévateur et la visserie doivent être bien
ajustés (serrés). À titre d'essai, insérez les gros boulons dans les gros trous des tubes du système élévateur, des supports
du panneau et des plaques triangulaires. Basculez-les avec précaution en imprimant un mouvement circulaire pour
éliminer l'excédent de peinture, si nécessaire.
¡ANTES DE COMENZAR!
Para asegurar el óptimo rendimiento del sistema del respaldo en el juego, se requiere un ajuste de tolerancia estrecha
entre los componentes del elevador y el herraje. Pruebe el ajuste de los pernos grandes en los orificios grandes de los
tubos elevadores, soportes del respaldo y placas triangulares. Cuidadosamente muévalos en círculos para eliminar
cualquier exceso de pintura, si es necesario.
VORBEREITENDE MASSNAHMEN
Um sicherzustellen, dass das Korbwandsystem optimal für den Spielbetrieb geeignet ist, müssen die Komponenten der
Verlängerungsvorrichtung und die verschiedenen Befestigungsteile fest miteinander verschraubt werden. Große Schrauben
zur Probe in die großen Löcher der Verlängerungsrohre, Korbwandklammern und Dreiecksplatte stecken und diese
vorsichtig in einer Kreisbewegung hin- und herbewegen, um eventuelle Farbrückstände aus den Bohrungen zu entfernen.

3P/N 21154401 01/04
IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections;
hardware and additional parts are packed inside.
NOTICE TO ASSEMBLERS
ALL Huffy Sports Basketball Systems, including those used for DISPLAYS, MUST be assembled
and ballasted with sand or water according to the instructions. Failure to follow instructions
could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY
RESULT IN SERIOUS INJURY,
PROPERTY DAMAGE AND WILL VOID WARRANTY.
This unit is intended for display purposes only and
should not be used for play.
To ensure safety, do not attempt to assemble this system without
following the instructions carefully. Check entire box and inside all
packing material for parts. Before beginning assembly, read the
instructions and identify parts in this document. Proper and
complete assembly, use and supervision is essential for proper
operation and to reduce the risk of accident or injury. A high
probability of serious injury exists if this system is not installed,
maintained, and operated properly.
• During assembly, if using a ladder use extreme caution. Two
people are recommended for this operation.
• If technical assistance is required, contact Huffy Sports’ Sample and
Display Technician.
• Serious injury could occur if teeth/face come in contact with
backboard, net or rim.
• Display recommended for 3” (7.6 cm) or 3-1/2” (9 cm) Round or 4”
(10 cm) Square poles only.
• All instructions and warnings MUST accompany any display item
that is sold.
Most injuries are caused by misuse and/or not following
instructions.
Use caution when installing this unit.

P/N 21154401 01/04 4
PARTS LIST (See Hardware Identifier)
Item Qty. Part No. Description
1 2 900033 Back Bracket
2 2 203796 T-Bolt, 3/8-16 x 5
3 2 200318 Bracket
4 2 203472 Spring
5 2 201651 Spacer, .50 I.D. x .25 Long
6 2 206303 Washer, 1/4" Flat
7 8* 203113 Bolt, Hex-Flange 5/16-18 x 2.5
8 21 203100 Nut, Hex-Flange 5/16-18 whiz Lock
9 48 201219 Clip, Smart Clips
10 1 990062 Pole, 3-1/2"
11 1 904847 Pole, Display, 3" O.D. x 43" Long
12 3 206987 Wedge
13 2 203798 Bolt, Hex 5/16-18 x 1.5" Long
14 1 900217 Pole, Display
15 2 201129 Spacer, 1-3/4" Long
16 2 203231 Bolt, Carriage, 5/16-18 x 3.5" Long
17 5 201124 Lock Nut, Hex Head, 3/8-16
18 1 240017 Bolt, Hex Head 1/4-20 x 2 1/4
19 1 201160 Pawl Lever
20 5 206304 Bolt, Hex Head 1/2-13 x 6 5/16
21 6 904808 Elevator Tube, Black
22 2 203470 Washer, Flat, Slam Jam
23 2 900846 Board Bracket, Black
24 5 206360 Bolt, Hex Head 3/8-16 x 2 5/8
25 2 203103 Carriage Bolt
26 1 204803 Screw Phillips Head
27 5 206244 Bolt, Hex Head 1/2-13 x 8" Long
28 1 201159 Ratchet
29 2 904820 Elevator Tube, Black, Long
30 4 203232 Washer, Flat
31 1 206305 PIN,CLEVIS
32 1 901097 Extension Arm
33 12 203309 Washer 1” O.D.
34 4 200516 Cover, Bolt End
Item Qty. Part No. Description
35 2 203795 Nut, Slam Jam
36 1 201125 Spring, Rathet return
37 2 900103 Bracket, Backboard Support
38 2 200874 Spacer, Steel .402 I.D.x.50 O.D.x1.5 Long
39 6* 205528 Bolt, Hex Flange, 5/16-18 x 1 Long
40 4 201642 Spacer .530 I.D. x.63 O.D. x .875 Long
41 2 206219 Pole Cap
42 10 206340 Lock Nut, Hex Head, 1/2-13
43 1 202814 Cap, Pole Top
44 3 203038 Bolt, Carriage 5/16-18 X 2-3/4
45 1 204855 Handle, Left
46 1 204856 Handle, Right
47 1 904833 Height Adjustment Rod
48 1 204872 Label, Height Indicator
49 1 204832 Bracket, Pole Mount
50 1 900060 Pole, Display
51 2 204857 Spacer, Metal 1/2” O.D.x1.44 Long
52 2 204858 Spacer, Biscuit, Plastic
53 1 900253 Backboard Mounting Bracket
54 2 204859 Cover, Pin Slide
55 1 204850 Pin, Locking
56 4 204290 Net
57 1 204853 Lanyard, Black
58 4 900235 Rim
59 6 201683 Spacer,1.5" Long
60 1 203084 Bolt, Carriage, 5/16-18 x 1.75"
61 1 902319 Rim Bracket
62 3 201344 Plastic Knob
63 2 203231 Bolt, Carriage, 5/16-18 x 3.5" Long
64 1 203493 Lockut,Hex,1/4-20
65 4 201611 Nut, Hex-Flange 5/16 x 3" Long
66 1 207103 Pole Cap, 3-1/2"
67 2 201682 Spacer, Plastic, 1.88" Long
Item #26 (1)
Item #35 (2)
HARDWARE IDENTIFIER (NUTS & SCREWS)
HARDWARE IDENTIFIER (STEEL SPACERS)
Item #15 (2)
Item #42 (10)
Item #8 (21) Item #17 (5)
Item #64 (1)
Item #38 (2)

5P/N 21154401 01/04
Item #33 (12) Item #30 (4)
Item #40 (4)
HARDWARE IDENTIFIER (BOLTS & SCREWS)
Item #67 (2)
PLASTIC SPACERS
Item #7 (10)
Item #4 (2)
Item #22 (2)
Item #13 (2)
Item #27 (5)
Item #18 (1)
Item #59 (6)
Item #65 (4)
Item #2 (2)
HARDWARE IDENTIFIER (SPRINGS & WASHERS)
Item #63 (2)
Item #20 (5)
Item #39 (6)*
Item #24 (5) Item #25 (2)
Item #16 (2)

P/N 21154401 01/04 6
Install display boards in the marked locations. Each mounting location consists of a mounting pole
stub with the following dimensions: Height = 8”, O.D. = 3 3/8”, I.D. = 3 1/8” (arrows indicate direction
the board is facing).
Corner “2”
73256
Corner “4”
80602 Corner “3”
61259
Corner “1”
9H235A
Display boards will be mounted as follows:
Corner Location 1: 9H235A
•48” SFA Board
•Titanium II Logo
•Black Slam Jam Goal with Cover
•Exacta- Height Elevator System (use existing elevator system)
Corner Location 2: 73256
•48” Fan Recycled Board
•Viper Logo
•Black Slam Jam Goal
•Ratchet Elevator System
Corner Location 3: 61259
•44” Fan Recycled Board
•Evolution Logo
•Black Standard Goal
•No Tools, E3 Elevator System
Corner Location 4: 80602
•44” Fan Recycled Board
•Zone Attack Logo
•Black Standard Goal
•Extension Arm (use existing extension arm assembly)
Display Stand - Top View
3-1/2" 3"
3" 3"

7P/N 21154401 01/04
At corner locations 1, 2, and 3 install the display pole to the mounting pole stub. If required,
secure the display pole by sliding the display wedge (12) into position as shown. To lock the
display pole in place, tighten the set screw (13 or 39).
At corner location 4 slide the display pole (14) (3 1/2” diameter) over the mounting pole stubs.
12: QTY 3 39: QTY 1
13: QTY 2
10
1.
2.

P/N 21154401 01/04 8
8
11
49
16
1. 2.
17
30
24
52
51
49
30
3.
49
8
55
54
54
57
44
57
55
4.
48
846
45
26
47
25

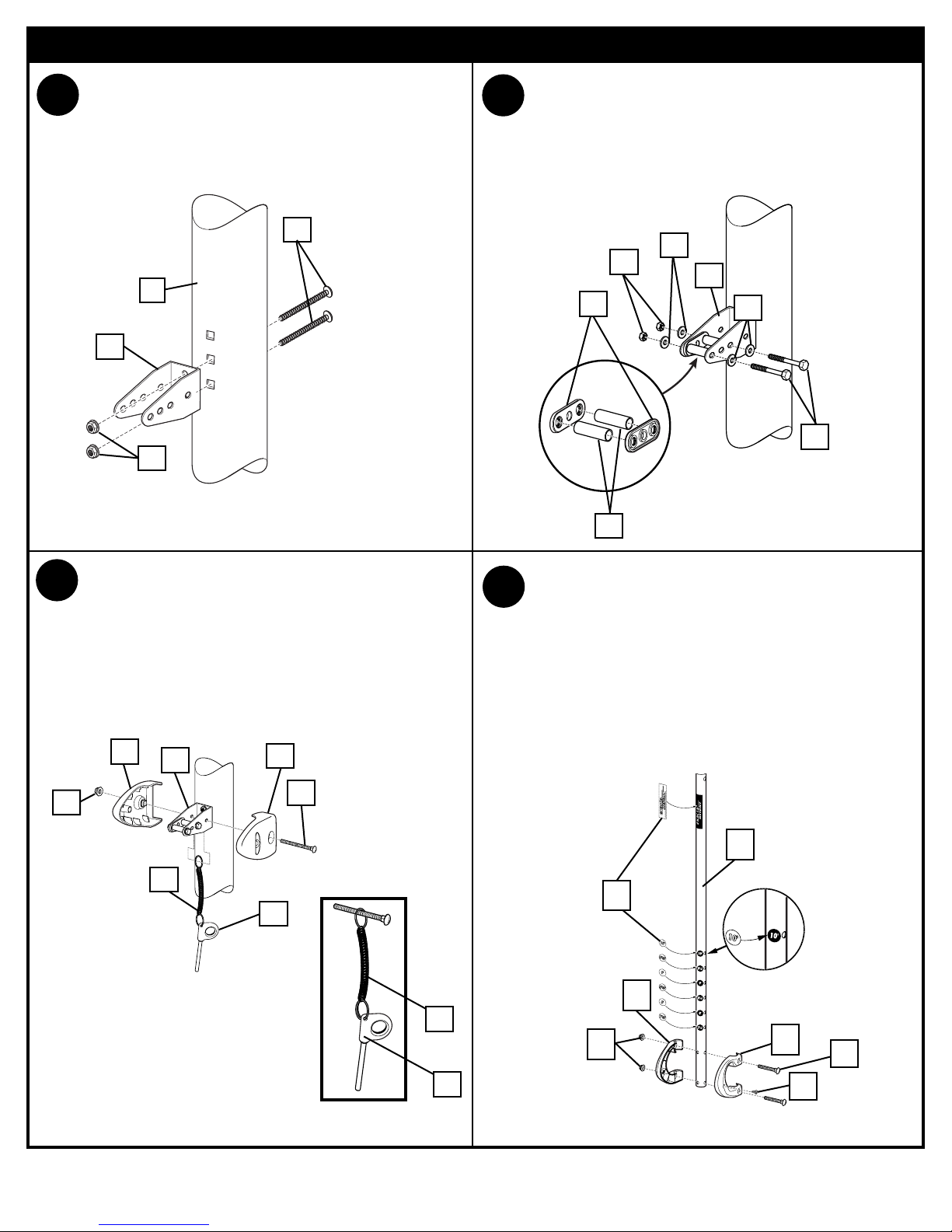

Install pole mount bracket (49) with carriage
bolts (16) as shown.
Tighten flange nuts (8) completely.
Attach spacers (51, 52) to pole mount
bracket (49) with bolts (24), washers (30),
and nuts (17) as shown. IMPORTANT!
Tighten until washers (30) no longer
move.
Attach covers (54) onto pole mount bracket
(49) with carriage bolt (44) and nut (8) as
shown. IMPORTANT! Loop end of pin
lanyard (57) over carriage bolt (44) during
this assembly. NOTE: Assemble lanyard
(57) to locking pin (55) as shown.
Apply logo and height indicator labels (48) to
adjustment rod (47) as shown.
Attach handle parts (45, 46) to adjustment
rod (47) with screw (26), carriage bolts (25),
and flange nuts (8) as shown. NOTE: Holes
in adjustment rod allow for either rear access
or side access.
ELEVATOR ASSEMBLY - Corner Location 1

9P/N 21154401 01/04
STEEL FRAME ACRYLIC BACKBOARD ASSEMBLY - Corner Location 1
37
5.
38
38
24
24
17
17
Attach backboard support brackets (37) to the
backboard frame using bolts (24), spacers (38),
and nuts (17) as shown.
29
29
39
39
59
37 42
Refer To
Instructions
Included With Rim
Hardware For Rim
Assembly.
8
8
6.
59
27
Attach lower elevator tubes (29) to backboard support brackets (37) using spacers (59), bolt (27),
and nut (42) as shown. NOTE: Rim mounting nuts (8) and bolts (39) supplied with rim hardware.
2

P/N 21154401 01/04 10
7.
21
21
27
59
37
42
59
Attach upper elevator tubes (21) to backboard support brackets (37) using spacers (59), bolt
(27), and nut (42) as shown.
8. Attach backboard assembly to pole section (11). Install pole cap (43).
42
21
43
21
29
29
27
27
USE CAUTION; ELEVATOR
ASSEMBLY IS HEAVY.
TWO PEOPLE REQUIRED FOR
THIS PROCEDURE. FAILURE TO
FOLLOW THIS WARNING COULD
RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
WARNING!
11

11 P/N 21154401 01/04
10.
9. Insert handle assembly through pole
mount assembly as shown. Lock pole
assembly in place at the 10’ (3.05m)
mark with pin (55).
Attach adjustment rod (47) to lower elevator
tubes (29) using bolt (27) spacer (59) and nut
(42) as shown.
42
27
29
29
67
67
47
55

P/N 21154401 01/04 12
3
35
22
4
58
1
2
• Fit rim (58) securely into bracket (1) as shown.
• Install reinforcement bracket (3) onto “T” bolt (2) as shown.
• Install spring (4) onto “T” bolt (2) as shown.
• Install special nut (35) and washer (22) onto “T” bolt (2).
12.
Tighten nut (35) until
flush with end of "T" bolt
(2) as shown here.
NOTE:

13 P/N 21154401 01/04
44” FAN MOLDED PLASTIC BOARD ASSEMBLY - Corner Location 2
Correctly identify each pole section.
ONLY THE TOP POLE SECTION (14) IS USED IN THIS ASSEMBLY.
1.
BOTTOM POLE 43”
MIDDLE POLE 43”
TOP POLE 31”
14
Fit spacer (15) into pawl (19). Then continue to assemble as shown. Tighten completely.
2.
15
15
18
24
23 64
19
21
Elevator tube
Toward
Pole
Toward
Board
Identify elevator tubes (21).
3.
17

P/N 21154401 01/04 14
Assemble elevator tubes (21) to ratchet (28) and backboard brackets (23) using bolts (20),
spacers (5, & 40), and nuts (42) as shown. Tighten completely.
5.Secure pawl (19) in place with clevis
pin (31) and washers (6) as shown. 6.Hook one end of the spring (36) into hole of
clevis pin (31). Stretch spring (36) and hook
it into the notch of the bracket with pliers.
23 40
21
40
20
20
5
5
28
21
19
42
42
4.
6
31
6
19
21
23
36
21
LEVER
BROOM
HANDLE
It is necessary for
all parts to be
installed properly
for this mechanism
to work safely and
properly.
IMPORTANT!:
USE EYE PROTECTION
WHEN INSTALLING
SPRINGS.
WARNING!

15 P/N 21154401 01/04
7. Insert “T” bolt (2) through Slam Jam bracket (1) as shown.
Secure Slam Jam bracket (1) and backboard bracket (23) assemblies to backboard. Bend
upper halves of backboard brackets (23) to line up with holes in backboard and secure
with bolts (44 & 7) and nuts (8).
Tighten completely.
8.
23
8
1
8
7
2
21
42
40
21
21
2121
40
20
Attach upper elevator tubes (21) to backboard brackets (23) using spacers (40) bolt (20)
and nut (42) as shown.
44
23
TWO PEOPLE REQUIRED
FOR THIS PROCEDURE.
FAILURE TO FOLLOW THIS
WARNING COULD RESULT
IN SERIOUS INJURY AND/OR
PROPERTY DAMAGE.
WARNING!
2

P/N 21154401 01/04 16
20
20
41
9. Attach upper and lower elevator tubes (21) to top pole section (14) using bolts (20) and
nuts (42) as shown. Attach pole cap (41) as shown.
42
21
21
21 21
• Fit rim (58) securely into bracket (1) as shown.
• Install reinforcement bracket (3) onto “T” bolt (2) as shown.
• Install spring (4) onto “T” bolt (2) as shown.
• Install special nut (35) and washer (22) onto “T” bolt (2).
10.
3
35
22
4
58
1
2
Tighten nut (35) until
flush with end of "T" bolt
(2) as shown here.
NOTE:
TWO PEOPLE REQUIRED FOR
THIS PROCEDURE. FAILURE
TO FOLLOW THIS WARNING
COULD RESULT IN SERIOUS
INJURY AND/OR PROPERTY
DAMAGE.
WARNING!

17 P/N 21154401 01/04
Correctly identify each pole section.
Poles have an identification sticker
that will be used as a reference point
in the next step.
ONLY THE TOP POLE SECTION
(50) IS USED IN THIS ASSEMBLY.
FAN MOLDED PLASTIC BOARD ASSEMBLY - Corner Location 3.
Pole bracket will need to be lightly pressed into
backboard ribbing. Be sure to press completely into
place. Attach rim(58) to backboard and pole bracket
(53) with knob (62), reinforcement bracket (61), and
carriage bolt (60) as shown. Tighten knob
completely.
PRESS BRACKET (20)
INTO PLACE HERE
60
62
61
53
KNOB MUST BE TIGHTENED
COMPLETELY AND CHECKED
FOR TIGHTNESS BEFORE
EACH USE.
WARNING!
BOARD STYLE
MAY VARY
NOTE:
58
50
TOP
MIDDLE
BOTTOM
Attach board assembly to pole with carriage
bolts (63) and knobs (62) as shown. Install pole
cap (41) as shown.
62
63
41
1. 2.
3.
50

P/N 21154401 01/04 18
FAN BACKBOARD ASSEMBLY - Corner Location 4.
TWO PERSON MINIMUM
REQUIRED FOR THIS
PROCEDURE.
NOT FOLLOWING
RECOMMENDATION MAY
RESULT IN BODILY INJURY.
WARNING
Assemble fan backboard as shown below with a standard rim as shown.
33
32
33
8
65
7
33
1.
34
8
10
66

19 P/N 21154401 01/04

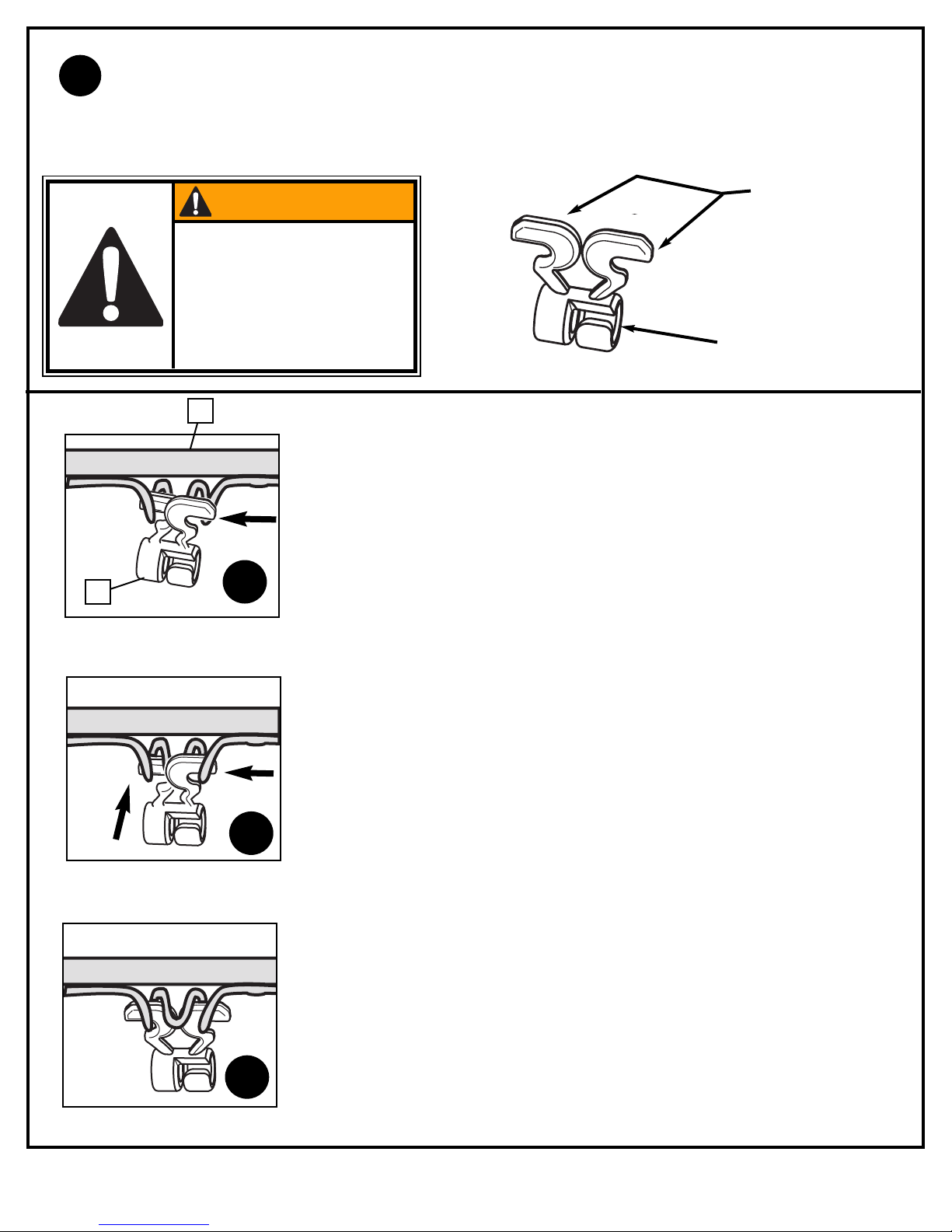

Install net clips.
CLIP “ARM”
CLIP “BODY”
Insert one “arm” of clip into ram as shown. Twist “body” of clip
slightly so that second “arm” slides over the top of the first “arm” as
shown.
Push in direction indicated by arrows.
Push second “arm” back and into ram as shown.
Twist “body” of clip slightly again to spread “arms” of clip.
Clip “arms” must be flat and touching edge to edge as shown, not
overlapping.
AA
BB
CC
11.
9
58
USE OF THIS PRODUCT
WITHOUT PROPER
INSTALLATION OF SMART
CLIPS®, OR WHEN ALL SMART
CLIPS®ARE NOT PRESENT
COULD RESULT IN BODILY
HARM. BE SURE TO FOLLOW
DIRECTIONS CAREFULLY.
WARNING!

P/N 21154401 01/04 20
Install net.
Insert net into bottom of clip as shown.
SIDE VIEW
Twist net until it snaps into position.
Net must be centered through clip.
NET
NETCLIP
SIDE VIEW
NET
NETCLIP
12. 58
56 9
